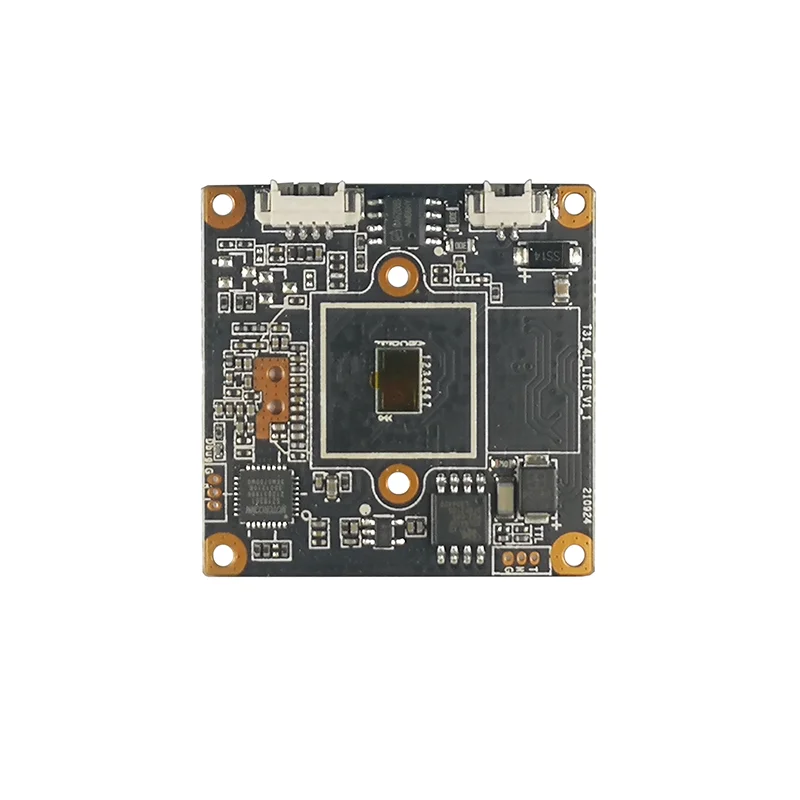

Wholesale T31N 1080p 3MP 4MP IP CCTV Camera PCB Module Hi silicon Replacement PCBA Board
- Category: >>>
- Supplier: Shenzhen Viewbest Technology Co. Ltd.
Share on (1600566801038):
Product Overview
Description
Manufacturer New Solution Hi-silicon Replacement 1080p IP Board CCTV Camera PCB Module
Product Description
Features:
The highest resolution can reach 3MP(2048x1536@20fps), 2MP(1920*1080@25fps)
----------------------------------------------------------------------------------------------------------------------------------
◆ Built-in humanoid detection algorithm, which is an independent system to complete the humanoid recognition independently
----------------------------------------------------------------------------------------------------------------------------------
◆ Humanoid detection frame rate 5FPS, simultaneous detection of 5 people
----------------------------------------------------------------------------------------------------------------------------------
◆ Low power consumption, low bit rate, low latency
----------------------------------------------------------------------------------------------------------------------------------
◆ H.265 high-efficiency compression, saving bandwidth and storage space
----------------------------------------------------------------------------------------------------------------------------------
◆ Support Smart IR to prevent infrared overexposure at night
---------------------------------------------------------------------------------------------------------------------------------
◆ ICR infrared filter type automatic switching, realizing real day and night monitoring
---------------------------------------------------------------------------------------------------------------------------------
◆ Support POE power supply function (optional)
----------------------------------------------------------------------------------------------------------------------------------
◆ Support 3D digital noise reduction, support digital wide dynamic
----------------------------------------------------------------------------------------------------------------------------------
◆ Support automatic electronic shutter function, adapt to different monitoring environments
----------------------------------------------------------------------------------------------------------------------------------
◆ Support two-way voice pair
----------------------------------------------------------------------------------------------------------------------------------
◆ Support standard Onvif access, support Email, NTP service
----------------------------------------------------------------------------------------------------------------------------------
◆ Support HTTPS encrypted transmission
----------------------------------------------------------------------------------------------------------------------------------
◆The initial device is turned on to change the password to ensure the security of the password
----------------------------------------------------------------------------------------------------------------------------------
◆ Built-in humanoid detection algorithm, which is an independent system to complete the humanoid recognition independently
----------------------------------------------------------------------------------------------------------------------------------
◆ Humanoid detection frame rate 5FPS, simultaneous detection of 5 people
----------------------------------------------------------------------------------------------------------------------------------
◆ Low power consumption, low bit rate, low latency
----------------------------------------------------------------------------------------------------------------------------------
◆ H.265 high-efficiency compression, saving bandwidth and storage space
----------------------------------------------------------------------------------------------------------------------------------
◆ Support Smart IR to prevent infrared overexposure at night
---------------------------------------------------------------------------------------------------------------------------------
◆ ICR infrared filter type automatic switching, realizing real day and night monitoring
---------------------------------------------------------------------------------------------------------------------------------
◆ Support POE power supply function (optional)
----------------------------------------------------------------------------------------------------------------------------------
◆ Support 3D digital noise reduction, support digital wide dynamic
----------------------------------------------------------------------------------------------------------------------------------
◆ Support automatic electronic shutter function, adapt to different monitoring environments
----------------------------------------------------------------------------------------------------------------------------------
◆ Support two-way voice pair
----------------------------------------------------------------------------------------------------------------------------------
◆ Support standard Onvif access, support Email, NTP service
----------------------------------------------------------------------------------------------------------------------------------
◆ Support HTTPS encrypted transmission
----------------------------------------------------------------------------------------------------------------------------------
◆The initial device is turned on to change the password to ensure the security of the password
Parameters：
Master chip | T31N |
Image sensor | 1/2.9", 3 million pixel progressive scan ultra-low illumination GC2063 CMOS |
Lens | Fixed focus, manual focus lens |
Day and night conversion mode | ICR switch, automatic/color/black and white/external trigger |
Digital wide dynamic | Digital wide dynamic (off/low/medium/high) |
Light board control | Auto/Manual/Close |
3D noise reduction | Off/low/medium/high/high |
Dehaze | Off/low/medium/high |
Mirroring | Off/Horizontal mirroring/Vertical mirroring/180°rotation |
Image settings | Brightness, contrast, sharpness, saturation, chroma |
Humanoid detection | |
Number of humanoid detections | Can detect ≤5 humanoid targets at the same time |
Detect humanoid size | Humanoid pixels≥40X40 |
Humanoid detection rate | ≥99% (reach the above conditions) |
Snapshot response speed | ≤1s |
Maximum detection frame rate | 5fps/s |
False detection rate | ≤2% |
Detection site | People in any posture, including half-length, head, and hands |
Personnel tracking | support |
Detection form | Support static humanoid detection and dynamic humanoid detection |
Detection method | Support visible light image detection, support near infrared image detection |
Detection area | Support designated area, full screen by default |
Upload method | Private protocol upload |
Trigger method | Video trigger |
Audio and video coding | |
Video coding standard | H.265/H.264 |
Coding characteristics | Main stream: 3MP 2048x1536@20fps, 2MP 1920x1080@25fps |
Sub stream: D1(720*576), VGA(640*360) | |
Maximum image resolution | 3MP(2048x1536) |
Video bitrate | Fixed bit rate, variable bit rate (main stream: 160Kbps-4000kbps) |
Video type | Composite stream/video stream |
Audio coding standard | G.711u / 64Kbps |
Internet function | |
Network protocol | TCP/IP，UDP，HTTP，HTTPS，DHCP，RTSP，DDNS，NTP，PPPOE，UPNP，SMTP |
Interface Protocol | ONVIF, GB28181 (optional) |
Safe mode | Authorized user name and password, HTTPS encryption, AES connection encryption, RTSP authentication |
Motion Detection | Set detection area, multi-level sensitivity can be set |
Block alarm | Support 1 regional setting |
Privacy masking | Support 4 area blocking blocks |
Event linkage | Snapshot, send email |
Equipment anomaly detection | Support network disconnection, IP conflict, illegal access alarm |
Character Overlay (OSD) | Title, time and date superimposed, multi-line OSD, OSD color optional |
interface | |
Network Interface | RJ45 10M/100M network adaptive |
Audio | MIC line input/line output |
conventional | |
power supply | DC12V /POE optional (POE optional) |
Equipment size | 38*38mm |
Operating temperature | -10°C ~ 50°C |
Working humidity | 0﹪~90﹪ |
Hot Products
Packing & Delivery
Neutral package,
Color box,
OEM design box
Color box,
OEM design box
Company Profile
Shenzhen Viewbest Tech Co., Ltd. was established in 2000. We are a professional manufacture of CCTV cameras. Our products are widely used in banks, electronic departments, traffic areas, police stations, schools, supermarkets, housing estates, enterprises and government institutions. We strive to provide our products with the highest quality to meet ever demanding customers' expectations. Our products have been successfully exported all over the world, such as Europe, America and Korea.
We sell CCTV cameras with our own brand of "ViewBest", but we always welcome you to place OEM/ODM orders. We are always looking forward to long-term and mutually beneficial business relationships, and we hope to grow up together with our customers.
We sell CCTV cameras with our own brand of "ViewBest", but we always welcome you to place OEM/ODM orders. We are always looking forward to long-term and mutually beneficial business relationships, and we hope to grow up together with our customers.
FAQ
Q: What is your MOQ?
A: Our MOQ is 1pcs for sample.
Q: What is your delivery time?
A: Sample will be delivered within 3 working days after receipt of full payment, mass order should be negotiatable .
Q: Do you have customized service?
A: Yes, Of course. We support OEM/ODM, And we accept proofing before the mass order.
Q: Are you factory?
A: Yes, we are 20 years cctv camera manufacturer, if you need a reliable partner，pls choose us.We will try our best to provide better product and service for you. For more information and discount, pls send inquiry to us directly.
A: Our MOQ is 1pcs for sample.
Q: What is your delivery time?
A: Sample will be delivered within 3 working days after receipt of full payment, mass order should be negotiatable .
Q: Do you have customized service?
A: Yes, Of course. We support OEM/ODM, And we accept proofing before the mass order.
Q: Are you factory?
A: Yes, we are 20 years cctv camera manufacturer, if you need a reliable partner，pls choose us.We will try our best to provide better product and service for you. For more information and discount, pls send inquiry to us directly.
