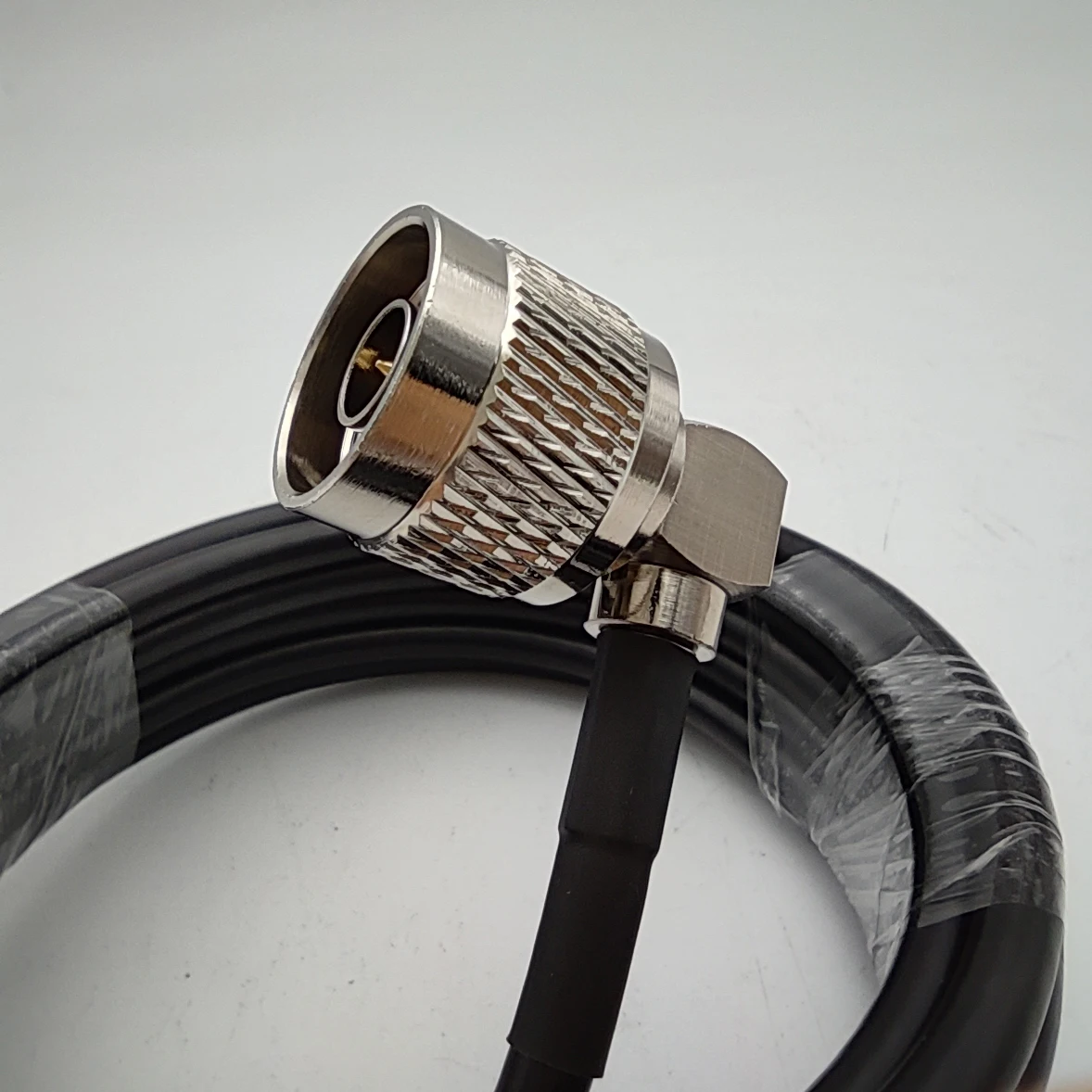

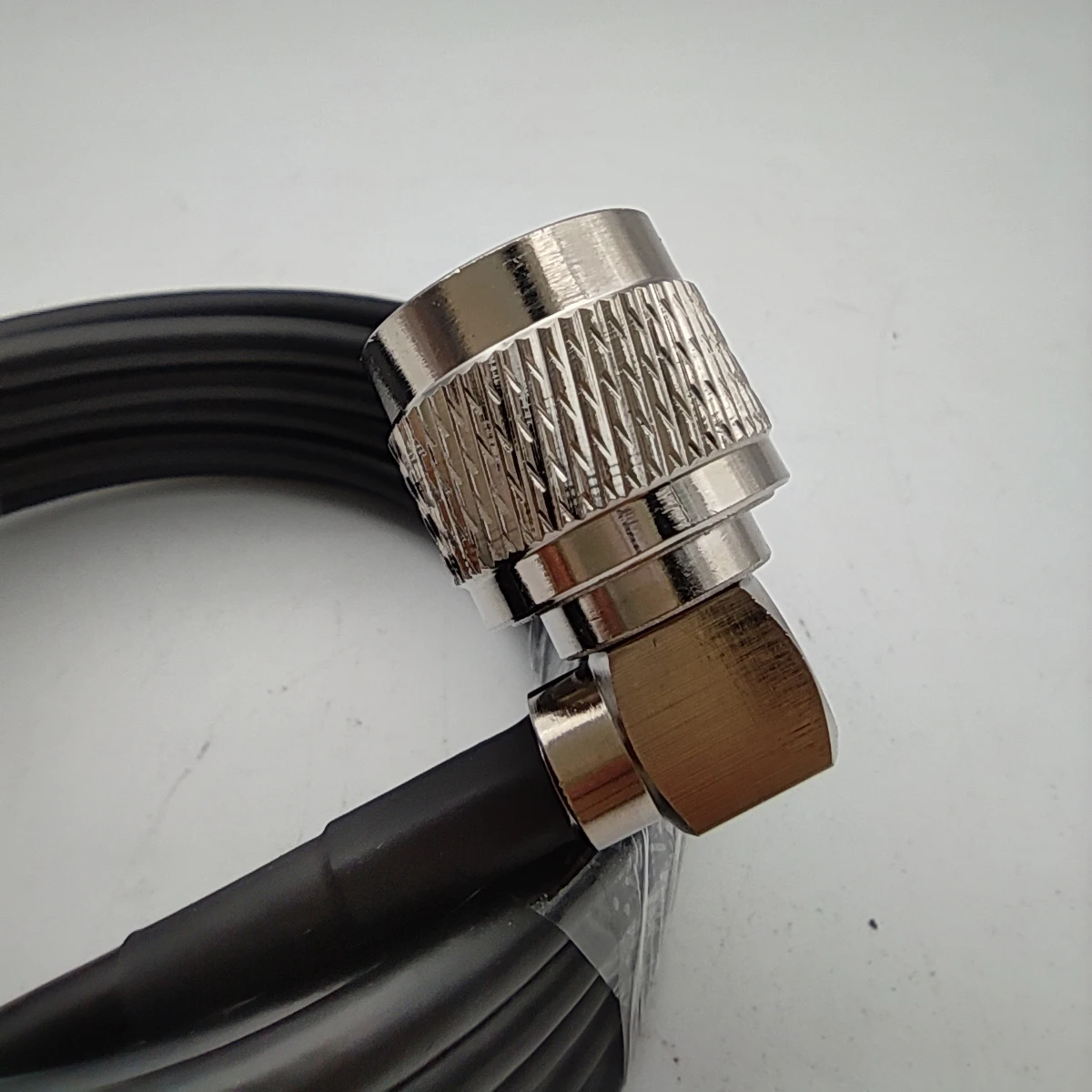

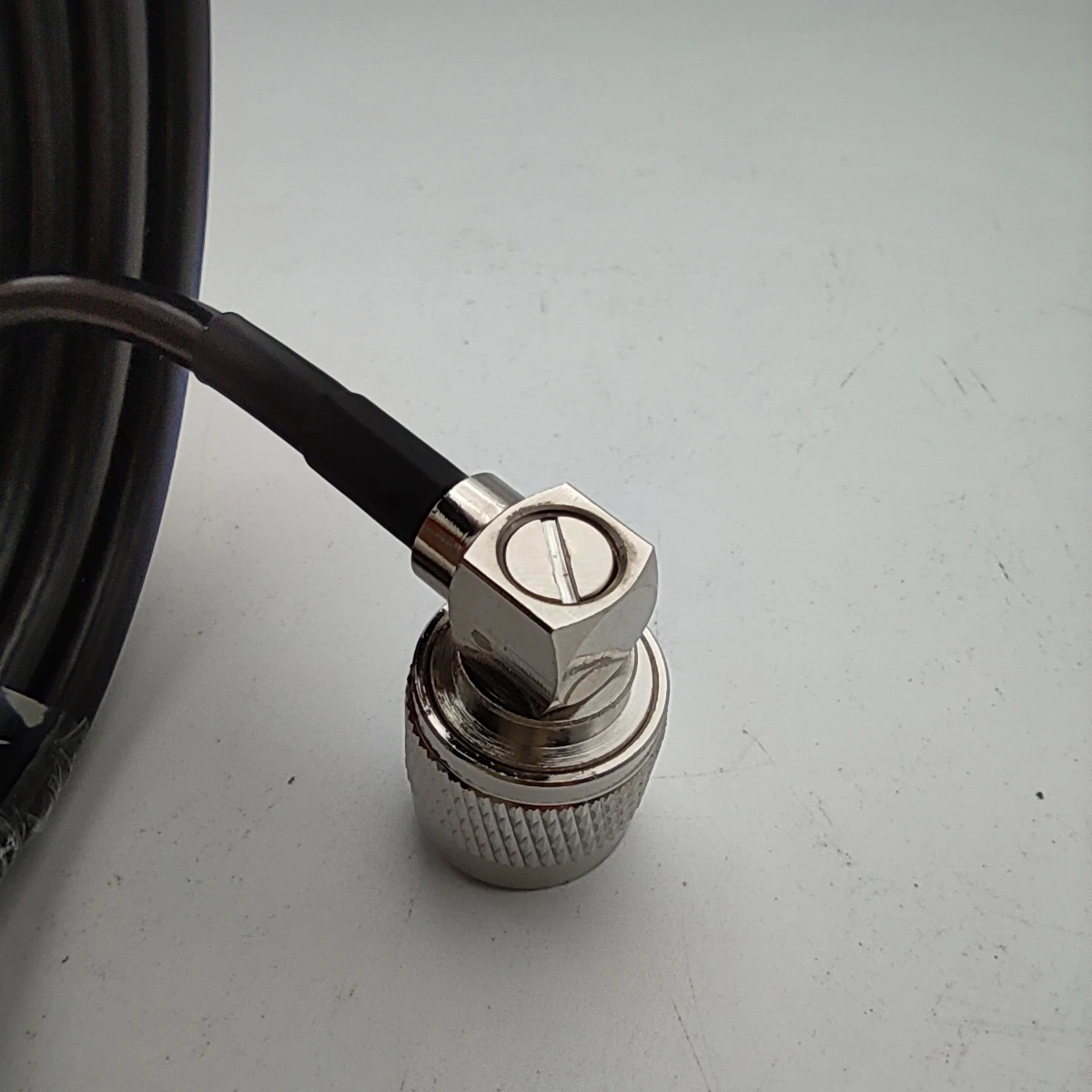

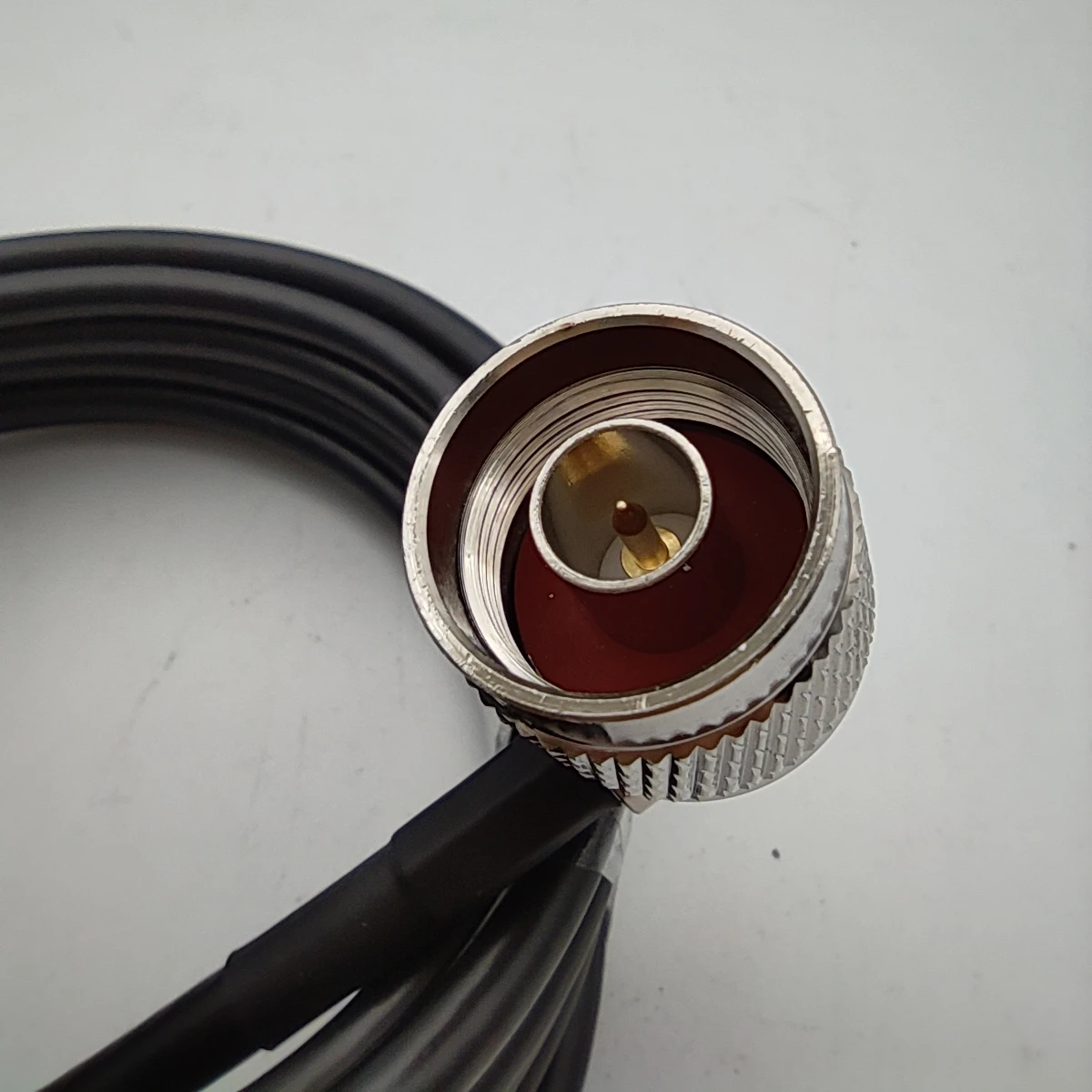

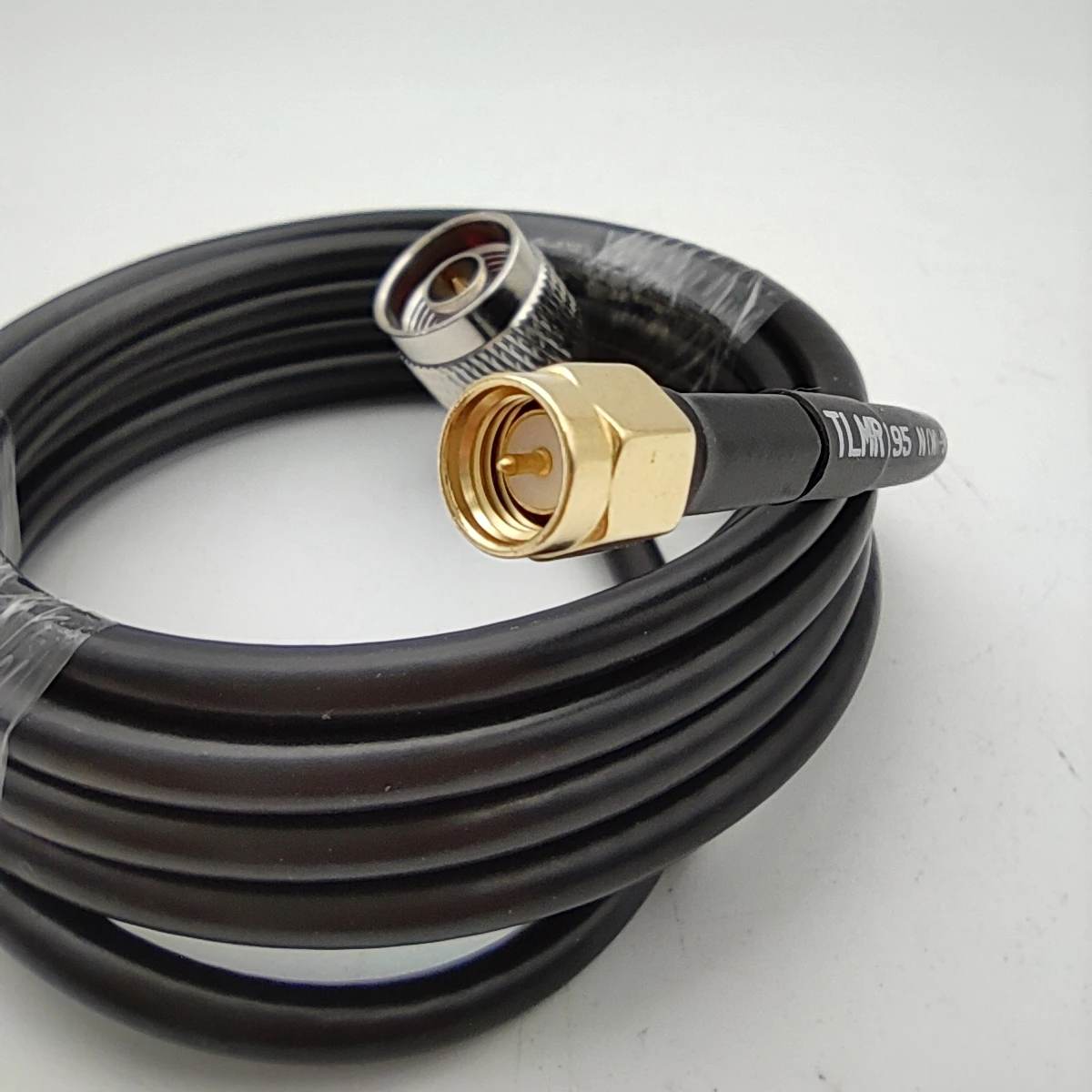

LMR195 rf coaxial cable with n bend male to SMA male connector
- Category: >>>
- Supplier: Shenzhen Tianjukeli Communication Cable Co. Ltd.
Share on (1600566801606):
Product Overview
Description
Product Paramenters

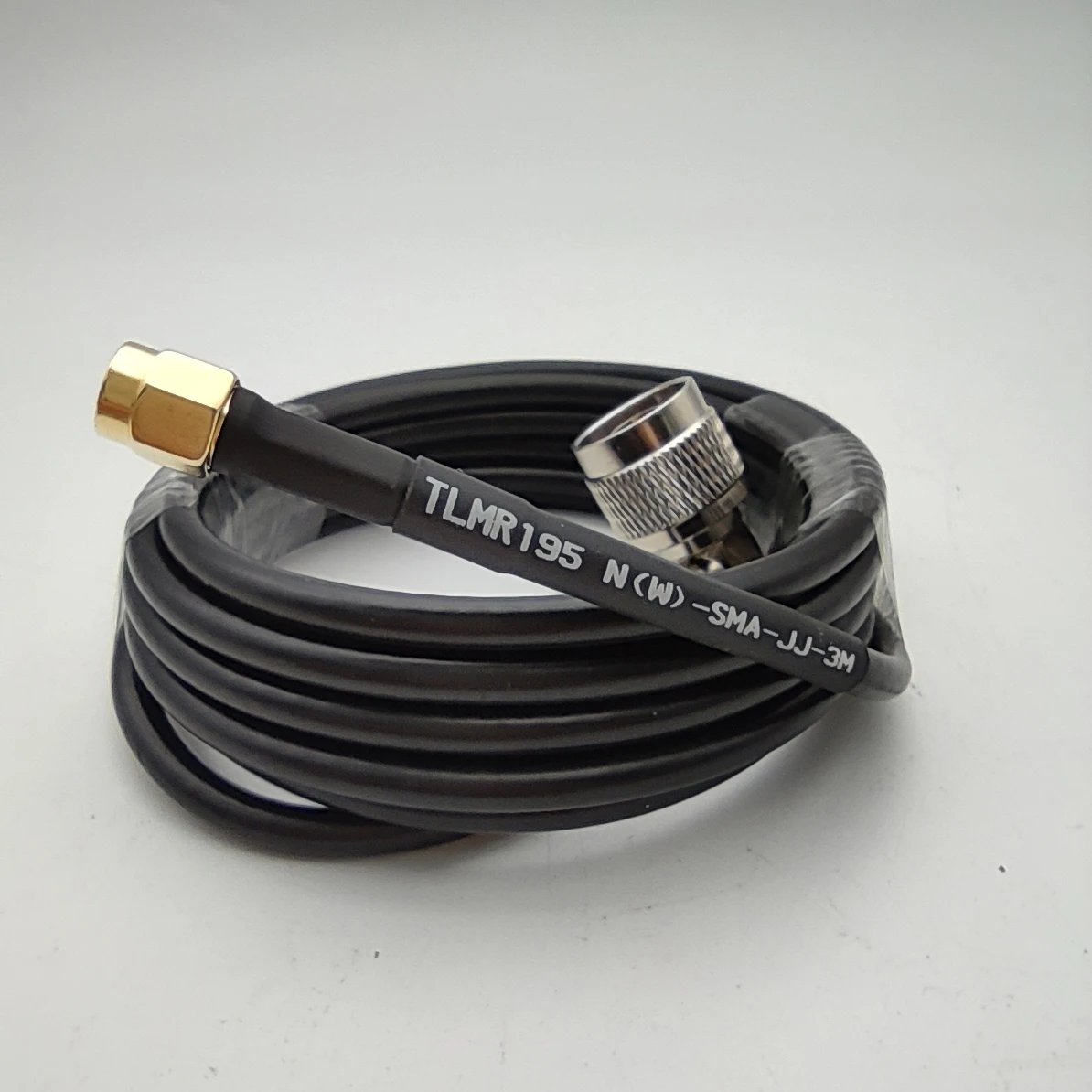

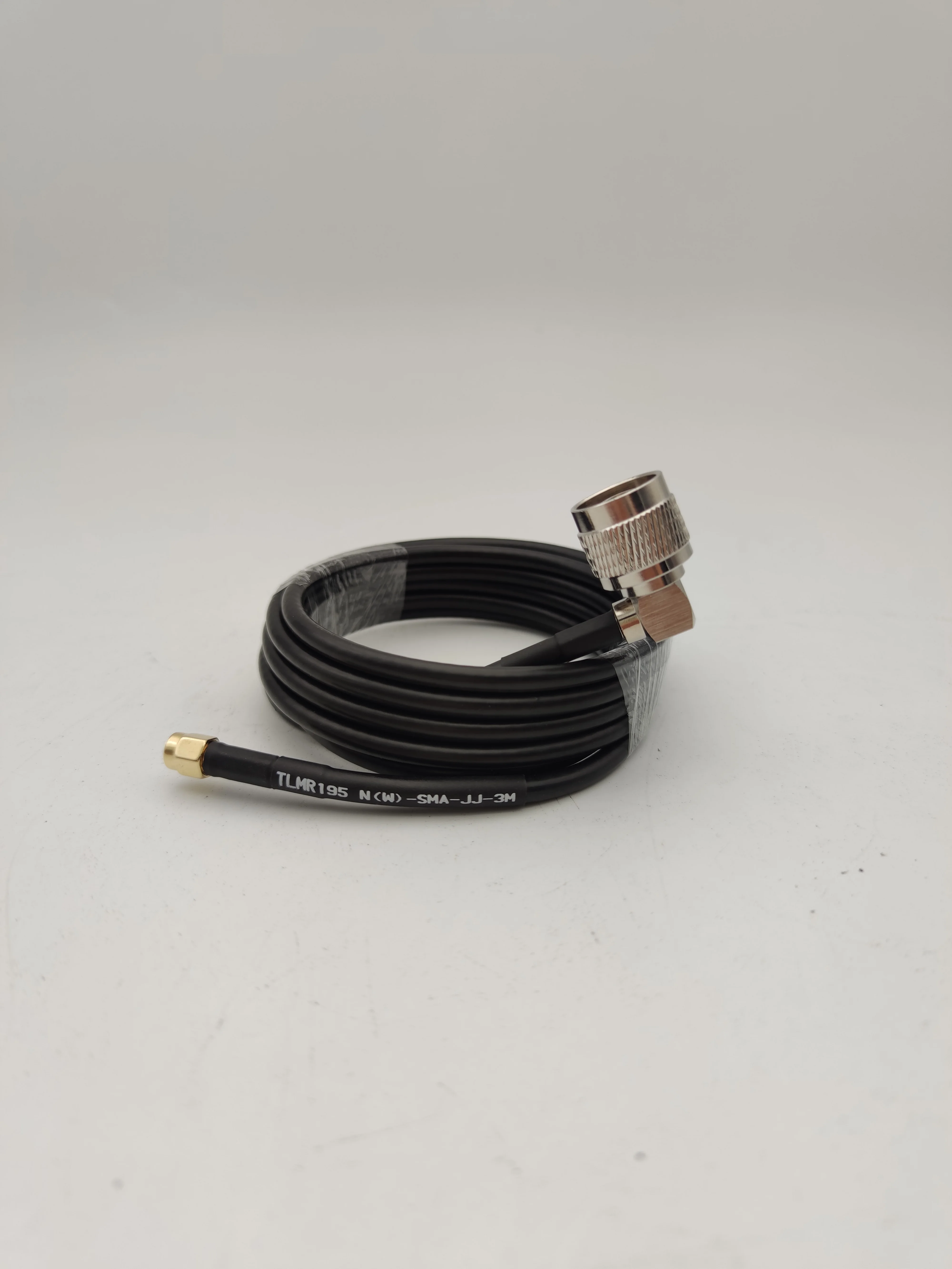

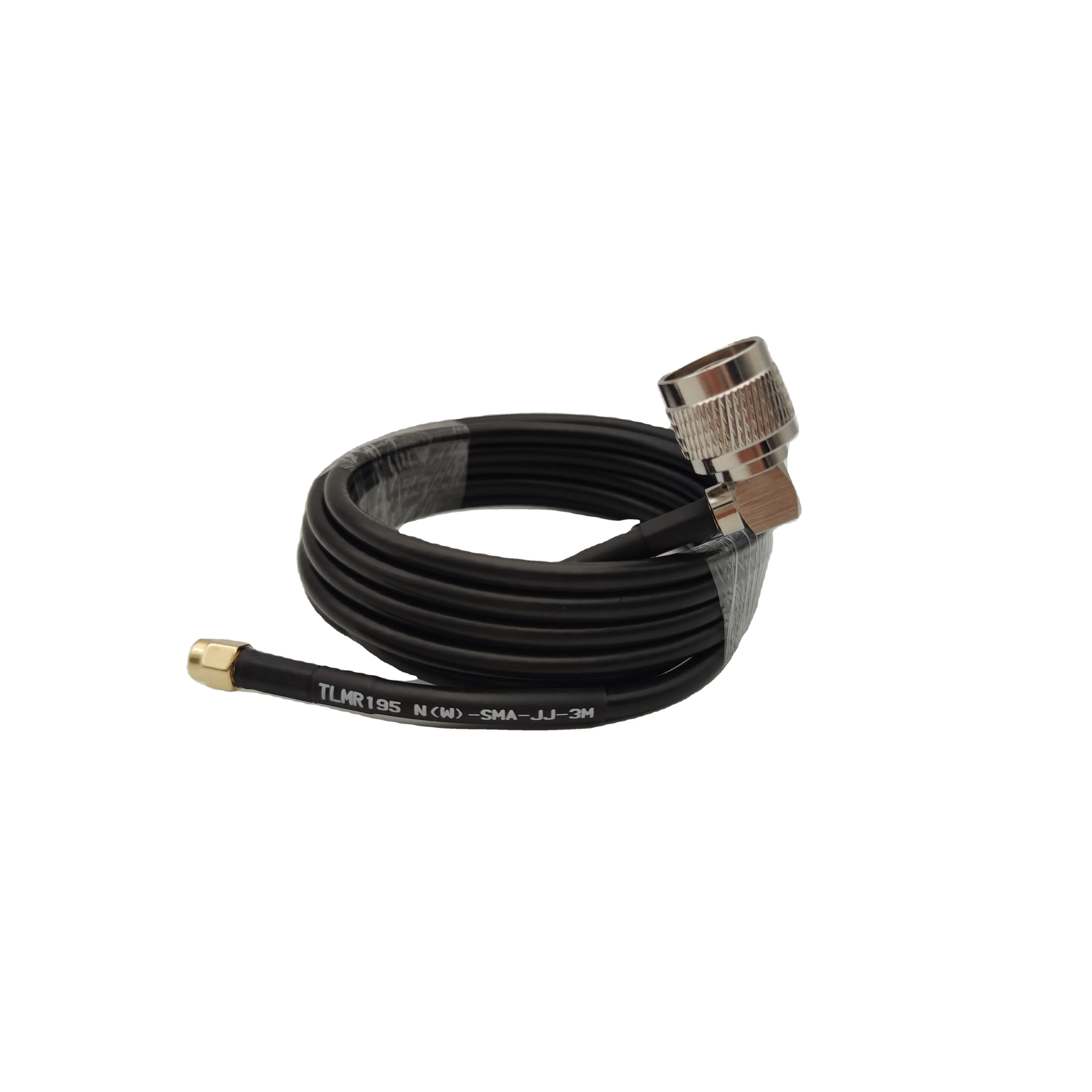

TLMR195 rf coaxial cable 3 meters, with n-bend male to SMA male connector | ||||
Mechanical Characteristics and Electrical Performance Parameters | ||||
1、 Impedance | 50±2Ω（Ohms） | |||
2、Capacitance | 83±2PF/M | |||
3、Velocity | 76% | |||
4、Peak Power | 2.5KW | |||
5、Jacket spark V.RMS | 3000V | |||
6、Inner Conductor Dc resistance | ≥24.86ohms/1000m | |||
7、Outer Conductor Dc resistance | ≥16.1ohms/1000m | |||
8、Cutoff Frequency（GHz） | 15G | |||
9、Operating Temperature ℃ | -40～+85℃ | |||
10、Minimum bending radius | 25mm | |||
11、Maximum drawing force | 38lb | |||
12、Product printing | TLMR 195 | |||
14、Screening attenuation（>dB） | 90 | |||
15、VSWR | DC～6GHz | ＜1.25 | ||
Decay(20℃, sea level test conditions) | ||||
frequency | Attenuation dB/100m | note | ||
100 | 10.62 | |||
400 | 21.6 | |||
900 | 32.93 | |||
1500 | 43.59 | |||
1800 | 47.95 | |||
2500 | 56.67 | |||
3000 | 62.54 | |||
5800 | 89.86 | |||
