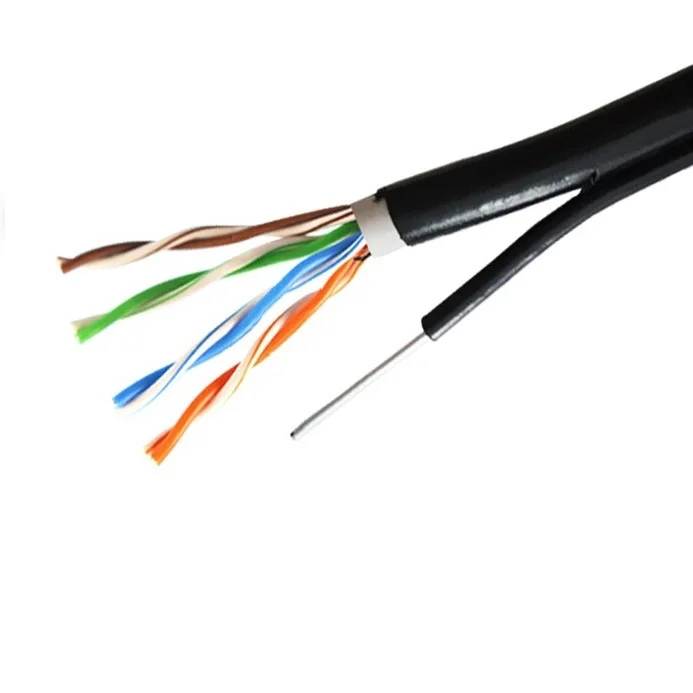

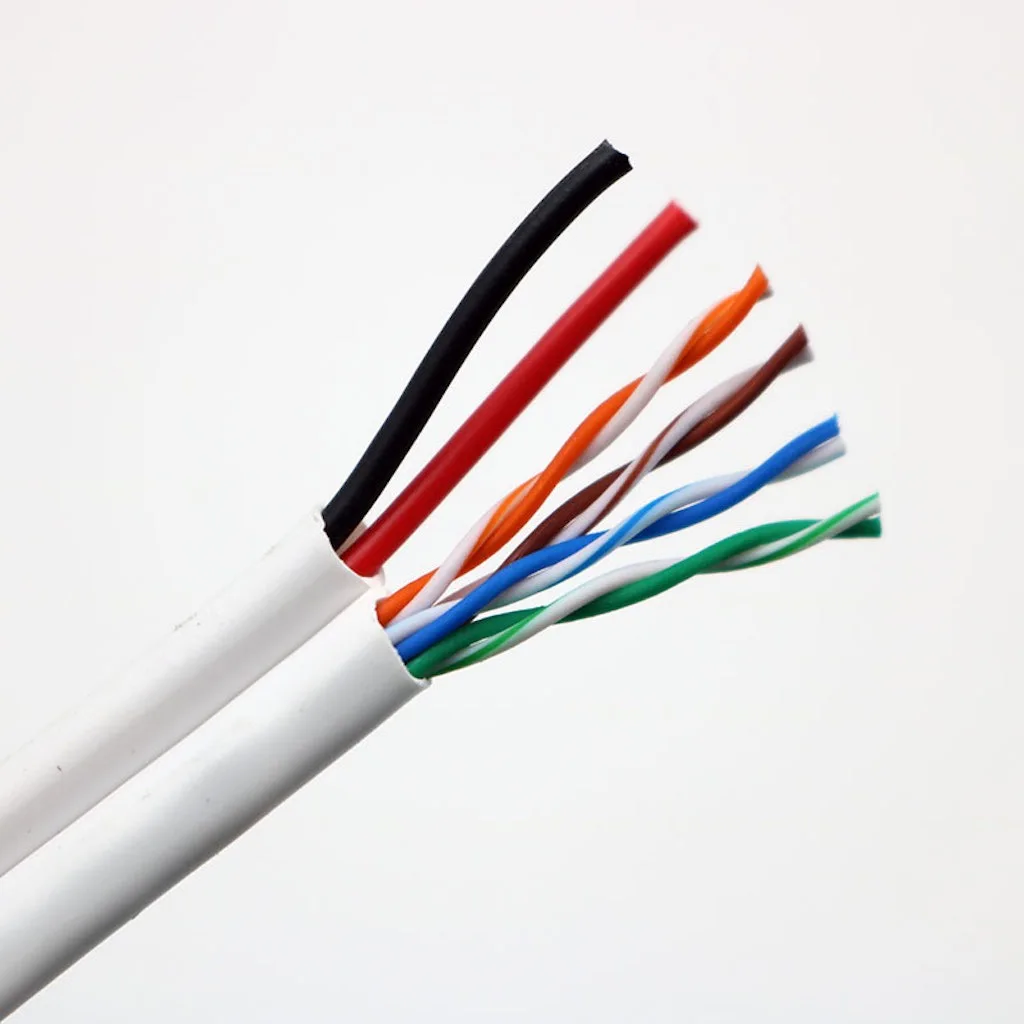

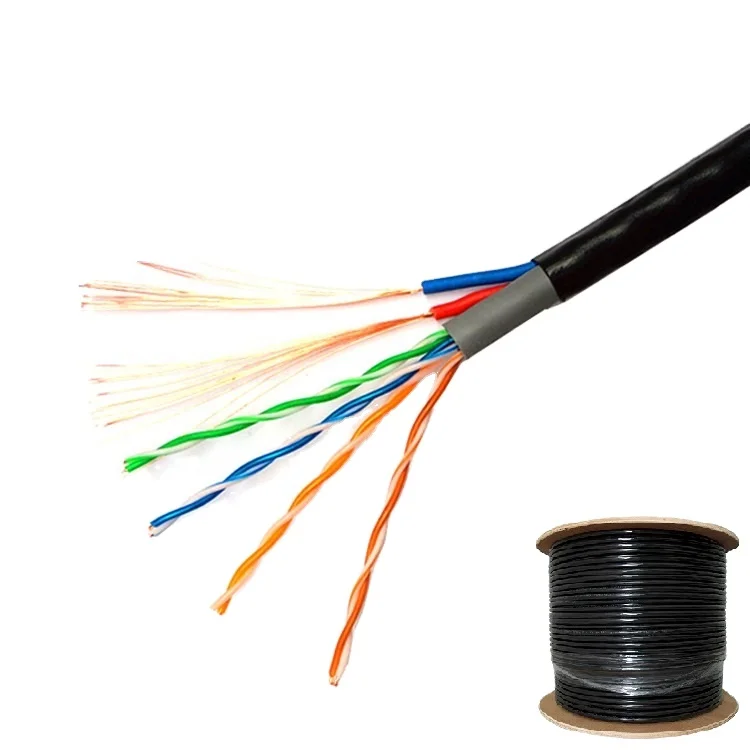

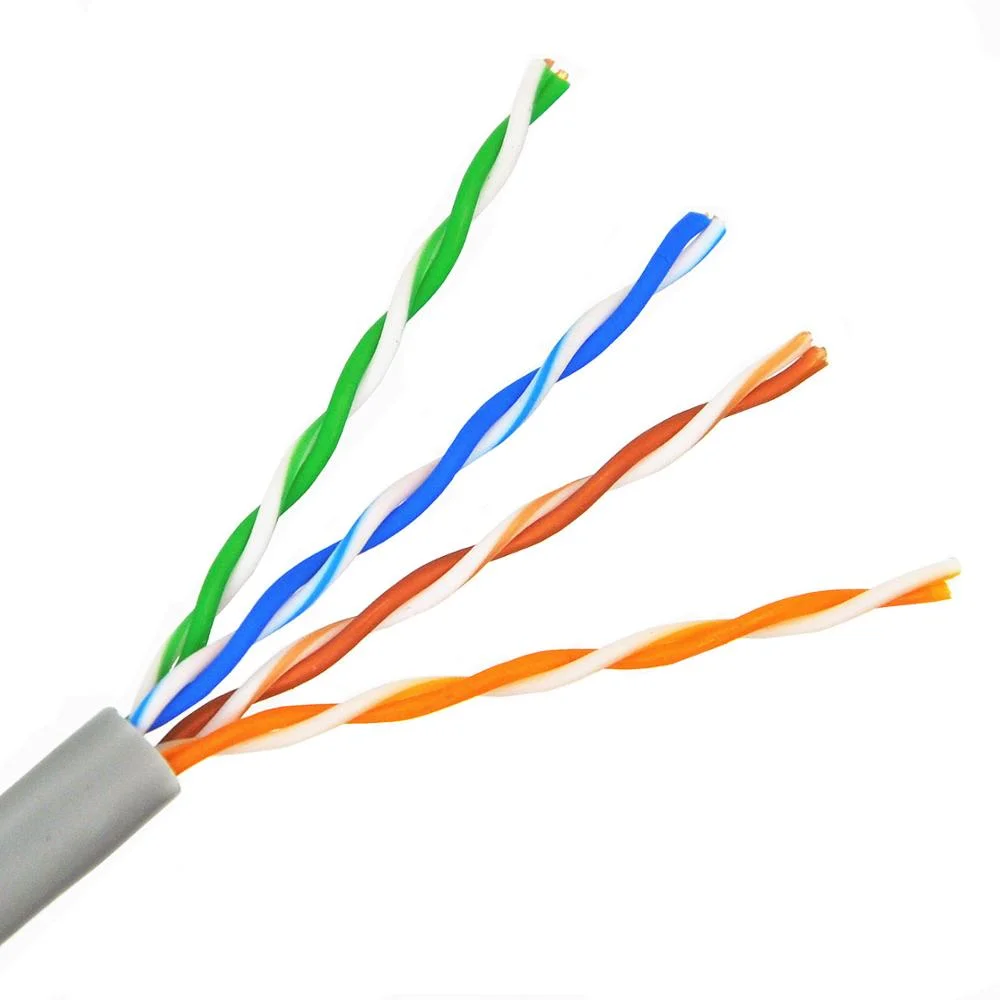

Network Cable with Power Figue 8 type UTP FTP Cat5e Cat6 2C Power Cable for CCTV Camera Cabling
Network Cable with Power Figue 8 type UTP FTP Cat5e Cat6 +2C Power Cable for CCTV Camera Cabling
Network Cable with Power Figue 8 type UTP FTP Cat5e Cat6 +2C Power Cable for CCTV Camera Cabling
Network Cable with Power Figue 8 type UTP FTP Cat5e Cat6 +2C Power Cable for CCTV Camera Cabling
Network Cable with Power Figue 8 type UTP FTP Cat5e Cat6 +2C Power Cable for CCTV Camera Cabling
Network Cable with Power Figue 8 type UTP FTP Cat5e Cat6 +2C Power Cable for CCTV Camera Cabling
Network Cable with Power Figue 8 type UTP FTP Cat5e Cat6 +2C Power Cable for CCTV Camera Cabling

Network Cable with Power Figue 8 type UTP FTP Cat5e Cat6 2C Power Cable for CCTV Camera Cabling

Share on (1600566803909):


Price:

Quantity:


Product Overview

Description



Specification


Product Name
UTP CAT5E with power
Conductor Material
BC/CCA
Insulation
PE
Jacket
PE/PVC/LSZH
Packing

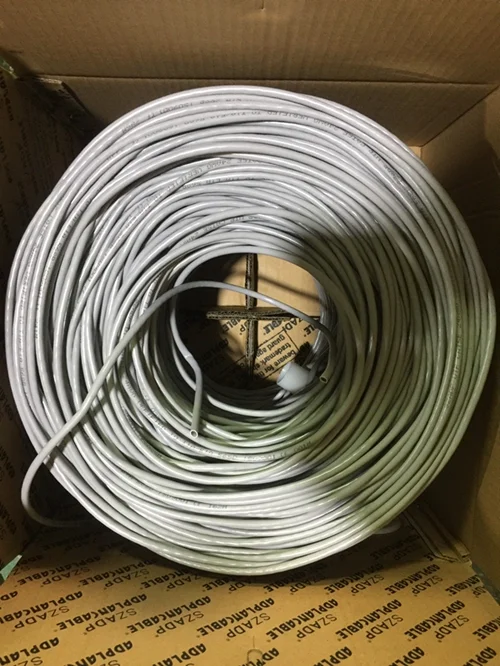

305m easy-pull box,500m drum or customized
Power cable
2x0.5mm2/2x0.75mm2


Best Price Figure 8 Type UTP Cat6 Cat5e Outdoor Lan Cable With Power Cable
1.Conductor:

material: solid Copper Clad Aluminum
diameter: 24AWG
construction 1/0.50±0.02mm

2.Insulator

material: HDPE
thickness: 0.24±0.05mm
diameter: 1.04±0.06mm
color: optional
elongation rate: Min.300%
tensile strength: Min.1.22kg/mm2

3.Jacket

material: PVC
thickness: average:0.50mm Min. at any point:0.40mm
diameter: 5.1±0.2mm
color: to your option
elongation rate: Min.125%
tensile strength: Min.1.41kg/mm2
flammability grade: CMX, CM

4. Rip cord& meter mark: optional

5. Standards: CE, ROHS, ISO 9001:2000, SGS verified

6. Application: 100 Base-TX, 100VG-AnyLAN, 1000 Base-T, 155Mbps ATM, 622Mbps ATM, Noisy Environment

7.Electrical function:
1. DC resistance ≤5.8 Ω/100m
2. Resistance imbalance≤2.5%
3. Insulation resistance≥5000MΩ.Km
5. Dielectric strength (DC)
Conductor-conductor 2.5KV/2s
Conductor-shield 6.3KV/2s
8.Working temperature: -50+50 -40+122
