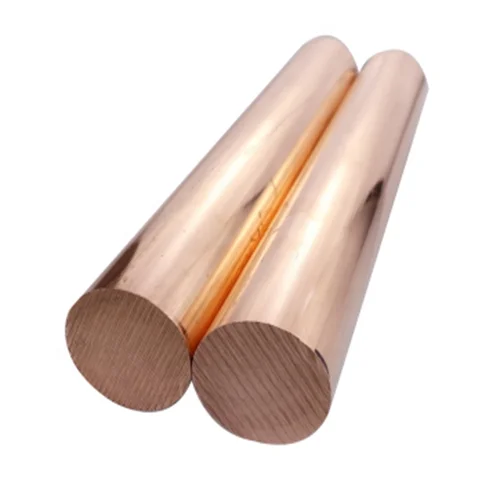

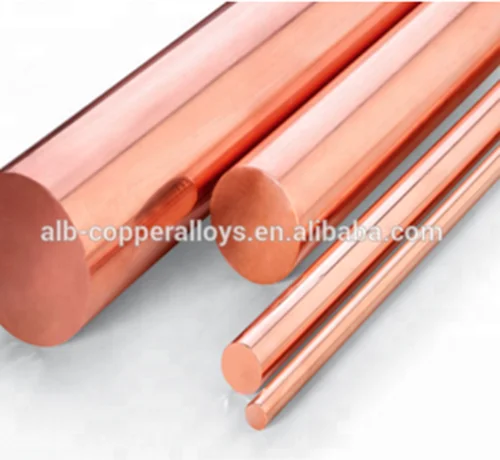

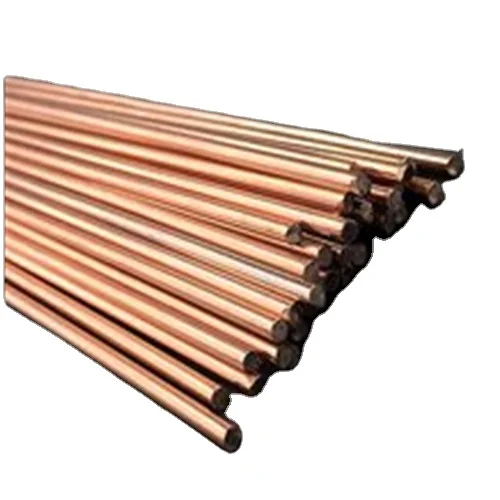

CuCr1Zr ram air turbines material Chromium Zirconium Copper C18150

Product Overview

Description



ALB-ALLOY is capable of producing the following grade of beryllium copper rod and bars, such as CuBe2-UNS.C17200 beryllium copper rods/ bars, CuBe2Pb-UNS.C17300 free cutting beryllium copper rods/bars, CuCo2Be-UNS.C17500 Cobalt Beryllium Copper Rods/Bars, CuNi2Be-UNS.C17510 Nickel Beryllium Copper Rods/ Bars, CuCo1Ni1Be Cobalt Nickel Beryllium Copper Rods/Bars, UNS.C15000,UNS.C18000,UNS.C18150,UNS.C18200 and the other forms: beryllium copper round bars, flat bars, square bars, hexagonal bars are also available in ALB-ALLOY.



CuCr1Zr – UNS.C18150 Chromium Zirconium Copper C18150 is an excellent and unique copper alloy with high electrical conductivity, hardness, and ductility, moderate strength, and excellent resistance to softening at elevated temperatures. The addition of 0.1% zirconium (Zr) and 1.0% chromium (Cr) to copper results in a heat treatable alloy which may be solution treated and subsequently aged to produce these desirable properties.  Rod is usually supplied from the mill in the fully aged and drawn condition so no further heat treatment is required by the fabricator.  The softening temperature of properly heat treated C18150 rod exceeds 500°C as compared to unalloyed pure copper which softens at 200°C, and silver bearing coppers which soften at 350°C.



Furthermore, many evidences shows that C18150 can provide less sticking and resisting deformation longer than its C18200 counterpart in some specific situatons.



Detailed Product Description

CuZr             UNS.C15000

CuNi2CrSi  UNS.C18000

CuCr1Zr      UNS.C18150

CuCr            UNS.C18200

Chemical Compositon



UNS/DIN	DIN/EN	International specification	Chemical composition	Avaliable forms
C15000	CuZr	2.1580 CW120C	Zr:0.15-0.20% Cu:balance Cu+Zr:99.5%min	bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire.
C18000	CuNi2CrSi	2.0855 CW111C	Cr:0.10-0.80% Ni:1.80-3.0% Si:0.40-0.8% Cu:balance Cu+Cr+Ni+Si:99.5%min	bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire.
C18150	CuCr1Zr	2.196 CW106C	Cr:0.50-1.50% Zr:0.05-0.25% Cu:balance Cu+Cr+Zr:99.5%min	bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire.
C18200	CuCr	2.1291 CW105C	Cr:0.60-1.20% Cu:balance Cu+Cr:99.5%min	bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire.



Available Sizes:
Custom Diameter & Sizes, Random Mill lengths

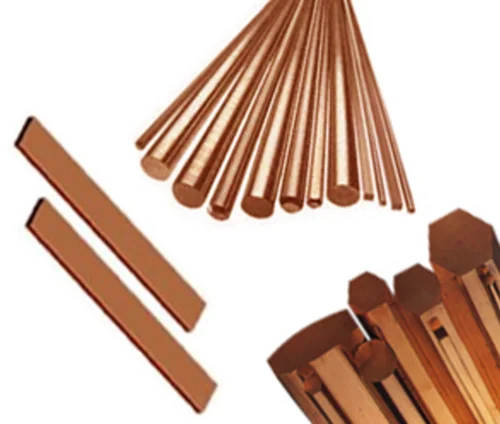

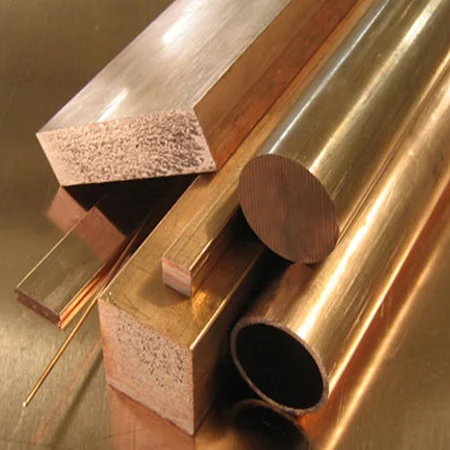

Available Products (forms):
Round bars, Round strips, Round wires, Round tube,
Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates, Sheets, Coils
Custom shapes are available upon request.



Typical Application

Electrical Industry: Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors, Contact Bridges, Belleville Washers, Navigational Instruments, Clips

Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts

Industrial: Pumps, Springs, Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment, Bellows etc.

International Specification:

Rods/Bars/Tubes: ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS4650,4651;
RWMA Class 4

Strips: ASTM B194, AMS4530,4532; SAE J461,463

Sheets: ASTM B194

Wires: ASTM B197, AMS4725, SAE J461,463
Plates: ASTM B194, SAE J461,463; AMS4530,4533,4534,AMS4650,4651; RWMA Class 4.



Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification (Published by SAE)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced to ASTM Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification (Published by SAE)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced to ASTM
