Geomembrane HDPE Sheet 1mm 1.2mm Geomembrane Biodigester for Biogas project

Product Overview

Description

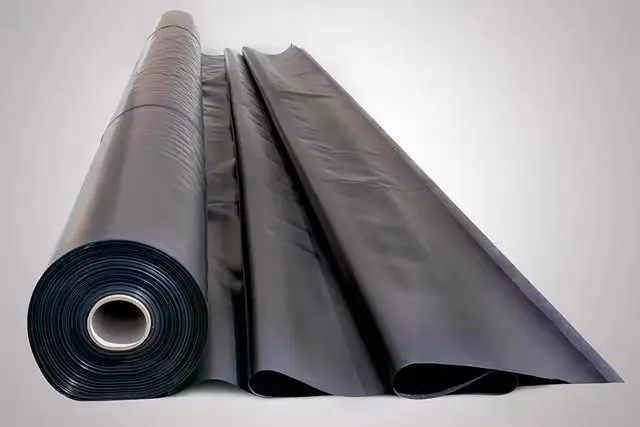

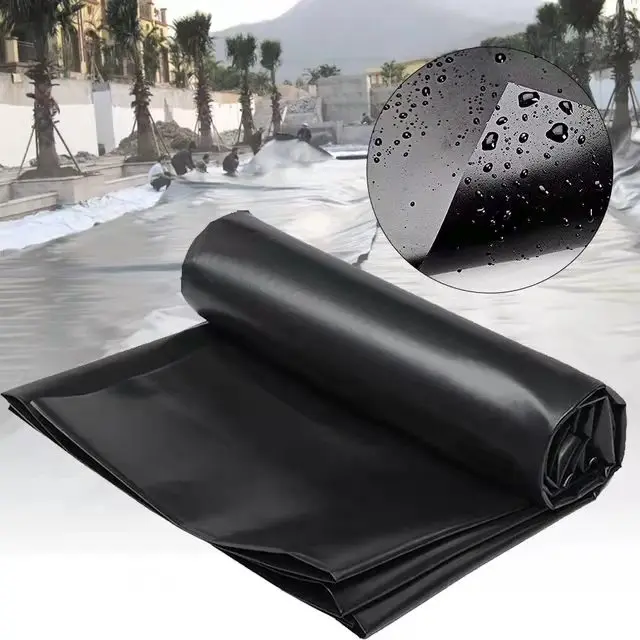

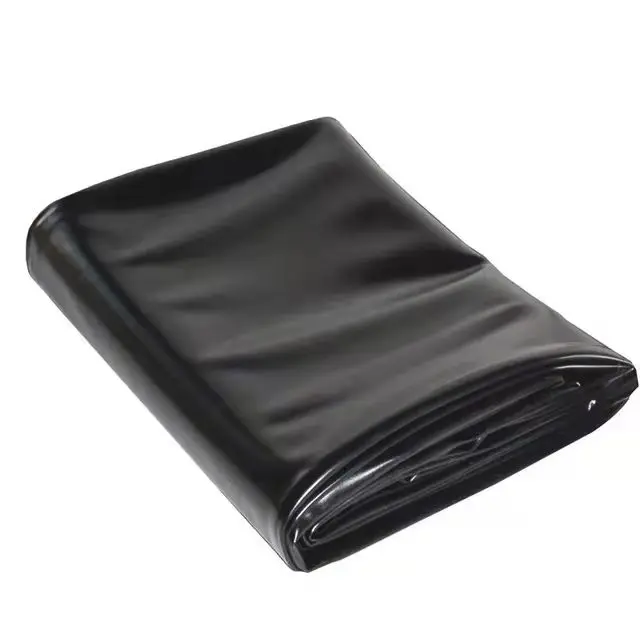

  Black HDPE geomembrane liner geomembranes pond liner



Affordable Polyethylene(PE) Geomembrane

                                                                         Well Known Geomembrane OEM Factory In China

                                       Welcome to ask for quotation and product profiles by"Conct us" here



China real geomembrane OEM factory over more than100 countries since 2005.afforadable price ,quality product,geomembrane of all standard from Recycled to GB, CJ and ASTM, GRI - GM13.

Geomembrane adopted the first class automatic production equipment and three-layer pressing technology. All geomembrane quality is meeting with GB, GRI and ASTM test standard.



Finish	Smooth or single textured or double textured
Prime finishes	Black, white, green and blue
Width	1m, 2m, 3m, 4m, 5.8m, 6m, 7m, 8m, 12m
Length	50m,100m or as you requested
Thickness	0.1-3mm





ASTM GRI GM13 Geomembrane Parameter
	Thickness (mm)	0.75	1.0	1.25	1.5	2.0	2.5	3.0
1	Density (g/m2)	≥0.94
2	Tensile yield strength (N/mm)	≥11	≥15	≥18	≥22	≥29	≥37	≥44
3	Tensile breaking strength(N/mm)	≥20	≥25	≥33	≥40	≥53	≥67	≥80
4	Elongation at yield(%)	≥12
5	Elongation at break(%)	≥700
6	Tear resistance(N)	≥93	≥125	≥160	≥190	≥250	≥315	≥375
7	Puncture strength(N)	≥240	≥320	≥400	≥480	≥640	≥800	≥960
8	Tensile load stress cracking(h)	≥300(no requirement for 0.75mm thick)
9	Carbon black content(%)	2.0-3.0
10	Oxidative induction time, OIT(min)	Constant pressure OIT≥100
11		High pressure OIT≥400
12	85 ℃ thermal aging	≥55
13	Ultraviolet rays, OIT retention rate after 1600 hours of UV irradiation(%)	≥50
Note	A. The technical performance index of thickness specification not listed in the table shall be implemented according to interpolation method; B. Either constant OIT or high pressure OIT of Item 11 and 13 could be tested.



1. The geomembrane is suitable for environmental protection and sanitation, such as landfill, sewage treatment plant, power plant regulating pool, industrial and hospital solid waste, etc;
2. The geomembrane is suitable for water conservancy projects, such as seepage prevention, leakage stoppage, reinforcement, seepage control of water channel, vertical core wall, slope protection, etc;
3. The geomembrane is suitable for Municipal Engineering: subway, building underground engineering, planting roof, roof garden, sewage pipe seepage control, etc;
4. The geomembrane is suitable for Gardens: artificial lake, river course, reservoir, pond bottom of golf course, slope protection, waterproof and moisture-proof of green lawn, etc;
5. The geomembrane is suitable for petrochemical industry: chemical plant, oil refinery, oil storage tank, chemical reaction tank, sedimentation tank lining, secondary lining, etc;

6. The geomembrane is suitable for mining industry: washing pond, heap leaching pool, ash yard, dissolving pool, sedimentation tank, storage yard, bottom lining seepage control of tailings, etc;
7. The geomembrane is suitable for traffic facilities, such as highway and culvert;
8. The geomembrane is suitable for agriculture: anti-seepage of reservoir, drinking pool, storage pond, irrigation system, etc;

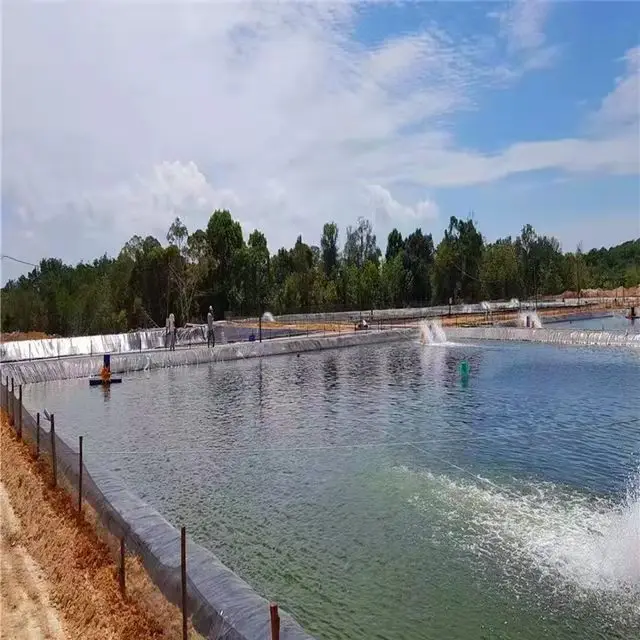

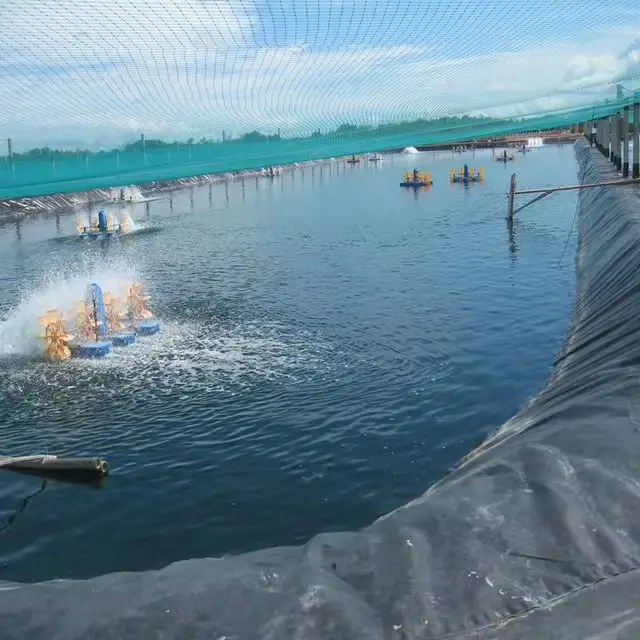

9. The geomembrane is suitable for aquaculture industry: intensive and industrialized aquaculture pond, fish pond, shrimp pond lining, sea cucumber enclosure slope protection, etc;
10. The geomembrane is suitable for salt industry: salt field crystallization pool, brine pool, etc.
