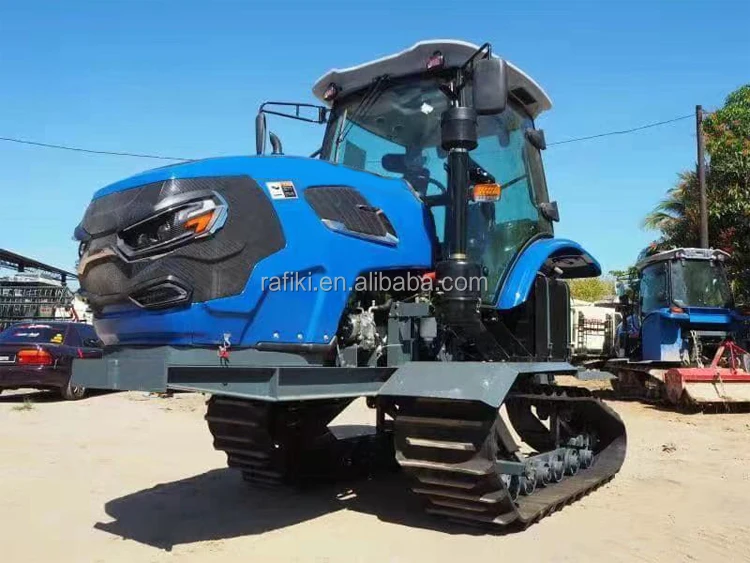

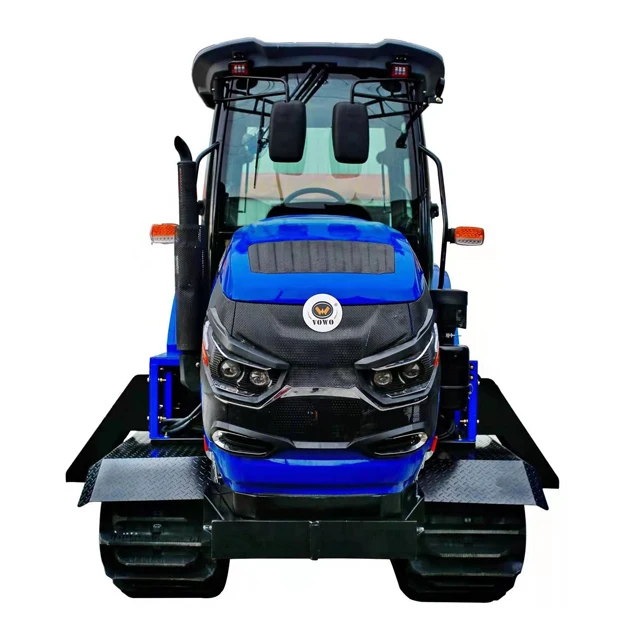

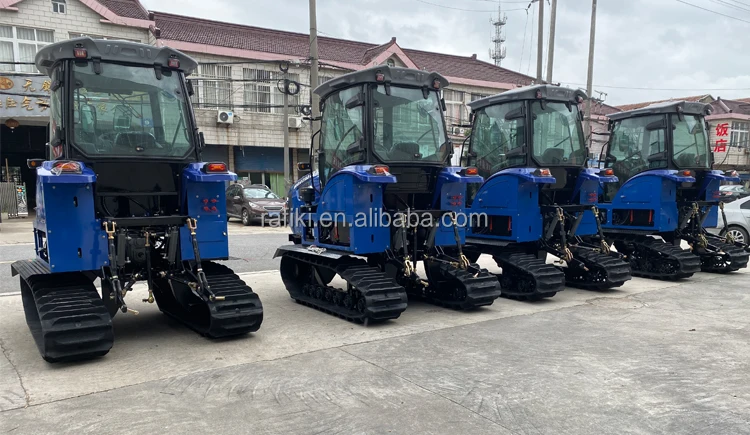

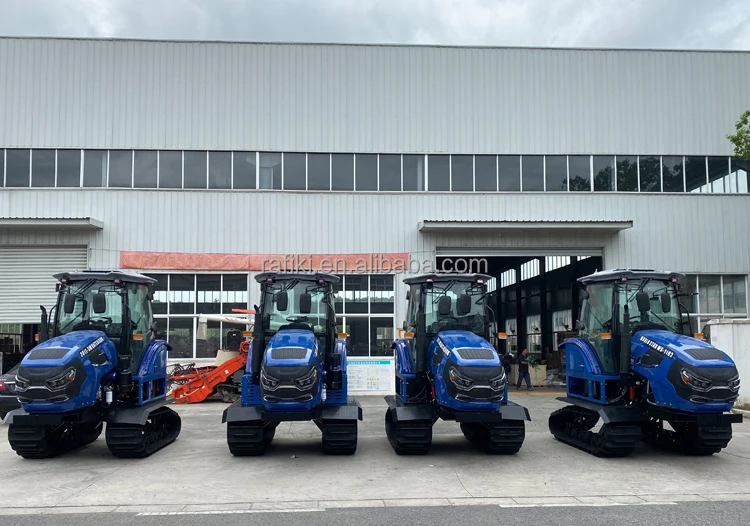

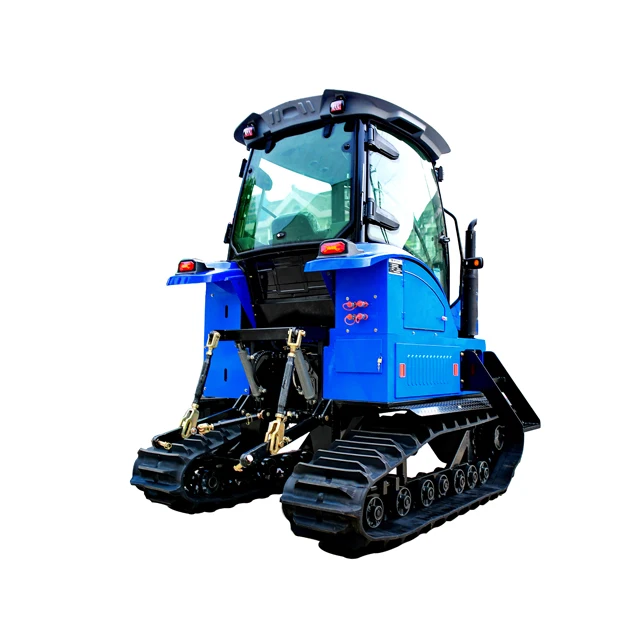

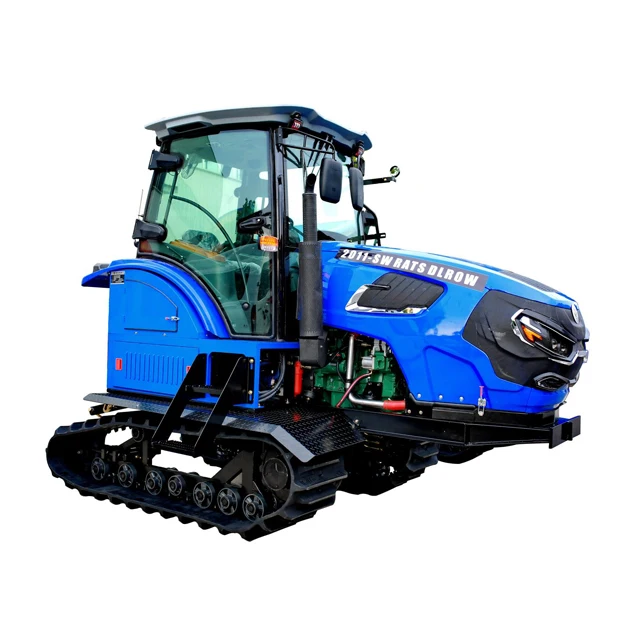

Agricultural crawler tractor with rubber crawler
- Category: >>>
- Supplier: Wuxi Rafiki Tools Co. Ltd.
Share on (1600566862287):
Product Overview
Description
Product Description
Main Feature:
1. Adopting rubber belt track as the walking parts, it has light weight, large contact land area, and can greatly reduce the intensity of pressure of the machine.
2.The rubber crawler belt make machine has the strongly through of water field, can protect the soil and zoology very well.
3.This machine not only can works at the paddy field, but also can works at the dry land.
4.If reloading other farm tools, it can finish multiple farm work, such as land formation, furrowing and ridging, fertilizing and seeding etc.
Brief Introduction:
This machine adopting rubber crawler belt as the walk part, it has the light weight, large contact land area,
can reduce the machine pressure greatly. And it has the strongly passage capacity for paddy field, it is different from the roller tractor which will destroy the land. Our rubber crawler type tractor can protect the soil and zoology very well. This tractor not only can work at paddy field, but also can satisfy to dry land for rotary tillage working. If reloading other farm tools, it can finish multiple farm work, such as land formation, furrowing and ridging, fertilizing and seeding etc.
Item | Unit | Description | Remark |
Model | / | YF-1002 |
|
Overall diamension (L×W×H) | mm | 4000×2652×3062 |
|
Engine m | / | YC4DK110-T300 |
|
Power structure type | / | In-line, water-cooled. Four-stroke, supercharged and inter-cooled, high-pressure common rail |
|
Cylinder number | / | 4 |
|
Match power | kw | 81 |
|
Power spindle speed | r/min | 2600 |
|
Working width | cm |
| User selected |
Gearbox gearshift number(forward/ backward ) | \\ | Infinitely variable speed |
|
Weight | kg | 3180 | Without rotary tiller |
Capacity | hm2/h | 0.5—0.7 |
|
Fuel consumption per unit operation | kg/hm2 | ≤32 |
|
Working gearshift number | / | 2 |
|
Minimum ground clearance | mm | 600 |
|
Rotary tillage device connection method | / | Connecting rod |
|
Transmission mode of working parts | / | Middle gear |

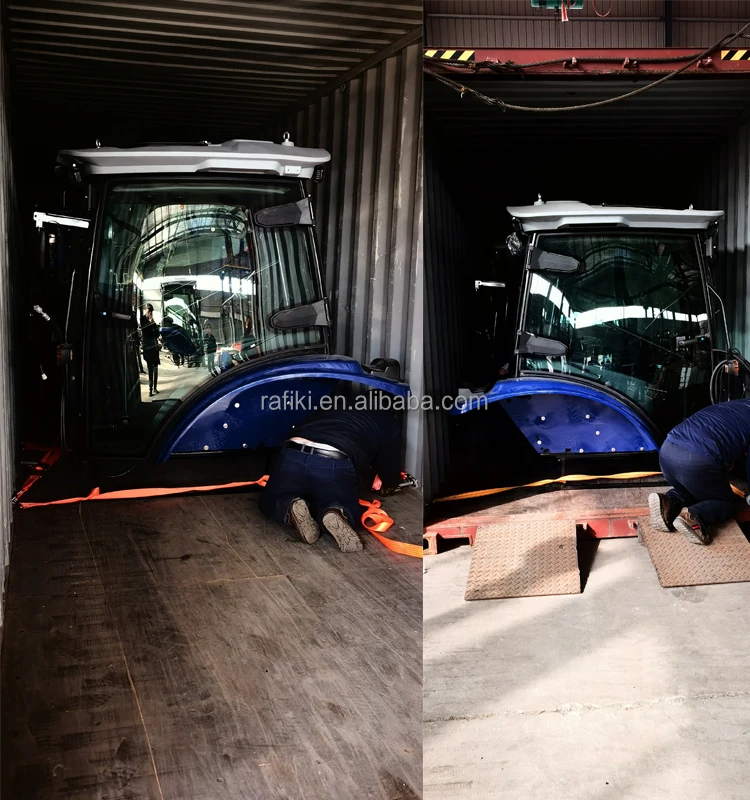

Packaging & Shipping
Company Information
WUXI RAFIKI TOOLS CO., LTD
As one of the largest Agri-tool & Machinery factories in China, we began producing and exporting to all over the world since 1994. Our main products are : Agriculture machine, Animal drawn plough, Planter, Harrow, Forged Hoe head, Machete, Shovel,Pickaxe, Rake etc. Over the years Rafiki Tools's main brand"Sun maize" has won high praise on outstanding quality & professional service.
FAQ
Q:Are you a factory or trading company?
C:We are a factory with self-supported import and export right.
Q:May i take some samples to test before placing the order?
C:You can test the quality of our sample firstly before you purchase them in mass quantity.But you need pay for the shipping charge.
Q:Warranty?
C:1 year and long life after-sale service.
Q:How is the quality of the tractor?
C: We have been in this field for many years and can supply high quality tractor for you.
