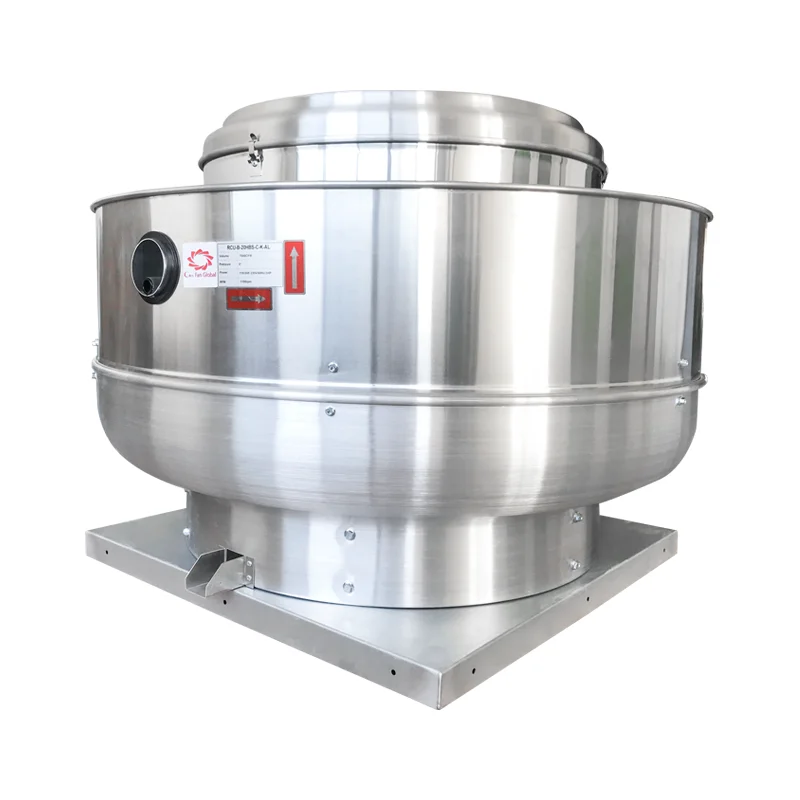

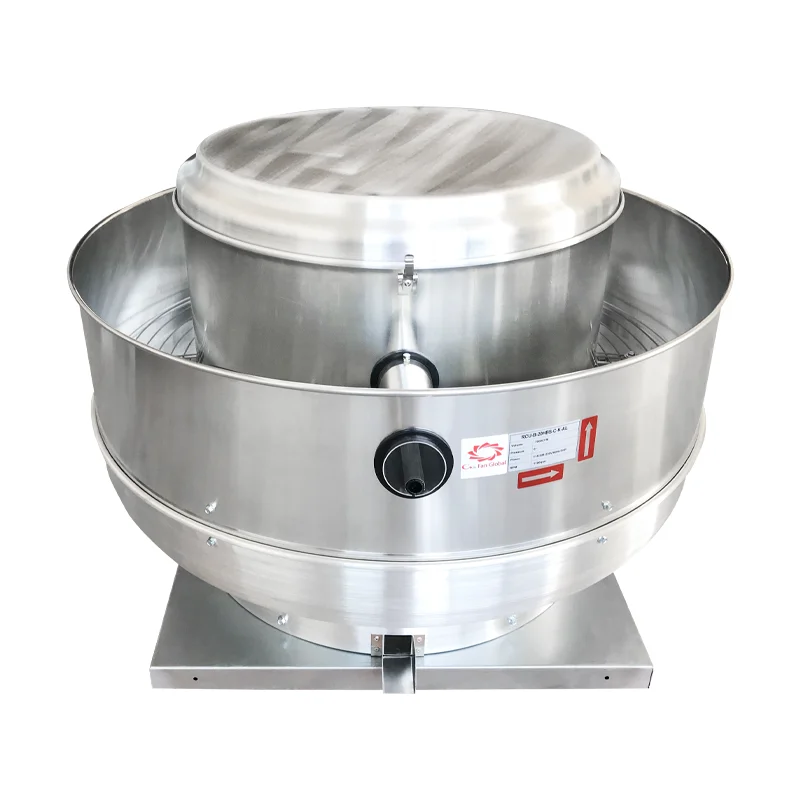

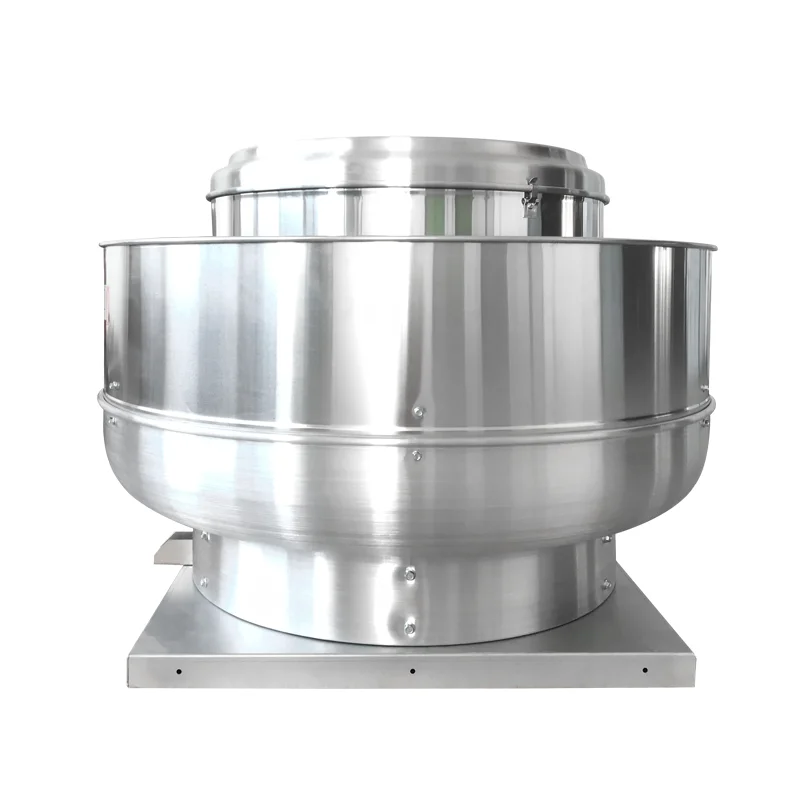

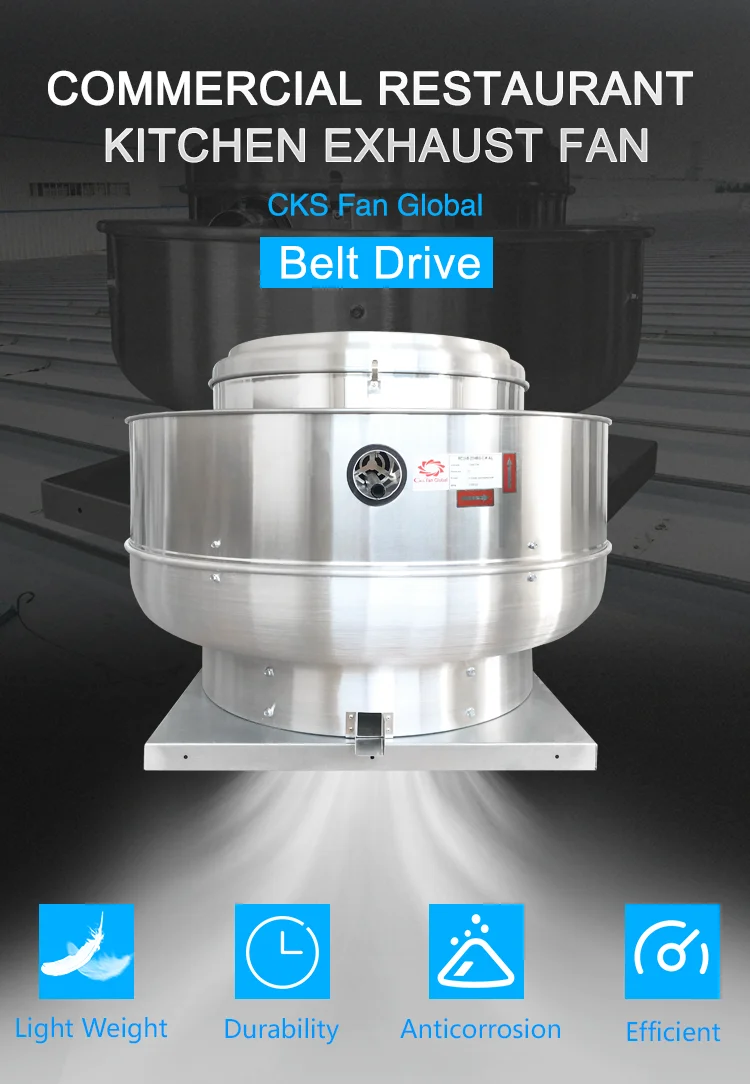

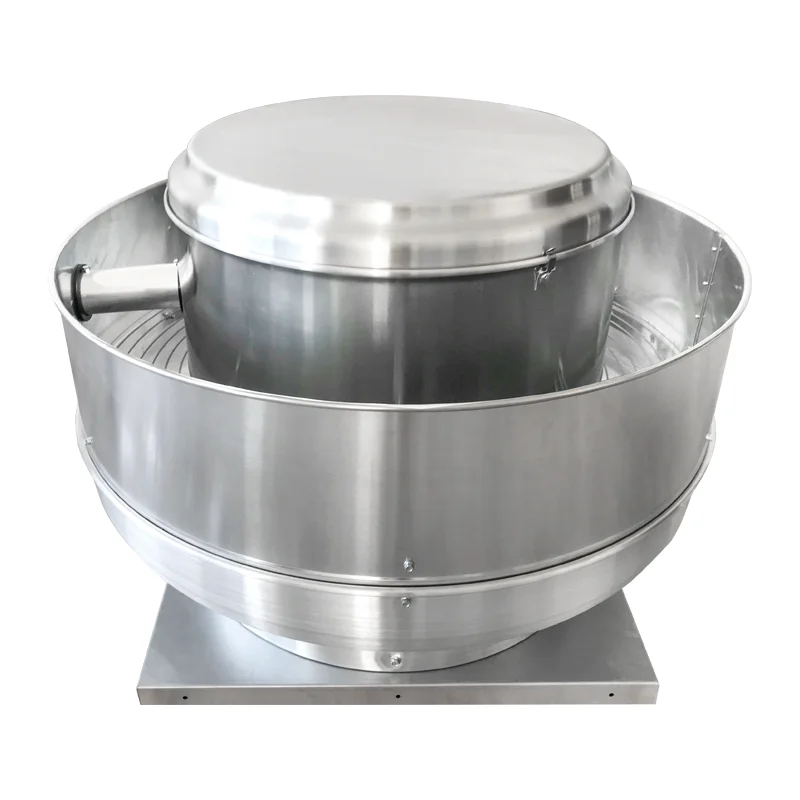

Centrifugal Roof Exhaust Fan Commercial Kitchen Fan For Smoke
- Category: Ventilation Fans >>>
- Supplier: Deqing Aozhong Fan Equipment Co. Ltd.
Share on (1600566862821):
Product Overview
Description
Product Description
Factory food truck centrifugal wall and roof exhaust extractor
Main feature with RCU Roof Fans Series,
Main feature with RCU Roof Fans Series,
⚫ Working in high temperature environment

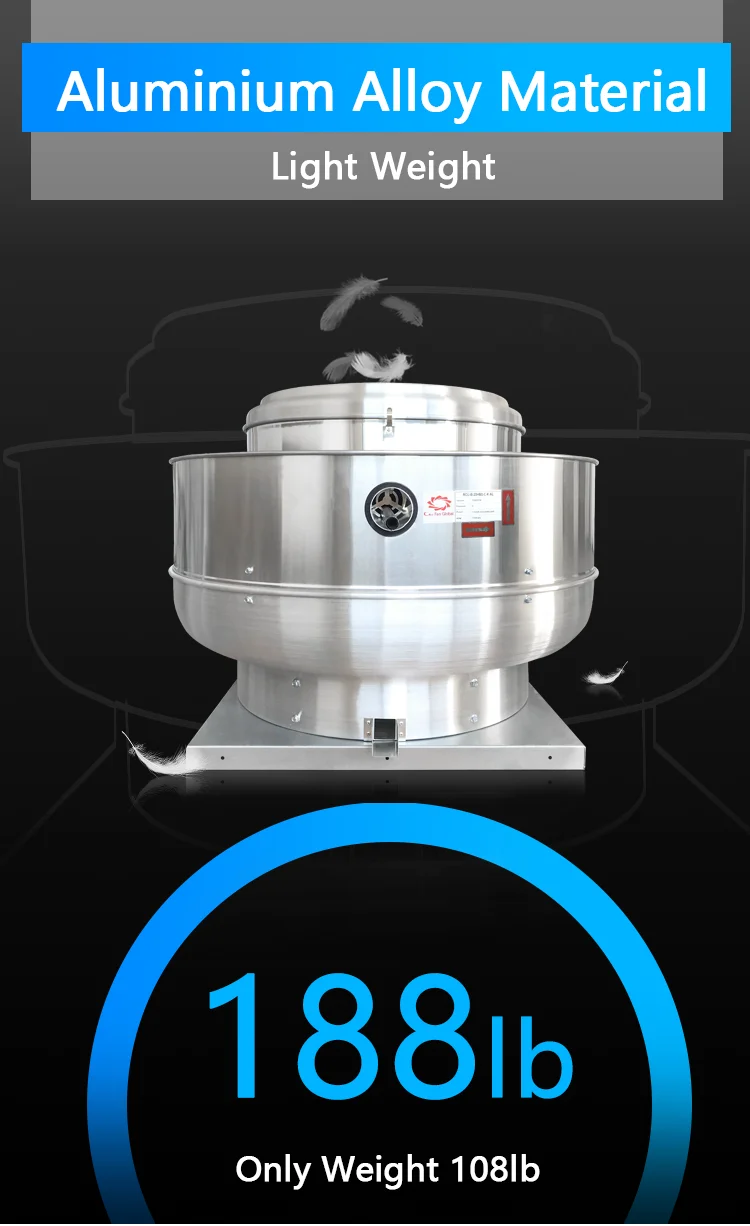

⚫ Full mold, Aluminum Alloy structure
⚫ Most advanced motor cooling of blower in its class
⚫ Direct Drive and Belt Drive are available
⚫ Anti-explored Type is available
⚫ ISO9001:2018 controllable standard
Every RCU Roof Fan has been test for three different planes before package. Typical applications include:
Every RCU Roof Fan has been test for three different planes before package. Typical applications include:
• Factory Exhaust •Low noise Industry
• Restaurant Grease Exhaust •Agricultural area
RCU Notes
RCU Notes
⚫ Please check all the parts of the body in details and make sure whether there is damage inside or not. It is because
the fan may be damage during the transportation. If any, it should be repaired before it installs
the fan may be damage during the transportation. If any, it should be repaired before it installs
⚫ The motor and impeller should connect properly, and its protection level is IP55, insulation class is F.
⚫ Please do check the roof fan and duct and ensure that
there are no obstructions to hinder the rotation. If any, it should be cleared before starting
there are no obstructions to hinder the rotation. If any, it should be cleared before starting
⚫ Running in a given value and the fan should be rotate in a given direction
⚫ If any unexpected sound and strenuous vibration occurred, please switch off the blower and repair the breakdown before it uses.
⚫ The fan cannot bear the weight of duct and it needs to provide an extra bearing frame to bearing.
General Questions
⚫Did not rotate
⚫Wrong Voltage
⚫Power shut down or wrong wiring
⚫Overload protection
⚫Fuse burn-out.
⚫Loose of pulley.
⚫Limited Air Volume
⚫Wrong rotate direction.
⚫The real air speed is lower than expected
⚫Static pressure is too much
⚫Restricted Inlet or Outlet
⚫Blocked Inlet or Outlet
⚫Too much Air Volume
⚫The real air speed is higher than expected
⚫Static pressure is too less
⚫The blower is not installed in the right position

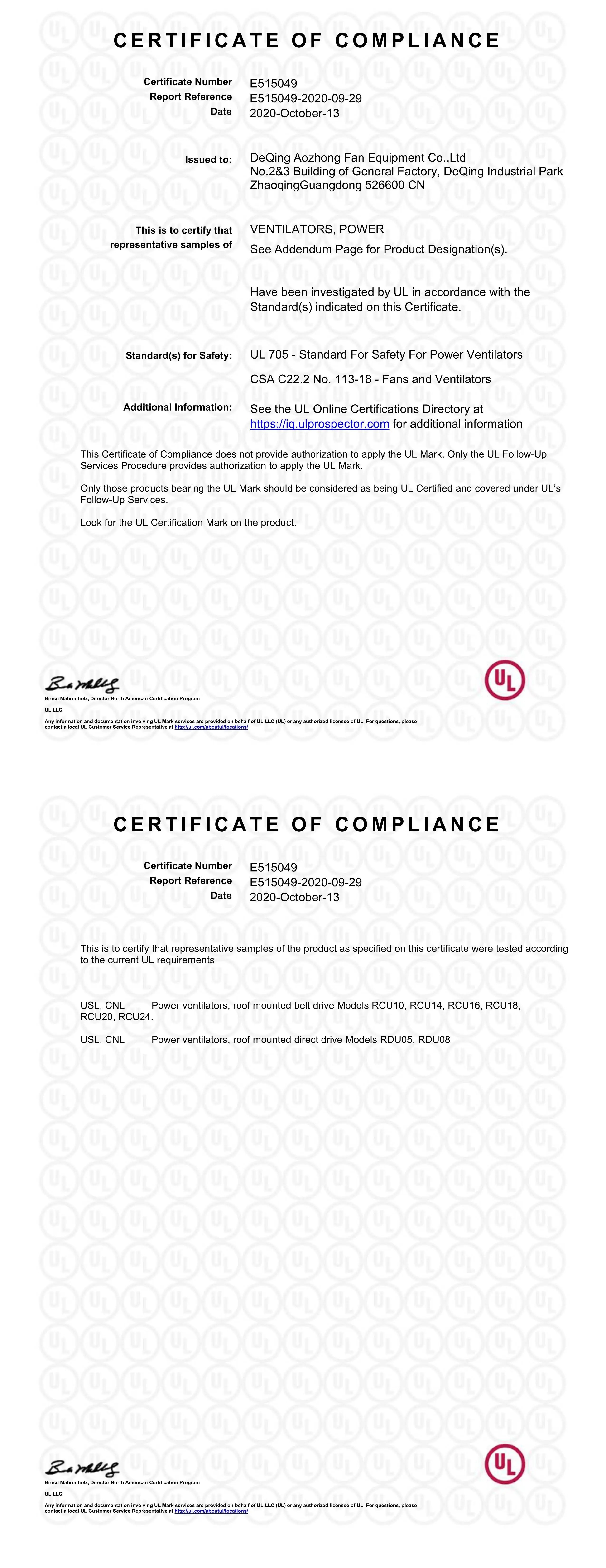

Certifications
Specification
Item | Value |
Type | Radial Fan |
Applicable Industries | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining |
Customized support | OEM |
Electric Current Type | AC |
Blade Material | Stainless steel |
Mounting | Roof Fan |
Place of Origin | China |
Guangdong | |
Brand Name | CKS Fan |
Model Number | RCU28 (CCU-KF2) Technical Data |
Voltage | 220-230V |
Certification | Ce, SGS, UL762, UL705 |
Warranty | 1 Year |
After-sales Service Provided | Online support |
Product name | CKS RCU28 |
Type | Centrifugal Fan |
Motor type | AC |
Function | Farming,Factory Exhaust,Smoke Fan |

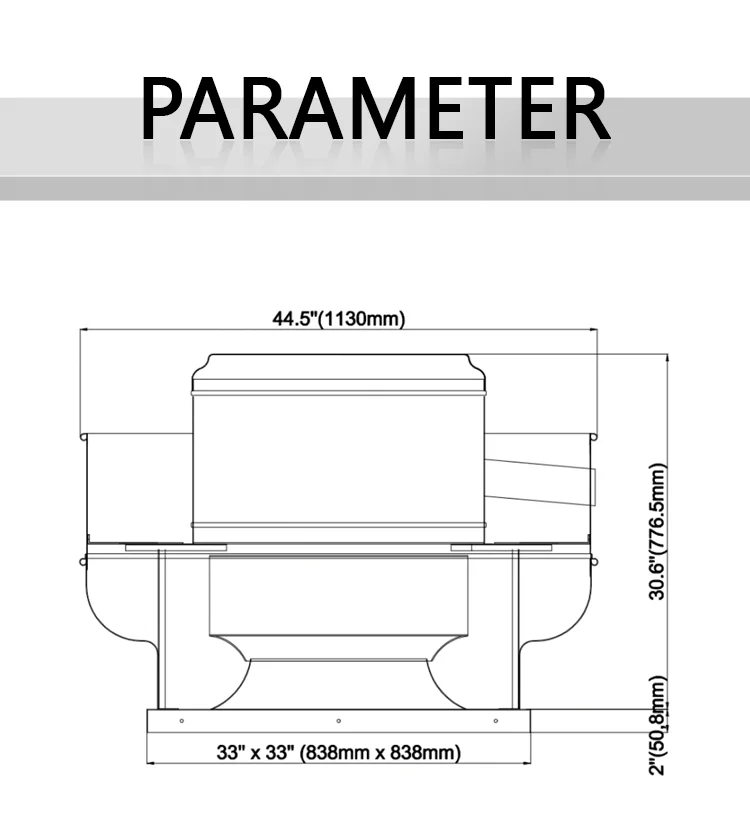

Product Parameter
Direct Drive Single Phase & Belt Drive Three Phase With AC motor (IP54,F Class) 220V/50-60Hz 230v/50-60Hz 380V/50-60Hz | ||||||||
Model | Power | Speed | Air Volume | Static Pressure | ||||
RUC-A-05HBS-A-N-AL | 0.33HP | 1720RPM | 1338CFM | 0 | ||||
RCU-A-08HBS-A-N-AL | 0.5HP | 1720RPM | 2563CFM | 0 | ||||
RCU-A/B-10HBS-A-N-AL | 0.33HP | 1050RPM | 1625CFM | 0.5 | ||||
0.33HP | 1250RPM | 2125CFM | 0.5 | |||||
0.75HP | 1400RPM | 2375CFM | 0.5 | |||||
1HP | 1720RPM | 2625CFM | 0 | |||||
RCU-A/B-14HBS-A-N-AL | 0.33HP | 850RPM | 1375CFM | 0.75 | ||||
0.33HP | 1000RPM | 1625CFM | 0.75 | |||||
0.75HP | 1130RPM | 3625CFM | 0.25 | |||||
1HP | 1400RPM | 4625CFM | 0 | |||||
1.5HP | 1620RPM | 4875CFM | 0.75 | |||||
RCU-A/B-16HBS-A-N-AL | 0.5HP | 850RPM | 3888CFM | 0 | ||||
0.75HP | 1000RPM | 4428CFM | 0.25 | |||||
1HP | 1130RPM | 4968CFM | 0.25 | |||||
1.5HP | 1250RPM | 5508CFM | 0 | |||||
2HP | 1400RPM | 6048CFM | 0 | |||||
RCU-A/B-18HBS-A-N-AL | 0.75HP | 700RPM | 4860CFM | 0.25 | ||||
1HP | 850RPM | 5535CFM | 0.25 | |||||
1.5HP | 1000RPM | 6210CFM | 0.75 | |||||
2HP | 1250RPM | / | / | |||||
3HP | 1420RPM | / | / | |||||
RCU-B-20HBS-AN-AL | 1HP | 800RPM | 6578CFM | 0 | ||||
1.5HP | 950RPM | 7436CFM | 0.25 | |||||
2HP | 1100RPM | 8823CFM | 0.5 | |||||
3HP | 1260RPM | / | / | |||||
RCU-B-24HBS-AN-AL | 1.5HP | 760RPM | 8580CFM | 0 | ||||
2HP | 860RPM | 8580CFM | 0.5 | |||||
3HP | 960RPM | 9880CFM | 0.5 | |||||
RCU-B-28HBS-AN-AL | 3HP | 750RPM | 10853CFM | 0 | ||||
4HP | 850RPM | 12209CFM | 0.25 | |||||
5HP | 950RPM | 14924CFM | 0 | |||||
RCU-B-28HBS-AN-AL | 4HP | 650RPM | 15759CFM | 0 | ||||
5.5HP | 750RPM | 17475CFM | 0 | |||||
7.5HP | 850RPM | 19200CFM | 0 | |||||
