Wholesale Displacement Transducer LVDT Displacement Transducer Sensor
Wholesale Displacement Transducer LVDT Displacement Transducer Sensor
Wholesale Displacement Transducer LVDT Displacement Transducer Sensor
Wholesale Displacement Transducer LVDT Displacement Transducer Sensor
Wholesale Displacement Transducer LVDT Displacement Transducer Sensor
Wholesale Displacement Transducer LVDT Displacement Transducer Sensor
Wholesale Displacement Transducer LVDT Displacement Transducer Sensor

Wholesale Displacement Transducer LVDT Displacement Transducer Sensor

Share on (1600566864833):


Price:

Quantity:


Product Overview

Description






Product Description

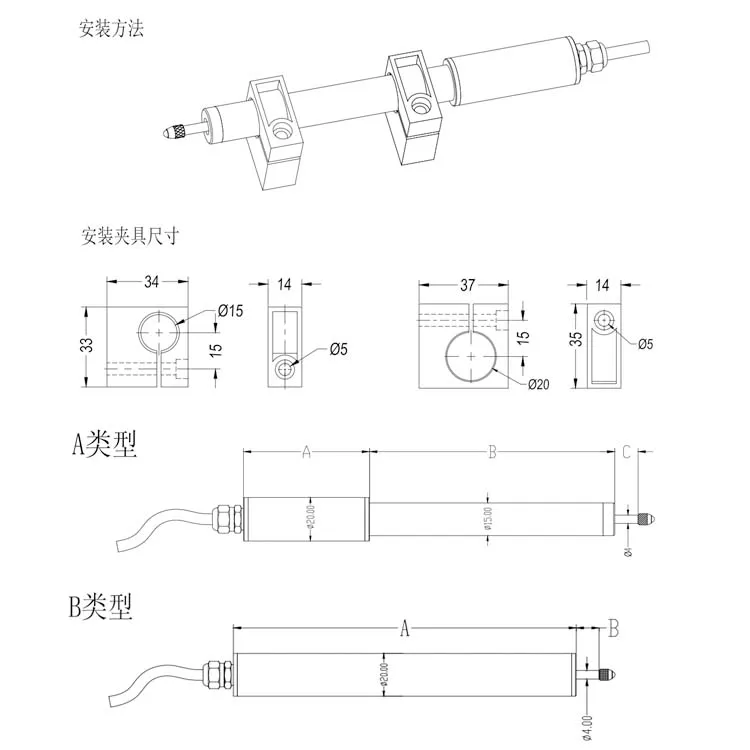

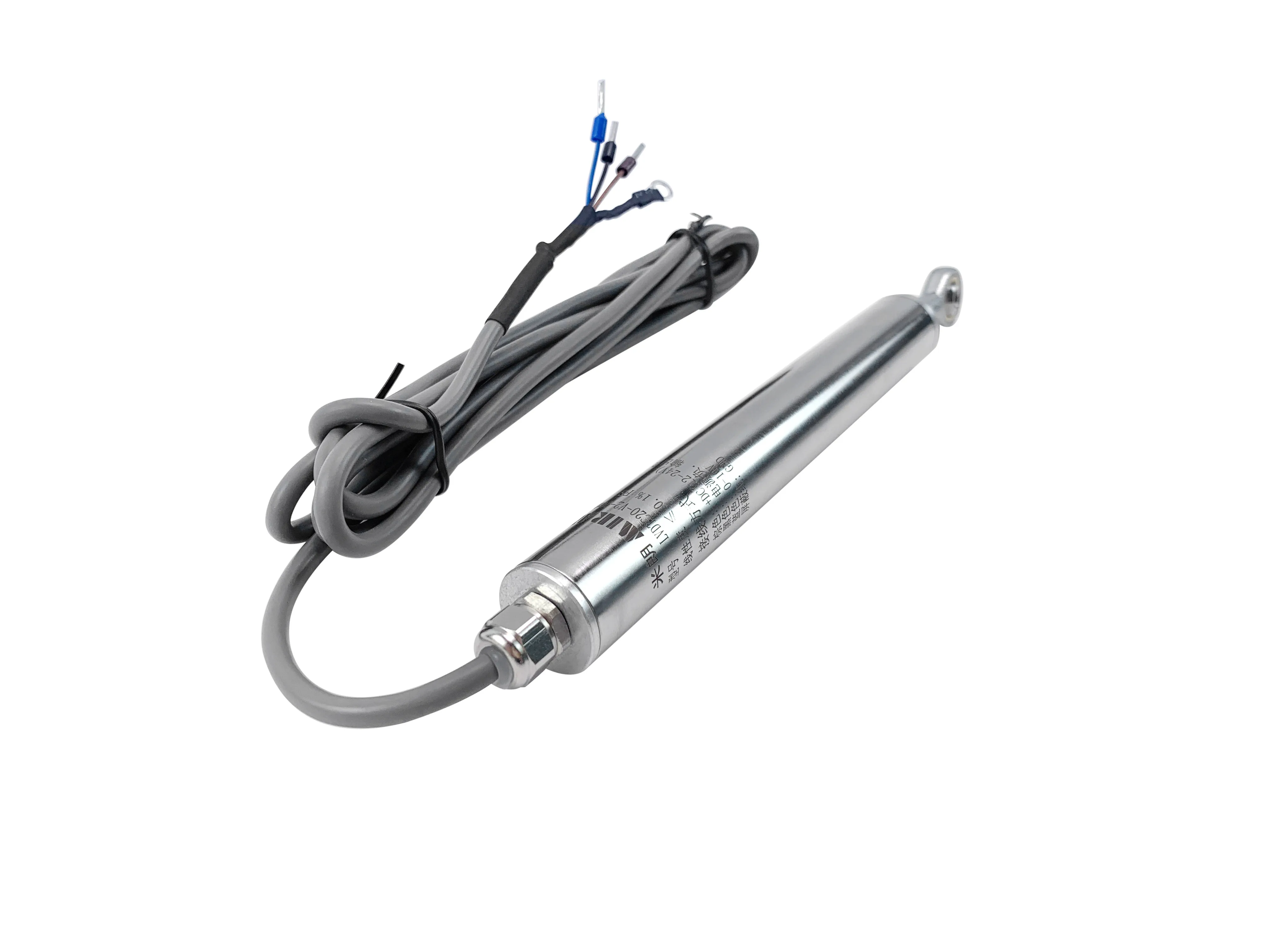

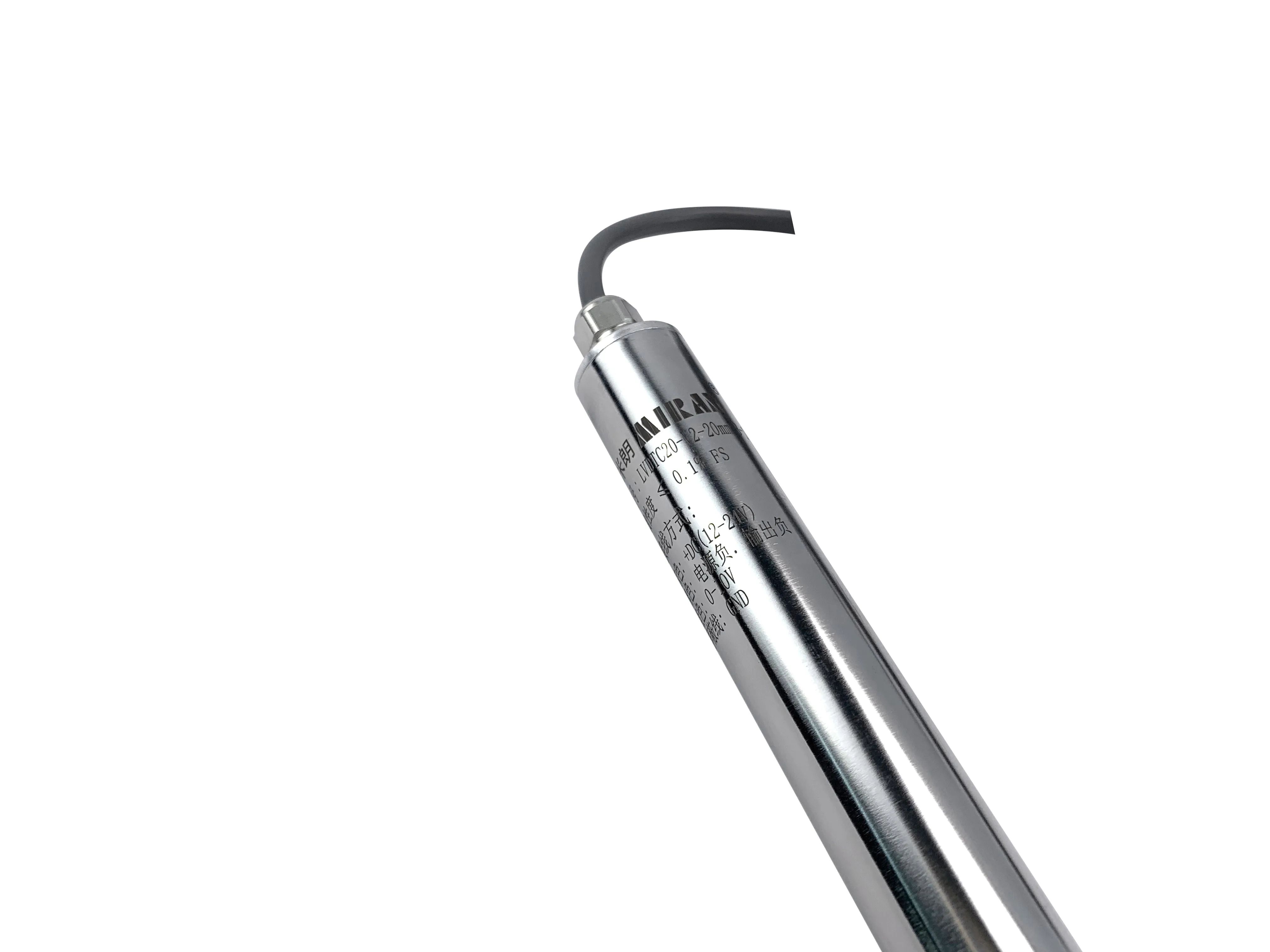

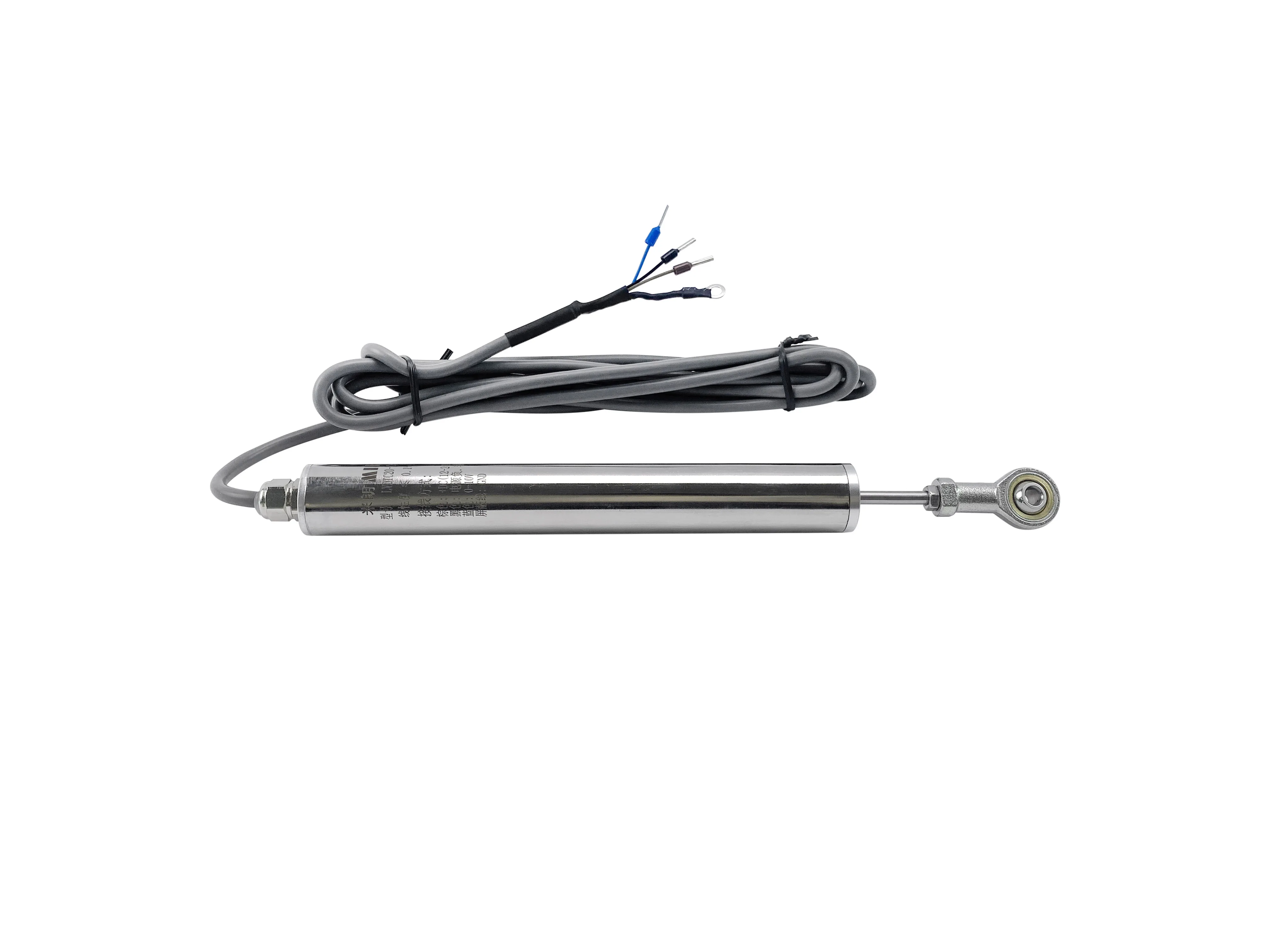

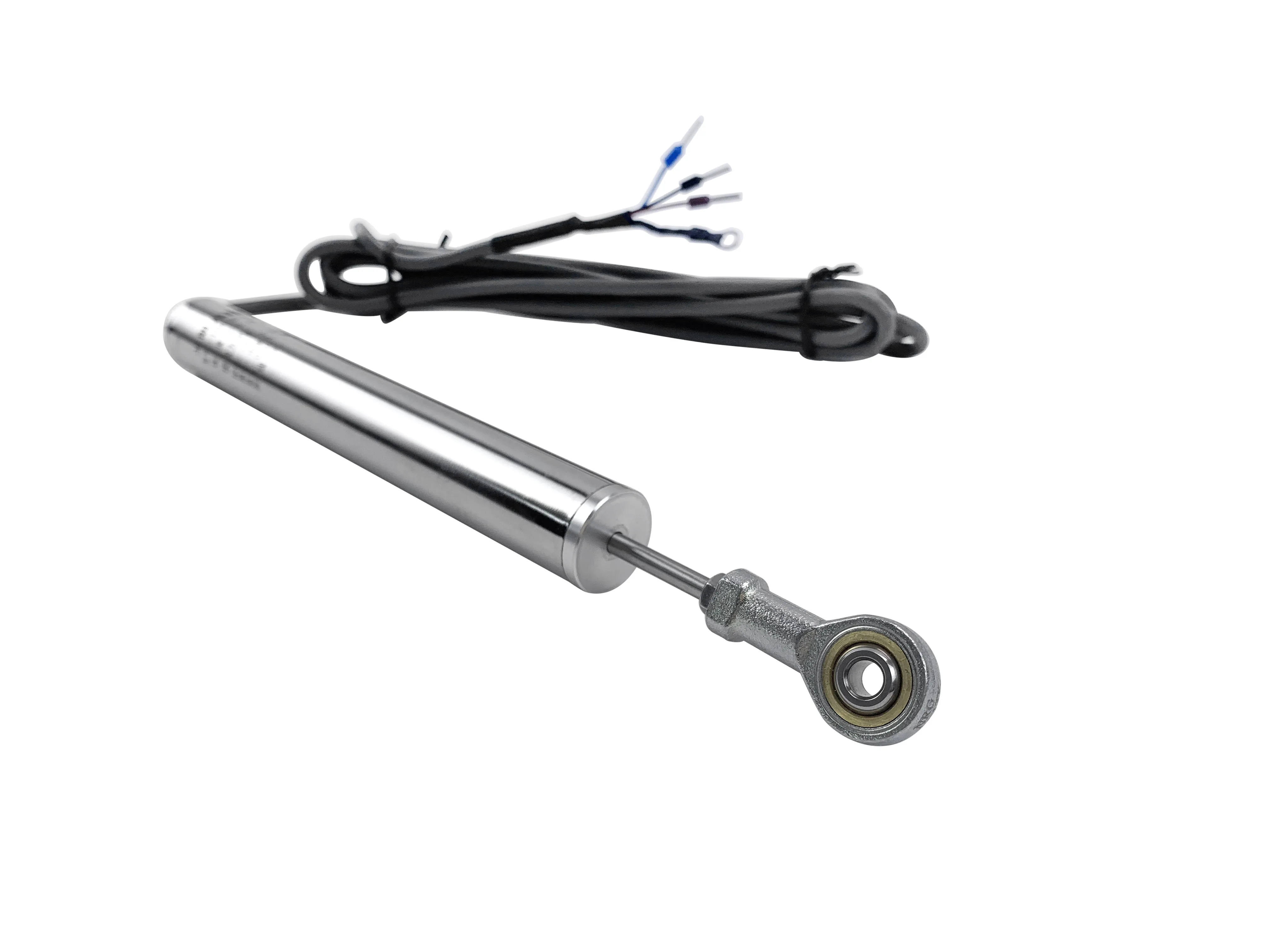

 LVDTC20-V2-20MM (4)LVDTC20-V2-20MM (2)LVDTC20-V2-20MM (1)LVDTC20-V2-20MM (3)lvdt20









Product details










































































Model Number


LVDT20-100 mm


Measurement stroke


0-100 mm


Brand


MIRAN


Linearity


0.25% FS


Place of Origin


China


Resistance


5K Ω


Certification


ISO


Input


3V~42V


HS code


8543709990


Output


0~5V DC, 0~10V DC,
4~20mA


Housing material


Aluminum case


Max Motion Speed


10 m/s


Theory


Resistance Sensor


Resolution


Infinite


IP rating


IP 67


Temperature


-60℃~+150℃


Transport Package


Packed in PVC tube with foam


Repeatability accuracy


± 0.01 mm


Very long life


>100*106 cycles, >25*106m







































































LVDT Technical parameter



Differential transformer displacement sensor(LVDT)


LVDT8


LVDT20



Output



0~5V (3 wires, 12~24V DC voltage)


2mm
5mm
10mm


5mm
10mm
20mm
25mm
40mm
50mm
100mm


0~10V(3 wires, 12~24V DC voltage)


4~20Ma(2 wires, 12~24V DC voltage)


Digital output(12~24V DC voltage)


Repeatability accuracy


<1 um


Definition


<0.2 um, 16bit for digital signal output


Working temperature


-25~85℃


Working current


<12mA for voltage output;
4~20mA for 2-wire current output


Shock absorb


250g/11ms


Vibration absorb


10g/2K Hz


Sensitivity


<0.025%/℃


Excitation voltage


3Vrms(1~3Vrms)


Excitation current


5KHz(1~10K Hz)







Our Services







Pre-sale servie:





* Inquiry and consulting support.
* Sample testing support.
* Factory visit










After-Sales Service.





* Training to instal and use.


* Quick response to technical problems;











Certifications


cetification





FAQ


Q: Can you offer digital indicator?


A: Yes, we can.





Q: Are you a factory or trading company?


A:  Yes, we are a manufacturer of position sensor/transducer.





Q: Can you offer samples?  Is it free?


A:  Yes, samples are available to sent out for testing. Please contact us freely for more details.





Q: what's your term of payment?


A:T/T,L/C,paypal ,westerm union .





Q:what's your warranty?


A:12 months .if the items your purchased from our company are no't with the perfect quality or can't work well,you could send back to replacement or refund.
