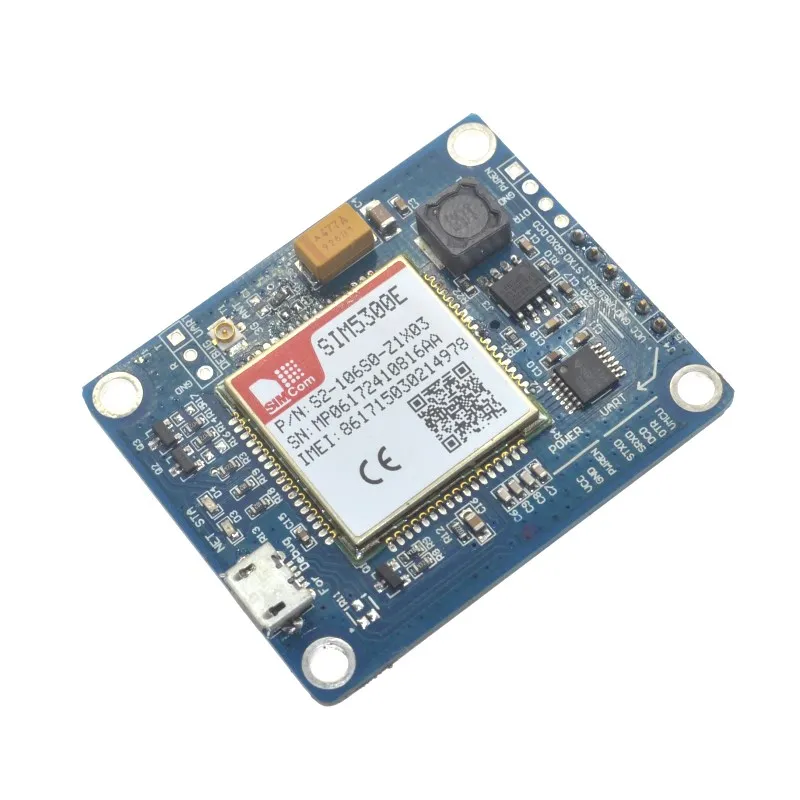

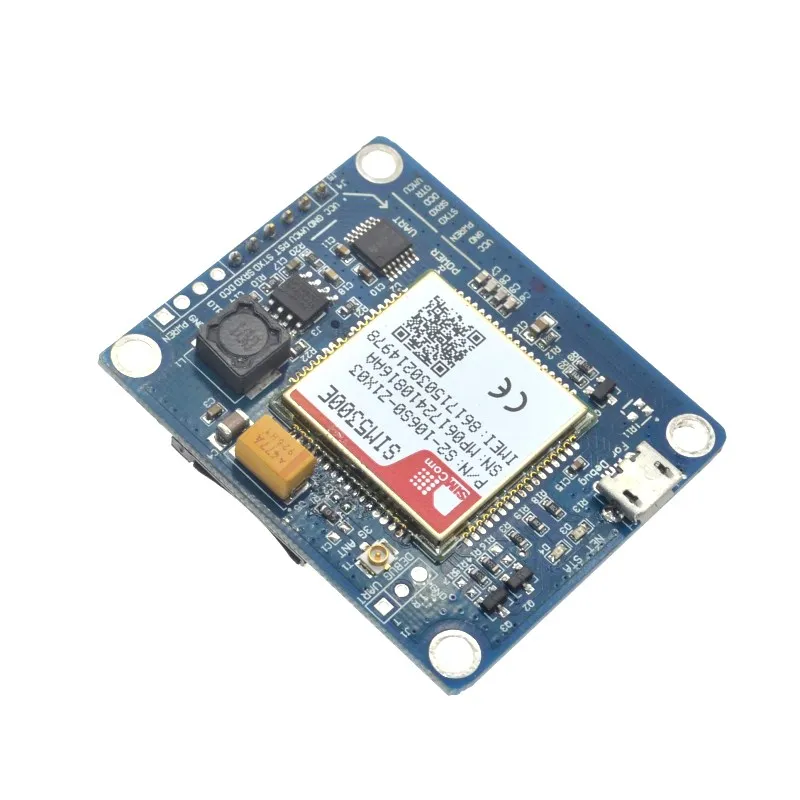

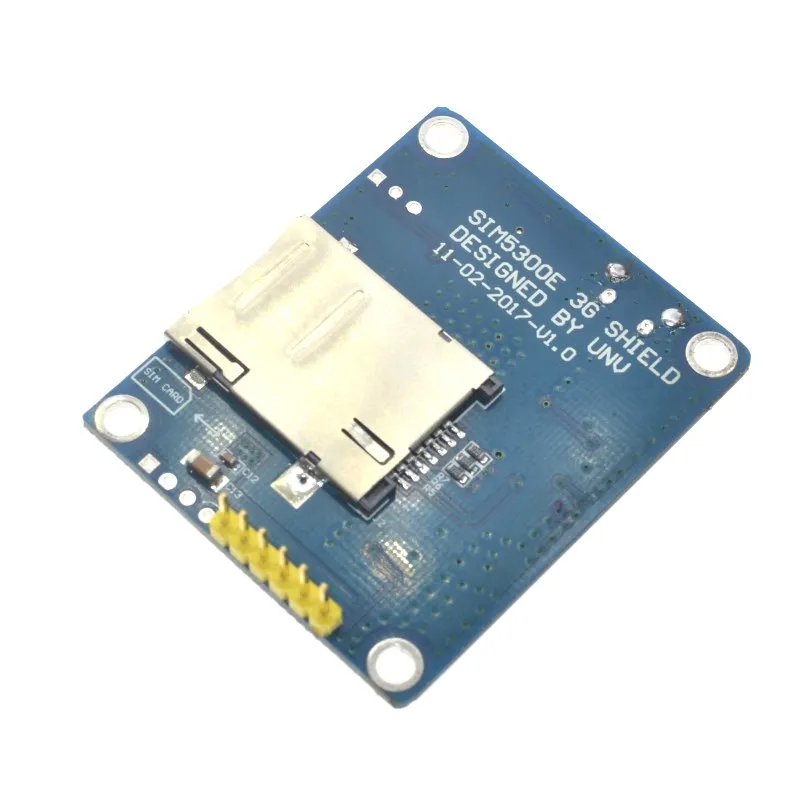

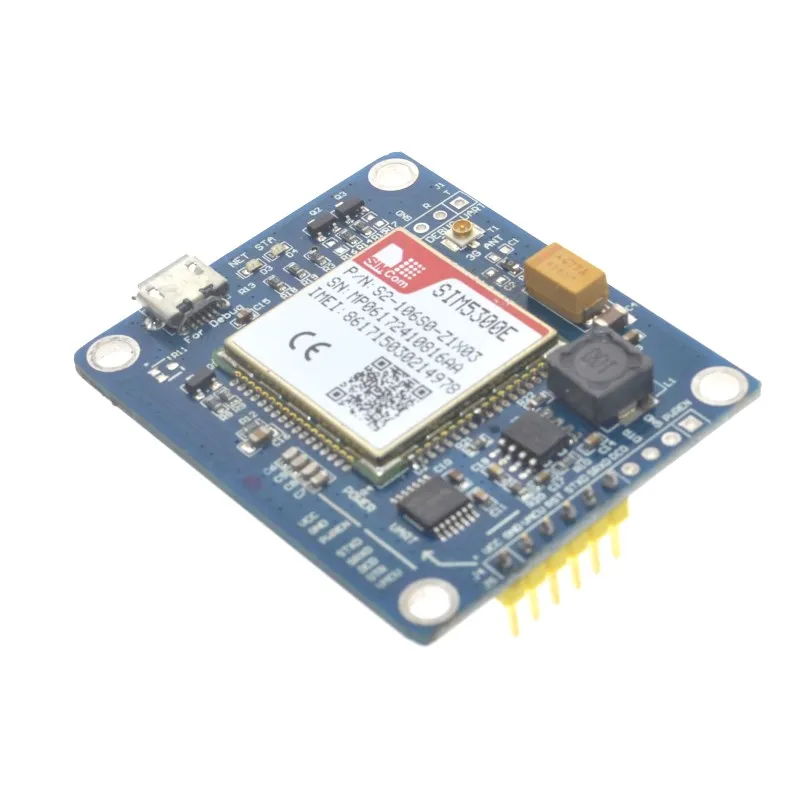

SIM5300E 3G module Development Board Quad band GSM GPRS GPS SMS with PCB Antenna
- Category: >>>
- Supplier: Shenzhen Hengxinkang Technology Co. Ltd
Share on (1600566885125):
Product Overview
Description
Product Description
Features
Dual-Band WCDMA/HSPA 900/2100MHz
Dual-Band GSM/GPRS/EDGE 900/1800MHz
GPRS multi-slot class 12
EDGE downlink only
Output power
- UMTS 900/2100:0.25W
- GSM900:2W
- DCS1800:1W
Control Via AT Commands
Supply voltage range:3.4V~ 4.4V
Operation temperature:-40° to +85°
Dimension:24x24x2.4mm
Data transmission
HSPA
- Max.7.2Mbps(DL), Max.5.76Mbps(UL)
WCDMA
- Max.384Kbps(DL), Max.384Kbps(UL)
EDGE Class:
- Max.236.8Kbps(DL),
GPRS
- Max.85.6Kbps(DL), Max.85.6Kbps(UL)
Message specification
Point to point MO and MT
Text and PDU mode
* MICRO USB port: after the supporting drive, several COM ports can be generated and the SIM5300E module can be debugged.
* Power supply and communication interface: include dc power input interface, power supply to control tube foot, reset pin, etc.
* 3G antenna interface: connect with our matching 3G antenna or connect to the IPX interface antenna through an ipx-sma
connection.
* Auxiliary antenna interface: connect with our auxiliary antenna through an ipx-sma connection.
* LED indicator light: including network status, call status indicator light.
* Size: 41* 51mm.
* Spacing of pin interface: 2.54 mm.
Dual-Band WCDMA/HSPA 900/2100MHz
Dual-Band GSM/GPRS/EDGE 900/1800MHz
GPRS multi-slot class 12
EDGE downlink only
Output power
- UMTS 900/2100:0.25W
- GSM900:2W
- DCS1800:1W
Control Via AT Commands
Supply voltage range:3.4V~ 4.4V
Operation temperature:-40° to +85°
Dimension:24x24x2.4mm
Data transmission
HSPA
- Max.7.2Mbps(DL), Max.5.76Mbps(UL)
WCDMA
- Max.384Kbps(DL), Max.384Kbps(UL)
EDGE Class:
- Max.236.8Kbps(DL),
GPRS
- Max.85.6Kbps(DL), Max.85.6Kbps(UL)
Message specification
Point to point MO and MT
Text and PDU mode
* MICRO USB port: after the supporting drive, several COM ports can be generated and the SIM5300E module can be debugged.
* Power supply and communication interface: include dc power input interface, power supply to control tube foot, reset pin, etc.
* 3G antenna interface: connect with our matching 3G antenna or connect to the IPX interface antenna through an ipx-sma
connection.
* Auxiliary antenna interface: connect with our auxiliary antenna through an ipx-sma connection.
* LED indicator light: including network status, call status indicator light.
* Size: 41* 51mm.
* Spacing of pin interface: 2.54 mm.
Specification
item | value |
Model Number | SIM5300E |
Type | Power Management Development Boards and Kits |
Place of Origin | China |
Brand Name | - |
Chipset | - |
Application | - |
Shipping by | Buyer's Choice |
the best price | Please contact us |
