Horizontal/Inclined Scraper Flight Heat Resistant Drag Roller Chain Conveyor System For Grain

Product Overview

Description

Horizontal/Inclined Scraper Flight Heat Resistant Drag Roller Chain Conveyor System For Grain



Description

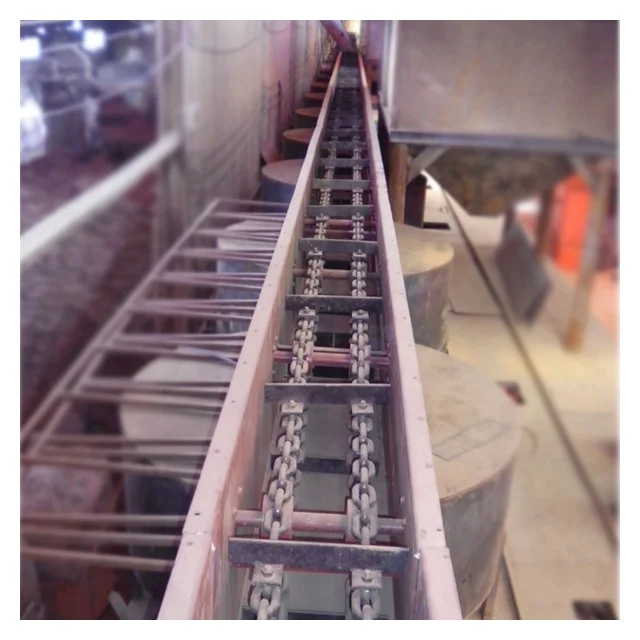

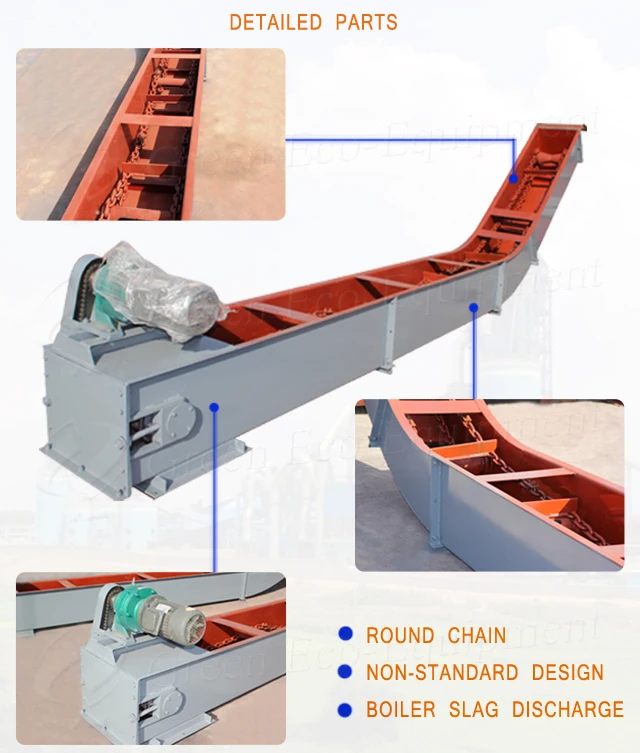

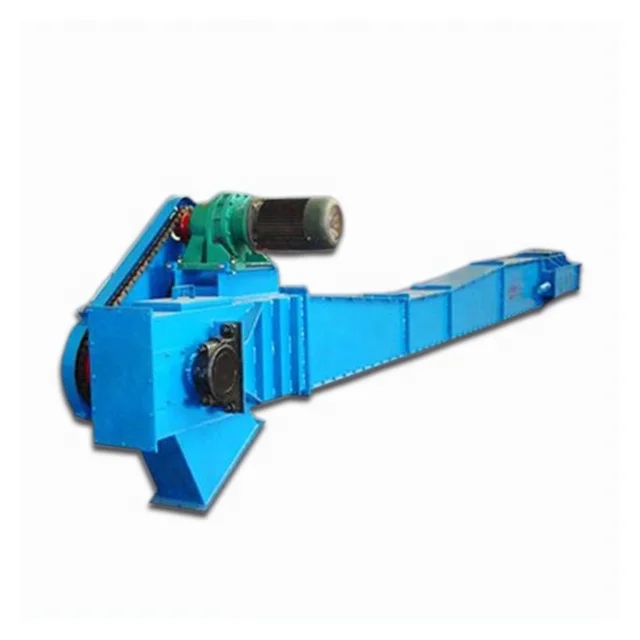

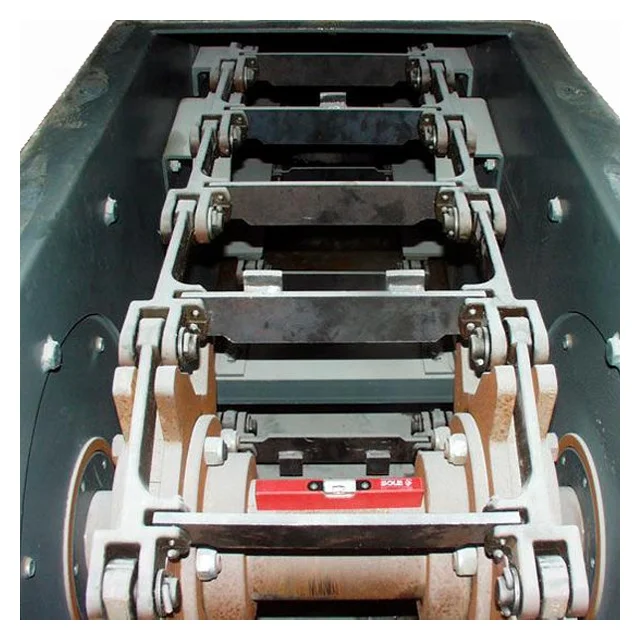

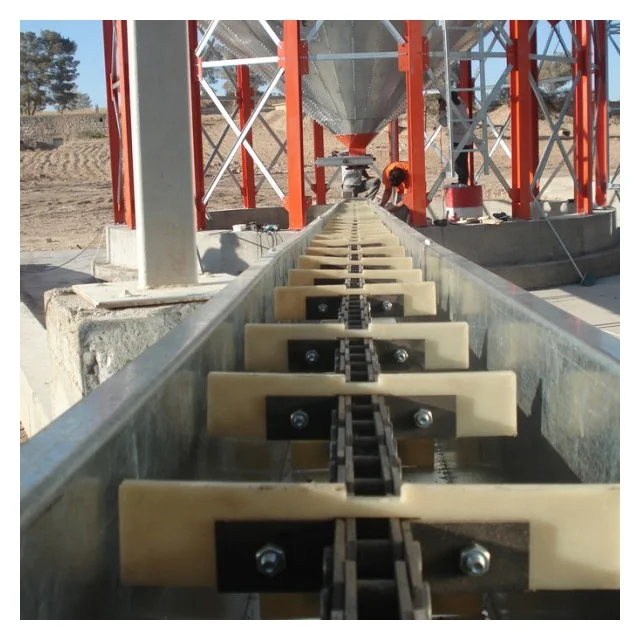

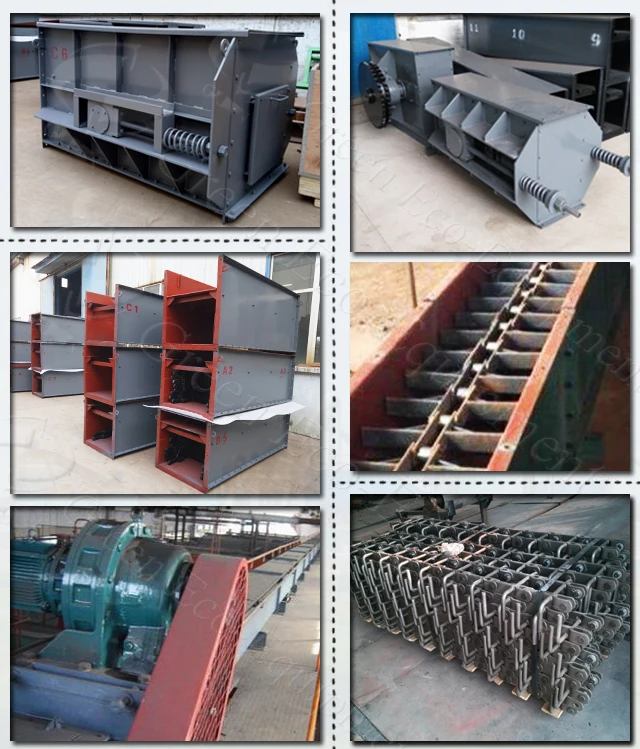

FU chain scraper conveyor machine is bulk material conveying equipment, which consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains. By means of moving chains, it can continuously transport the materials in closed rectangular casing horizontally or at a slight incline.



Technical parameter

Model	MS 16	MS 20	MS 25	MS 32	MS 40	MS 50
Chute Width (mm)	160	200	250	320	400	500
Transport Speed (m/s)	0.16 m/s,  0.20 m/s,  0.25 m/s,  0.32 m/s
Bulk Density (t/m3)	0.2~1.8 t/m3
Capacity (m3/h)	15~29	23~46	36~72	59~118	83~166	115~230
Conveyor Length (m)	10~80m
Installation Angle (degree)	0°~30°

Note: the parameter above is just for reference, it can be customized by different requirement.



 Click for More Information!!!

Application

FU chain scraper conveyor machine is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.



Performance and features

1. Totally enclosed structure, light weight, small volume.

2. Convenient installation and maintenance.

3. Horizontal or slightly inclined transport from 0℃ to 30℃.

4. Multiple material feeding point and discharging point.

5. Conveying distance is up to 80m with material temperature lower than 120℃.



Working Principle

When FU chain scraper conveyor machine transports horizontally, the pressure which comes from chains in conveying direction to the materials, and the action which comes from the materials themselves cause internal friction. This friction ensures the stable situation between material layers, and it can overcome external frictional resistance which caused by moving materials in the trough and make materials transport as a whole fluid.







 Click for More Information!!!





1. Experienced technical team tailor-made for customers and carefully designed.



2. Warmly welcome friends from all over the world to visit and discuss business with Green Eco-Equipment.



3. Engineers abroad to guide installation and technical support.



4. At various state’s exhibition, we welcome the old customers nearby to consult relevant after-sales problems.



5. The engineer regularly visits old customers, on-site visits, troubleshoot, lifelong service.



6. Foreign trade managers patiently answer technical questions from customers at various states’ exhibitions.





 Click for More Information!!!

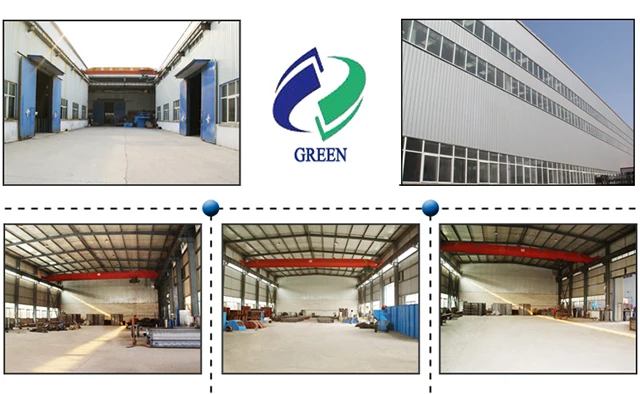

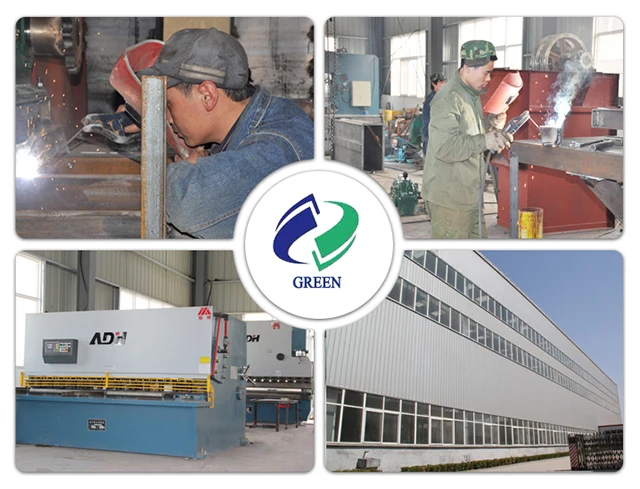

Henan Green Eco-Equipment Co., Ltd. is located in Economic Development Zone, Xinxiang, registered capital of 10 million RMB. We have a group of professional research, engineering, production, sales and after-sales service team serve all around the world clients.



Green Eco-Equipment offers a full range of screening, crushing and conveying equipment, which involves vibrating screen, belt conveyor, bucket elevator, screw conveyor, scraper conveyor and related spare parts. What's more, Green Eco-Equipment is always cooperating with the world-class suppliers to ensure the product's high quality, including ABB, SEW, SIEMENS, etc.









Q1.What is the MS layout form?

A1.It is less than 25°,and conveying distance no more 80m.



Q2.What is the MC layout form?

A2.It is from 30° to 90°,and conveying distance is no more 30m.



Q3.Where is your company, factory or trader?

A3.We are Integration of industry and trade which is located in Xinxiang, Henan Province. China.



Q4.What's the quality of your products?

A4A: You may check the qualification on our website certified by the appraisal agency Bureau Veritas;

A4B: Company inspection always available.Sincerely welcome your visit.



Q5.Can you give me a solution and quotation?

A5.Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
