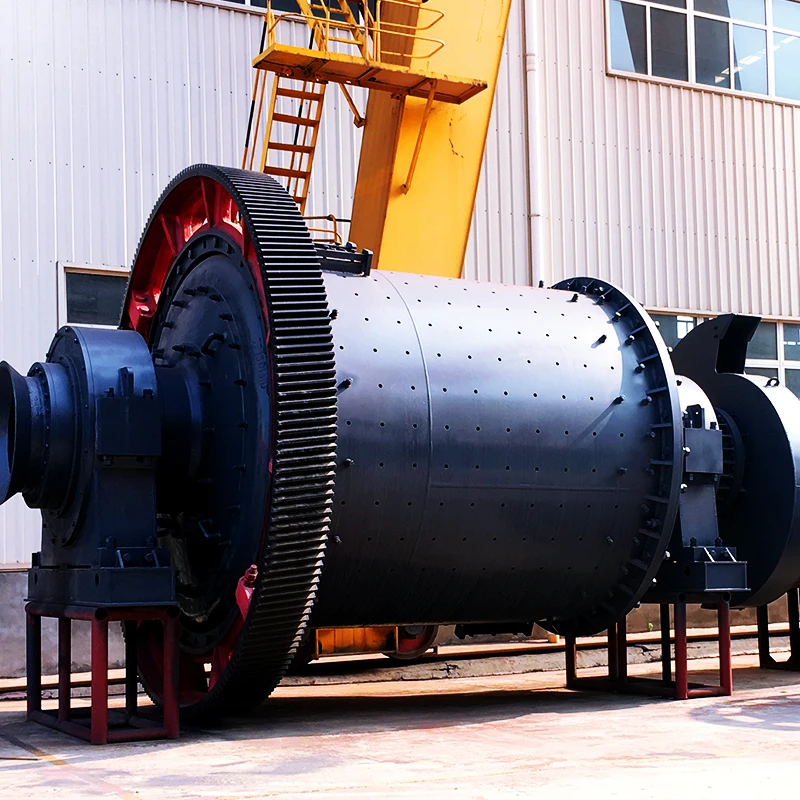

Provided AC Motor Ball Grinding Mills Small Rod Mill Machine Supplier Ball Mill Machine Manufacturer New Product 2020 Customized
- Category: >>>
- Supplier: Henan Turui Machinery Co. Ltd.
Share on (1600566896493):
Product Overview
Description
Product Description
Rod mill is widely applied in metaland nonmetal mine, water conservancy, glass and construction materialsindustries, mainly suitable for grinding various ores and rocks and artificialsand-making. Our high-efficiency rod mill adopts rolling bearing supportinstead of sliding bearing support with bearing bush. Therefore, it hasadvantages of even discharging size and high capacity.
Main Advantages and Merits of Rod Mill
2. The grinding media contact withthe ore in a linear manner, so that it has selective grinding function.
3. When used for coarse grinding, theprocessing amount of rod mill is higher than that of the ball mill with thesame specification.
Application
Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.
Working Principle

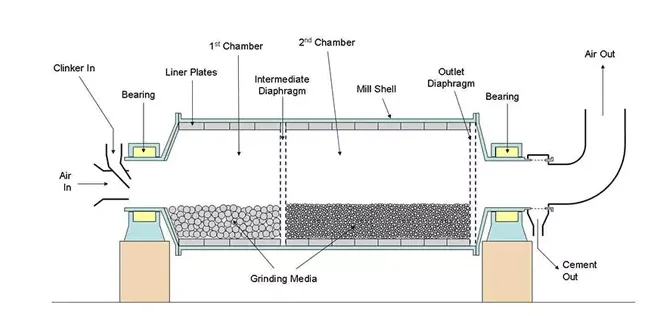

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Performance Characteristics
1. The lining can be replaced.
2. Mineral ball mill is an efficient tool for grinding many materials into fine powder.
3. Two ways of grinding: the dry way and the wet way.
4. Ultimate particle size depends entirely on how hard the material you’re grinding is.
5. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
Technical Parameter
Model | Shell Specifications （mm） | Shell rotation speed （r/min） | Feeding size (mm) | Discharging size (mm) | Processing capacity (t/h) | Power (kw) | Total weight (kg) | ||
Diameter | Length | ||||||||
MBS0918 | 900 | 1800 | 36-38 | ≤25 | 0.833-0.147 | 0.62-3.2 | 18.5 | 5500 | |
MBS0924 | 900 | 2400 | 36 | ≤25 | 0.833-0.147 | 0.81-4.3 | 22 | 6100 | |
MBS1224 | 1200 | 2400 | 36 | ≤25 | 0.833-0.147 | 1.1-4.9 | 30 | 12000 | |
MBS1530 | 1500 | 3000 | 29.7 | ≤25 | 0.833-0.147 | 2.4-7.5 | 75 | 16800 | |
MBS1830 | 1830 | 3000 | 25.4 | ≤25 | 0.833-0.147 | 4.8-11.6 | 130 | 29000 | |
MBS2130 | 2100 | 3000 | 23.7 | ≤25 | 0.833-0.147 | 14-35 | 155 | 34800 | |
MBS2136 | 2100 | 3600 | 23.7 | ≤25 | 0.833-0.147 | 19-43 | 180 | 37000 | |
MBS2430 | 2400 | 3000 | 21 | ≤50 | 0.833-0.147 | 25-65 | 245 | 54000 | |
MBS2736 | 2700 | 3600 | 20.7 | ≤50 | 0.833-0.147 | 32-86 | 380 | 86000 | |
MBS2740 | 2700 | 4000 | 20.7 | ≤50 | 0.833-0.147 | 32-92 | 400 | 94000 | |
MBS3245 | 3200 | 4500 | 18 | ≤50 | 0.833-0.147 | 64-180 | 630 | 137000 | |
Product Advantages
1. Ball Mill is an efficient tool for grinding many materials into fine powder.
2. Ball mill is used to grind many kinds of mine and other materials, or to select the mine.
3. Ball mill is widely used in building material, and chemical industry.
4. There are two ways of grinding: the dry way and the wet way.
5. Ball mill can be divided into tabular type and flowing type according to different expelling mine.
6. To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8. The longer the ball mill runs, the finer the powder will be.
9. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
4. There are two ways of grinding: the dry way and the wet way.
5. Ball mill can be divided into tabular type and flowing type according to different expelling mine.
6. To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8. The longer the ball mill runs, the finer the powder will be.
9. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

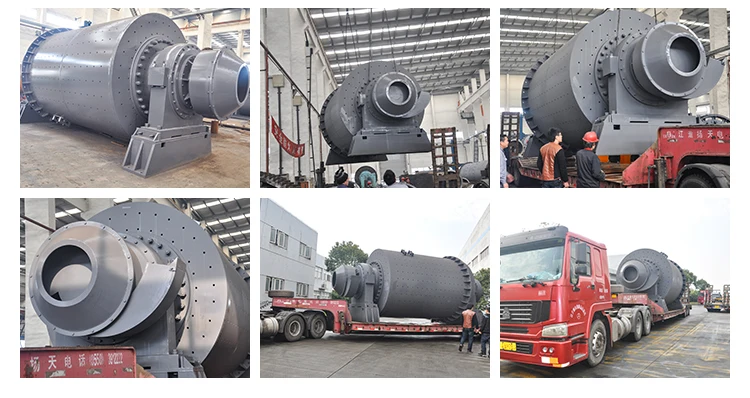

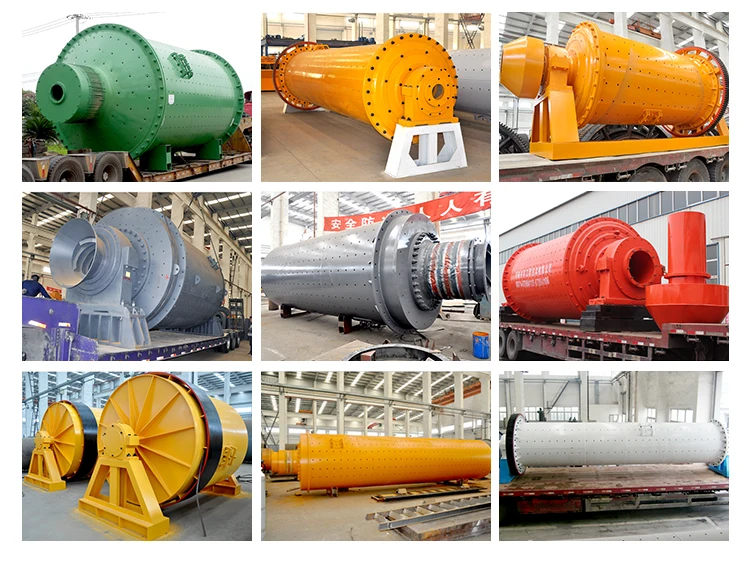

Packaging & Shipping
Packaging Details: We will make different packaging according to different machine sizes .standard international export packing, container, wooden box.
Delivery Time: We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Delivery Time: We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our factory is capable of shipping large machine even more than 100 tons.
Company Profile
Henan Turui Machinery Co., Ltd is a professional manufacturer of different mining machinery. It integrates the design, research, production, sales and installation together, guaranteeing the reliable and stable quality.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Now the company has more than one hundred employees, including 8 professional engineers. Seventy-five percent of the employees have participated the professional technical training, which makes sure high-efficient pre-sales and after-sale service.
Our Services
Service---customers is the first!
We not only have experienced engineers and after-sales groups but deal with the trade through internet and form our own sales network.
1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1>. Select equipment model;
2>. Design and manufacture products according to clients' special requirement;
3>. Train technical personnel for clients.
2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients.
1>. Pre-check and accept products ahead of delivery;
2>. Help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients' worries.
1>. Assist clients to prepare for the first construction scheme;
2>. Install and debug the equipment;
3>. Train the first-line operators;
4>. Examine the equipment;
5>. Take initiative to eliminate the troubles rapidly;
6>. Provide perfect service;
7>. Provide technical exchanges.
