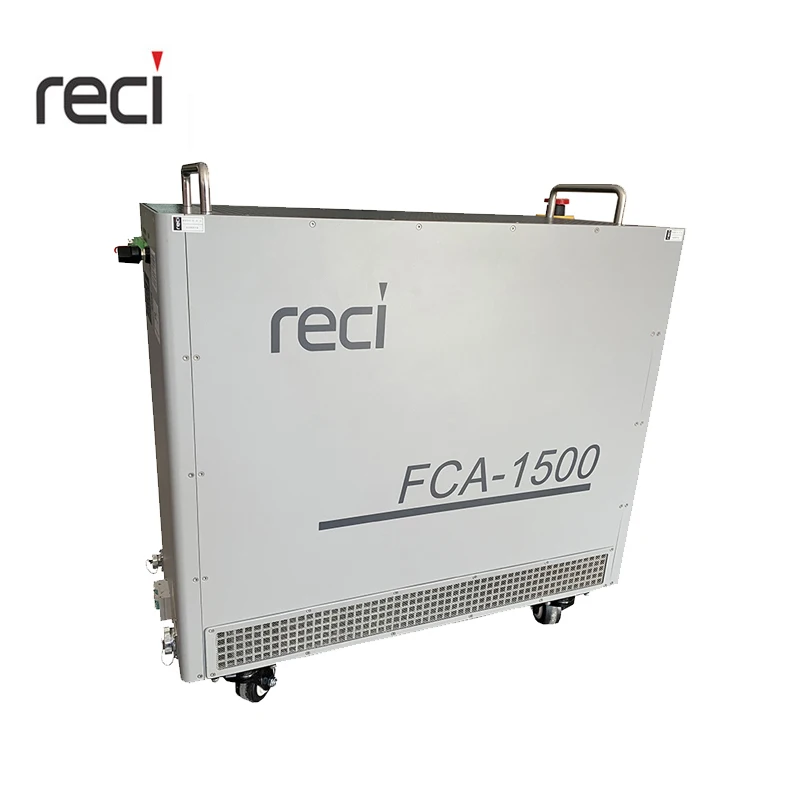

Reci High Power with Excellent Beam Quality Air cooled Fiber Laser Machine for Metal Welding
- Category: >>>
- Supplier: Zhejiang Reci Laser Technology Co. Ltd.
Share on (1600566914796):
Product Overview
Description
A new assistant for welding
Product Description

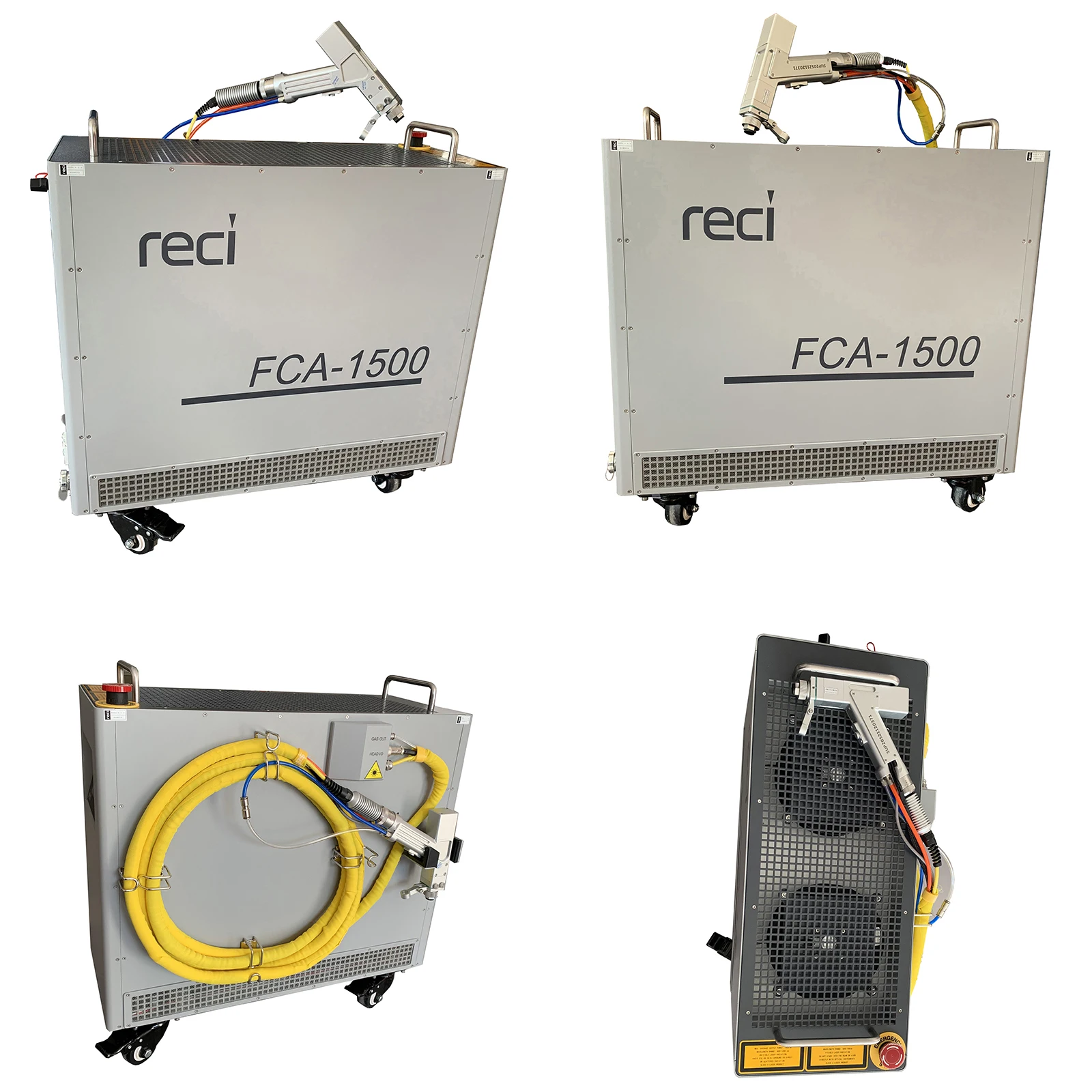

FCA Series Air-cooled Fiber Laser
MODEL | FCA1000 | FCA1500 | FCA2000 | |
Optical Specification | Output Power (W) | ≥1000 | ≥1500 | ≥2000 |
Operating Mode | CW/Modulate | |||
Polarization | Random | |||
Power Range (%) | 10~100 | |||
Central Wavelength (nm) | 1080±3 | |||
Power Instability (%) | <3 | |||
Max. Modulation Frequency (kHz) | 20 | |||
Red Laser power (mW) | >0.5 | |||
Beam Delivery Optics | QBH | |||
Output Fiber Diameter (μm) | 30 | |||
Delivery Fiber Length (m) | Standard 5m / customizable 10m | |||
| ||||
Electric Specification | Operating Voltage (VAC) | AC 220V 50/60Hz | ||
Power Consumption (W) | <3500 | <5000 | <7000 | |
Control Mode | Ext. AD/Loc. AD | |||
| ||||
Other Specification | Dimensions W×H×D (mm3)* | 279.5×712×566 | 279.5×712×666 | 289.5×824×662 |
Weight (kg)* | <47 | <55 | <65 | |
Ambient Temperature (℃) | 5~40 | |||
Ambient Humidity (%) | <70 | |||
Cooling Method | Air cooling | |||
Storage temperature (℃) | -10~60 | |||
Input gas pressure(MPa) | ≤0.7MPa | |||
Air-cooled Fiber Laser
FCA series air-cooled continuous-wave fiber laser is developed and produced by Reci Laser. Compared with traditional gas and solid-state lasers, it has the characteristics of high electro-optic conversion efficiency and superior beam quality. At the same time, the structure of fiber laser is more compact because of the coilability of fiber. This series can be widely used in metal welding, cutting, industrial processing, military defense and scientific research with the advantages of high electro-optic conversion efficiency, high output power, high beam quality, compact structure, maintenance free and low cost.

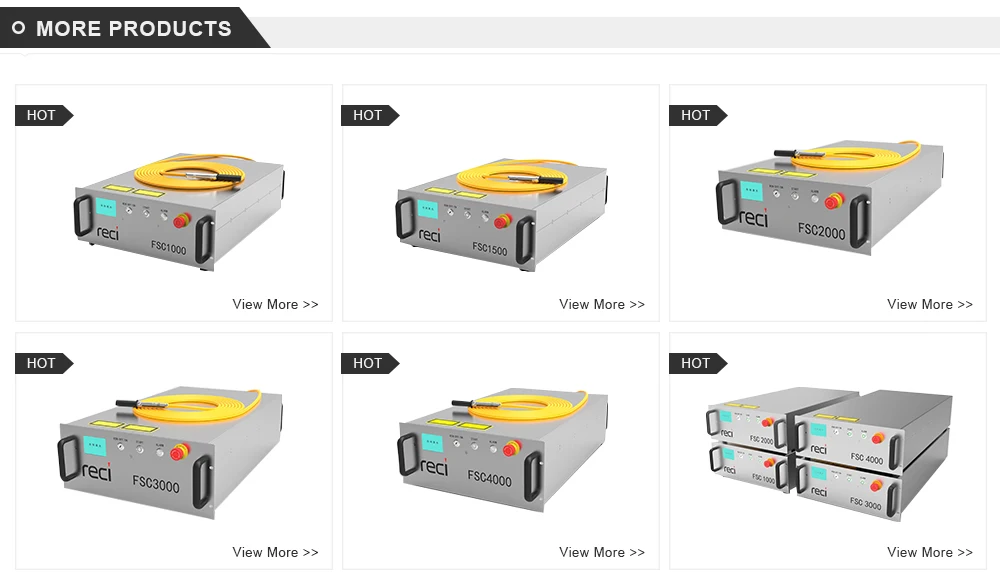

More Products
Product Line
Our Company
Certification
Exhibition
Packaging&Shipping
FAQ
Q:What model do you have?

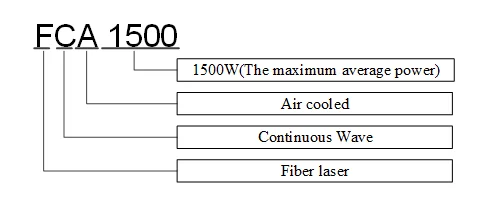

A: As a series of lasers, its model name description is illustrated as the following figure, take FCA1500 as an example. Similarly, the FCA1000 means its maximum average power can reach 1000W; the FCA2000 means its maximum average power can reach 2000W:
Q: Can you do OEM Air-cooled Fiber Laser?
A: Yes, if you meet the requirements, we can do some OEM for you.
Q: What should I pay attention to when using the product?
A: (1)The output head of the laser is connected with the armor. Please check the output head carefully to prevent dust or other pollution. Please use special lens paper when cleaning the lens at the output end..
(2)Never installing the laser output with the processing system when the equipment is power on.
(3)The protective glasses should be worn all the time.
Q: What are the advantages of your products compared with other manufacturers?
A: Main Features:
(1)High wall-plug efficiency
(2)High power with Excellent beam quality
(3)High reliability, long service life, maintenance free
(4)All fiber structure, compact, rugged package
(5)Multiple anti-high-reflection
