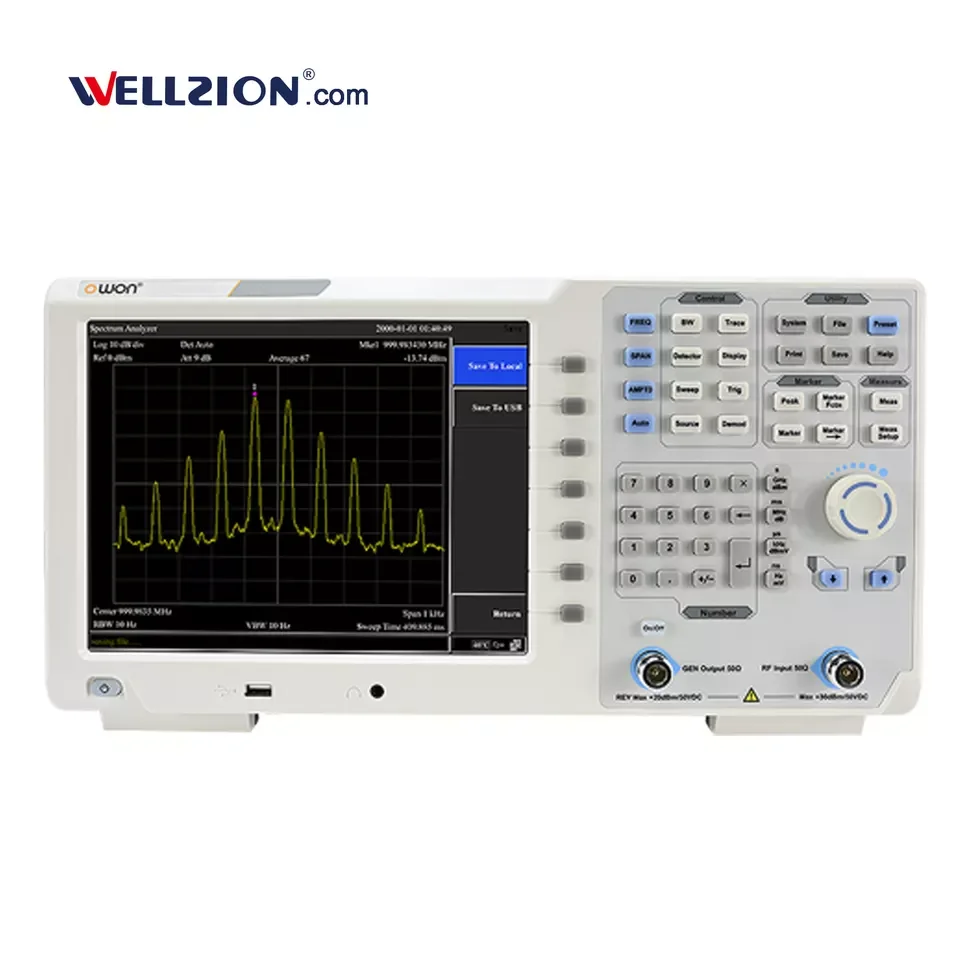

Настольный цифровой анализатор спектра XSA1015TG OWON 9 кГц ~ 1,5 ГГц 10,4 дюйма

 XSA1015TG OWON Benchtop Digital Spectrum Analyzer 9kHz~1.5GHz 10.4 Inch

Features:

+ Frequency Range from 9 kHz up to3.6 GHz

+ 150dBm Displayed Average Noise Level

+ Phase Noise -82dBc/Hz @1Gz and offset at 10KHz

+ Total Amplitude Accuracy <1.5dB + 10Hz Minimum Resolution Bandwidth (RBW)

+ EMI Pre-compliance Test Kit

+ Up to 3.6 GHz Tracking Generator Kit

+ 10.4 inches display

Frequency Specification:

Amplitude Specification:

Displayed Average Noise Level(DANL) (Input attenuation 0dB,1Hz resolution bandwidth):
Preamp Off :  1MHz~10 MHz -130dBm(nominated)
                       10MHz~1GHz -130dBm(nominated)
                       1GHz~1.5 GHz -128 dBm(nominated)
Preamp On:    1MHz~10 MHz -150dBm(nominated)
                       10MHz~1GHz -150dBm(nominated)
                       1GHz~1.5 GHz -148 dBm(nominated)

Phase Noise(20°C ~30°C,fc=1 GHz):
30kHz Offset:<-90 dBc/Hz
100kHz Offset:<-100 dBc/Hz
1MHz Offset:<-110 dBc/Hz

Level Display Range:
Log Scale Coordinate:1dB ~255dB
Linear Scale Coordinate:0 to reference level
Level Unit:dBm,dBuW,dBpW,dBmV,dBuV, W,V
Points:201~1001
Number of Traces:5
Detectors:Positive-peak, negative-peak, sample, normal, RMS
Trace Functions:[1 ←→ 2],[2-DL→ 2] [2 ←→ 3] [1 → 3] [2 → 3]

Distortion and spurious response:
Second Harmonic Distortion (SHI):fc ≥ 50 MHz,Preamp off,signal input -30dBm,0dB RF attenuation,20°C~30°C,-60dbc
Third-Order Intermodulation (TOI):fc ≥ 50 MHz,+13 dBm
1dB Gain Compression:fc ≥ 50 MHz,0dB RF attenuation,Preamp off,20°C ~30°C,+7 dBm, nominal
Residual Response:connect 50 Ω load at input port,0dB input attenuation,20°C~30°C,<-85dBm,nominated
Input Related Spurious:-30 dBm signal at input mixer,20°C ~30°C,<-60 dBc

Sweep Time and Triggering:
Sweep Time Range (SPAN>0):10ms~3000s
Sweep Time Range (SPAN=0):1ms~3000s
Mode:Continue, single
Trigger:Free run, video, external

Tracking Generator:
Output Frequency Range:100 kHz~1.5 GHz
Output Power Level Range:-30 dBm~0 dBm
Output Power Level Resolution:1DB
Output Flatness:±3dB
Maximum Safe Reverse Level:Average total power:30dBm,DC:±50VDC

Inputs and Outputs:
Front Panel RF Input Connector:50 Ω,N-type female
Front Panel Track Generator Output:50 Ω,N-type female
10M Reference Input:50 Ω,N-type female
Communication Port:USB HOST, USB DEVICE, LAN, Earphone Port and VGA

General Specification:
Display:10.4 inches TFT LCD resolution 600*480
Working Temperature:0~40°C
Storage Temperature:-20°C~60°C
Power:100V~240V 50/60Hz
Weight:5kg
