  • In Stock 12V/24VOutput Automatic Swing Gate Opener Control Board with 2 remotes
In Stock 12V/24VOutput Automatic Swing Gate Opener Control Board with 2 remotes
In Stock 12V/24VOutput Automatic Swing Gate Opener Control Board with 2 remotes
In Stock 12V/24VOutput Automatic Swing Gate Opener Control Board with 2 remotes
In Stock 12V/24VOutput Automatic Swing Gate Opener Control Board with 2 remotes
In Stock 12V/24VOutput Automatic Swing Gate Opener Control Board with 2 remotes
In Stock 12V/24VOutput Automatic Swing Gate Opener Control Board with 2 remotes
In Stock 12V/24VOutput Automatic Swing Gate Opener Control Board with 2 remotes

In Stock 12V/24VOutput Automatic Swing Gate Opener Control Board with 2 remotes

Share on (1600566952324):


Price:$40.00 - $52.00

Quantity:


Product Overview

Description



Specification


item
value
Model Number
ID200
Product Name
swing gate opener control board
Motor
ID200
Power supply
12-20Vac/100-200VA
Max. Current out
(14-15) 250mA
Embedded Battery charger
12/24V 100mA
Max motor current
8A (200VA transformer)
Max flashing light current
1A
Max electriclock current
2A
Operating temperature range
-5 +60°C
Backup battery
(2x) 12V 4.5Ah

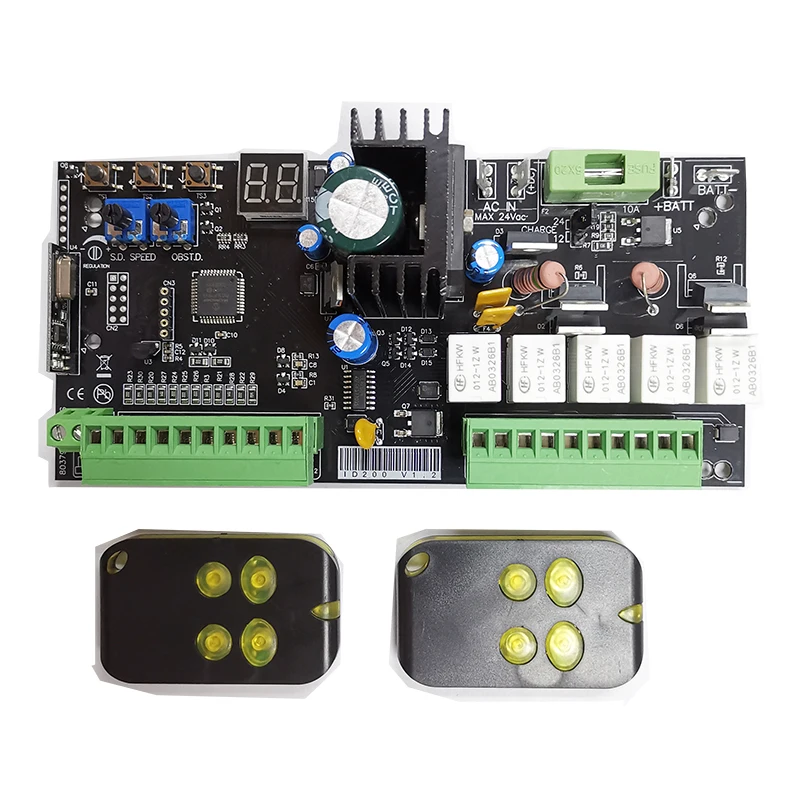

Packing List:
one pcs control board,
two pcs remote controls.
(We have 3 kinds remote, ou can choose the style you want)


Product Description




Note:it is compatible for 12V and 24V swing gate opener, that's to say, 12V and 24V in one.
Anyhow, if needed to charge the battery, it can be only used for 24V swing gate opener.
