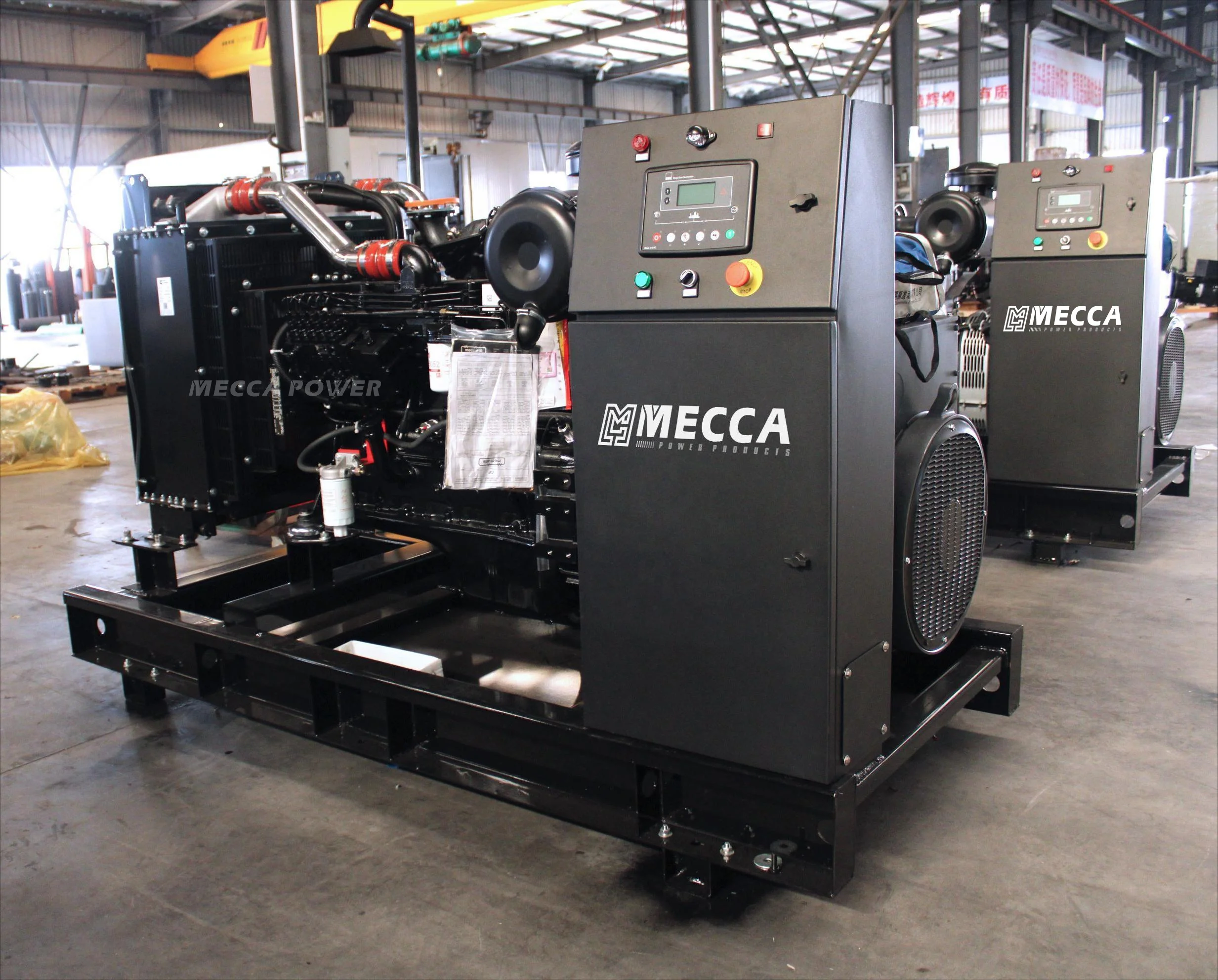

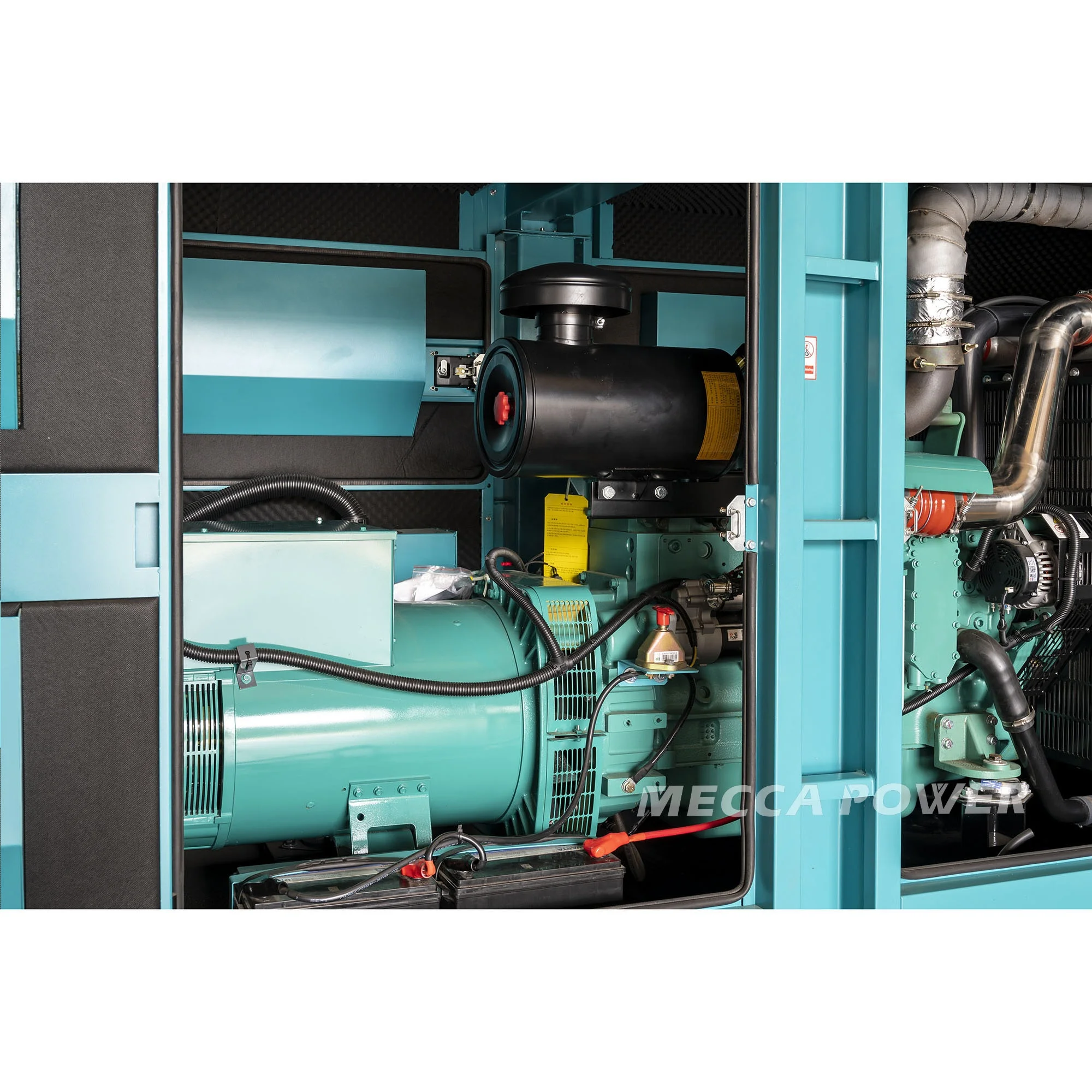

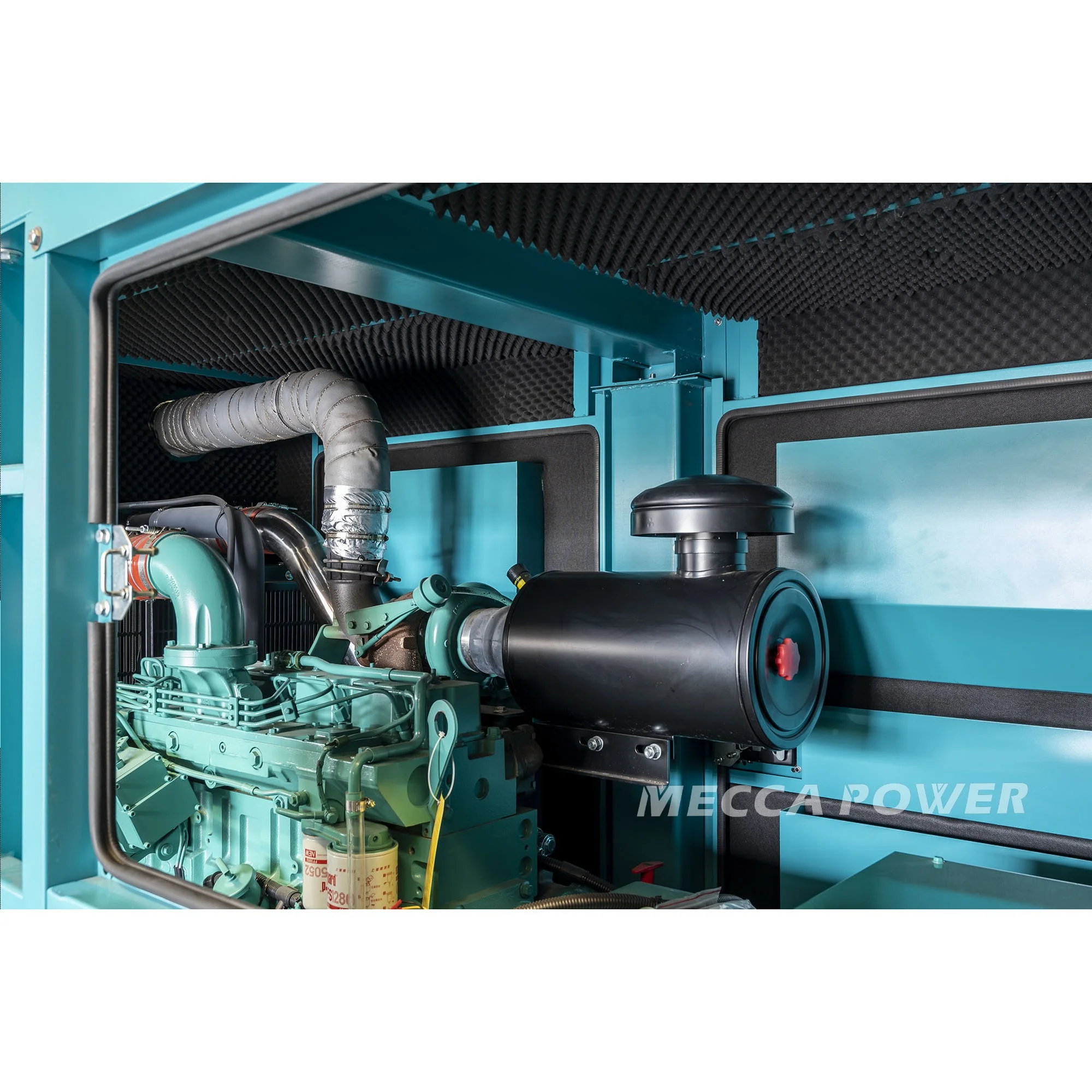

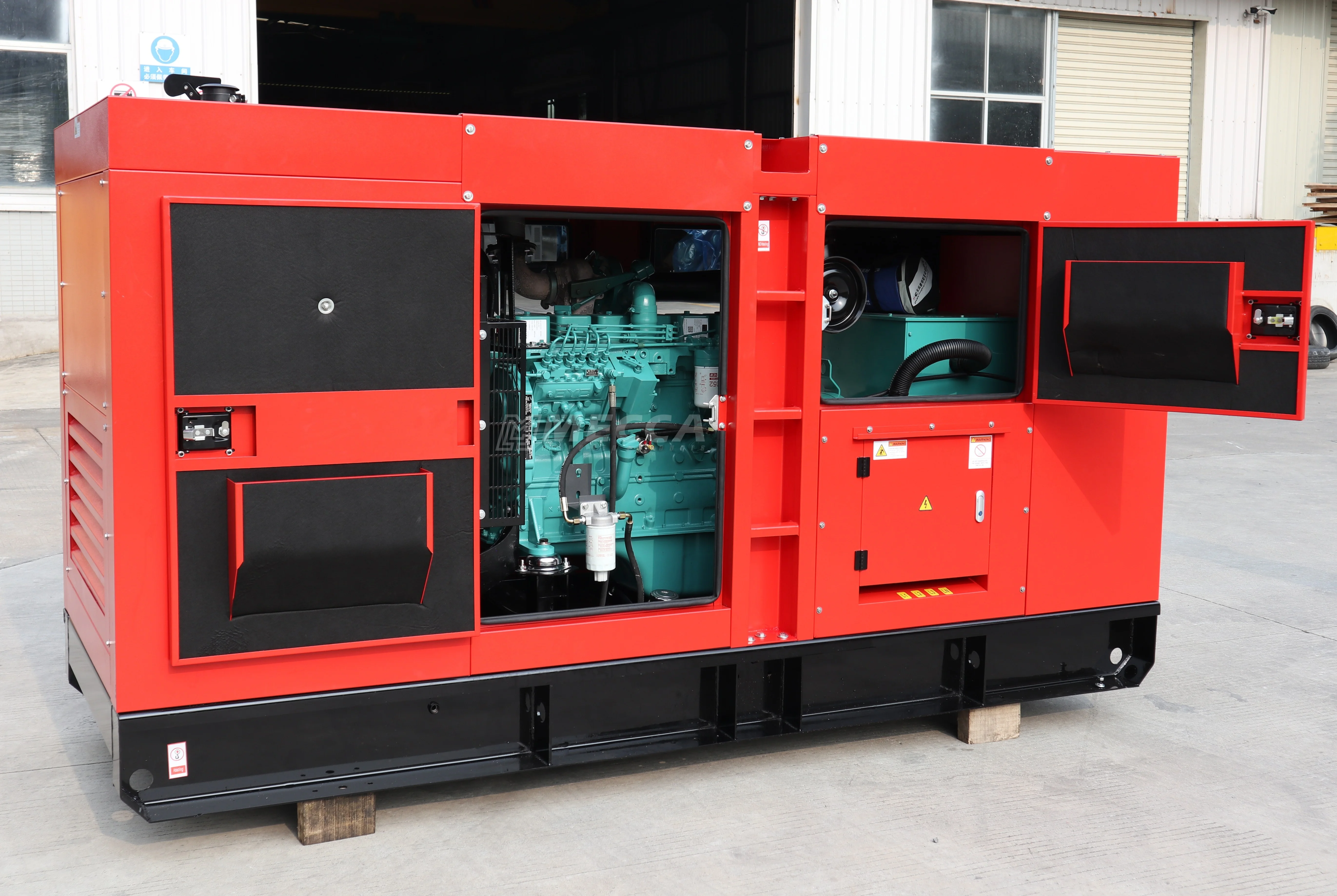

CE ISO Approved Diesel Generator CCEC Cummins Electrogene Dynamo with KTA19 G2 Engine 375KVA/300KW
- Category: >>>
- Supplier: Fujian Mecca Imp. & Exp. Trading Co. Ltd.
Share on (1600566959432):
Product Overview
Description
Company Profile
Mecca Power, as part of a Global Power Supplier initiative, provides a professional solution for the design, application and after-sales support of generators. Strongly focused on innovation and the inherent flexibility of product design, Mecca Power has been successful in global markets with a broad and diverse range of genset power products that can operate autonomously or independently. parallel, on-site or remotely controlled.
Products Description
(1) Advanced waterproof,dustproof,sand proof and rodent proof design;
(2) Convenient refueling and watering devices；
(3) Easy for transport；
(4) Easy for maintenance；
(5) Excellent spraying and welding technology.

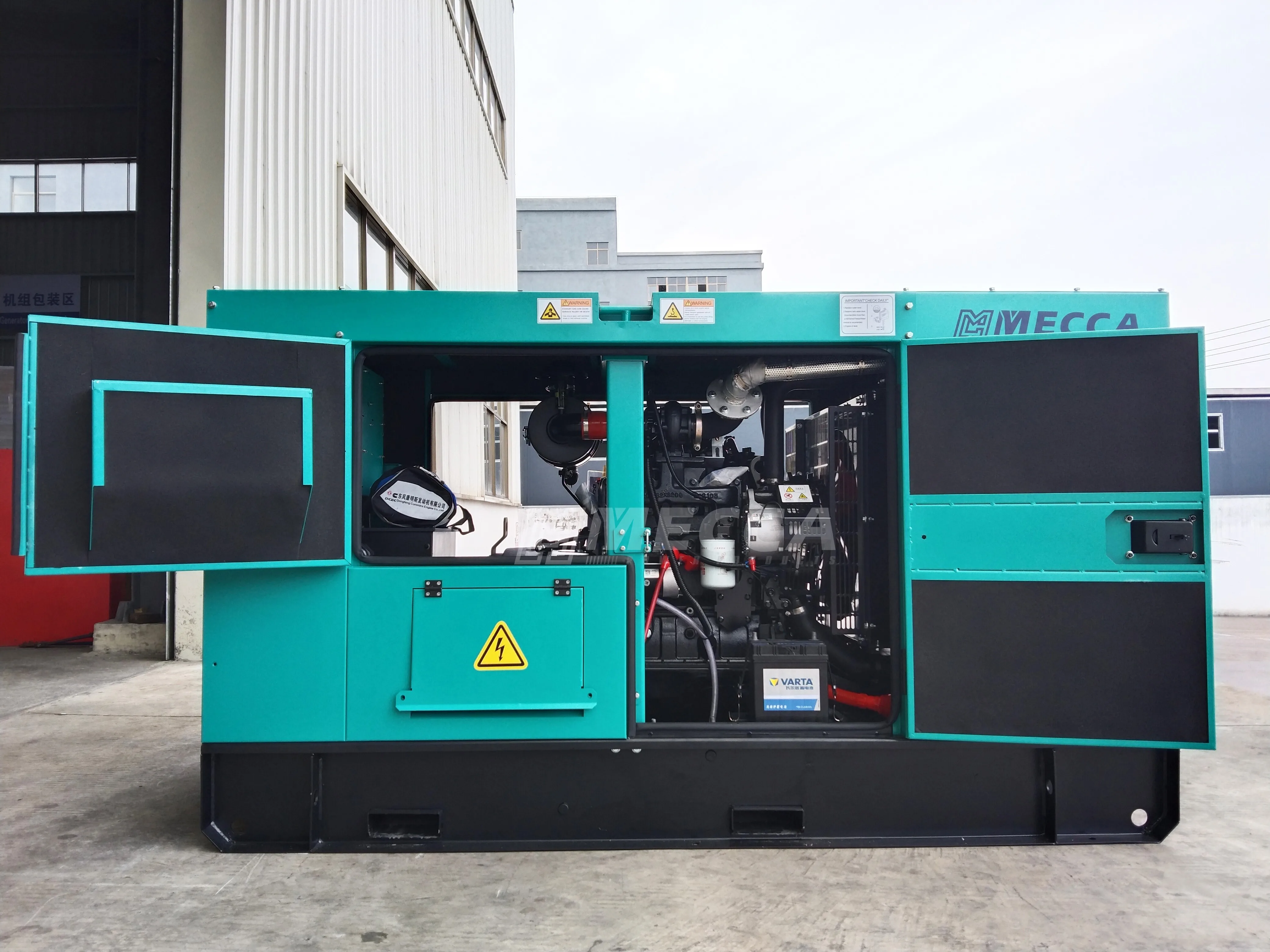

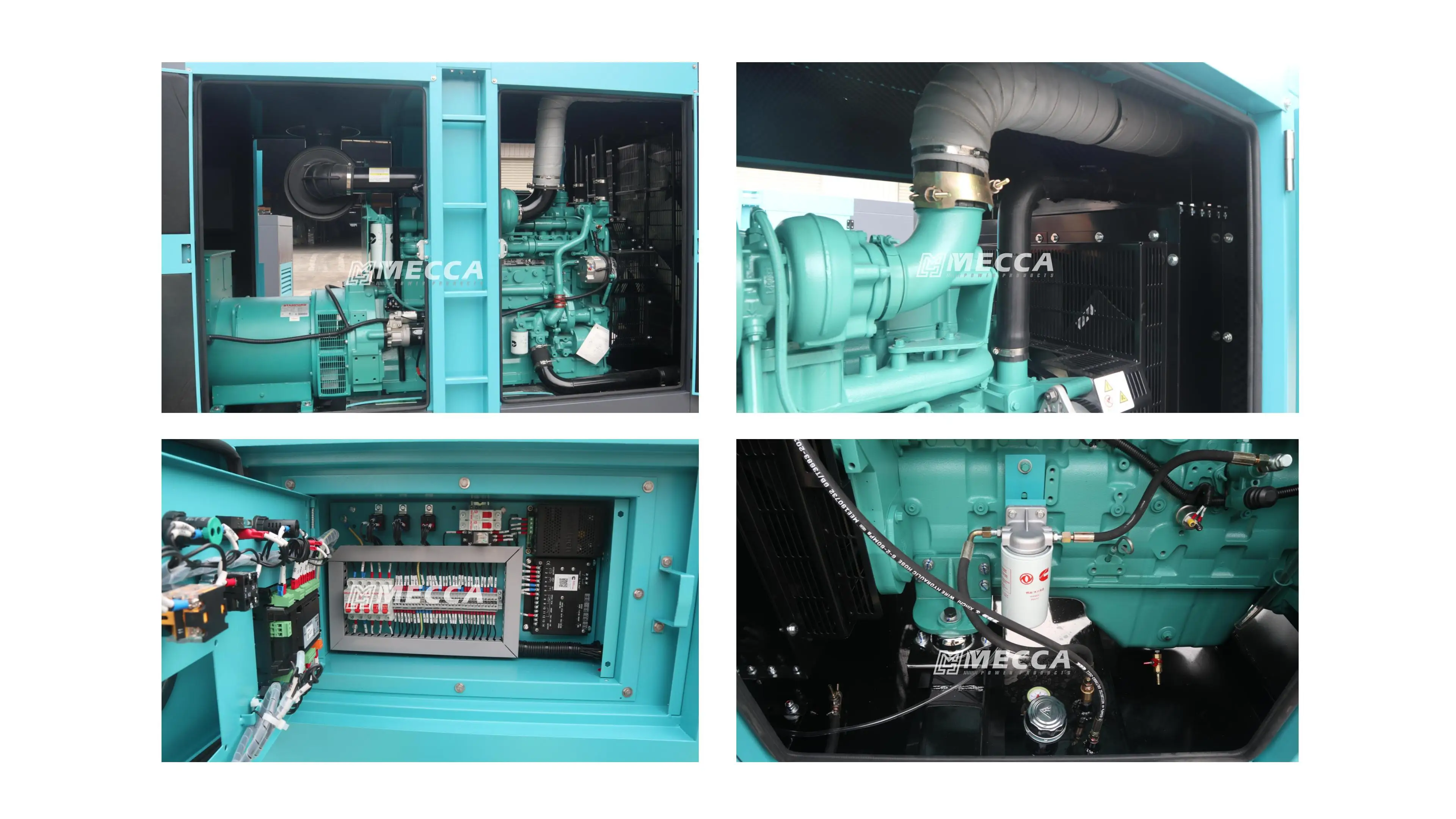

Diesel Gensets Details
General Feature | |||||||||||||||||||||||||||
♦ Assembled by diesel engine and Brushless alternator. | |||||||||||||||||||||||||||
♦Three filters as standard, fuel and water separator as optional. | |||||||||||||||||||||||||||
♦ Radiator and fan with safety guard. | |||||||||||||||||||||||||||
♦ Single bearing alternator IP 23, Insulation Class H. | |||||||||||||||||||||||||||
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank. | |||||||||||||||||||||||||||
♦ Automatic control panel and 3 poles circuit breaker, internal cable. | |||||||||||||||||||||||||||
♦ 12V or 24V battery, battery wires. | |||||||||||||||||||||||||||
♦ Battery and float battery charger as standard supply scope. | |||||||||||||||||||||||||||
♦ Fuel level indicator in meter and panel | |||||||||||||||||||||||||||
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers. | |||||||||||||||||||||||||||
Why Choose Us
Specification
Powered by DCEC CUMMINS Series 50HZ 400/230 V 22-550KVA | ||||||||||||||||||
Model | LTP | PRP | Engine | Fuel Cons. | Cylinder | Displacement | ||||||||||||
KVA / KW | KVA/KW | Model | Origin | L/H(100%) | L | |||||||||||||
MC28C | 28 | 22 | 25 | 20 | 4B3.9-G1 | CN | 7.1 | 4L | 3.9 | |||||||||
MC28C | 28 | 22 | 25 | 20 | 4B3.9-G2 | CN | 6.7 | 4L | 3.9 | |||||||||
MC44C | 44 | 35 | 40 | 32 | 4BT3.9-G1 | CN | 10.0 | 4L | 3.9 | |||||||||
MC44C | 44 | 35 | 40 | 32 | 4BT3.9-G2 | CN | 9.3 | 4L | 3.9 | |||||||||
MC55C | 55 | 44 | 50 | 40 | 4BTA3.9-G2 | CN | 13.1 | 4L | 3.9 | |||||||||
MC66C | 66 | 53 | 60 | 48 | 4BTA3.9-G2 | CN | 13.1 | 4L | 3.9 | |||||||||
MC66C | 66 | 53 | 60 | 48 | 4BTA3.9-G11 | CN | 20.1 | 4L | 3.9 | |||||||||
MC80C | 80 | 64 | 72.5 | 58 | 4BTA3.9-G11 | CN | 20.1 | 4L | 3.9 | |||||||||
MC94C | 94 | 75 | 85 | 68 | 6BT5.9-G1 | CN | 21.7 | 6L | 5.9 | |||||||||
MC94C | 94 | 75 | 85 | 68 | 6BT5.9-G2 | CN | 22.0 | 6L | 5.9 | |||||||||
MC110C | 110 | 88 | 100 | 80 | 6BT5.9-G2 | CN | 22.0 | 6L | 5.9 | |||||||||
MC125C | 125 | 100 | 114 | 91.2 | 6BTA5.9-G2 | CN | 27.0 | 6L | 5.9 | |||||||||
MC154C | 154 | 123 | 140 | 112 | 6BTAA5.9-G2 | CN | 30.0 | 6L | 5.9 | |||||||||
MC176C | 176 | 141 | 160 | 128 | 6BTAA5.9-G12 | CN | 34.0 | 6L | 5.9 | |||||||||
MC200C | 198 | 158 | 180 | 144 | 6CTA8.3-G1 | CN | 42.0 | 6L | 8.3 | |||||||||
MC200C | 198 | 158 | 180 | 144 | 6CTA8.3-G2 | CN | 42.0 | 6L | 8.3 | |||||||||
MC220C | 220 | 176 | 200 | 160 | 6CTAA8.3-G2 | CN | 45.0 | 6L | 8.3 | |||||||||
MC250C | 248 | 198 | 225 | 180 | 6LTAA8.9-G2 | CN | 53.0 | 6L | 8.9 | |||||||||
MC275C | 275 | 220 | 250 | 200 | 6LTAA8.9-G2 | CN | 53.0 | 6L | 8.9 | |||||||||
MC275C | 275 | 220 | 250 | 200 | 6LTAA8.9-G3 | CN | 54.0 | 6L | 8.9 | |||||||||
MC303C | 303 | 242 | 275 | 220 | 6LTAA9.5-G3 | CN | 58.0 | 6L | 9.5 | |||||||||
MC330C | 330 | 264 | 300 | 240 | 6LTAA9.5-G1 | CN | 70.0 | 6L | 9.5 | |||||||||
MC358C | 358 | 286 | 325 | 260 | 6LTAA9.5-G1 | CN | 70.0 | 6L | 9.5 | |||||||||
MC385C | 385 | 308 | 350 | 280 | 6ZTAA13-G3 | CN | 76.5 | 6L | 13.0 | |||||||||
MC385C | 385 | 308 | 350 | 280 | QSZ13-G6 | CN | 81.6 | 6L | 13.0 | |||||||||
MC413C | 413 | 330 | 375 | 300 | 6ZTAA13-G3 | CN | 76.5 | 6L | 13.0 | |||||||||
MC413C | 413 | 330 | 375 | 300 | QSZ13-G7 | CN | 89.2 | 6L | 13.0 | |||||||||
MC440C | 440 | 352 | 400 | 320 | QSZ13-G7 | CN | 89.2 | 6L | 13.0 | |||||||||
MC440C | 440 | 352 | 400 | 320 | 6ZTAA13-G2 | CN | 89.1 | 6L | 13.0 | |||||||||
MC481C | 481 | 385 | 437.5 | 350 | 6ZTAA13-G4 | CN | 91.4 | 6L | 13.0 | |||||||||
MC481C | 481 | 385 | 437.5 | 350 | QSZ13-G2 | CN | 88.8 | 6L | 13.0 | |||||||||
MC481C | 481 | 385 | 437.5 | 350 | QSZ13-G5 | CN | 93.2 | 6L | 13.0 | |||||||||
MC550C | 550 | 440 | 500 | 400 | QSZ13-G3 | CN | 101.0 | 6L | 13.0 | |||||||||
Exhibition
Certifications
FAQ
Payment Terms:
By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
Delivery:
Approximately 2-4 weeks upon order confirmation.
Service Guarantee:
Before Service: According to the clients' requirement and actual situation, we will furnish the technology consultation and kinds
of information.
After Service:
By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
Delivery:
Approximately 2-4 weeks upon order confirmation.
Service Guarantee:
Before Service: According to the clients' requirement and actual situation, we will furnish the technology consultation and kinds
of information.
After Service:
Guarantee for one year or 1200 running hours (accord to whichever reach first) from installed date.
During the guarantee period, we will provide the free easy-damaged spare-parts for problems caused by our quality of production or
raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After
checking, our company provides cost spare-parts maintenance for gensets .
Beside genset one-stop purchasing service to world-wide customers,CKD and SKD packing service are also available according to
unique request.
CKD:Complete Knock Down Generator
Generator completely knocked down into parts without assembling.
All items from following are seperately packed without connection.
SKD:Semi Knock Down Generator
Partially assembled generator.
Part of the following items you choose will be assembled.
Advantage:
Prompt delivery
Reduced tax to win more competition
Lower transportation fees to save cost
Localized production to win more tenders.
Increased production to offer more job opportunity for the government
During the guarantee period, we will provide the free easy-damaged spare-parts for problems caused by our quality of production or
raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After
checking, our company provides cost spare-parts maintenance for gensets .
Beside genset one-stop purchasing service to world-wide customers,CKD and SKD packing service are also available according to
unique request.
CKD:Complete Knock Down Generator
Generator completely knocked down into parts without assembling.
All items from following are seperately packed without connection.
SKD:Semi Knock Down Generator
Partially assembled generator.
Part of the following items you choose will be assembled.
Advantage:
Prompt delivery
Reduced tax to win more competition
Lower transportation fees to save cost
Localized production to win more tenders.
Increased production to offer more job opportunity for the government
