China manufacturer factory WIFI ONU 1GE3FE HGU 1000M XPON FPON ONU ONT
- Category: >>>
- Supplier: HiOSO Technology Co. Ltd.
Share on (1600566965073):
Product Overview
Description

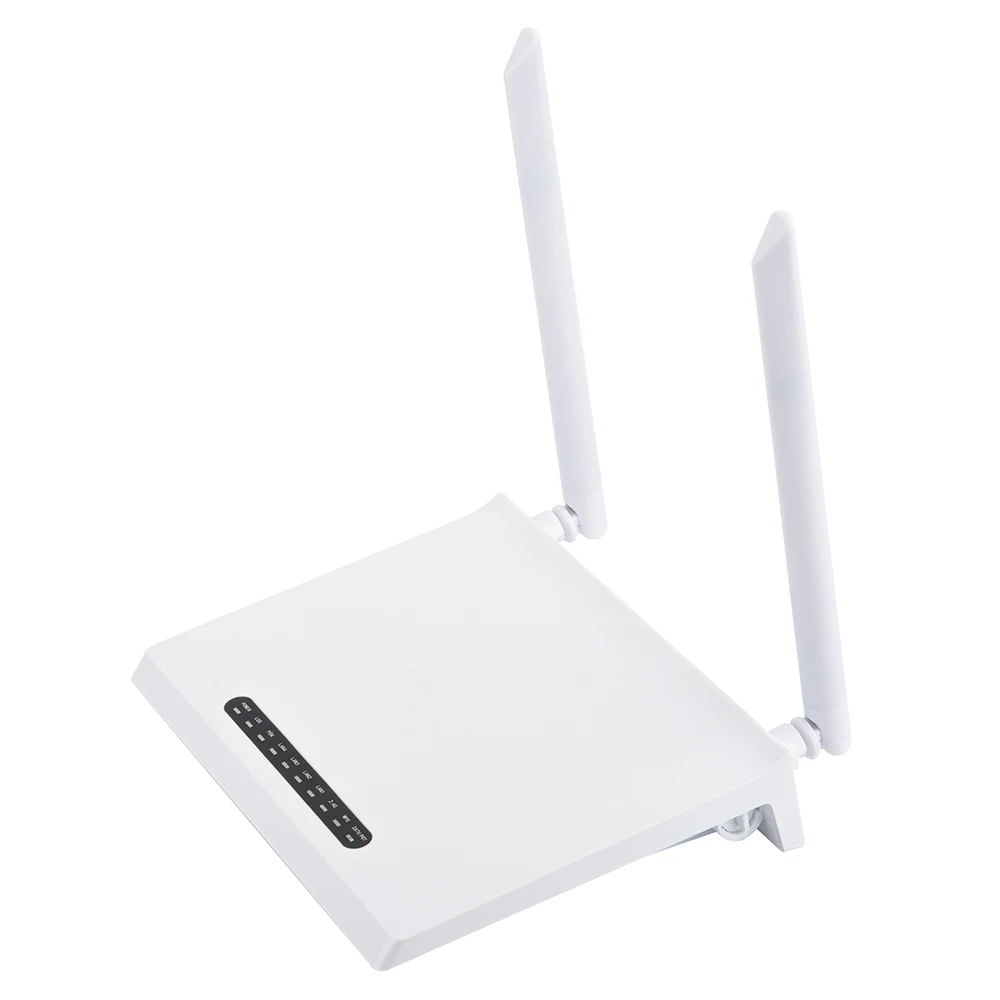

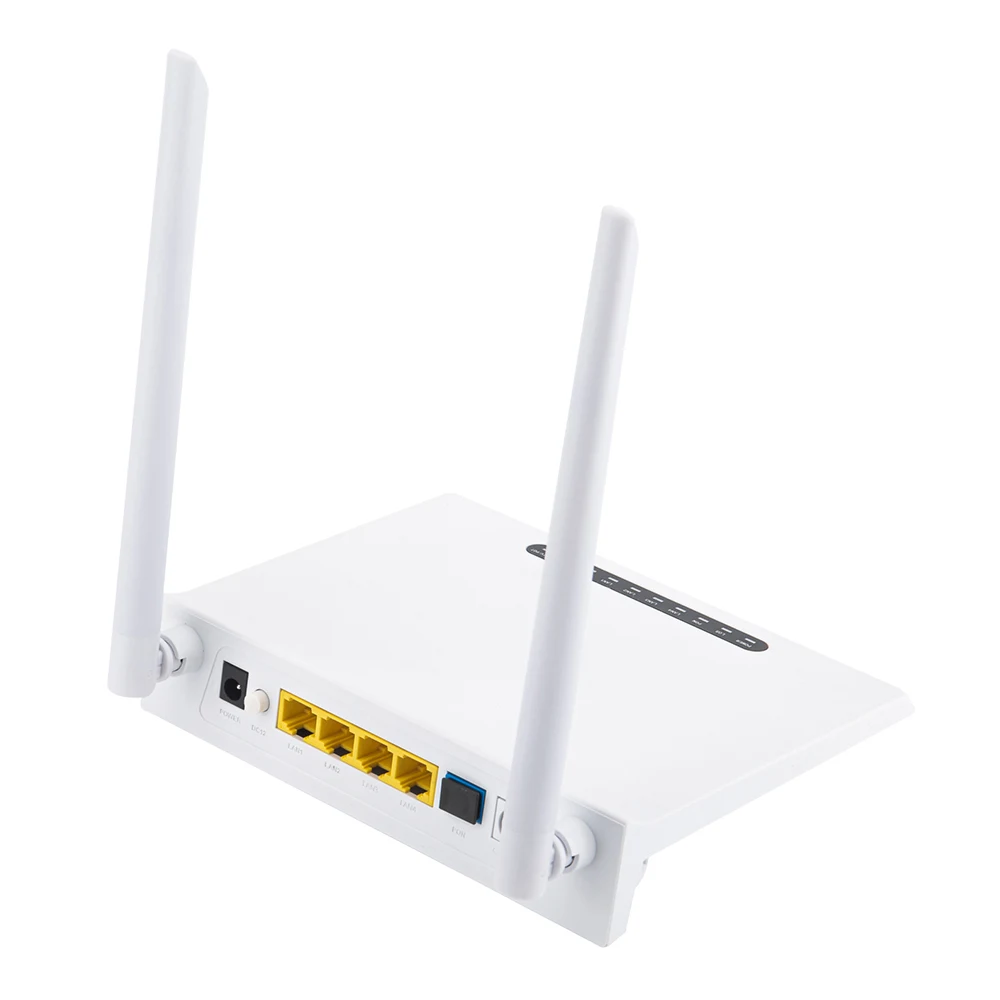

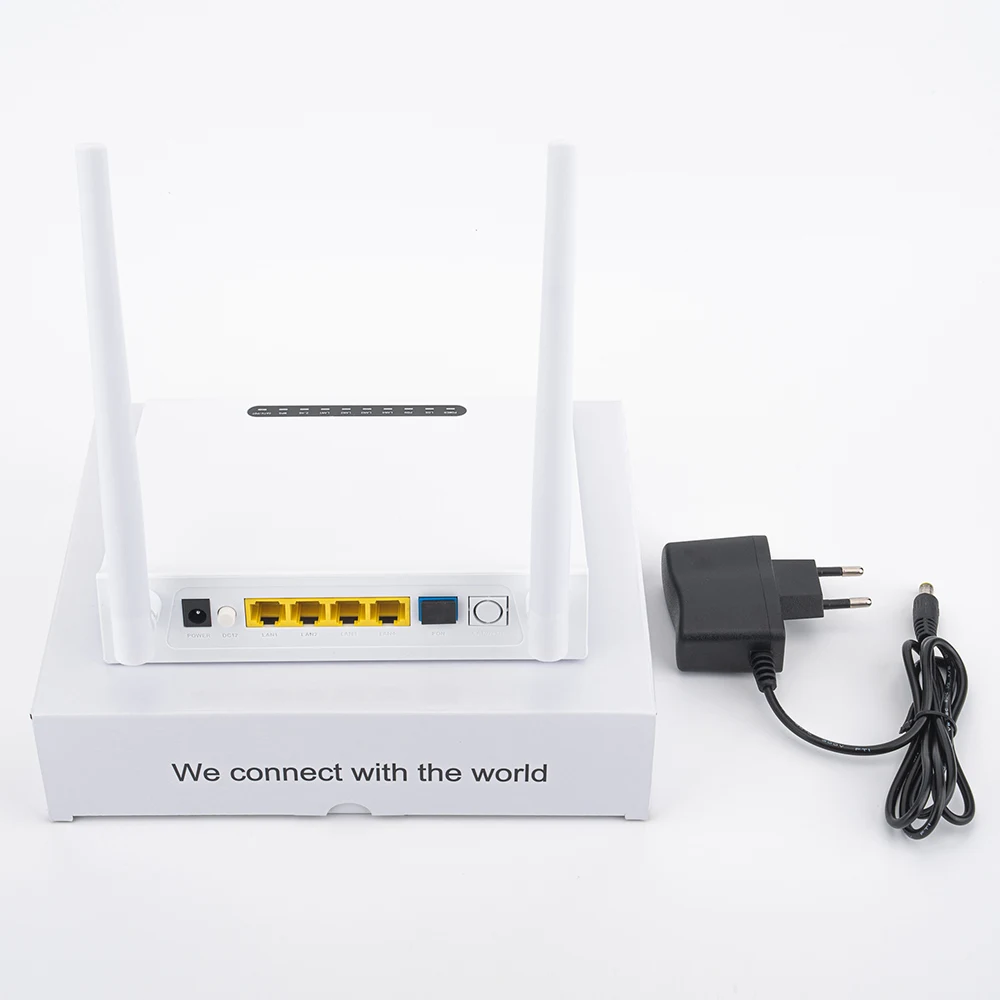

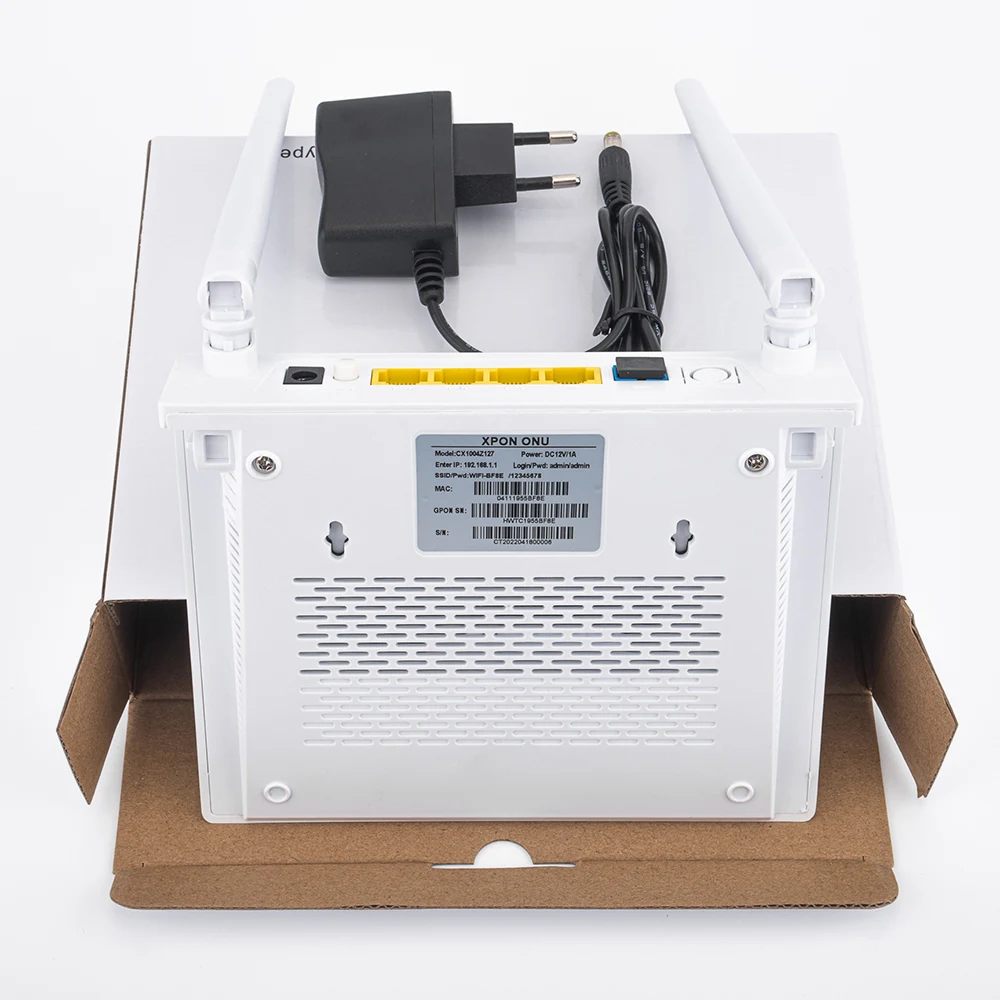

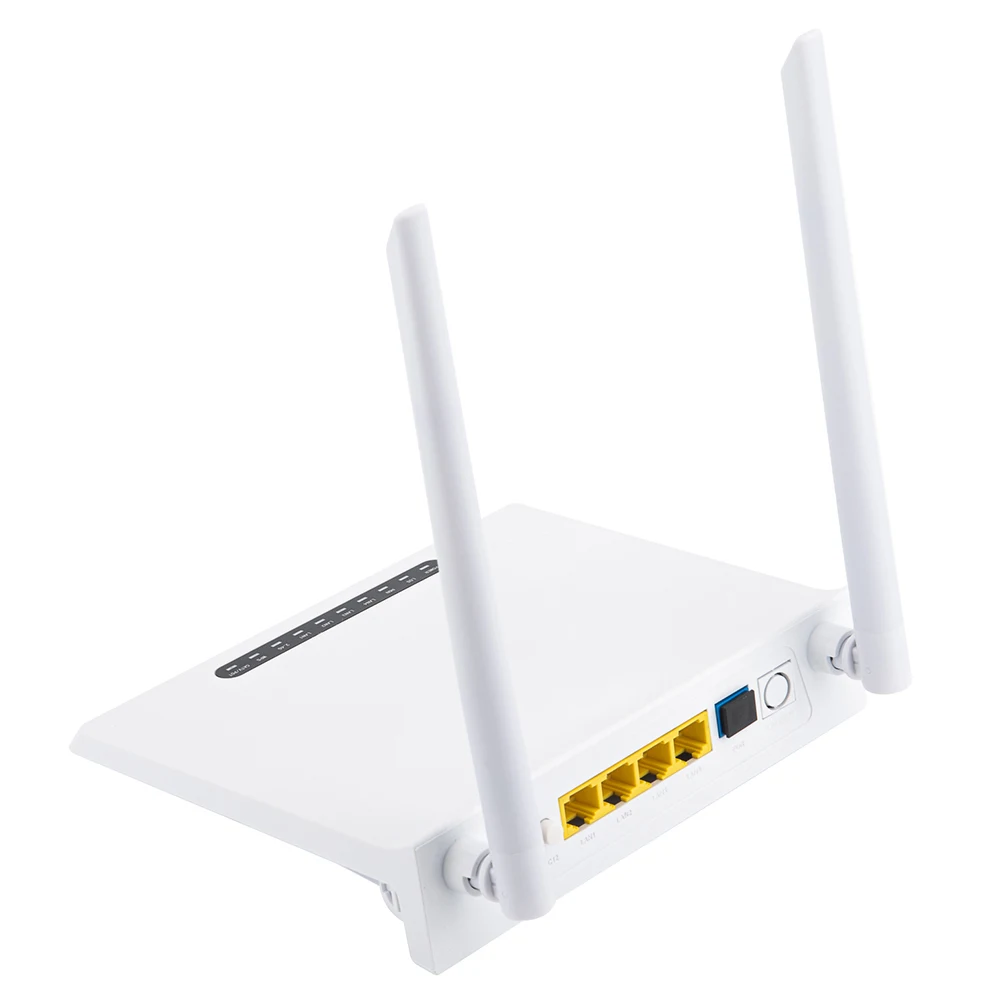

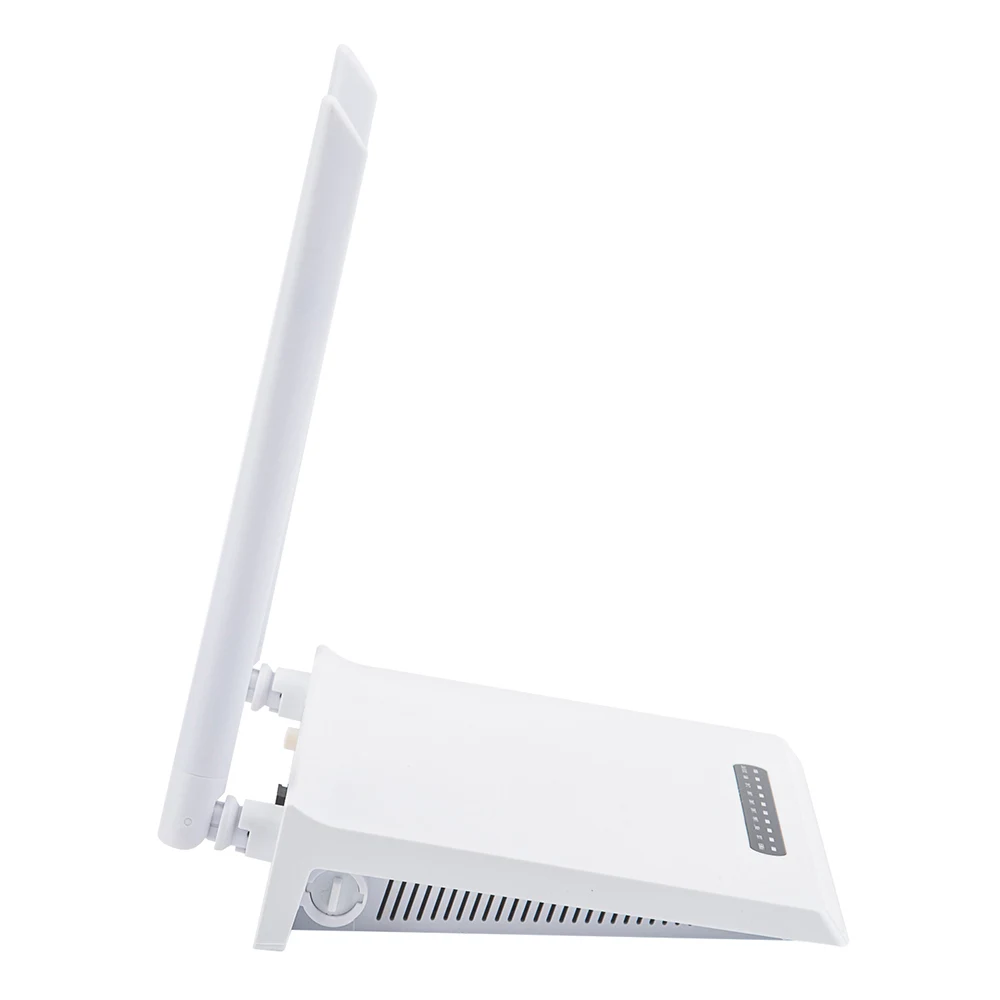

XPON ONU 1G3F WIFI
Overview
1G3F WIFI is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access.
1G3F WIFI is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
1G3F WIFI adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
1G3F WIFI is compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
1G3F+WIFI are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
1G3F+WIFI is designed by ZTE chipset 279127
Feature
Supports Dual Mode (can access GPON/EPON OLT).
Supports GPON G.984/G.988 standards
Support 802.11n WIFI (2x2 MIMO) function
Support NAT, Firewall function.
Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
Support port mode of VLAN configuration
Support LAN IP and DHCP Server configuration
Support TR069 Remote Configuration and WEB Management
Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
Support IPv4/IPv6 dual stack
Support IGMP transparent/snooping/proxy
In compliant with IEEE802.3ah standard
Compatible with popular OLT (HW, ZTE, FiberHome...)
Technical Specification
Technical Specification
Technical Item | Details |
PON interface | 1 E/GPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0.5~+4dBm Transmission distance: 20KM |

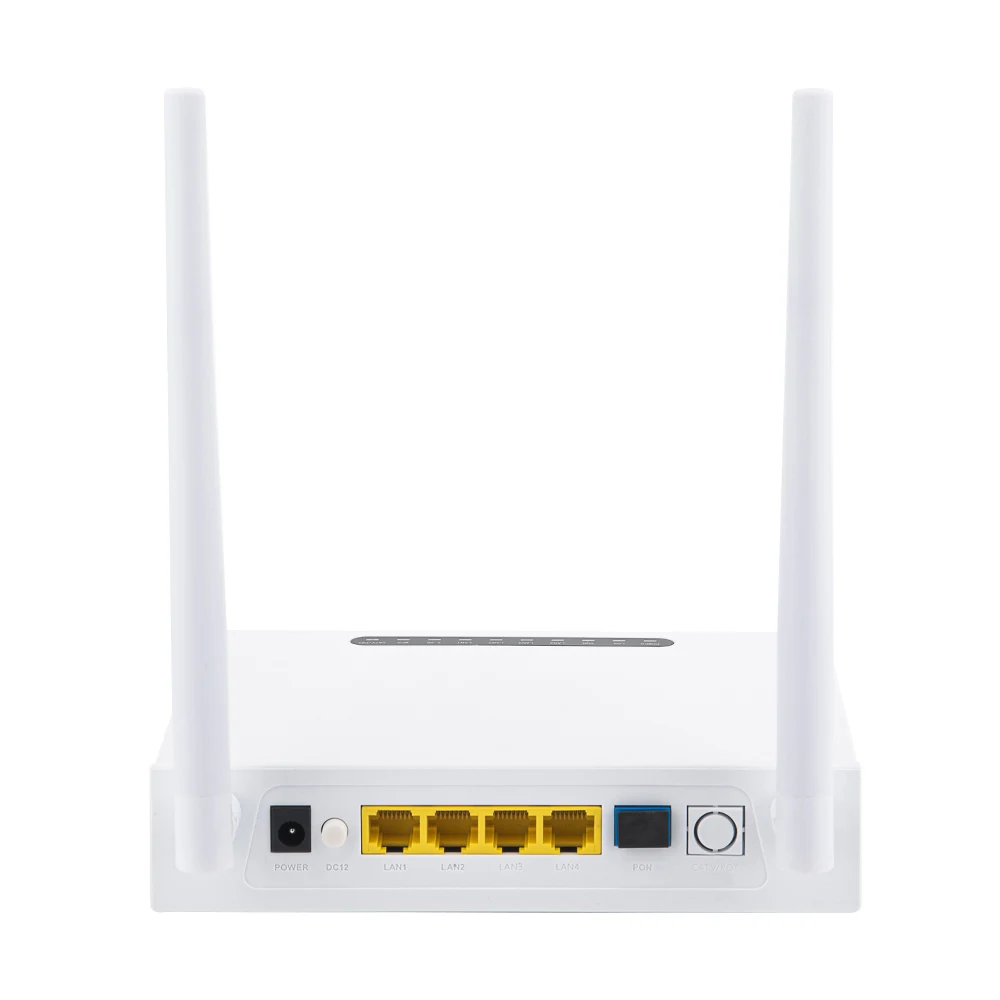

LAN interface | 1x10/100/1000Mbps and 3x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
WIFI Interface | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM |

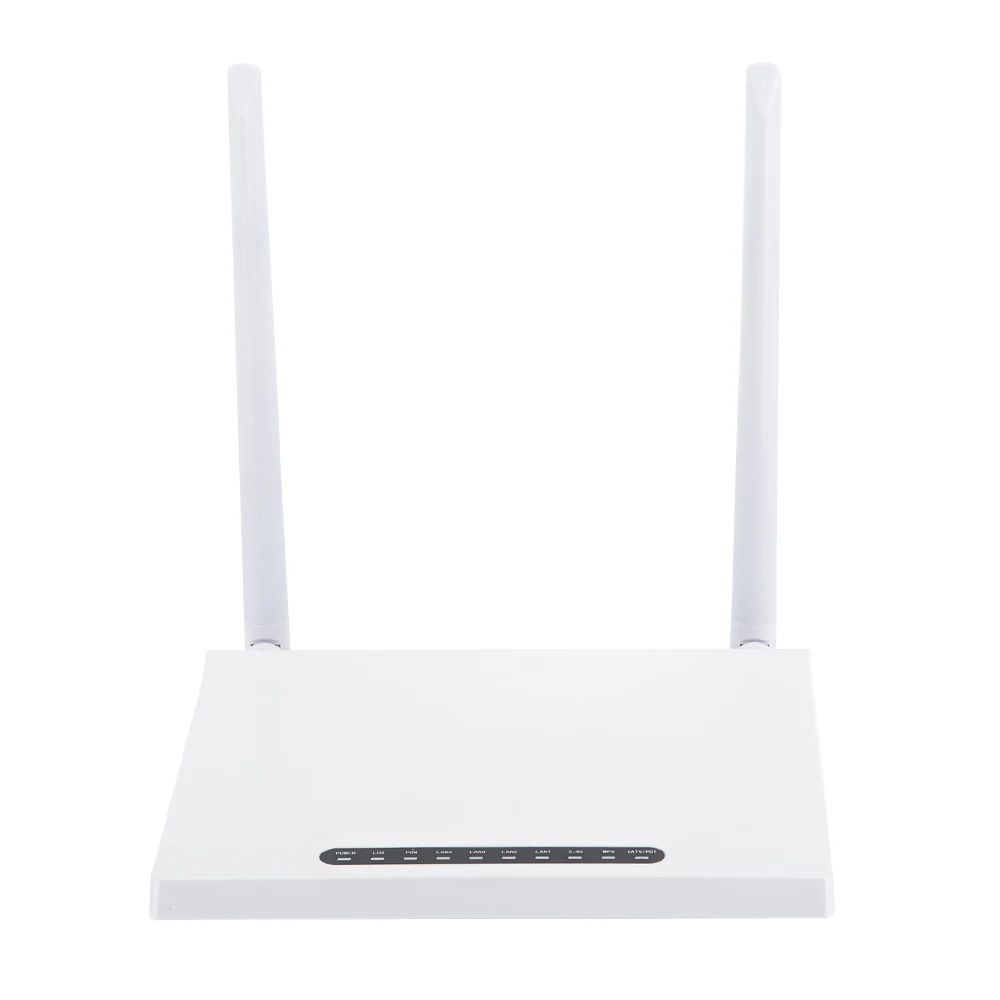

LED | 9 LED, For Status of POWER, LOS, PON, LAN1~LAN4, WIFI, WPS |
Push-Button | 3, for Function of Power on/off, Reset, WPS |
Operating condition | Temperature : 0℃~+50℃ Humidity :10%~90%(non-condensing) |
Storing Condition | Temperature : -40℃~+60℃ Humidity :10%~90%(non-condensing) |
Power supply | DC 12V/1A |
Power Consumption | <6W |
Net Weight | <0.4kg |
