China factory direct selling low price high efficiency laser marking glass cutting machine automatic
- Category: Glass Processing Machinery >>>
- Supplier: Luoyang,Disai,Mechanical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Why Choose Us
Well-chosen parts
all the spare parts and materials are from internationally renowned supplier.
Strict quality control
from material selection, to production, assembly, quality inspection, the whole process is under our strict supervision.
Excellent service
1 year warranty, lifelong Maintenance.
Product Display

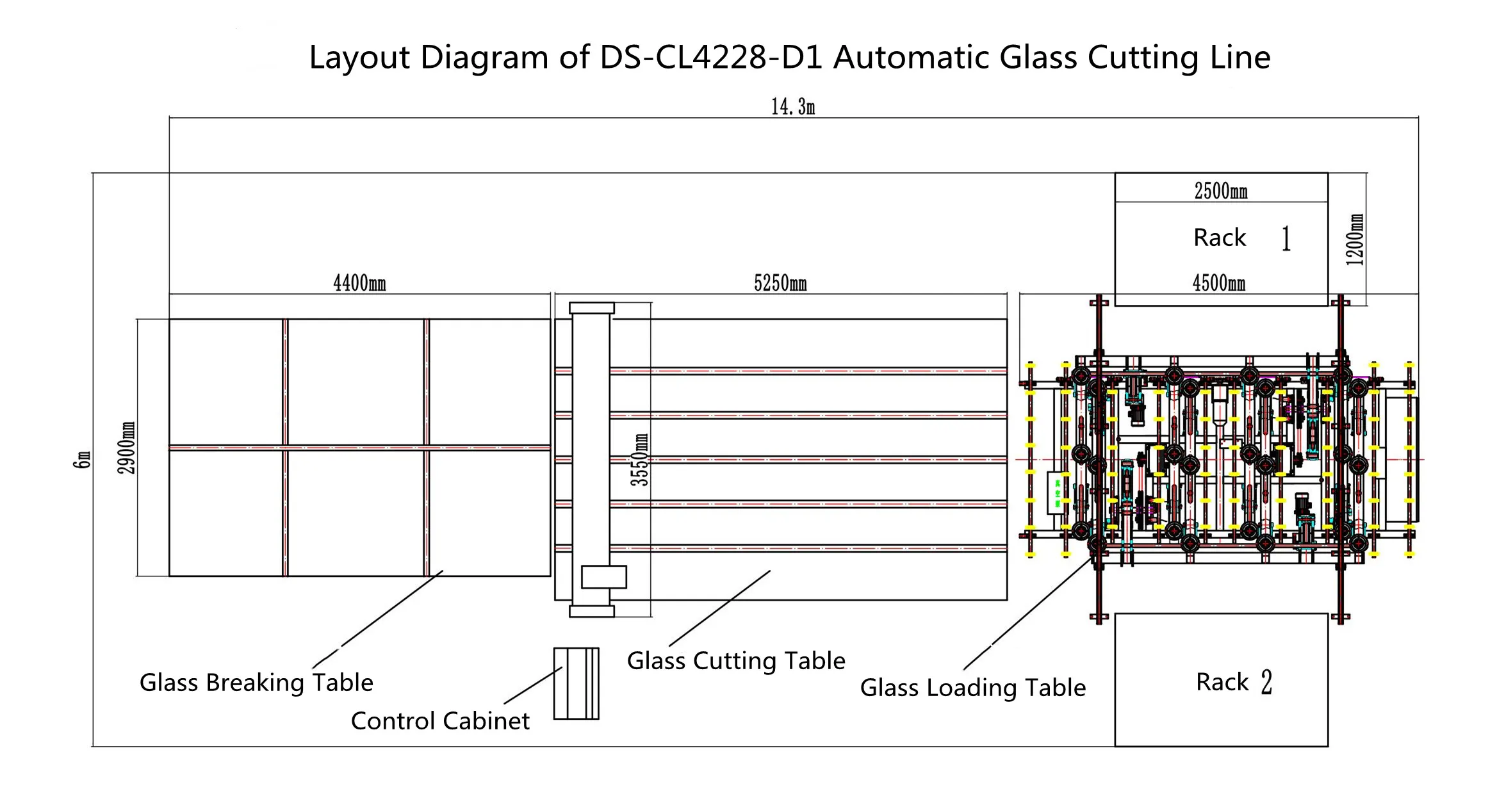

DS-CL series Automatic CNC Shaped Glass Cutting machine line
Product advantage
1.Adopting German Siemens PLC, full-automatic intelligent loading →safe and time-saving.
2.Independently developed Intelligent & Automatic Labeling Module →safe, high-efficient, time-saving and labour-saving.
3.Advanced function of Bi-directional cutting and Glass shapes cutting→accurate and efficient.
4.Adopting Italian Optima/RO optimization software→ advanved and practical.
Product Details
Parameters Display
Technical Parameters of DS-CL3725-D1 Automatic CNC shaped glass cutting line | ||||||
Max. loading. size | 4200mm x 2800mm | |||||
Min. loading. size | 1000mm x 800mm | |||||
Glass rack | 2 | |||||
Max. cutting. Glass size | 4200mm x 2800mm | |||||
Min. cutting Glass size | Square glass: 10mm x 10mm | |||||
Shaped glass: R5mm | ||||||
Cutting thickness | 2-19mm | |||||
Cutting precision | ±0.15mm | |||||
Max. cutting. speed | 200m/min | |||||
Voltage (Customized) | 220V, 50HZ / 380V, 50HZ | |||||
Total Power( theoretical ) | 16.5kw(actual power is much lower than 16.5kw) | |||||
Dimension | 18600mm x 6000mm x 920mm | |||||
Labelling& Printing
1. Labels→Water-proof functions
2. Labels →Adopting thermo-sensitive paper, which can print directly without printing ink
3. Labeling & Printing→Adopting automatic and intelligent module of Labeling& Printing, which is safe, efficient and precise
Automatic glass cutting function
1. Adopting American Delta Tau PMAC Controller
2. Adopting German Bohle Cutter wheel, which can realize 360 degrees' free rotation----- Accurate & efficient Bi-directional glass cutting.
3. Shaped glass cutting functions: can cut glass into all kinds of different shapes
Full-automatic Intelligent Glass Cutting Function / Accurate & Efficient Bi-directional glass Cutting Function
Glass shapes Cutting Function: can cut glass into all kinds of different shapes.
General needs: In containers, to be packed with standard packing-materials which is suitable for long-distance ocean shipping.
Special needs: If you want a customized packaging service, we are very pleased to serve you.
About Us
Luoyang DISAI Mechanical Equipment Co., Ltd is a professional high-tech enterprise which is engaged in glass cutting equipment design, R&D, manufacturing, sales and after-sales service. With high R&D level and mature manufacturing technologies in the field of automatic glass cutting equipment, our company has been rising rapidly in the world glass cutting equipment industry.
Choosing DISAI, Choosing the future.
FAQ
Q: Are you Original Equipment Manufacturer ?
A: Yes, we are professional Original Equipment Manufacturer and we honestly welcome you to our factory to check the quality.
Q: Can you make the product as per client's requirement?
A: Yes, we can make customized orders according your special needs. Any individual appealis welcome here.
Q: how about your service ?
A: 1: we will reply your message in 1 hour from Ali-trademanager and within 8 hours if by email
2: we will send professional engineer to your working site for equipment installation, adjustment, operation training and repairing.
3: 24 hours online after-sales service
Q: How can you guarantee the quality or any warranty?
A: we provide 1 year warranty and lifelong maintenance for all our customers.
