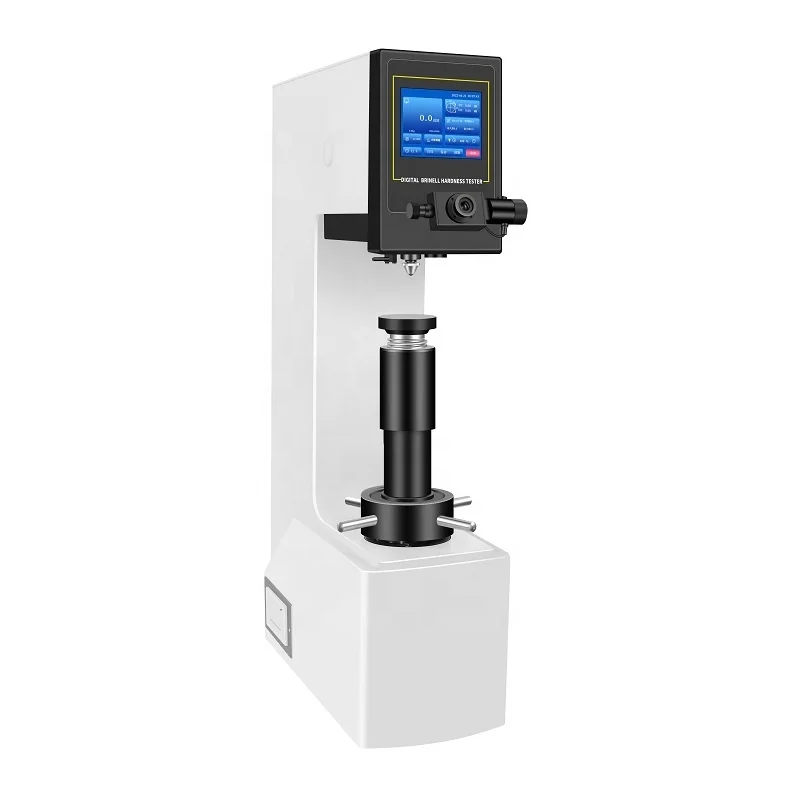

Digital Brinell Hardness Tester ferrous metal hardness testing equipment HBS 3000
- Category: >>>
- Supplier: Laizhou Metallographic Testing Equipment Co. Ltd.
Share on (1600566972726):
Product Overview
Description
Product Paramenters
Model | HBS-3000 |
Test force | 0.613KN(62.5kgf), 0.9807KN(100kgf), 11.226KN(125kgf), 1.839KN(187.5kgf), 2.452KN(250kgf),4.903KN(500kgf),7.355KN(750kgf), 9.807KN(1000kgf), 14.71KN(1500kgf), 19.42KN(3000kgf) |
Measuring range | 8-650HBW |
Convertible ruler | HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
Dia. of Hard alloy ball indenter | φ2.5mm, φ5mm, φ10mm |
Test force dwell time | 5-99S |
Max. height of workpiece | 280mm |
Max. wide of workpiece | 150mm (from center indenter to wall of machine) |
Hardness reading | Digital display touch screen LCD to read hardness value |
Power | AC220V, 50Hz can be customized to 110V 50-60Hz |
Implementation standard | ISO 6506，ASTM E10-12，JIS Z2243，GB/T 231.2 |
Data output | Build-in Printer |
Dimension | 230*600*920mm |
Weight | 130KG |
Products Description
Comparison table between test force and head diameter | ||||||||||||
Metal type | Brinell hardness range HBS(W) | Specimen Thickness （mm） | 0.102F/D | Ball dia.D (mm) | Testing force F KN(kgf) | Test force holding time (S) | ||||||
Ferrous metal | 140-450 | 6-3 4-2 ＜2 | 30 | 10.0 5.0 2.5 | 29.42(3000) 7.355(750) 1.839(187.5) | 12 | ||||||
＜140 | ＞6 6-3 | 10 | 10.0 5.0 | 9.807(1000) 2.452(250) | 12 | |||||||
＞130 | 6-3 4-2 ＜2 | 30 | 10.0 5.0 2.5 | 29.42(3000) 7.355(750) 1.839(187.5) | 30 | |||||||
36-130 | 9-6 6-3 | 10 | 10.0 5.0 | 9.807(1000) 2.452(250) | 30 | |||||||
8-35 | ＞6 | 2.5 | 10.0 | 2.452 (250) | 60 | |||||||
Company Profile
LAIZHOU METALLOGRAPHIC TESTING EQUIPMENT CO., LTD
Focus on metallographic sample preparation machines and hardness testers for 15 years.
Product packaging
Accessories packing together with the hardness tester
Name | Specification | Quantity |
Big size flat work bench | 1 | |
Small size flat work bench | 1 | |
V type work bench | 1 | |
Hard alloy ball indenter | φ10mm | |
φ5mm | ||
φ2.5mm | ||
Standard brinell hardness block | 200±50HBW | 1 |
Standard brinell hardness block | 100±25HBW | 1 |
Accessories case | 1 | |
Dust cover | 1 | |
Operation instruction | 1 | |
Power cord | 1 | |
Certification | 1 |
After Sales Service
Technical support
1.video of installation
2. how to usd
3. online training
4. spare parts
5. online problem solving
6. online techinician support
FAQ
1. Are your company a trading company or a manufactor, and do you have technical team?
We are a manufacturor, with more than 15 years experience in this field, our exporting office is at Qingdao, and our professional technicians with serveral years' experence.
2. What's your main products?
Our main products are full set metallographic sample prepration machines and hardness testers.
3. Whats' the delivery term?
For normal models of machines, we have stock in workshop. The time is only testing of machine before sending out and packaging. Normally 2-3 days.
If there is no stock, the delivery time will be 5-10 days, depend on quantity of machine.
Special requirement or large quantity please confirm with us before ordering.
4.Do you accept customization service?
Yes, for sure. We not only offer standard machines, but also do customized machines, our techinician will make the machine as your required. Just need to communicate before ordering.
5.What is your payment items?
Normally 100% prepaid, as almost the model we have stock. after received the payment, we will directly preparing for export the goods.For bulk order, please communicate with our people first.
6.How is your after-sale service and what's your warranty?
Before sending the goods, we will first test the machines and after receiving the goods, there is manual to show you how to install the machine,and how to operate, if you are not sure, we will send video to show how to operate, if there is any question, our people will do online service to teach how to operate and how to fix problems.
Our warranty time is 1 year.
We are a manufacturor, with more than 15 years experience in this field, our exporting office is at Qingdao, and our professional technicians with serveral years' experence.
2. What's your main products?
Our main products are full set metallographic sample prepration machines and hardness testers.
3. Whats' the delivery term?
For normal models of machines, we have stock in workshop. The time is only testing of machine before sending out and packaging. Normally 2-3 days.
If there is no stock, the delivery time will be 5-10 days, depend on quantity of machine.
Special requirement or large quantity please confirm with us before ordering.
4.Do you accept customization service?
Yes, for sure. We not only offer standard machines, but also do customized machines, our techinician will make the machine as your required. Just need to communicate before ordering.
5.What is your payment items?
Normally 100% prepaid, as almost the model we have stock. after received the payment, we will directly preparing for export the goods.For bulk order, please communicate with our people first.
6.How is your after-sale service and what's your warranty?
Before sending the goods, we will first test the machines and after receiving the goods, there is manual to show you how to install the machine,and how to operate, if you are not sure, we will send video to show how to operate, if there is any question, our people will do online service to teach how to operate and how to fix problems.
Our warranty time is 1 year.
