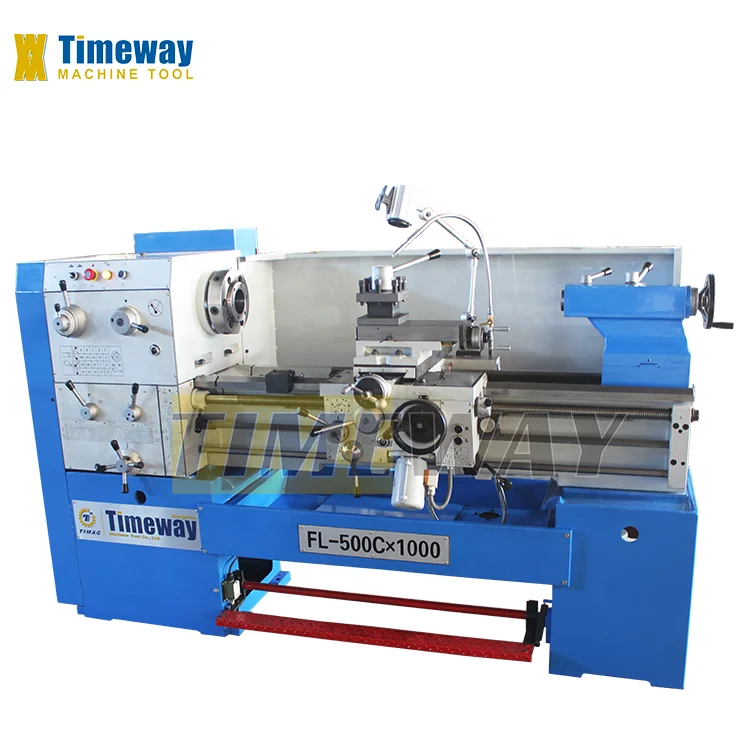

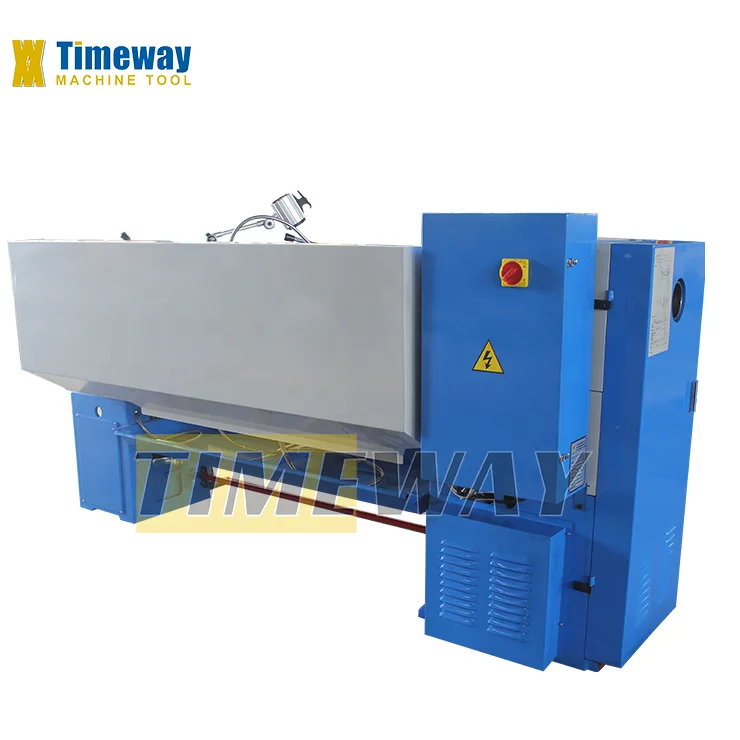

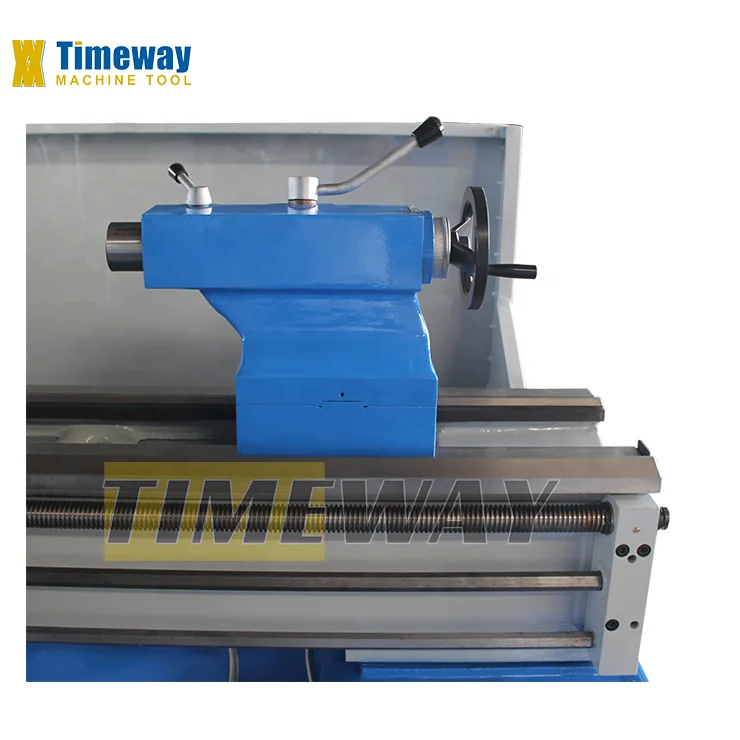

Product Overview
Description
Products Description
3-jaw chuck | Living center |
4-jaw chuck | Taper turning attachment |
Face plate | Drill chuck |
Dead centers | Quick change tool holder |
Thread chasing dial | 2/3 axis digital readout |
Splash guard | Chuck cover |
Oil gun | Leadscrew cover |
Work lamp | Tool post cover |
Cooling system | Driving plate |
Steady rest | |
Follow rest | |
Change gears | |
Reducing sleeve | |
Foot brake | |
Foundation bolts | |
Tool-box & tools | |
Operation manual |
Specification | Unit | FL-400C | FL-500C | FL-600C | FL-660C | |||||
Max. swing over bed | mm | 400 | 500 | 600 | 660 | |||||
Max. swing over cross slide | mm | 225 | 325 | 360 | 420 | |||||
Max. swing in gap | mm | 530 | 630 | 730 | 790 | |||||
Effective length of gap | mm | 260 | ||||||||
Center distance | mm | 1000/1500/2000/3000 | ||||||||
Bed width | mm | 330 | ||||||||
Spindle hole | mm | 80mm | ||||||||
Spindle nose | - | ISO-D8 | ||||||||
Spindle taper | - | Metric 85 | ||||||||
Spindle speeds | rpm | 24-1600 (15 Steps) | ||||||||
Metric threads range | mm | 0.5-28mm (66Kinds) | ||||||||
Inch threads range | T.P.I | 1-56TPI (66 Kinds) | ||||||||
Module threads range | M.P | 0.5-3.5mm (33 Kinds) | ||||||||
Diametric threads range | D.P | 8-56D.P (33 Kinds) | ||||||||
Longitudinal feed range | mm/rev | 0.072-4.038 (66kinds) | ||||||||
Cross feed range | mm/rev | 0.036-2.019 (66kinds) | ||||||||
Max. travel of top slide | mm | 130 | ||||||||
Max. travel of cross slide | mm | 300 | ||||||||
Max. size of tool (W x H) | mm | 25 x 25 | ||||||||
Tailstock sleeve diameter | mm | 65 | ||||||||
Tailstock sleeve taper | - | Morse 5 | ||||||||
Tailstock sleeve travel | mm | 120 | ||||||||
Main motor | kw | 5.5 (optional: 7.5) | ||||||||
Coolant pump motor power | kw | 0.125 | 0.125 | 0.125 | 0.125 | |||||
Fast moving motor power | kw | 0.12 | 0.12 | 0.12 | 0.12 | |||||
Net weight / Gross weight | ||||||||||
1000mm | kg | 1600/2000 | 1650/2050 | 1750/2150 | 1850/2250 | |||||
1500mm | kg | 1800/2200 | 1850/2250 | 1950/2350 | 2050/2450 | |||||
2000mm | kg | 1950/2350 | 2000/2400 | 2100/2500 | 2200/2600 | |||||
3000mm | kg | 2100/2500 | 2150/2550 | 2250/2650 | 2350/2750 | |||||
Packing size(LxWxH) | mm | 2450/2950/3450/4450 x 1150 x 1750 | ||||||||
4000mm | kg | 4100/4600 | 4300/4800 | 4500/5000 | 4700/5200 | |||||

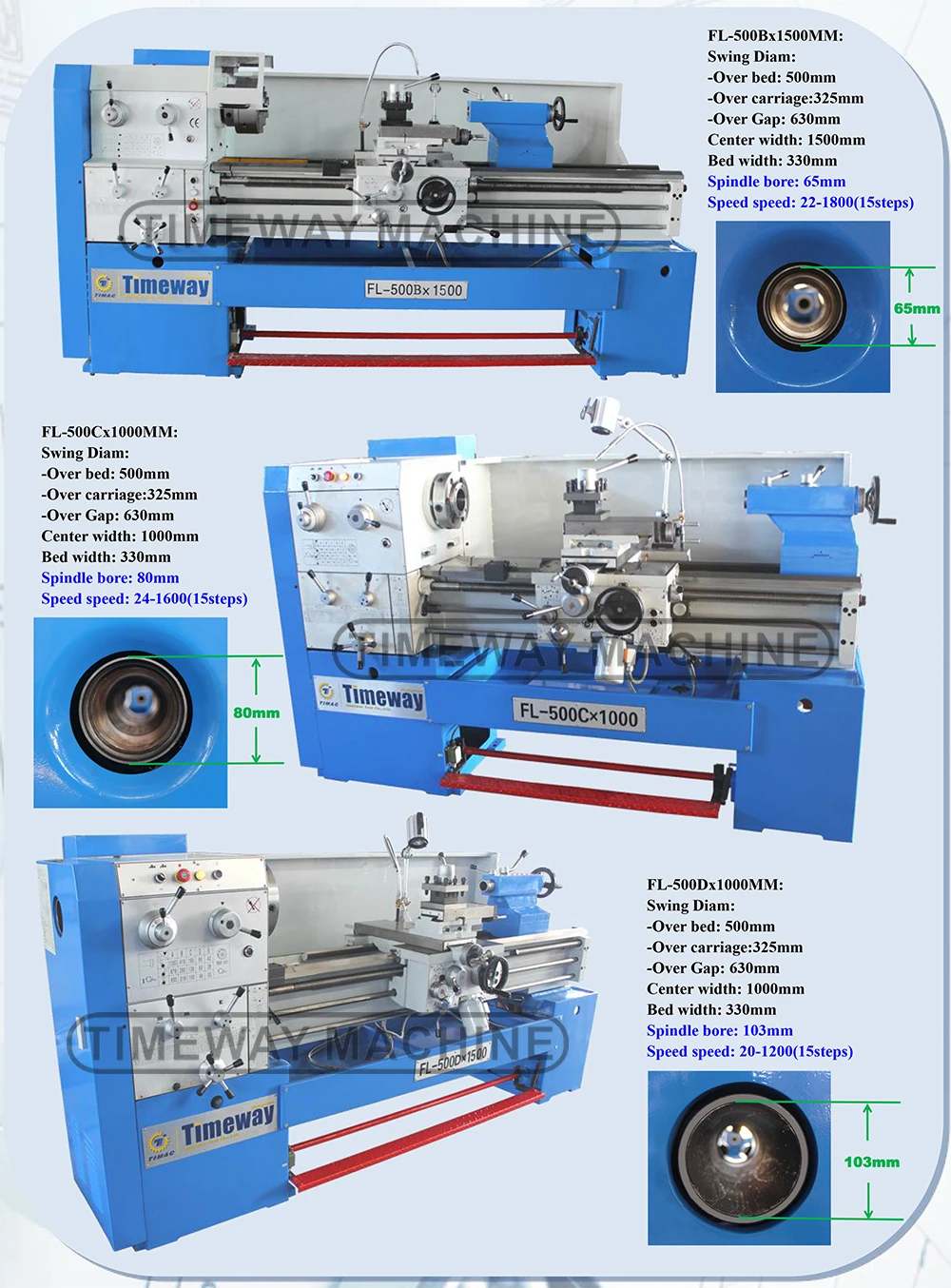

Machine Details

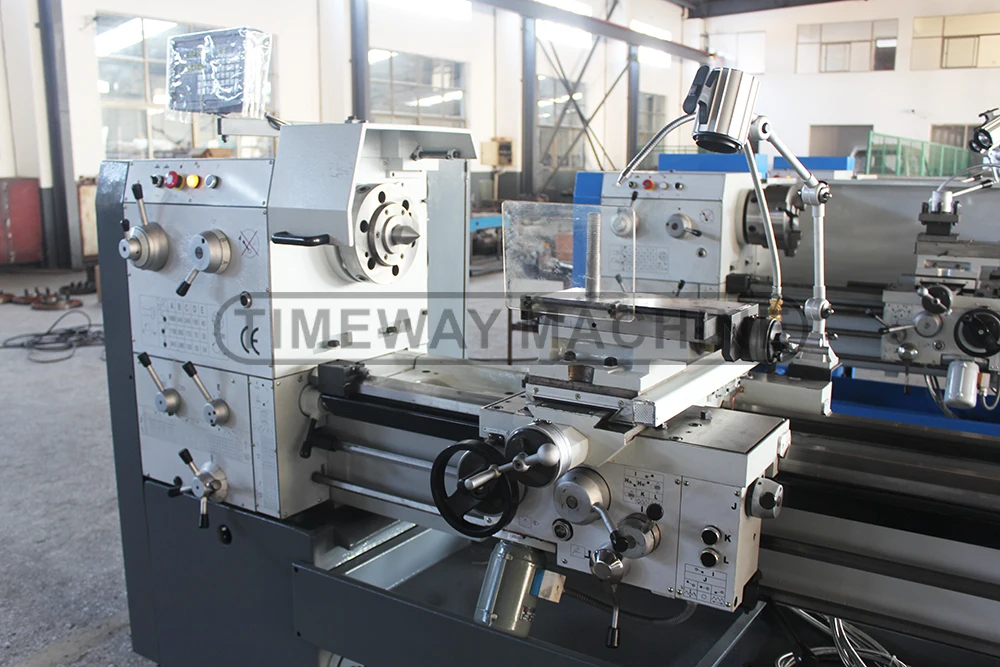

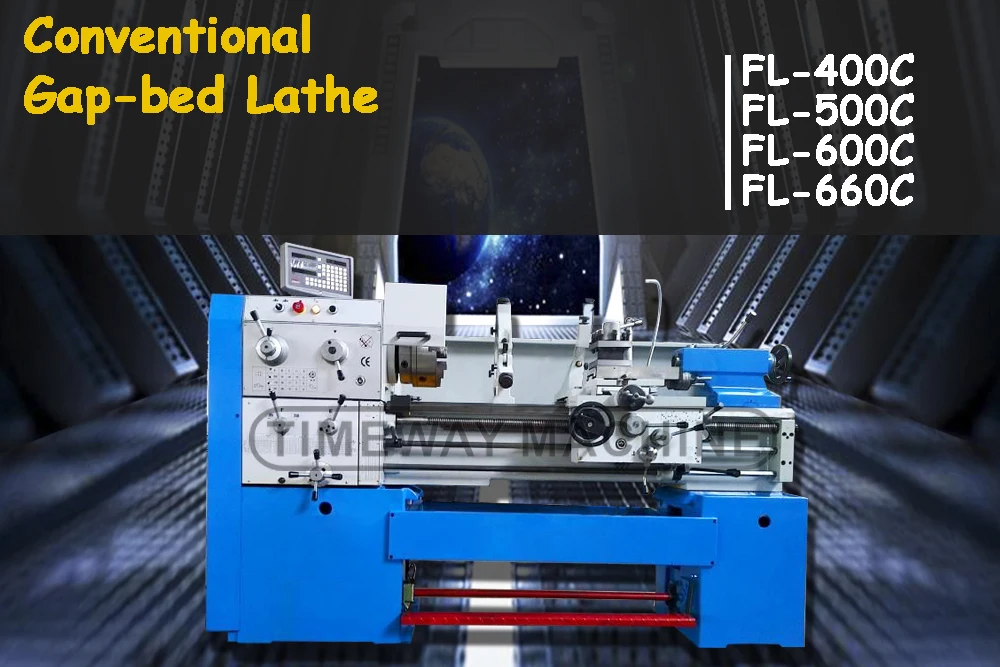

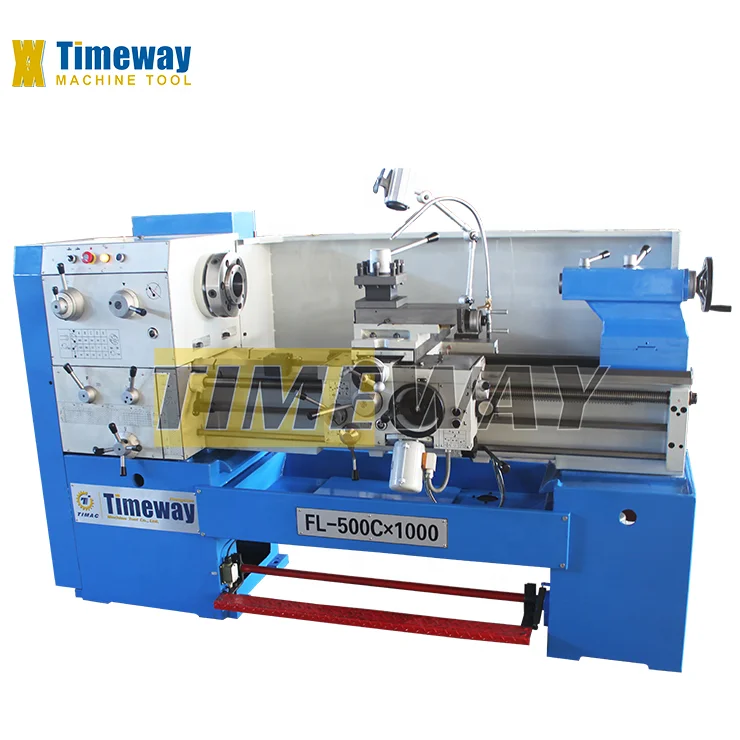

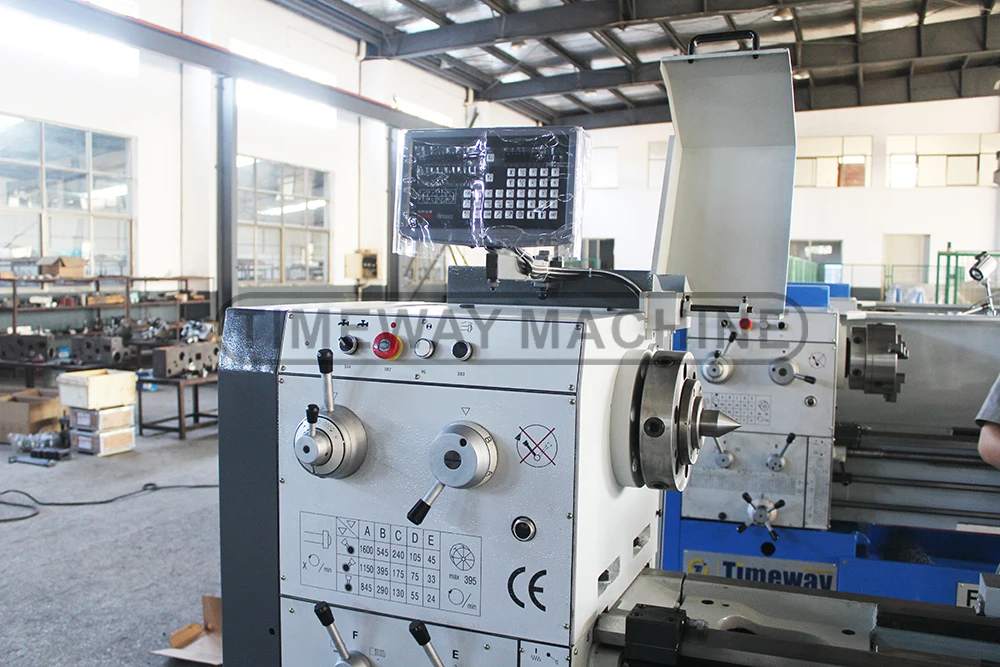

This series lathe is a famous model for medium-size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady rest and follow rest, changing gears, etc., increasing the application area of this model significantly. For reducing the non-productive time, this model is also can equipped with 2 or 3-axis digital readout.
===================================
>> Standard 3-jaw lathe chuck, quickly clamping workpiece;
>> 2/3-axis digital readout (DRO) is available.
>> Chuck guard is available.
===================================

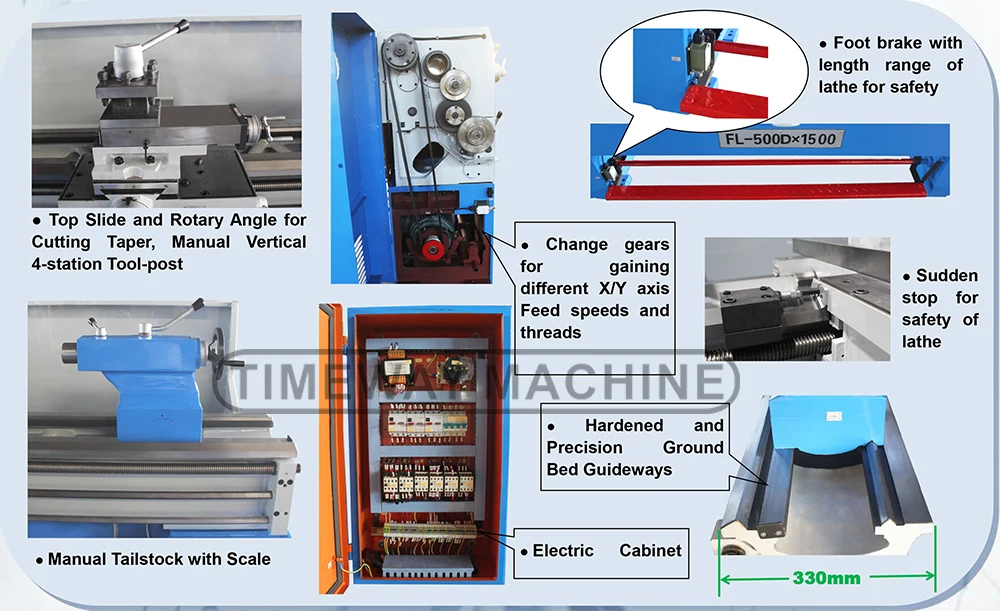

>> The bed with ribs is made of high quality casting iron;

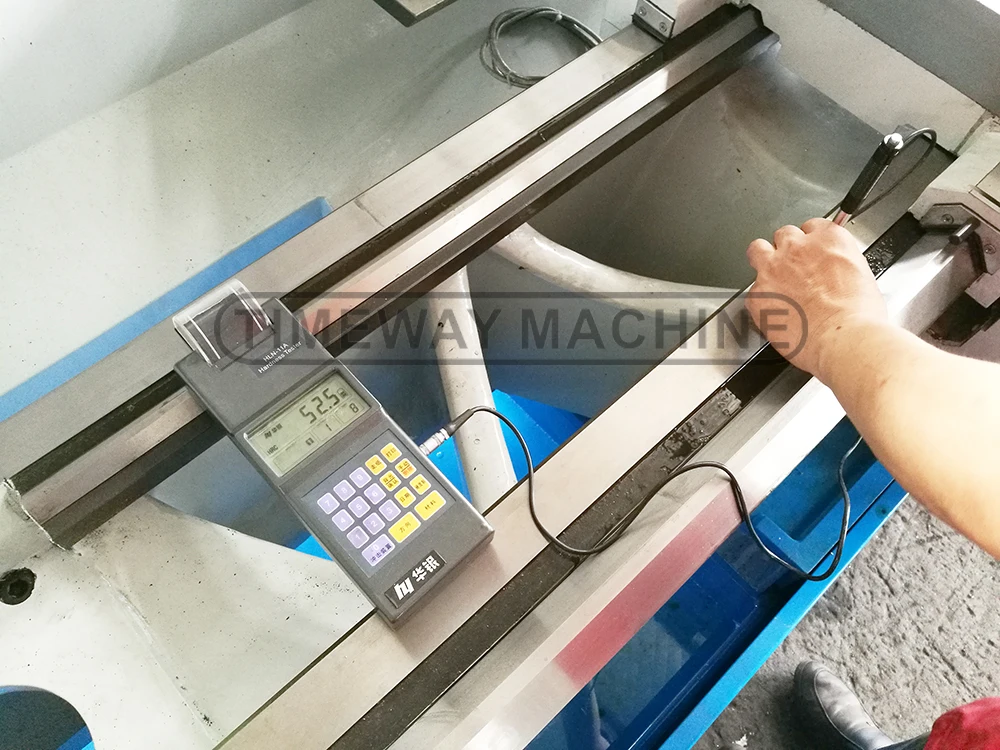

>> The guideway rails are hardened and ground, and the hardness up to be HRC52;
===================================
>> Automatic feed and rapid feed on the X/Z-axis;

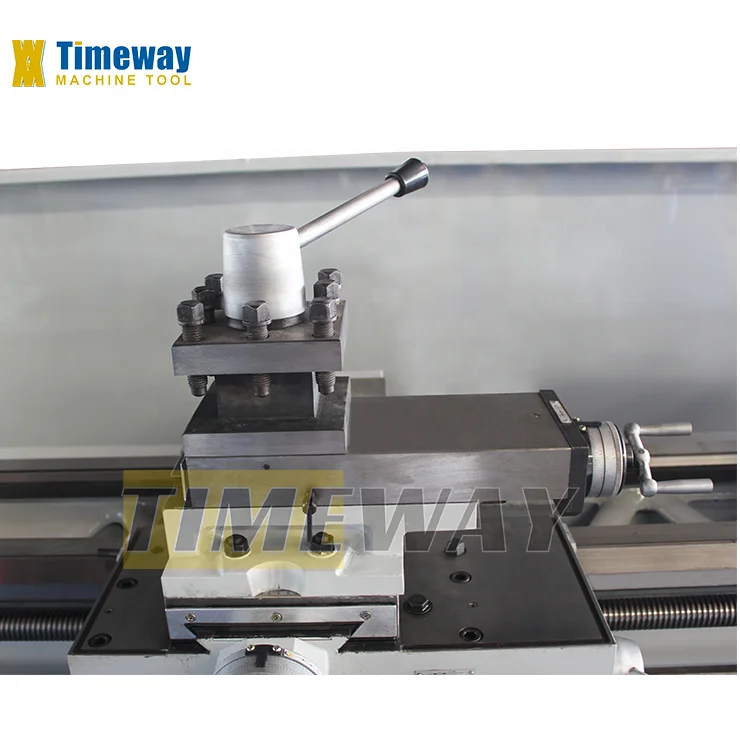

>> USA-type, EUROPE-Type, Italian type quick change tool post for choice;
===================================

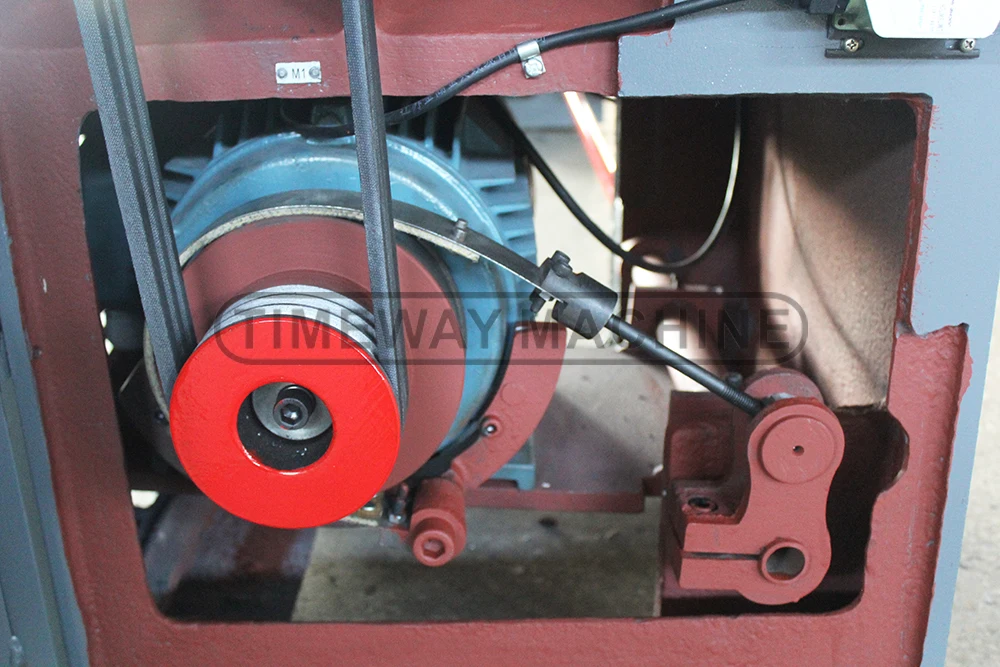

>> Mechanical lathe brake through wear-resistance belt, to quickly make the spindle stop.

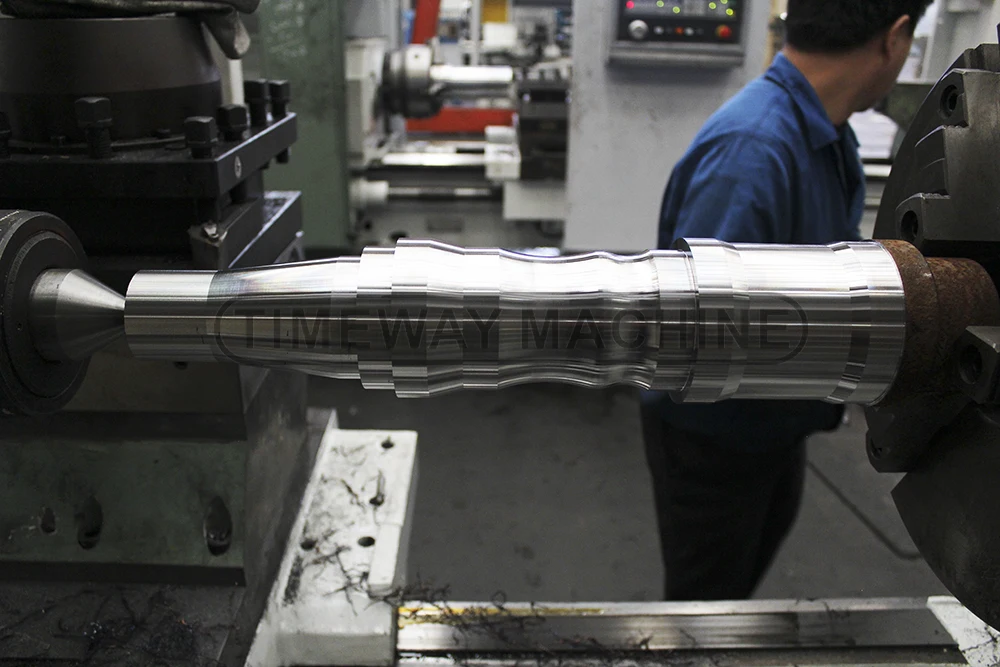

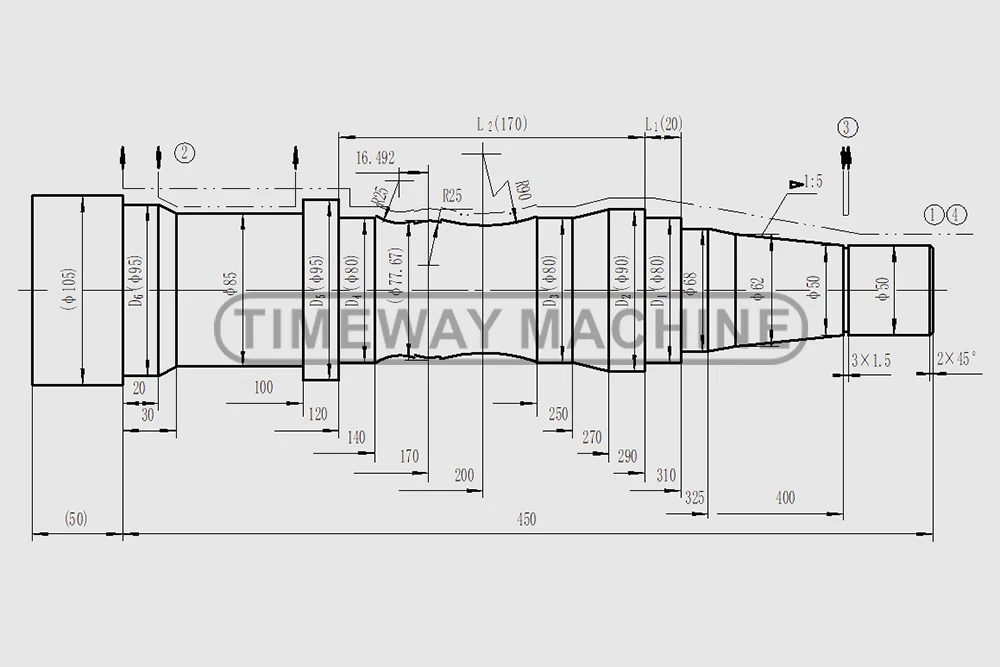

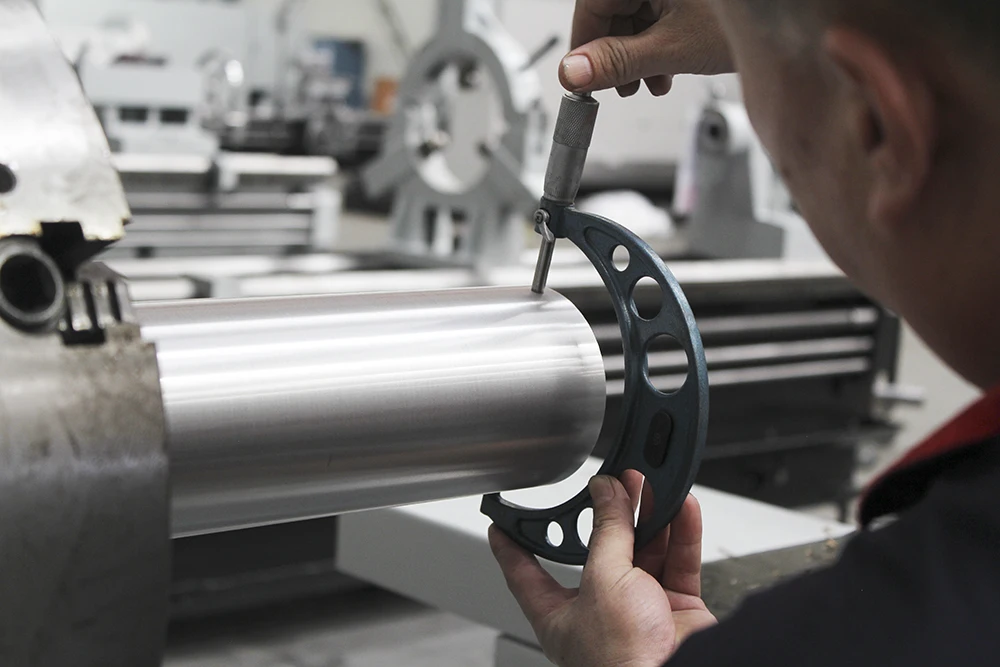

Test - roundness & cylindricity:

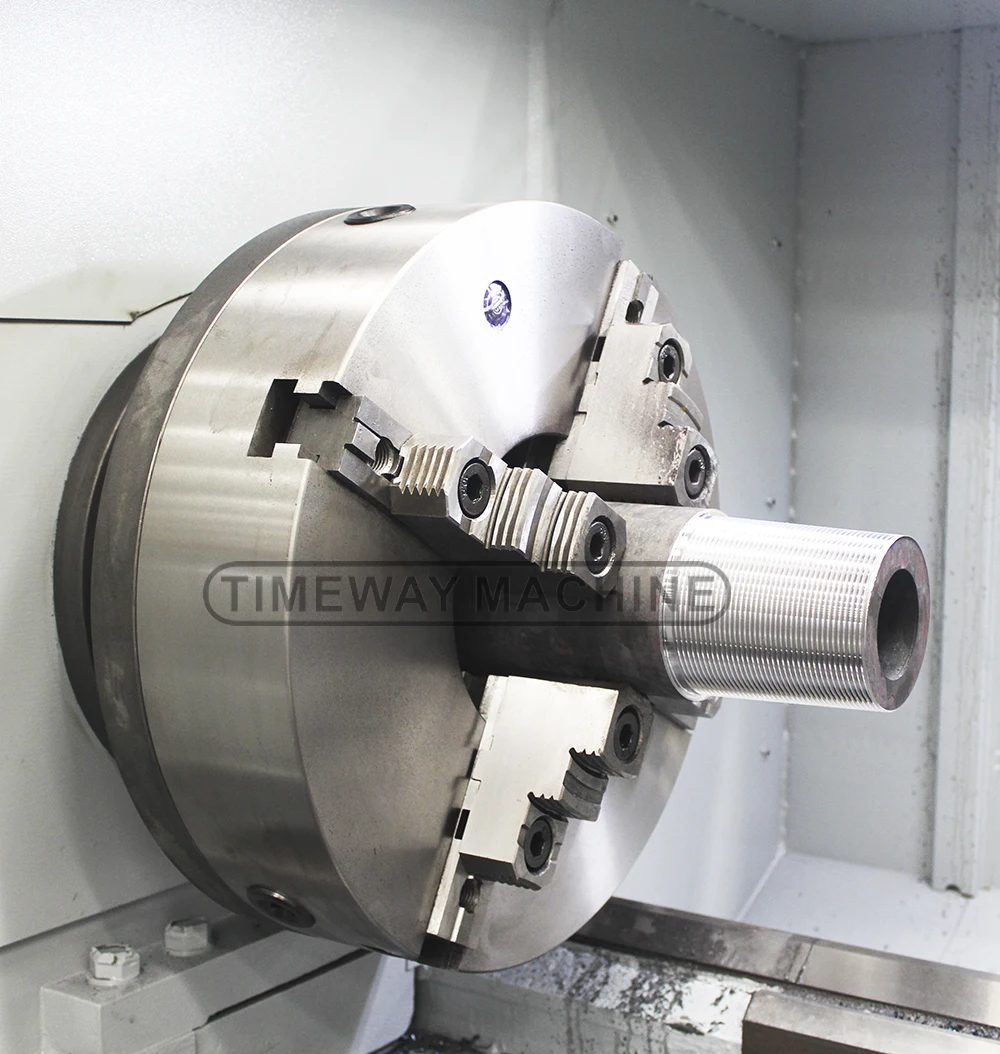

Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:

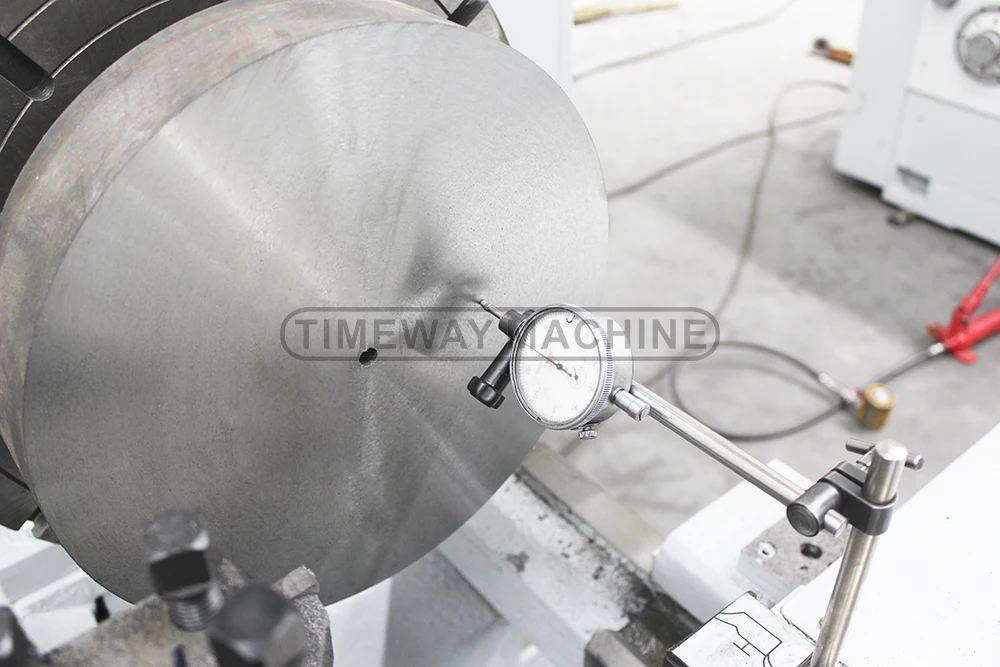

Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy:
Roughness: Ra1.6um
Roughness: Ra1.6um

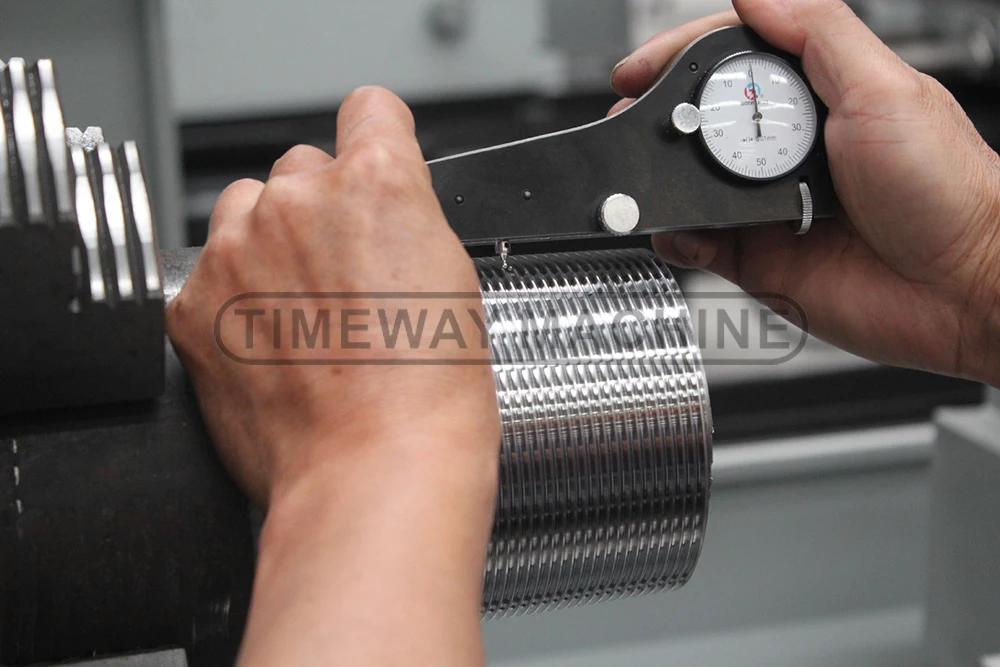

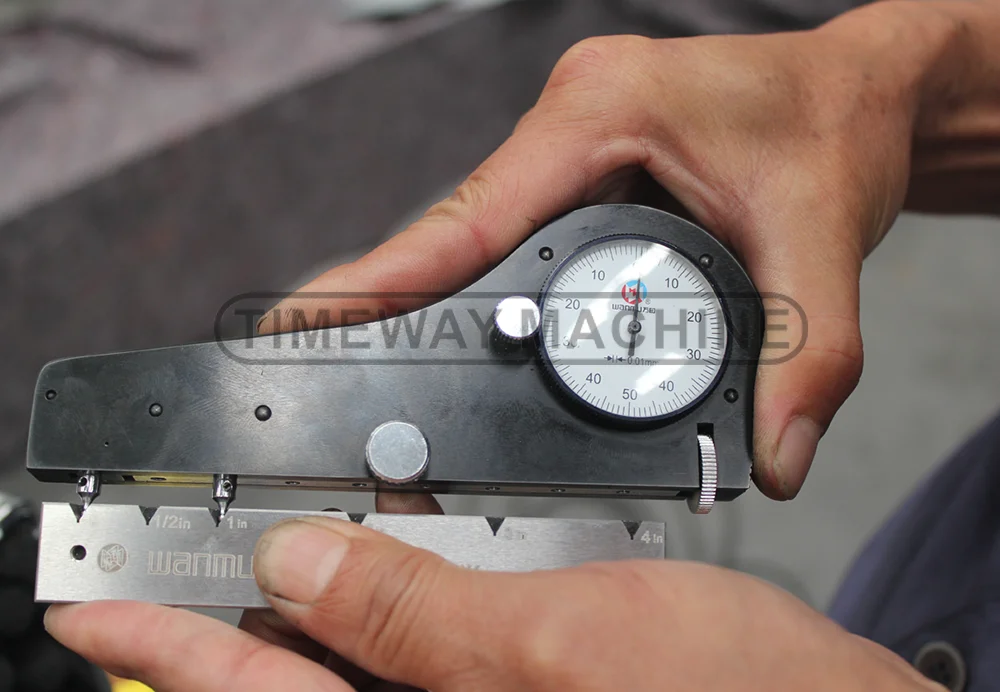

Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.

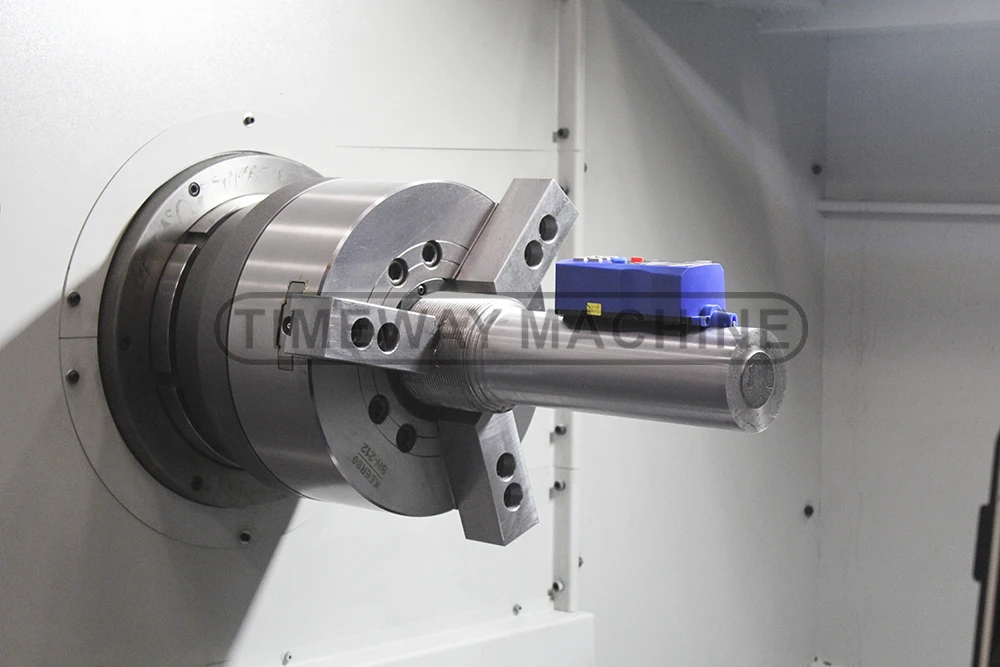

Comprehensive testing parts (only for CNC horizontal lathe):
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.

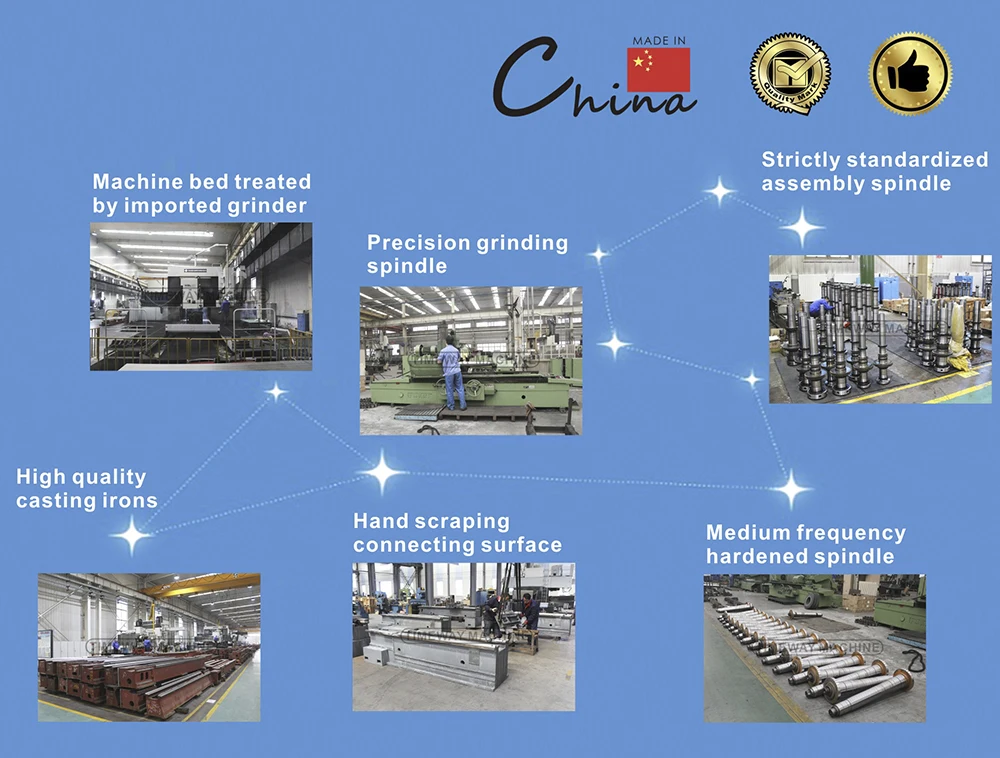

Why Choose Us

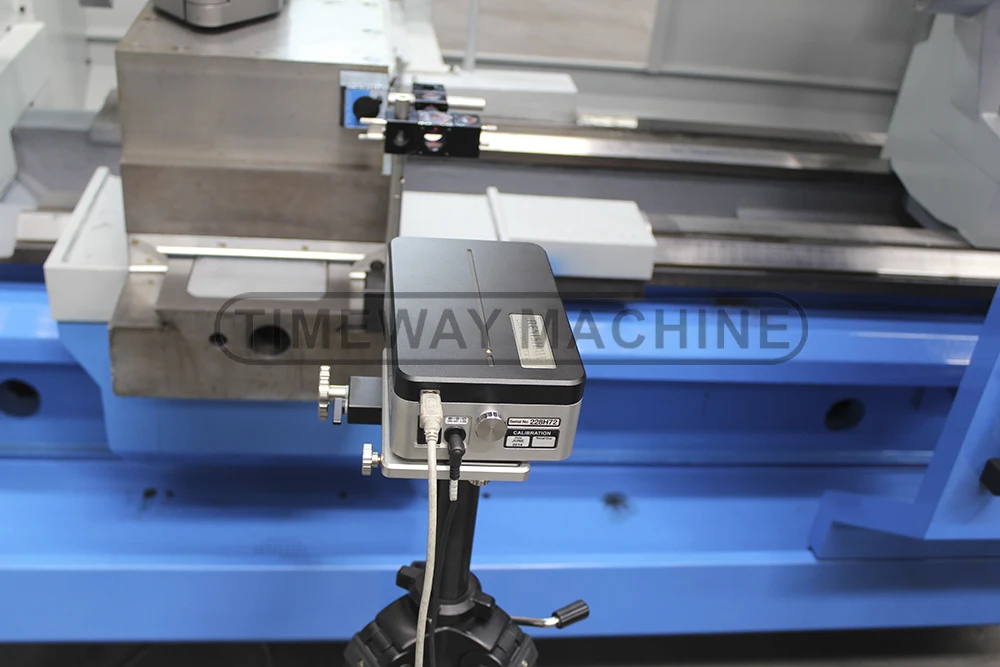

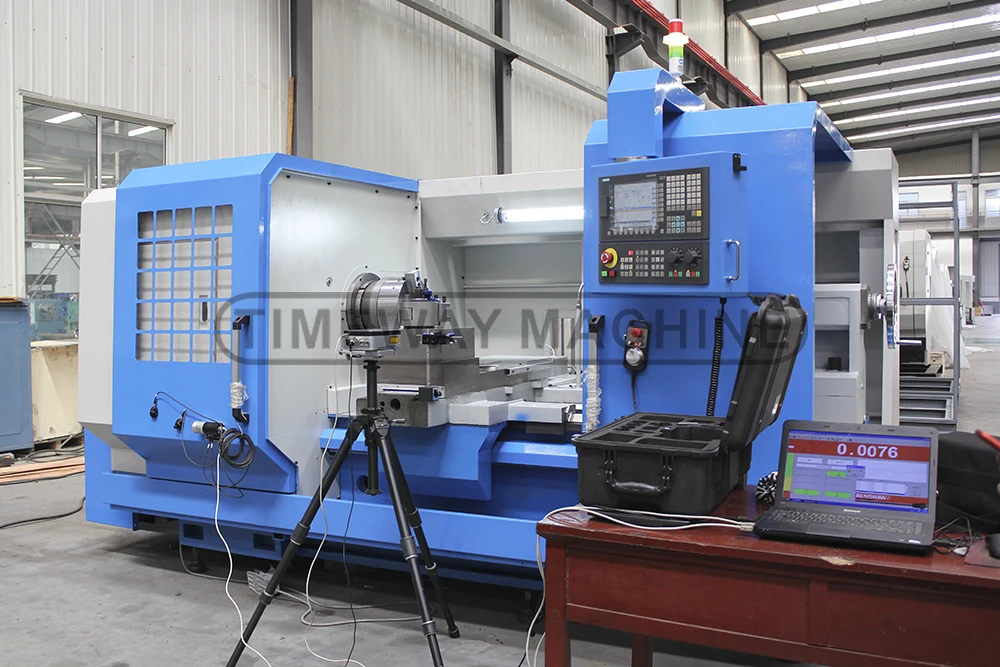

Renishaw laser interferometer (only for CNC horizontal lathe)：

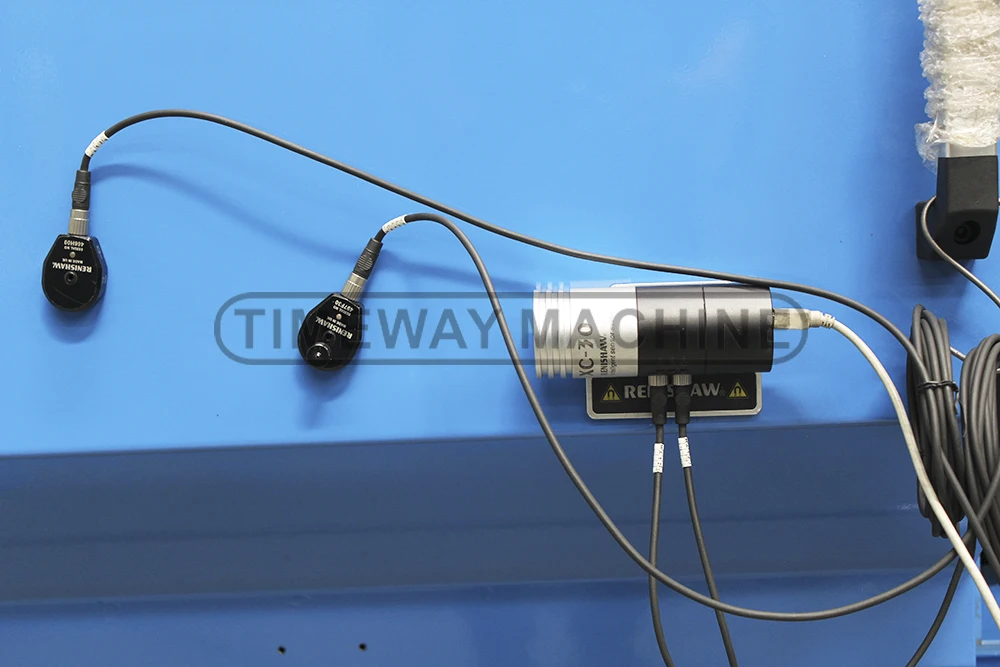

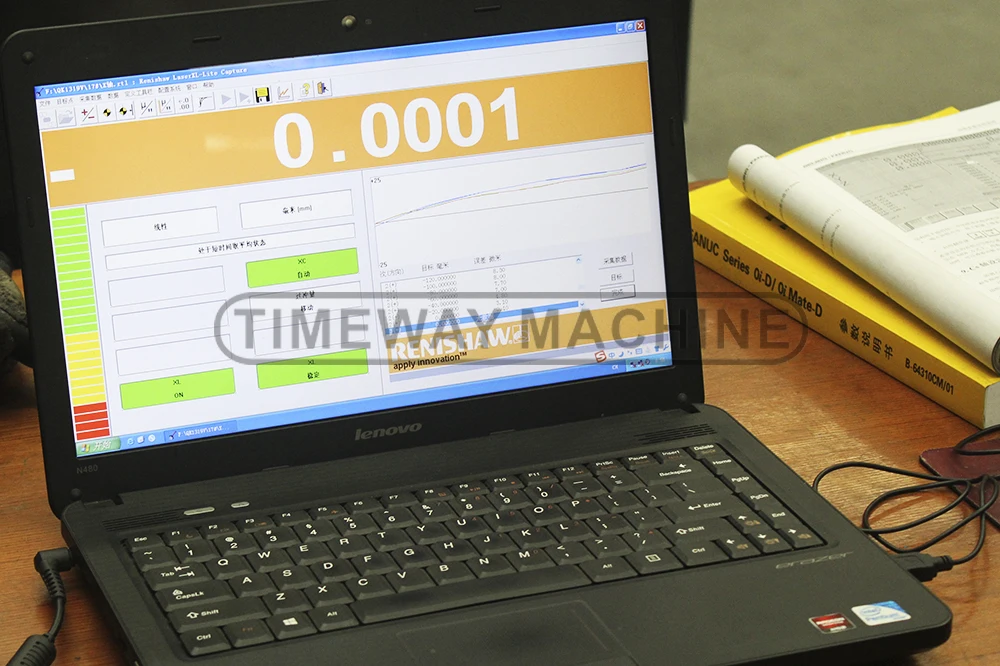

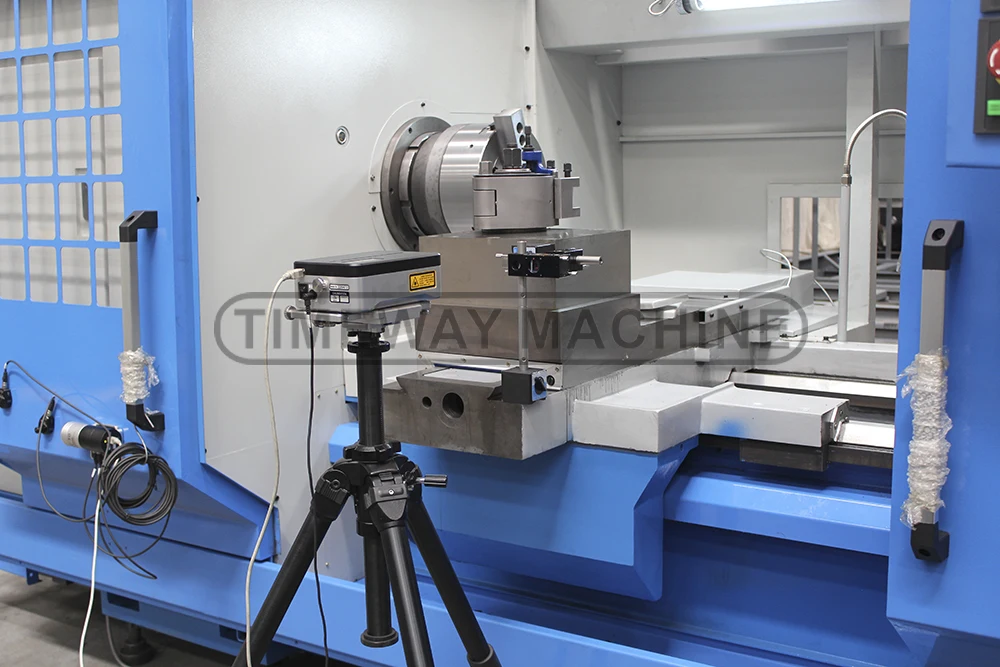

Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
