Best Price Angle Bead Wire Mesh Machine
- Category: >>>
- Supplier: Anping Shenghua Wire Mesh Products Factory
Share on (1600566988700):
Product Overview
Description
angle bead machine

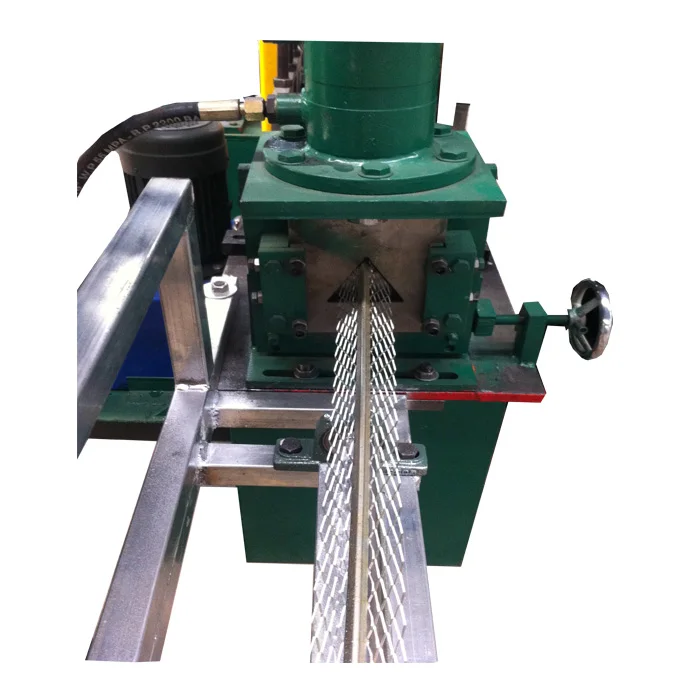

Angle bead machine
1.MACHINE FUNCTION
The products are widely used in building.The wing of corner beads can inosculate.The specification of corner beads making machine can produce are as the following table:
NO | Items | Unit | Basic parameter |
1 | Thickness | mm | 0.2-0.5mm |
2 | Width of Mid-sheet | mm | 30 |
3 | Standard length | mm | 2000-3000 |
4 | Diamond mesh | mm | Max 75 |
5. | Mesh size | mm | 70*70 and 50*50(need two different die) |
6. | motor | KW | 3.0kw |
2.COMPONENT PART OF THE MACHINE

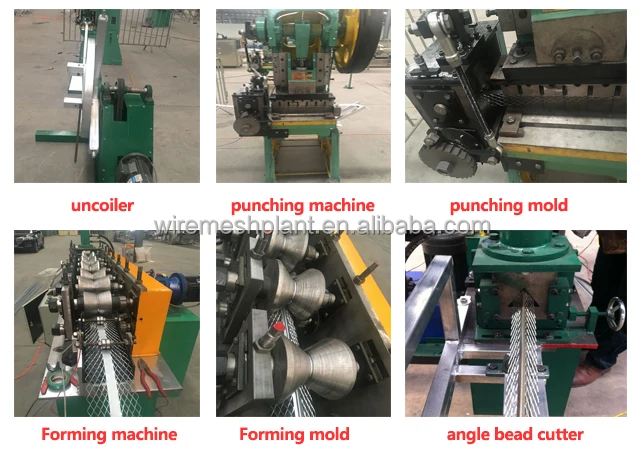

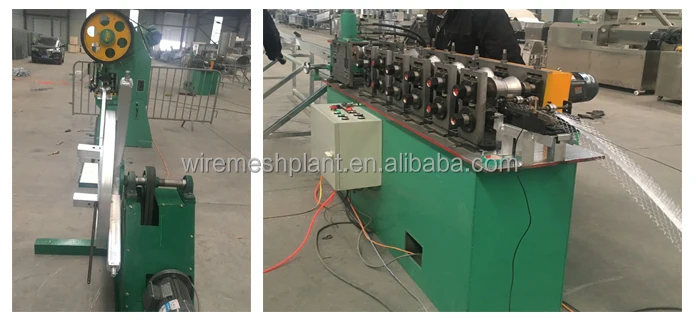

Decoil, punching machine, curve and curve mold, automatic cutter, setting length device, and electric control system
3.MAIN TECHNICAL PARAMETERS
The corner beads making machine basically consists of two main systems,punch and curer-cutter.
Punch
NO | Item | Unit | Basic parameter |
1 | Electrical Motor | Model | Y100L1-4 |
KW | 2.2 | ||
2 | Work Voltage | V | 380 |
3 | Stress | KN | 250 |
4 | Punch Times | t/m | 100-120(about 3-5m/min) |
5 | Slip Distance | mm | 70 |
6 | Slip Adjusting | mm | 40 |
7 | Size of work table | mm | 530×320 |
8 | Hole of work table | mm | 130 |
9 | size | mm | 1200×1000×2200 |

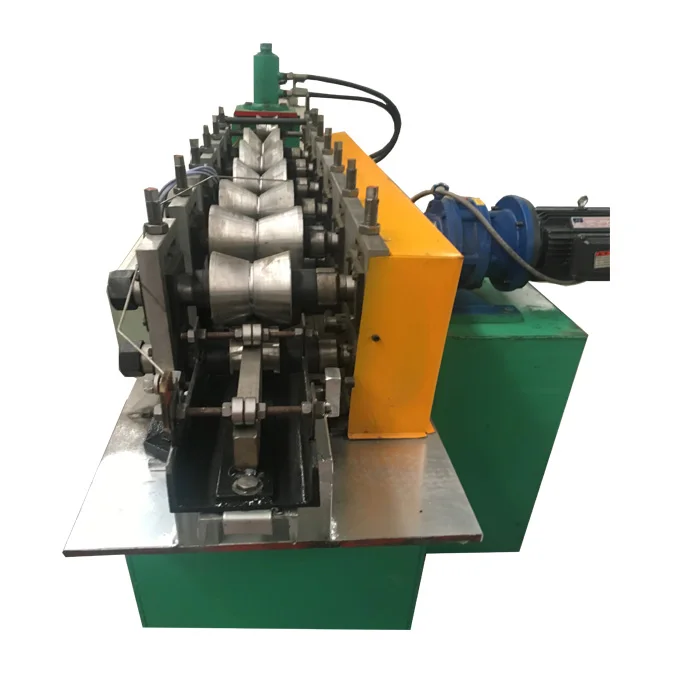

Curve-cutter
1 | Electric motor | 0.75KW and 3KW |
2 | Work voltage | 380V |
3 | Rate of production | 3-5m/min |
4 | Size | 1500*520*900mm |
Air pump
1 | Electric motor | 1.5KW |
2 | Work voltage | 220V |
3 | stress | 0.55-0.8mpa |

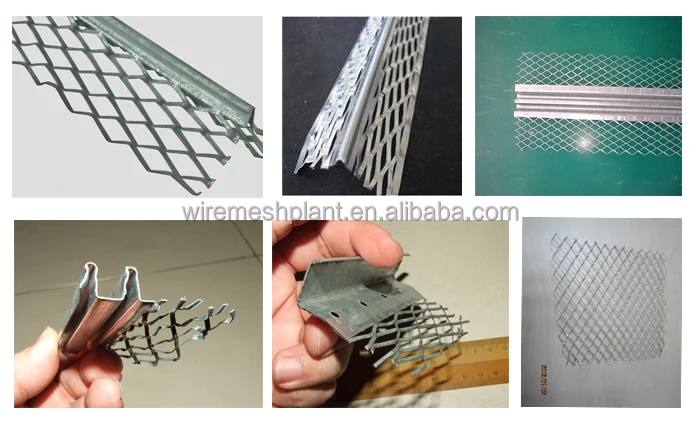

Finish Products

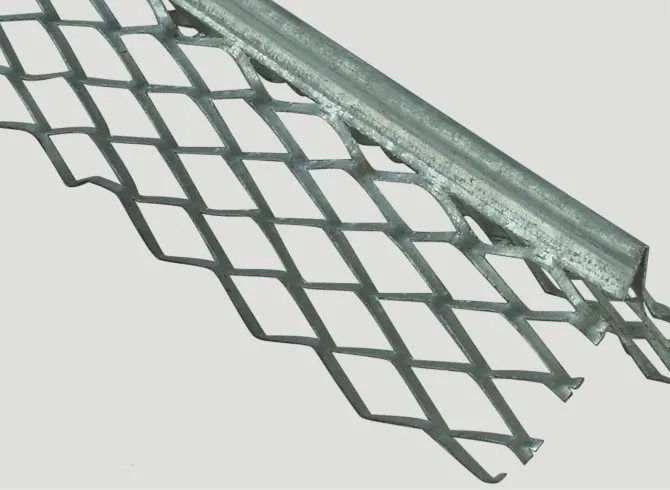

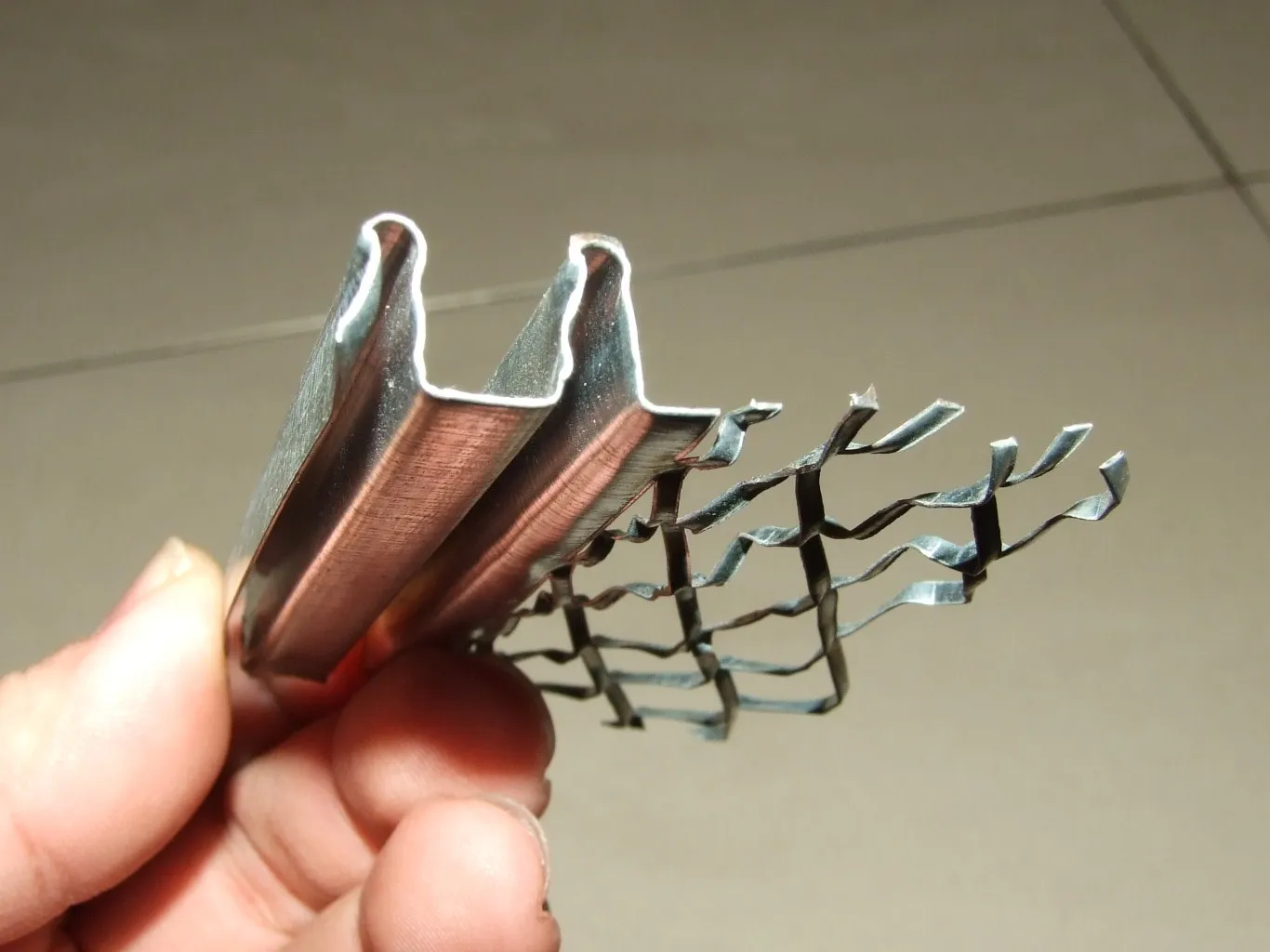

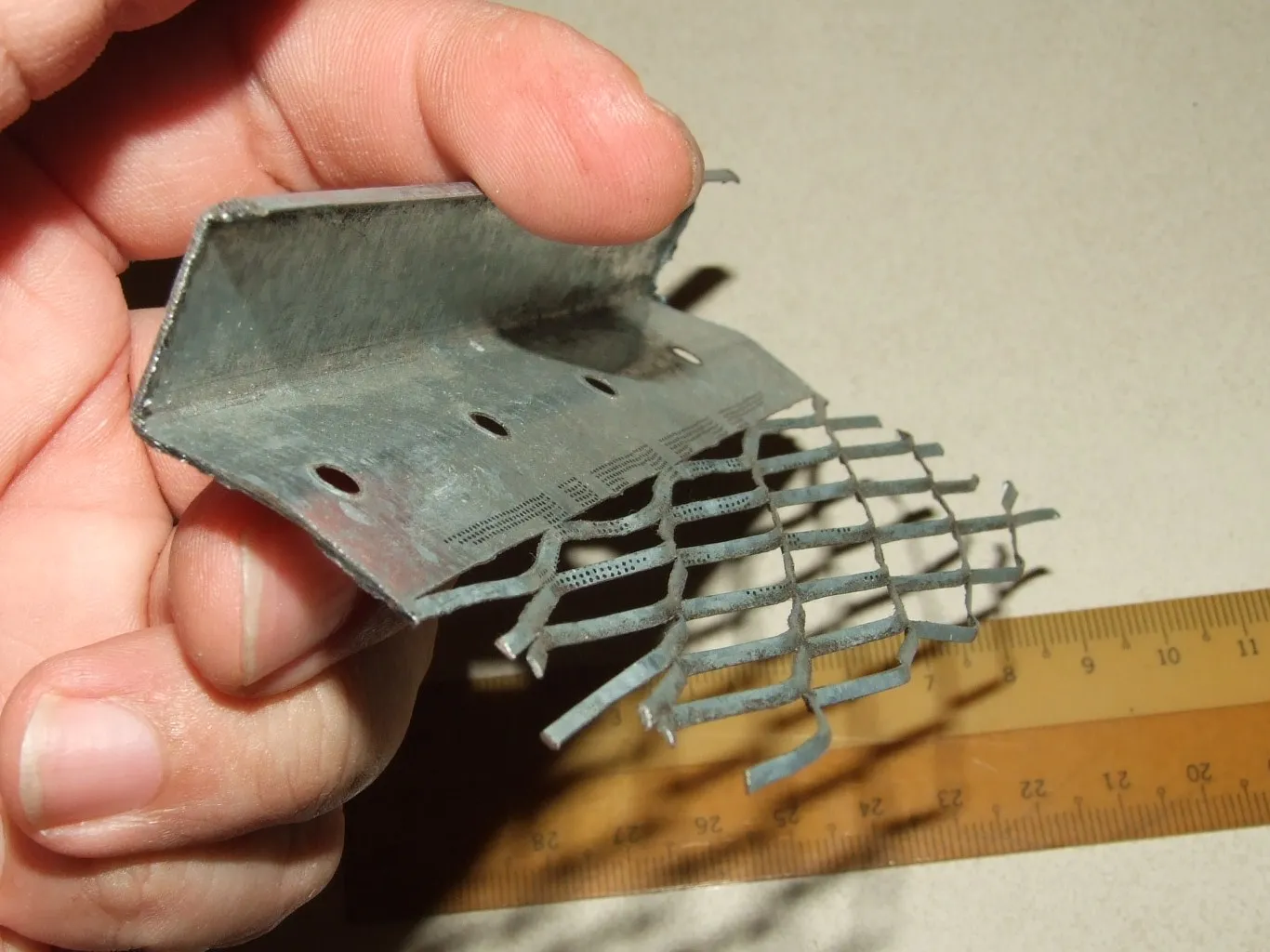

Corner mesh can form a straight edge on the ridgeline of the stucco project to resist cracking or cracking, and protect and reinforce the most vulnerable part of the plaster, and its mesh wings can be firmly anchored on either side of the ridgeline.
To the full depth of the plaster. Corner mesh is very important for stucco decoration, because the stucco corner is most likely to be damaged during the construction of the building and when it is finished, and it can save a lot of time because of its easy construction.
Company Information
1.Anping Shenghua Metal Wire Mesh Machine Factory(Anping County Taojin Wire Mesh Machine Co.,Ltd.) is belong be Shenghua Group, we have engaged in wire mesh machine manufacture over 30 years, our company from only 1500m2 small factory to now 40000 m2.
2.We are produce and sell kinds of wire mesh machine, like chain link fence machine, welding wire mesh machine, expanded plate mesh machine, weaving machine, razor barbed wire machine, perforated mesh machine and so on.
.
FAQ
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.
Delivery time: 20days after advance payment
Payment terms: T/T, 30% in advance, and the balance before delivery. also accept LC.
Packing: waterproof material,control box: wooden case
