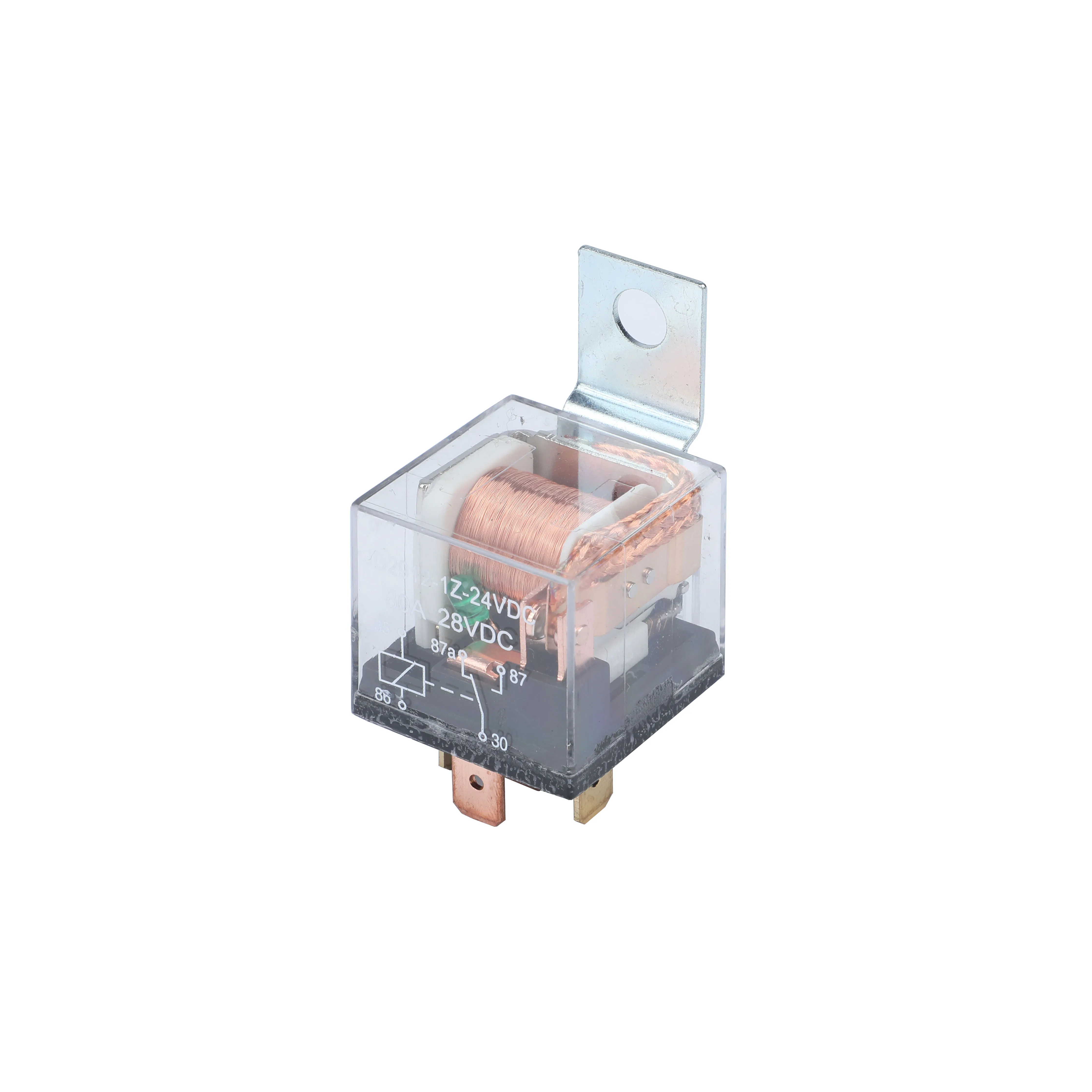

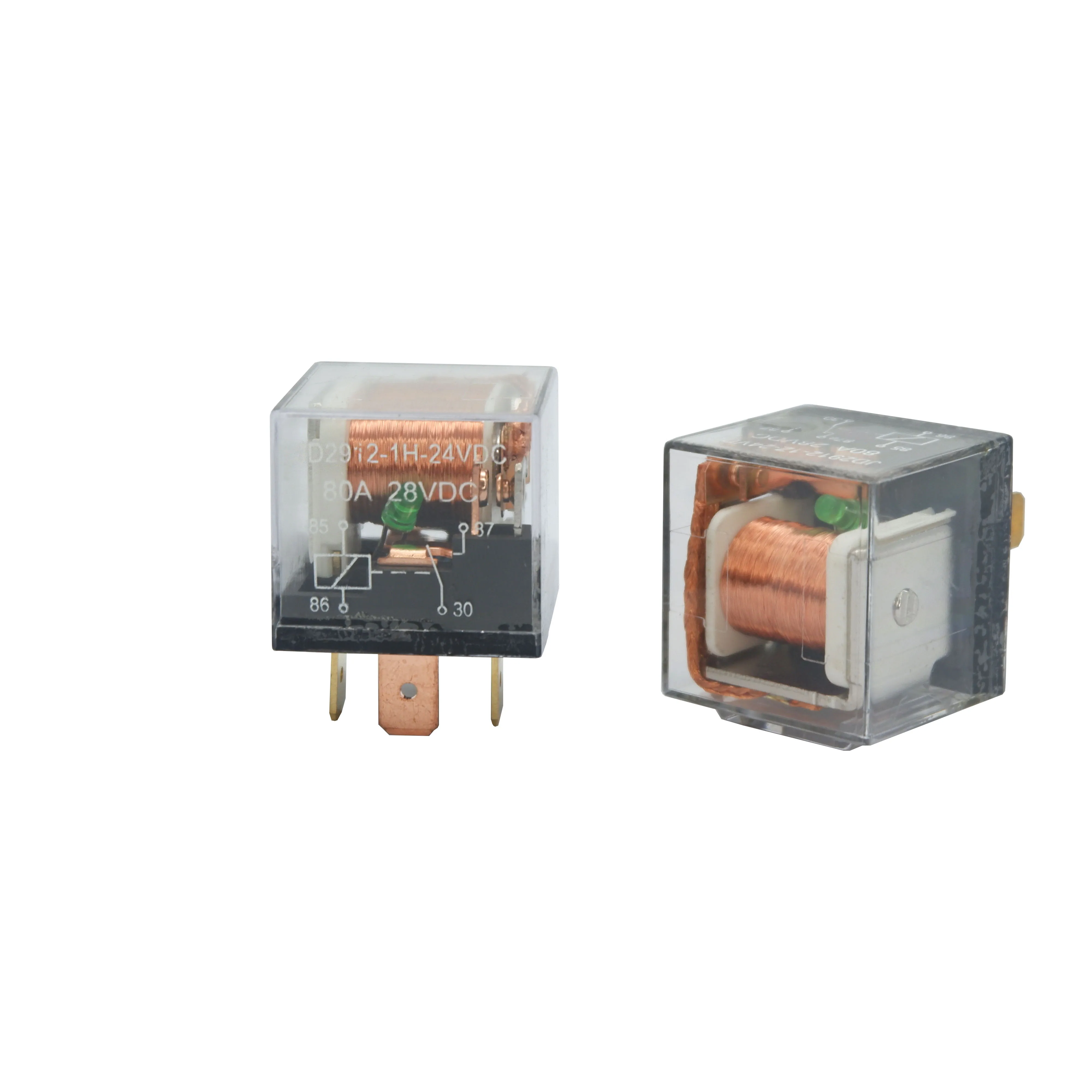

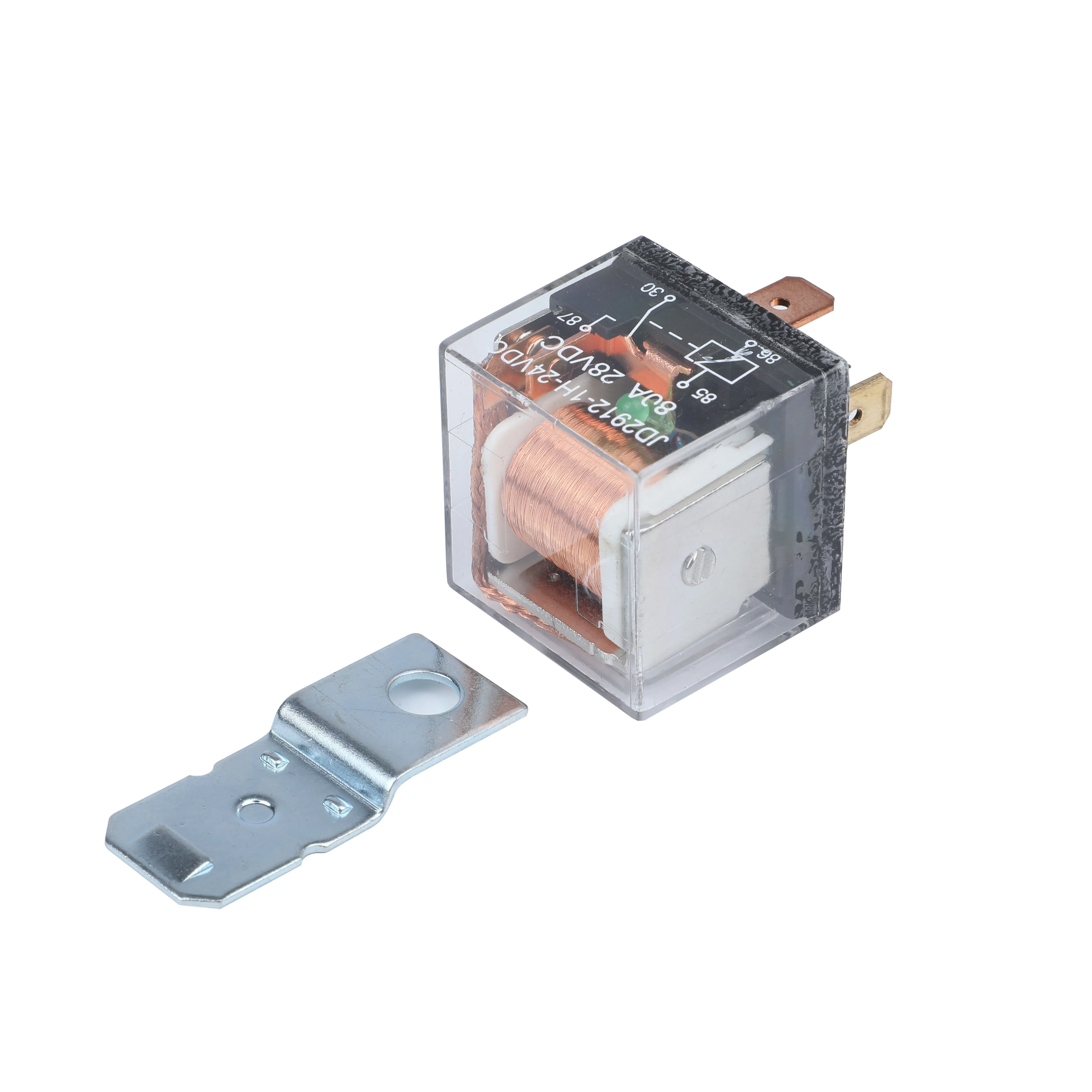

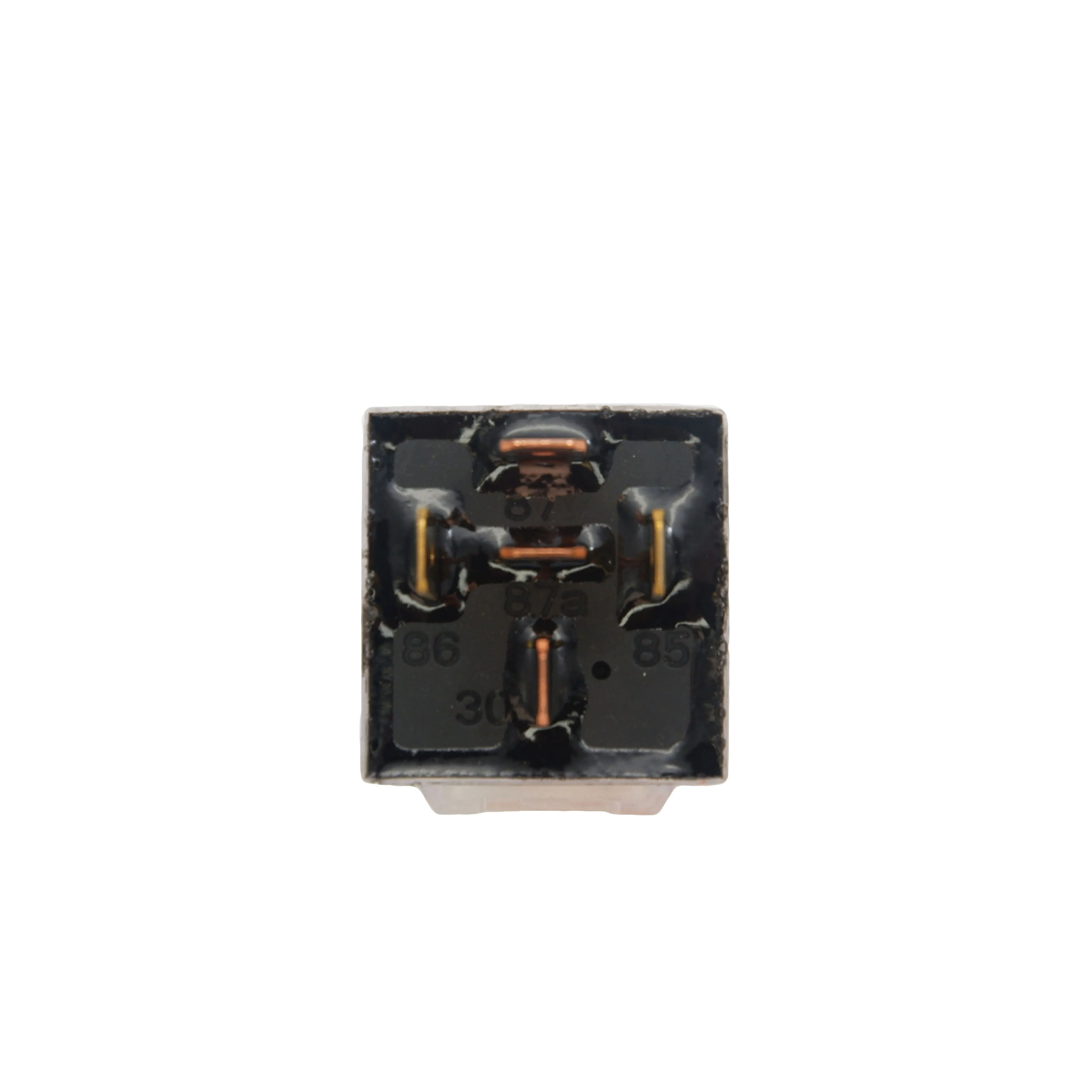

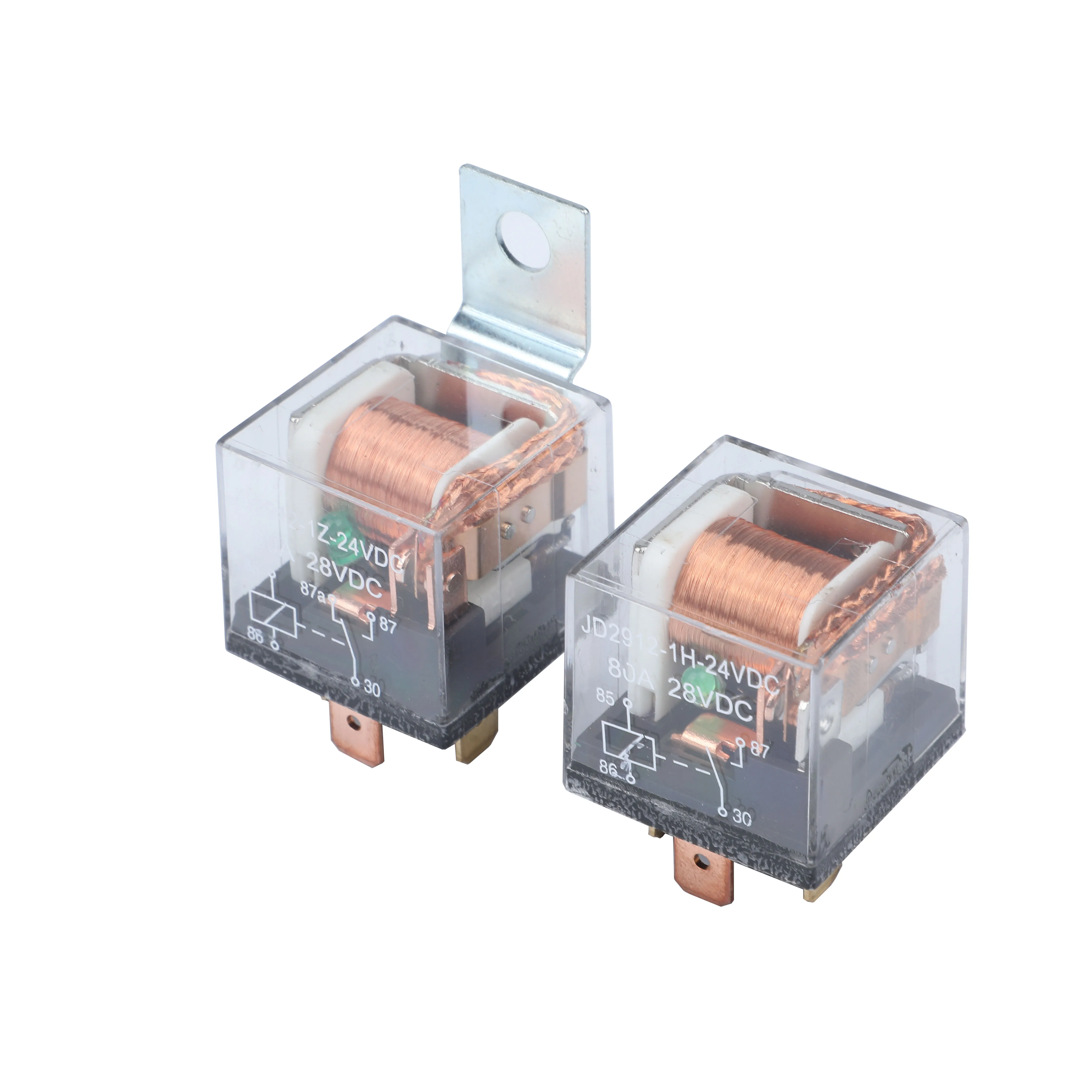

JD2912 1Z 24V Automotive Relay 24V Transparent Case 5PIN Relay For Car Truck
- Category: >>>
- Supplier: Yueqing Kuanghong Electronic Technology Co. Ltd.
Share on (1600566989629):
Product Overview
Description
Specification
Name | Automotive relay |
Colour | Black |
Shape | Square |
Product Size | 28.5*28.5*42.5mm |
CONTACT DATA
Contact Material | AgSnO12 |
Contact Form | 1Z(1C) |
Contact Ratings | NO:60A 14VDC |
Contact Resistance | 100mMax at6VDC 1A |
Max Switching Current | 60A |
Max Switching Voltage | 75VDC |
Max Switching Power | 1200W |
Life Expectancy Electrical | 100,000 Operations(at 30 Operations/minute) |
Life Expectancy Mechanical | 100,000 Operations |
COIL SPECIFICATION
Nominal Voltage（VDC） | 24 | ||
Coil Resistance（Ω） | 1.8W | 320 | |
Max Operate Voltage（VDC） | 12~16.8 | ||
Mix Release Voltage（VDC） | 2.4~7.2 | ||
Max Applicable Voltage(VDC) | 31.2 | ||
CHARACTERISTICS
Temperature Range | -30℃~+80℃ | ||
Vibration Resistance | 10~55Hz，1.5mm | ||
Shock Resistance | Operations Extremes | 10g | |
Damage Limits | 100g | ||
Humidity | 40%~85% | ||
Insulation Resistance | 100mΩ Min at 500VDC | ||
Safety Standard | CCEE | ||
Dielectric Strength Between Open Contacts | 500VAC（for one minute/sec） | ||
Between Contact And Coil | 750VAC(for one minute/sec) | ||
Operate Time | 7ms | ||
Release Time | 5ms | ||
