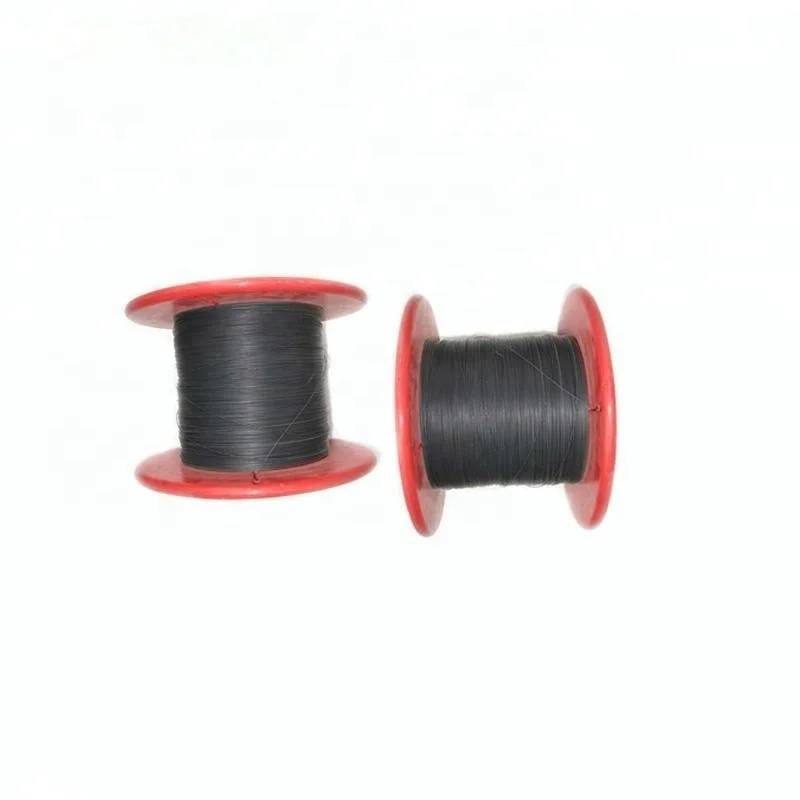

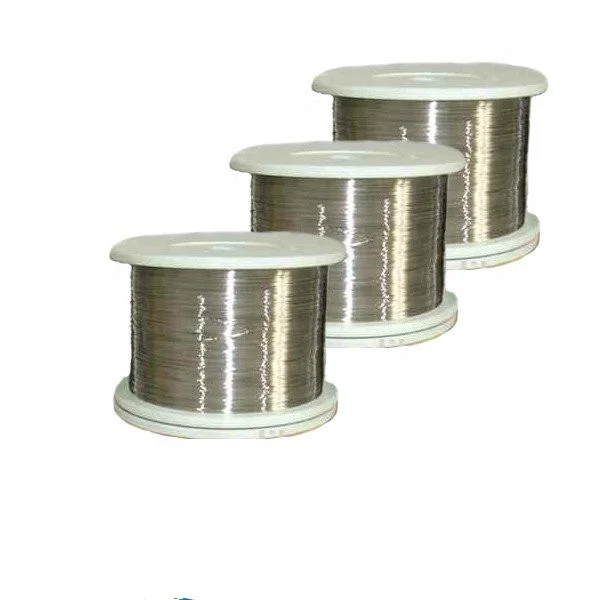

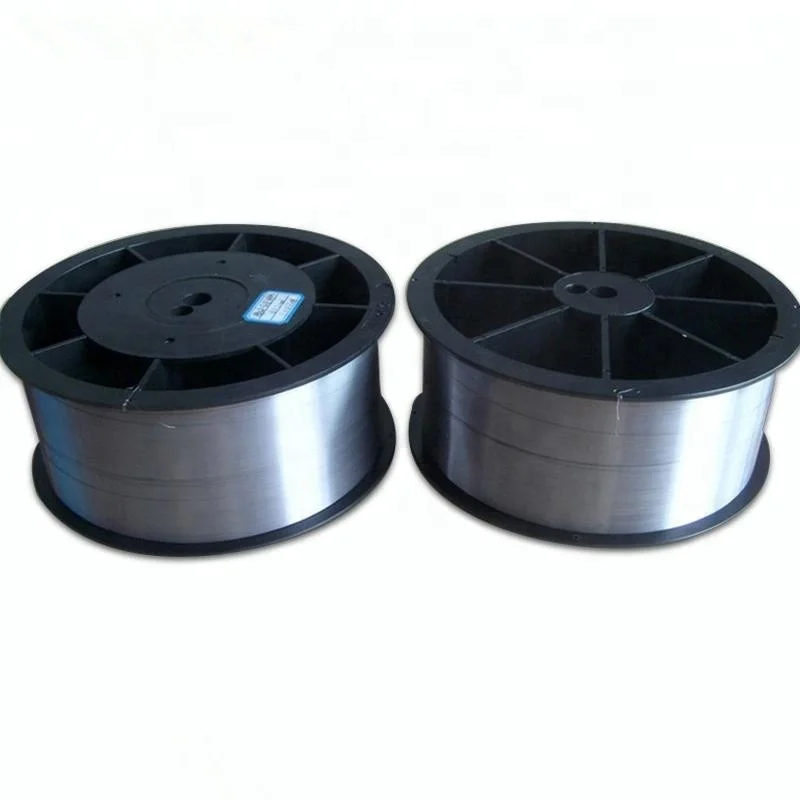

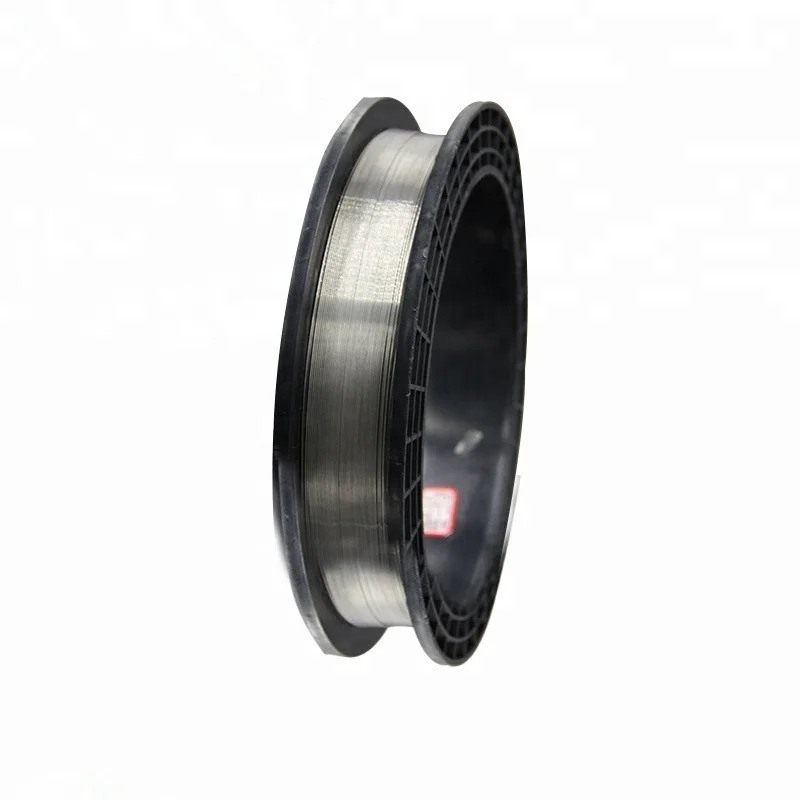

0.2 mm 0.3 mm 0.5 mm 0.8 mm superconducting niobium titanium wire price per kg

Product Overview

Description

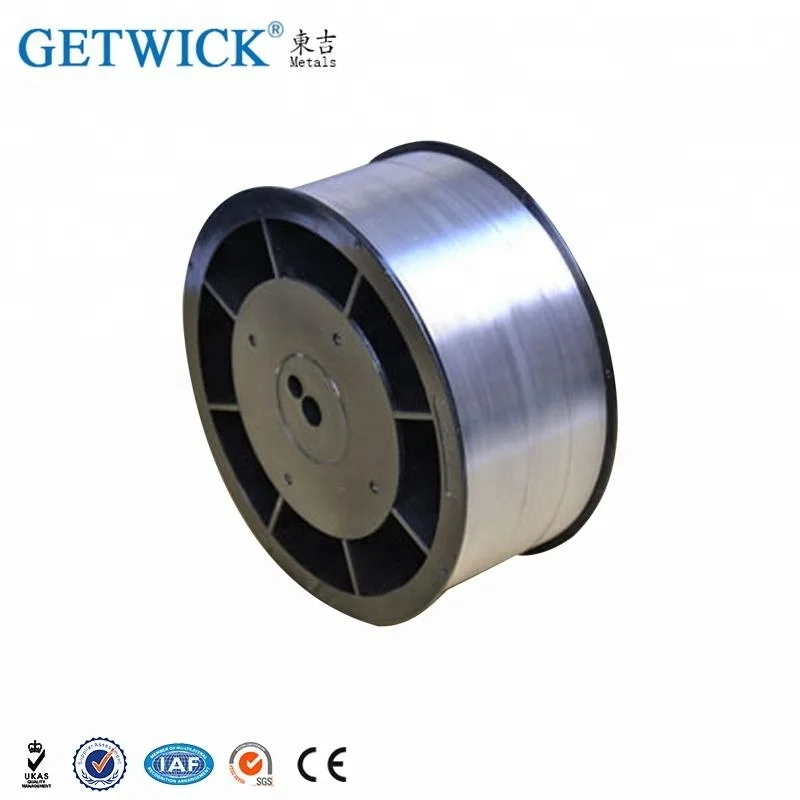

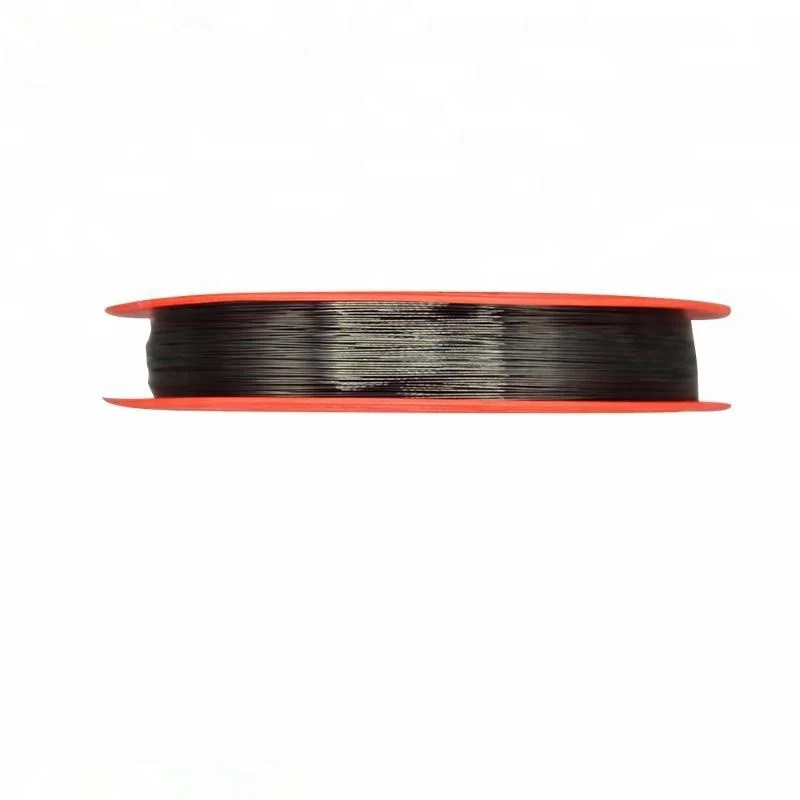

0.2 mm 0.3 mm 0.5 mm 0.8 mm superconducting niobium titanium wire price per kg

The melting point of niobium is 2468 Dc, and the density is 8.6 g/cm3. With the characteristics of corrosion resistance, high temperature resistance and malleability, niobium is widely used in electronics industry, steel industry, chemical industry, optics, gemstone manufacturing, superconducting technology, aerospace. technology and other fields. Niobium sheet and niobium wire is the most common form of Nb product.

Grade:  R04200, R04210, Nb1Zr (R04251 R04261), Nb10Zr, Nb-50Ti etc.

Purity: Pure niobium 99.95%min.

Standard: ASTM B392

Chemical Composition:

Niobium and Niobium Alloys Wire Chemical Composition
Element	Type1 (Reactor Grade Unalloyed Nb)  R04200	Type2 (Commercial Grade Unalloyed Nb) R04210	Type3 (Reactor Grade Nb-1%Zr)         R04251	Type4 (Commercial Grade Nb-1%Zr)  R04261
Max Weight % (Except Where Otherwise Specified)
C	0.01	0.01	0.01	0.01
N	0.01	0.01	0.01	0.01
O	0.015	0.025	0.015	0.025
H	0.0015	0.0015	0.0015	0.0015
Zr	0.02	0.02	0.8-1.2	0.8-1.2
Ta	0.1	0.3	0.1	0.5
Fe	0.005	0.01	0.005	0.01
Si	0.005	0.005	0.005	0.005
W	0.03	0.05	0.03	0.05
Ni	0.005	0.005	0.005	0.005
Mo	0.01	0.02	0.01	0.05
Hf	0.02	0.02	0.02	0.02
Ti	0.02	0.03	0.02	0.03

Application: It's widely used for steel, ceramics, electronics, nuclear energy industries and superconductor technology.

Niobium Feature:

1.Low Density and High Strength

2.Excellent Corrosion Resistance

3.Good resistance to high temperature

4.Excellent Bearing to cryogenic property

5.Good thermal properties

6.Low Modulus of Elasticity

7.Toughness, light weight

8.High property of acid and alkali resistance
