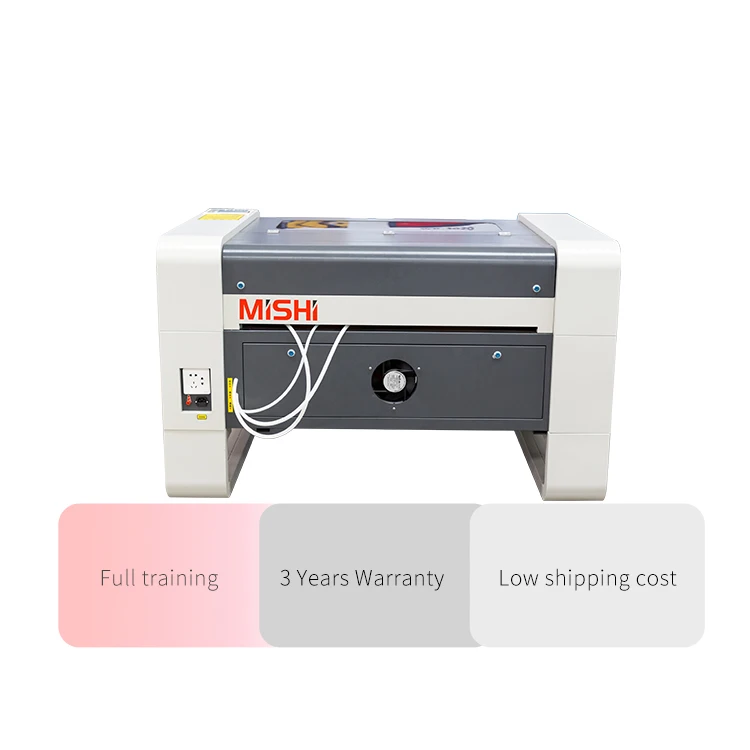

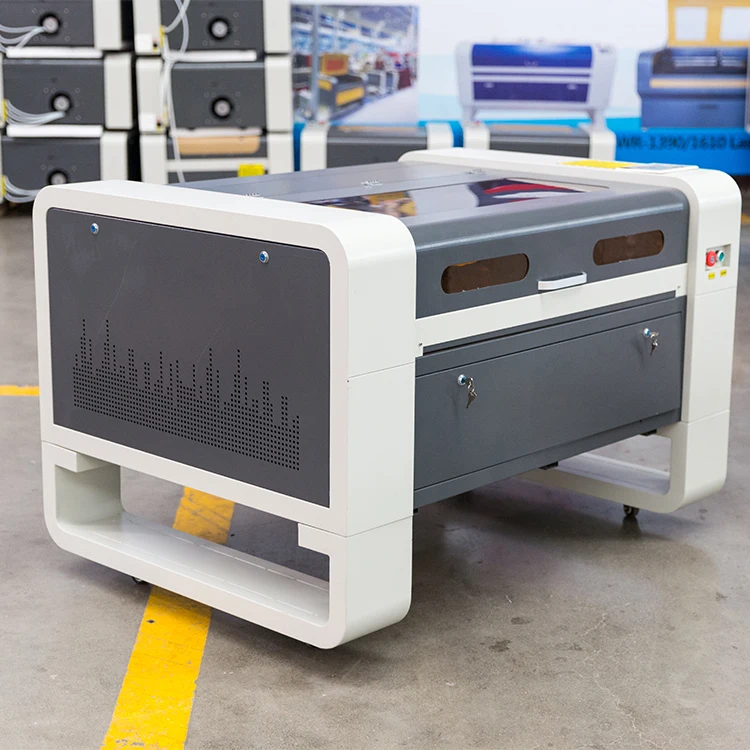

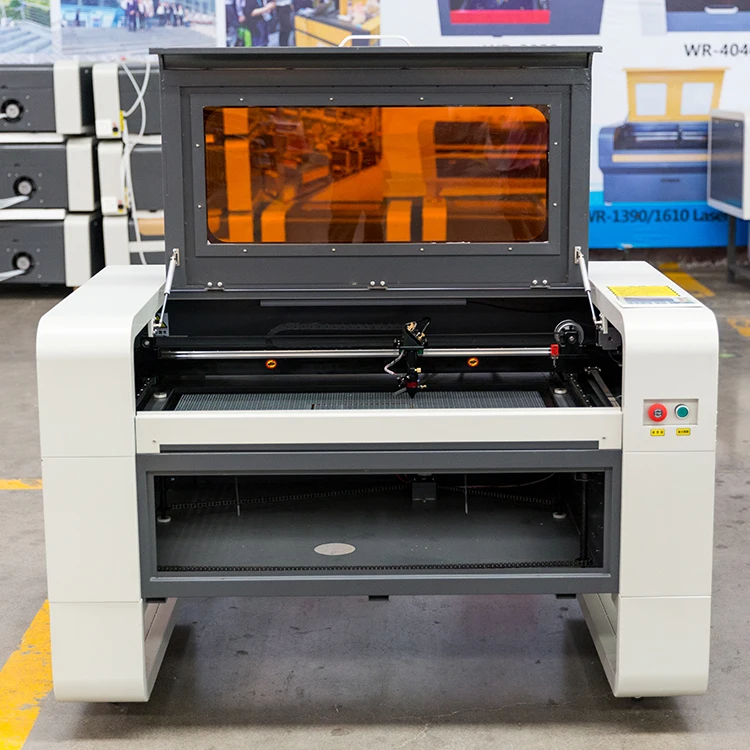

6090 1390 co2 laser engraver and cutting machine laser wood cutting machine 1080 co2 laser machine price
- Category: >>>
- Supplier: Jinan Mingshi Machinery Equipment Co. Ltd.
Share on (1600566994914):
Product Overview
Description

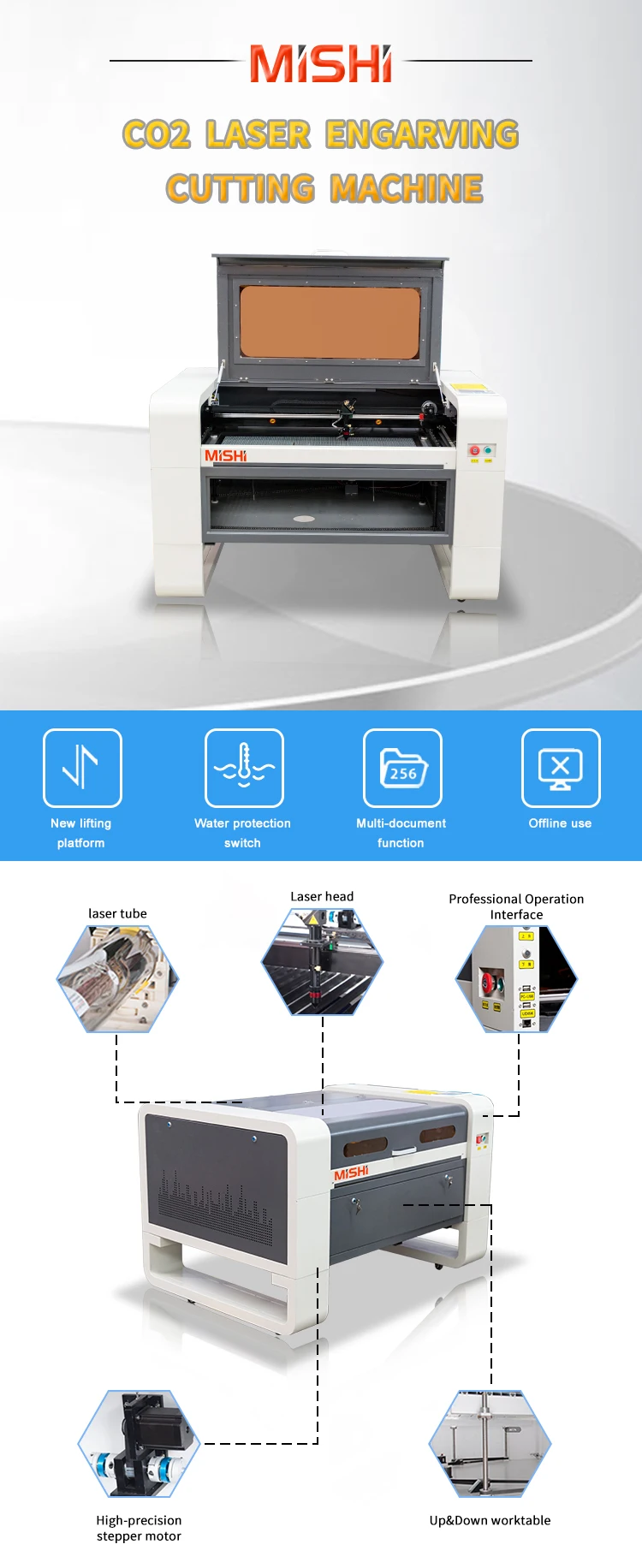

Product Show
Technical Parameters
Model | MSC1390 Co2 Laser Engraving Machine |

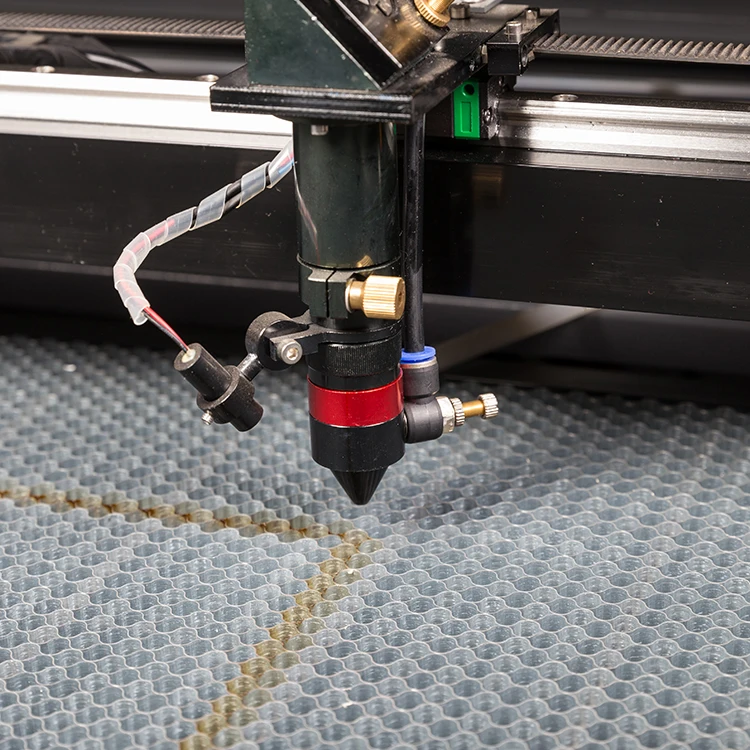

Worktable | Honeycomb or Blade |
Eneraving area | 1300*900mm |
Laser Power | 60w/80w/ 100w/ 150w / 300w |
Engraving Speed | 0-60000mm/min |
Engraving Depth | 5mm |
Cutting Speed | 0-5000mm/min |
Cutting Depth (Acrylic) | 0-30mm (acrylic) |
Up and down work table | Ec Up and down 550mm adjustable |
Minimum Shaping Character | 1*1mm |
Resolution Ratio | 0.0254mm (1000dpi) |
Power Supply | 220V(or110V)+/-10% 50Hz |
Resetting Positioning | Accuracy less than or equal to 0.01mm |
Water protecting sensor and alarm | Yes |
Operating Temperature | 0-45℃ |
Operating Humidity | 35-70℃ |
Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
Operation System | Windows 98/ME/2000/XP/VISTA/Windows 7/8 |
Software | RDWorks/LaserCAD |
Engraving on Curve Surfaces(Yes/No) | No |
Control Configuration | DSP |
Water Cooling(Yes/No) | Yes |
Maximum Height Of Materials To Engrave(mm) | 120mm |

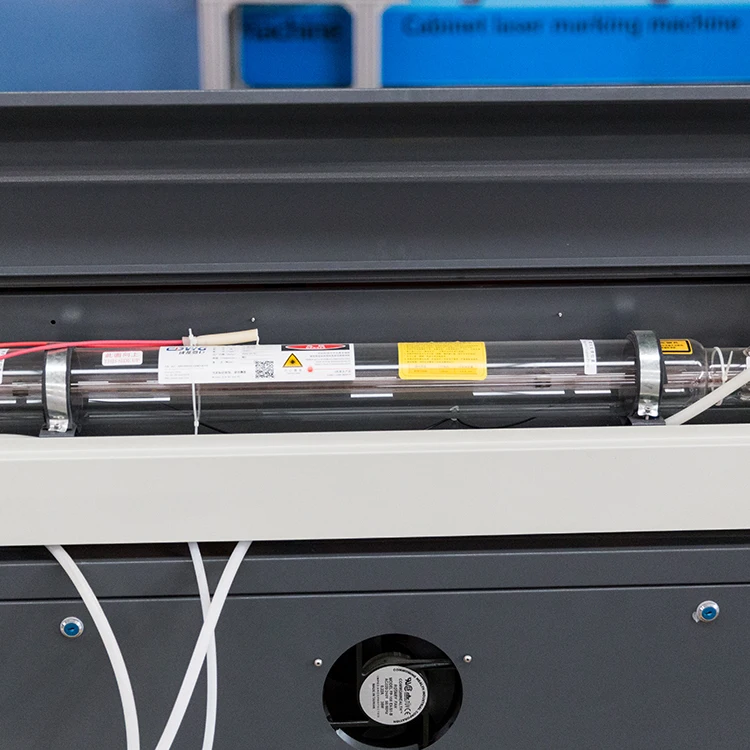

Laser Tube | Sealed CO2 glass laser tube |
Machine Dimension | 1840x1400x1030(mm) |
Packing Dimension | 2040×1600×1320mm |
Gross Weight | 410kg |

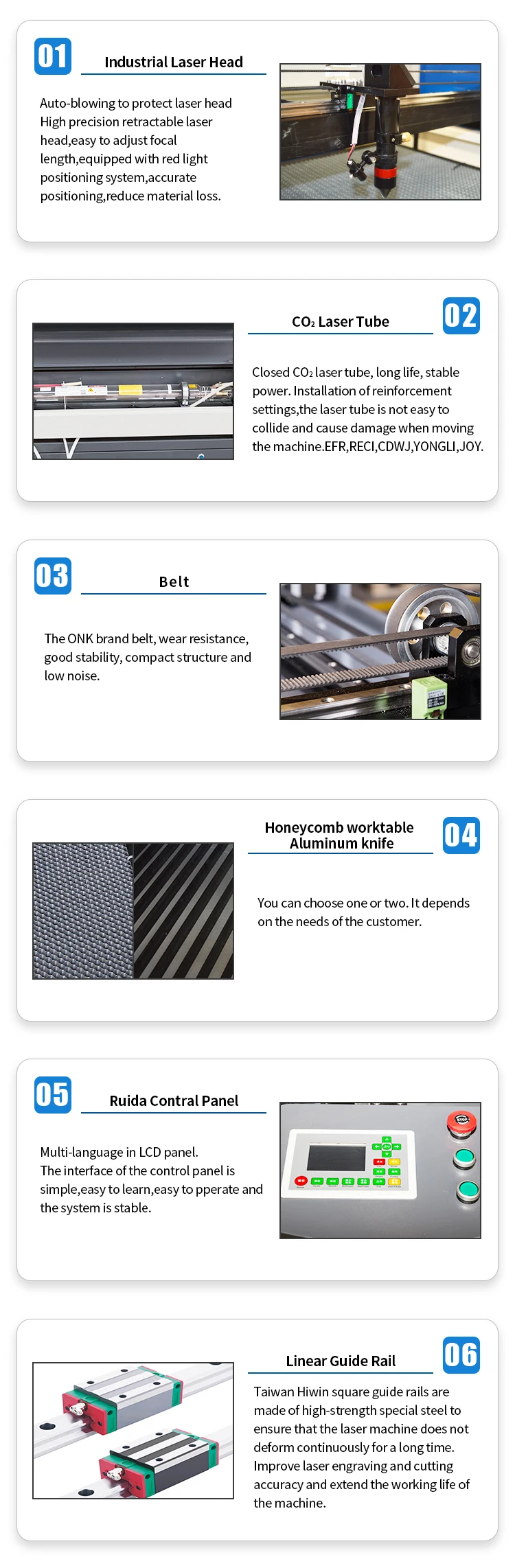

Details Images
Applicable material for reference | ||||||||||
Material | Engrave | Cut | Material | Engrave | Cut | |||||
Natural wood | √ | √ | Paper | √ | √ | |||||
Acrylic | √ | √ | Mylar | √ | √ | |||||
Glass | √ | × | Press board | √ | √ | |||||
Double color plate | √ | √ | Rubber | √ | √ | |||||
Bamboo | √ | √ | Plywood | √ | √ | |||||
MDF | √ | √ | Fiberglass | √ | √ | |||||
Cloth | √ | √ | Painted metal | √ | √ | |||||
Leather | √ | √ | Plastic | √ | √ | |||||
Marble | √ | × | Ceramic | √ | × | |||||
Matte boards | √ | √ | Coated Metal | √ | × | |||||
Stone | √ | × | Other materials | Inquire us, we will test for you | ||||||
Cutting thickness of different laser power for reference | ||||||
Laser power(W) | Acrylic(mm) | Plywood(mm) | MDF(mm) | |||
40W | 3 | 2 | 1.5 | |||
60W | 8 | 5 | 3 | |||
80W | 12 | 8 | 6 | |||
100W | 15 | 12 | 9 | |||
150W | 25 | 20 | 15 | |||
Application
Applicable Materials:
Mingshi Laser high quality CO2 laser cutting and engraving machine is usually used in acrylic, wood, leather, paper, plexiglax, rubber and other nonmetal materials.
Applicable Industries:
Rubber, plastic, cloth toys, leather, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper products.
Applicable Industries:
Rubber, plastic, cloth toys, leather, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper products.
After Sales Services
Shipping And Packing
Company Introduction
FAQ
1.How long is the warranty period?
We offer 3 years warranty and a year warranty for core components.
2.What about after-sales service?
We offer 24 hours online video call to solve your problems,We also can provide oversea service all over the world.
We offer 3 years warranty and a year warranty for core components.
2.What about after-sales service?
We offer 24 hours online video call to solve your problems,We also can provide oversea service all over the world.
3. How long is your delivery time?
Generally it is 1-3 days if the goods are in stock or it is 5-10 days if you place a big order, it is according to quantity.
4.What is your terms of payment ?
Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us.
Generally it is 1-3 days if the goods are in stock or it is 5-10 days if you place a big order, it is according to quantity.
4.What is your terms of payment ?
Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us.
VR
Please feel free to send us an inquiry or message to know more about the machine.
We specialize in laser machines and CNC routers for 12 years.
The response will be within 1 minute during working time, And within 6 hours during off duty time.
We specialize in laser machines and CNC routers for 12 years.
The response will be within 1 minute during working time, And within 6 hours during off duty time.
You haven't found the machine you need, don't hesitate to contact us too. We will do our best to give you the best suggestion. We can also supply products related to our machines.
