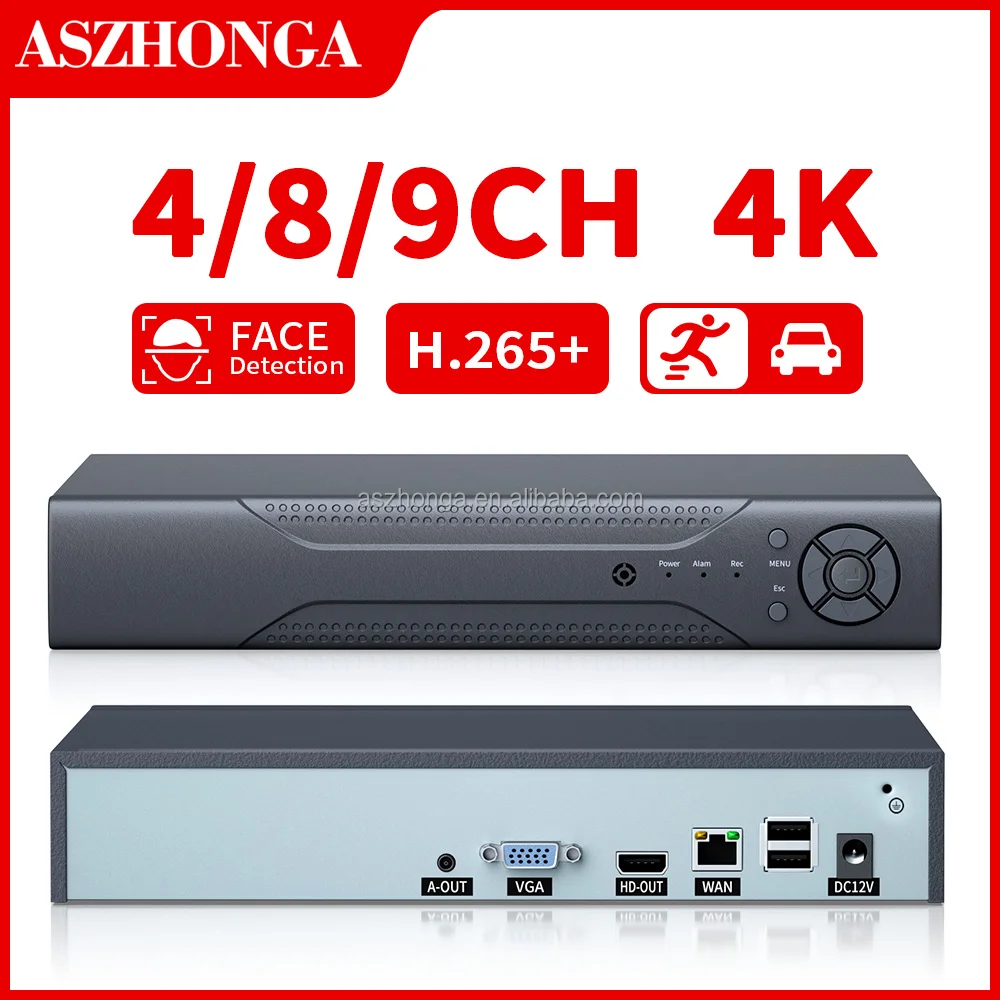

Manufacturers Wholesale 4K NVR 9CH NVR Video Host 1 SATA HDD P2P xmeye H265 Security IP Network Video Recorder
- Category: >>>
- Supplier: Shenzhen Aoshi Zhongan Technology Co. Ltd.
Share on (1600567004415):
Product Overview
Description
Product Description
Manufacturers Wholesale 4K NVR 9CH NVR Video Host 1 SATA HDD P2P xmeye H265 Security IP Network Video Recorder Support 2MP 5MP 8MP CAMERAS
Features :
In LAN cameras plug-and-play, camera access automatically adds out the map.
Support HD-MI 4K, VGA 1080P HD output
Can be connected to 9-way 8MP cameras.
support for dual code streams.
support for HD-MI output audio.
cloud station support for intelligent gestures.
support for preview and playback capture map.
video playback with time column display, video type with color, easy and fast retrieval of video information.
video backup can be backed up according to the time of occurrence and length, backup can be accurate to the second
support for batch modification of front-end IPC address, support for remote addition of front-end devices.
can be connected to network cameras, network fast dome; support multi-version ONVIF-Compatible protocol
can be connected to the market mainstream brand IPC (private protocol and standard ONVIF-Compatible).
preview screen can be swapped at will, image position changes, physical address remains the same, convenient for engineering construction.
U disk backup video and images can be directly played back on the host for query, providing more convenience.
ISP parameters can be controlled directly to the front-end IPC.
support remote upgrade of IPC and support remote viewing of IPC information.
support multiple playback modes, fast forward, slow playback, fast rewind, etc., supporting up to 8x fast forward and fast rewind.
Support for H.264/H.265 cameras.
support WEB, VMS management software, support Android/IOS mobile software.
support P2P, support QR code scanning, support cell phone APP playback video.
Support HD-MI 4K, VGA 1080P HD output
Can be connected to 9-way 8MP cameras.
support for dual code streams.
support for HD-MI output audio.
cloud station support for intelligent gestures.
support for preview and playback capture map.
video playback with time column display, video type with color, easy and fast retrieval of video information.
video backup can be backed up according to the time of occurrence and length, backup can be accurate to the second
support for batch modification of front-end IPC address, support for remote addition of front-end devices.
can be connected to network cameras, network fast dome; support multi-version ONVIF-Compatible protocol
can be connected to the market mainstream brand IPC (private protocol and standard ONVIF-Compatible).
preview screen can be swapped at will, image position changes, physical address remains the same, convenient for engineering construction.
U disk backup video and images can be directly played back on the host for query, providing more convenience.
ISP parameters can be controlled directly to the front-end IPC.
support remote upgrade of IPC and support remote viewing of IPC information.
support multiple playback modes, fast forward, slow playback, fast rewind, etc., supporting up to 8x fast forward and fast rewind.
Support for H.264/H.265 cameras.
support WEB, VMS management software, support Android/IOS mobile software.
support P2P, support QR code scanning, support cell phone APP playback video.
4K HD OUTPUT
HD high-speed output interface, providing up to 4K video output capability. The VGA port supports 1080P output.
Support AI Face Detection
Support face detection,Human detection, Vehicle detection.
Note that these features require the camera to have the corresponding capabilities in order to use them.

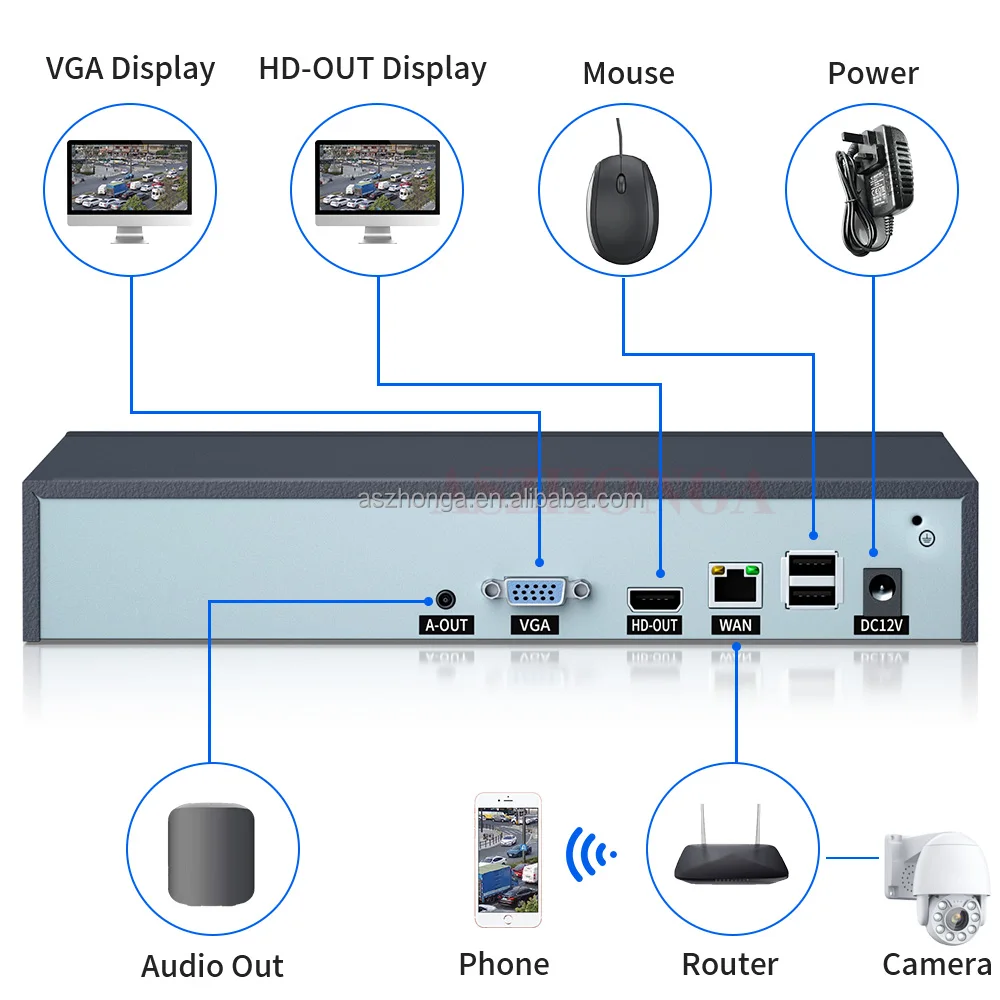

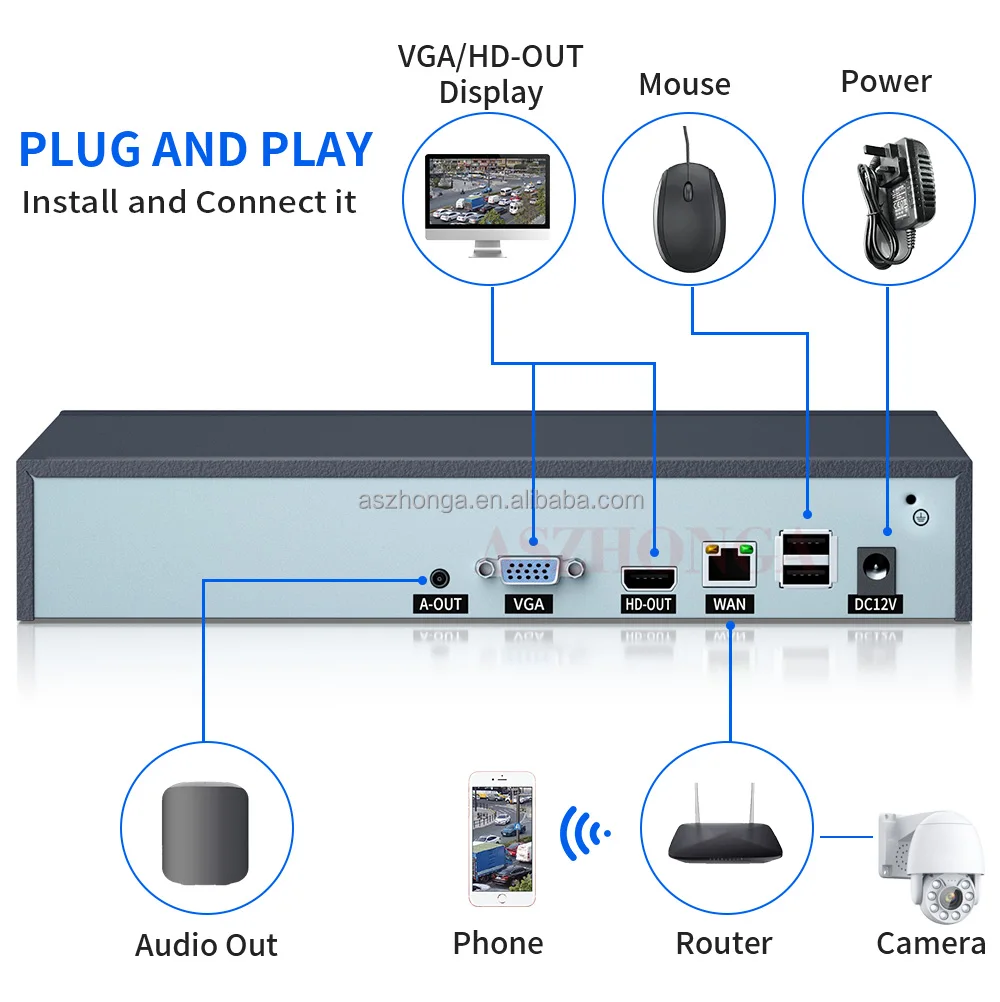

Plug and Play, Add and Manage Cameras Easily
Compatible with most cameras, automatically discover cameras in the local area network after installation, and easily add cameras for management.
Support multi-screen display
Preview 1/2/4/6/8/9Cameras on the one screen .
Note that the picture above is the 16CH version. The 9CH version supports up to 9 camera screen displays.
H.265AI/H.265+
Compatible with H.264 and H.265 encoded cameras. Support H.265 video encoding. Smaller video capacity usage and higher video quality with the same bandwidth.

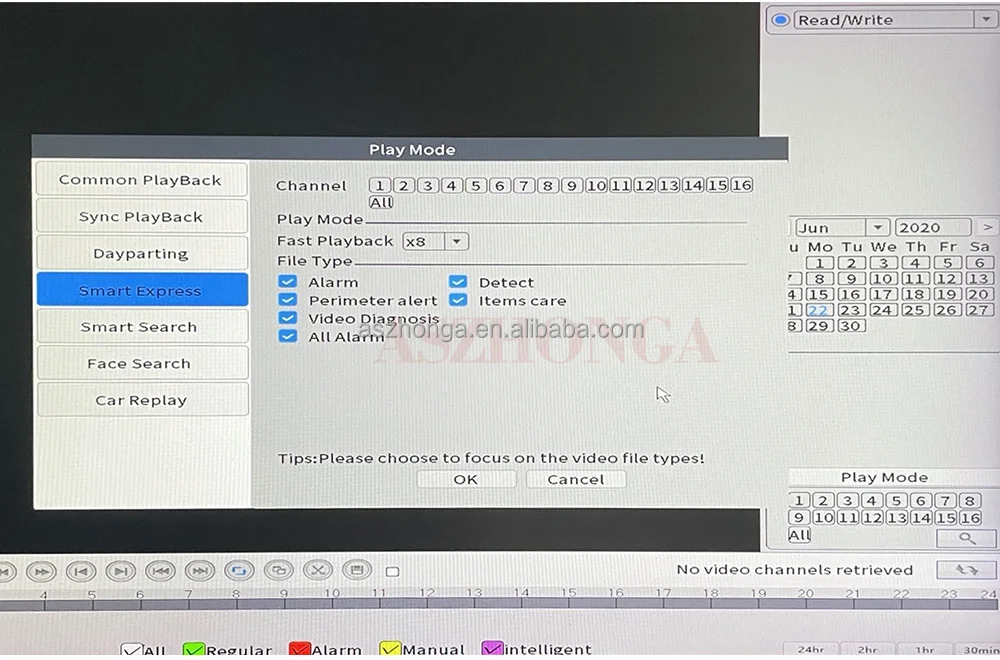

Large capacity hard drive support and high speed playback
Support up to 14TB SATA HDD. Multiple playback modes, fast forward, slow playback, fast rewind, etc. Supports up to 8x fast forward and playback.

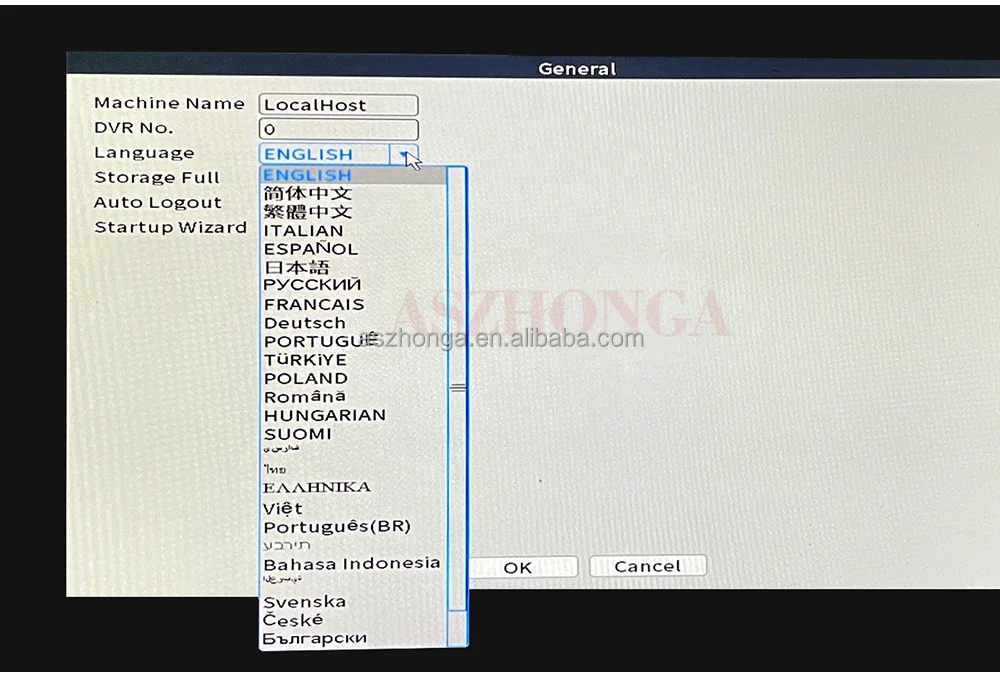

Multiple Language Support
Support multiple languages, easy to switch.

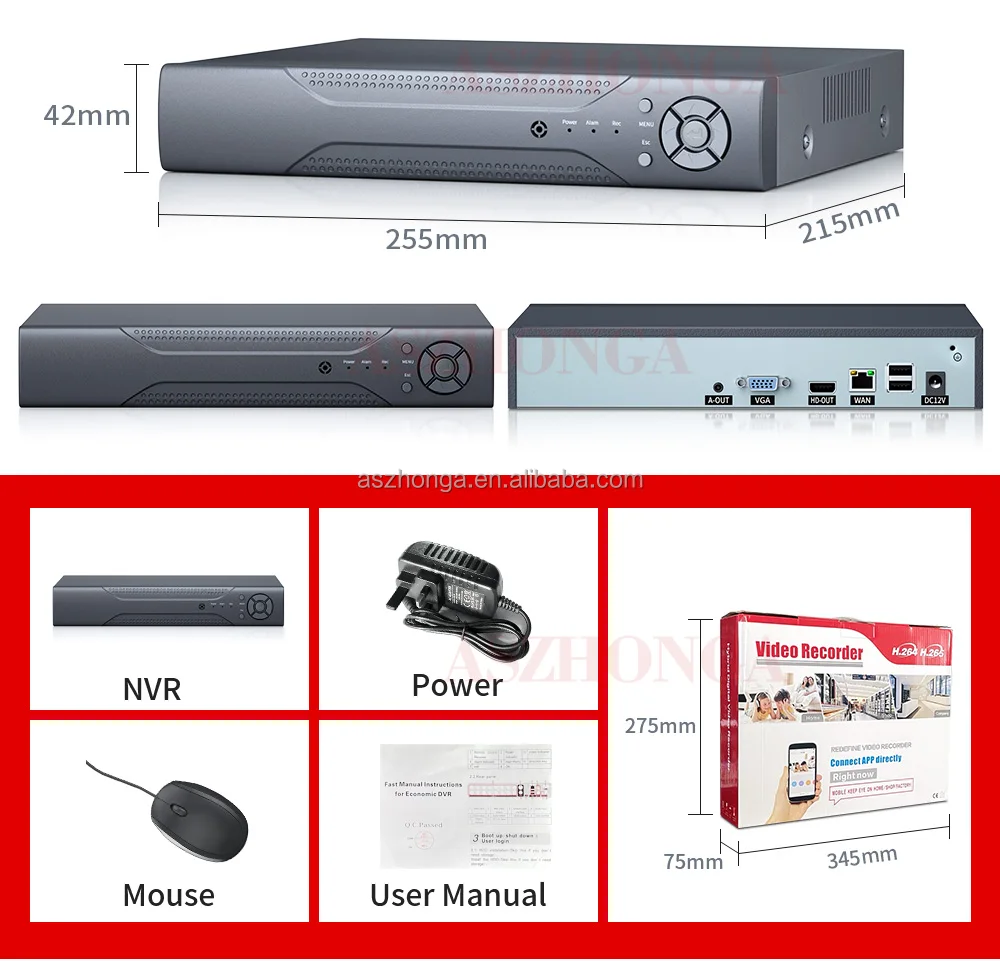

Packing List:
1*9CH NVR
1*12V 2.A AC ADAPTER
1*USB mouse
1*User Manual
Please note: The standard accessories of this product do not include hard drives and need to be purchased separately. Contact salesman to add.
Specification
Model | NBD80S09S-KL | NBD80S16S-KL | ||
System | Operating System | Embedded Linux | ||
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |||
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation | ||
Preview | 1/2/4/6/8/9 | 1/2/4/6/8/9/16 | ||
Video | Video input (IP) | 9*4K | ||
Video compression | H.265AI/H.265+(compatible H.265/H.264) | |||
Display quality | Max:4K | |||
Playback quality | 4K/5MP/4MP/3MP/1080P | |||
Decode | 4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1） | |||
VR | Unsupport | |||
human shape / Face | Support(depend on camera) | |||
Audio | Audio compression | G.711A | ||
Intercom | support | |||
Record&playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing | ||
Local payback | 4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1） | |||
Search mode | Search by Time/Calendar/Event/Channel/Face | |||
Record storage | HDD、Network | |||
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |||
External interface | Video output | 1ch VGA，1ch HDMI HD output | ||
Audio I/O | 1/1（3.5mm） | |||
Alarm I/O | 0/0 | |||
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |||
USB interface | 2*USB2.0 ports(one USB extension interface is reserved) | |||
HDD | 1* SATA(Up to 14TB for each disk) | |||
ESATA | No | |||
Serial interface | No | |||
Other | ONVIF-Compatible | Support | ||
Power supply | 12V/2A | |||
Power Consumption | <10W(Without HDD) | |||
Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |||
Dimension | 355*75*275mm | |||
Weight | 1kg | |||
