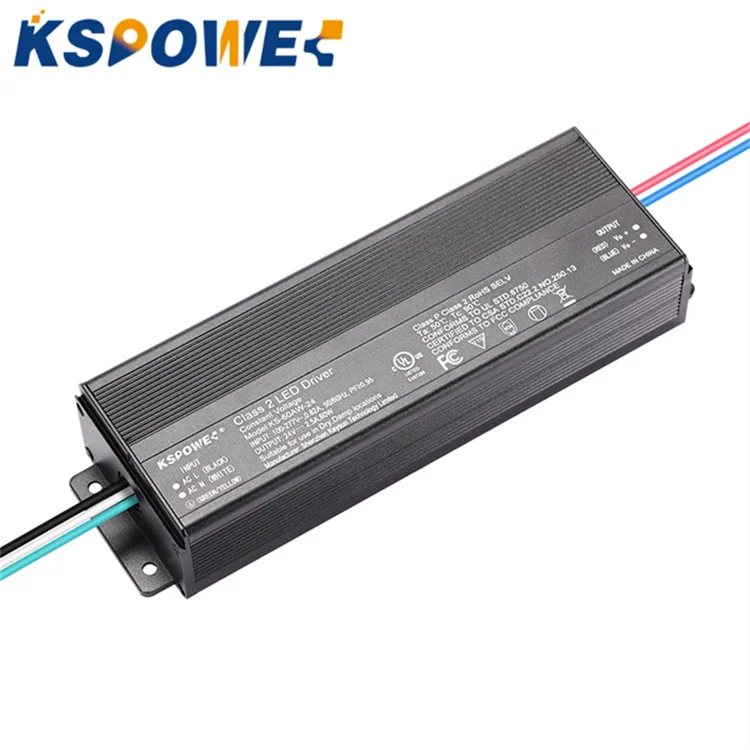

power inverters converters switching 12v 24v 36v 48v 12 48 volt 300 watt voltage regulating electronic led lighting transformers

Product Overview

Description

power inverters converters switching 12v 24v 36v 48v 12 48 volt 300 watt voltage regulating electronic led lighting transformers

FEATURES:

− Universal AC input voltage 100-277VAC

− Efficiency up to 90%

− Built-in active PFC function

− Single channel & constant voltage mode and PWM style output

− Protection: OCP, OVP, SCP, OTP

− Limited Power Source

− UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

− Function options:

1. Non-dimmable

2. Triac/Phase-cut Dimmable

3. 4 in 1 dimmable (0-10V,1-10V,PWM,resistance)

4. 5 in 1 dimmable (0-10V,1-10V,TRIAC,PWM,resistance)

− Typical lifetime > 50000 hours

− 5 years warranty

− Available with or without integrated Junction Box

− IP65 Rated Enclosure for Indoor and Outdoor Use

− Wiring Compartments with Knock-Outs for Clean and Easy Installation

SPECIFICATION:

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC, full load
Output Voltage	12VDC	24VDC	36VDC	48VDC
Rated Current	A	A	A	A
Rated Power	40-320W
Ripple & Noise (max.)	200mVp-p	250mVp-p	250mVp-p	250mVp-p
Dimenion	258*68*41mm(L*W*H)

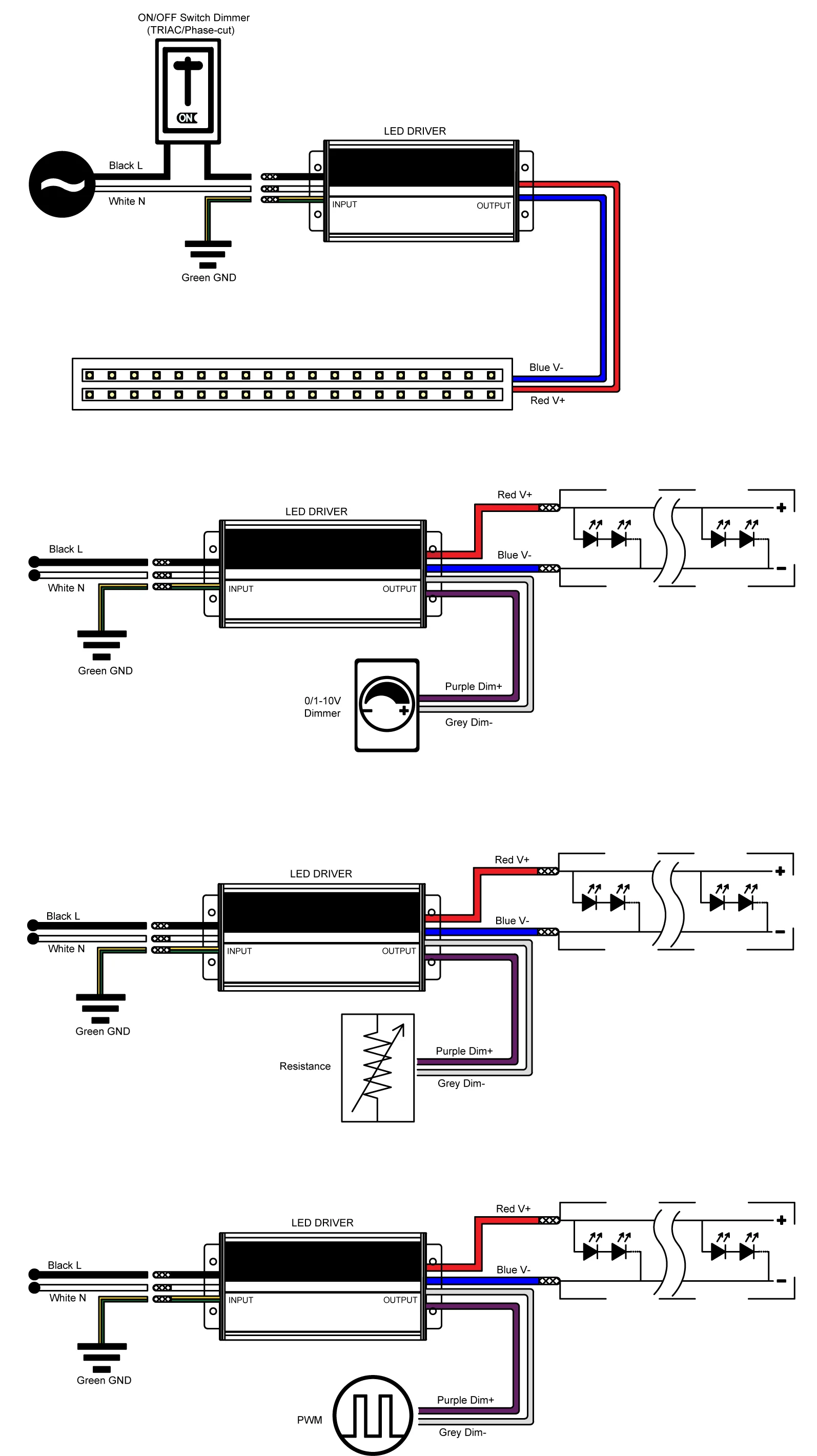

DIMMING CONNECT DRAWING:

Dimmension:


PACKAGE



Package	Piece/Carton	Dimension/Carton	Dimension/Brown Box	Piece Weight	Gross Weight/Carton
OEM package	15pcs	400 x 400 x 165mm	382 x 74 x 45mm	1.4kg	21kg

OUR SERVICES

• Our sample delivery time is 3 days.


• Our warranty is 3 years.


• Our product defect rate is 3%.More than 3% of defective products will be refilled.



• OEM&ODM, any your custo mized lightings we can help you to design and put into product.


• Distributoership are offered for your unique design and some our current models,Protection of your sales area, ideas of design and all your private informatio.


• Your inquiry related to our products or prices will be replied in 24hrs.Well-trained and experienced staffs to answer all your enquires in fluent English.


• The delivery time of 100-500PCS is 7 workdays, the delivery time of 500-1000PCS is 10 workdays, the delivery time of 1000-2000PCS is 12 workdays, and the delivery time of 5000PCS is 20 workdays.
