BIOBASE China Class II A2 Hepa Filter Biological Safety Cabinet, BSC 1100IIA2 X Biosafety Cabinet for bilogical lab
- Category: Commercial Furniture >>>
- Supplier: Medfuture,Biotech,Co.,Ltd.
Share on:
Product Overview
Description
BIOBASE GROUP adheres to the mission of “SERVICE FOR HEALTH FOR THE FUTURE”
We provide with high quality products and best service!
Product Show
1. Motorized front window.
2. Time reserve function.
3. HEPA filter life and UV life indicator.
4. Automatic air speed adjustable with filter block.
5. With memory function in case of power-failure.
6. Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height).
7. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
8. Audio and visual alarm (Filter replacement, window over height, abnormal air flow velocity etc).
9. Remote control: all functions can be realized with it, making the operation much easier and more convenient.
10. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
11. Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm.
2. Time reserve function.
3. HEPA filter life and UV life indicator.
4. Automatic air speed adjustable with filter block.
5. With memory function in case of power-failure.
6. Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height).
7. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
8. Audio and visual alarm (Filter replacement, window over height, abnormal air flow velocity etc).
9. Remote control: all functions can be realized with it, making the operation much easier and more convenient.
10. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
11. Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm.
Technical Parameters
Model | BSC-1100IIA2-X | BSC-1300IIA2-X | BSC-1500IIA2-X | BSC-1800IIA2-X | BSC-2000IIA2-X | ||||
Internal Size (W*D*H) | 940* 600*660 mm | 1150*600*660 mm | 1350*600*660 mm | 1625*600*660 mm | 1800*600*660 mm | ||||
External Size (W*D*H) | 1100*750*2250mm | 1300*750*2250mm | 1500*750*2250 mm | 1800*775*2290mm | 1950*800*2170 mm | ||||
Tested Opening | Safety Height = 200 mm(8'') | ||||||||
Max Opening | 420mm(17’’) | 420mm(17’’) | 500mm(20’’) | 550mm(22’’) | 400mm(16’’) | ||||
Inflow Velocity | 0.53±0.025 m/s | ||||||||
Downflow Velocity | 0.33±0.025 m/s | ||||||||
ULPA Filter | Two, 99.9995% efficient at 0.12um. Filter life indicator. | ||||||||
Front Window | Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV. | ||||||||
Noise | EN12469 ≤ 58 dB / NSF49 ≤ 61 dB | ||||||||
UV Lamp | 30W*1 | 30W* 1 | 40W* 1 | 40W*1 | 40W* 1 | ||||
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination. | |||||||||
Illuminating Lamp | LED Lamp | ||||||||
12W*2 | 12W*2 | 16W*2 | 16W*2 | 16W*2 | |||||
Illumination | ≥1000Lux | ||||||||
Consumption | 760W | 800W | 900W | 900W | 1500W | ||||
Waterproof Sockets | Two, total load of two sockets: 500W | ||||||||
Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. | ||||||||
Control System | Microprocessor | ||||||||
Airflow System | 70% air recirculation, 30% air exhaust | ||||||||
Visual and audio alarm | Filter replacement, front window at unsafe height, abnormal airflow velocity. | ||||||||
Material | Work Zone: 304 stainless steel | ||||||||
Main Body: Cold-rolled steel with anti-bacteria powder coating. | |||||||||
Work Surface Height | 750mm | ||||||||
Caster | Footmaster caster | ||||||||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||||||
Standard Accessory | LED lamp, UV lamp*2, Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2 | ||||||||
Optional Accessory | Water and gas tap, Electric height adjustable base stand. | ||||||||
Gross Weight | 243kg | 280kg | 316kg | 395kg | 420kg | ||||
Package Size (W*D*H) | 1220× 1000× 1840 mm | 1460*1050*1800 mm | 1630*1000*1820 mm | 1930*1000*1820 mm | 2090*1050*1860 mm | ||||
Related Products
Shipping
Service team
Customer feedback
Company Profile

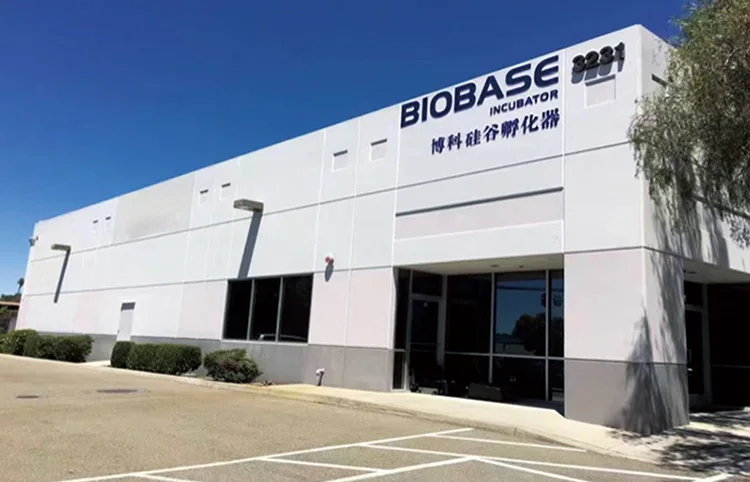

We have completed the construction of BIOBASE first industrial park in Zhangqiu, which covers an area of 81325 square meters. Second industrial park is located at Tangye new district, covers an area of 166650 square meters. BIOBASE US incubator, located at Silicon valley and covering an area of 2000 square meters, is now under construction.We have set up branch offices in 24 provinces and cities in China, and has good oversea cooperation partners in more than 150 countries and regions.
