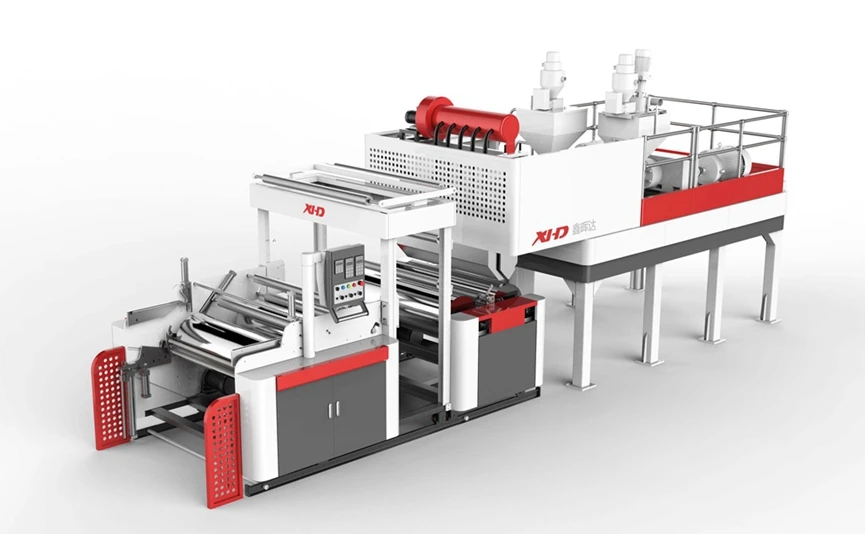

XHD best price 1 meter semi automatic LLDPE extruder for stretch film plastic stretch film making machinery
- Category: >>>
- Supplier: GUANGDONG XINHUIDA MACHINERY TECHNOLOGY GROUP CO. LTD.
Share on (1600567140251):
Product Overview
Description
Product Description

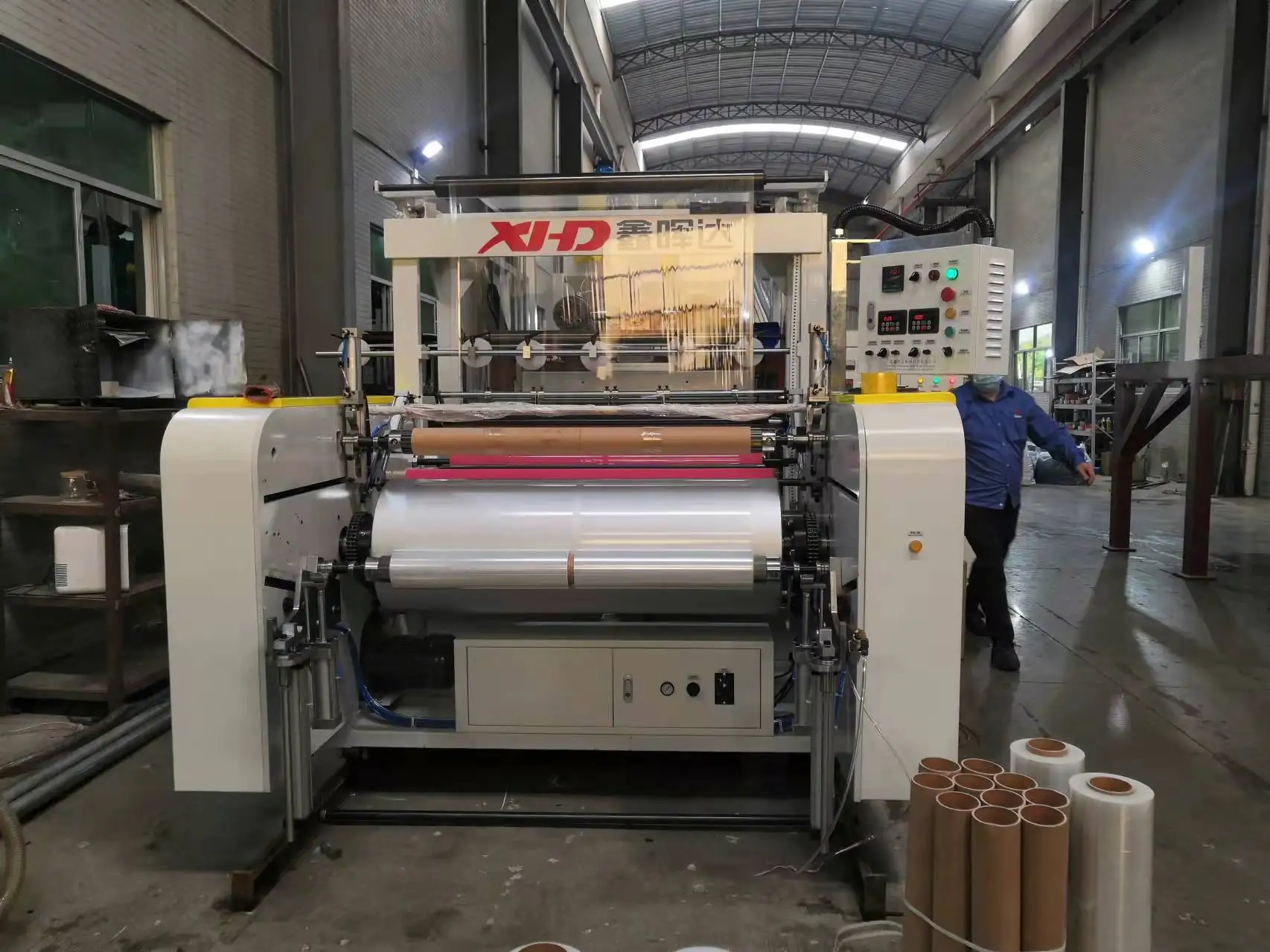

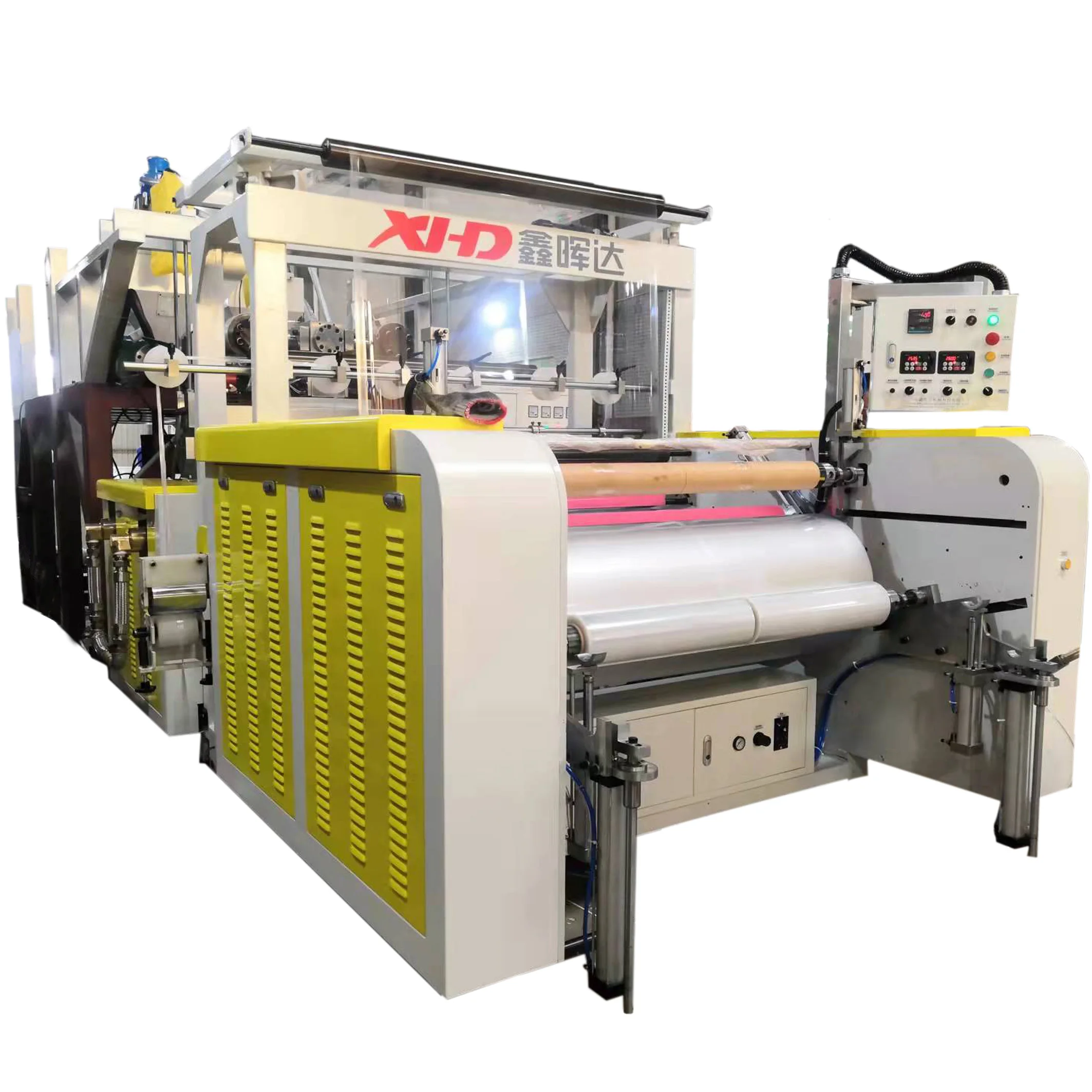

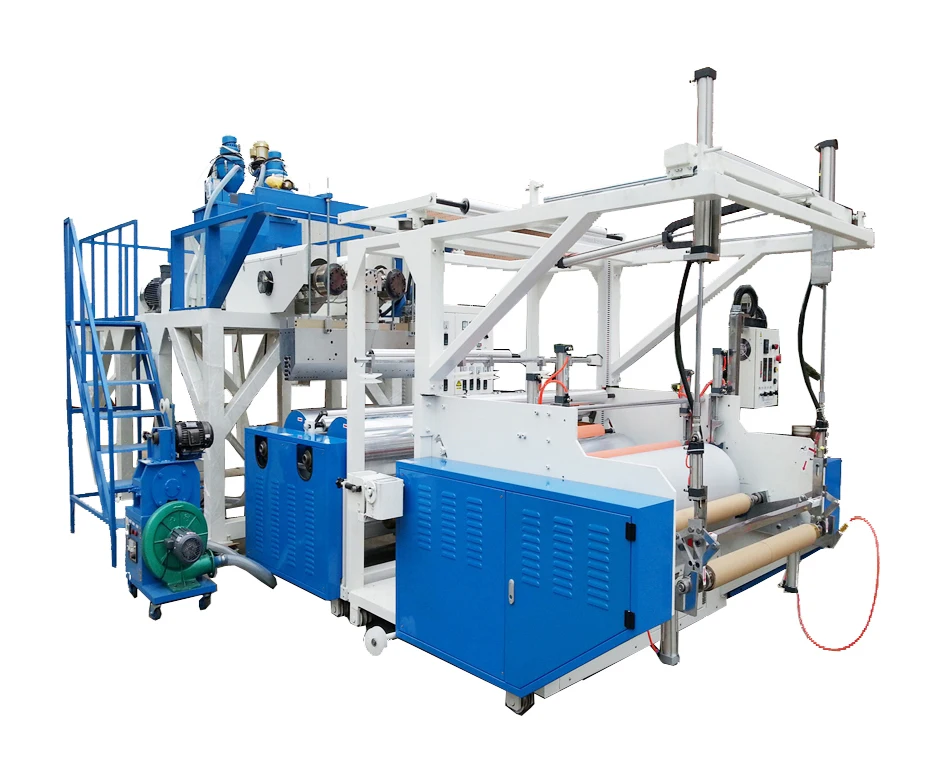

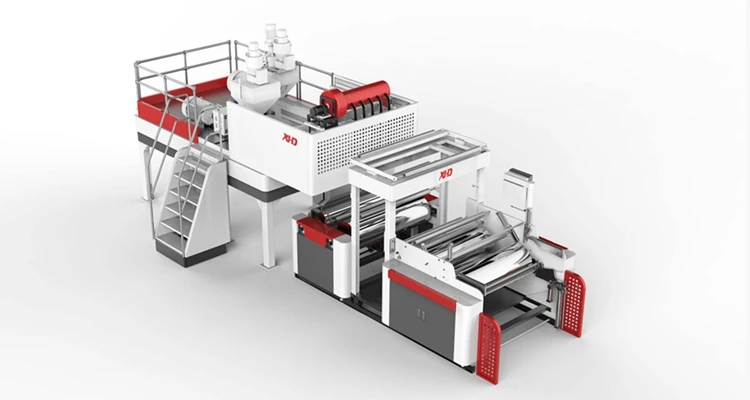

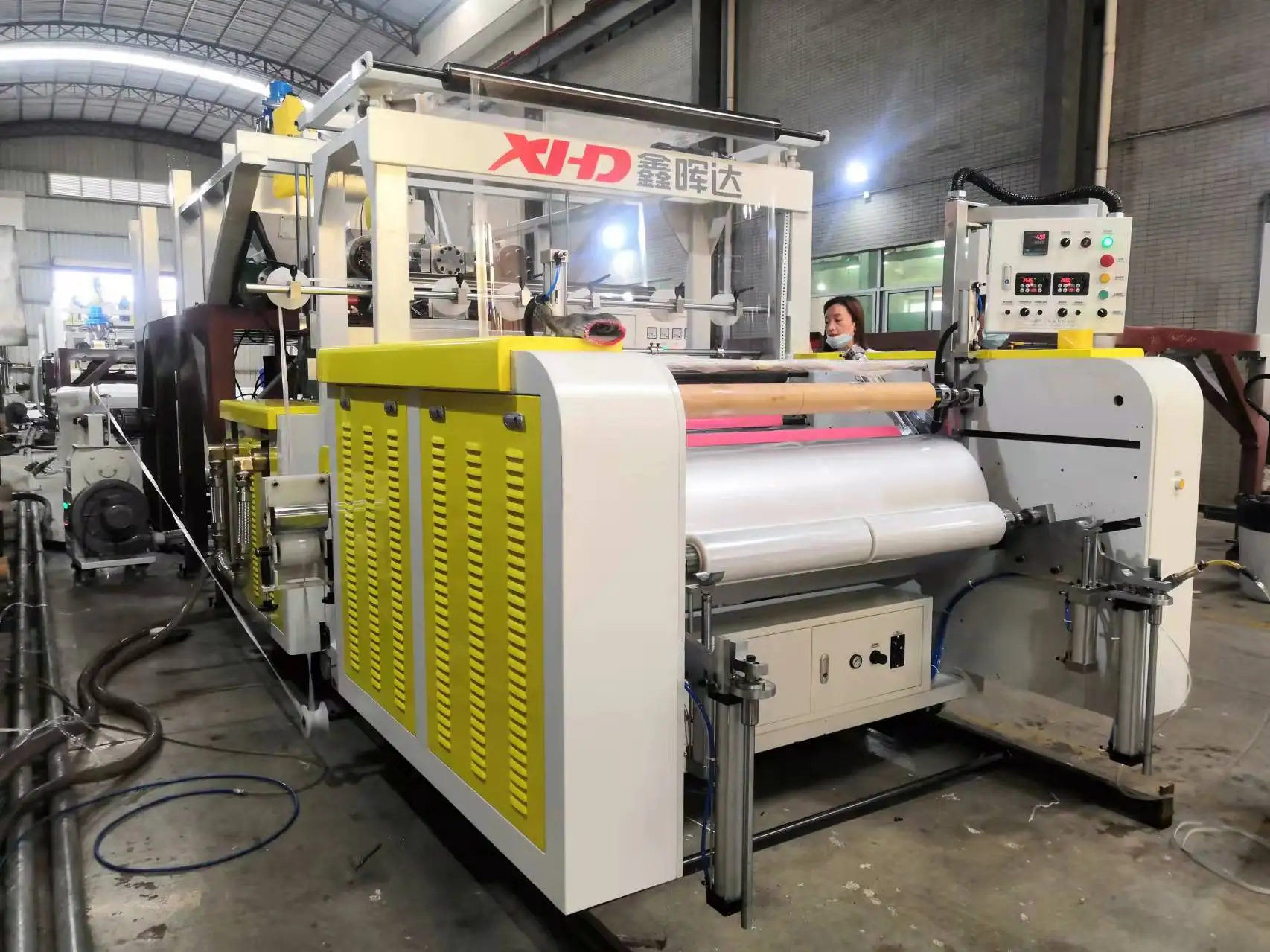

XHD-55-75-1250 best price 1 meter automatic LLDPE extruder for stretch film plastic stretch film making machinery
Voltage/Frequency/Phase | 220 V/440 V/415 V/380 V, 50 HZ/60 HZ, 3 Phases. |
Total Installation Power | 68 KW |
Consumption Power | Around 50 KW |
Main Raw Material | LLDPE, metallocene |
Thickness of Film | 20-30 μm |
Width of the Useful Film | 1000 mm/2 rolls×500 mm/2 rolls*450 mm |
Film Layer Structure | AB or ABA |
Designed Linear Speed | 150 M/min |
Extrusion capacity | 100-150 kg/h Kg/h |
Dimensions (L×W×H) | 7×3×3 M |
Gross Weight | 8000 Kg (for reference only) |
Highlights on performance
1. High speed design: up to 150 M/min
2. High production capacity: 100-125 kg/h
3. Quality stretch film which can compare with the film produced by European machines.
4. Suitable for producing both machine use stretch film rolls and hand use stretch film rolls.
5. Excellent production capacity and power consumption ratio.
6. One operator is enough to manipulate the whole machine!
1. High speed design: up to 150 M/min
2. High production capacity: 100-125 kg/h
3. Quality stretch film which can compare with the film produced by European machines.
4. Suitable for producing both machine use stretch film rolls and hand use stretch film rolls.
5. Excellent production capacity and power consumption ratio.
6. One operator is enough to manipulate the whole machine!
Application Scenarios

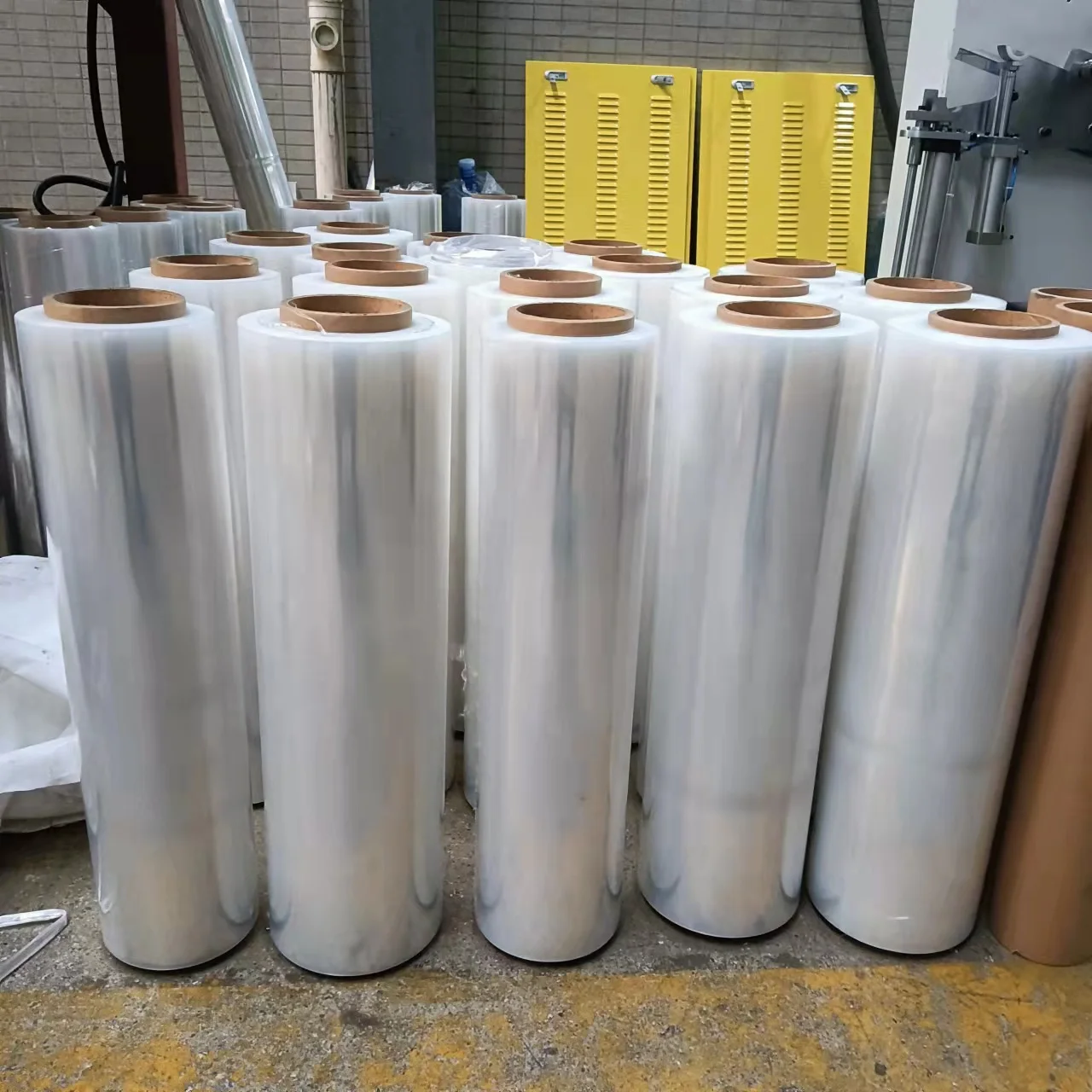

Hand Use Stretch Film Package
Machine Grade Stretch Film
Highlights on configuration and performance
1. Alloy screws and barrels with good nitrogen treatment.
2. Top quality alloy T-die.
3. Powerful and stable electrostatic film edges and trim treatment (optional).
4. Big and quality cooling rollers from professional suppliers.
5. Film expanding rollers and oscillation system are installed to erase possible wrinkles before slitting.
6. Big diameter winding roller with frosted surface (two pieces, most suppliers in China only use one piece).
2. Top quality alloy T-die.
3. Powerful and stable electrostatic film edges and trim treatment (optional).
4. Big and quality cooling rollers from professional suppliers.
5. Film expanding rollers and oscillation system are installed to erase possible wrinkles before slitting.
6. Big diameter winding roller with frosted surface (two pieces, most suppliers in China only use one piece).

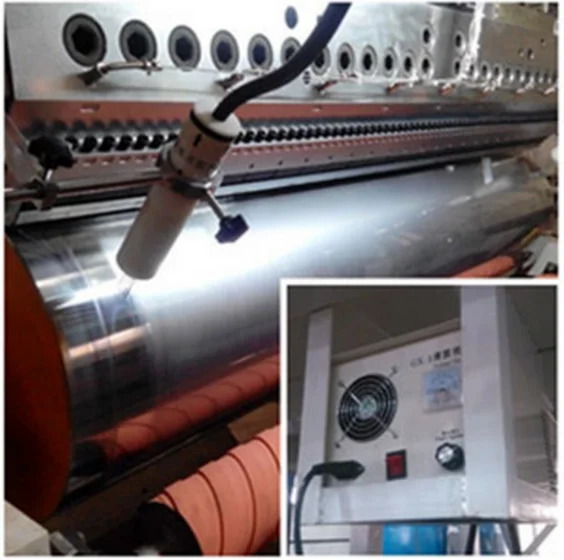

Electrostatic film edge pinning system
Powerful and stable electrostatic film edges and trim treatment
,to fix the film edges and make the film edges don,t run ,more stable

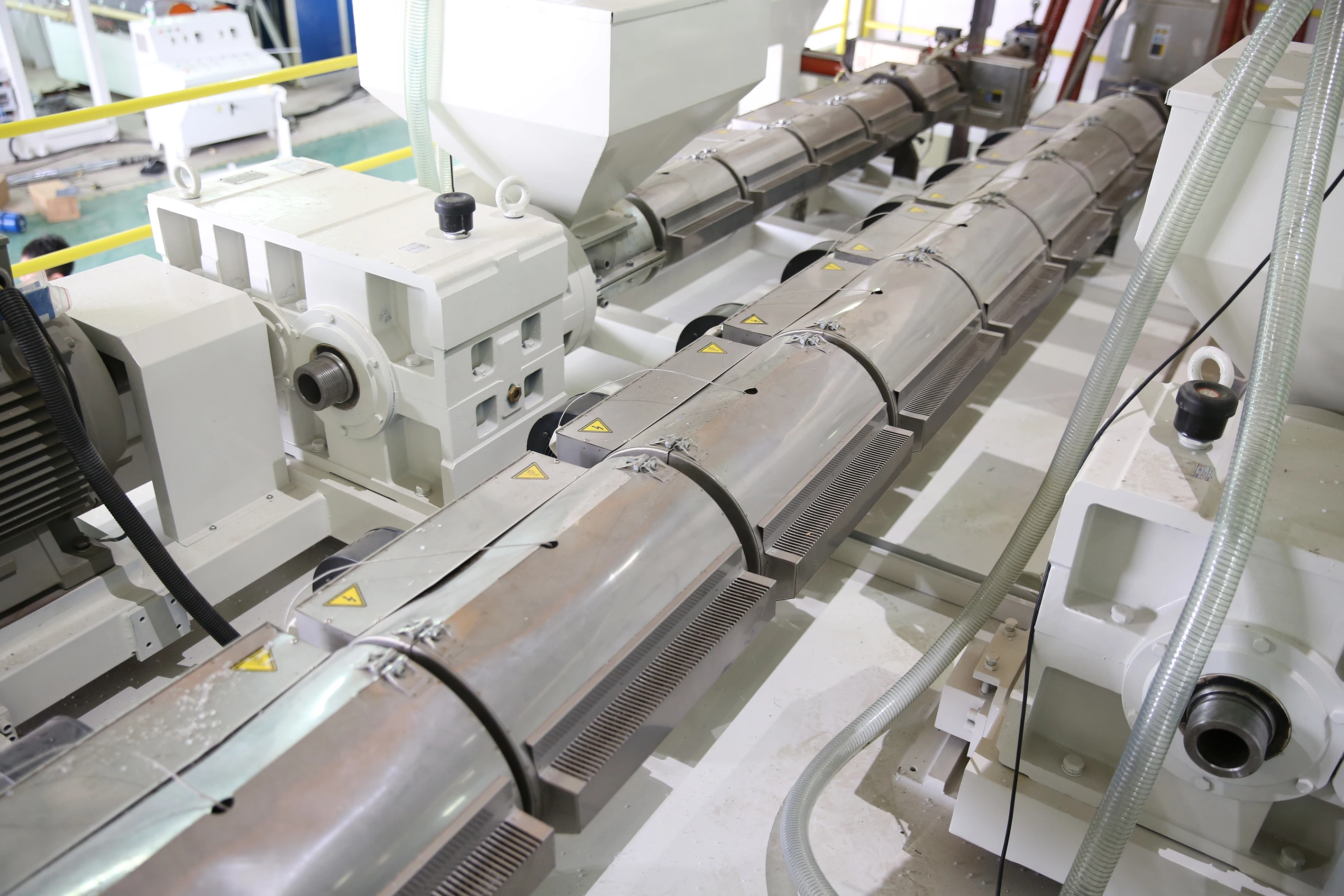

Screw
Material: 38CrMoA1,Hard chrome-plated screw
Processing technique: Forging, quenching, nitrating
Processing technique: Forging, quenching, nitrating

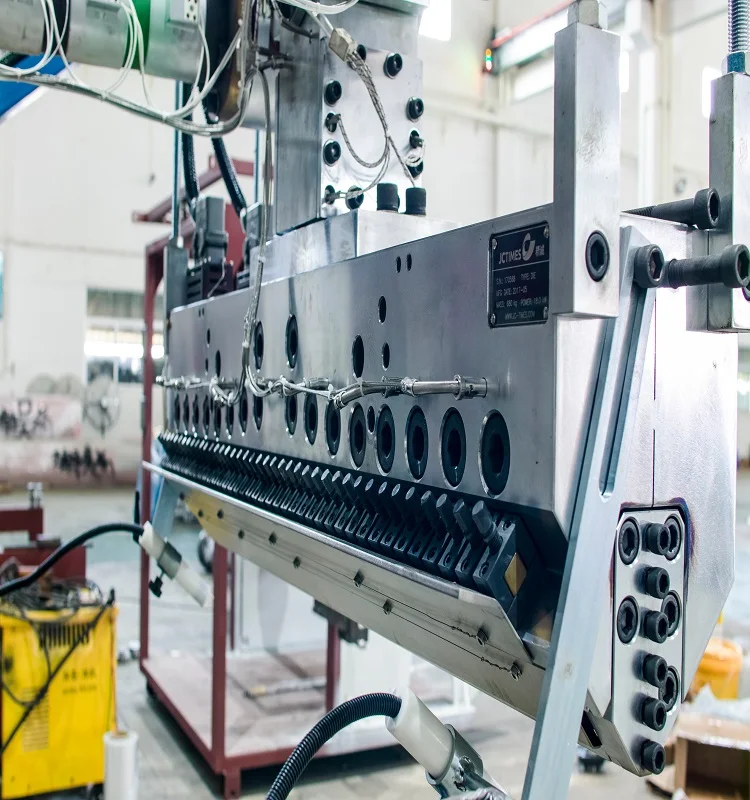

T-DIE
Width:1250mm
Die head material and processing: Use 718 high-quality steel, after quenching and tempering, grinding the inside surface of the
polished mirror surface and hard chrome plating treatment;
Die head material and processing: Use 718 high-quality steel, after quenching and tempering, grinding the inside surface of the
polished mirror surface and hard chrome plating treatment;

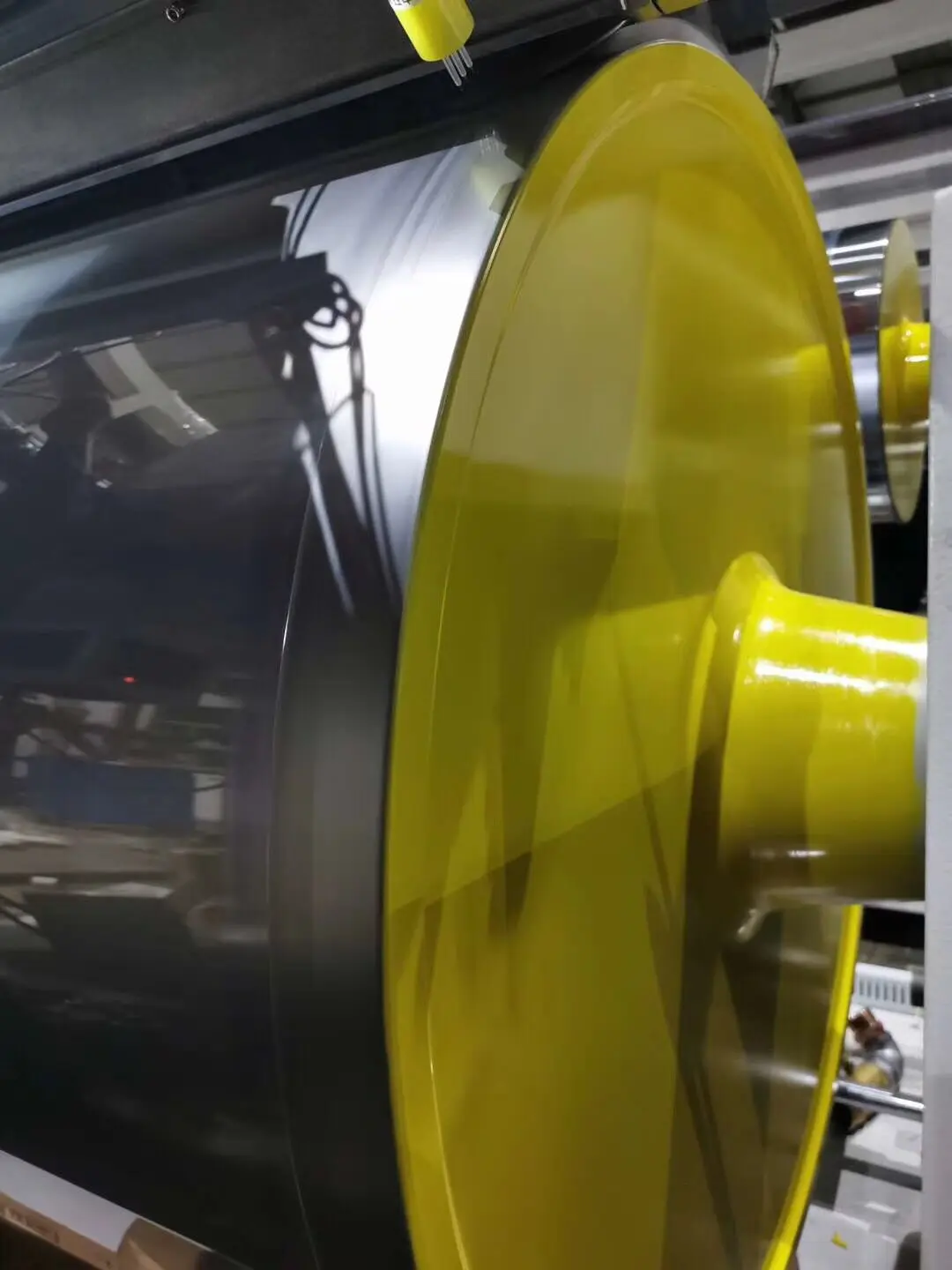

Cooling Roller
Diameter: 420mm;
Types: frosted Surface
Treatment: Special processing inside and outside the mezzanine, spiral cooling in two flow way to ensure even cooling temperature
for the surface of the roller and have copper coupling with recycling system.
Types: frosted Surface
Treatment: Special processing inside and outside the mezzanine, spiral cooling in two flow way to ensure even cooling temperature
for the surface of the roller and have copper coupling with recycling system.

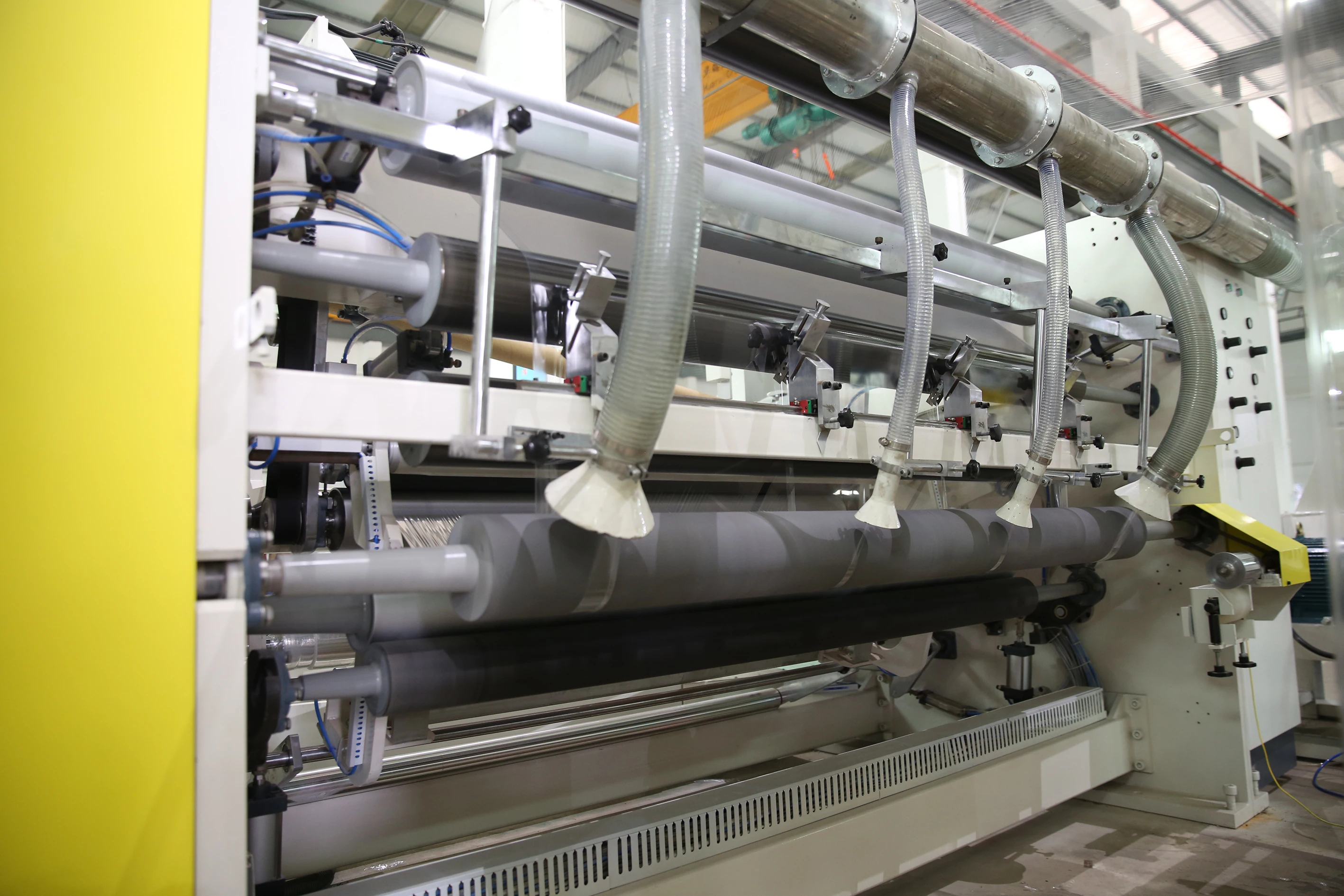

Slitting roller
Different film Width Available ( you can make any size for the film width according to your customer request..)
Temperature Control Cabinet
Separate temperature control cabinet and VFD to eliminate interference
In-line wastage recycling system
142# In-line wastage Recycling system + sealed material extrusion device (high power crusher to recycle the edge of film)
After Sales Service
Engineer is available to your place
1. 1 year warranty
2. 24 hour after-sale service hot line
3. Technology support and installation vedio for machine
4. Our engineers can be sent to the overseas to train your workers for 7 days
5. High quality film recipe sharing
6. We have a large team to serve for you and can solve your problem within 24 hours
2. 24 hour after-sale service hot line
3. Technology support and installation vedio for machine
4. Our engineers can be sent to the overseas to train your workers for 7 days
5. High quality film recipe sharing
6. We have a large team to serve for you and can solve your problem within 24 hours
Packing&Shipping
Machine Delivery time : 50-60 working days after the deposit received.
Container needed: 1 X 40HQ
The whole set of stretch film machine (production line) will be disassembled into several parts and packed by stretch film and other protective material. And it will be fastened with the containers by wires.
Other Models
Model: XHD-55/75 X 1250
Finished Width: 1000mm
( 2 * 500mm/2*450mm)
production capacity :2.5-3T
Model: XHD-80/120/80 X 2400
Finished Width: 2000mm
( 4 * 500mm/any size )
production capacity :9-11T
production capacity :9-11T
Model: XHD-65/100/80X 2400
Finished Width: 2000mm
( 4 * 500mm/any size)
production capacity :8-9T
Model: XHD-55/80/55 X 1250
Finished Width: 1000mm
( 2 * 500mm/2*450mm)
production capacity :3.5-4T
Model: XHD-65/90/65 X 1850 jumbo roll
Finished Width: 1500mm
( 3* 500mm/3*450mm)
production capacity :6-7T
Model: XHD-500 slitter and rewinder
Finished Width: 500mm
designed line speed:1000m/min
Company Introduction

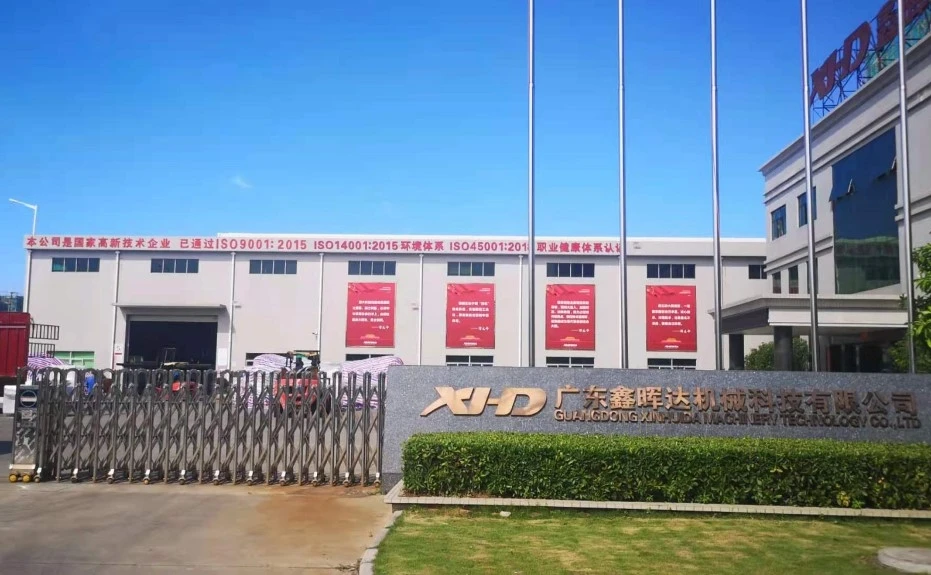

About Guangdong Xinhuida Machinery Technology Co., Ltd.
* National High-Tech Enterprise
* 17 years manufacturing experience of cast film line
* More than 60 international leading patents
* 60000 square meters of modern plant and a variety of international advanced high-end processing equipment
* Set up offices at home and abroad, such as Turkey, Russia, Peru, India, Thailand, Egypt etc.
* The output of the same model is 30% higher and the energy consumption is 30% less than the other supplier
* More than 5000+ casting film production lines have been manufactured
* In the past three years, we have produced more than 200+ sets of the casting film line and fresh-keeping film line with a width of two meters.
* 17 years manufacturing experience of cast film line
* More than 60 international leading patents
* 60000 square meters of modern plant and a variety of international advanced high-end processing equipment
* Set up offices at home and abroad, such as Turkey, Russia, Peru, India, Thailand, Egypt etc.
* The output of the same model is 30% higher and the energy consumption is 30% less than the other supplier
* More than 5000+ casting film production lines have been manufactured
* In the past three years, we have produced more than 200+ sets of the casting film line and fresh-keeping film line with a width of two meters.

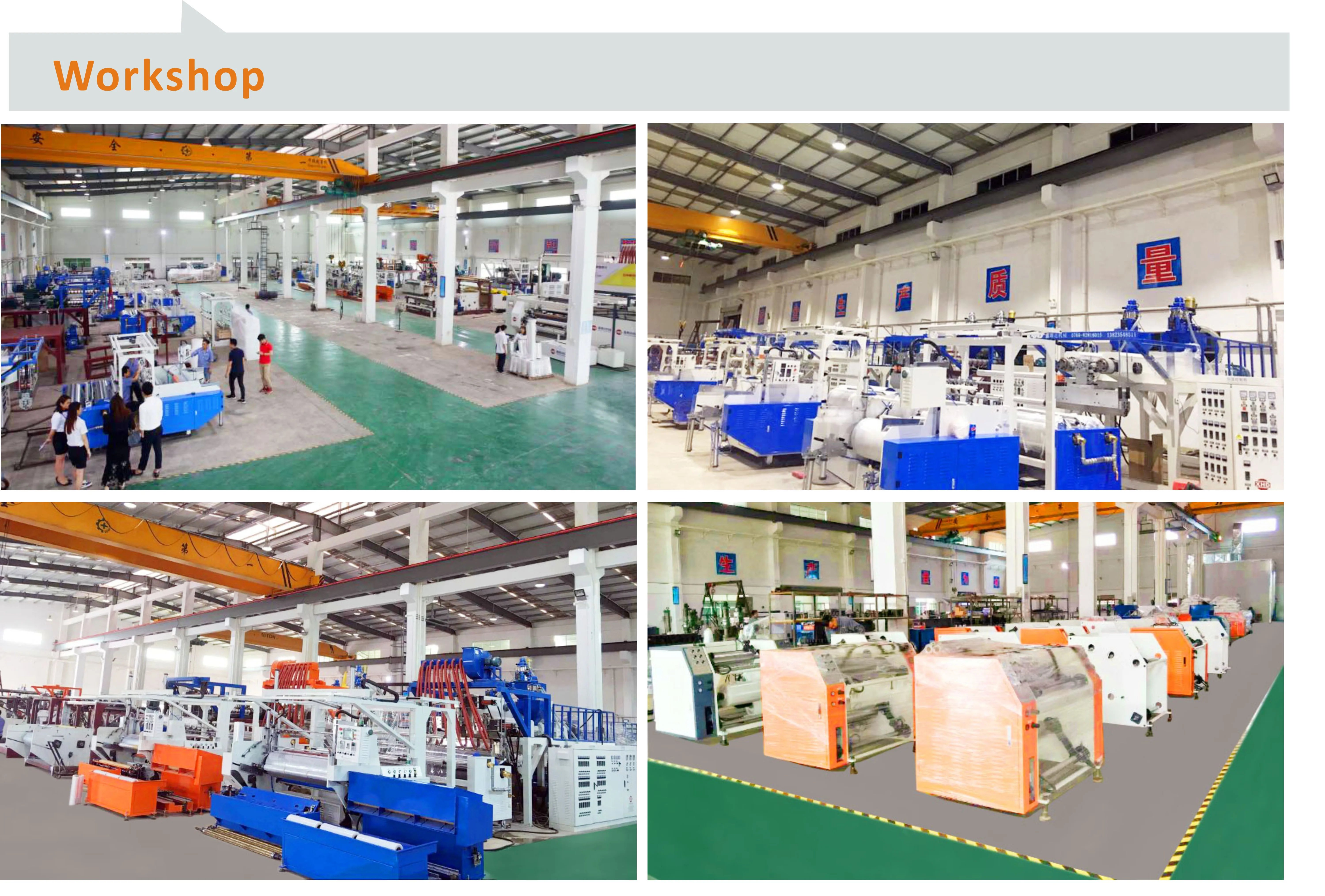

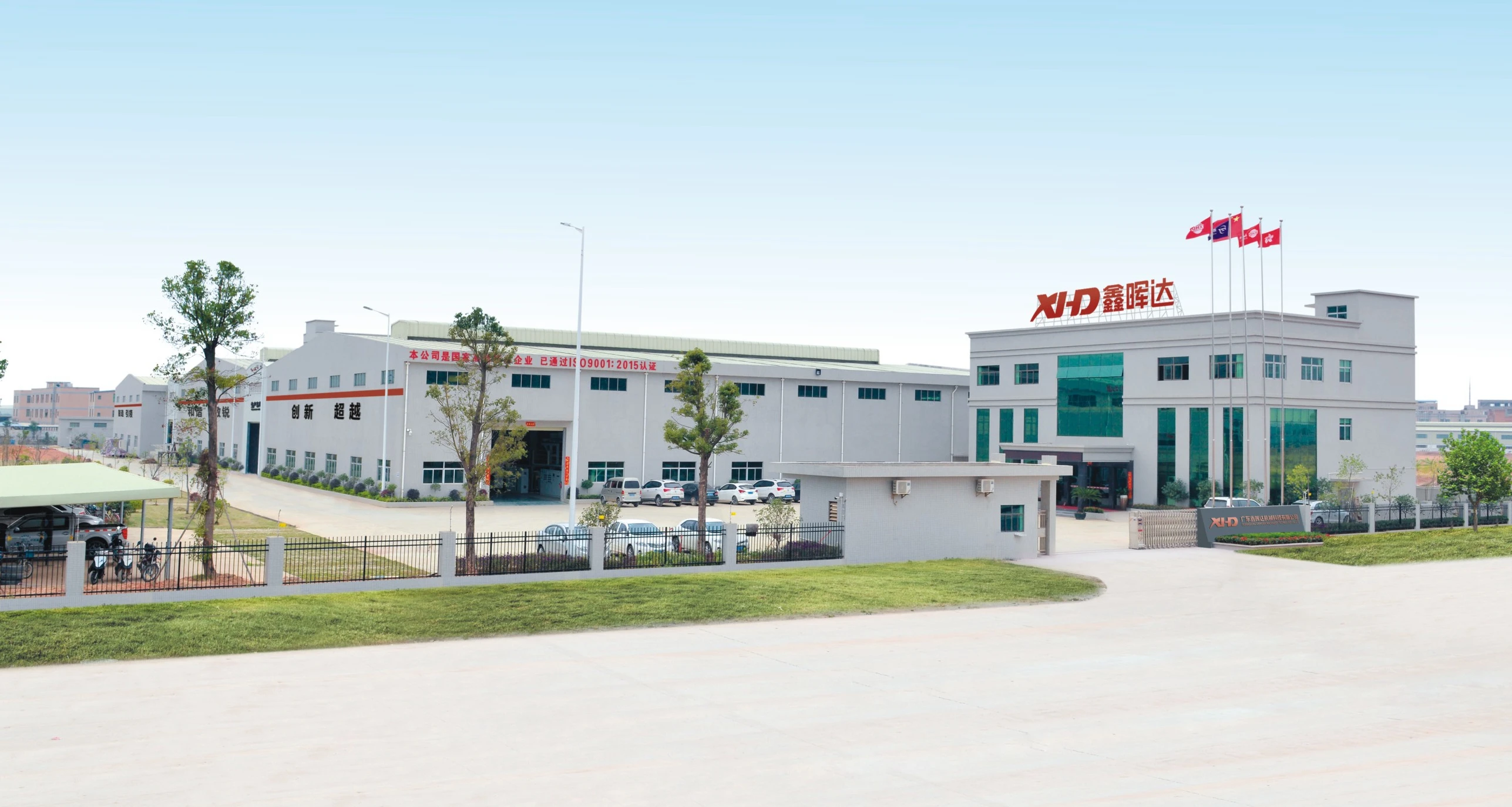

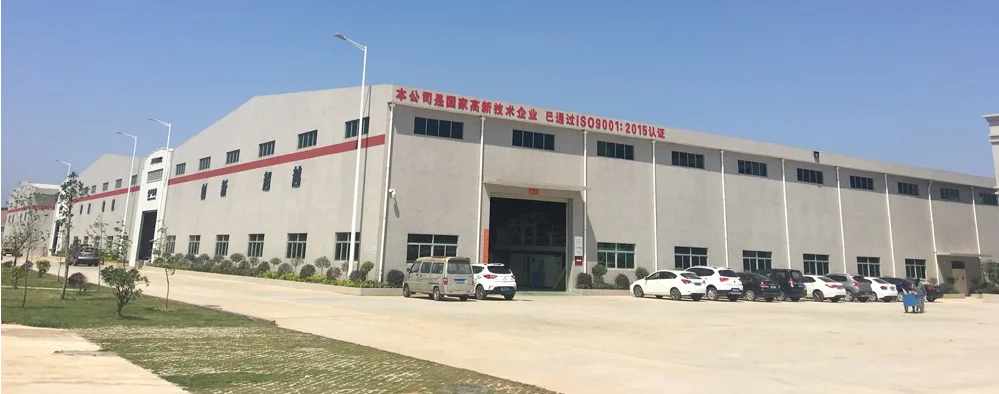

Factory ,office ,team and workshop

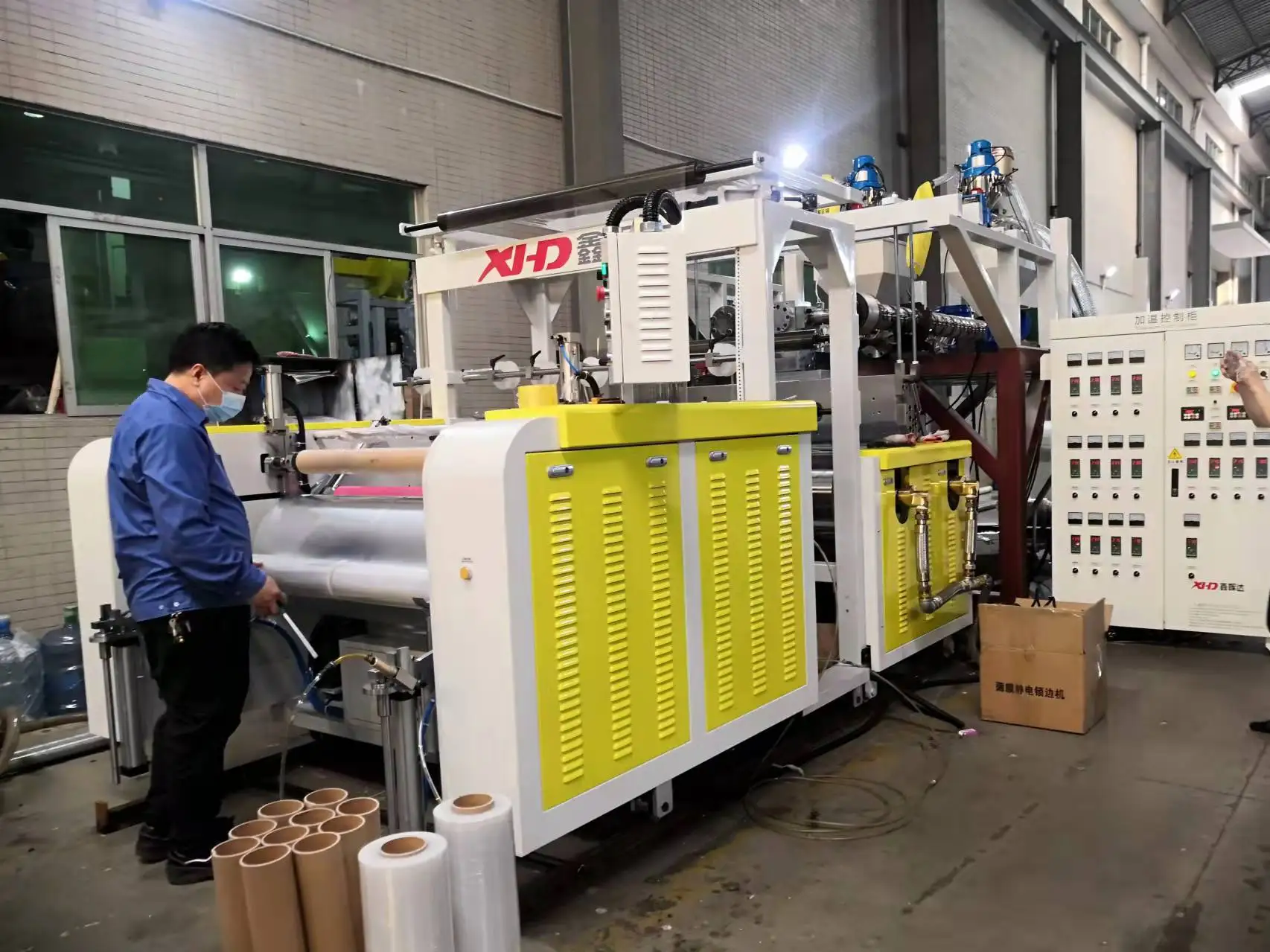

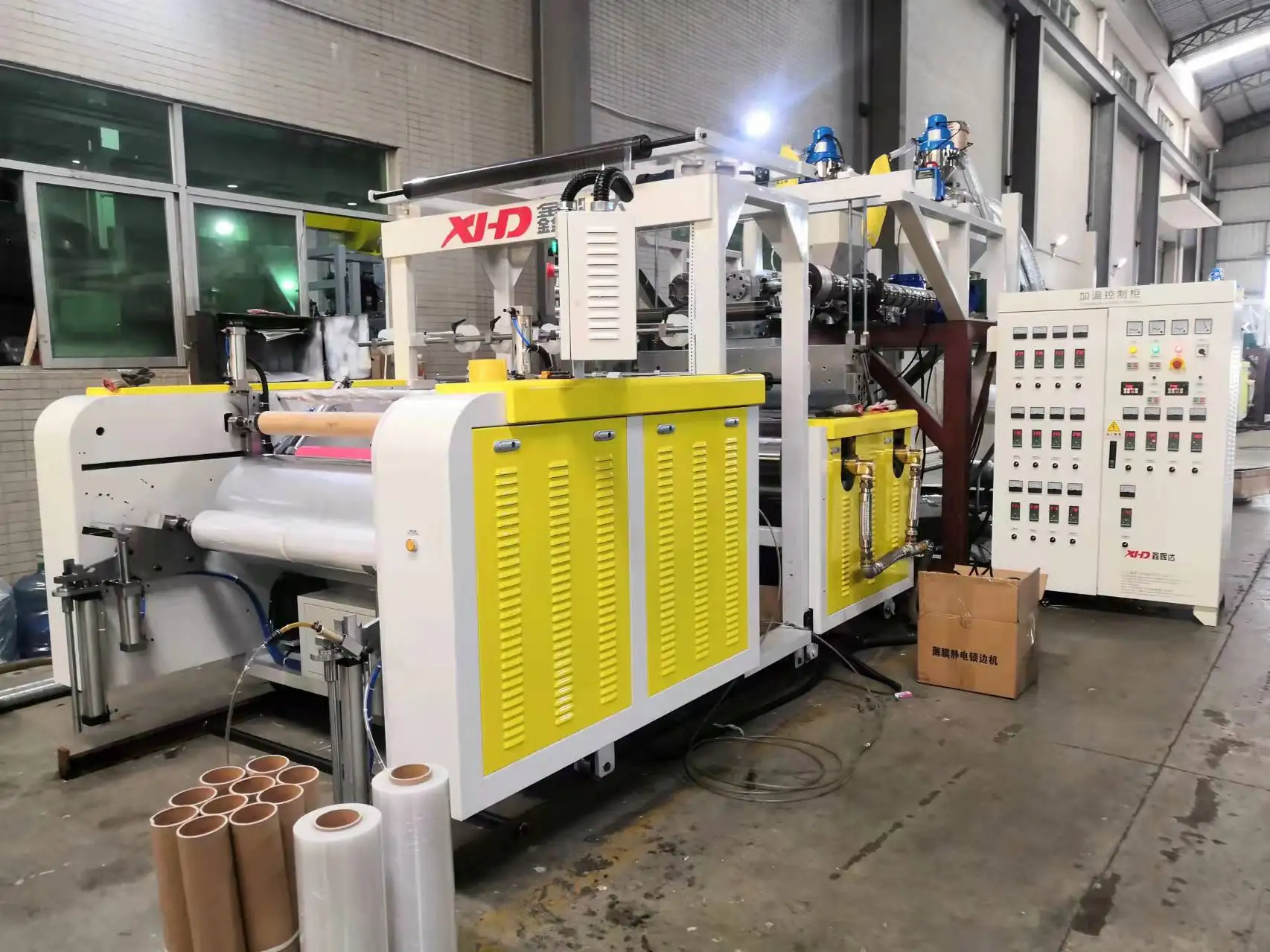

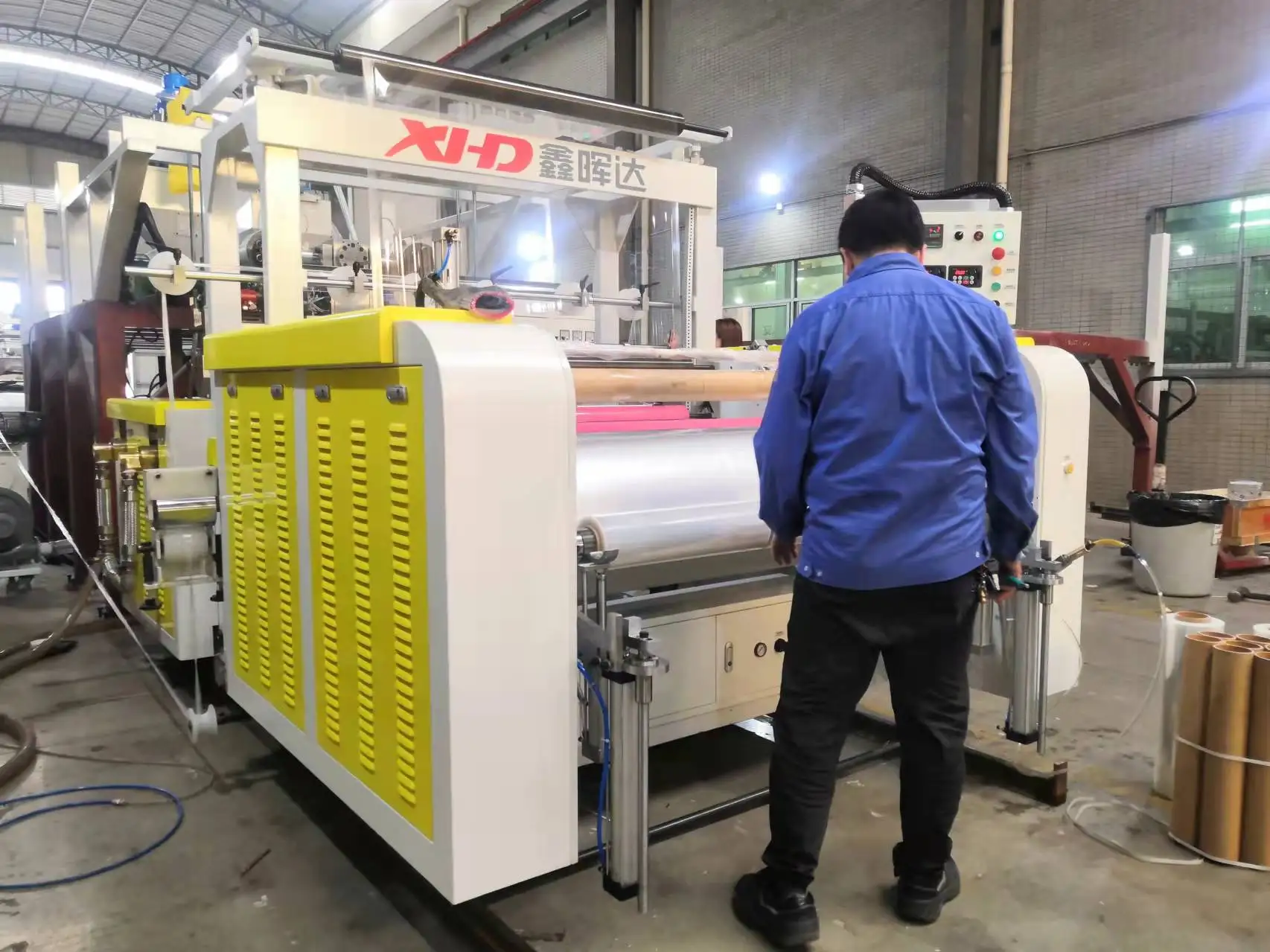

Customer Photos
XHD machines have been sold to 60 countries already.
EXHIBITONS: Turkey, Russia, Mexico, Peru, India, Egypt, South Africa, Pakistan, Vietnam, Thailand...
AGENT OFFICE: Mexico,Turkey, Peru, Egypt, India, Vietnam,India
FAQ
Q: Can we make 5 layer stretch film by this machine?
A: Yes. You can make both 3 layer and 5 layer stretch film.
Q: Can we also use recycled material in this machine?
A: Yes. You can use recycled material. But the more recycled material you add, the stretch film will not as stretchable and
transparency as the raw material one. One of our customer in Russia used 100% recycled material. Of course, the design of the screw will be a little different.
Q: What's the spare parts?
A: We have a lot of spare parts free to you. Pls email me for the list.
Q: Is there any other material that we use add to make stretch film?
A: It depends on your customers requiryment. You can add MLLDPE (metallocene) to make the film more stretchable, especially used in pallet package. Or the glue to make the film more sticky.
Q: Can you help us to install the machine?
A: Yes. We can arrange the technician to install the machine after it arrives in your factory.
Q: Can we make both manual grade and machine grade stretch film?
A: Yes.
A: Yes.
