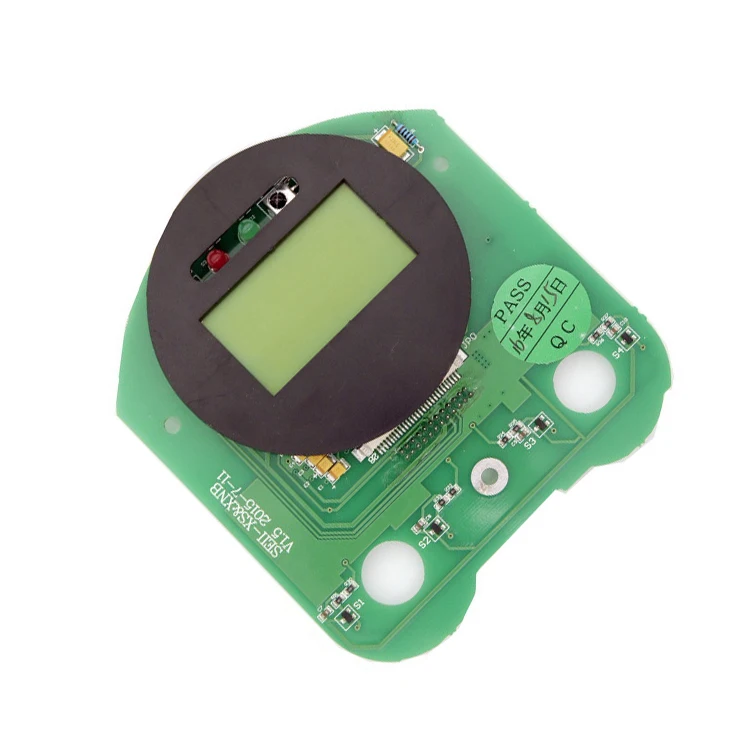

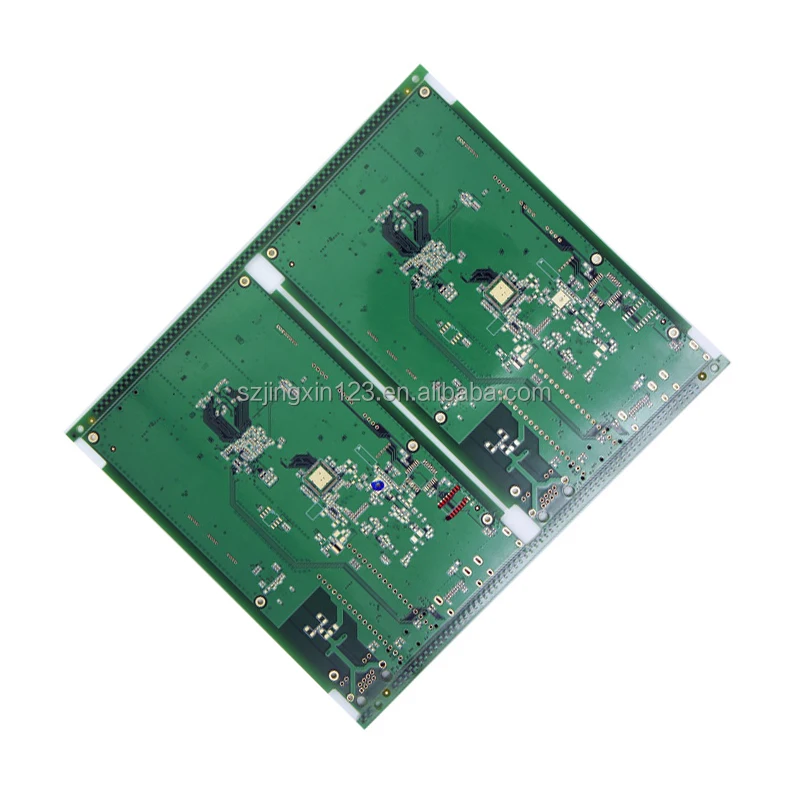

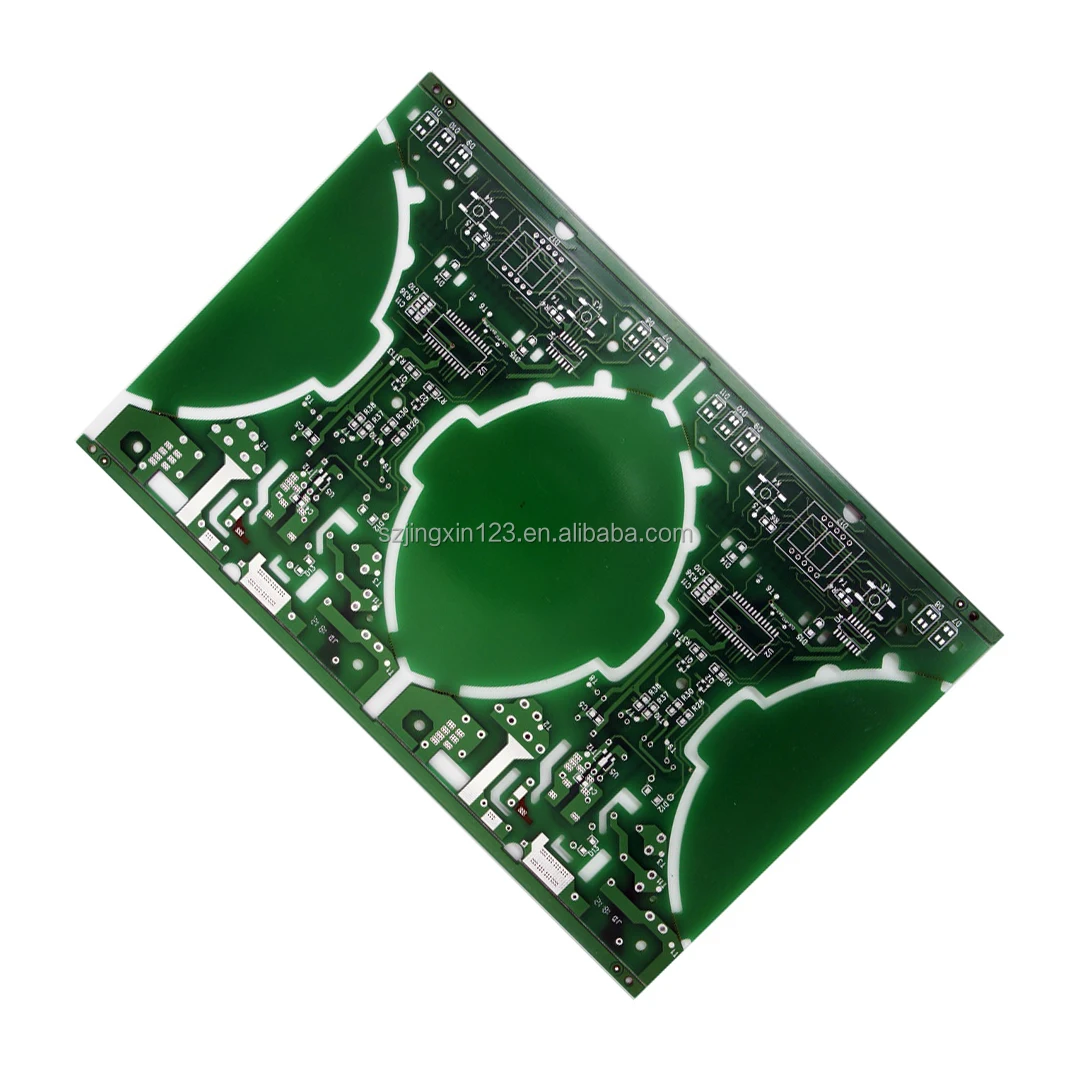

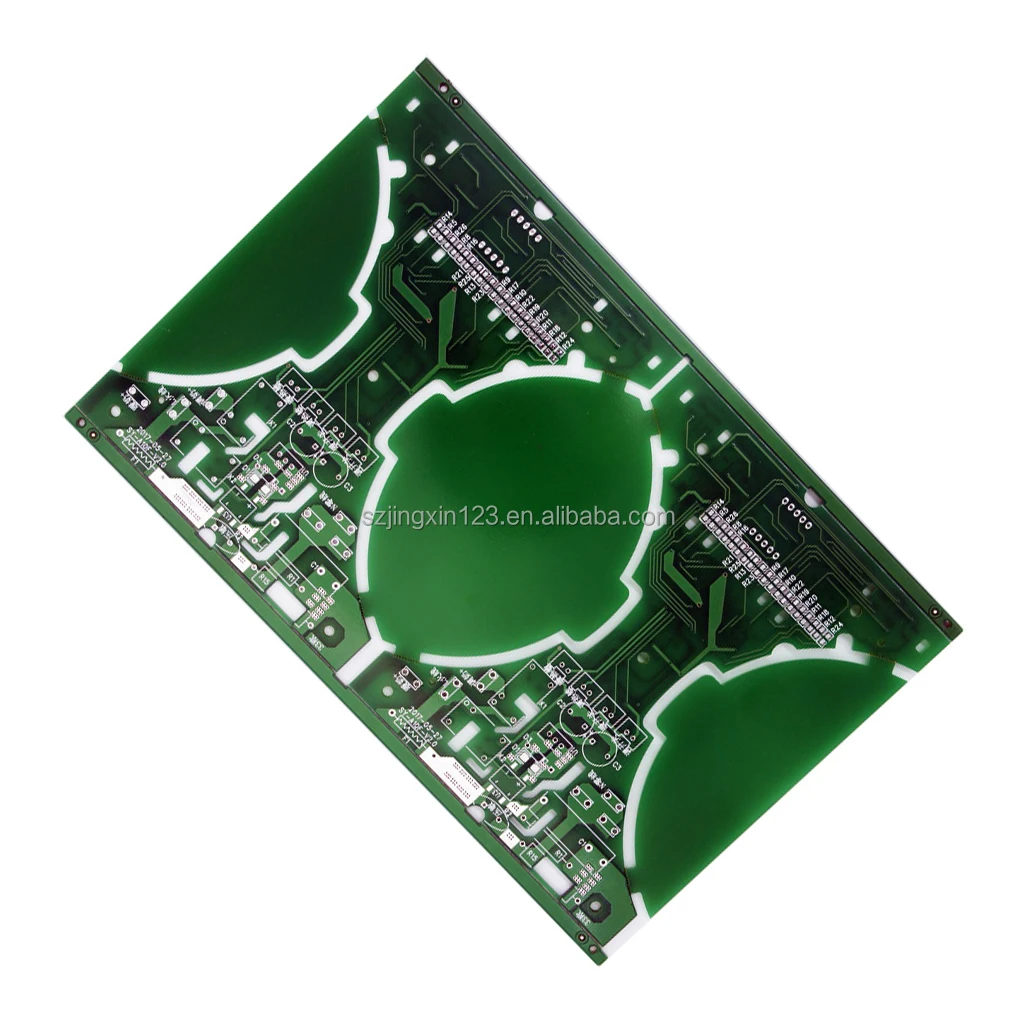

4 Channel RC Transmitter and Receiver PCB PCBA for RC Remote Control Car Circuit Board China Manufacturer
- Category: >>>
- Supplier: Shenzhen Jingxin Electronic Technology Co. Ltd.
Share on (1600567165137):
Product Overview
Description
Products Description
Term | Detailed Specification of PCBA Board Manufacturing |
Layer | 1-30 layer |
Material | FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum |
Board thickness | 0.4mm-4mm |
Max.finished board side | 1020mm*1000mm |
Min.drilled hole size | 0.25mm |
Min.line width | 0.10mm(4mil) |
Min.line spaceing | 0.10mm(4mil) |
Surface finish/treatment | HASL/HASL lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating |
Copper thickness | 1/2OZ 1OZ 2OZ 3OZ |
Solder mask color | green/black/white/red/blue/yellow |
Inner packing | Vacuum packing,Plastic bag |
Outer packing | Standard carton packing |
Hole tolerance | PTH:±0.076,NTPH:±0.05 |
Certificate | ISO9001,ISO14001,ROHS,CQC |
Profiling Punching | Routing,V-CUT, Beveling |
Assembly Service | Providing OEM service to all sorts of printed circuit board assembly |
Technical Requirement | Professional Surface-mounting and Through-hole soldering Technology |
Various sizes like 1206,0805,0603 components SMT technology | |
ICT(In Circuit Test),FCT(Functional Circuit Test) technology | |
PCBA Assembly With CE,FCC,Rohs Approval | |
Nitrogen gas reflow soldering technology for SMT | |
High Standard SMT&Solder Assembly Line | |
High density interconnected board placement technology capacity | |
Quote&Production Requirement | Gerber File or PCBA File for Bare PCBA Board Fabrication |
Bom(Bill of Material) for Assembly,PNP(Pick and Place file) and Components Position also needed in assembly | |
To reduce the quote time, please provide us the full part number for each components,Quantity per board also the quantity for orders. | |
Testing Guide&Function Testing method to ensure the quality to reach nearly 0% scrap rate | |
OEM/ODM/EMS Services | PCBA, PCBAAassembly: SMT & PTH & BGA |
PCBA and enclosure design | |
Components sourcing and purchasing | |
Quick prototyping | |
Plastic injection molding | |
Metal sheet stamping | |
Final assembly | |
Test: AOI, In-Circuit Test (ICT), Functional Test (FCT) | |
Custom clearance for material importing and product exporting | |
SMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4 | |
Reflow Oven: FolunGwin FL-RX860 | |
Wave Soldering Machine: FolunGwin ADS300 | |
Automated Optical Inspection (AOI): Aleader ALD-H-350B,X-RAY Testing Service | |
Fully Automatic SMT Stencil Printer: FolunGwin Win-5 |
