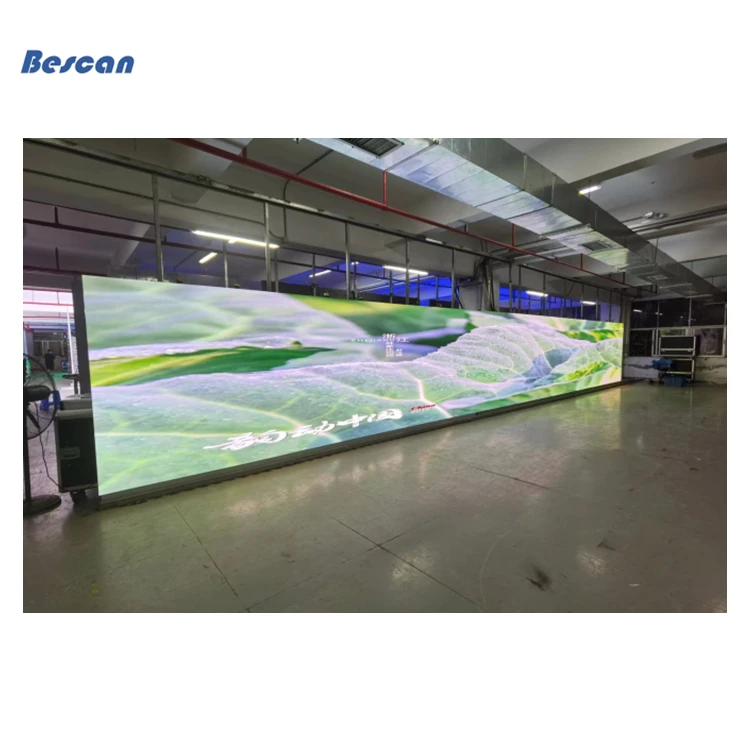

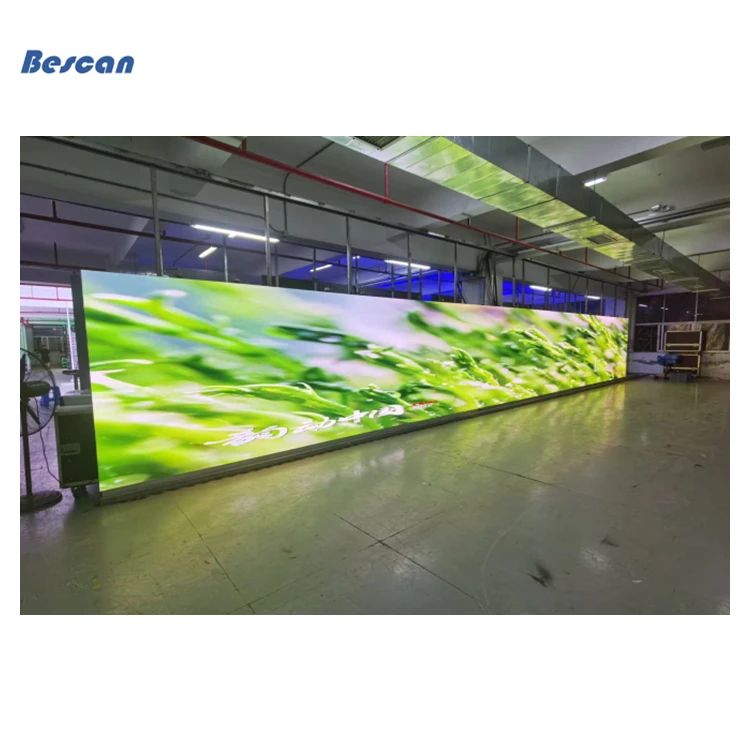

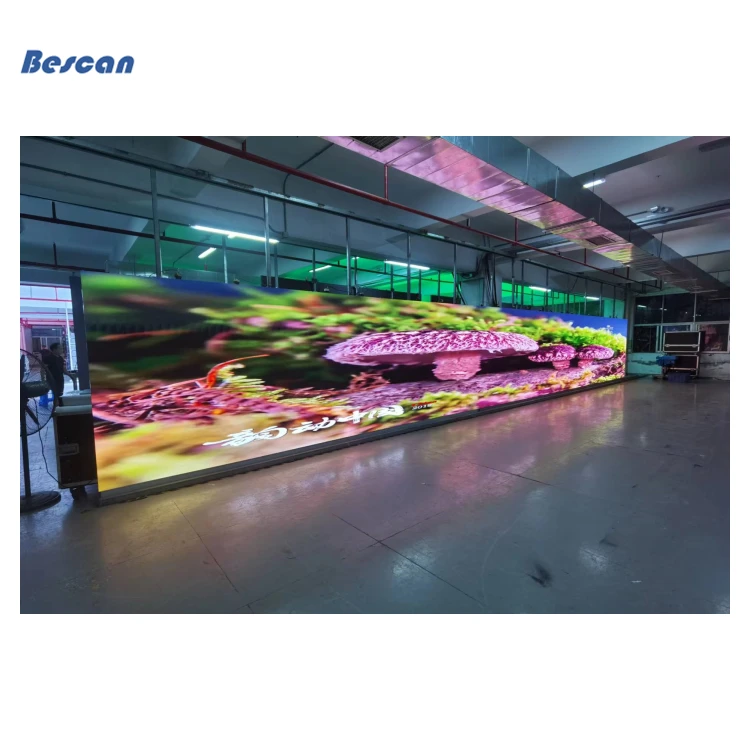

Shopping Mall Hotel TV Studio use P0.9 P1.25 P1.56 P1.66 P1.875 Front Service Indoor LED Video Wall Screen Pantalla LED Display
- Category: >>>
- Supplier: Shenzhen Bescanled Co. Limited
Share on (1600567170070):
Product Overview
Description
Product Description

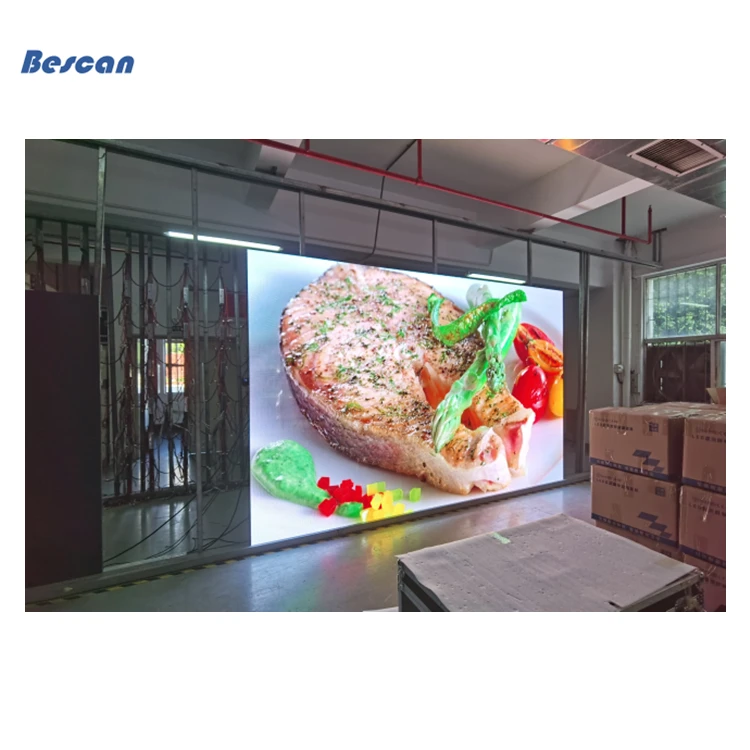

Shopping Mall Hotel TV Studio use P0.9 P1.25 P1.56 P1.66 P1.875 Front Service Indoor LED Video Wall Screen Pantalla LED Display
1.Seamless Splicing, Super Wide Viewing Angle, Highly Accurate Brightness & Color Consistency
2.It delivers an image which is super subtle and without getting tired after a longtime watching
3.Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear

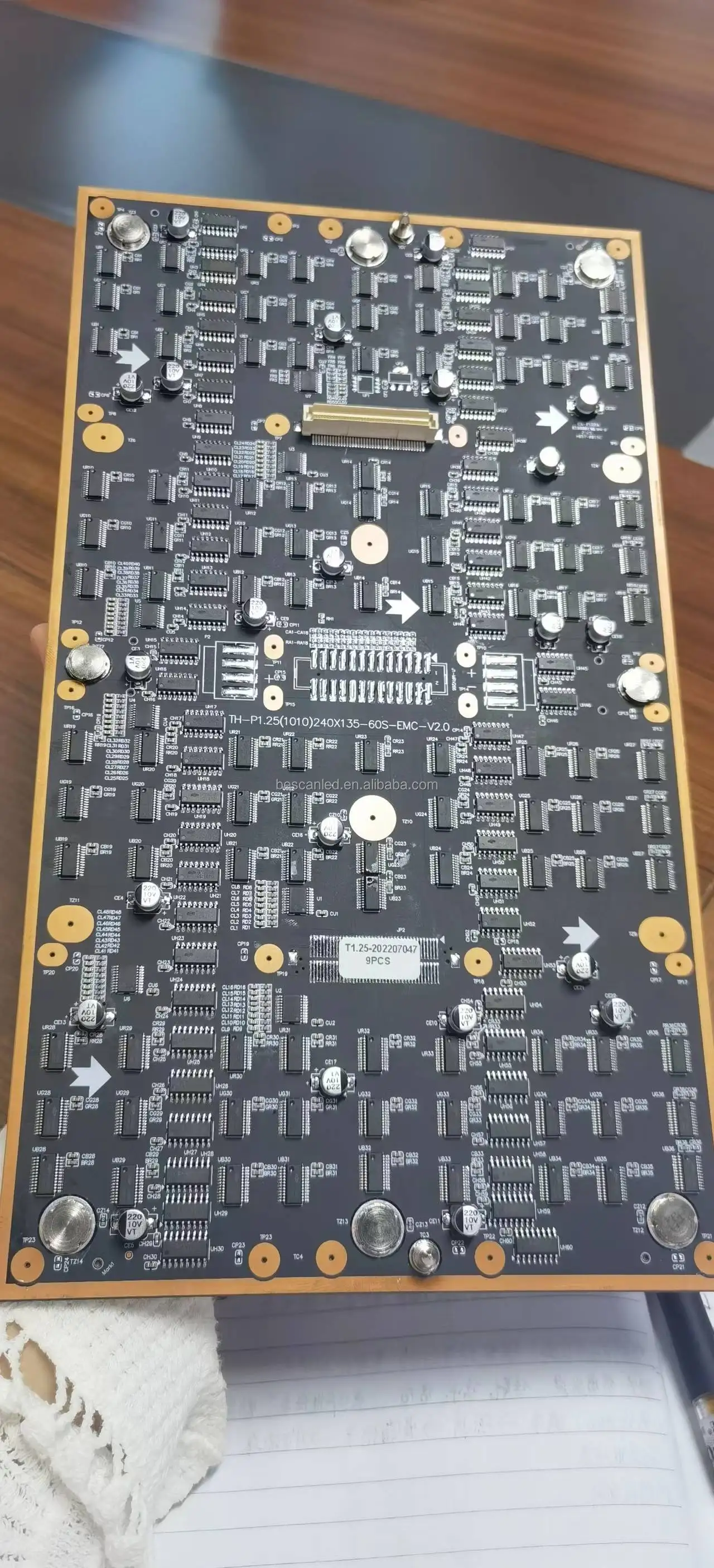

4.Front Serviceable Module allows easy Maintenance, Saving Time & Space
5.16 Bit Grey Grade Processing, the color transition will be more natural
Techinical Specification:
| Item | Techinical Specifications | ||||||||||||||||||||||||||
| Pixel Pitch | 0.9mm | 1.25mm | 1.56mm | 1.875mm | |||||||||||||||||||||||
| LED Configuration | MINI 4-in-1 | SMD 3-in-1(SMD1010) | SMD 3-in-1(SMD1010) | SMD 3-in-1(SMD1010) | |||||||||||||||||||||||
| Pixel Density | 1137778pixels/sq.m | 640000 pixels/sq.m | 409600 pixels/sq.m | 284444 pixels/sq.m | |||||||||||||||||||||||
| Module Size | 150mm*168.75mm | 200mm*168.75mm | 200mm*168.75mm | 300mm*168.75mm | |||||||||||||||||||||||
| Module Resilution | 160pixel*180pixel | 160pixel*135pixel | 128pixel*108pixel | 160pixel*90pixel | |||||||||||||||||||||||
| Cabinet Size | 600mm*337.5mm | ||||||||||||||||||||||||||
| Cabinet Resolution | 640pixels*360pixels | 480pixels*270pixels | 384pixels*216pixels | 320pixels*180pixels | |||||||||||||||||||||||
| Cabinet Material | Die-casting Aluminum | ||||||||||||||||||||||||||
| Cabinet weight | 7.8kg | ||||||||||||||||||||||||||
| Brightness | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm | |||||||||||||||||||||||
| Colour temperature | 3500K-9500K | 3500K-9500K | 3500K-9500K | 3500K-9500K | |||||||||||||||||||||||
| Viewing Angle | H:160°/V:160° | ||||||||||||||||||||||||||
| Ave. Power consumption | 250 W/sqm | 250 W/sqm | 250 W/sqm | 250 W/sqm | |||||||||||||||||||||||
| Max. Power consumption | 800W/sqm | 800W/sqm | 800W/sqm | 800W/sqm | |||||||||||||||||||||||
| Drive Mode | 1/30 scan | 1/27 scan | 1/32 scan | 1/30 scan | |||||||||||||||||||||||
| Best Viewing Distance | ≥0.9m | ≥1.25m | ≥1.56m | ≥1.875m | |||||||||||||||||||||||
| Input Voltage | AC220V/50HZ or AC110V/60HZ (±10%) | ||||||||||||||||||||||||||
| Output Voltage | 5V,40A | ||||||||||||||||||||||||||
| Refresh rate | ≥3840Hz | ||||||||||||||||||||||||||
| Frame rate | 50/60 Hz/sec | ||||||||||||||||||||||||||
| Protection Level | IP43 | ||||||||||||||||||||||||||
| Life-span | 100,000 hours | ||||||||||||||||||||||||||
| Malfunction dot rate | < 0.0001 | ||||||||||||||||||||||||||
| Storage Temp/Humidity | -40~+60℃/10~80%RH | ||||||||||||||||||||||||||
| Operating Temp/Humidity | -25~+50℃/10~90%RH | ||||||||||||||||||||||||||
| Input Signal | RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc | ||||||||||||||||||||||||||
| PC Operating System | Microsoft Windows 7, 8, 98, 2000, XP and Vista | ||||||||||||||||||||||||||
