20 6000MHz 100W power amplifier module DDS Signal function generator with heat sink for UAV jammer

Item

Parameter

Unit

Remarks

Operating Voltage

28

V

24-30V

Conversion efficiency

≥42%

%

@100W typical

Controllable output power

10W～100W

W

Software set power level

ALC power adjustment range

≥30

dB

Voltage Controlled Attenuation

gain

50±1.0

dB

In-band fluctuation

≤2.5

dB

peak-to-peak

spurious
emission

In working band

≤-15dBm/1MHz

dBm

Measured when the center frequency plus CW signal to the maximum output power

out of work band

9KHz～1GHz

No higher than normal noise floor clutter

dBm

1G～12.75GHz

dBm

Maximum allowable input power

≥+10dBm

dBm

Lasts 1min without damage

Input VSWR

≤1.35

Add +28V, standard network output -10dBm

Output VSWR

≤1.30

No power, standard network output -10dBm

≤1.35

Power On, Dual Directional Coupler Test

High and low temperature test

Working ambient temperature (℃)

-10～+65

℃

Low temperature can start, monitoring works normally

Gain Stability

±1.5 @-40℃～+65℃

dB

power stability

±1 @-40℃～+65℃

dB

Power Requirements

≥8A @+28Vdc；

CW output 100W

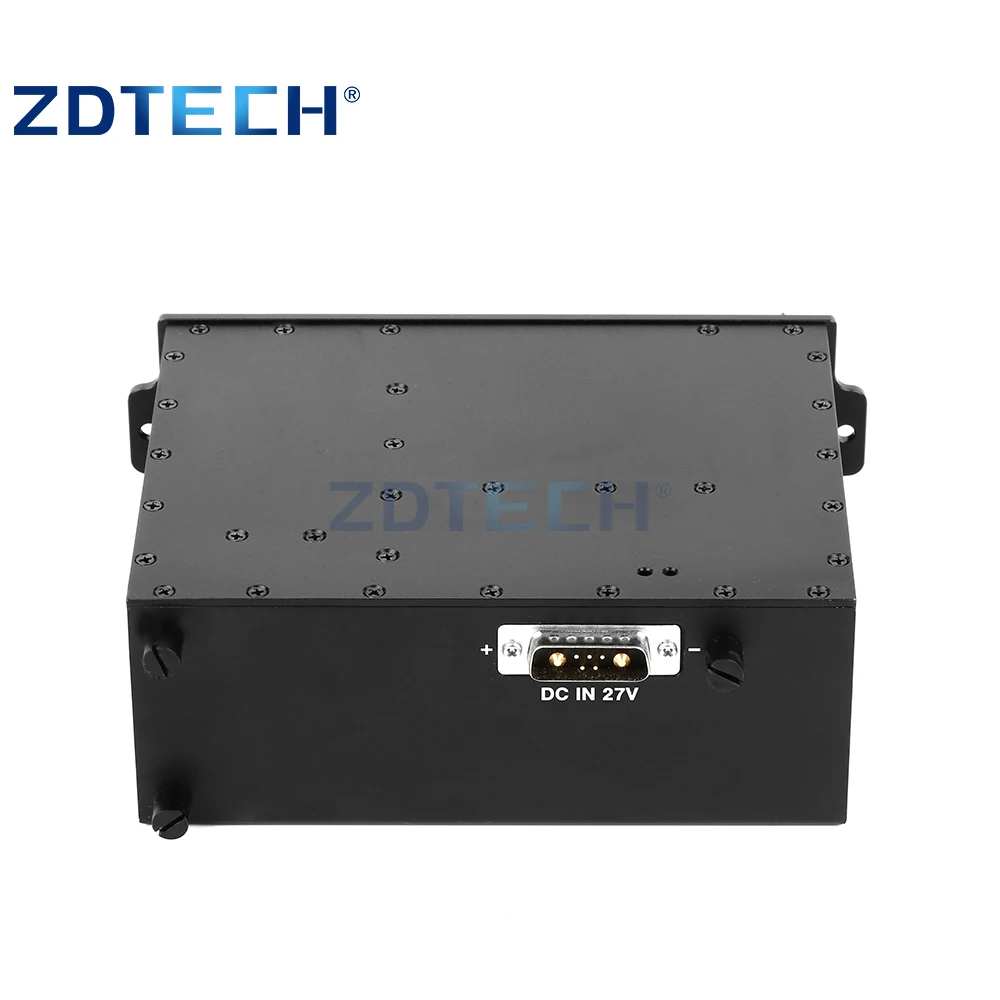

Power supply interface, monitoring interface RS485

7W2

Male

RF output connector

N-F connector

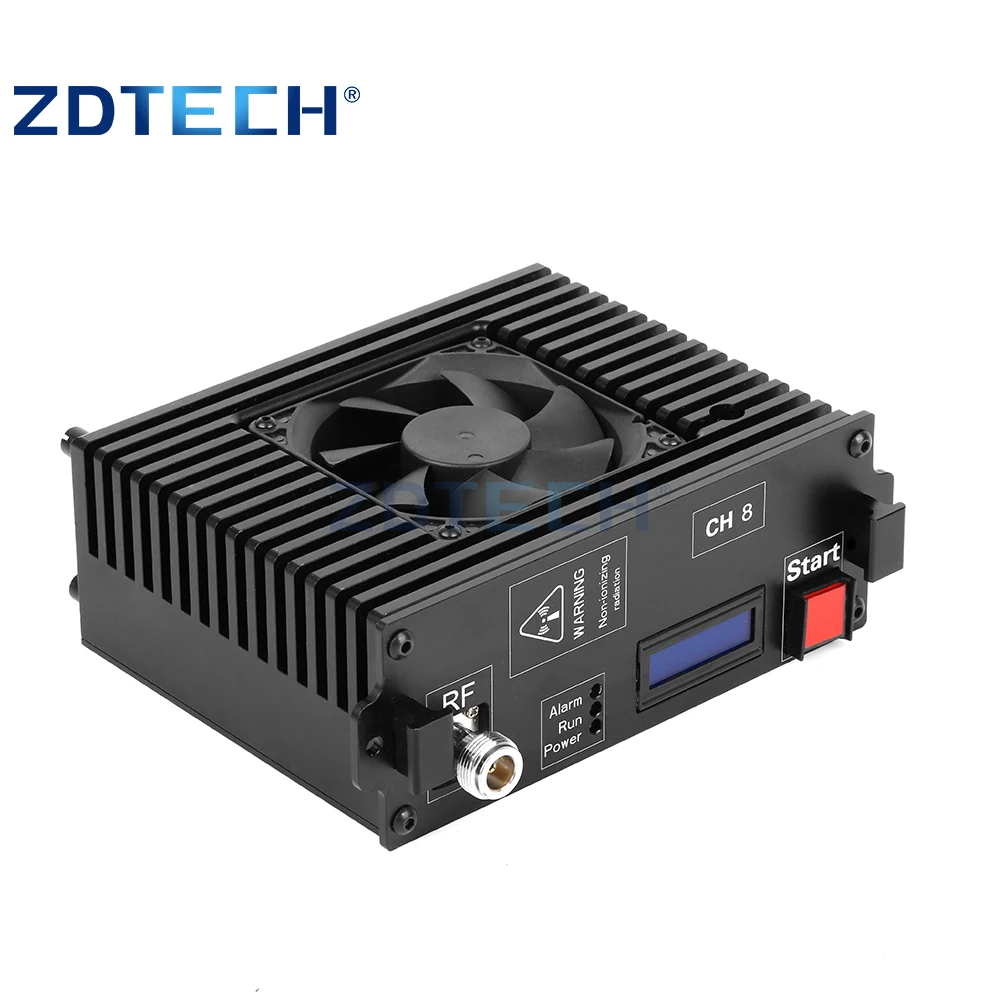

LCD liquid crystal display

Display frequency, power, switch status

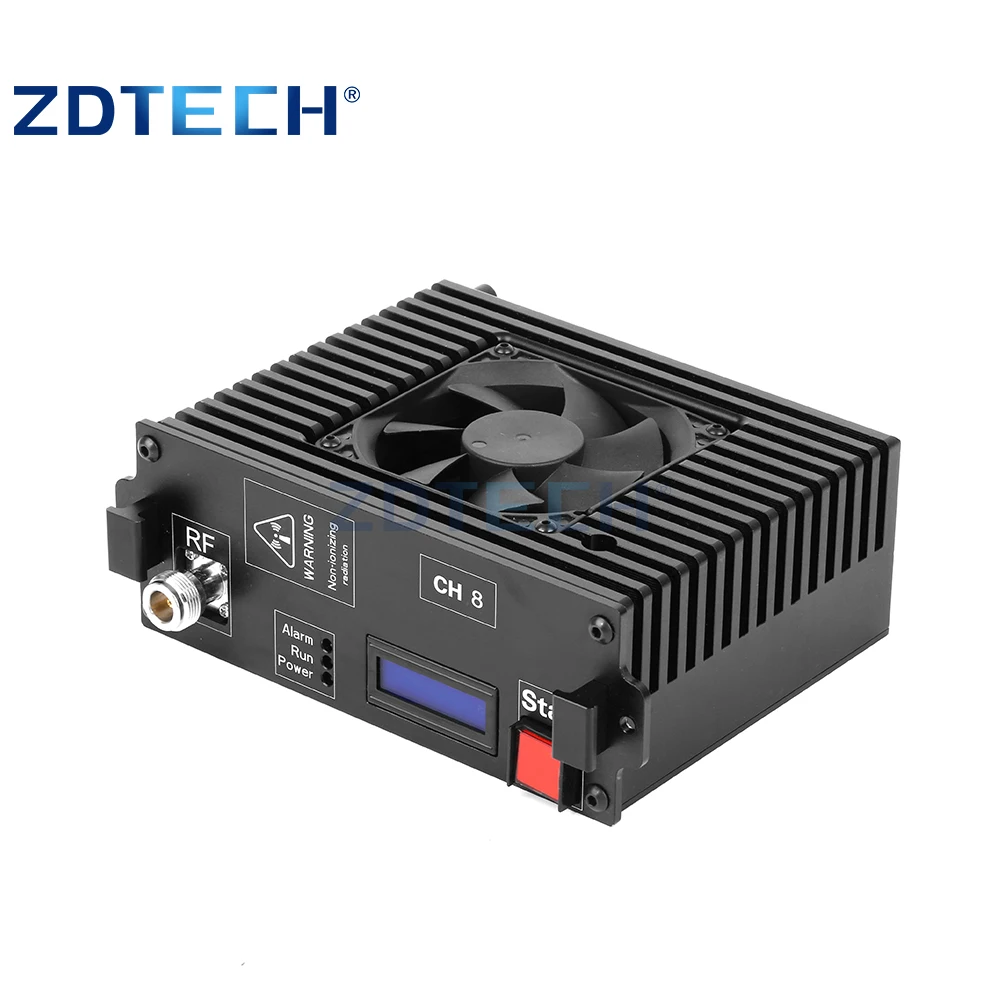

with 3 LED lights

POWER: Power indication; RUN: Running indication; ALARM: Alarm indication;

Built-in cooling fan

Modules can be run separately

physical dimension

155 x 125 x 60mm

Weight

1.6Kg

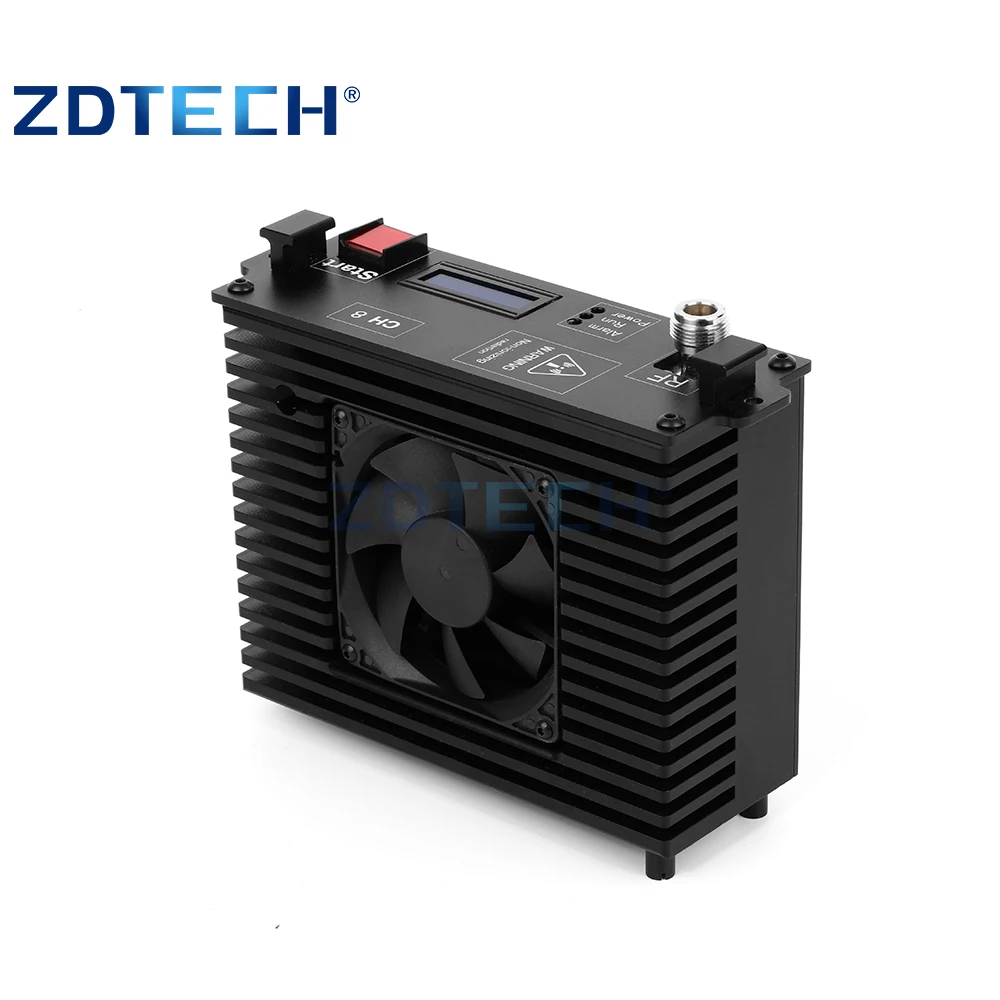

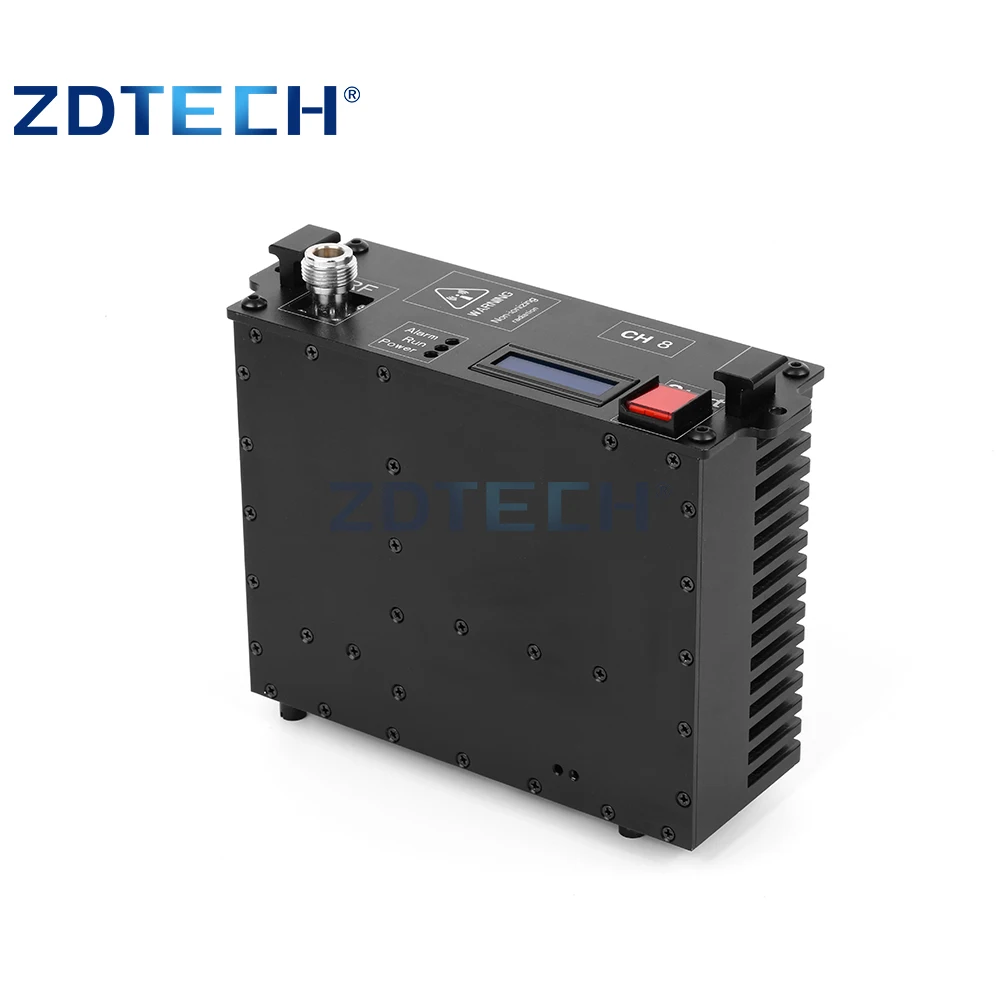

Appearance (how to use)

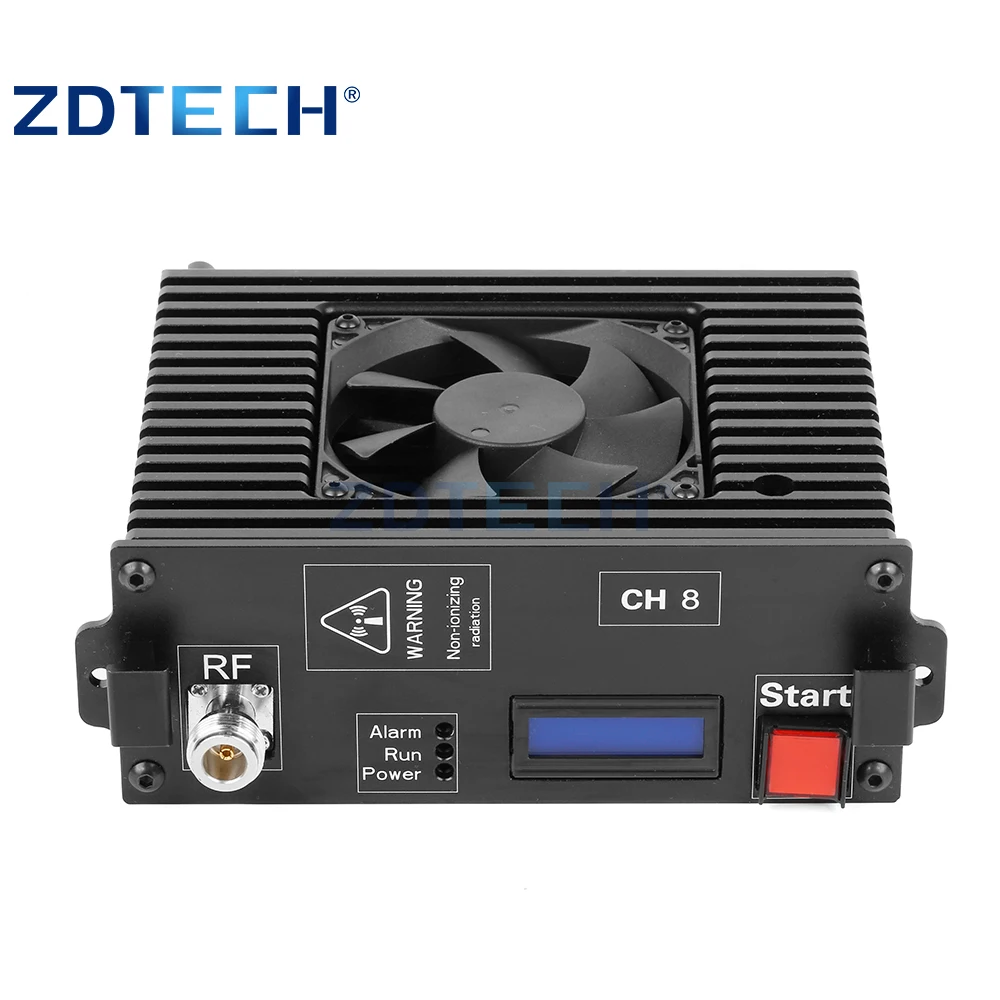

Black integrated module with fan (single or portable use)

Monitoring

Function Description

Remarks

Amplifier part setting parameters

Amplifier switch

Turn the amplifier on or off

Alarm switch

Enable and disable the alarm function

Downlink Power Control

The maximum output power of the power amplifier can be set, the adjustment range is ≥20dB, and the high, medium and low power
levels can be set

Amplifier over temperature alarm

The high temperature power amplifier shutdown threshold can be set, the power amplifier temperature exceeds 85 degrees, it will
automatically shut down; 65 degrees will automatically restore

Amplifier overpower alarm

The actual power value is 2dB higher than the downlink ALC start control threshold and close

Power amplifier standing wave alarm

When the standing wave detection of the power amplifier is greater than 4, the power amplifier is automatically turned off

Amplifier overcurrent alarm

When the detection current of the power amplifier exceeds 12A, the power amplifier is automatically turned off

Amplifier under-power alarm

When the power amplifier detection power is less than 37dBm, an under-power alarm is displayed

Amplifier overvoltage alarm

When the power amplifier voltage exceeds 32V, the power amplifier will automatically shut down

Amplifier part query parameters

Amplifier switch status

If the power amplifier is set to "OFF", the query should be the state of the power amplifier off; otherwise, the state of the
power amplifier will be turned on.

Downstream output power level value

Detect power amplifier output power value, detection range (Pomax+2, Pomax-20)

Detection accuracy:Pout±1dB

Downward standing wave ratio

The standing wave is normally 1.2, when the load is mismatched, the query value is 4.0

temperature query

Detect the internal temperature of the module, detection range: -40℃～+100℃

detection error：±3℃

ALC value query

The displayed value is equal to the actual set ALC value

Voltage detection

Detection module working voltage

Current Detection

Detection module operating current

Signal generator settings

Frequency setting mode 1

Any single frequency point setting within the range

The frequency setting accuracy is 1M, the maximum frequency bandwidth is 500M, and the maximum is 6G

Frequency setting mode 2

Set the broadband frequency sweep mode, parameters such as frequency, interval, and step can be set

Frequency setting mode 3

Set any 4 sub-frequency segments within the bandwidth, and a single sub-segment needs to be incremented

module communication

RS485

Interface definition

+:28V，-: GND; control bit 1:485A，2：485B
