Hot selling high quality high efficiency Laminar Flow Hood Modular Clean Room Hepa FFU

Product Overview

Description

Clean room HEPA ceiling Modules filters Unit with fan  is type of unit used for filtering laminar air and supplying clean air. FFU can be used stand alone or installed modularly. FFU is the core when making clean room equipment for a given space including clean booth, clean bench and clean room assembly.



Features:

The master switch inner set with insurance and indicator light

The control mode is flexible, can be three or five air velocity speed adjustment

Abnormal indicator light to understand the operation state of the equipment



Options available:

1. ULPA filter (99.9995 @0.1μm)


2. stainless steel or AL case


3. super thin design


4. other requirements

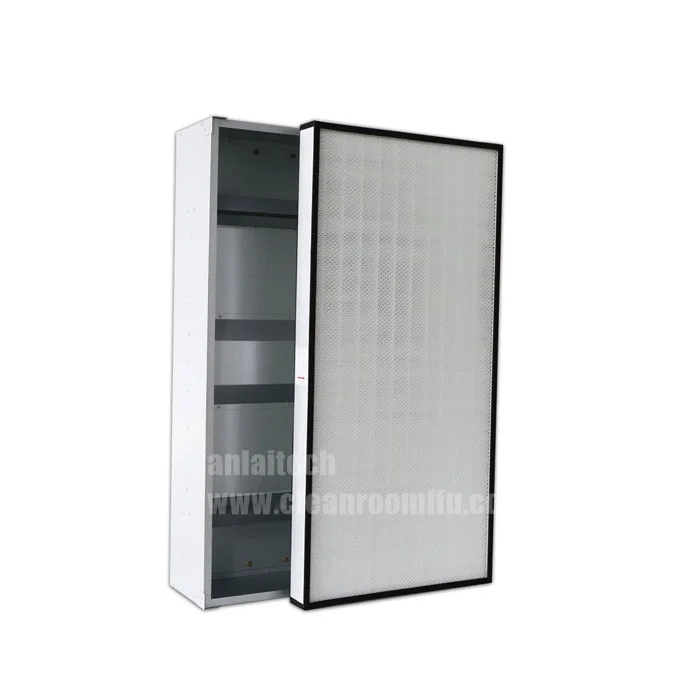

                                                           FFU (HEPA FILTER SPERATED TYPE)







Technical Parameters(HEPA FILTER SPERATED TYPE):



Model		AL-FFU-2*2		AL-FFU-2*4		AL-FFU-3*4		AL-FFU-4*4
Overall size  W * L * H (mm)		575 * 575 * 300		575 * 1175 * 300		875 * 1175 * 300		1175 * 1175 * 380
HEPA filter size   W * L * H (mm)		570 * 570 * 69		570 * 1170 * 69		870 * 1170 * 69		1170 * 1170 * 69
Efficiency		HEPA 0.3μm@≥99.99% OR ULPA 0.12@≥99.9995%
Prefilter (optional)		Washable non-woven fabric
Construction		Electro galvanized metal sheet OR stainless steel or high quality aluminum sheet
Air velocity (m/s)		0.35~0.45	0.35~0.45		0.35~0.45		0.35~0.45
Air flow (CMH)		410~513	840~1080		1290~1650		1720~2160
Speed control		3 modes, 5 modes, or induction control
Noise (dB)		48 ~ 50	48 ~ 52		50 ~ 56		52 ~ 58
Consumption	AC	≤ 98	≤ 150		≤ 180		≤200
	DC	≤ 65	≤ 90		≤ 130		≤160
Power		AC single phase 110/220V OR three phase 220/380V 50/60Hz Or DC 220V
Overload protection		Included (terminals or quick coupling are optional)
Weight (KG)		28	40		47		55

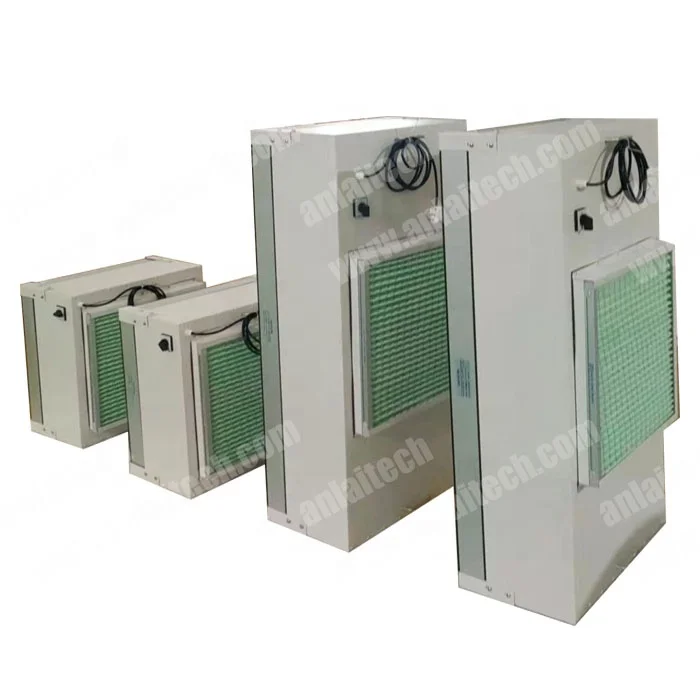

HEPA FILTER INSIDE TYPE

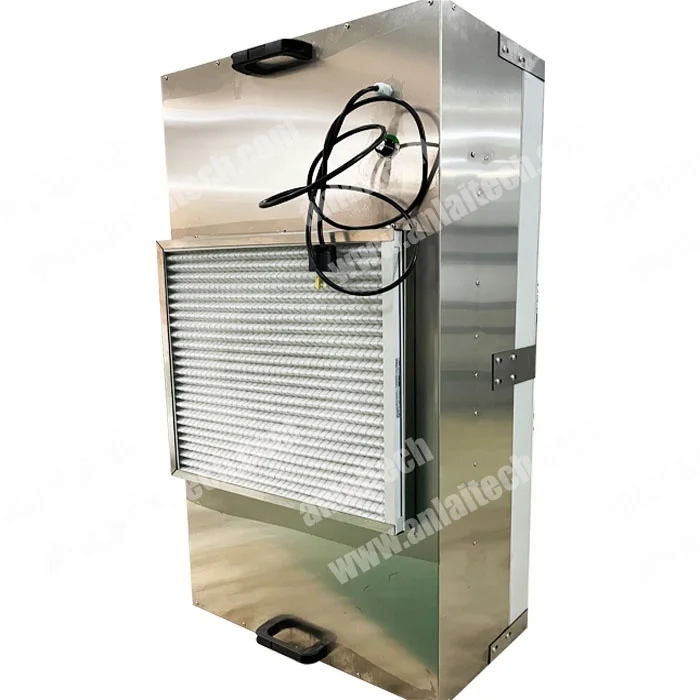

(STAINLESS STEEL)

                  (EPOXY POWDER COATED STEEL MADE)







NOISE REDUCE

Technical Parameters(HEPA FILTER INSIDE TYPE):



Model		AL-LFU-2*2		AL-LFU-2*4		AL-LFU-3*4		FFU-4*4
Overall size  W * L * H (mm)		600 * 600 * 450		600* 1200*450		915 * 1200 * 450		1200 * 1200 * 450
HEPA filter size   W * L * H (mm)		440 * 440 * 69		440*1040*69		755 * 1040 * 69		1040 * 1040 * 69
Efficiency		HEPA 0.3μm@≥99.99% OR ULPA 0.12@≥99.9995%
Prefilter (optional)		Washable non-woven fabric
Construction		Electro galvanized metal sheet OR stainless steel or high quality aluminum sheet
Air velocity (m/s)		0.35~0.45	0.35~0.45		0.35~0.45		0.35~0.45
Air flow (CMH)		410~513	840~1080		1290~1650		1720~2160
Speed control		3 modes, 5 modes, or induction control
Noise (dB)		48 ~ 50	48 ~ 52		50 ~ 56		52 ~ 58
Consumption	AC	≤ 98	≤ 150		≤ 180		≤200
	DC	≤ 65	≤ 90		≤ 130		≤160
Power		AC single phase 110/220V OR three phase 220/380V 50/60Hz Or DC 220V
Overload protection		Included (terminals or quick coupling are optional)
Weight (KG)		28	40		47		55



 CUSTOMIZED VARIOUSE TYPE

(DOP TESTING FFU)



(FFU WITH DUCT )





(EXPLOSION-PROOF)







WELCOME TO CONTACT WITH US FOR YOUR FFU SOLUTIONS





All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.

Factory test include:

--appearance testing

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--noise testing



Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.
