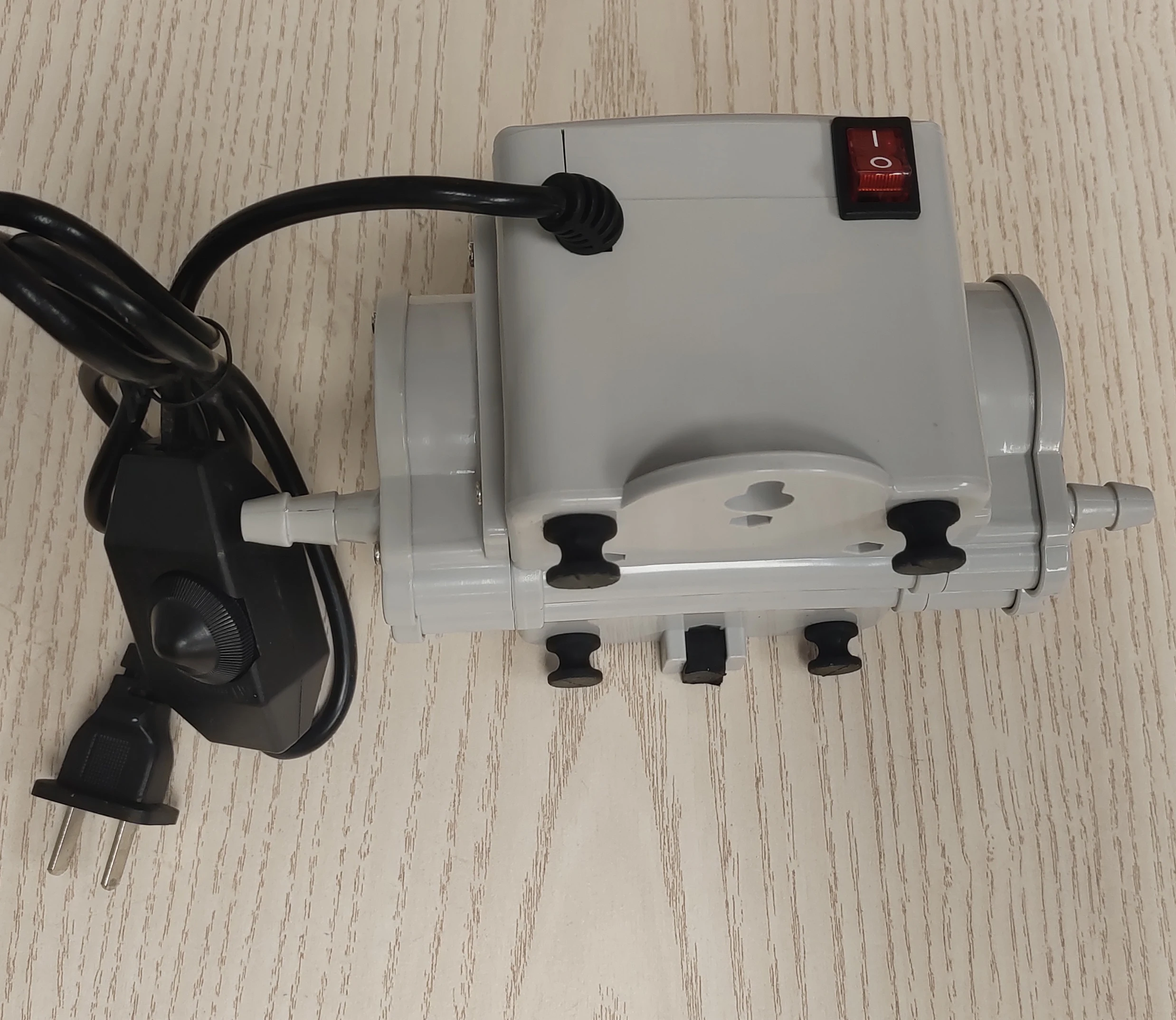

Nature Gas biogas gas Booster Pump for Restaurant use

Nature Gas biogas gas Booster Pump for Restaurant use

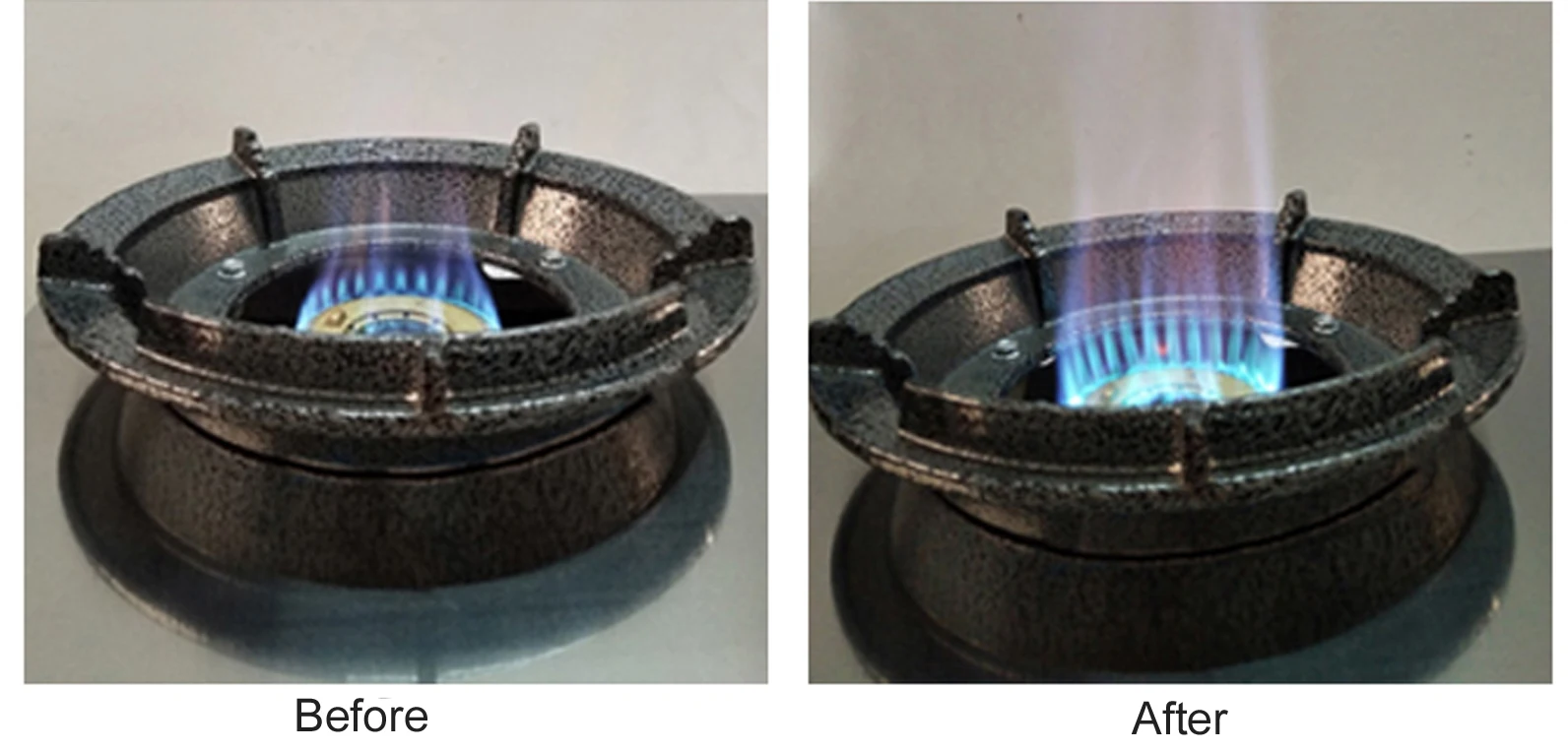

TEENWIN gas booster pump is specially designed for low pressure nature gas and biogas. It can improve gas pressure and make gas combust thoroughly. It is suitable for low pressure nature gas and biogas digester, which can be for gas pressure increase.  breeding industry and so on. It has a continuous gas supply, stable pressure, and can be used for long distance transmission.

 Parameter of difference model

Gas Booster Pump
SN	Model	TY-GP-DC12V	TY-GP-AC220V -20W	TY-GP-AC110V -20W	TY-GP- AC220V-40W
1	Power(W)	20	20	20	40

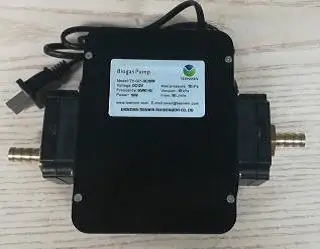

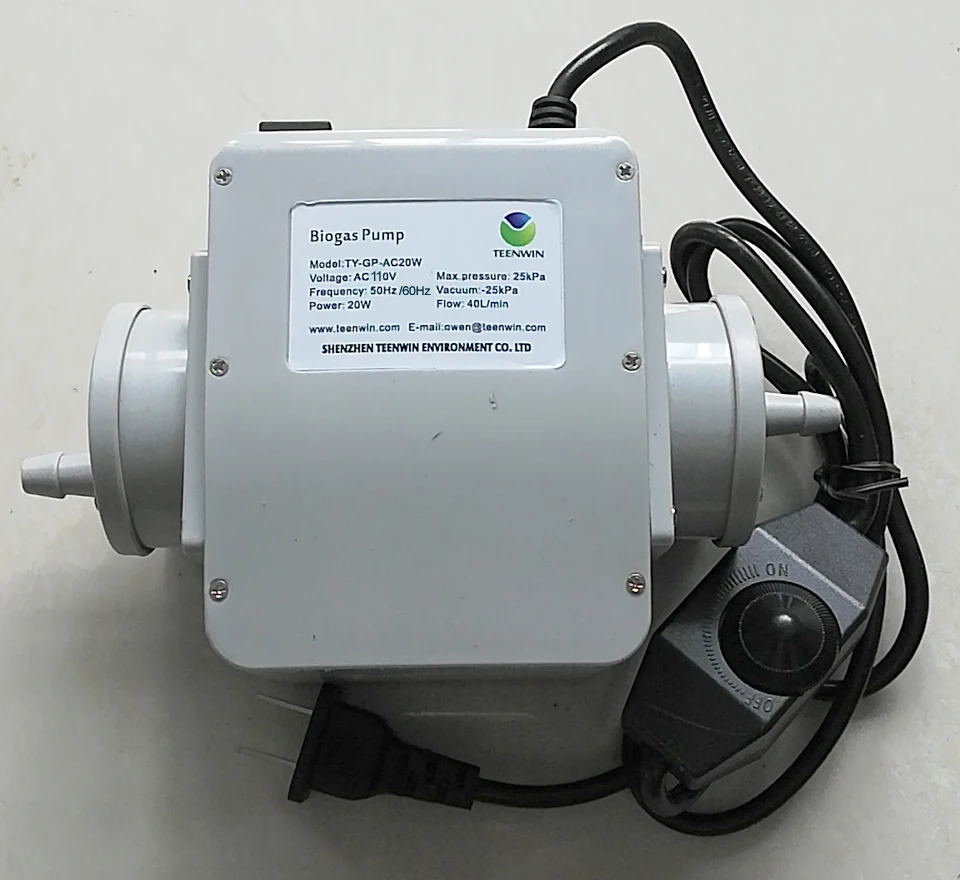

2	Power supply	DC12V or AC220	220V/50Hz	110V/60Hz	220V/50Hz

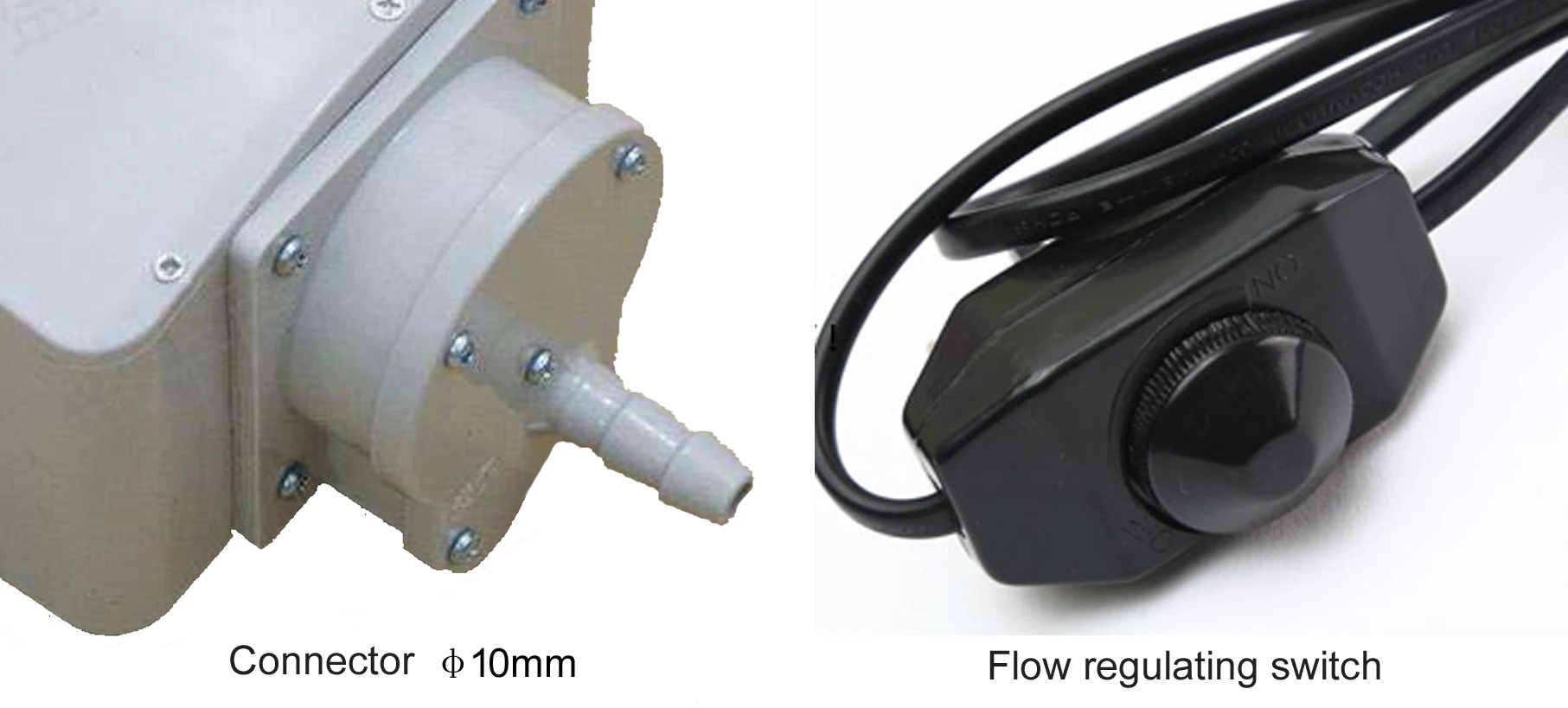

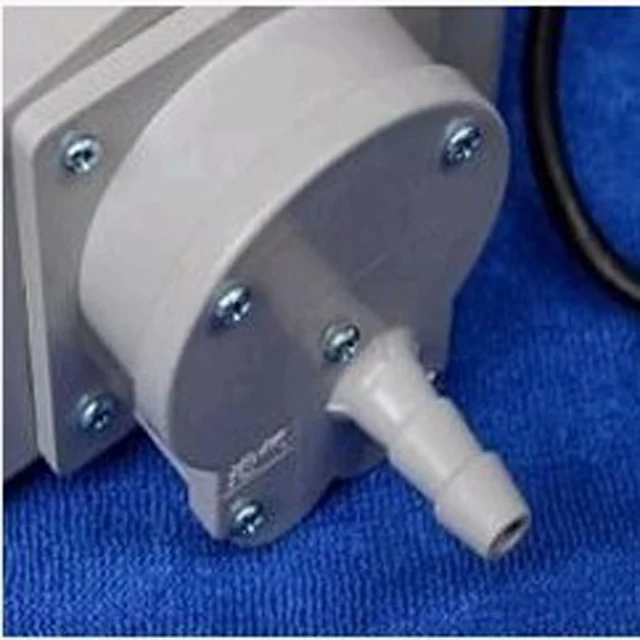

3	Pipe size	¢10mm	¢10mm	¢10mm	¢10mm
4	Max. pressure	20KPa	25KPa	25KPa	35KPa
5	Max. flow	32L/min	40L/min	40L/min	80L/min
6	Weight(kg)	3	2	2	3

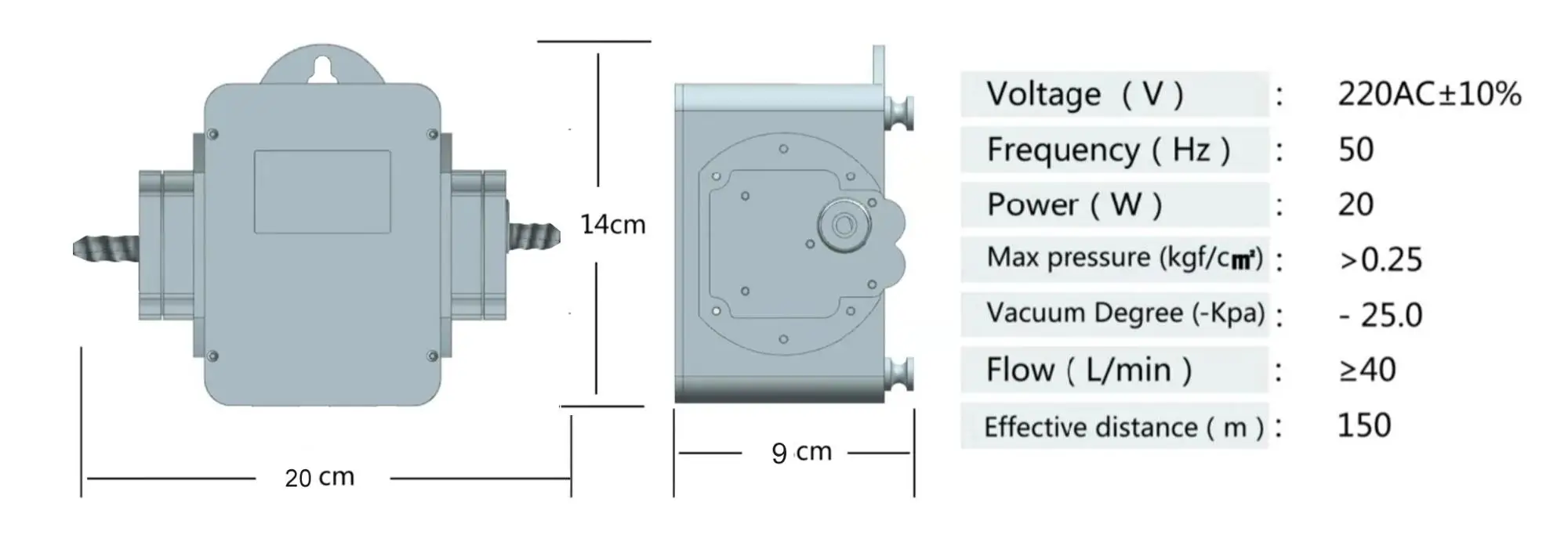

7	Dimension	30*15*15 cm	20*15*10 cm	20*15*10 cm	20*20*10 cm
8	Photo

            Note

1. Operation conditions: Ambient temperature -15 to 40°C should not be in the outdoor sun and rain, should work in a clean environment.


2. Working medium:The gas extracted by the pump must be free of strong corrosion, allow media temperature: 0 to 50°C.


3. Requirements of use:The pump can be used in the case of flat or stand hanging. Connector connected with the gas pipe should be tightness.


4.  Must not let foreign objects into the pump, otherwise it will damage the pump.


5. The pump socket connection should be kept away from sources of fire.


6. If the outlet-side air pressure is too small, please check the pump if there is blockage of the pump. Demolition pump is required to be carried out by the professionals.
