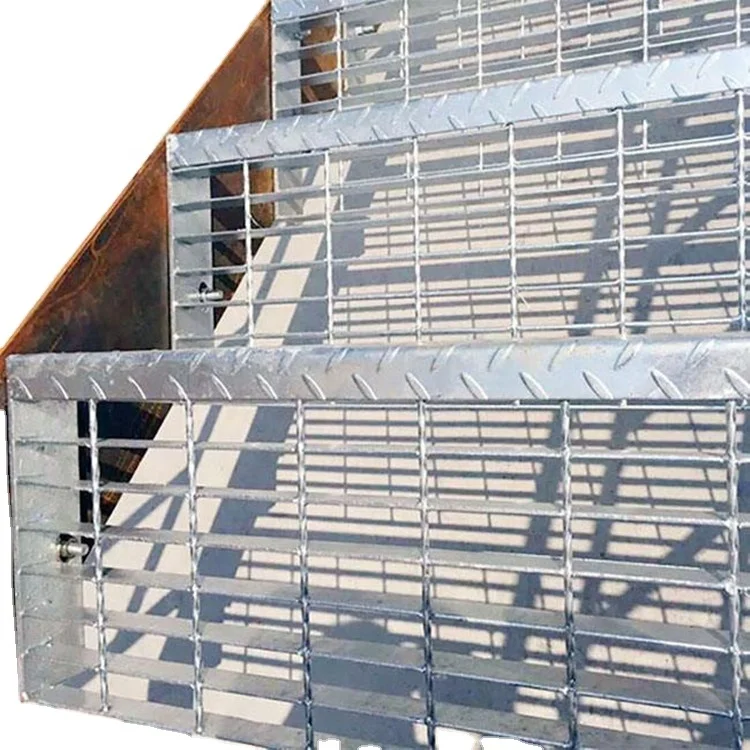

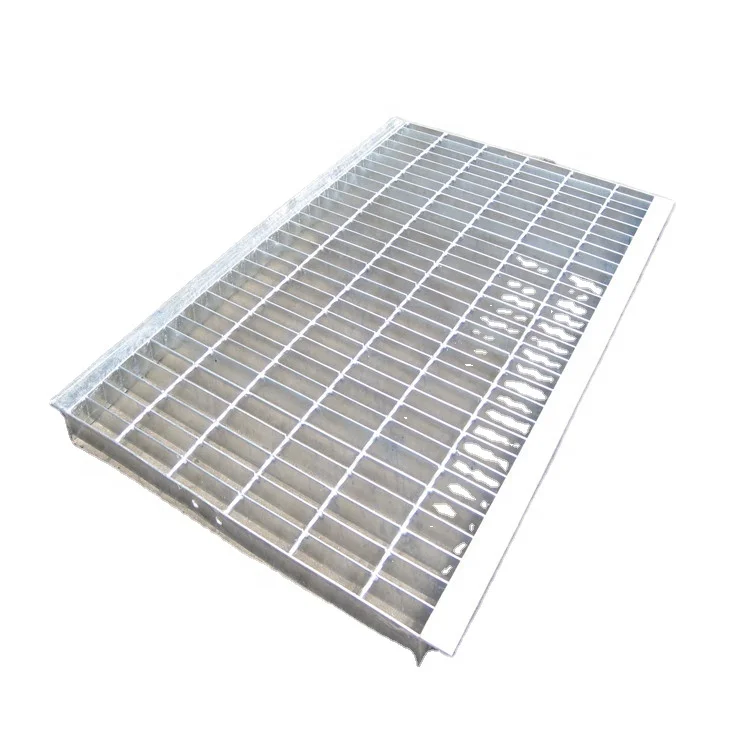

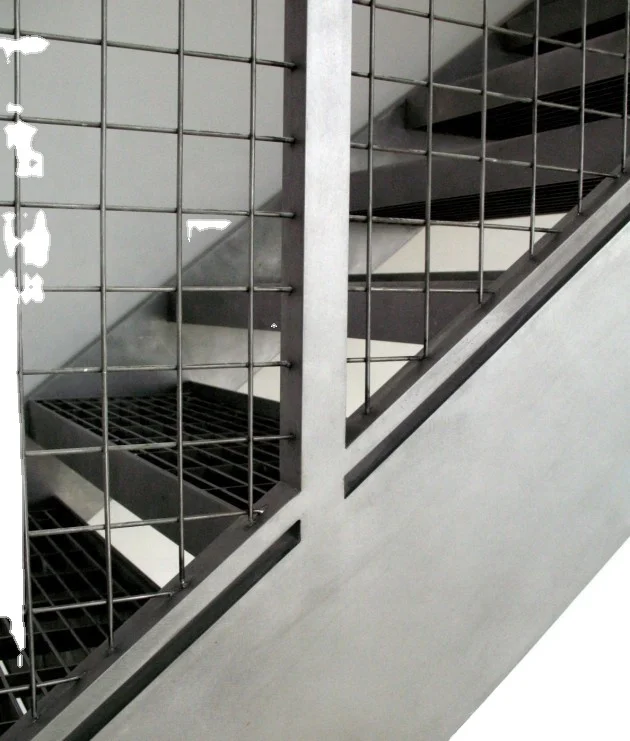

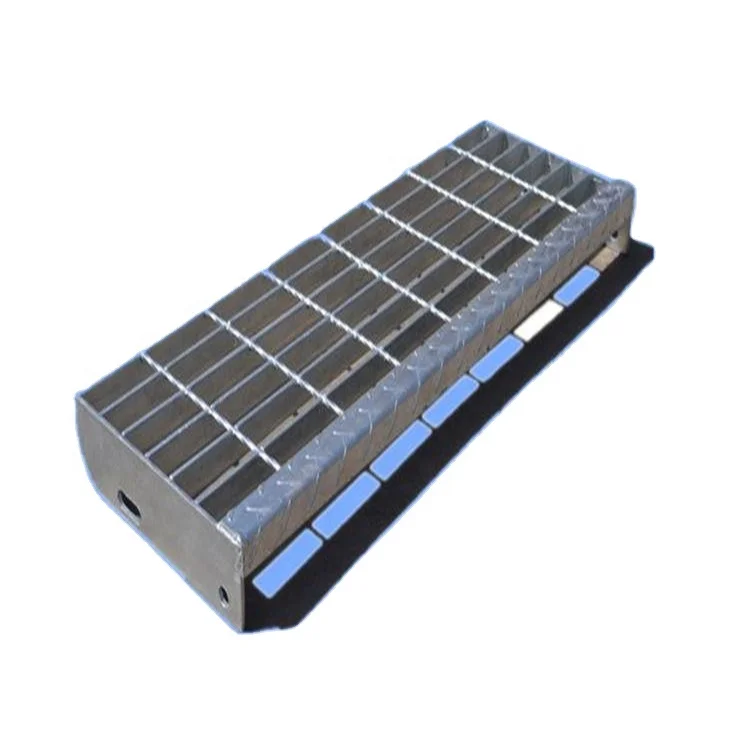

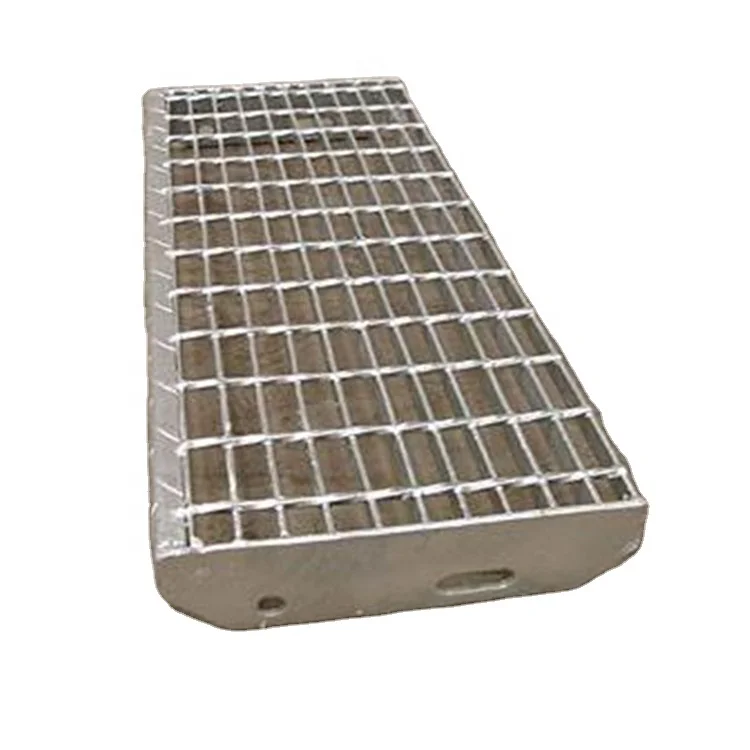

Galvanized steel stair tread grating

Product Overview

Description

stair tread
stair tread grating
electric galvanized steel grating

ISO9001-2000, GRATING SPECIALIST, YOUR GRATING SOLUTIONS!



=======================================================================================



"LIHONG" brand steel grating is widely used in road, square, garden, dock, airport, railway, and other city construction projects.

Ningbo Lihongyuan Steel Grating Co., Ltd is a professional manufacturer in the field of steel grating,stair treads,trench cover,steel fence,etc.We have 3 running lines with yearly capacity of 15, 000tons.Our grating has exported to more than 30 countries,including AU,Europe,Southeast Asia,Africa,Middle East,etc.We always stick to manufacturing good quality products for our valuable customers worldwide.For sure,Ningbo Lihongyuan is your right partner for purchasing & developing quality goods in China.

1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

2) Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >

3) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel

4) Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing

5) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS





Ningbo Lihongyuan Steel Grating Co., Ltd

ISO8001-2008 Company & SGS

STEEL GRATING SPECIALIST, YOUR GRATING SOLUTIONS



No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,  Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007,  USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987,  Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS
