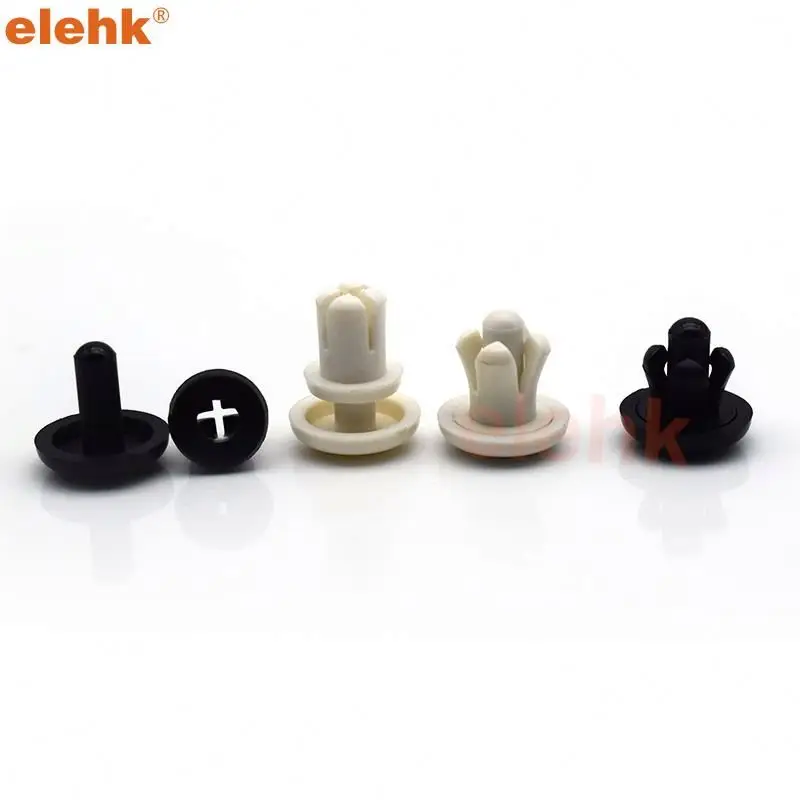

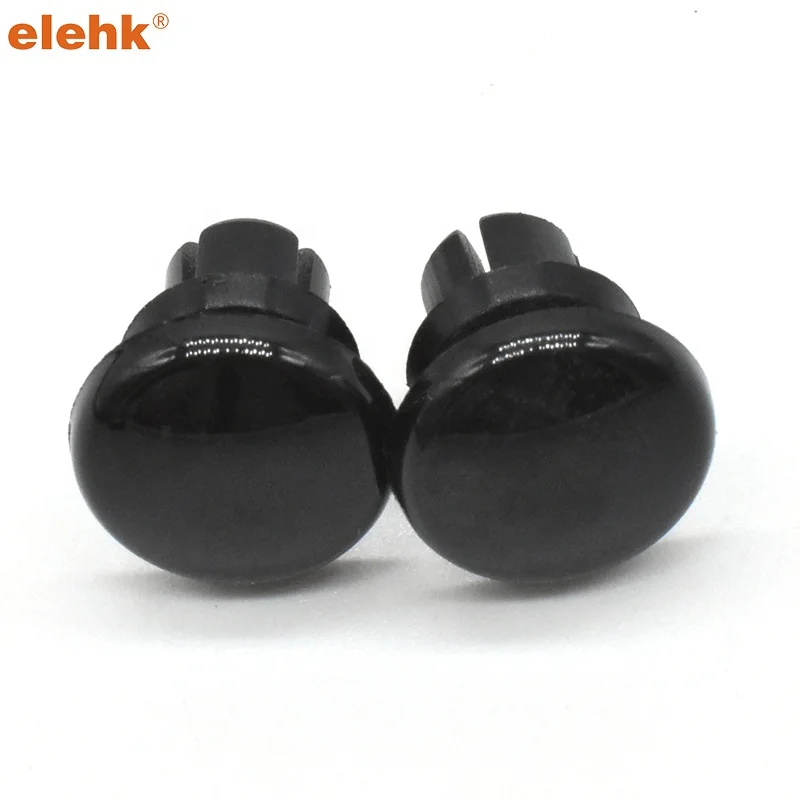

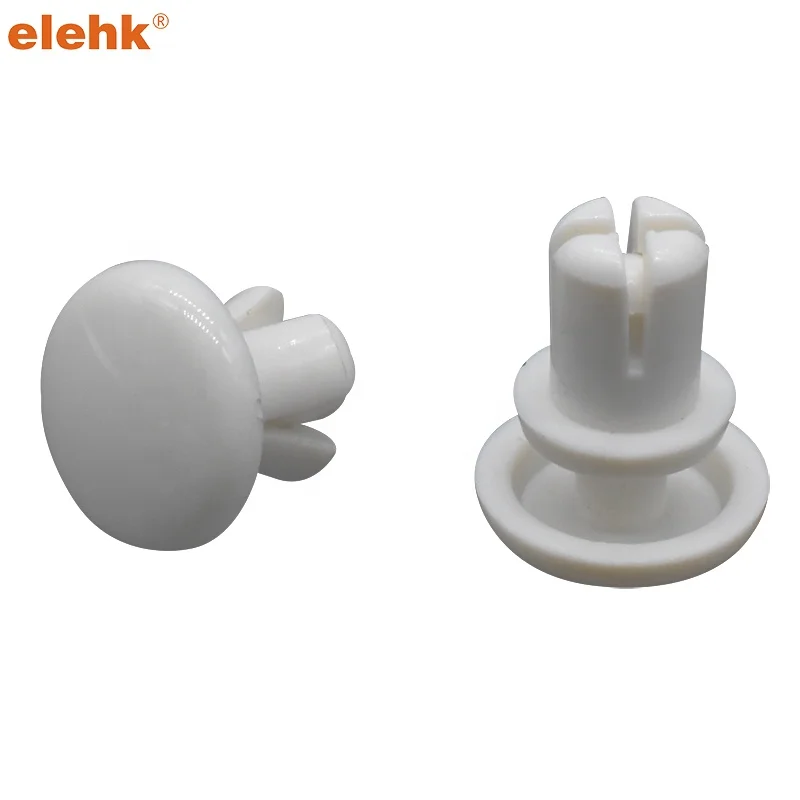

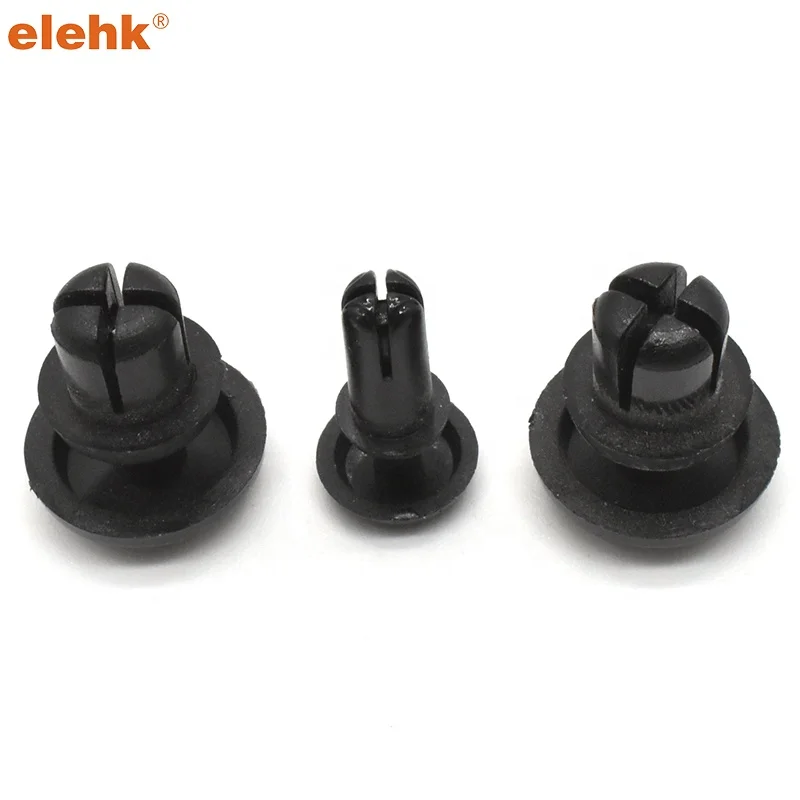

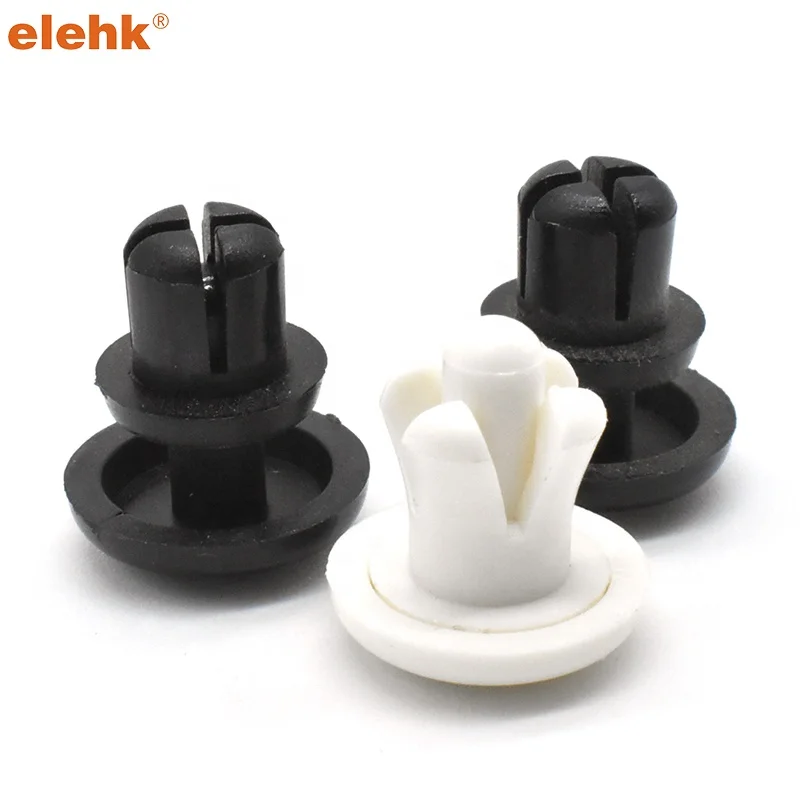

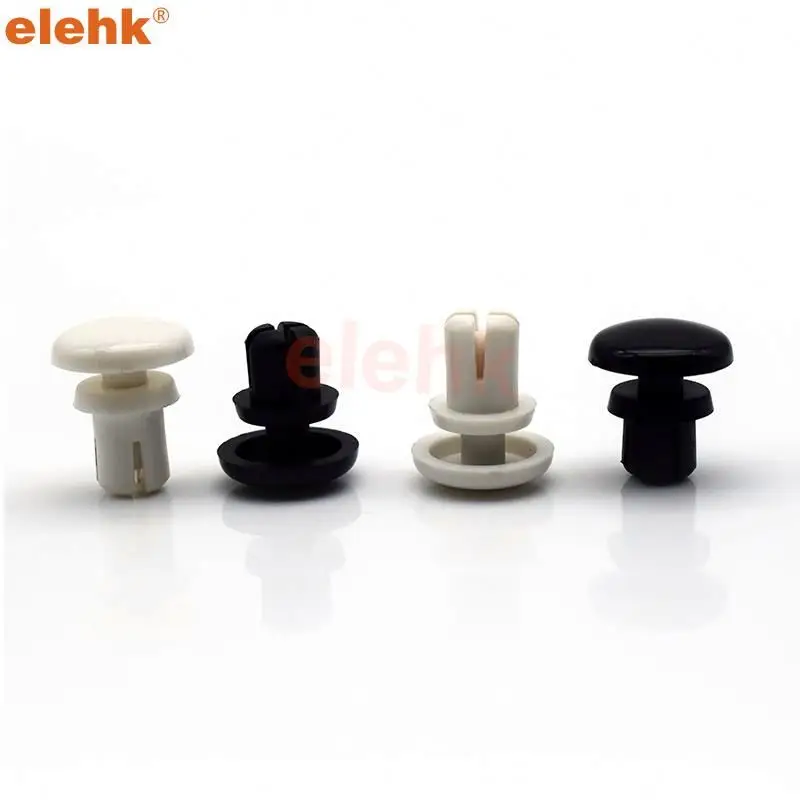

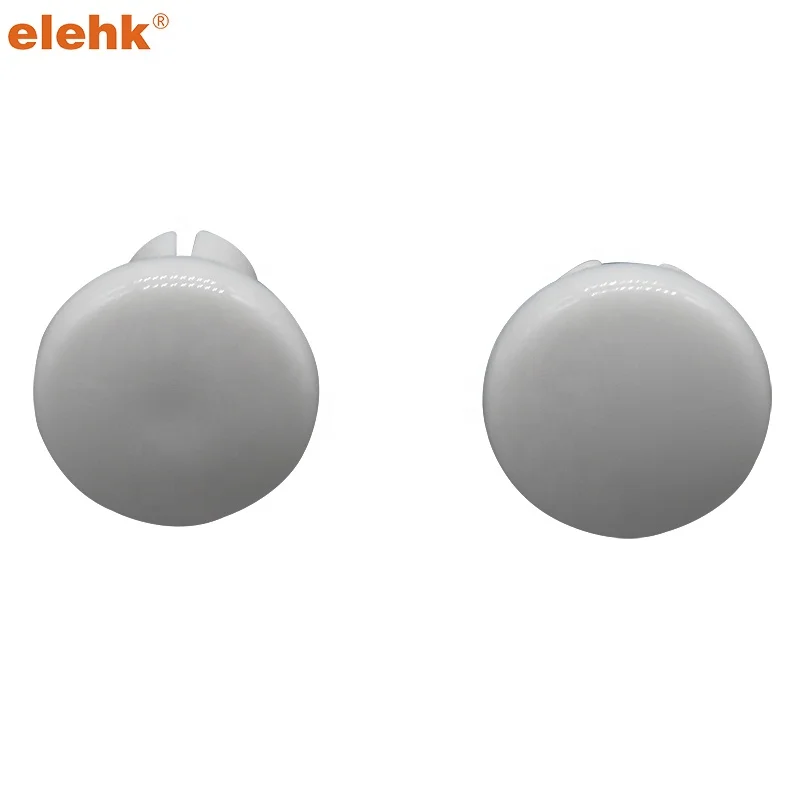

94V2 Nylon Snap Rivets Plastic Rivets R2672 Plastic Rivets 5 Mm black white For Lamp
- Category: >>>
- Supplier: Dongguan Chuancheng Plastic Electronic Co. Ltd.
Share on (1600567437998):
Product Overview
Description
Product Description

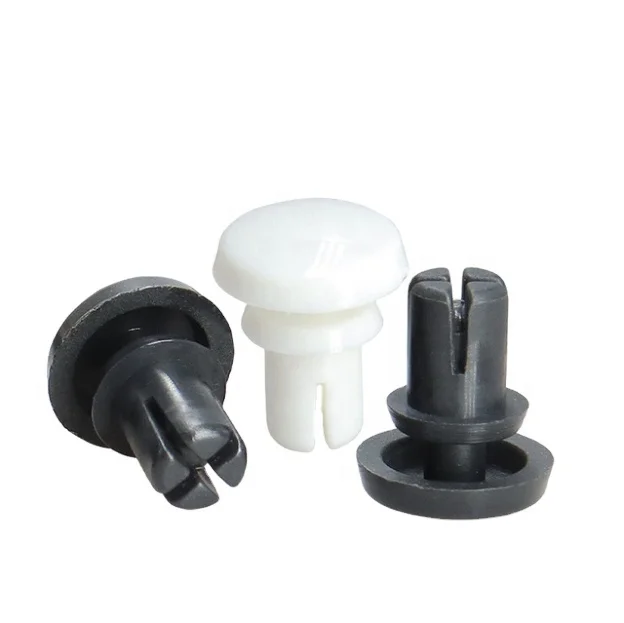

Snap Rivets are a quick and easy fastener solution, which can be installed without the need for tools! Fast and economical, they have specially designed legs that expand and firmly lock the component parts permanently in place.

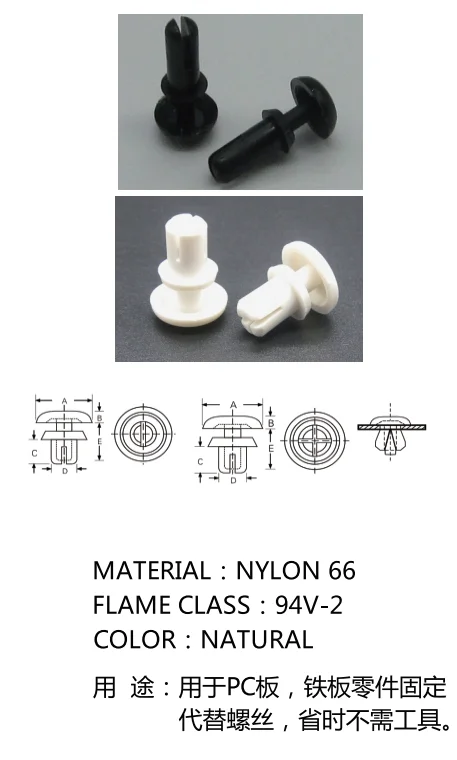

Diameter(mm) | Panel thickness(mm) | Hole diameter(mm) | C(mm) | Material |
2.1 R2024-R2064 | 0.6-1.2 1.3-3.0 2.1-2.8 2.9-3.6 3.7-4.4 4.5-5.2 | 2.0 | 2.4 3.2 4.0 4.8 5.6 6.4 | Nylon 66 |
2.7 R2632-R2672 | 1.0-2.0 2.1-3.0 2.7-3.6 3.4-4.3 4.3-5.2 5.1-6.0 | 2.6 | 3.2 4.2 4.8 5.5 6.4 7.2 | |
3.1 R3035-R3230 | 1.0-2.0 2.0-3.0 3.0-4.0 4.0-5.0 5.0-6.0 5.5-6.5 6.5-7.5 7.5-8.5 20.5-21.5 | 3.0 | 3.5 4.5 5.5 6.5 7.5 8.0 9.0 10.0 23.0 | |
3.6 R3535-R3580 | 1.2-2.1 2.2-3.1 2.7-3.6 3.2-4.1 3.7-4.6 4.7-5.5 5.7-6.6 | 3.5 | 3.5 4.5 5.0 5.5 6.0 7.0 8.0 | |
4.1 R4060-R4120 | 2.5-3.5 3.5-4.5 4.5-5.5 5.5-6.5 6.5-7.5 7.5-8.5 9.5-10.5 | 4.0 | 5.0 6.0 7.0 8.0 9.0 10.0 12.0 | |
5.1 R5045-R5105 | 1.5-2.5 2.5-3.5 3.5-4.5 4.5-5.5 5.5-6.5 6.5-7.5 7.5-8.5 | 5.0 | 4.5 5.5 6.5 7.5 8.5 9.5 10.5 | |
6.1 R6060, R6080 | 2.5-4.0 4.0-5.5 | 6.0 | 6.0 8.0 |
Features
These rivets are molded and designed to be stronger than standard snap rivets.
They are supplied in a one-piece design with a pre-driven pin.
They are removable by pulling out the pin.
They are supplied in a one-piece design with a pre-driven pin.
They are removable by pulling out the pin.
Features

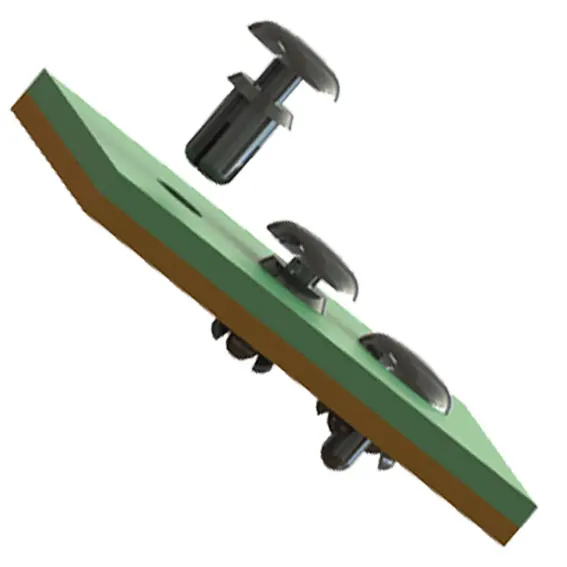

Our range of nylon snap rivets are pre-assembled, just push into the hole and push down.
Clean, neat finish - the fastest, easiest to use method of fastening two panel
Clean, neat finish - the fastest, easiest to use method of fastening two panel
Application
Packing&Shipping
1. Carton
1000pcs packed in one plastic bag
20bag packaged in one carton
2. Customized packing
Note : Objects shown in picture are only for reference
not stand for described items
1000pcs packed in one plastic bag
20bag packaged in one carton
2. Customized packing
Note : Objects shown in picture are only for reference
not stand for described items
Company Profile

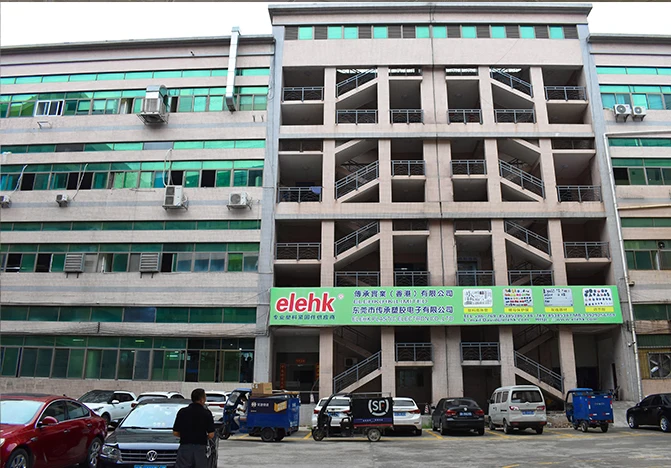

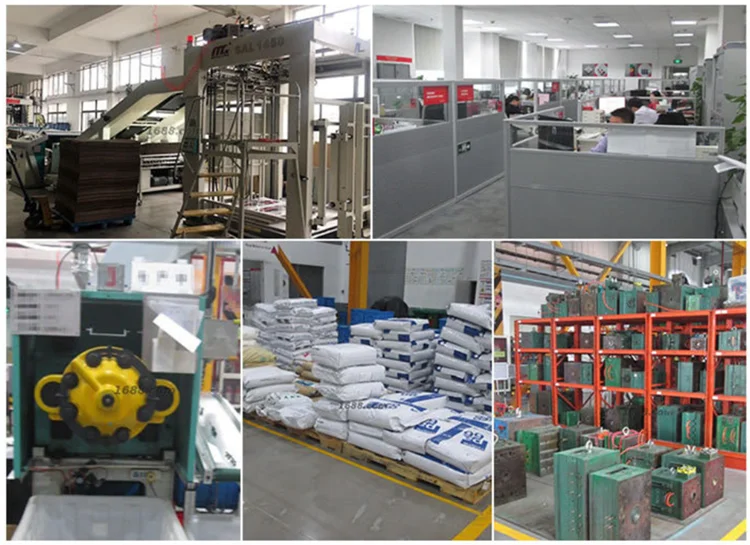

Elehk plastic electronic co., ltd is a professional plastic fastener manufacturer. It is located in Dongguan and have been worked in this industry for 15 years experience. The company focused on the technology development and supporting applications of plastic fastener products.
The mainly products is plastic anchor, plastic nut cap, plastic screw, plastic snap rivet, hex spacer, pcb spacer, cable clip,cable clamp, cable tie, etc. The design more than 100 type, including 1500 specifications, usually keep 15 millions pieces in stock. We can meet the client's different requirement, because we can develop and design mould and custom non-standard products.
All of our products have been passed by RoHS, REACH. We are also cooperating with Huawei,Foxconn,Kohler, Fotile, Sapp and other fomouse enterprise.
All of our products have been passed by RoHS, REACH. We are also cooperating with Huawei,Foxconn,Kohler, Fotile, Sapp and other fomouse enterprise.
Certifications
FAQ
Q1: Are You ManufacturerOor Trading Company?
We are a factory manufacturing and exporting plastic anchor, plastic screw cap and nut cover, nylon screw and nut, nylon cap nut,plastic rivet, plastic hex spacer, plastic cable clamp, square cable clip etc.
Q2: How Is Quality Ensured?
All of our products passed RoHS, REACH certificate. We will make 2 times quality inspection before shipping.
Q3: Can You Strictly Follow The Tolerance on The Drawing And Meet The High Precision?
Yes. We can provide high precision parts and make the parts as your drawing.
Q4:How to Process OEM or ODM?
If you have a drawing or a sample, please send to us.
We will custom-made it as your requirement.
We will also provide ourprofessional advices of the products to make the design to be maximize the performance.
Q5: Why Choose Elehk?
a) 24 Hrs online serivice.
b) Experienced staffs would like to answer all your questions in time.
c) Customized design is available. ODM&OEM are welcomed.
d) 100% strict quality inspection while producing and packing.
e) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
f) As an honest professional factory,
we always provide quality quotation, good service,skilled technicians to ensure ourproducts to be finished in high quality and stable feature.
We are a factory manufacturing and exporting plastic anchor, plastic screw cap and nut cover, nylon screw and nut, nylon cap nut,plastic rivet, plastic hex spacer, plastic cable clamp, square cable clip etc.
Q2: How Is Quality Ensured?
All of our products passed RoHS, REACH certificate. We will make 2 times quality inspection before shipping.
Q3: Can You Strictly Follow The Tolerance on The Drawing And Meet The High Precision?
Yes. We can provide high precision parts and make the parts as your drawing.
Q4:How to Process OEM or ODM?
If you have a drawing or a sample, please send to us.
We will custom-made it as your requirement.
We will also provide ourprofessional advices of the products to make the design to be maximize the performance.
Q5: Why Choose Elehk?
a) 24 Hrs online serivice.
b) Experienced staffs would like to answer all your questions in time.
c) Customized design is available. ODM&OEM are welcomed.
d) 100% strict quality inspection while producing and packing.
e) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
f) As an honest professional factory,
we always provide quality quotation, good service,skilled technicians to ensure ourproducts to be finished in high quality and stable feature.
