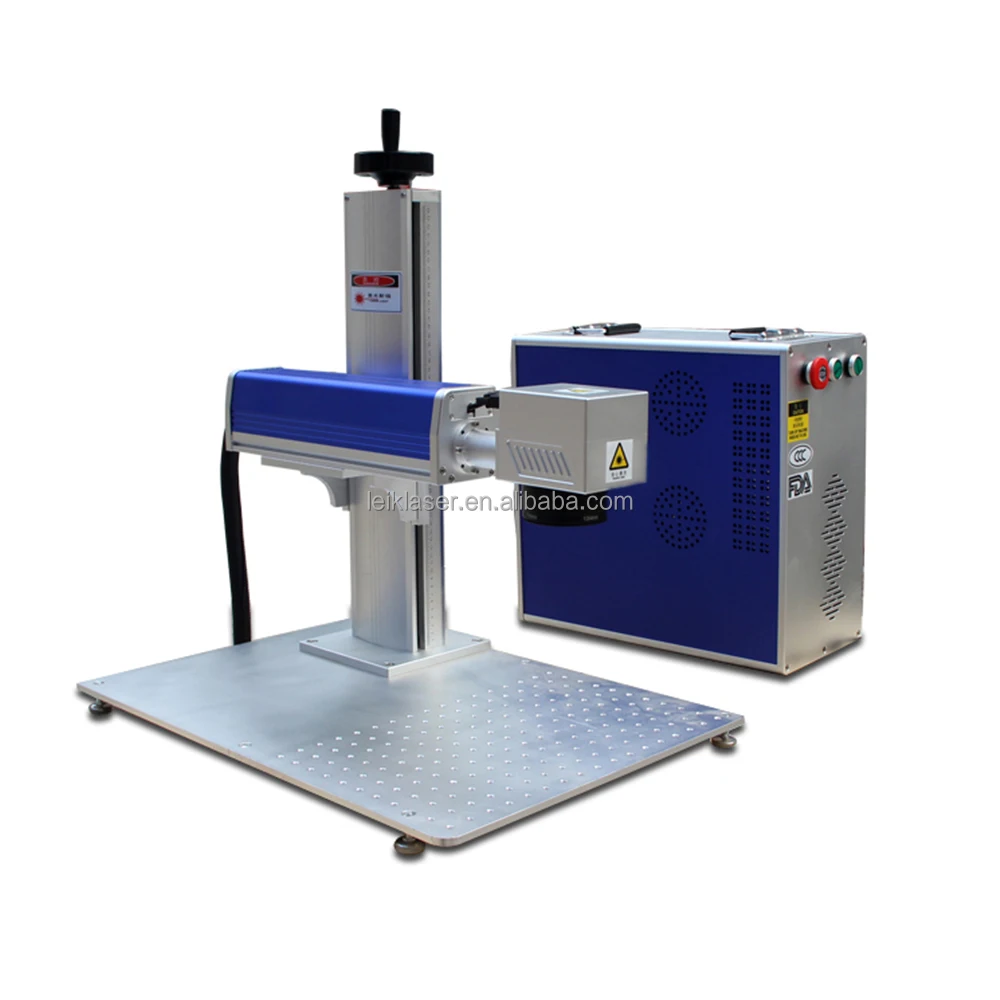

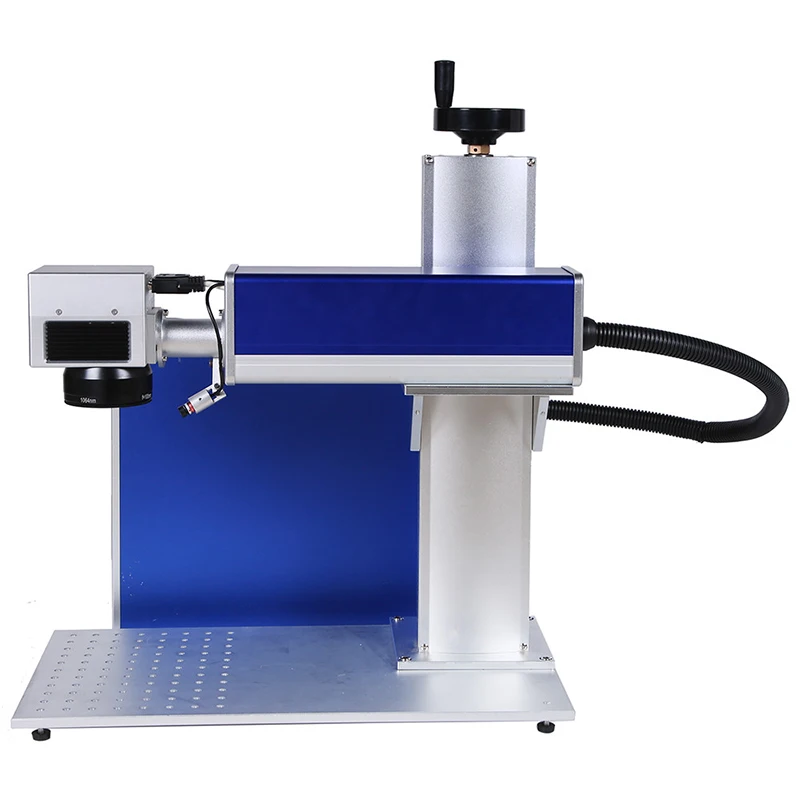

20w 30w 50w JPT Raycus Max IPG Source Metal laser marker Cup Coating Aluminum Rotary fixture Fiber Marking Machine
- Category: >>>
- Supplier: Shenzhen Lei Kang Machinery Equipment Co. Ltd.
Share on (1600567470978):
Product Overview
Description
Product Paramenters
Model | LK-iP-W20 | LK-IP-W30 | LK-IP-W50 | LK-IP-W100 | |||
Laser Power | 20W | 30W | 50W | 100W | |||
Laser Wavelength | 1064nm | ||||||
Beam Quality | 1.6-1.8 | ||||||
Marking Area | 30*30~300*300mm | ||||||
Working Distance | 80mm-100mm | ||||||
Min Line Width | 0.006mm | ||||||
Min Character Size | 0.09mm | ||||||
Repeat Frequency | 20KHZ-80KHZ | ||||||
Marking Speed | ≤12000mm/s | ||||||
Marking Depth | 0.01-0.2mm | ||||||
Repeat Accuracy | 0.002mm | ||||||
Power | 0.8-1.2KW | ||||||
Cooling Method | AIR Cooling | ||||||
Power Supply | AC220V /110V 50-60HZ | ||||||
Dimensions | 800*680*1500mm | ||||||
Weight | 140KGS | ||||||

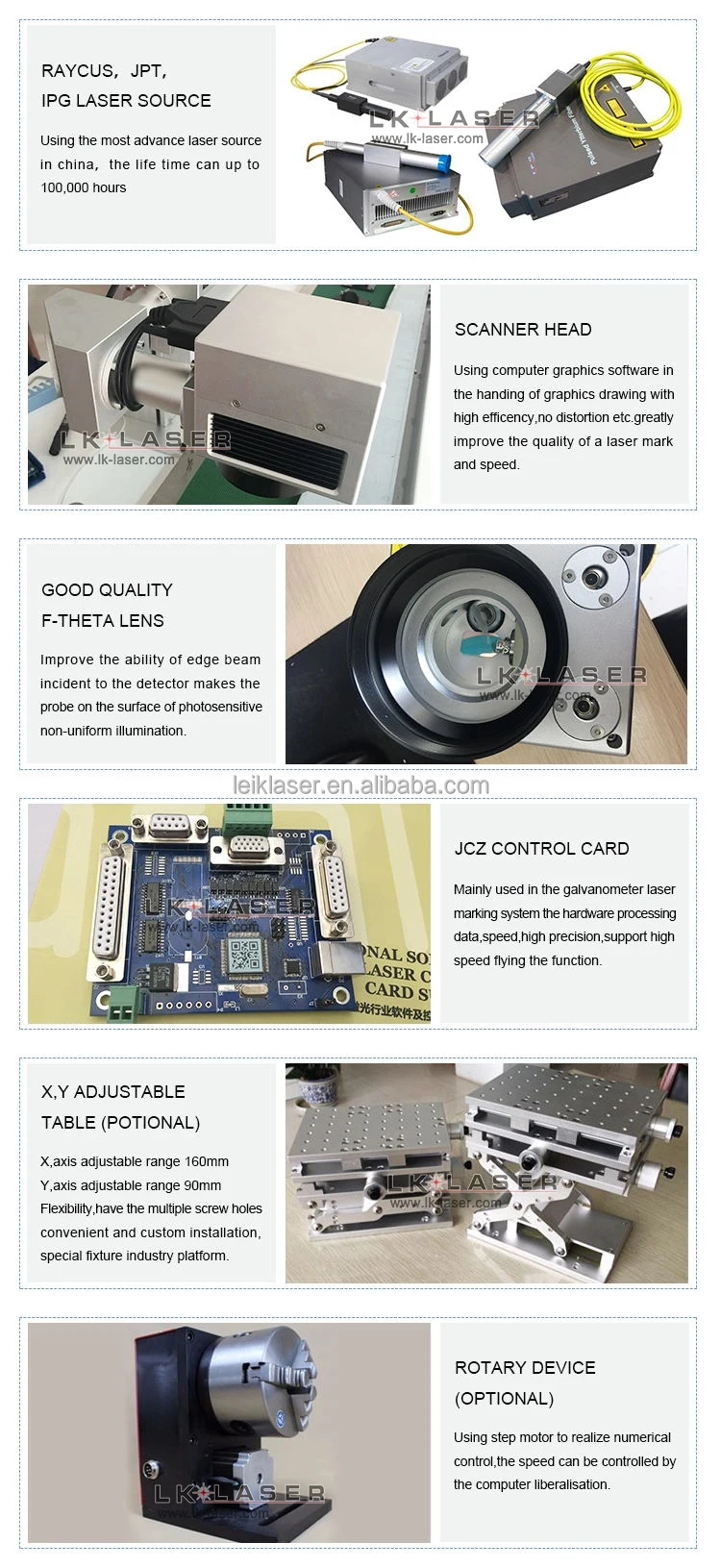

Details Images
1.Standard plywood case, its compressive strength and bearing quality is better.
2.the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment
2.the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Products Description
Our Advantages
High working speed
Machine working speed ≦12000mm/s.it working speed higher than traditional marking machine2-3times
Machine working speed ≦12000mm/s.it working speed higher than traditional marking machine2-3times
Small structure& Suitable for harsh environments
Fiber laser source realizes laser distance transmission through the optical cable, and the structure is compact
Machine has good heat dissipation effect, no need for huge water cooling system, just simple air cooling.
In a certain impact, shake, higher temperature or dust, etc. Also could operate
Fiber laser source realizes laser distance transmission through the optical cable, and the structure is compact
Machine has good heat dissipation effect, no need for huge water cooling system, just simple air cooling.
In a certain impact, shake, higher temperature or dust, etc. Also could operate
Long life span time
Optical fiber laser marking machine life span time more than 100000 hours
Optical fiber laser marking machine life span time more than 100000 hours
Maintenance free operation
laser does not require any maintenance and does not require adjustment or cleaning of the lens.
laser does not require any maintenance and does not require adjustment or cleaning of the lens.
Lower consume& cost
Photoelectric conversion rate up to 30%, whole machine power consumes less than 500w. optical fiber laser marking machine was 1/10 consume than diode pump solid state laser marking machine ,it save energy cost
Photoelectric conversion rate up to 30%, whole machine power consumes less than 500w. optical fiber laser marking machine was 1/10 consume than diode pump solid state laser marking machine ,it save energy cost
Excellent laser beam quality
Optical fiber laser marking machine laser beam quality better than traditional solid laser marking machine ,it was TEMDO output,focus laser beam spot diameter less then 20nm.
Optical fiber laser divergence angle is quarter 1/4 of diode pump solid state laser ,Suitable for precision and meticulous marking
Optical fiber laser marking machine laser beam quality better than traditional solid laser marking machine ,it was TEMDO output,focus laser beam spot diameter less then 20nm.
Optical fiber laser divergence angle is quarter 1/4 of diode pump solid state laser ,Suitable for precision and meticulous marking

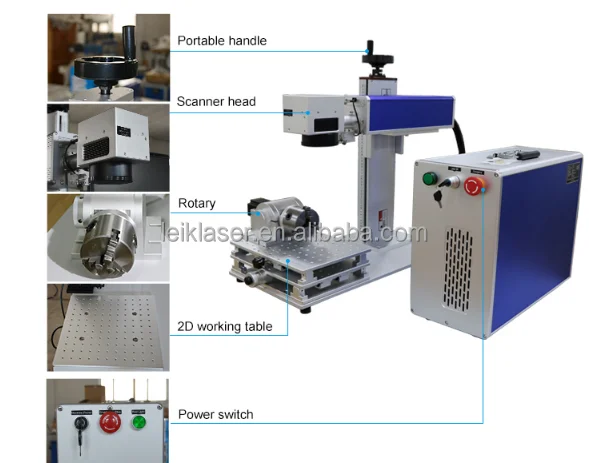

Product detail

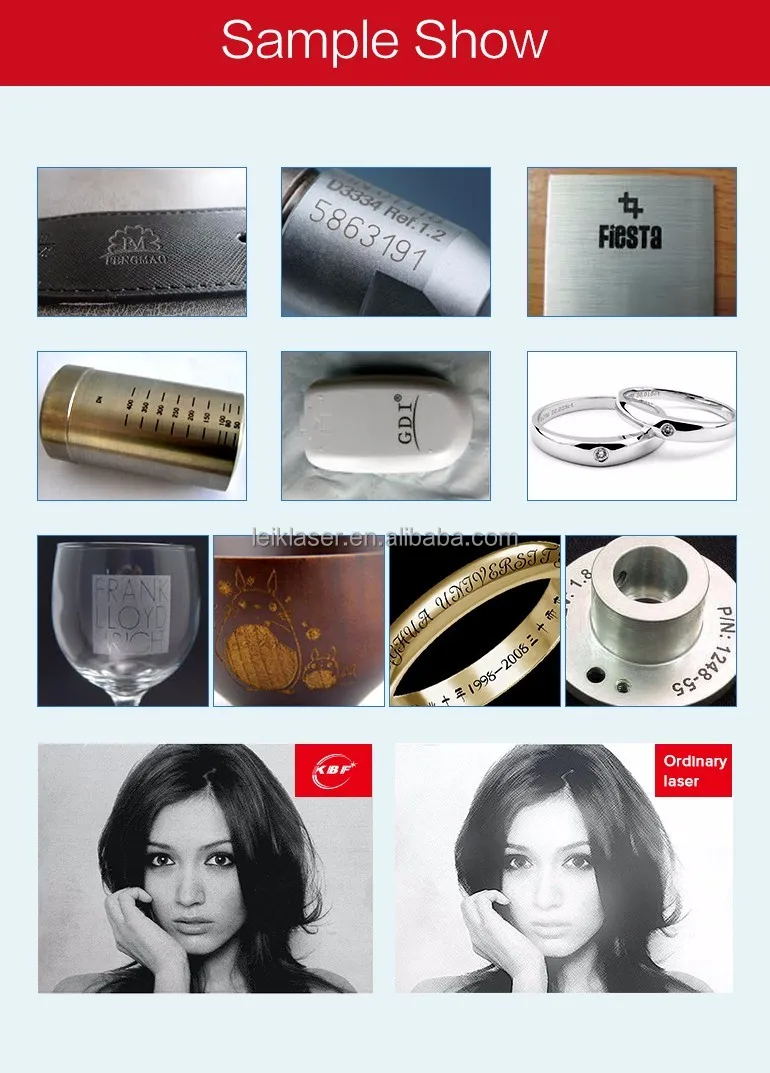

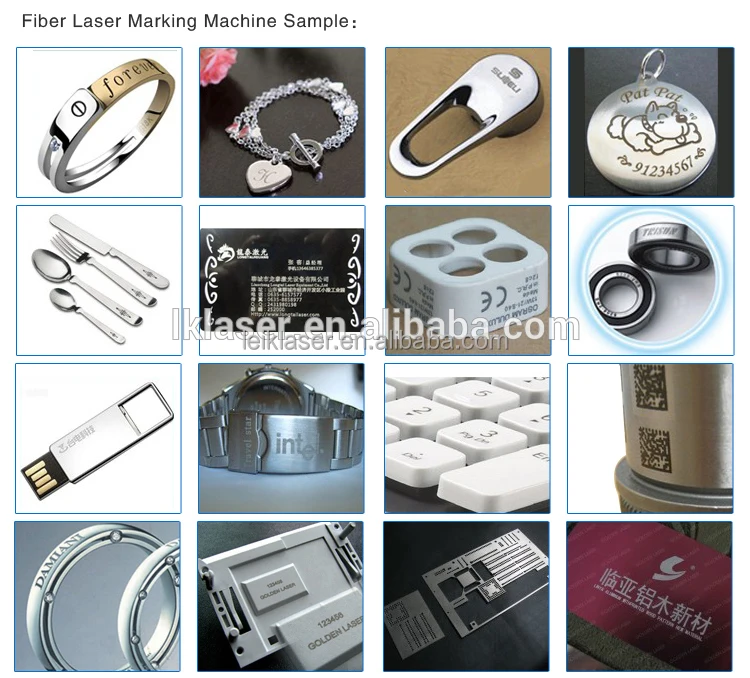

Optical fiber laser marking machine suit for all
metal and some plastic, stainless steel, brass, hard alloy, electroplating products, ABS, epoxy resin, painted coated products, ceramics, etc.
Such as: logo printing ,QR code ,series number,production date,bar code......
metal and some plastic, stainless steel, brass, hard alloy, electroplating products, ABS, epoxy resin, painted coated products, ceramics, etc.
Such as: logo printing ,QR code ,series number,production date,bar code......

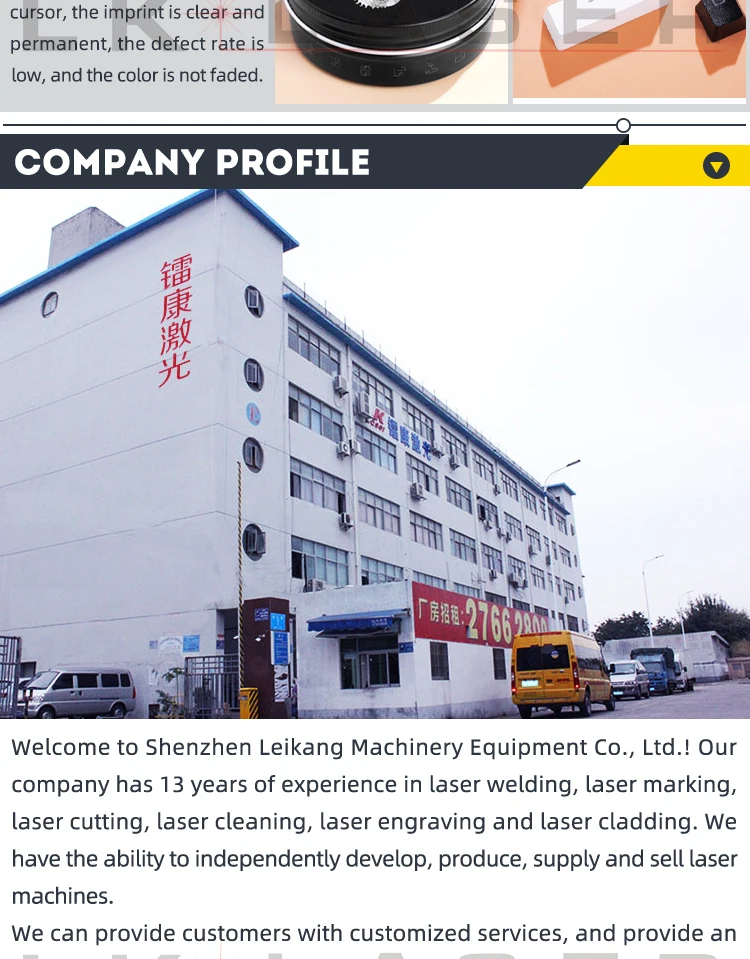

Company Profile
