48V Electric outboard motor electric dinghy motor with Gear-Less ,Brush-less ,Shaft-Less design
- Category: Boats & Ships >>>
- Supplier: Golden,Motor,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

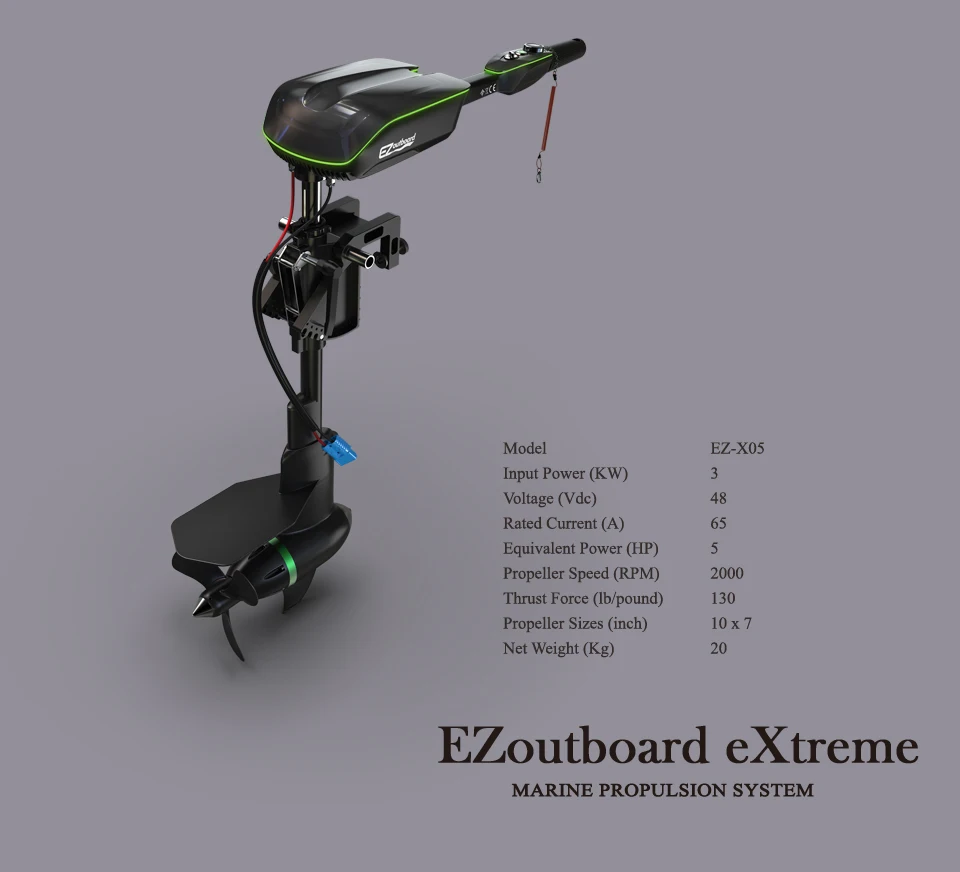

Model | EZ-X05 | ||||||
Input Power(KW) | 3 | ||||||
Voltage(Vde) | 48 | ||||||
Rated Current(A) | 65 | ||||||
Equivalent Power(HP) | 5 | ||||||
Propeller Speed(RPM) | 2000 | ||||||
Thrust Force(Ib/pound) | 130 | ||||||
Propeller Sizes(inch) | 10*7 | ||||||
Net Weight(Kg) | 20 | ||||||
Control | Tiller/Remote | ||||||
Tilting | Manual | ||||||
Product Usage
MOX9 Marine Motor
No Brush. No Gear.No Moving Seal. Less is more.
Our latest X-series EZoutboards are now powered by the all-new patented Goldenmotor MOX9 Gearless & Brushless DC motor. 9 years of research and development spent in the pursuit of a brushless and gearless design has finally paid off. Now you can say goodbye to unwanted friction & weight and say hello to free extra mileage. Rated at IE5 (Ultra-Premium Efficiency), the MOX-9 motors will squeeze more miles out of your battery pack.Contact-less Transmission
No Seal. No Gap. No hassle. 10,000 hours.
We thought you’d love to spend more time boating and less time doing maintenance, so we took water seals out of the equation. The MOX9 Marine Motor is designed to last up to (and probably more than) 10,000 hours maintenance free. BUT HOW? Introducing our revolutionary patented MAGPROP? technology, our propellers are driven via electromagnetic induction, enabling our motors to becometruly seal-less and maintenance-free, good for Non-Stop Commercial Use.
Swift & Silent
Hi-Speed. Low Noise.
With up to 20 horsepower and shaft speeds of up to 2600 RPM at your disposal, the X-series will get you where you want, except much faster. Our propellers are designed to be able to handle all that power while also being extremely efficient. Don’t want to scare the fishes away? Our MOX9 motors are manufactured with high precision machinery, remaining ultra-silent even on full throttle SportMode, they’ll never hear you coming.Need More Power
Add more. Link it. Get more.
Got a bigger boat? Need more speed? We’ve got you covered. Achieve up to 80 horsepower (4*20HP) by simply linking up to 4 EZoutboard X-series in parallel drive with our new EZlink scalable interface. To maximize power efficiency, simply switch between single-drive EcoMode or multi-drive SportMode with the push of a button. EZlink gives you the ultimate flexibility by allowing you to selectively power up or down individual outboards, without ever going through the trouble of physically un-linking them.Zero Emissions
Clean Water. Happy fish.
Now that the world is more aware of environmental protection, electric propulsion has undeniably become more relevant than ever. Goldenmotor products are developed with nature’s best interests in mind. We love our planet, and we invite you to join us in the push towards a cleaner and more sustainable environment for ourselves and posterity. Choose electric, make a difference, switch to the EZoutboard X-series today!

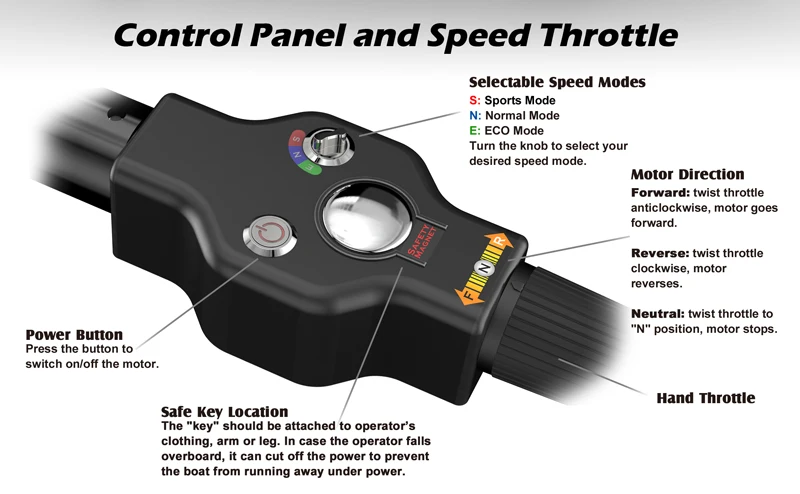

EZ to USE
Learn to Operate It in Minutes! Smooth Control Assured.
One EZ Outboard Serves Multiple Purposes: Sporting, Cruising, Trolling
One EZ Outboard Serves Multiple Purposes: Sporting, Cruising, Trolling
How do I determine the capacity of the battery pack needed?
Battery is the new form of "fuel" for electric propulsion outboards, you never need to go to gasoline station to refuel your outboard anymore. You only need to recharge your batteries at home or docking place.
Once you've chosen an electric outboard that properly fits the weight and efficiency of your loaded boat, the next task is to size the battery bank that will store the energy to drive it. The size of the battery bank will depend on the amp draw you plan to regularly place upon it and the range of miles you desire to travel. It is not easy to know the current draw before you try it as each boat is different from others in hull shape, length, load, speed and daily operation hour you want, not like electric cars which is fixed for each car model in factory. Our expandable battery modules will make your life much easier to determine how big the battery bank you need to meet your purpose. You can just buy one battery module first to test boat performance with electric propel outboard and find out accurate amp draw for your special boat setup in different speed. After initial boat testing, then you can easily figure out how many such battery modules required to get the boat speed and travel duration you want. You can easily parallel link up to 4 expandable battery modules to form a larger capacity battery bank by using our Scalable Battery Hub (QuadCell, see product photo below). You can use two such hubs to link 8 battery modules. Each battery module is light weight for one person to carry around. Each module has its own battery management system (built-in BMS) and charger. We have developed 3 models of battery module for different electric boats, 48V30AH and 48V50AH. Their features and functions are basically same except they have different capacities. All have its built-in LED meter.
Once you've chosen an electric outboard that properly fits the weight and efficiency of your loaded boat, the next task is to size the battery bank that will store the energy to drive it. The size of the battery bank will depend on the amp draw you plan to regularly place upon it and the range of miles you desire to travel. It is not easy to know the current draw before you try it as each boat is different from others in hull shape, length, load, speed and daily operation hour you want, not like electric cars which is fixed for each car model in factory. Our expandable battery modules will make your life much easier to determine how big the battery bank you need to meet your purpose. You can just buy one battery module first to test boat performance with electric propel outboard and find out accurate amp draw for your special boat setup in different speed. After initial boat testing, then you can easily figure out how many such battery modules required to get the boat speed and travel duration you want. You can easily parallel link up to 4 expandable battery modules to form a larger capacity battery bank by using our Scalable Battery Hub (QuadCell, see product photo below). You can use two such hubs to link 8 battery modules. Each battery module is light weight for one person to carry around. Each module has its own battery management system (built-in BMS) and charger. We have developed 3 models of battery module for different electric boats, 48V30AH and 48V50AH. Their features and functions are basically same except they have different capacities. All have its built-in LED meter.

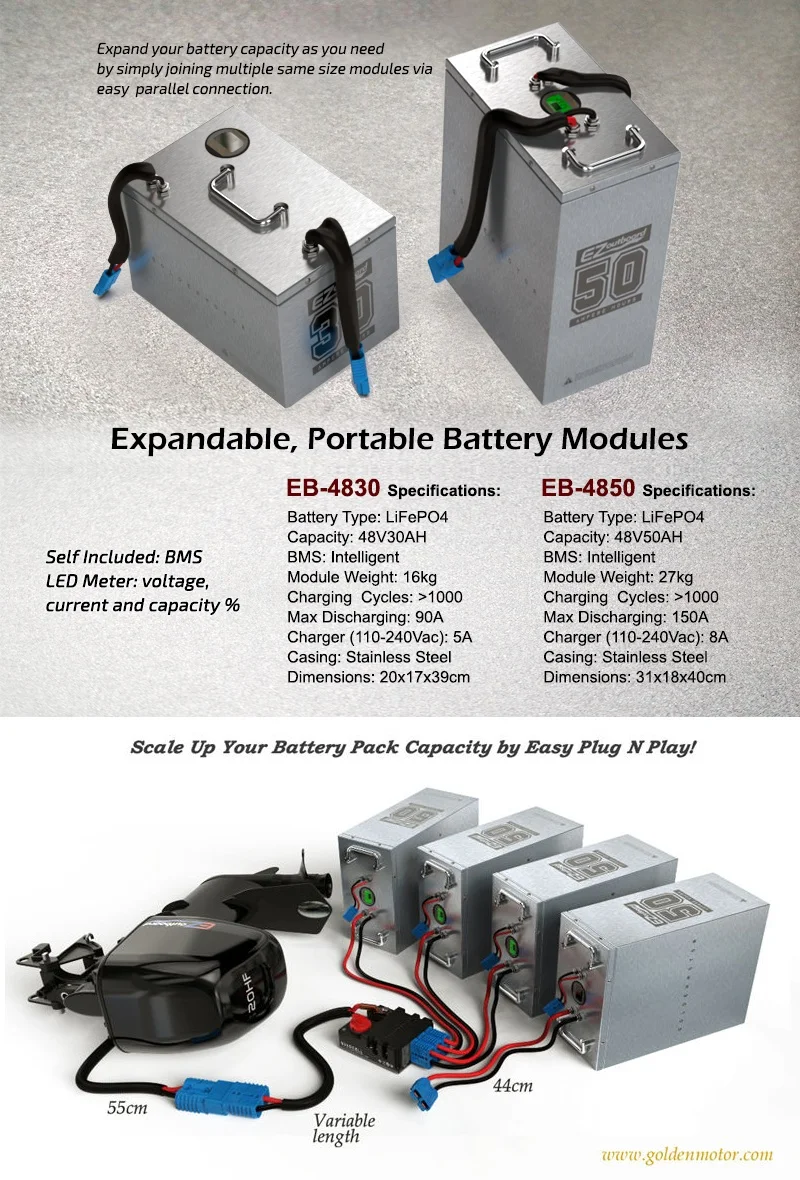

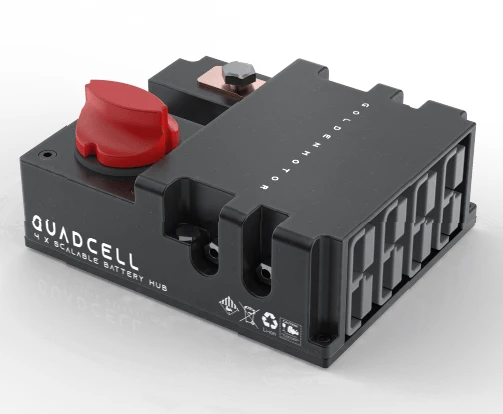

Product Name: QuadCell
We choose the most safe LiFePO4 battery type for our expandable battery modules, the materials used inside battery cell will not
cause any fire or explosion. The quality of cell is very consistent and can last more than 2000 charging cycles. Its C-rating is 3
times, that means a single 48V50AH module can output 150A Continuously. That's why you can buy just one or two battery modules
first, to test the outboard motor performance and get amperage to calculate before you know the exact battery capacity you need.
cause any fire or explosion. The quality of cell is very consistent and can last more than 2000 charging cycles. Its C-rating is 3
times, that means a single 48V50AH module can output 150A Continuously. That's why you can buy just one or two battery modules
first, to test the outboard motor performance and get amperage to calculate before you know the exact battery capacity you need.
For example, your trial boat testing shows you the motor current drawn from battery module is around 65A, if you need to operate your boat for 3 hours, then you need 65A*3H=195Ah battery capacity to meet your minimum requirements, this tells that you have to buy 4 sets of 48V50AH (4*50Ah=200Ah) battery modules all together.
Why we choose 48V system for outboard motor and battery pack, because it is safe for human and easy to pass local government safety regulations.
Of course, you can always buy other type of batteries from third party suppliers you can find locally, as long as its output
voltage is 48V, and capacity is enough to drive the electric outboards.
Why we choose 48V system for outboard motor and battery pack, because it is safe for human and easy to pass local government safety regulations.
Of course, you can always buy other type of batteries from third party suppliers you can find locally, as long as its output
voltage is 48V, and capacity is enough to drive the electric outboards.

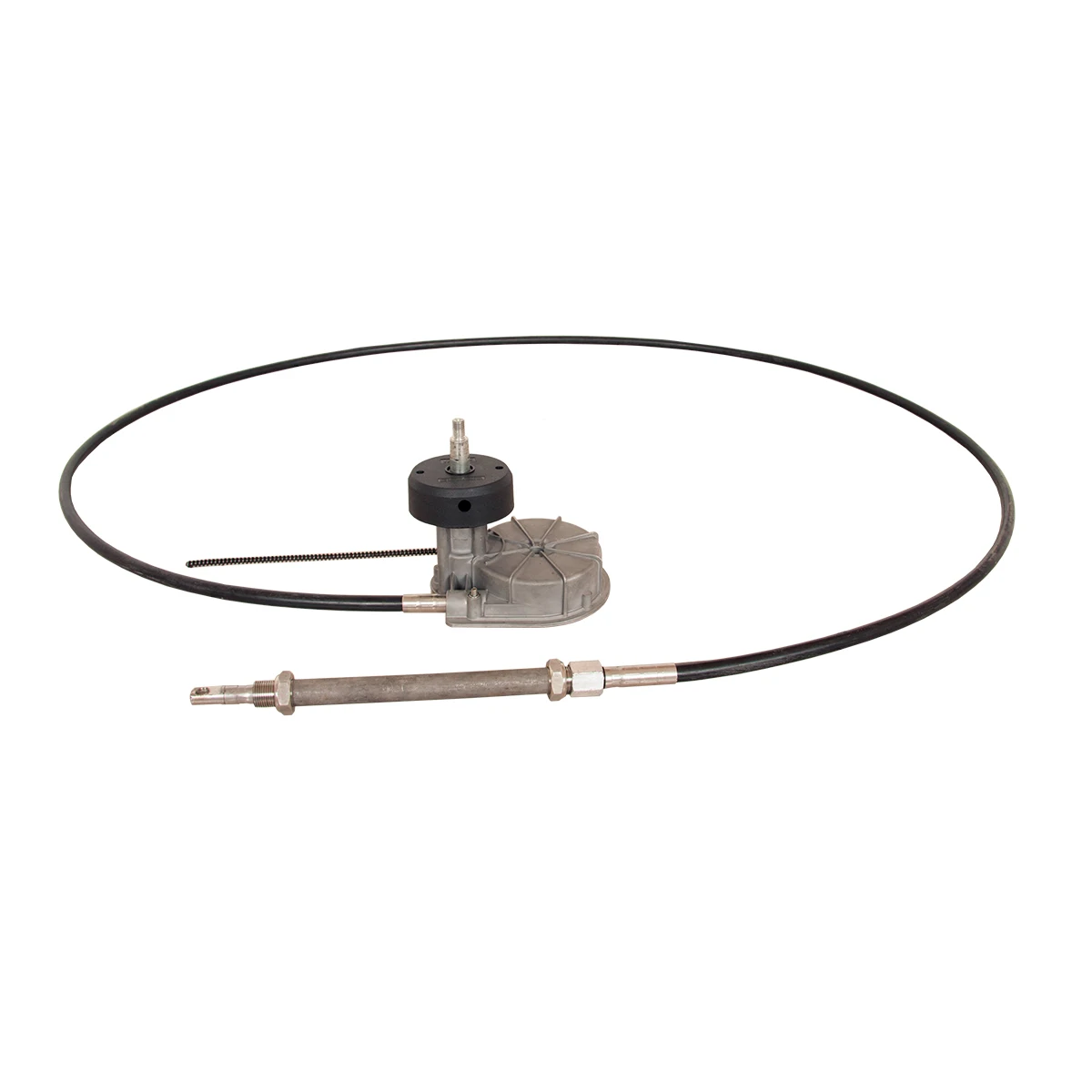

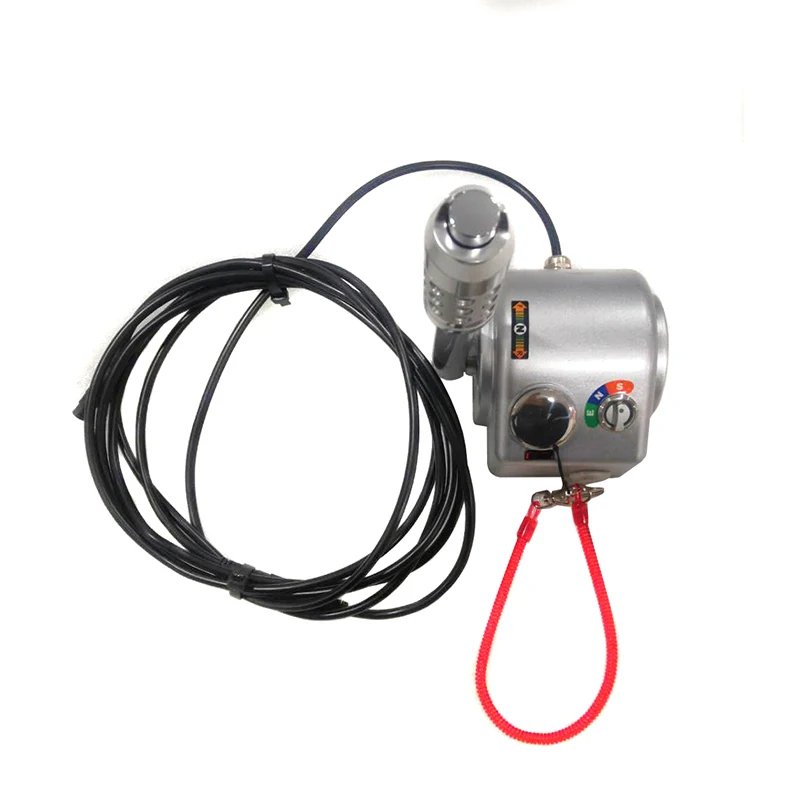

Accessories for Teleflex/Remote Control:
Teleflex Cabling Set, Stainless Steering Wheel, Remote Control Joystick Set
The Reasons Why You Choose Electric Outboard
Boating with Electric Outboard is Fun, Pleasant, Easy for EVERYBODY!
EZ of Use . Clean . Quiet . Light . Efficient . Safe . Reliable . Affordable
A growing number of boat owners favour electric propulsion to power their recreational boats, dinghy, kayakers, tender boats,fishing boats, catamaran, pontoons and cruisers. Electric propulsion outboard makes boating experience very fun and pleasant thanks to the ease of use, absence of engine noise, gas fumes and vibrations, and the bilge stays nice and clean with no oil or grease fouling the timber. With 90% fewer moving parts there is little that can wear out or break down, making electric motors a reliable and viable option for small boats. EZ Outboards are Pure Electric Propulsion, focused on 20hp or lower power ranges which require less battery capacity and more affordable for boat owners. Our electric propulsion outboards are uniquely designed and engineered for the highest energy efficiency, maximum safety and virtually Maintenance Free.
Related Products
Company Introduction
The Reasons Why You Choose Golden Motor
Golden Motor has been a leading manufacturer of high power BLDC motors and controllers for more than 12 years. Electric motors are core components to make electric propulsion outboards. We had started conversion of used gasoline outboards to electric version by replacing combustion engines with BLDC motors about 9 years ago . We have gained in-depth experience and knowledge about gasoline outboards from this conversion business, and learnt its pros and cons. In the end, we decided to completely re-design electric propel outboards to address the issues and weakness areas we found from existing gasoline outboards, and to best make use of full advantages of our high efficiency (>90%) and durable (>20000 hours of working life) BLDC motors. The idea is to help the environment, cut down on noise and save heaps of money in maintenance. Boats with EZ Outboard can sit all winter and won't require winterization and oil changes, no maintenance or only minimum maintenance is required.
COO He Zhang
Nearly20 years experience in the field of machinery, with about 50 patents.
Main Engineer A Chang
Nearly 18 years experience in the field of machinery, with about 30 patents.
Main Engineer Kevin
Nearly 15 years experience in the field of machinery, with about 20 patents.
EZ Outboards at Exhibitions, 3KW, 5KW, 10KW motors built inside.
FAQ
Q: How Far / How Long can i drive with this motor ?
A: It depends on the battery you will use, and the design of your boat. So you must test it by yourself.
Q: What is the speed can it drive ?
A: It depends on the design of your boat. We tested it with 4.5m boat and can reach 15KMH.
Q: Can you ship the good to my country ?
A: Yes, we can ship the Samples by Express(DHL, FedEX and so on) to your door.
A: Yes, we can ship the Samples by Express(DHL, FedEX and so on) to your door.
For big orders, we ship by sea to your sea port.
Q: What is the delivery time ?
A: For samples orders, it will take 1-2 weeks to ship your order. For bulk order, it will take 3-4 weeks to ship it.
Q: What is the shipping time ?
A: Delivery by Express will take 3-5 working days to reach your door. Delivery by sea will take 15-35 days to reach your port.
A: Delivery by Express will take 3-5 working days to reach your door. Delivery by sea will take 15-35 days to reach your port.
Q: What is the payment method ?
A: We accept Paypal, TT(Bank Transfer), Western Union, L/C...
A: We accept Paypal, TT(Bank Transfer), Western Union, L/C...
Q: How can i make the order ?
A: You can make the order online through alibaba. You can also contact our sales to order it. Our sales will offer you the invoice and after-sale service.
A: You can make the order online through alibaba. You can also contact our sales to order it. Our sales will offer you the invoice and after-sale service.
Q: How can i distribute your EZ-Outboards ?
A: You need to make an initial order of 10000 USD and collect 5 pcs EZ outboards at least to become our official distributor. And we will make a distributor agreement with you.
A: You need to make an initial order of 10000 USD and collect 5 pcs EZ outboards at least to become our official distributor. And we will make a distributor agreement with you.
Q: Do you offer warranty ?
A: Yes, we will offer 18 months warranty for our EZ-outboards.
A: Yes, we will offer 18 months warranty for our EZ-outboards.
