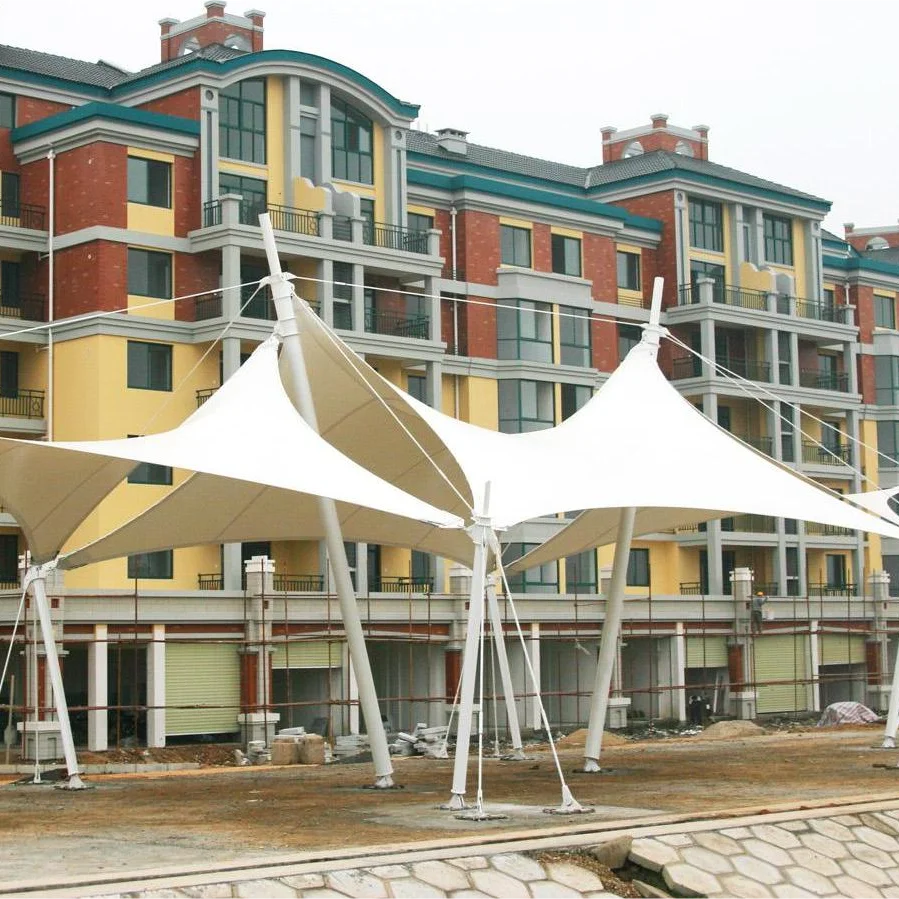

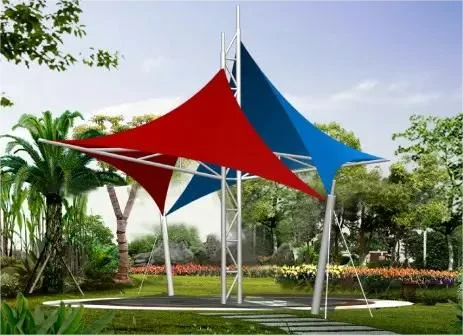

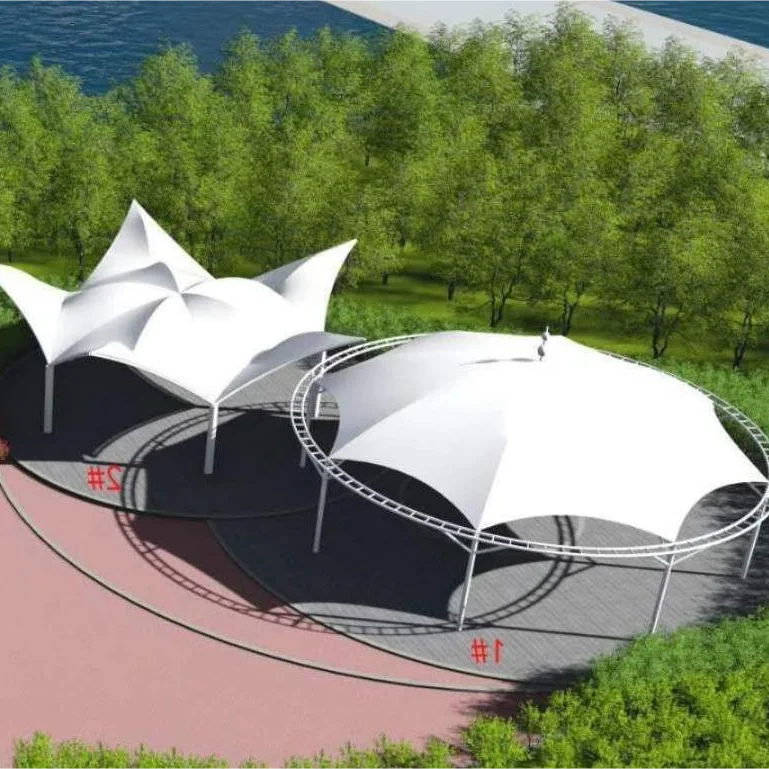

Outdoor PVDF coated fabric architectural sunshade tensile membrane structure tent
- Category: >>>
- Supplier: Xiamen Soli Membrane Structure Engineering Co. Ltd.
Share on (1600567574461):
Product Overview
Description
Product Description

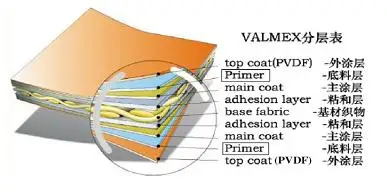

PVDF is the abbreviation of difluorinated resin, and the material coated with PVDF resin on the surface of PVC membrane is called PVDF membrane. The fabric substrate in the center of the PVDF membrane is divided into polyester fiber and glass fiber. From a mechanical point of view, the fabric substrate has good tensile strength, tear resistance, heat resistance, durability, and fire resistance; coating material It has weather resistance, antifouling properties, processability, water resistance, and light transmittance. Compared with ordinary PVC membranes, PVDF membranes have a durability of about 15-30 years, and are known as the most durable membrane materials in the industry.
Details Images

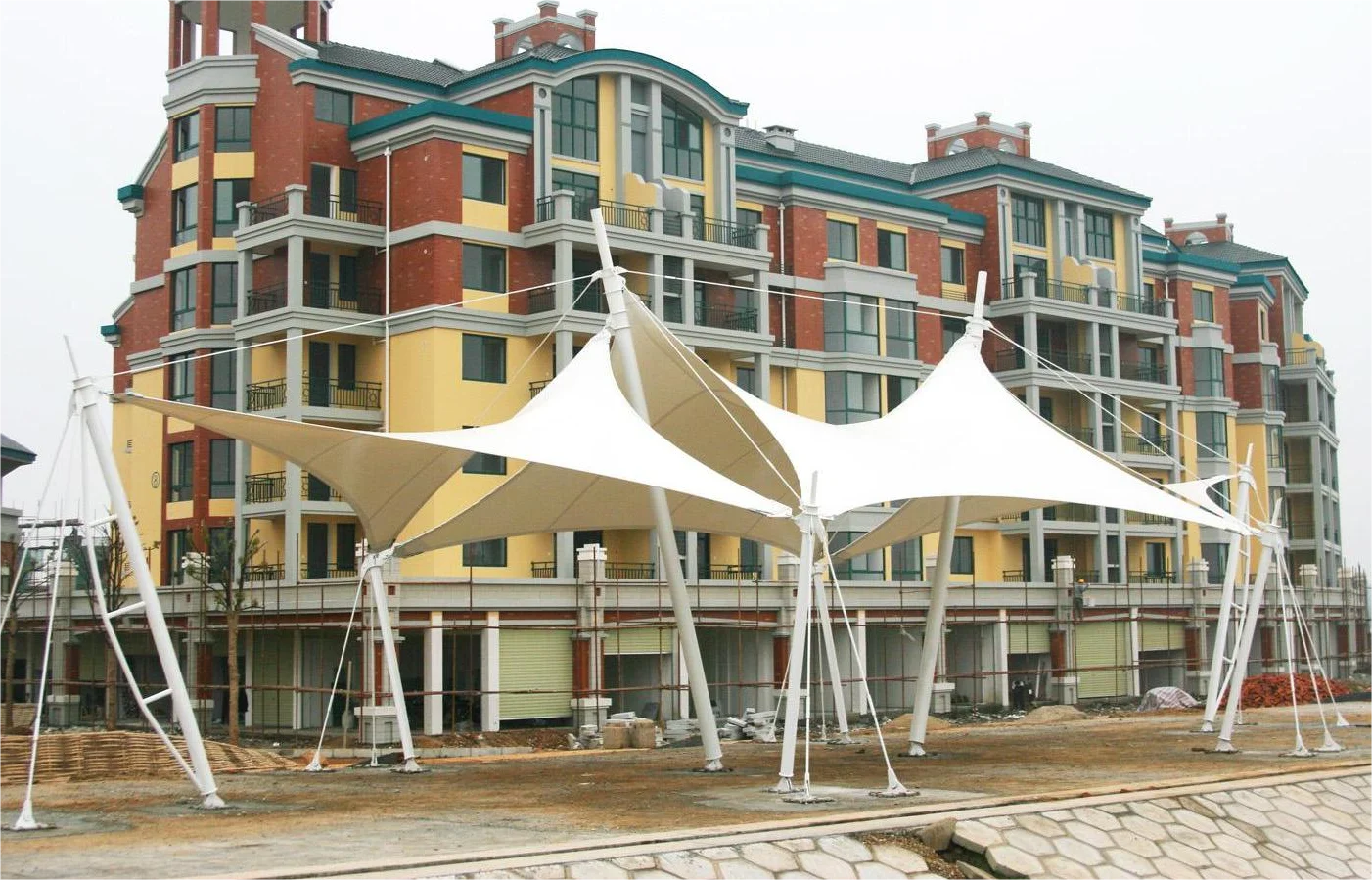

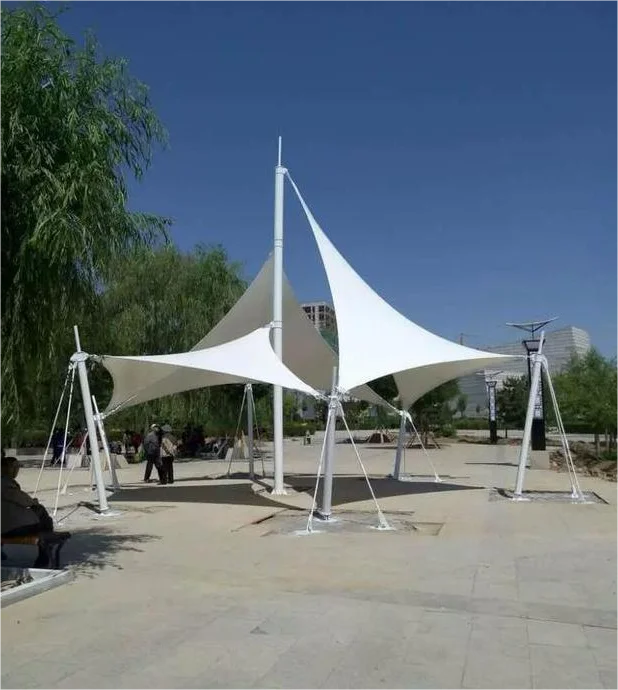

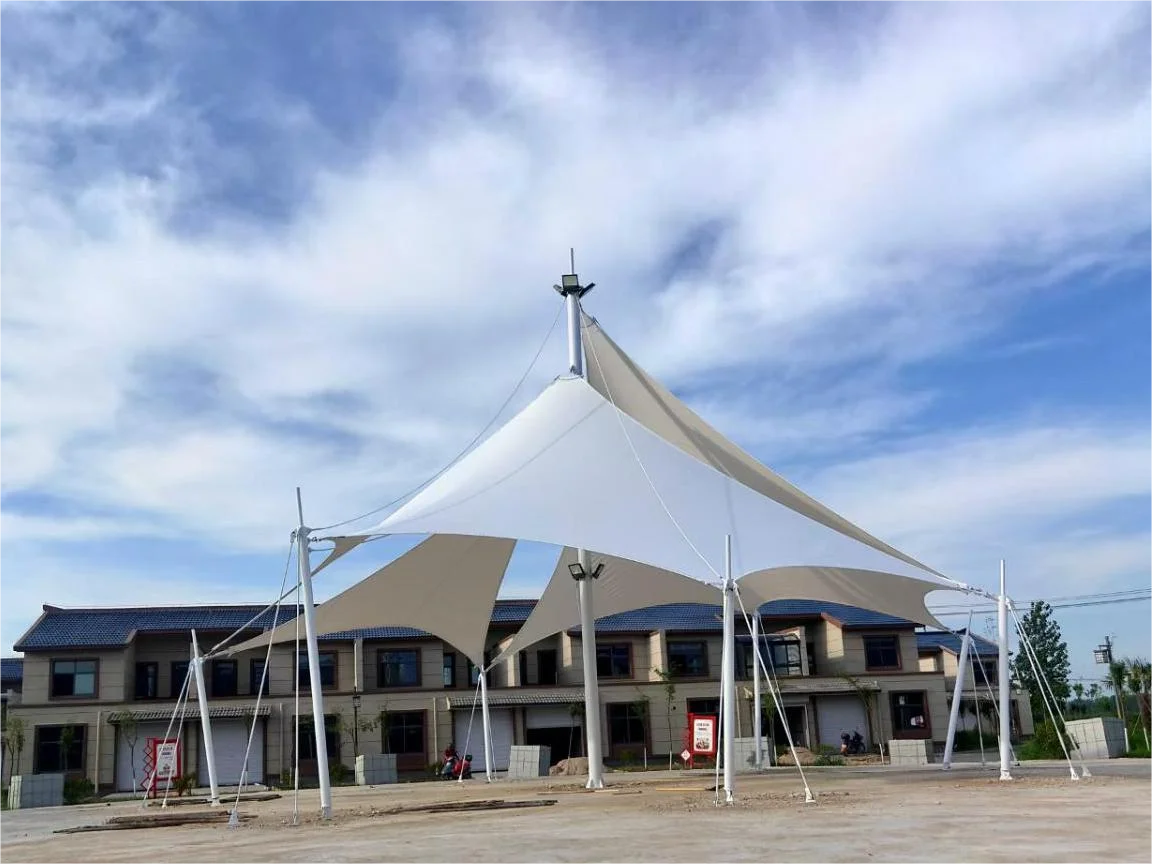

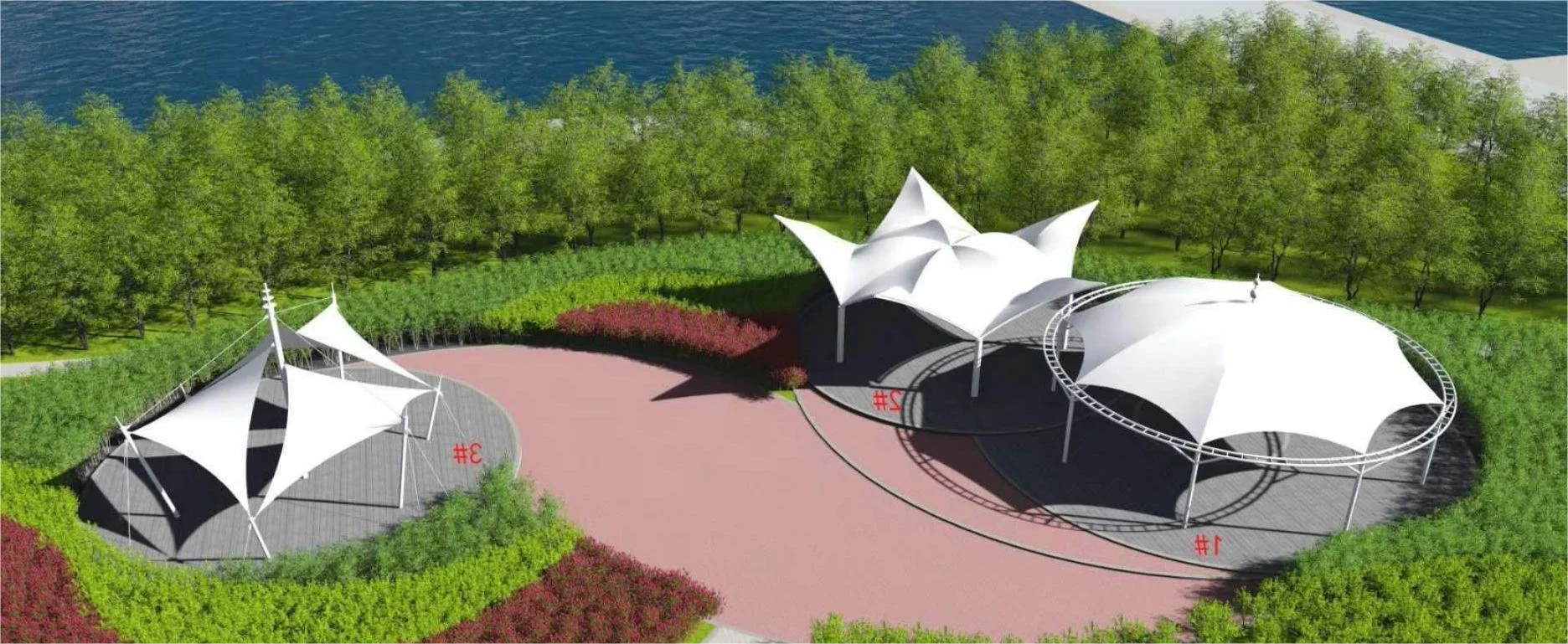

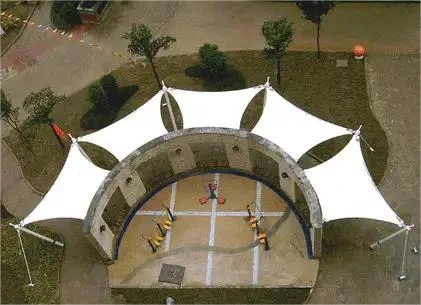

The basic components of the tensile membrane structure system are support columns, tension cables and membrane materials. The steel cable exerts tensile stress on the membrane at the periphery to form a hyperbolic parabolic stress state. The membrane has the dual functions of structural stress and building roof partitioning indoor and outdoor environments. Tensile membrane structure is light in weight, only 1/8 of steel structure and 1/40 of concrete structure. The membrane structure has good adaptability to the seismic force and wind force acting in the horizontal direction, and the structure itself has the mechanism of absorbing seismic force and wind force.
The tensile membrane structure will deform under the action of wind load or snow load. The membrane structure will adapt to the external load through deformation. During this process, the radius of curvature of the membrane surface in the direction of the load will be reduced until it can resist it more effectively.
Specification
Item | Specification |
Application | Park, leisure place, tourist attraction, seaside, pedestrian road, hotel entrance |
OEM Item | Size, shape, material, color are all acceptable |
Membrane Type | 100% polyester base fabric, optional PTFE or PVDF ,ETFE coated |
Support Frame | GB Q235 steel, seamless steel pipe, spiral pipe or aluminum alloy |
Color | Optional, such as white, red, cream-colored, pink, orange, etc. |
Warranty | Under normal circumstances: frame: one year, membrane material: 10-20 years OEM case: could be extended according to customer requirements |
Why Choose Us
Packing & Delivery
1. The membrane cloth is packed with old membrane.
2. Other accessories are packed in wooden cases.
3. The steel structure is directly bundled into the container.
4.The delivery time is determined by the order quantity. The larger the order quantity, the longer the production time.
4.The delivery time is determined by the order quantity. The larger the order quantity, the longer the production time.
Company Profile
Xiamen soly membrane structure engineering Co., Ltd., founded in 2006, is an early company engaged in membrane structure engineering design,construction and maintenance, with a group of early development of high-quality management personnel in membrane structure construction engineering design and construction. The company uses the most advanced international membrane structure construction, load analysis, cutting and structural calculation software for design, beautiful shape finding, structural optimization, especially the joint shape finding of membrane structure has more in-depth professional research, and has achieved good application effect.
FAQ
1. How many years have you been engaged in this industry?
We've been doing it for 16 years.
2. Do you have designers?
We have a special design team, according to your project needs, to provide the appropriate design.
3. About after sales service?
Free warranty for one year, support online installation technical guidance.
4. How long does your product last？
The service life of steel structure can reach 50 years, the service life of PVDF membrane material is 10-15 years, the service life of PTFE membrane material is about 25 years, and the service life of ETFE membrane material is at least 10-30 years.
5. Could you give us some suggestions for our project?
Of course. We have special designers who will make the most suitable products for you according to the drawings or information you provide.
6. How much is the freight to our end?
The cost depends on the current situation of logistics and the volume and weight of the product.
7. Do we have to pay tax on your side?
No, we are in charge of tax collection in our country.
