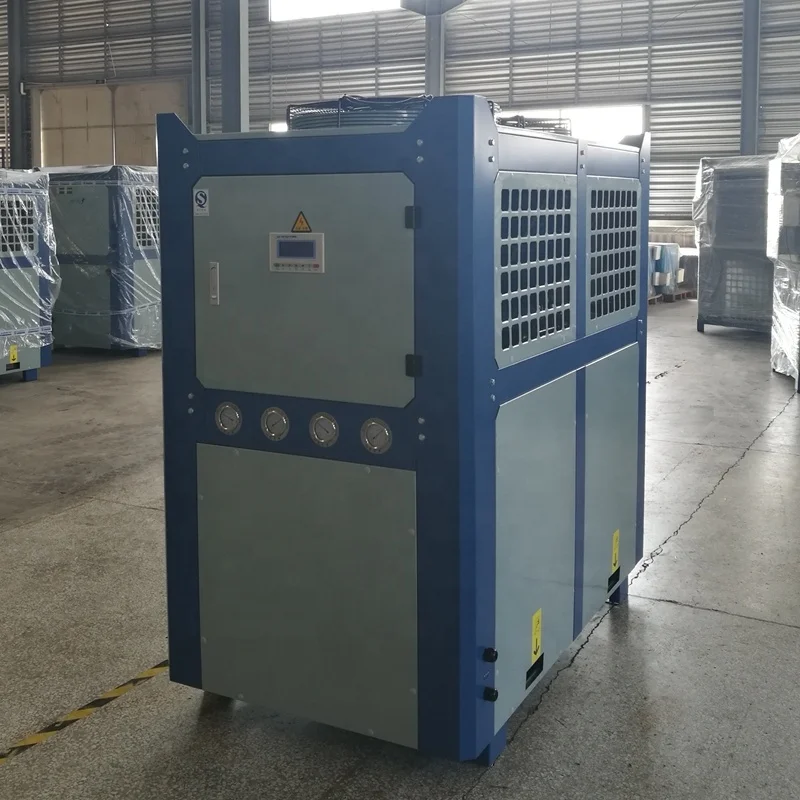

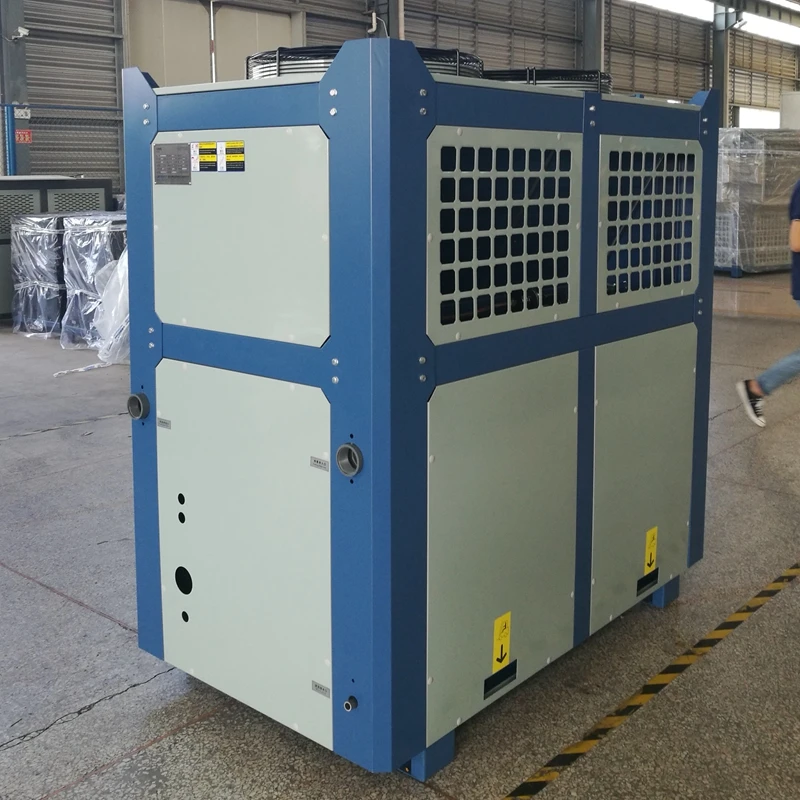

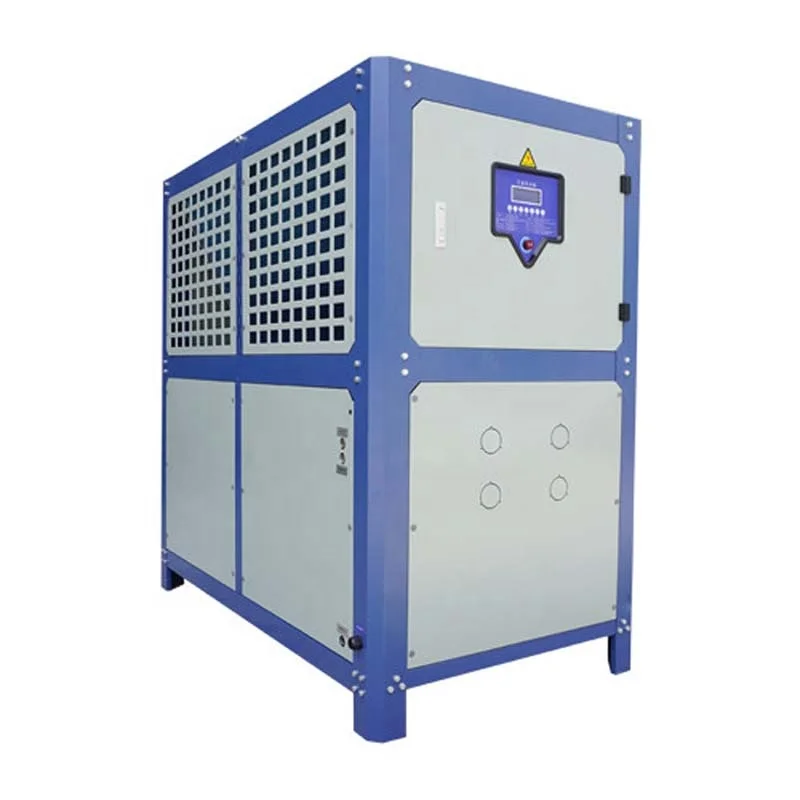

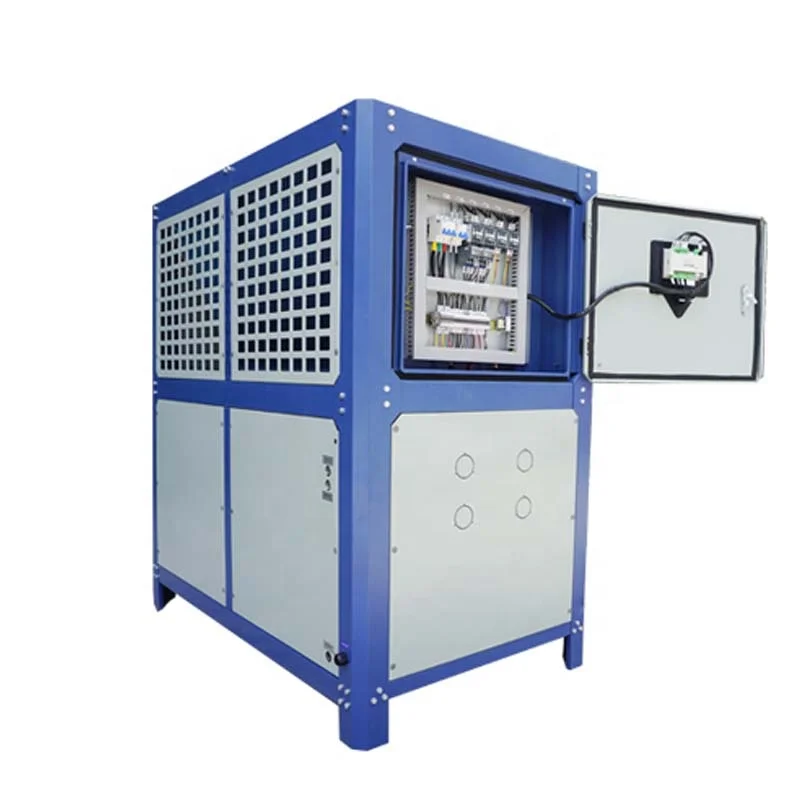

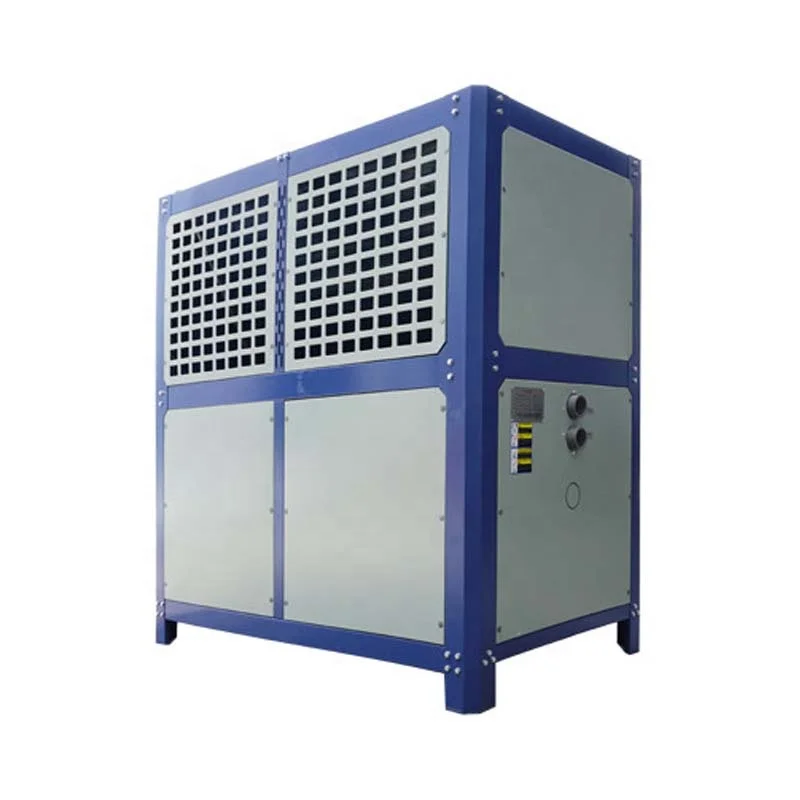

Kingfit high quality air cooled chiller for metal surface finishing
- Category: >>>
- Supplier: Zhejiang Kingfit Enviroment Co. Ltd.
Share on (1600567610013):
Product Overview
Description
Product Description
Professional Air & Water Cooled Chiller Manufacturer
Kingfit manufacturers chiller systems including air and water cooled chiller, which are fabricated with globally renowned scroll compressors from Copeland, Schneider electrical components, only the highest quality materials used and that made by workers with the most experience and knowledge in the industry.
Kingfit range of chillers are fully microprocessor based and suitable for industrial processes and production machinery applications from +20℃ up to 7℃ and single chiller has cooling capacity from 6kw to 130kw (2ton to 40ton).
Kingfit specialized in chiller industry for more than 20 years, has independent technical team, the water
chillers designed and manufactured in compliance with superior designing and manufacturing standards.
chillers designed and manufactured in compliance with superior designing and manufacturing standards.
Kingfit water chillers serve the following applications like metal surface finishing (anodizing, electroplating, paint coating), plastic injection, extrusion molding, blowing molding, beverage and milk processing, chemical fermentating, concrete cooling, pharmaceutical etc.
Specification
Model | QLB6FC | QLB8FC | QLB12FC | QLB25FC | QLB40FC | |||||
Cooling Capacity: | 5.7kw | 7.46kw | 12.7kw | 25.4kw | 39.2kw | |||||
COP | 3.08 | 3.04 | 3.11 | 3.11 | 3.21 | |||||
Input power | 1.85kw | 2.21kw | 3.71kw | 7.42kw | 10.8kw | |||||
Compressor: | Panasonic | Copeland | ||||||||
Condenser: | High efficient Fin + Copper coil type | |||||||||
Evaporator: | Tank + copper coil. | High efficient shell & tube | ||||||||
Chilled water flow rate: | 16.3L/min | 21.3L/min | 36.4L/min | 72.8L/min | 112L/min | |||||
Model | QLB50FC | QLB60FC | QLB80FC | QLB100FC | QLB130FC | |||||
Cooling Capacity: | 52.5kw | 58.8kw | 78.4kw | 94.2kw | 125.6kw | |||||
COP | 3.21 | 3.32 | 3.25 | 3.31 | 3.34 | |||||
Input power | 14.88kw | 16.2kw | 21.6kw | 25.5kw | 34kw | |||||
Compressor: | Copeland | |||||||||
Condenser: | High efficient Fin + Copper coil type | |||||||||
Evaporator: | High efficient shell & tube | |||||||||
Chilled water flow rate: | 150L/min | 169L/min | 225L/min | 270L/min | 360L/min | |||||
Refrigerant:R410A. | ||||||||||
Chilled water outlet temperature at 7℃ | ||||||||||
Ambient temperature below:45℃ | ||||||||||

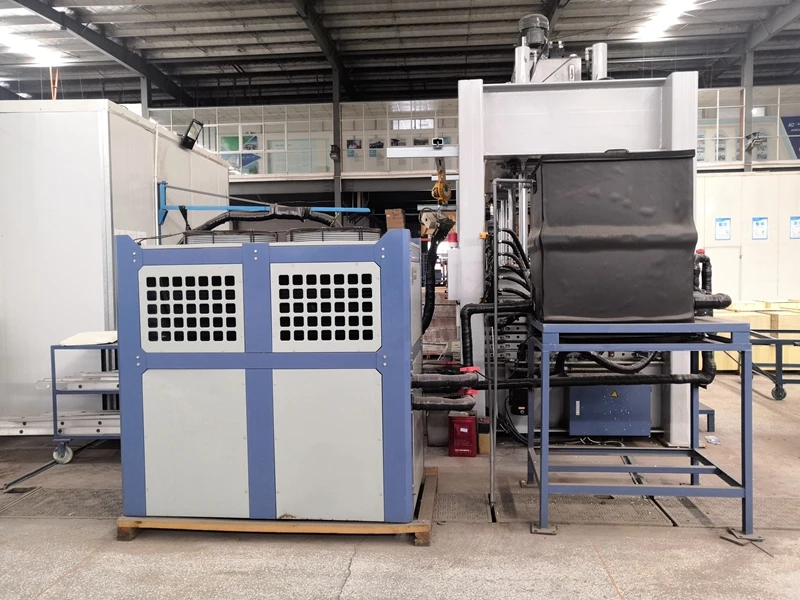

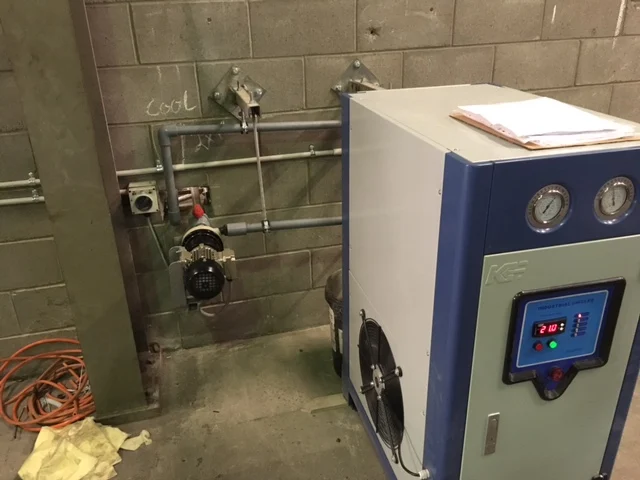

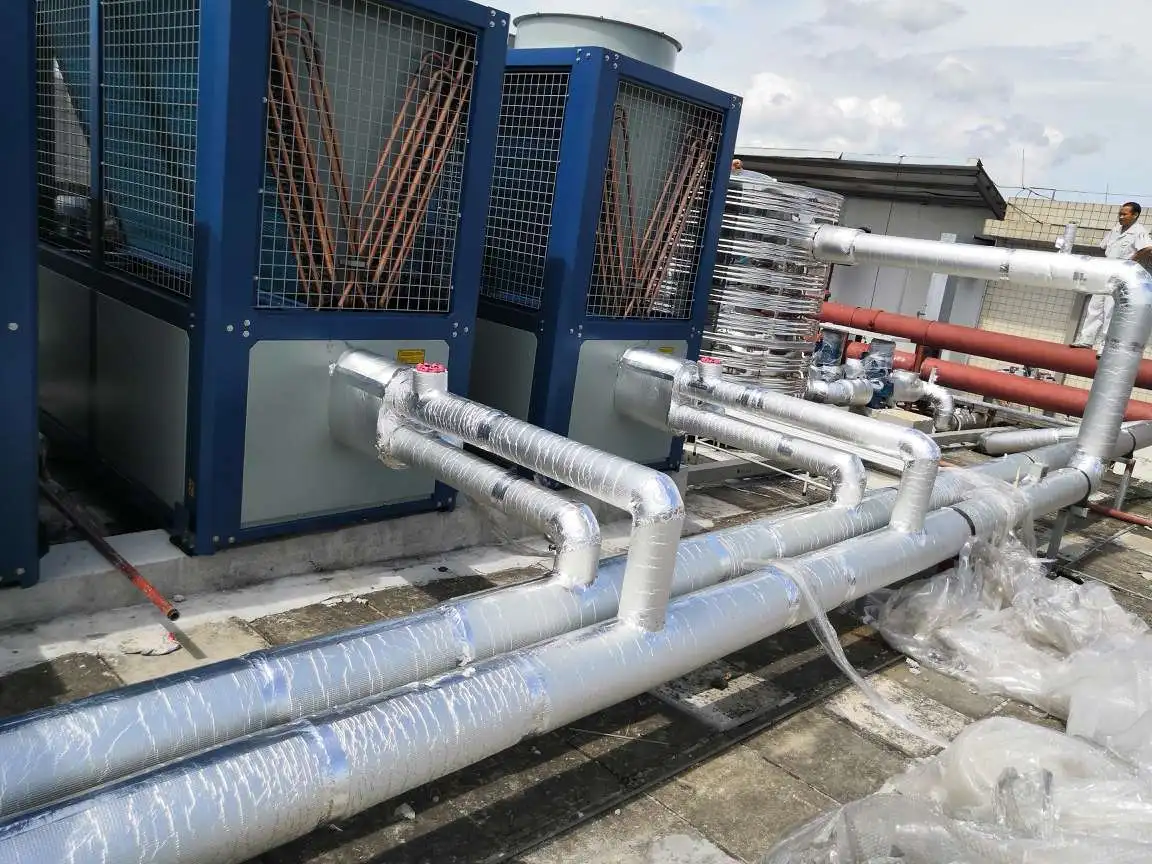

Solutions
Plastic injection cooling, Die cooling, mould cooling, PVC PPR PP Extruding cooling purpose.

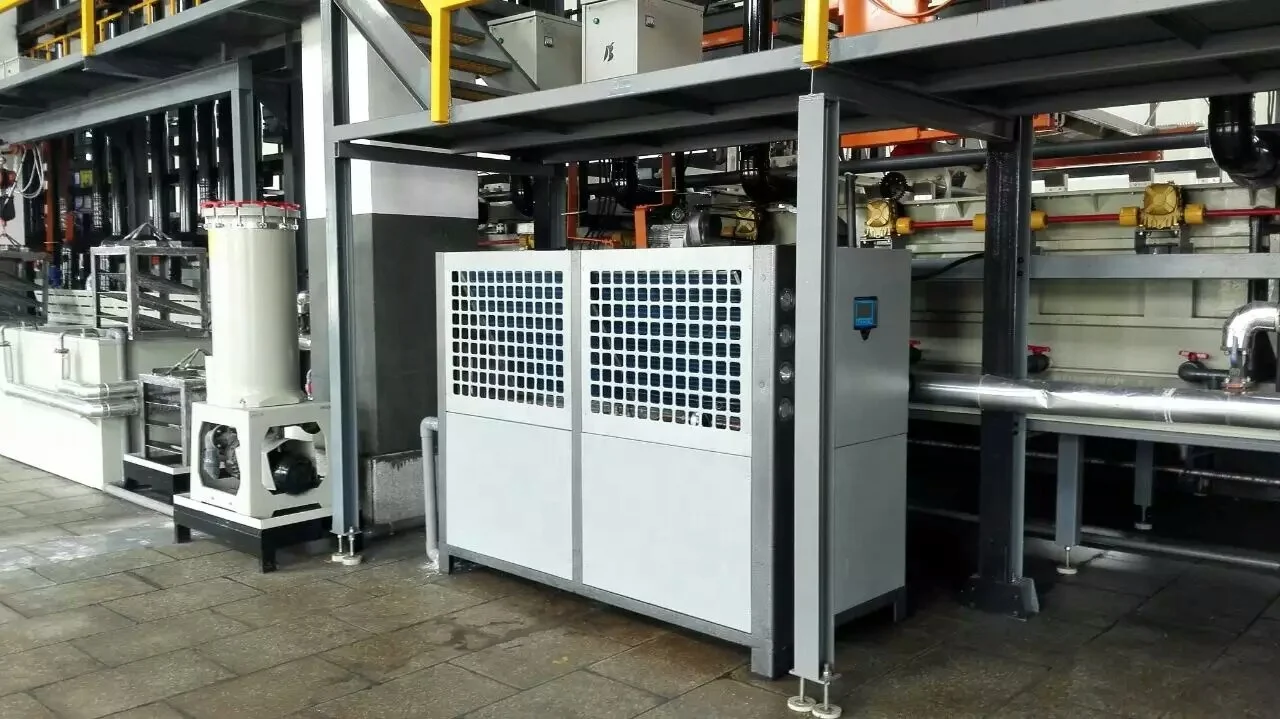

Food & beverage processing, Metal surface finishing electroplating etc.
Why Choose Us
Experienced In Chiller
Over 20 years of rich experience in chiller manufacturing and our professional engineer team is offering the complete chiller designs and models to meet all your requirements.
All Industries Served
With rich experience of different kings of chillers/chiller systems for various industrial applications can help to work out the correct chiller suitable for your needs.
Global Chiller Shipment
No matter which country you are from, just tell your nearest seaport or airport, we can arrange your chiller order at the fastest shipping even can do door to door delivery.
OEM/ODM Available
Kingfit can provide customers’ OEM/ODM service and using your company brand & logo. Besides our standard configuration chillers, we can also design and customize chillers based on your requirements.
Over 20 years of rich experience in chiller manufacturing and our professional engineer team is offering the complete chiller designs and models to meet all your requirements.
All Industries Served
With rich experience of different kings of chillers/chiller systems for various industrial applications can help to work out the correct chiller suitable for your needs.
Global Chiller Shipment
No matter which country you are from, just tell your nearest seaport or airport, we can arrange your chiller order at the fastest shipping even can do door to door delivery.
OEM/ODM Available
Kingfit can provide customers’ OEM/ODM service and using your company brand & logo. Besides our standard configuration chillers, we can also design and customize chillers based on your requirements.
Full Solutions Provider
Our services including: chiller requirement communication, analysis, designing, manufacturing, quality control, chiller delivery.
We always keep advising not just chiller manufacturing.
Top Quality Chiller
Always take good care of your chiller order from design, raw material purchasing, manufactured, testing & delivery to make sure all chiller making processes are under controlled.
No Worries Service
World business trip/chiller related exhibitions and fairs 2-3times yearly can settle face to face meeting, 24*7*365 online service with fast feedback.
12 Months Warranty
All Kingfit chillers cover 12 months of standard warranty time s after shipment. This makes all customers use our chillers freely without worries about the after-sales service.
Our services including: chiller requirement communication, analysis, designing, manufacturing, quality control, chiller delivery.
We always keep advising not just chiller manufacturing.
Top Quality Chiller
Always take good care of your chiller order from design, raw material purchasing, manufactured, testing & delivery to make sure all chiller making processes are under controlled.
No Worries Service
World business trip/chiller related exhibitions and fairs 2-3times yearly can settle face to face meeting, 24*7*365 online service with fast feedback.
12 Months Warranty
All Kingfit chillers cover 12 months of standard warranty time s after shipment. This makes all customers use our chillers freely without worries about the after-sales service.
Company Profile
About US

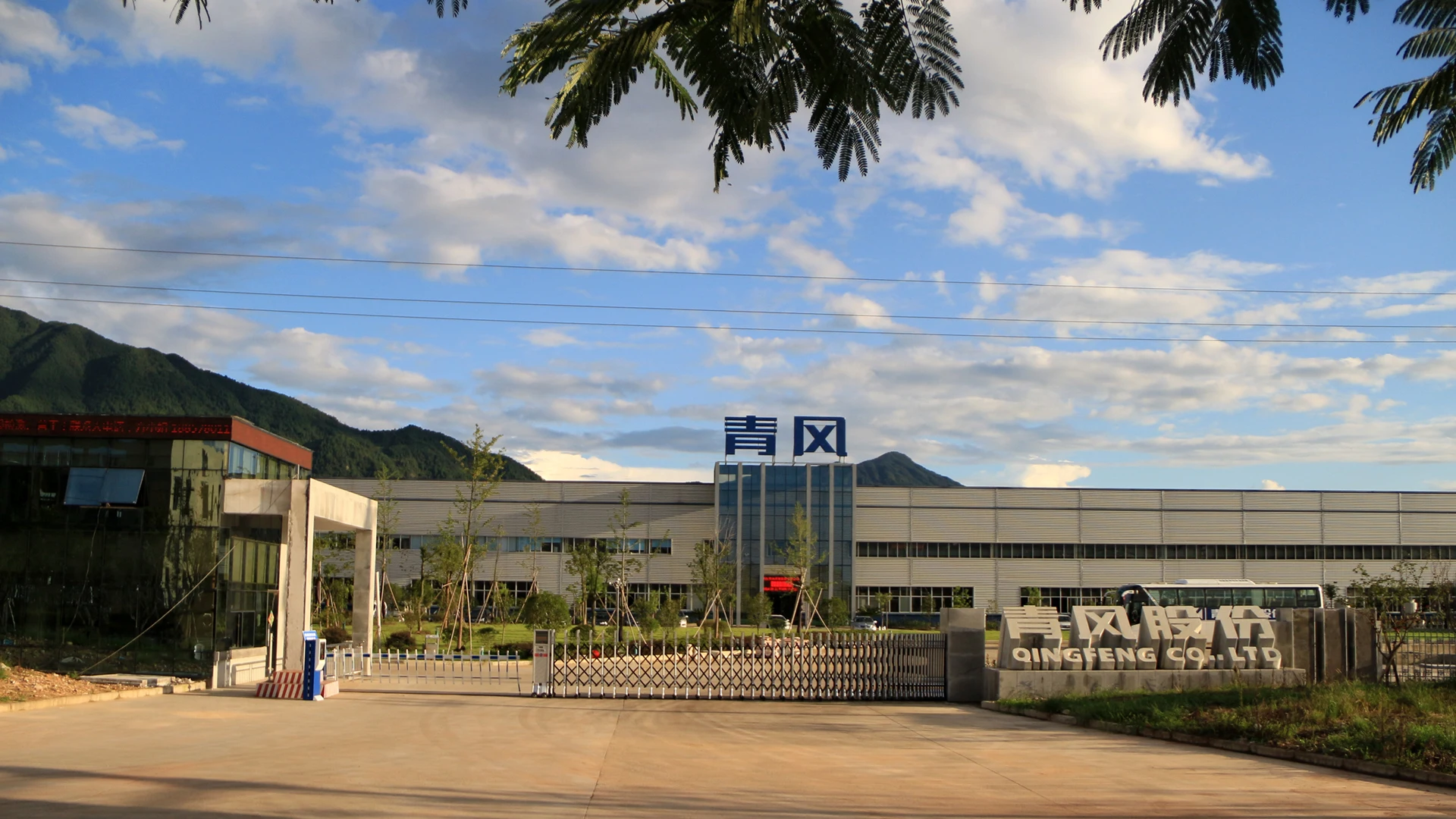

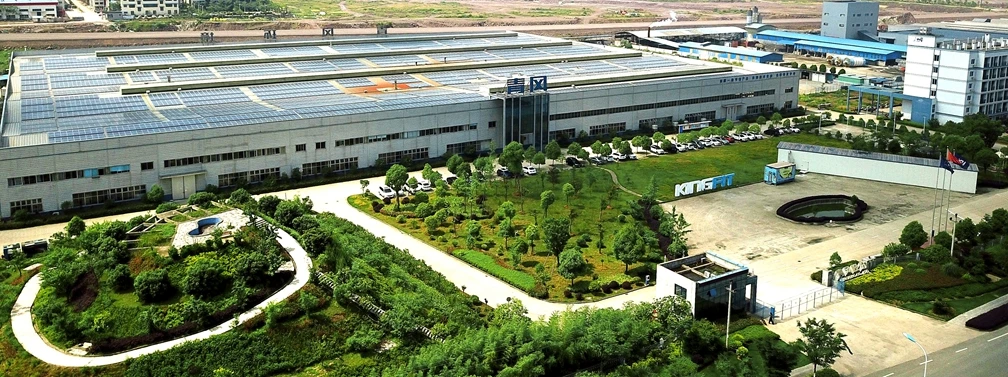

Zhejiang Kingfit Environmental Co., Ltd. is a national high-tech enterprise that has been committed to the one-stop solution for modern industrial and agricultural intelligent environmental systems for many years. Kingfit is located in Shuige Industrial Zone, Lishui City, Zhejiang Province, and covers an area of 80000m2. It has standard cooling equipment, water cooling and cold water test equipment, test benches, enthalpy difference laboratories, and other advanced testing equipment. The scale of production can each an annual output of 20,000 sets of industrial air conditioners.
Since its establishment, Kingfit has actively promoted technological innovation. Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
Kingfit has established a comprehensive quality management system compatible with ISO9001 quality management system, ISO14001 environmental management system, OHS18001 occupational health and safety management system, pressure vessel production license, and "6S" site management and CE approved. The theory of improvement was integrated and an integrated continuous improvement model was established, which greatly improved the operational efficiency and effectiveness of corporate management.
Kingfit understands the needs of customers, customizes the products for customers, and customizes the requirements. At present, the products are exported to more than 60 countries and regions all over the world and have received unanimous recognition and praise from customers.
Since its establishment, Kingfit has actively promoted technological innovation. Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
Kingfit has established a comprehensive quality management system compatible with ISO9001 quality management system, ISO14001 environmental management system, OHS18001 occupational health and safety management system, pressure vessel production license, and "6S" site management and CE approved. The theory of improvement was integrated and an integrated continuous improvement model was established, which greatly improved the operational efficiency and effectiveness of corporate management.
Kingfit understands the needs of customers, customizes the products for customers, and customizes the requirements. At present, the products are exported to more than 60 countries and regions all over the world and have received unanimous recognition and praise from customers.

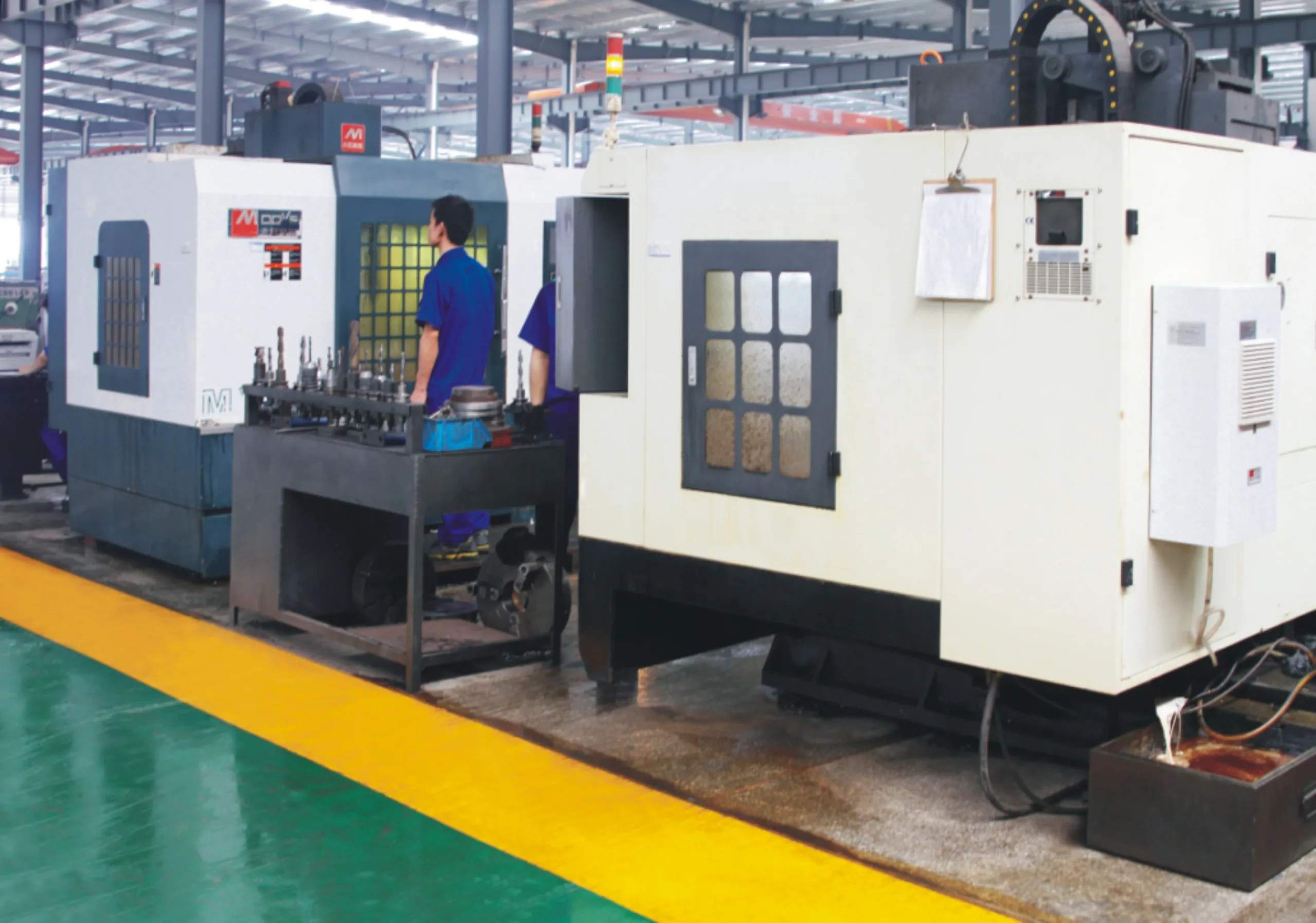

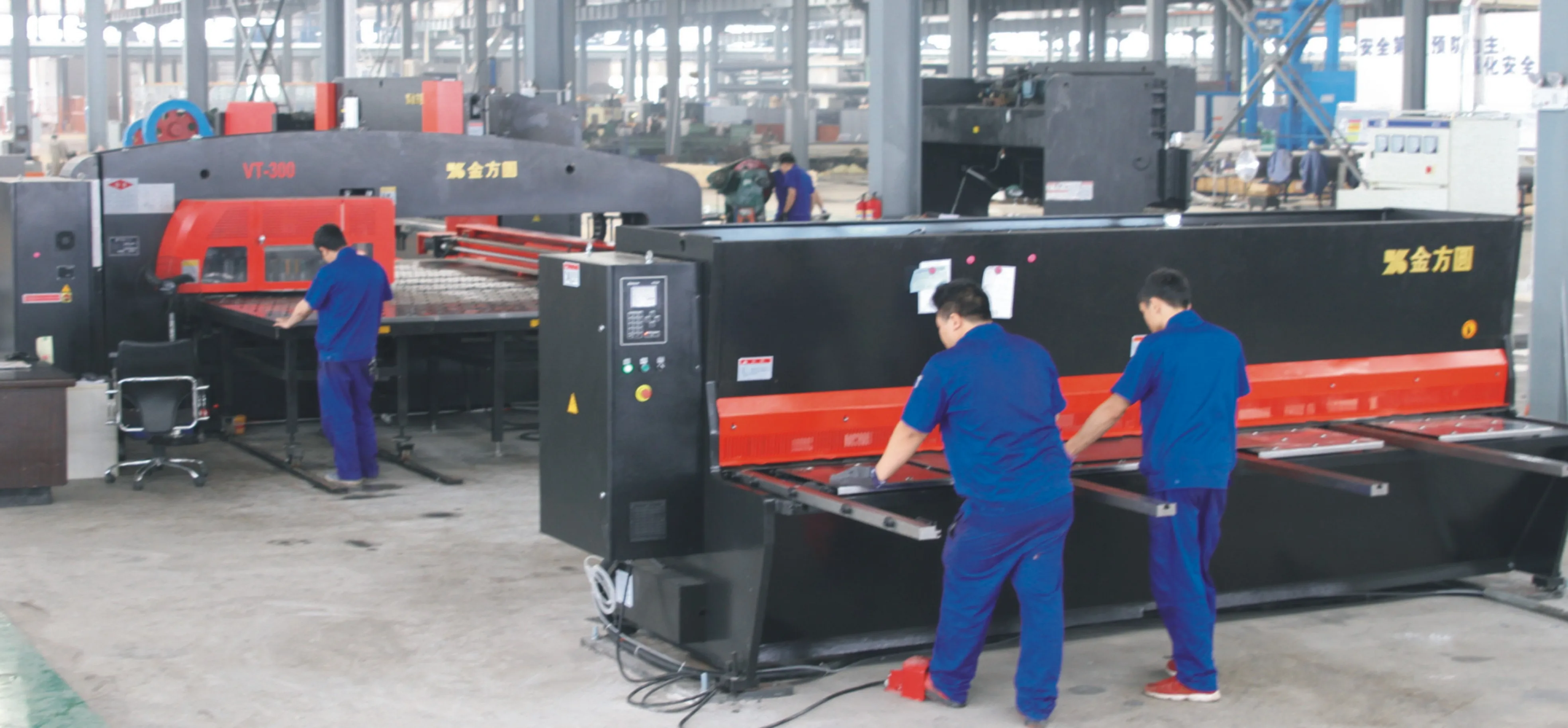

Modern Production Lines:
Certifications
Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
ISO9001, CE Certificate.
Exhibition
Packing & Delivery
Wooden package with Air bubble film, Wrapping Film, Big part will be nude packing in container, steel wire fixed so that it's stable for shipping.
FAQ:
1. Are you manufacturer or Trade Company?We are professional factory, founded in 1998. OEM available!
2. What's the order process?
Inquiry---provide us all clear requirements.
Quotation---official quotation form with all detail specifications.
Contract confirmation---provide correct contract details.
Terms of payment--- By T/T 40% downpayment, balance before shipment.
Production---mass production.
Testing---8hours, to ensure the quality of the machine.
Shipping--- by sea, train. Detailed picture of package will be provided.
Installation---install video/install manual.
3.What terms of payment you use?
T/T, L/C, etc.
4. How to get a prompt quotation?
When you send the inquiry to us, please kindly send it with below technical information.
1). Application:
2). Cooling capacity: _____KW or _____ Kcal/hr or _____RT.
3). Outlet temperature:
4). Power supply: 3PH 380V/50HZ or 3PH 230V/60HZ or 3PH 440V/60HZ.
5). Location of your factory, we have to know the weather condition.
6). Any other special requirements:
5. Any technical support need or purchase need please contact to us!
