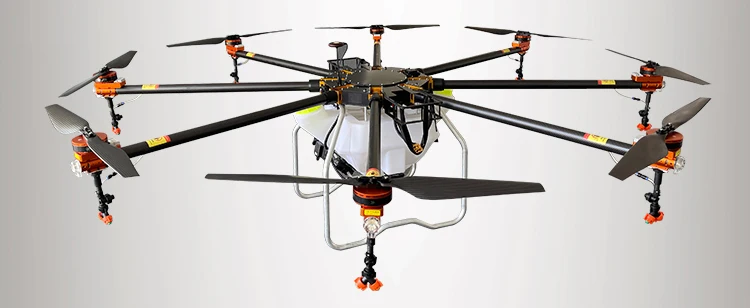

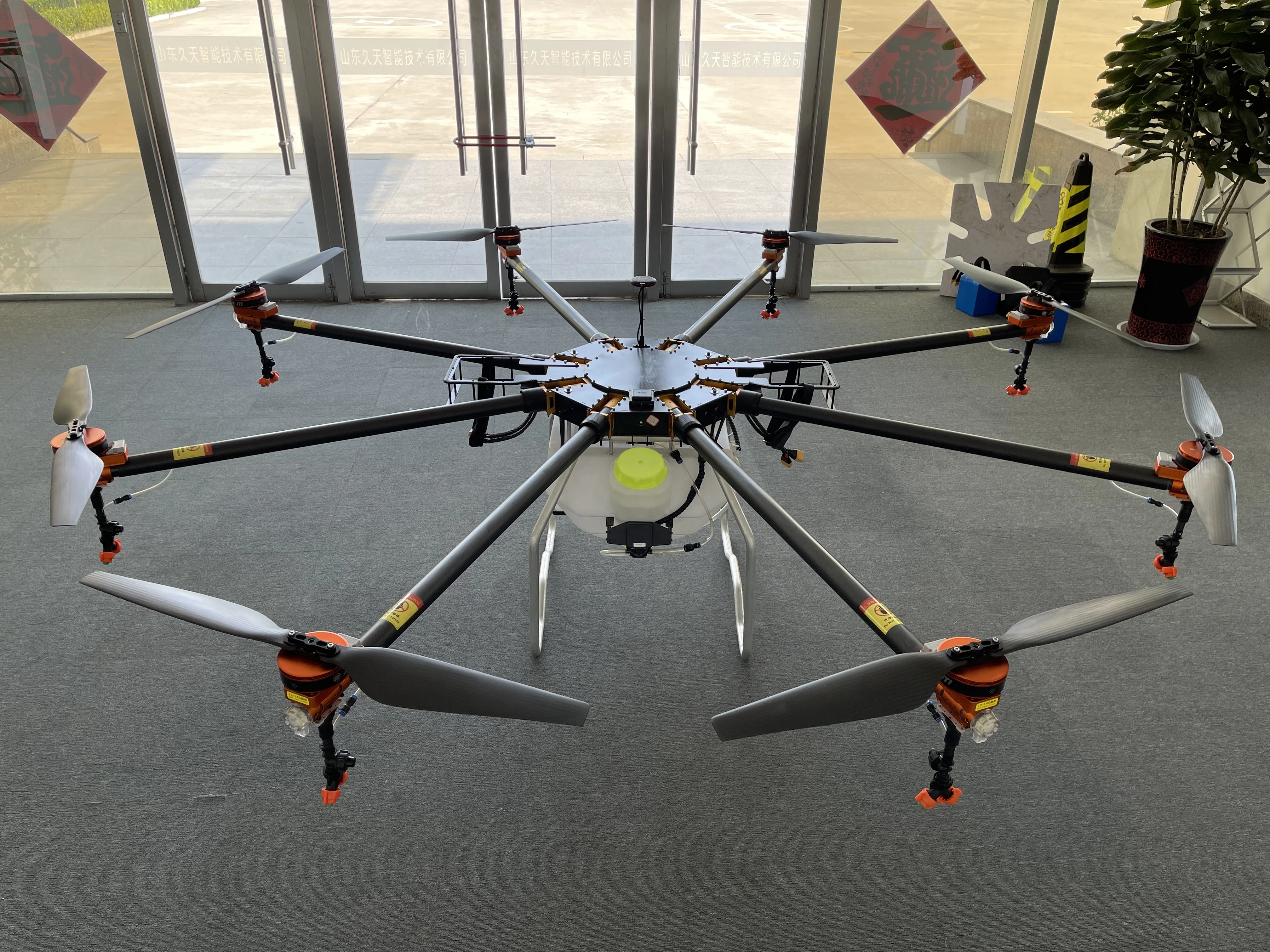

50L payload 50 kg large capacity efficient agricultural UAV
- Category: >>>
- Supplier: Shandong Jiutian Intelligent Technology Co. Ltd.
Share on (1600567626134):
Product Overview
Description
Products Description

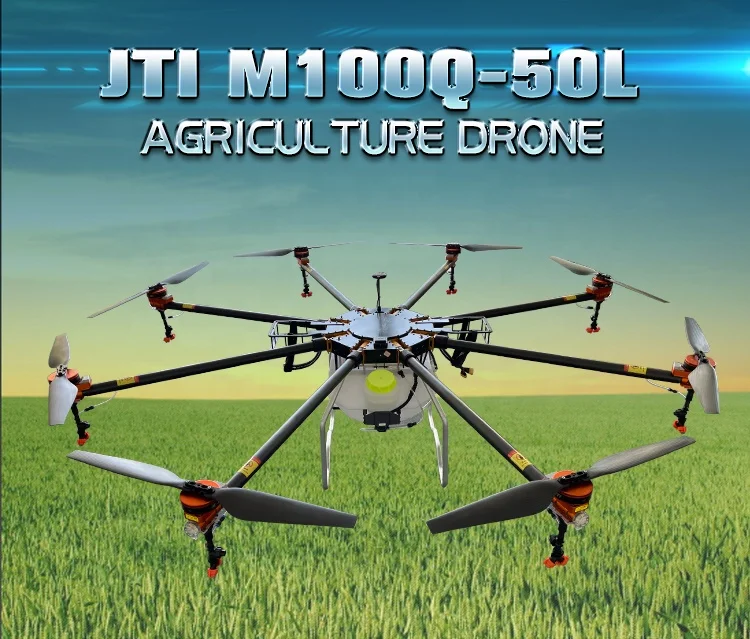

Model | JTI M100Q | |
Product material | Aviation carbon fiber + aviation aluminum | |
Product expansion size | 3420mm*3420mm*850mm | |
Product folded size | 900mm*900mm*1800mm | |
Maximum takeoff weight | 95KG | |
Maximum pesticide load | 80KG | |
Aircraft weight | 35KG | |
Aircraft medicine box capacity | 51L | |
Flight altitude | ≤30m | |
Flight radius | ≤5000 meters | |
Flight duration | 13~40 minutes | |
Flight speed | 1-20 m/s | |
Aircraft power life | ≥100,000 hours | |
Airframe life | ≥10 years | |
Working spray width | 6-15 meters | |
Job life time | 7~13 minutes when fully loaded | |
Hover in the air | Hover in any direction | |
Spray flow | 8-15L/min | |
Sprinkler system | Imported high pressure anti-floating atomizing nozzle | |
Atomization point size | 60~90μm | |
Control system | Agriculture dedicated controller | |
Control efficiency | ≤100ha/day | |
Safe take-off and landing wind speed | ≤Class 7 | |
Charging system | Lithium battery balance computer charger | |
Motor speed | 5000 rpm | |
Power system | 48V power polymer lithium battery | |
JTI seeding system parameters | ||
Weight | 1.8KG | |
Sowing volume | 30L | |
Maximum load inside the spreading box | 30KG | |
Applicable material particle diameter | 0.5-5MM | |
Maximum warehouse door opening area | 8.6CM² | |
Sowing range | It is related to the material particle diameter, the speed of the spreading plate, the size of the silo, and the flying height. It is recommended that the user adjust the relevant variables so that the spreading range is within 4-6M to obtain a better operation effect. | |

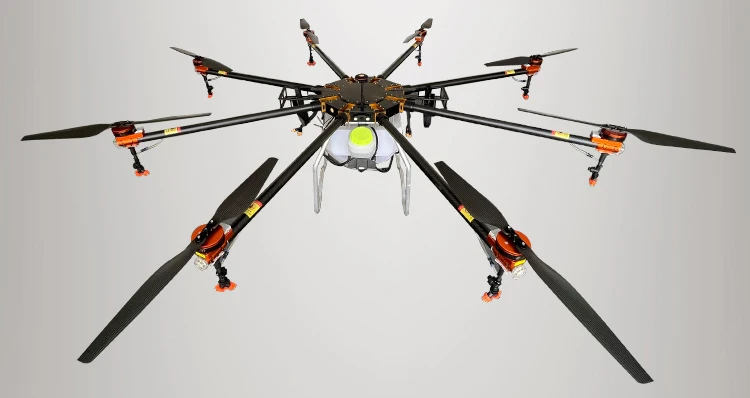

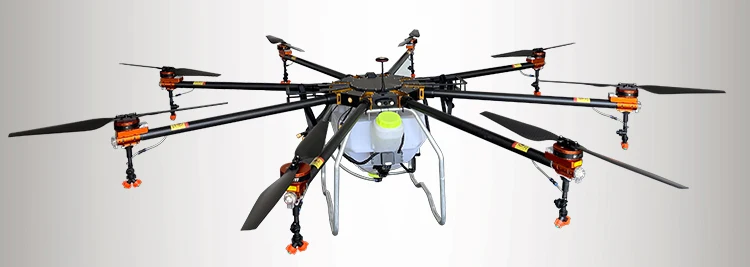

Product Display
Powerful and high efficiency power system working Stability.
Remote operation, avoid pesticide poisoning.
Intelligent operation mode,easy operation, more efficiency and accurate.
Small size, needn’t special landing airport, light weight and easy to carry.
Does not have any waste gas, absolute environmental protection
Spray pattern can save at least 50% of pesticide use, and reduce water consumption,this will greatly reduce the extent of resource costs.

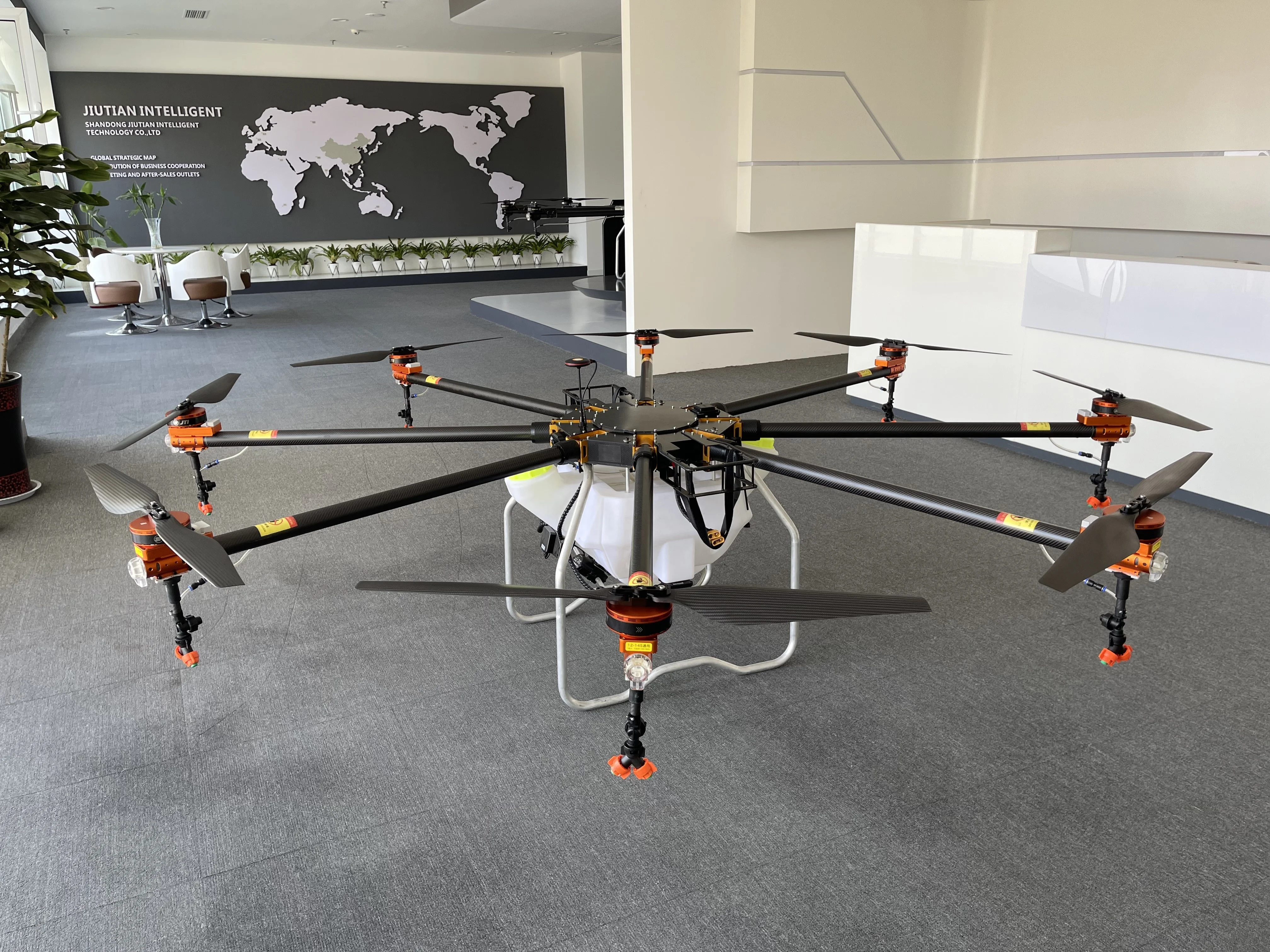

Details Images
Customer service-7(days)*24(hours) manual customer service.
Technical guide-Free drone training and technical support.
Accessory Service-Provide accessories sales, installation and technical guidance.
Update Service-Provide flight control software upgrade service.Make yourspray operations smarter.
Profit-Rich cooperation policy.Become our excellent partner, Let your income continue to expand.
Technical guide-Free drone training and technical support.
Accessory Service-Provide accessories sales, installation and technical guidance.
Update Service-Provide flight control software upgrade service.Make yourspray operations smarter.
Profit-Rich cooperation policy.Become our excellent partner, Let your income continue to expand.
Packaging & Shipping
Company Profile
Shandong Jiutian Intelligent Technology Co., Ltd. is a high-tech enterprise focusing on unmanned aerial vehicles. Our company has been manufacturing and selling intelligent unmanned aerial vehicles products for 11 years, such like agricultural liquid spraying drones, lighting drones, police drones, inspection drones, communication drones, vertical take-off and landing aircraft and other UAV’s derivative products. Our company has a complete and scientific quality management system to ensure our product quality. At present, our business covers the application of UAV working solutions, UAV effective farming services, UAV automation control software development, UAV maintenance support and drone driving training. We will continue to research and develop high quality products for consumers.
FAQ
Q1. Not sure what kind of drone is right for you?
A1: Please tell the customer service the area of land and the type of plants you need to spray, and the customer service will recommend the most suitable drone for you.
Q2. How many hectares can the drone spray a day?
A2: Less than or equal to 100 hectares/day
Q3. What is the MOQ of the drone?
A3: MOQ is 1 unit
Q4. How long is the warranty period?
A4: For you to extend the warranty period of up to 18 months, including the airframe, flight control system, power system. (Does not include unauthorized disassembly, soaking in water)
Q5. How long is the lead time?
A5: 1Ships within 3-7 business days.
A1: Please tell the customer service the area of land and the type of plants you need to spray, and the customer service will recommend the most suitable drone for you.
Q2. How many hectares can the drone spray a day?
A2: Less than or equal to 100 hectares/day
Q3. What is the MOQ of the drone?
A3: MOQ is 1 unit
Q4. How long is the warranty period?
A4: For you to extend the warranty period of up to 18 months, including the airframe, flight control system, power system. (Does not include unauthorized disassembly, soaking in water)
Q5. How long is the lead time?
A5: 1Ships within 3-7 business days.
