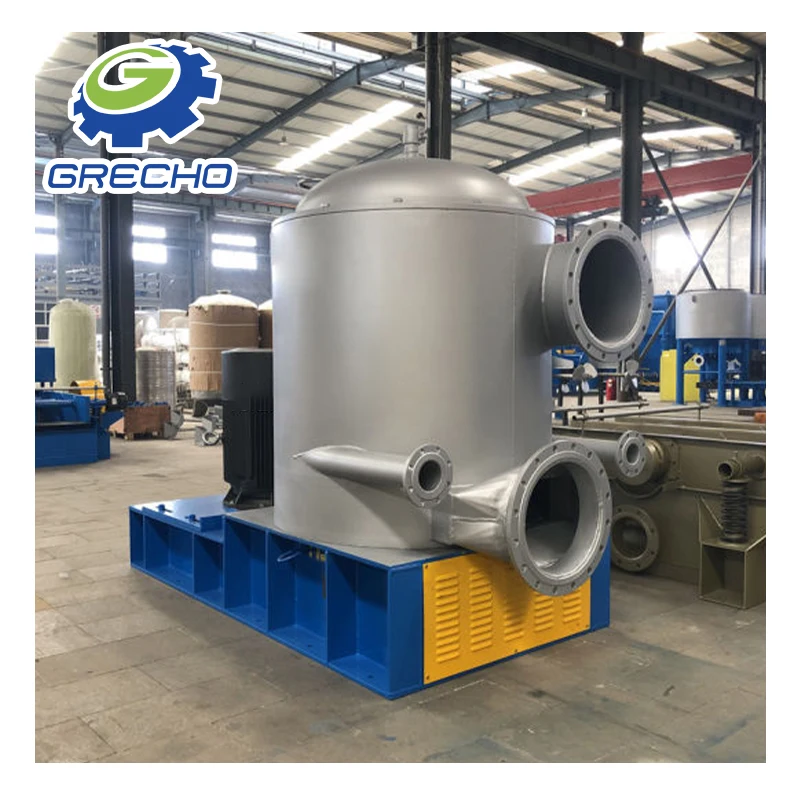

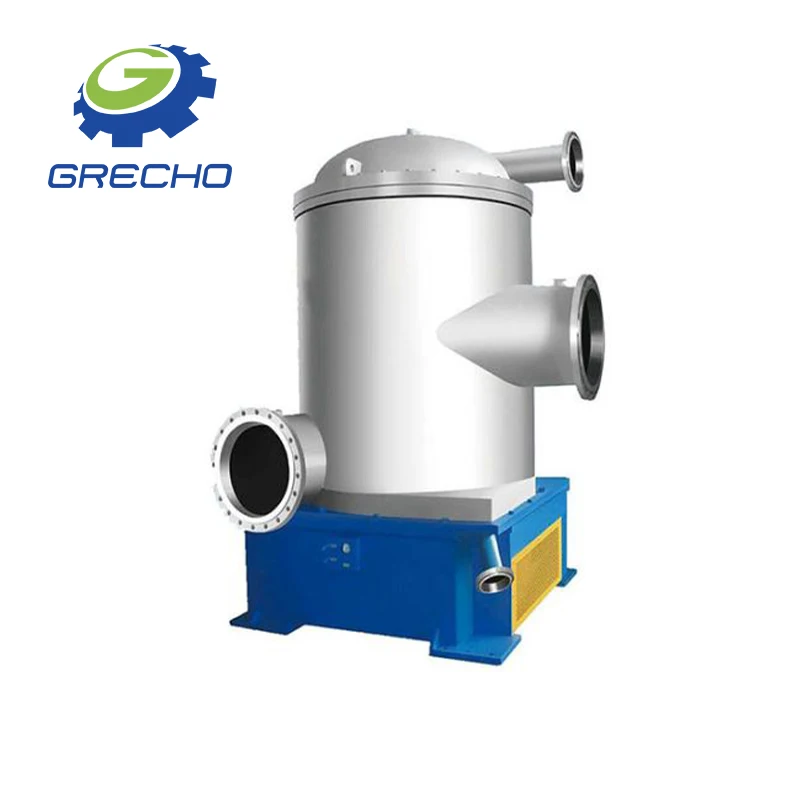

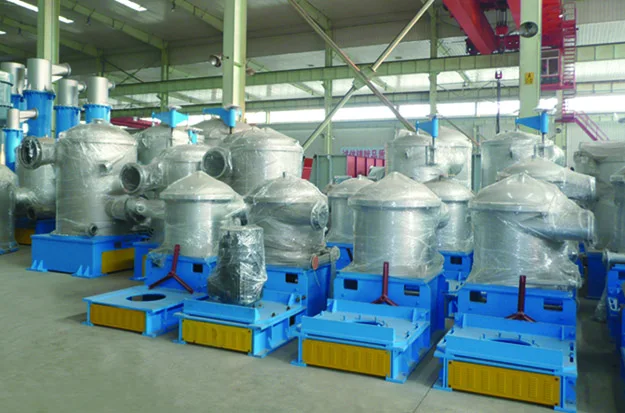

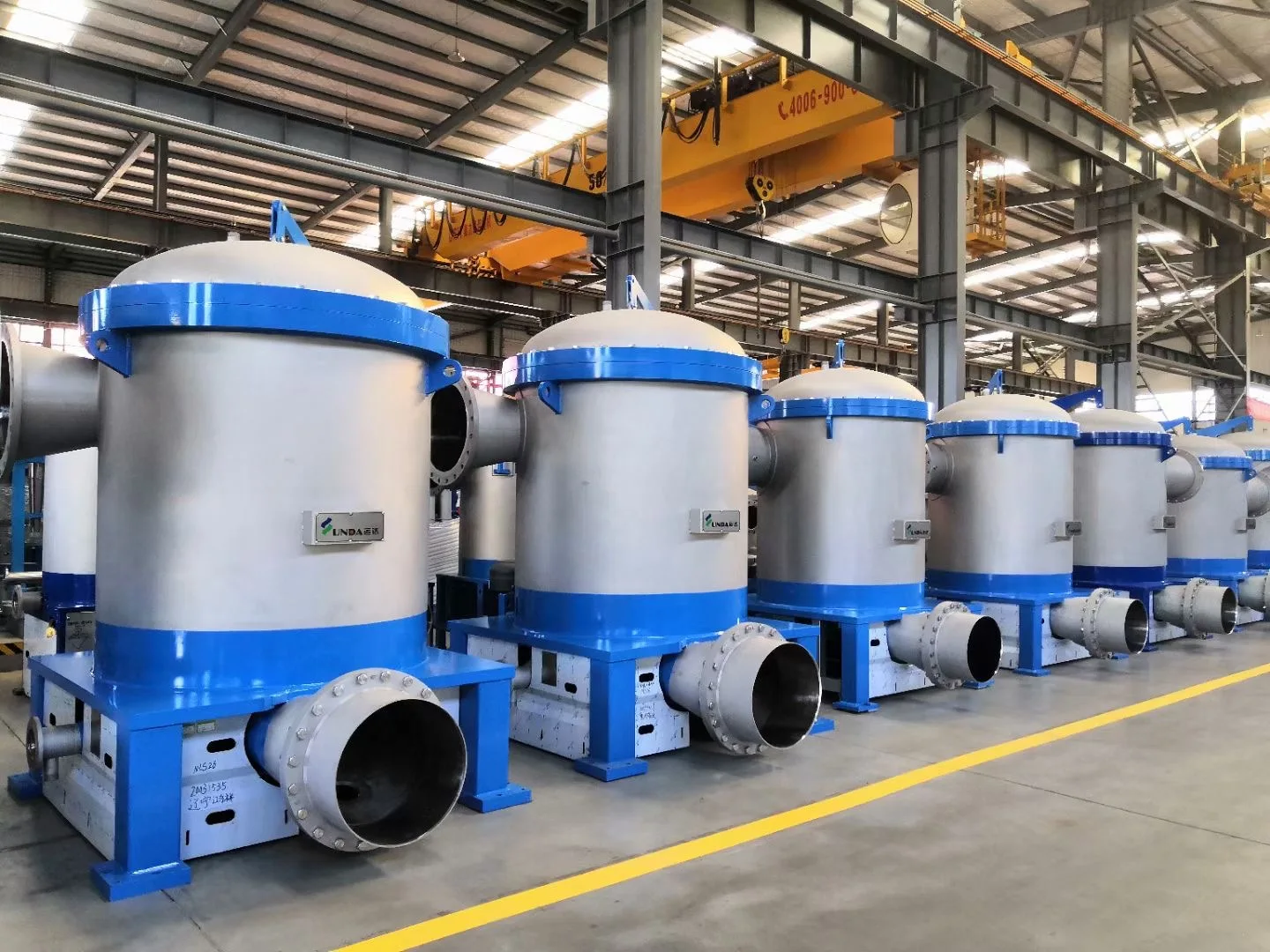

GRECHO Paper Making Machinery Upflow Pressure Screen Of Pulp Machinery
GRECHO Paper Making Machinery Upflow Pressure Screen Of Pulp Machinery
GRECHO Paper Making Machinery Upflow Pressure Screen Of Pulp Machinery
GRECHO Paper Making Machinery Upflow Pressure Screen Of Pulp Machinery
GRECHO Paper Making Machinery Upflow Pressure Screen Of Pulp Machinery
GRECHO Paper Making Machinery Upflow Pressure Screen Of Pulp Machinery
GRECHO Paper Making Machinery Upflow Pressure Screen Of Pulp Machinery

GRECHO Paper Making Machinery Upflow Pressure Screen Of Pulp Machinery

Share on (1600567632616):


Price:

Quantity:


Product Overview

Description





Screening Of Recycled Fiber
Pulps To Produce High Pulp Qualities

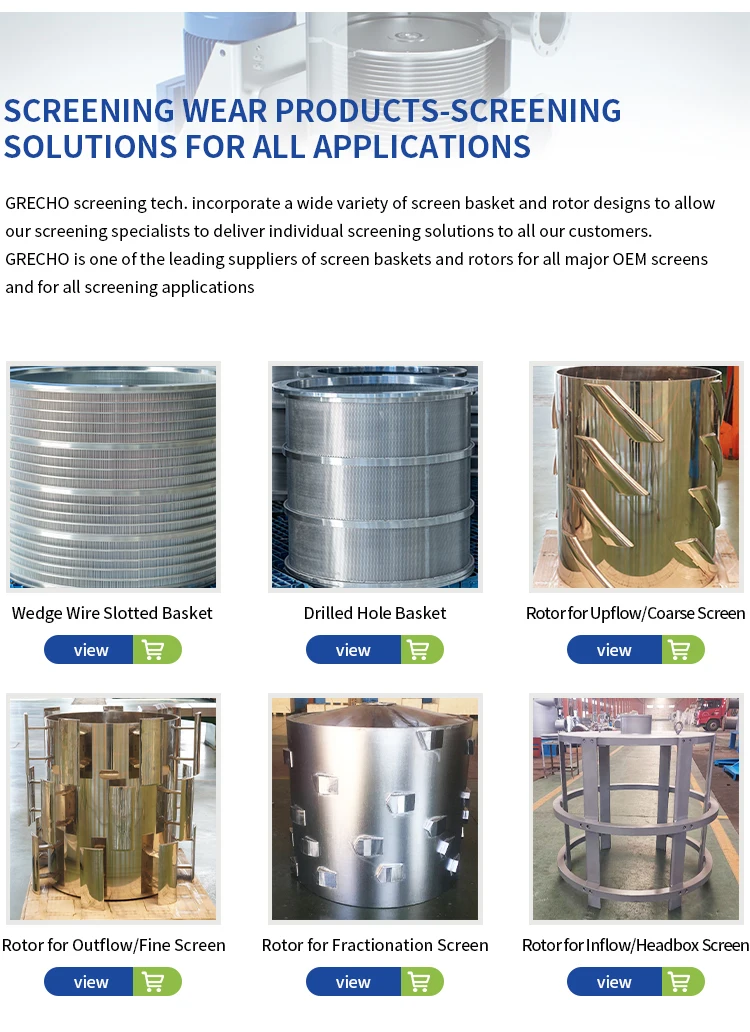

The Grecho Grescreen Product Family Is Used In a Wide Variety Of Screening Applications In Recycled Fiber Pulps To Provide High Final Pulp Qualities. For Each Screening Stage a Grescreen Unit Is Designed To Fulfill The Requirements And Demands For Achieving Best Results In Terms Of Pulp Cleanness And Lowest Operating Costs. Different Design Principals–Inflow And Outflow Types – Can Be Matched With Numerous Screen Basket And Rotor Combinations To Handle All Screening Applications. Grescreen Units Are Applied To Effectively RemoveContaminants But Keep Good Fiber Losses To a Minimum.

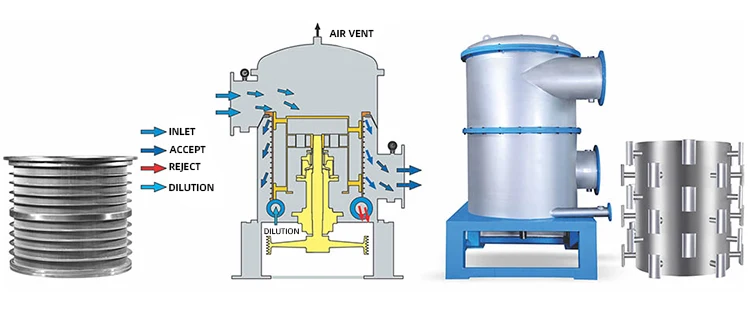

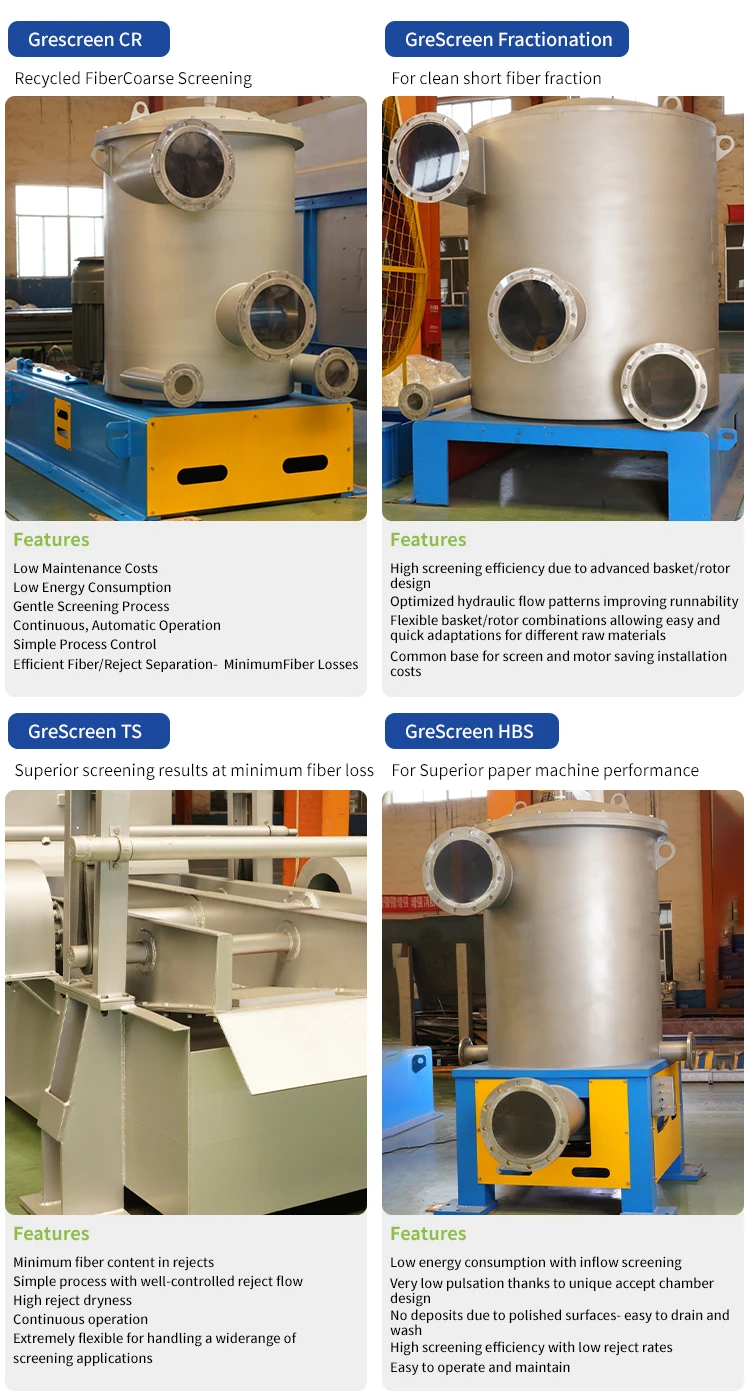

Pressure Screen Type
UpFlo
OutFlo
InFlo
Fractionating
Application Position On Stock Prep. Line
Coarse Screening
Fine Screening
Approach Flow System
Fine Screening
Fiber Classification
Screen Area(m2)
0.6~4.0
0.3~4.0
0.6~6.0
1.2~4.0
Capacity(Ton/Day)
30~500
10~400
10~600
100~800
Stock Consistency(%)
2~3
0.8~1.5
0.3~1.0
1.5~2.5
Basket Slot (Hole) Size(mm)
Φ1.6~Φ3.0
Φ0.1~Φ0.45
Φ0.2~Φ0.45
Φ0.15~Φ0.25
Inlet Pressure(MPa)
0.1~0.25
0.15~0.30
Motor Working Voltage & Hertz
30~315
15~160
15~90
75~200
Raw Material
Waste Paper Fiber
Waste Paper Fiber
Water Paper Fiber
Virgin Fiber
Waste Paper Fiber














▶ FAQ

Q1.What services do we provide?
A1: Customized products according to customer needs, all products adopt a full range of computer-aided design (CAD). The warranty period of the machine is one year after operation, and the warranty period of core components is 1.5 years.
A2:Inquiry: You can consult us by email or store online, we will reply you within 24 hours after receiving the inquiry.
A3:Production: As soon as we receive our first payment, we will start producing the machine.

Q2.What are our payment terms?
A: Our payment methods are generally D/P, TT.
(Other payment methods can be decided by the buyer and the seller)

Q3.What is the standard packaging of the machine?
A: Packed in foam plastic, waterproof PVC film, and packed in wooden boxes.

Q4.Can you provide us with samples?
A: It depends on. If the products you need are standard and we have stock, we will provide.If not, we can not provide for you immediately. The freight will be payed by buyer.For details, you can consult us online.

Q5.Why are your prices high?
A: We guarantee the quality of the products and after-sales service, we have always provided high-quality paper machines, and the paper machines have enough quality standards to ensure that the machines can work beyond the real warranty period. If there is a problem with the machine during the warranty period, you can consult us by email or online store, and we will provide you with a satisfactory answer.
