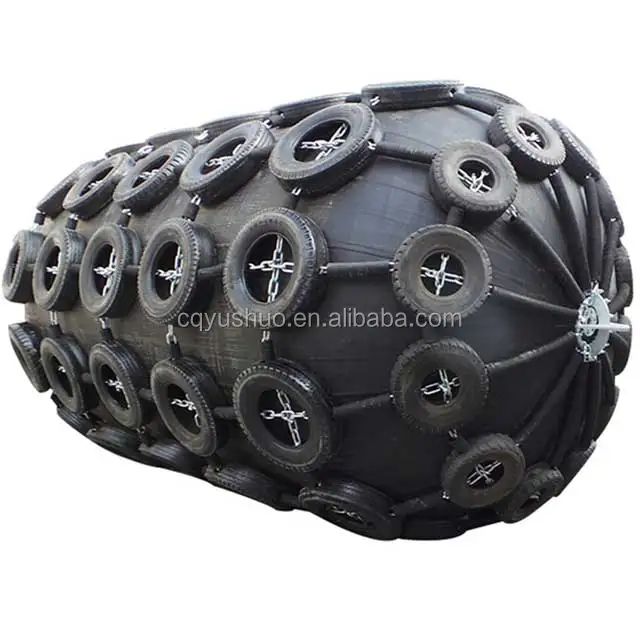

 Ship Boat Yokohama Pneumatic Rubber Fender



1  Product Description:



Work Pressure:   0.05 to 0.08Mpa

Fiber Layers :   4 to 9 layers

Size :                 D= 0.5m to 8m     L= 1m to 12m

Working Ages : 10 to 15 years

Material :          natural rubber

Type:                 Yokohama fender



2  The Use of This Marine Yokohama Fender

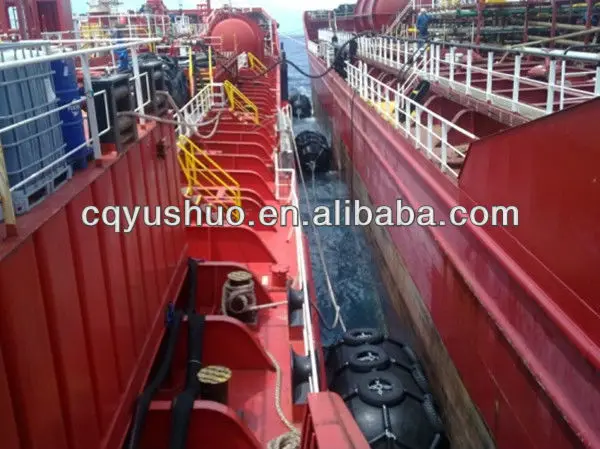

Marine fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms

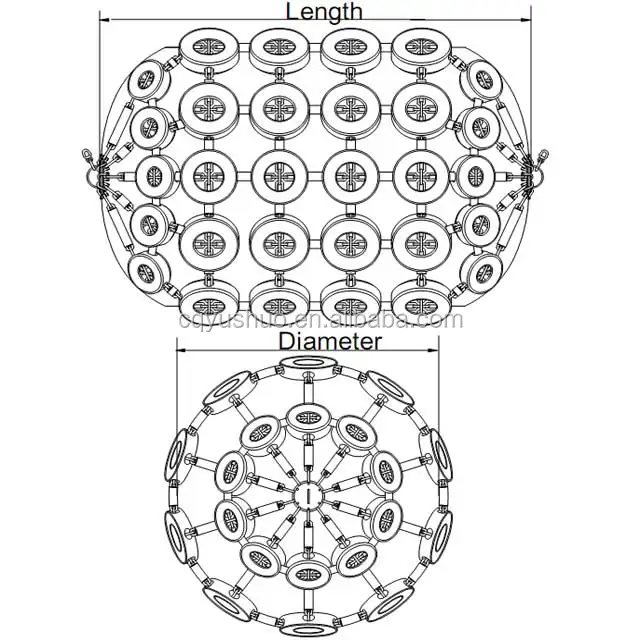

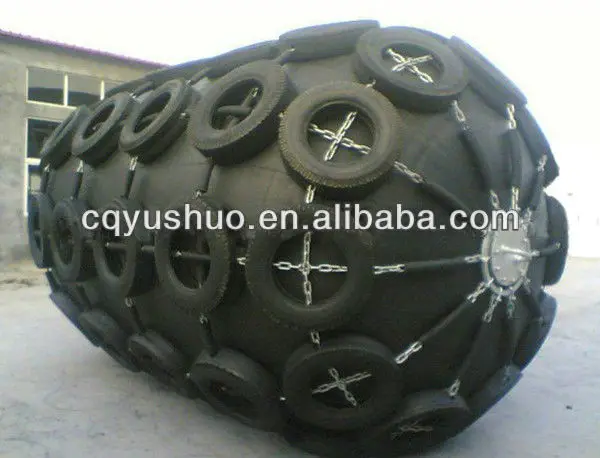

3 Structure and details of marine Yokohama fender:







1 Mooring ring    2 Inside flange (hide)    3 Outside flange    4 Charging connector (valve inside)     5 Inlayer rubber (sealant)    6 Ourler rubber     7 Reinforced layer cord fabric(framework material)    8 Shackles     9 sebific duct    10 steel link chain     11 Steel ring     12 Tyre





4 Specification of our marine Yokohama fender:



D*L	Initial pressure(Po)is 0.05Mpa			Initial pressure(Po)is 0.08Mpa
	Weight (kg)	Reaction force(KN)	GEA(KJ)	Weight (kg)	Reaction force(KN)	GEA(KJ)
0.5*1.0	25	64	6	25	83	8
0.6*1.0	32	74	8	32	96	11
0.7*1.5	50	137	17	50	178	24
1.0*1.5	80	182	32	80	235	44
1.0*2.0	100	257	45	125	335	63
1.2*2.0	120	297	63	165	386	86
1.35*2.5	165	427	102	226	554	140
1.5*3.0	315	597	153	370	751	211
1.7*3.0	405	639	191	436	860	263
2.0*3.5	590	875	308	632	1138	424
2.5*4.0	1050	1381	663	1110	1815	925
2.5*5.5	1333	2019	943	1410	2653	1317
3.0*5.0	1880	2104	1210	2155	2709	1571
3.0*6.0	2160	2583	1485	2470	3292	1888
3.3*4.5	2020	1884	1175	2300	2476	1640
3.3*6.0	2300	2783	1675	2600	3652	2338
3.3*6.5	2700	3015	1814	3080	3961	2532



Note:     The weight of the ball by ball weight(without jacket),the weight of error be of ± 10%;
               reaction force error be of ± 10%.

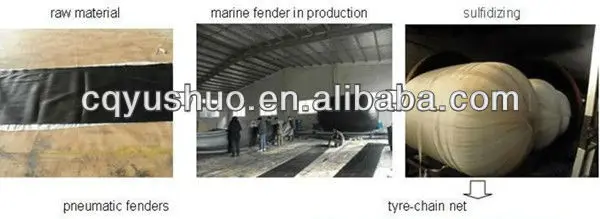

5   Process of marine Yokohama fender :

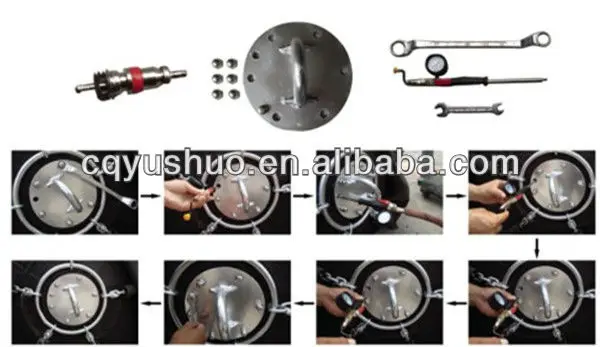

6  Inflatable Process:

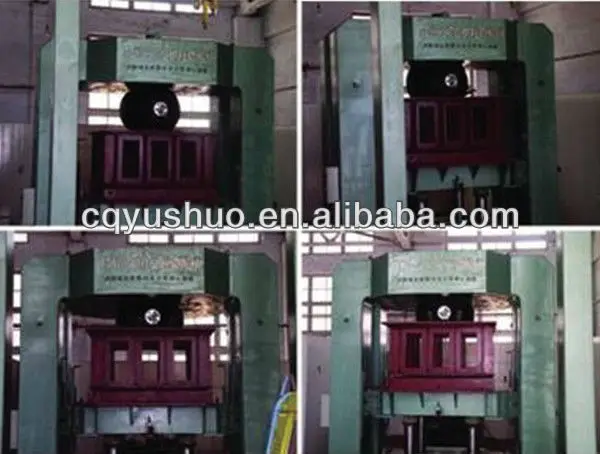

7  Crushed Inspection:













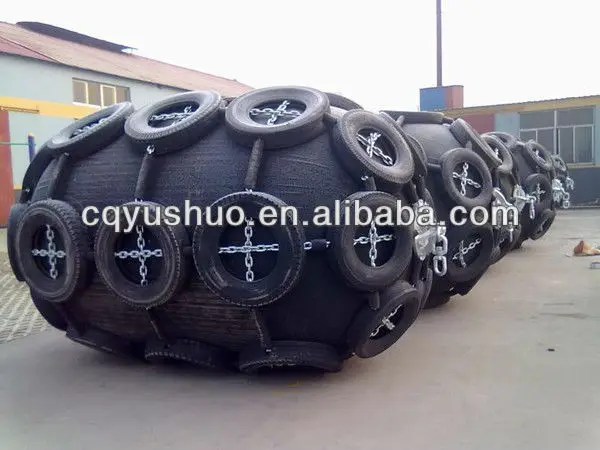

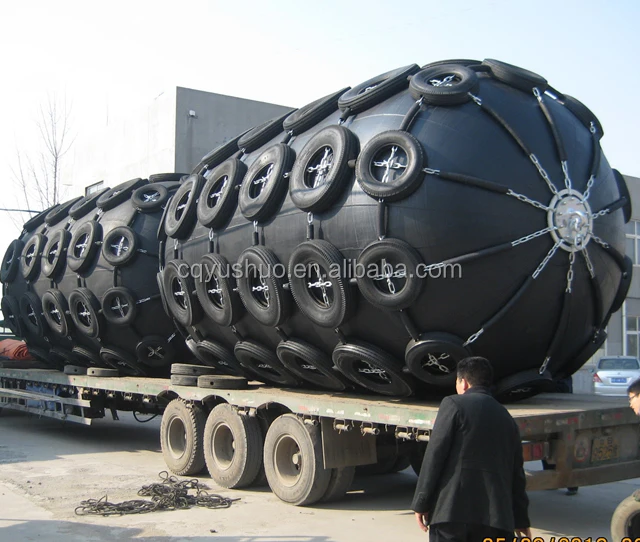

8  Finished Marine Yokohama Fender:

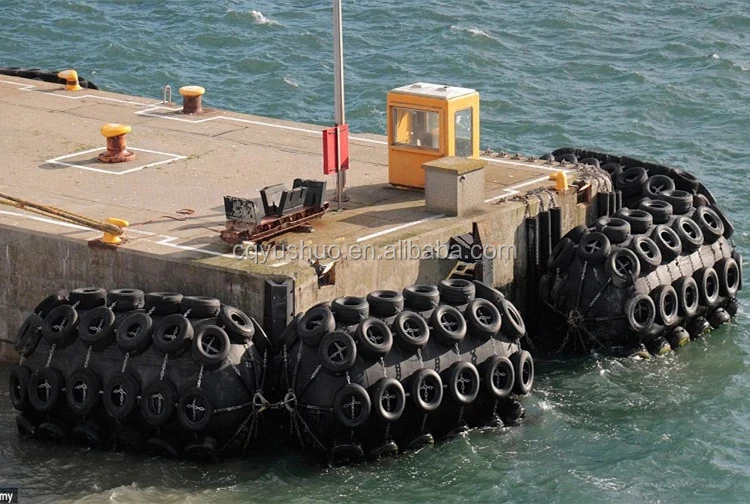

9  Application:









10 We can produce the following marine fenders:







Ship launching airbag	Rectangular fender
pneumatic rubber fender	Super Arch Rubber Fender
foam filled fender	π rubber fender
D type fender	U rubber fender
Delta fender	Circular Rubber Fender
Square fender	Cone Type Rubber Fender
Cylindrical fender	Cell rubber fender
Composite fender	Drum fender
Wing fender	V fender
W fender	M fender







We can produce marine fenders according to your drawings
