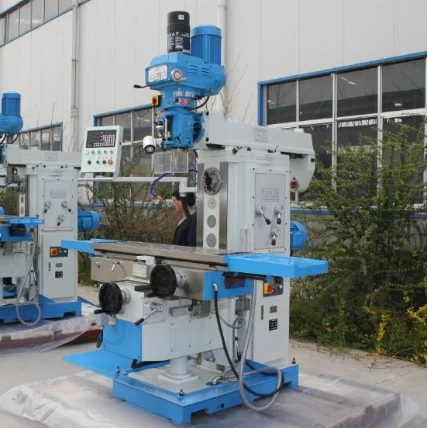

XL6336CL Universal Turret Milling Machine Motor 3 Axis Cnc Milling Machine Provided Energy Saving Metal Working Milling Machine
- Category: >>>
- Supplier: ChinaSourcing E&T Co. Ltd.
Share on (1600567709092):
Product Overview
Description
Product Description

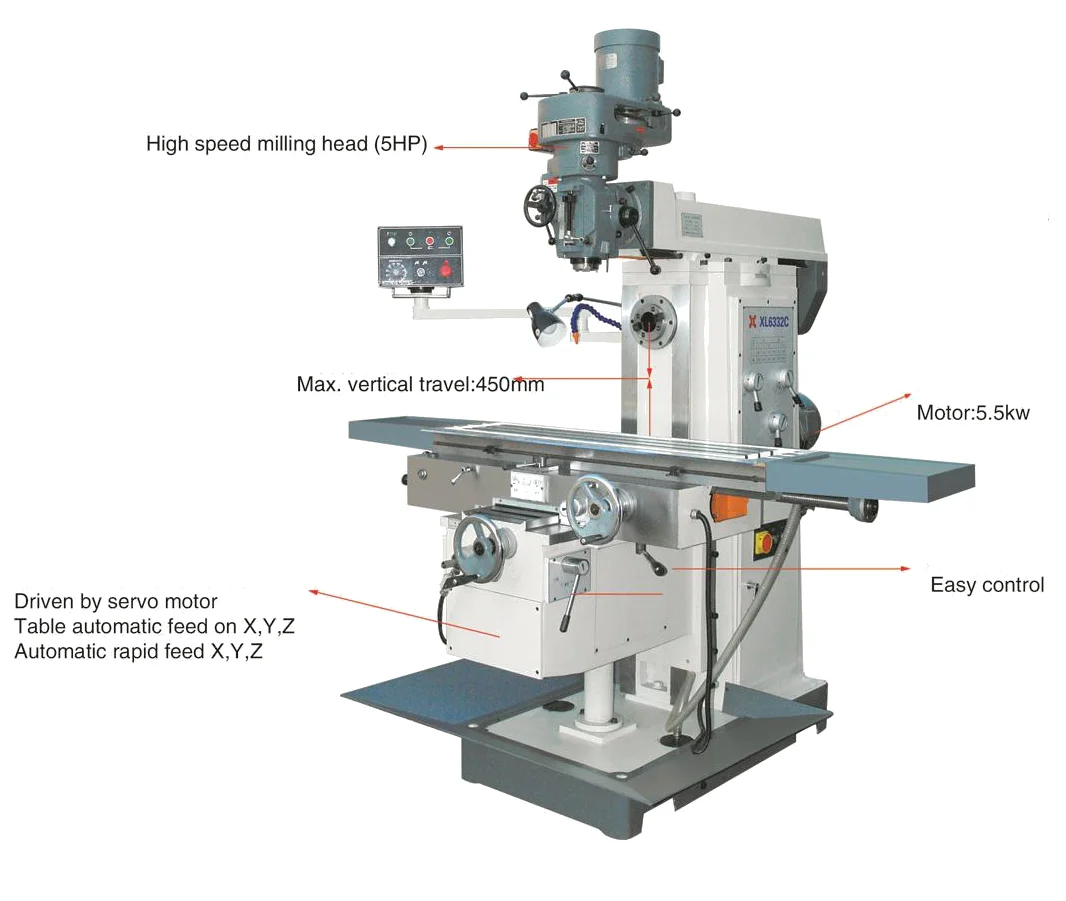

1. Machine body in heavy construction for vibration-free working
2. Three axes controlled by one servo motor, large torque, energy efficiency, safe and reliable.
3. Rapid feed in all axes driven by servo motor
4. Rotary table can be customized
3. Rapid feed in all axes driven by servo motor
4. Rotary table can be customized
Specification
Table size | mm | 1600×360 |
Table travel (X, Y, Z) | mm | 1300×320×450 |
Table feed. (X, Y, Z) | mm/min | 30~750 20~500 15~375 |
Spindle taper | 7：24 IS050 (H) 7：24 IS040 (V) | |
Spindle travel | mm | 127 (V) |
Distance between spindle nose and table surface | mm | 200～650 |
Distance between horizontal nose and table surface | mm | 20～470 |
Distance between spindle axis and ram surface | mm | 245 |
Spindle speed range | r.p.m | 60～1800r(H) 80～4660 (V)) |
T-slots (No./width/pitch) | mm | 3/18/70 |
Arm travel | mm | 550 |
Main motor power | kW | 5.5 (H) 3.7 (V) |
3 to feed Ac servo motor torque | N.m | 10 |
Overall size | mm | 2520×2250×2500 |
Net weight | kg | 2500 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company & Brand
Established in 2003, ChinaSourcing E&T Co.,Ltd. has always been devoting to global sourcing of mechanical products. Our mission is to provide professional one-stop sourcing service and create added value for customers, and to build a strategic platform between the foreign customers and Chinese suppliers.
We have supplied more than 100 customers with hundreds of thousands of kinds of products, including components, assemblies, full machines, machine tools, automation products and etc.
Nowadays our business also involves in industrial investment and import & agency sales of agricultural machinery.
In 2005, we organized ChinaSourcing Alliance, which gathers more than 50 manufacturers involved in a wide range of industries. Connecting all the members as one, we provide Overall Solution for our customers. In 2021, the annual output of ChinaSourcing Alliance reached up to 30 billion RMB.
Every member of ChinaSourcing Alliance was selected after strict screening and represents the highest level of Chinese machinery manufacturing. And all the members have obtained CE certification.
In ChinaSourcing Alliance, there are more than 10 professional machine tool manufacturers, of which we decided to integrate the product lines and the production capacity to provide the customers with the most reliable products and the most varied choice, and this is how our self-owned machine tool brand CSAL came out.
