Small Pixel Pitch P1.95 Indoor Curved Rental Led Screen Display Virtual Production Led Wall For Filming Tv Studio Broadcast

Product Overview

Description

Features:

The inner and outer arcs 15°,0°,-15° multi-level adjustable.

The cabinets are seamlessly spliced without bright lines or separate highlight bars.

It can be spliced into various shapes,such as inner arc,outer arc and cylinder,so that your creativity can be fully displayed.

The cabinet is light and thin and can be quickly installed and disassembled.

The minimum ring diameter is more than 3m.

High-quality LED black lamp with high contrast and wide viewing angle.

Specification:



Model	P1.953	P2.604	P2.976	P3.91
LED Type	SMD1515	SMD2121	SMD1515	SMD2121
Pixel Pitch	1.953mm	2.604mm	2.976mm	3.91mm
Module size	250*250mm	250*250mm	250*250mm	250*250mm
Cabinet size(W*H*D)	500*500*75mm	500*500*75mm	500*500*75mm	500*500*75mm
Cabinet weight	7.1kg/pc	7.1kg/pc	7.1kg/pc	7.1kg/pc
Pixel Density	262144dots/m²	147456dots/m²	112896dots/m²	65400dots/m²
Brightness	800-1000 cd/m²	800-1000 cd/m²	800-1000 cd/m²	800-1000 cd/m²
Refresh frequency	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Maximum power	≤600W/ m²	≤600W/ m²	≤600W/ m²	≤600W/ m²
Average power	100W/m² ~300W / m²	100W/m² ~300W / m²	100W/m² ~300W / m²	100W/m² ~300W / m²
IP class	IP 43	IP 43	IP 43	IP 43
Driving method	1/32 scan	1/32 scan	1/32 scan	1/16 scan
Input Voltage	AC:110-240V  50~60Hz	AC:110-240V 50~60Hz	AC:110-240V 50~60Hz	AC:110-240V 50~60Hz
Lifetime	>100,000 hrs	>100,000 hrs	>100,000 hrs	>100,000 hrs

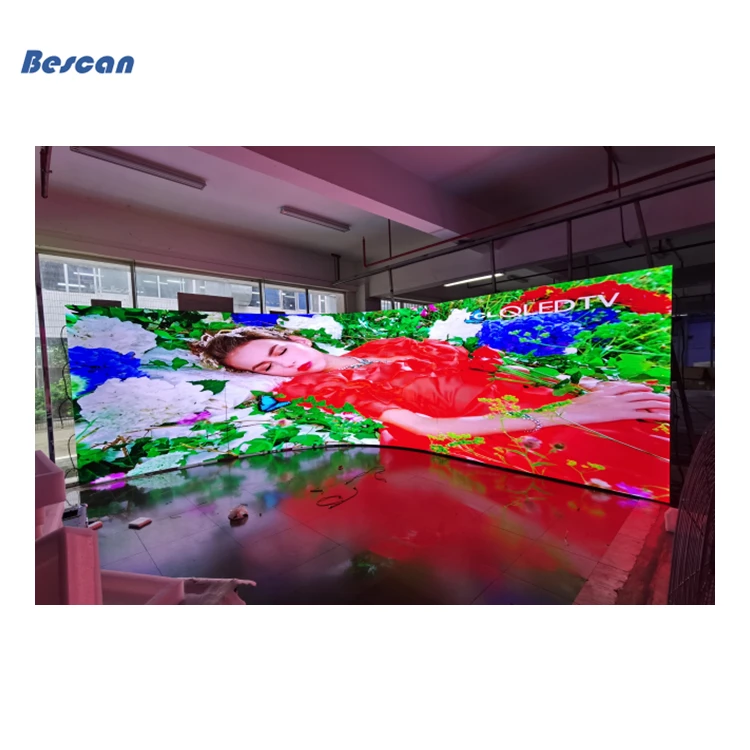

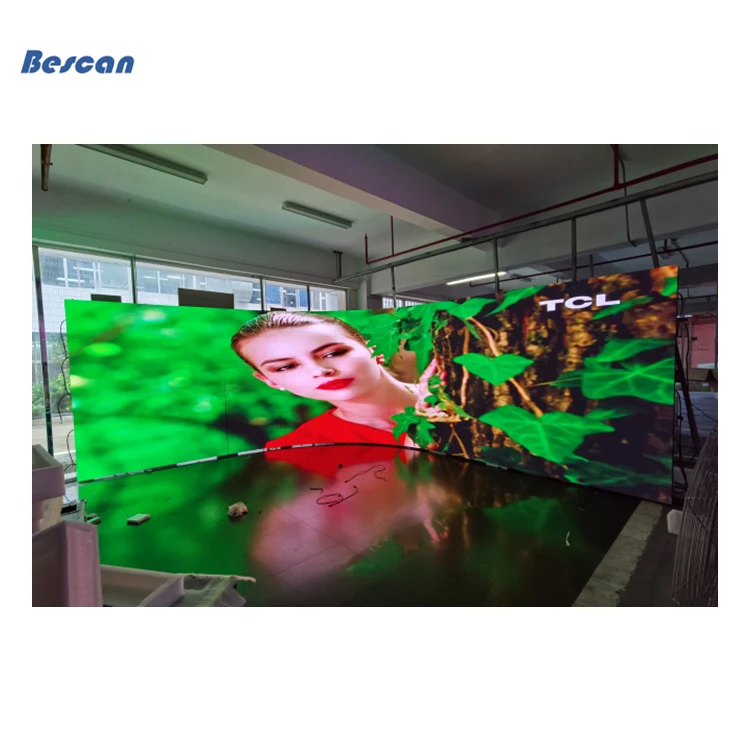

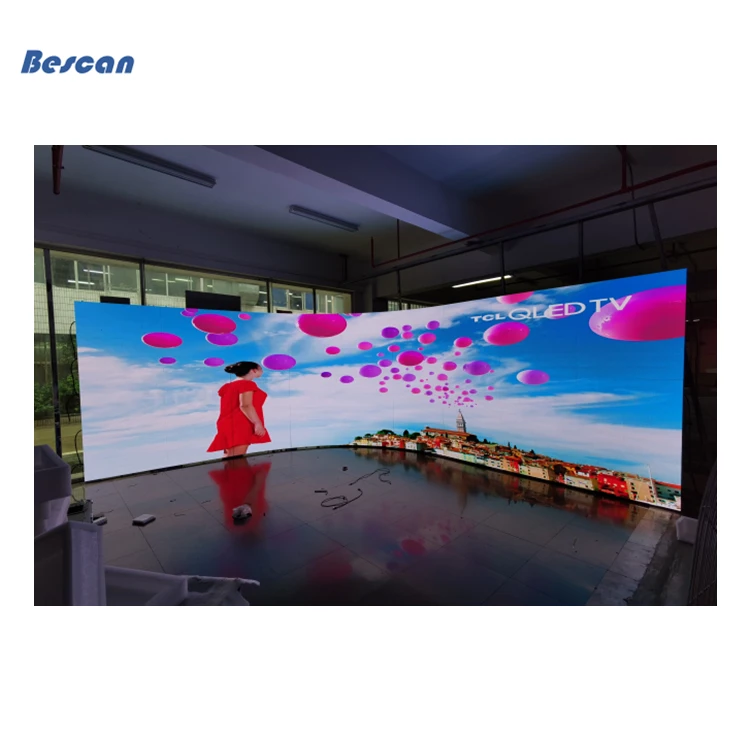

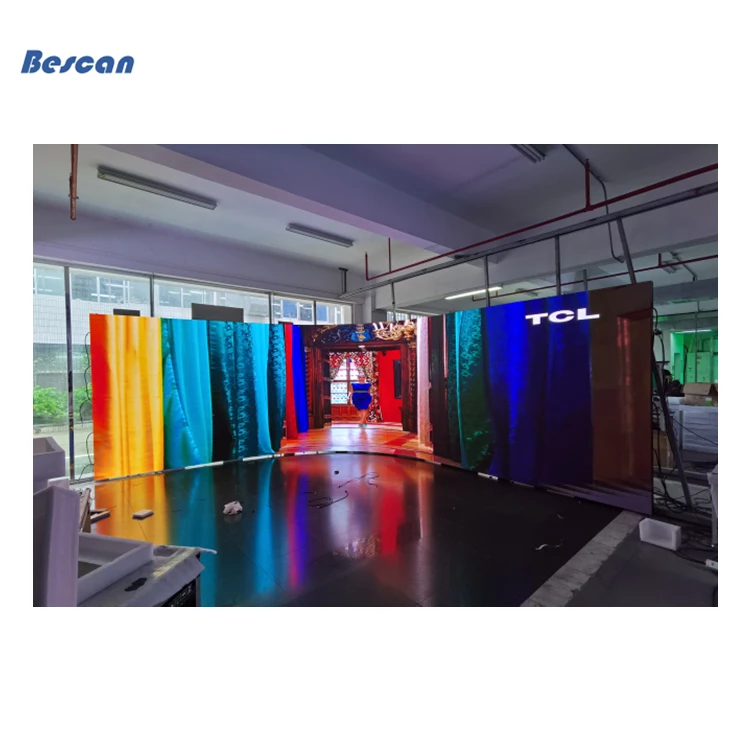

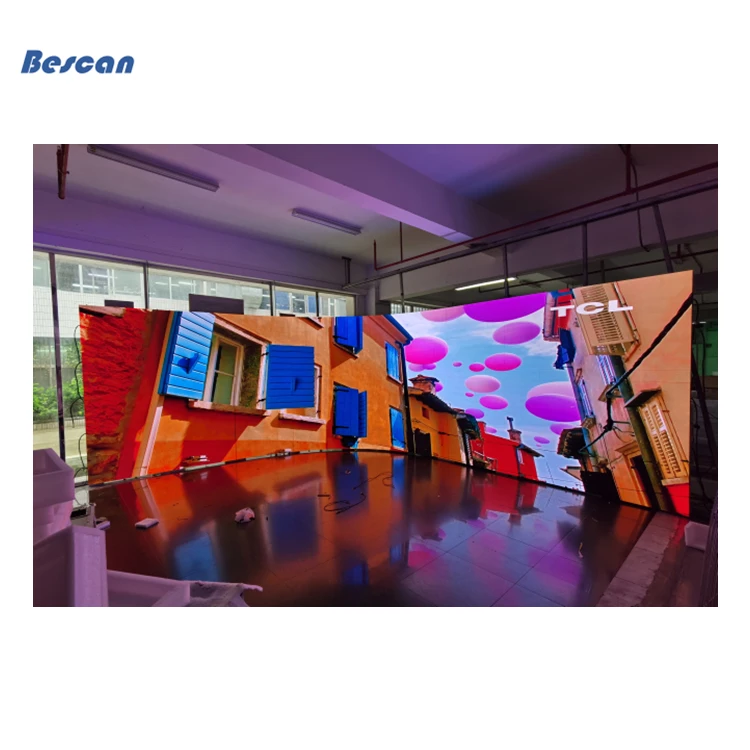

Project cases:
