3 Cavity High Speed Preform Mold Fully Automatic Compact Plastic PET Bottle Blow Blowing Machine Price Made by the PET preform
- Category: >>>
- Supplier: Jiangsu SinoPAK Machinery Co. Ltd.
Share on (1600567731019):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

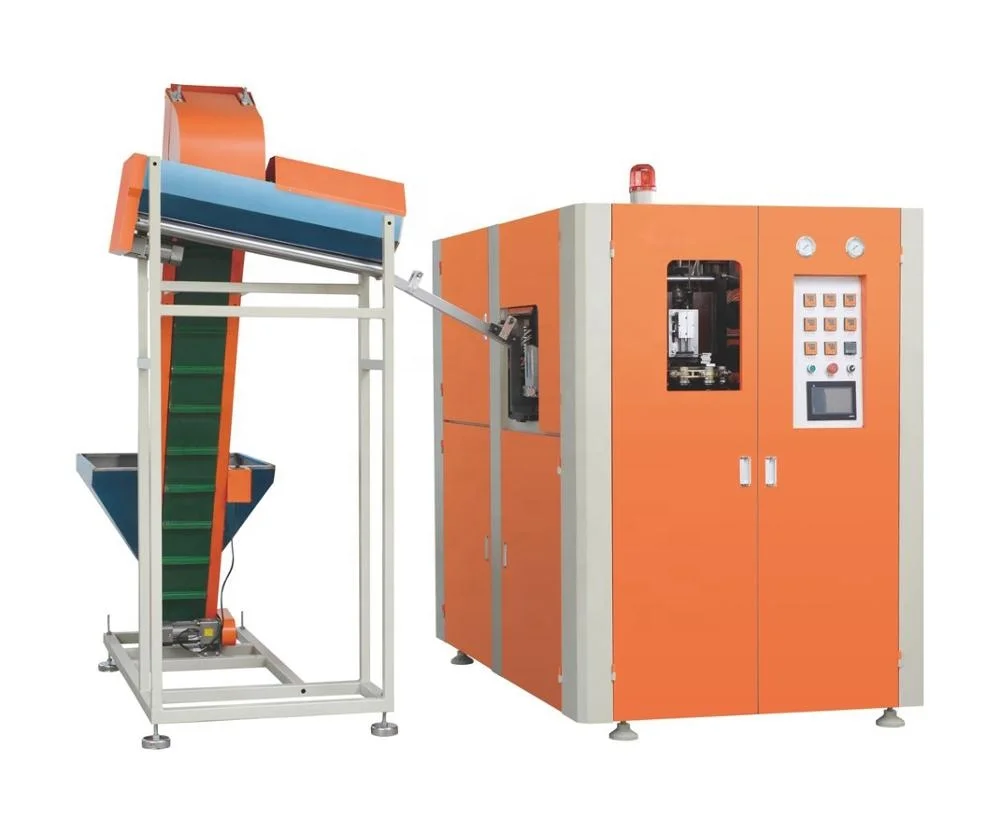

Automatic PET bottle making machine / Blower
Introducton:
automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Function:
1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.
2. Pneumatic elements from FESTO (German) and SMC (Japan)
3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.
4. Malfunction alert and diagnostic units allow easy maintenance.
5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle,cosmetics bottles etc..
6. Oven can be made according the different preform requirements of customers
Main Parameters:
automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Function:
1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.
2. Pneumatic elements from FESTO (German) and SMC (Japan)
3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.
4. Malfunction alert and diagnostic units allow easy maintenance.
5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle,cosmetics bottles etc..
6. Oven can be made according the different preform requirements of customers
Main Parameters:
Container | Product material | PET |
Volume | 0.1L-2L | |
Theoretical output | 1200-1600PCS/H | |
Preform length | 15mm-350mm | |
Preform inner diameter | φ5mm-38mm | |
Moulding | Max.mould plate Dimenstion(L x W) | 350x380mm |
Max.mould thickness | 180mm | |
Clamping force | 45KN | |
Mould opening stroke | 160mm | |
Machine size and weight | Main machine (L x W x H) | 160x60x161KM |
Main machine weight | 500Kg | |
Heater (L x W x H) | 187x63x145KM | |
Heater weight | 250Kg | |
Power | 17.5kw |
Related Products
More Product
About ZhongGuan
Exhibitions
We have 2-3 exhibitions every year.
Partner
We do business with multiple brands in multiple countries
Customers
We have gained more Consumer trust
\t\t\t\t\t\t\t\t\tOur Service \t\t\t\t\t\t\t
What can ZhongGuan offer you ?
Warranty
1.We guarantee all our machine, parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the machine in the factory.
3.After warranty ,we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.
\t\t\t\t\t\t\t\t\tPackaging&shipping \t\t\t\t\t\t\t
Packaging
As usual, we adopt wooden case as package type. It's suitable for long-distance transport.According to customers' special demand, we could adopt sheet iron case and so on.
Shipping
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Certifications
FAQ
Q:Are you a manufacturer or trade company?
A:We are a manufacturer in beverage machine field more than 15 years, located at Jinfeng town,zhangjiagang,2 hours from Shanghai,1
hour from Wuxi by car. We will pick you up to visit our factory.
Q:What about the delivery time?
A:Usually 40 Working days
Q:What about the machine’s capacity?
A:2000-20000 bottles in 500ml per hour.
Q:The after-sale service
A:24 months warranty.
solve basic questions by telephone, email, whatsapp, wechat and video call.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email.
We also have overseas service center
Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes.
Q:Do you have any certification?
A:SGS,ISO,CE
Q: If I want to buy a machine, what information do I need to tell you?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d.Raw water analysis report .
e.Voltage and altitude.
Q:What kinds of product you supply?
A: Drink water/juice/carbonated drink filling line.
5 gallon/20L/ can beverage/glass bottle beverage filling line
Water treatment system.
Bottle blowing making machine.
After packing system(label machine, PE film shrink packing machine.
A:We are a manufacturer in beverage machine field more than 15 years, located at Jinfeng town,zhangjiagang,2 hours from Shanghai,1
hour from Wuxi by car. We will pick you up to visit our factory.
Q:What about the delivery time?
A:Usually 40 Working days
Q:What about the machine’s capacity?
A:2000-20000 bottles in 500ml per hour.
Q:The after-sale service
A:24 months warranty.
solve basic questions by telephone, email, whatsapp, wechat and video call.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email.
We also have overseas service center
Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes.
Q:Do you have any certification?
A:SGS,ISO,CE
Q: If I want to buy a machine, what information do I need to tell you?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d.Raw water analysis report .
e.Voltage and altitude.
Q:What kinds of product you supply?
A: Drink water/juice/carbonated drink filling line.
5 gallon/20L/ can beverage/glass bottle beverage filling line
Water treatment system.
Bottle blowing making machine.
After packing system(label machine, PE film shrink packing machine.
