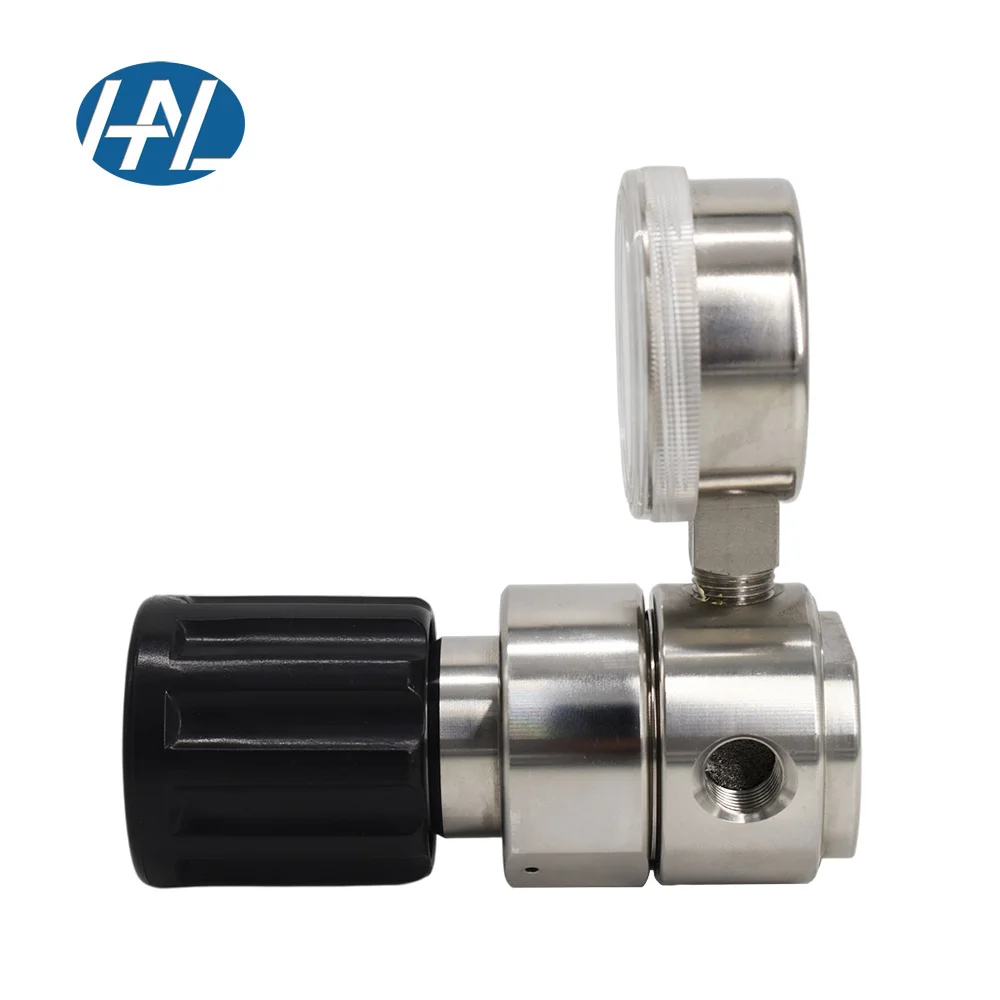

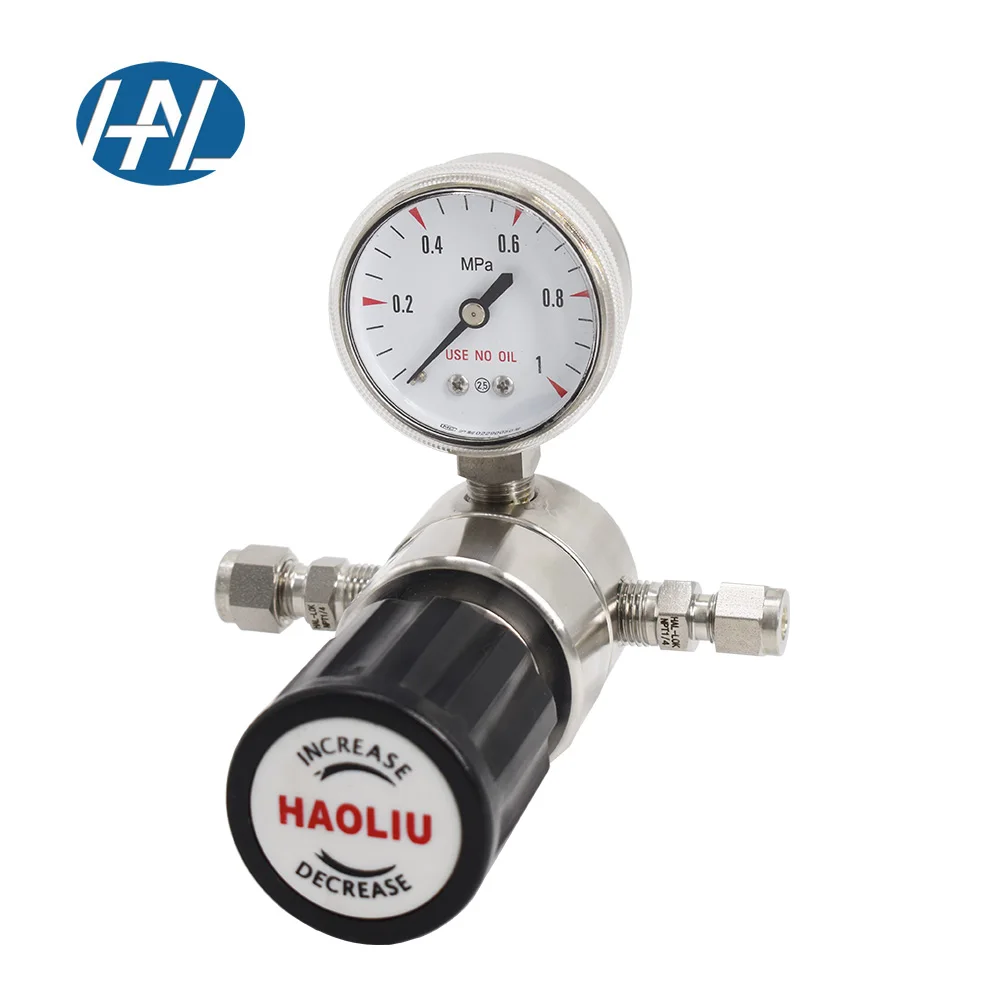

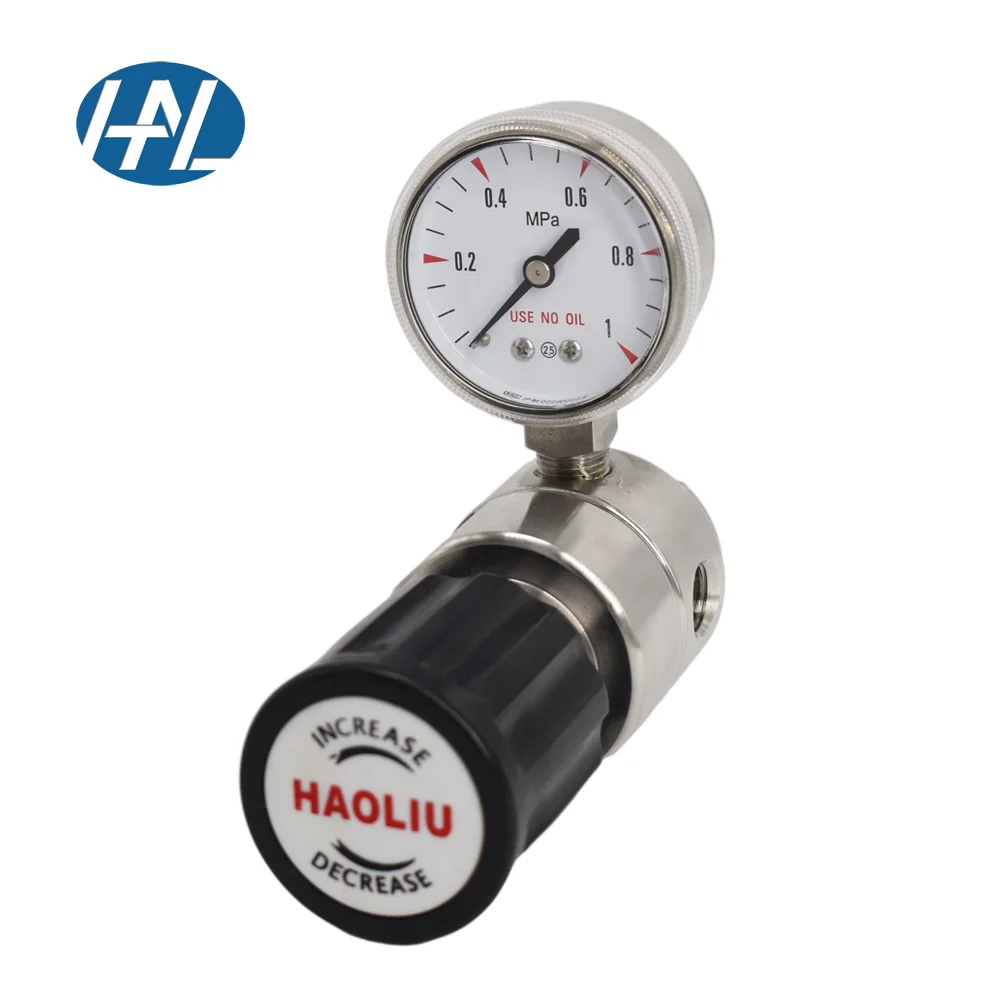

Pressure Gauge single gauge low pressure gas regulator
- Category: >>>
- Supplier: Shanghai Haoliu Machinery Equipment Co. Ltd.
Share on (1600567746098):
Product Overview
Description
Product Paramenters
Body: SS316L
Bonnet: 304 SS
Diaphragm: Alloy C-276
Valve seat：PCTFE
Valve rod：SS316L
Structural features：
Single-stage pressure reducing structure
One pressure gauge
The body and diaphragm are hard sealed
Female thread: 1/4"NPT (F)
The internal structure is easy to purge,built in filter screen

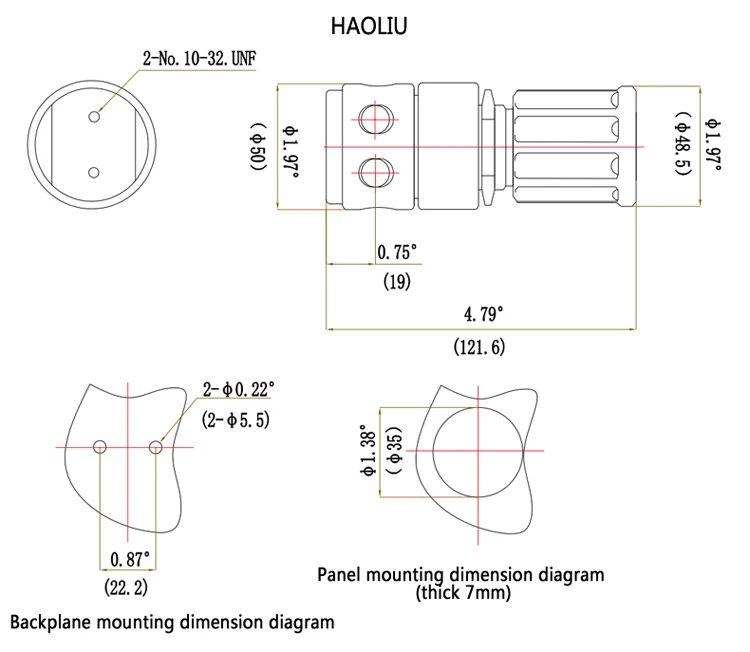

Panel type or wall type installation can be adopted
Needle valve and diaphragm valve can be selected for air outlet
Bonnet: 304 SS
Diaphragm: Alloy C-276
Valve seat：PCTFE
Valve rod：SS316L
Structural features：
Single-stage pressure reducing structure
One pressure gauge
The body and diaphragm are hard sealed
Female thread: 1/4"NPT (F)
The internal structure is easy to purge,built in filter screen
Panel type or wall type installation can be adopted
Needle valve and diaphragm valve can be selected for air outlet

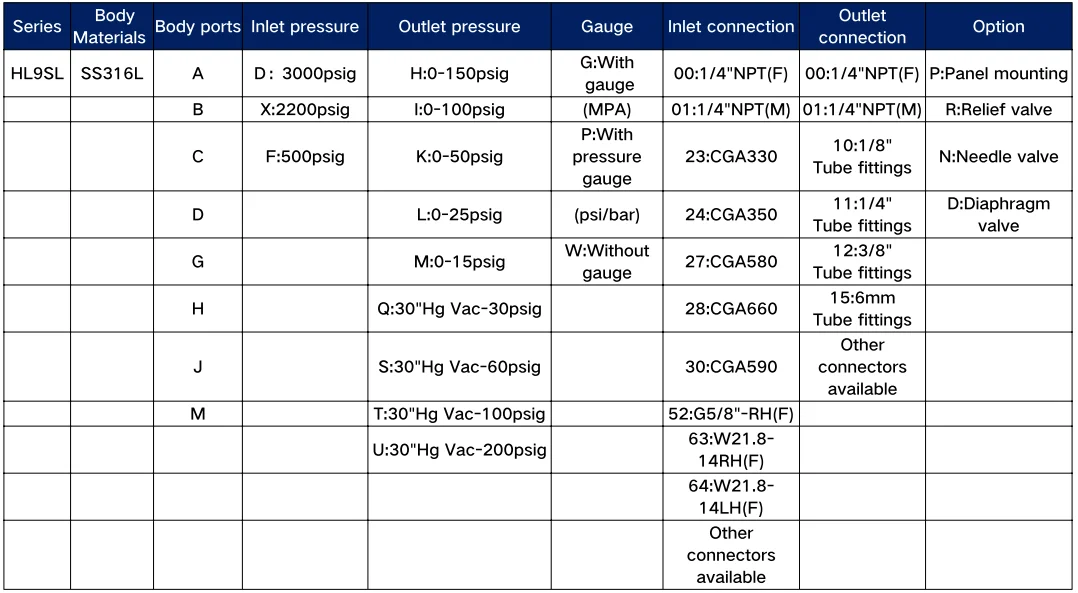

Inlet pressure max. | 3000psig |
Outlet pressure | 0〜25psig,0〜50psig,0〜100psig,0 〜250psig,0〜500psig |
Operating temperature | -40°F~+165° (-40°C~+74°C) |
Proof pressure | 150% of Maximum rated pressure |
Leak rate | 2x10-8 atm cc/sec He |
Cv | Cv:0.08 |

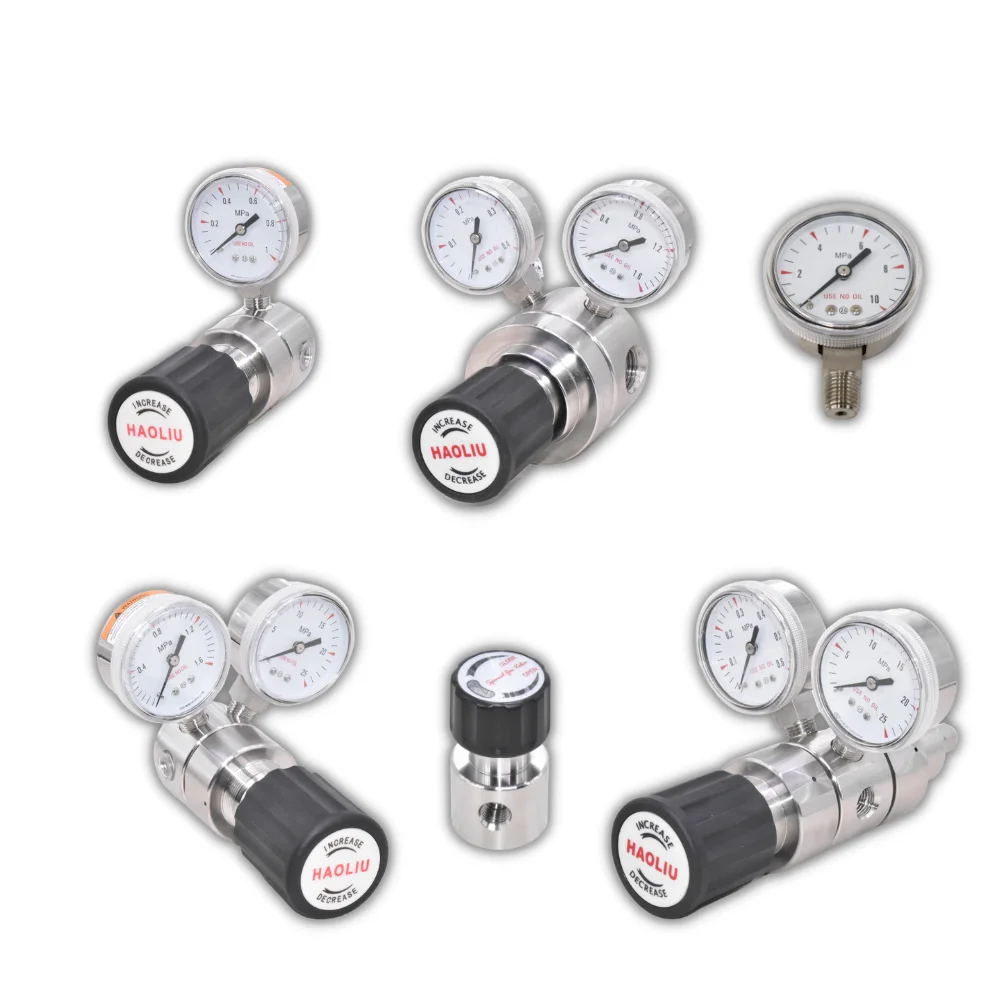

Products Show

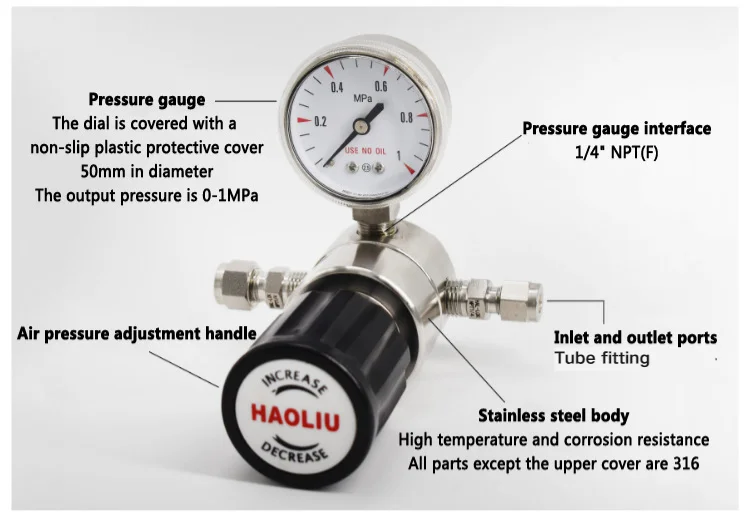

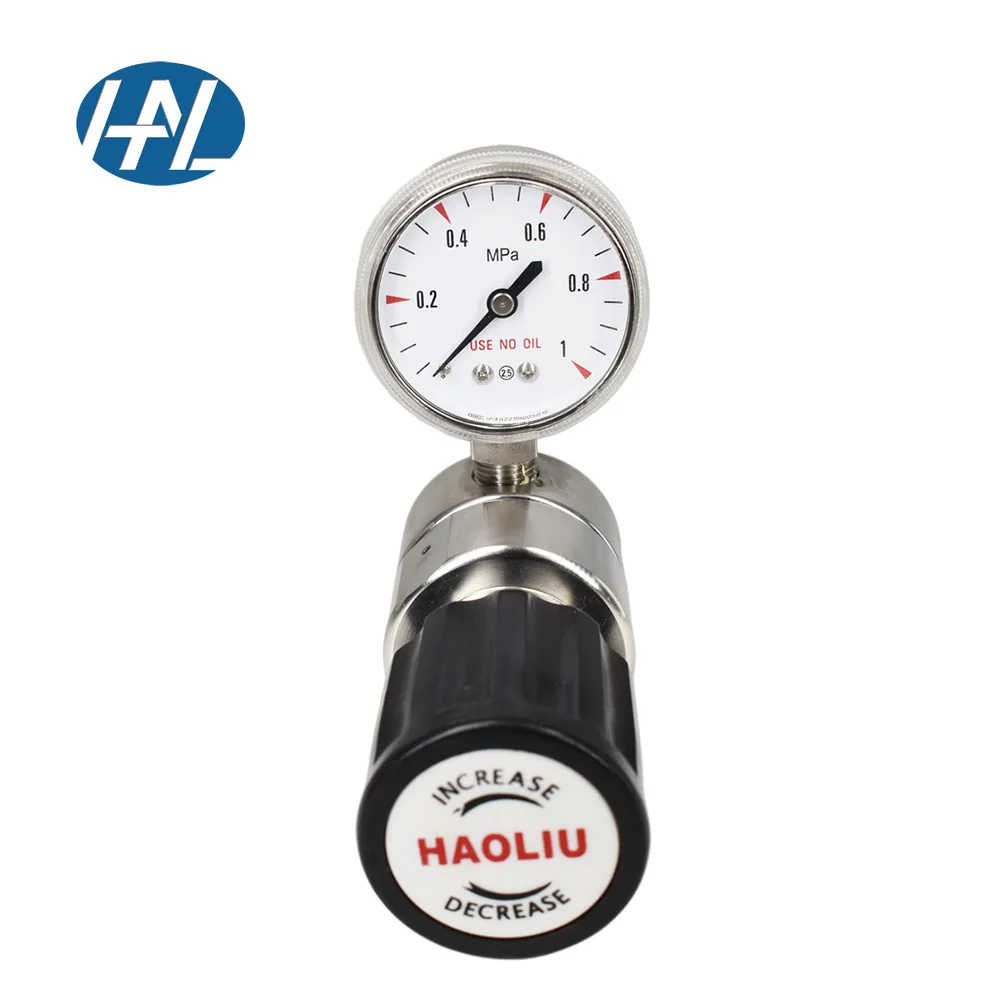

Clear dial
The dial is covered with a plastic protective sleeve with anti-skid marks. The diameter of the dial is 50mm. The dial scale is clear and easy to read information. The dial is scratch proof, accurate regulation and durable.
Thickened switch knob
Thickened anti-skid knob, sensitive and accurate adjustment.
Seiko quality
Overall polishing treatment, the surface is smooth without burr, the thread is processed by NC, and the tooth pattern is bright.
Thread connection
A filter screen is set inside to filter impurities in the gas cylinder and prevent sundries from entering with the air flow.

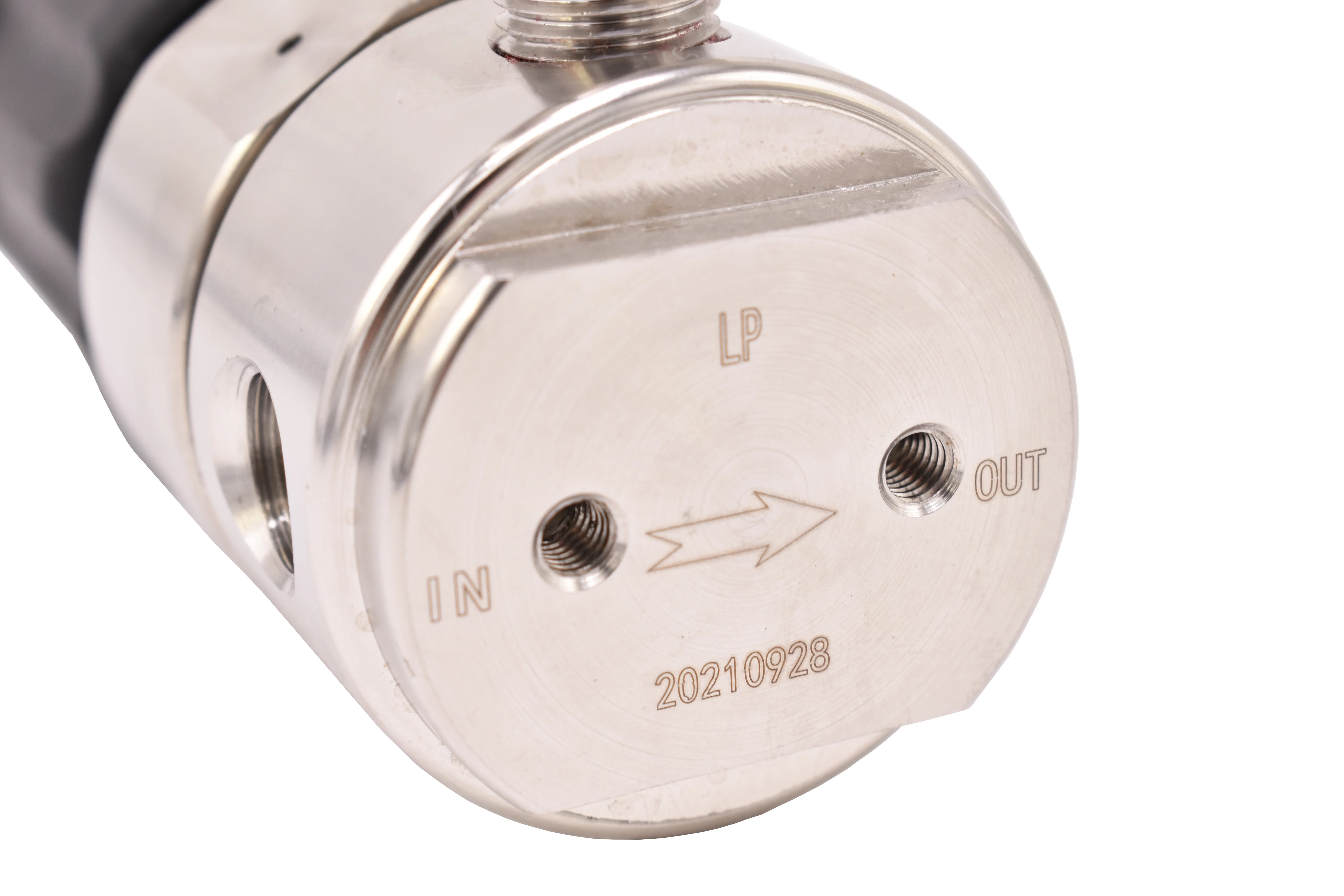

Stainless steel forged valve body
It is made of high-quality stainless steel with compact structure. Except the upper cover, other parts are 316,corrosion-resistant, high temperature resistant and long service life. It can be installed in panel or wall type.
Common sense
Decompression device uses common sense：
1. Install the product on the cylinder, leak detection with soapy water or detection fluid.
2. Confirm that the pointer to the pressure gauge is to "0" without pressurization. If you do not point to "0", please stop
the use of the pressure gauge, the product needs to be inspected.
3. Check if impurities or fat dust is left before using theproduct, if impurities and grease remains, please purge.
4. Confirm whether the pressure regulating handle of the gas depression before being placed in the gas in a relaxed state, if thepressure handle of the gas depression is tightened, adjust the handle.
5. When installing the decompression in the gas cylinder, please do not stand in front of the gas depression, need to slowly openthe gas bottle valve.
2. Confirm that the pointer to the pressure gauge is to "0" without pressurization. If you do not point to "0", please stop
the use of the pressure gauge, the product needs to be inspected.
3. Check if impurities or fat dust is left before using theproduct, if impurities and grease remains, please purge.
4. Confirm whether the pressure regulating handle of the gas depression before being placed in the gas in a relaxed state, if thepressure handle of the gas depression is tightened, adjust the handle.
5. When installing the decompression in the gas cylinder, please do not stand in front of the gas depression, need to slowly openthe gas bottle valve.

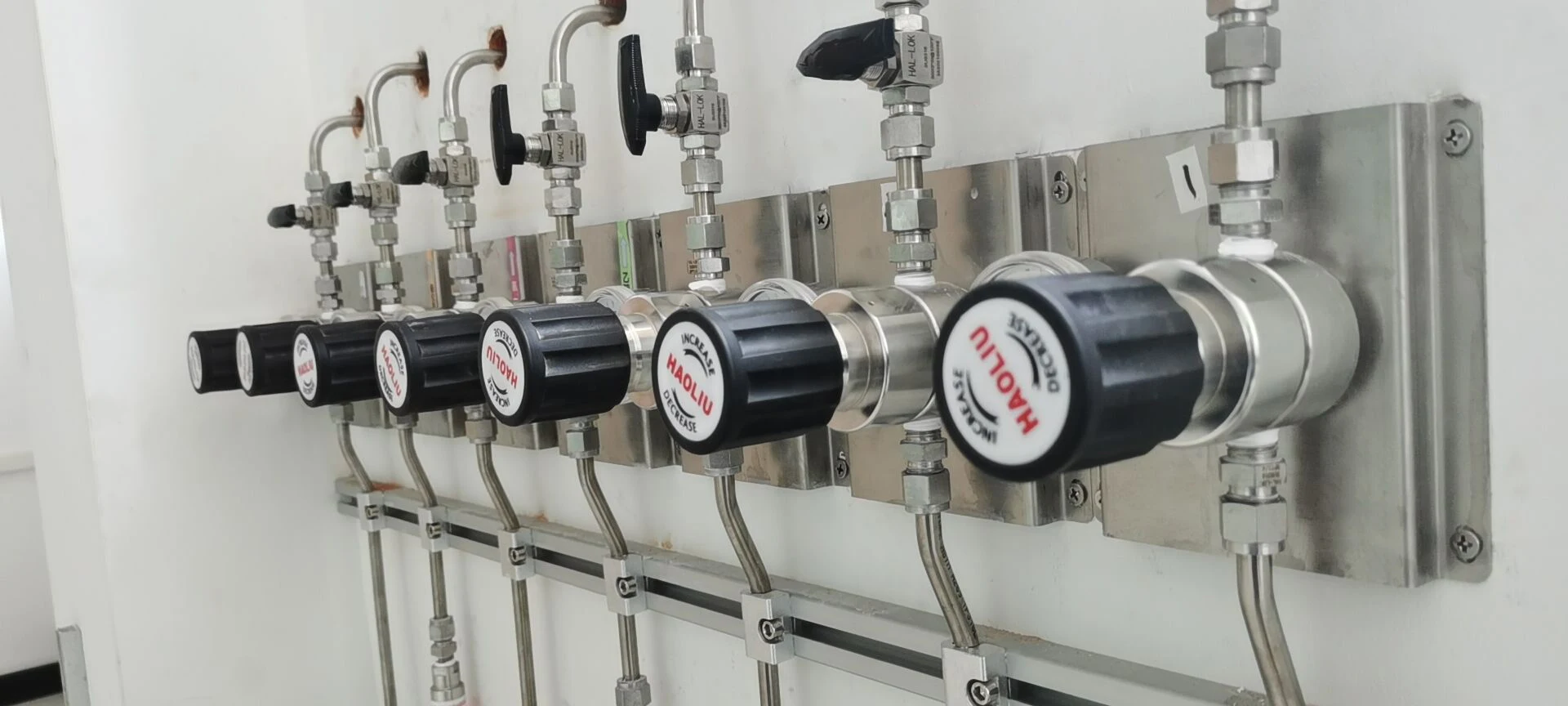

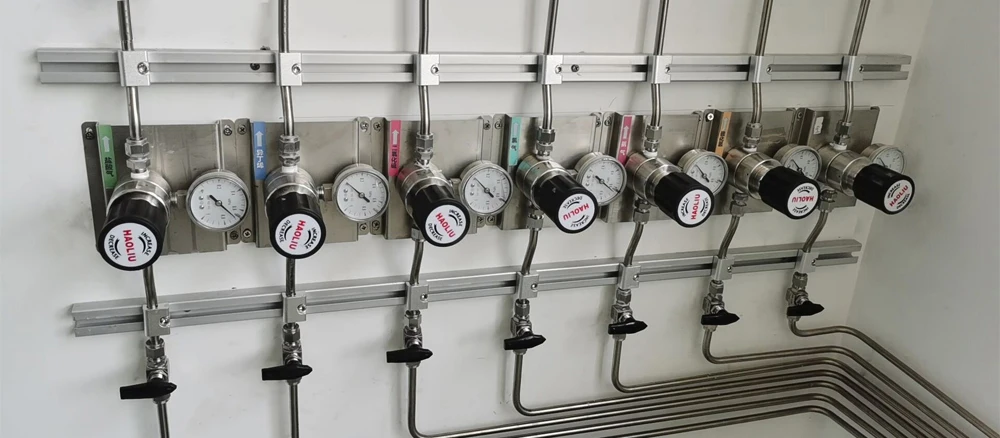

Installation site
