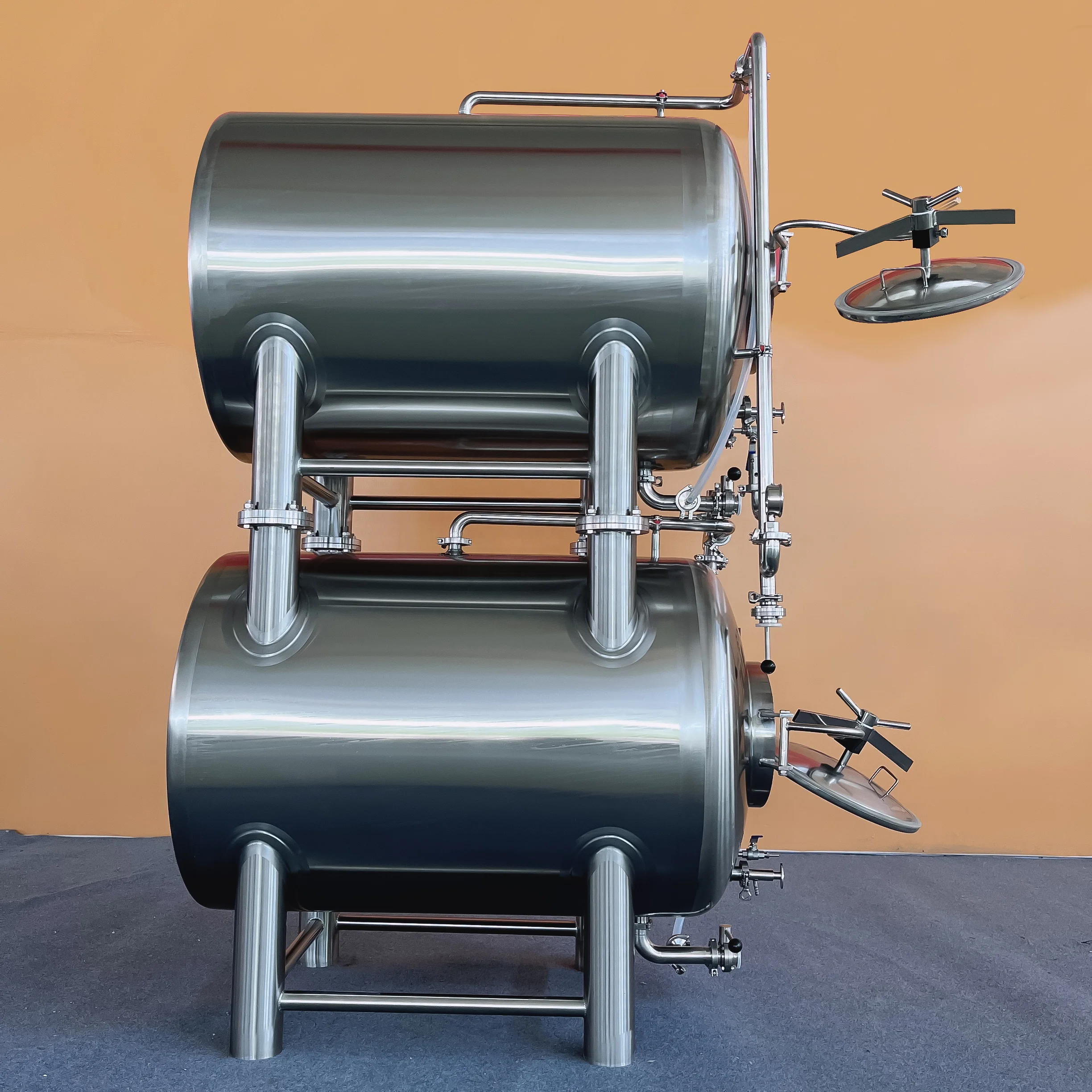

  • 500L Stacked Horizontal Design Bright Beer Tank Unitanks BBT Brite Beer Tank Serving Tank Beer Brewing Equipment

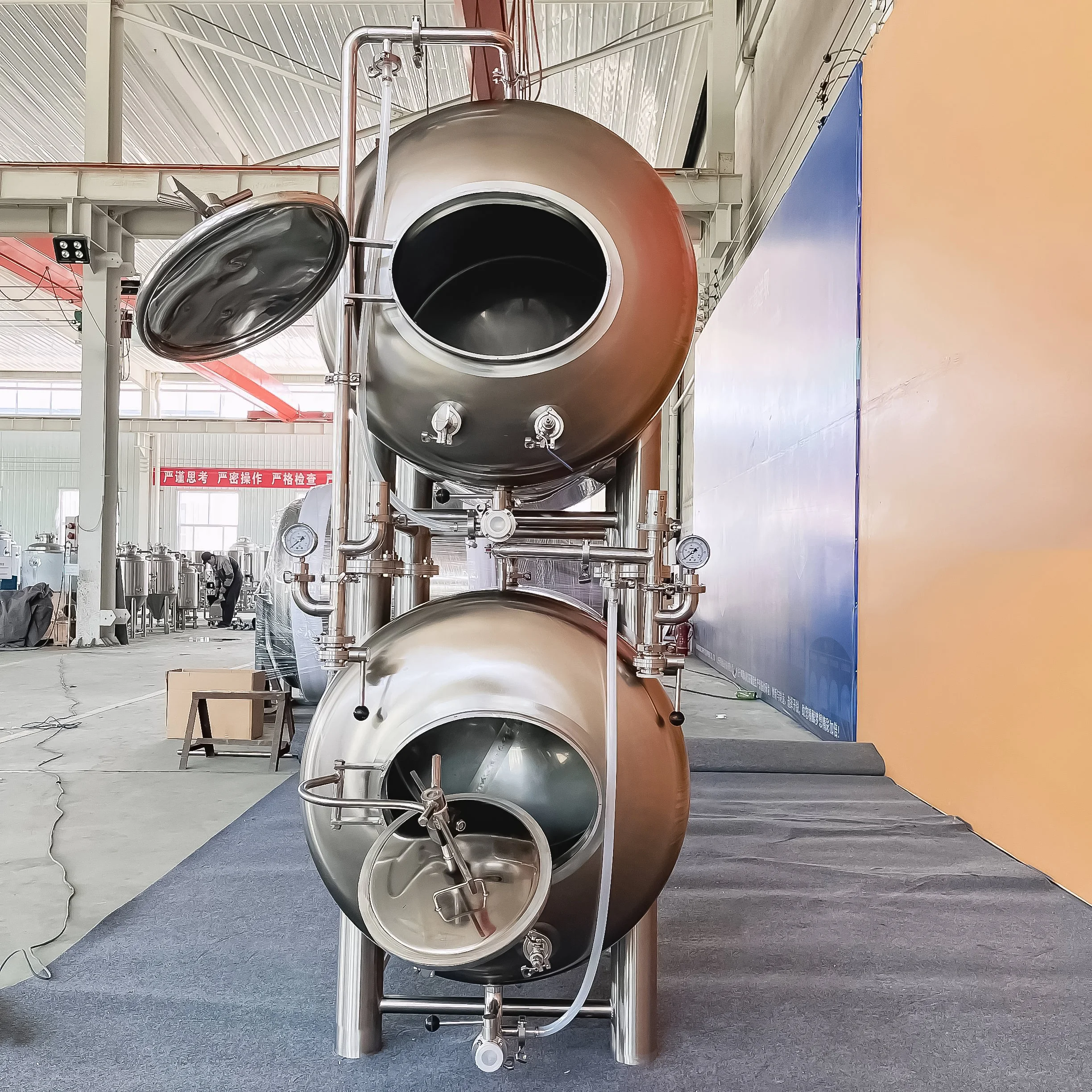

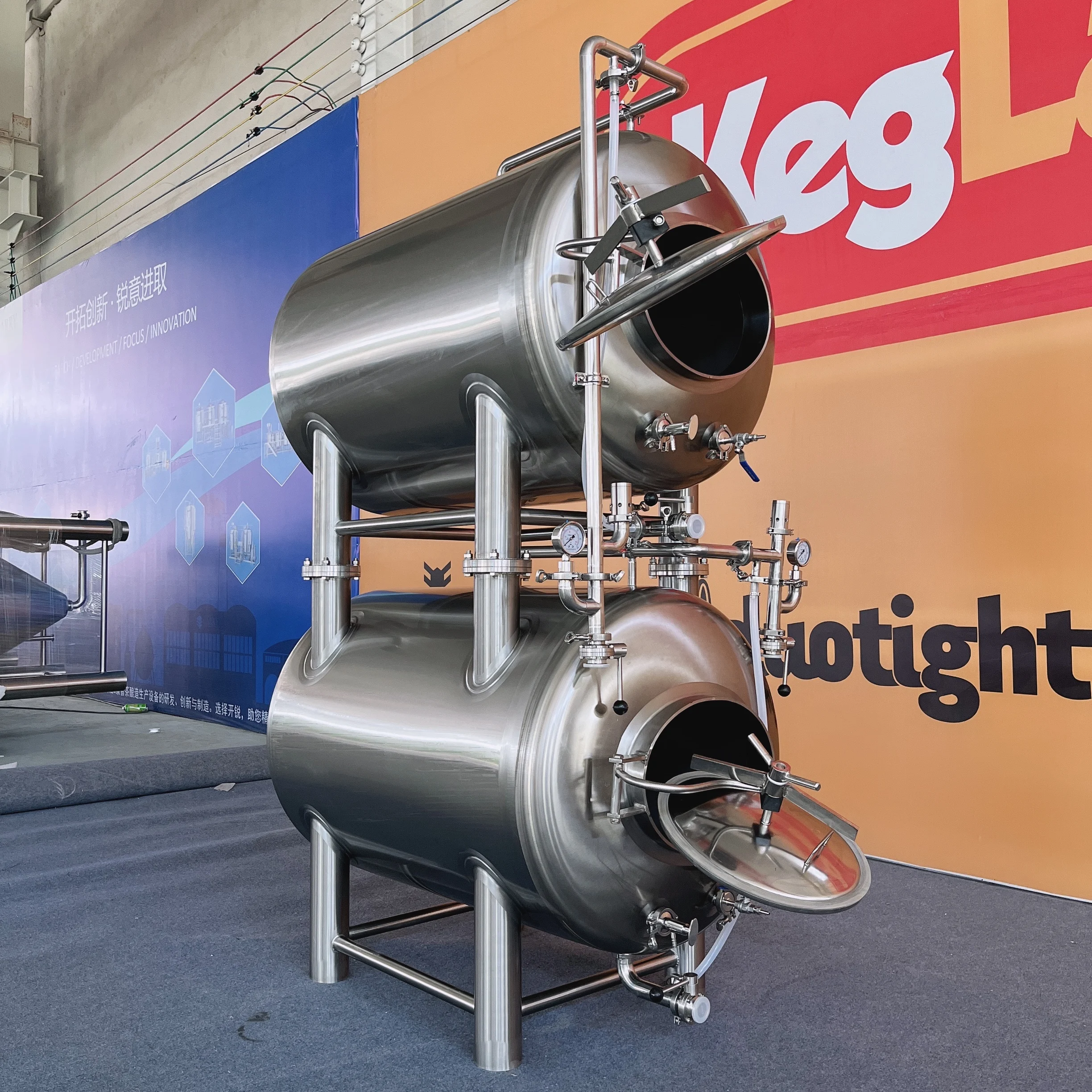

500L Stacked Horizontal Design Bright Beer Tank Unitanks BBT Brite Beer Tank Serving Tank Beer Brewing Equipment
500L Stacked Horizontal Design Bright Beer Tank Unitanks BBT Brite Beer Tank Serving Tank Beer Brewing Equipment
500L Stacked Horizontal Design Bright Beer Tank Unitanks BBT Brite Beer Tank Serving Tank Beer Brewing Equipment
500L Stacked Horizontal Design Bright Beer Tank Unitanks BBT Brite Beer Tank Serving Tank Beer Brewing Equipment
500L Stacked Horizontal Design Bright Beer Tank Unitanks BBT Brite Beer Tank Serving Tank Beer Brewing Equipment
500L Stacked Horizontal Design Bright Beer Tank Unitanks BBT Brite Beer Tank Serving Tank Beer Brewing Equipment
500L Stacked Horizontal Design Bright Beer Tank Unitanks BBT Brite Beer Tank Serving Tank Beer Brewing Equipment

500L Stacked Horizontal Design Bright Beer Tank Unitanks BBT Brite Beer Tank Serving Tank Beer Brewing Equipment

Share on (1600567768781):


Price:$2,100.00 - $2,400.00

Quantity:


Product Overview

Description





SPECIFICATION


Processing

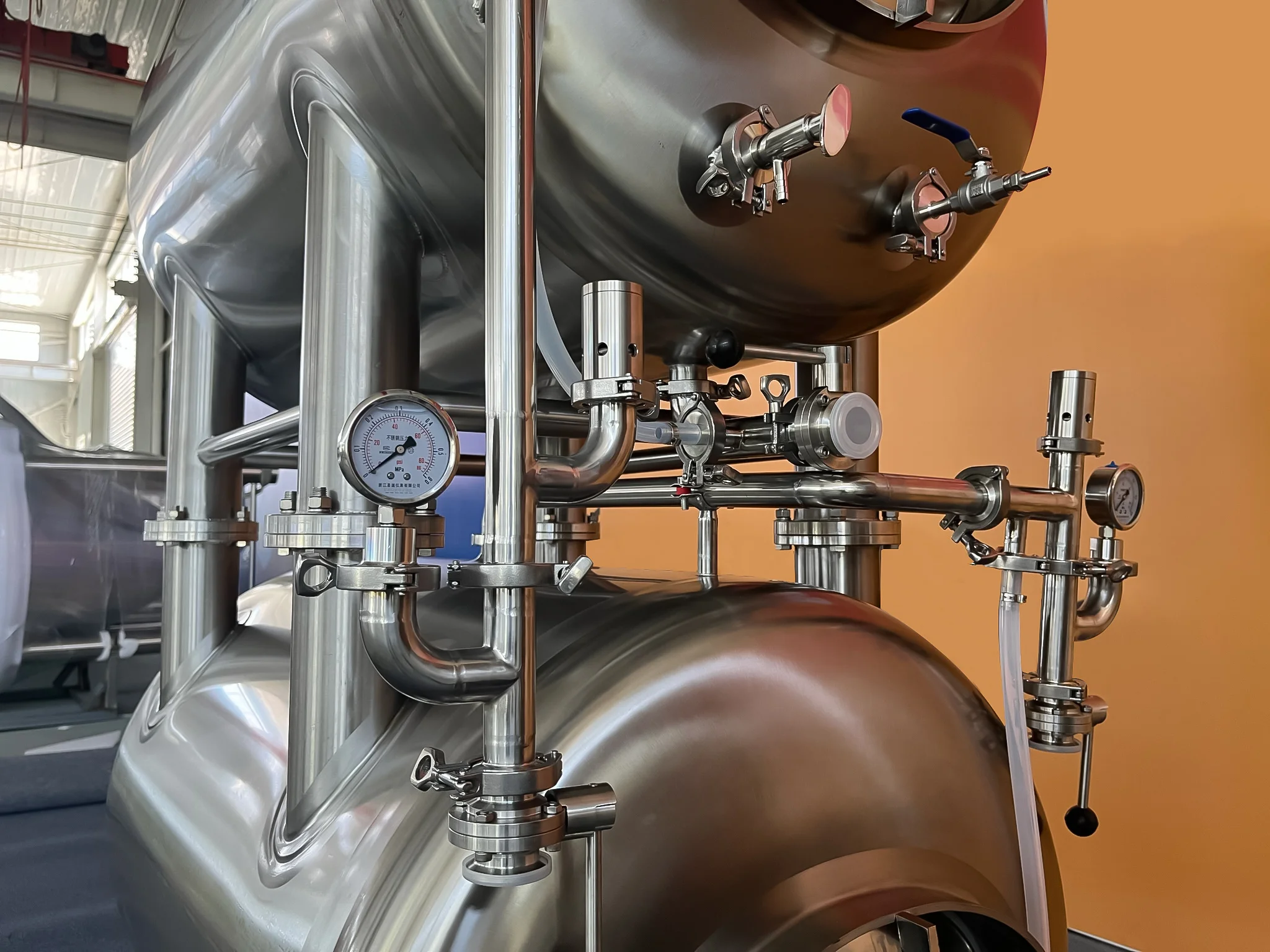

Stacked Horizontal Bright tank
Condition
New
Place of Origin
China
Shandong
Brand Name
CARRY
Processing Types
Beer
Dimension(L*W*H)
customizable
Warranty
3 years
Machinery Capacity
200L, 300L, 400L
Machinery Test Report
Provided
Warranty of core components
1 Year
Core Components
Motor, Pump, Pressure vessel, PLC
Product Name
500L Stacked Horizontal Bright tank
Material
Stainless Steel 304
Control system
PID
Cooling way
Dimple Plate Cooling
Thickness
3mm for Inner-Jacket/2mm for External-Jacket
Insulation
80mm
Cleaning way
CIP Cleaning Ball




1. Effective volume=500L, total volume=625L (for each one)
2. Net Dimension: 1450(L)*800(W)*2148(H)mm
3. Horizontal type
4. Side Manway
5. 360° spray ball equip with CIP arm
6. Pressure gauge on CIP arm
7. Spunding valve on CO2 Blow off arm
8. Sample Valve
9. Temperature probe: PT-100
10. Carbonation Stone equipped on tank
11. Cooling jacket: Dimpled plate on cone and side
12. Bottom drain port
13. Level Tube
14. With sanitary valve, clamp, solenoid, fitting, piping included
15. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;External-Jacket(SUS304) thickness: 2mm, Hairline
polishing;
·Oval head&conical bottom, thickness: 3mm.
·Insulation layer: PU-thickness= 80mm.
·100% high accuracy TIG welding.
·Design pressure 0.3MPa; Working pressure 0.15Mpa.

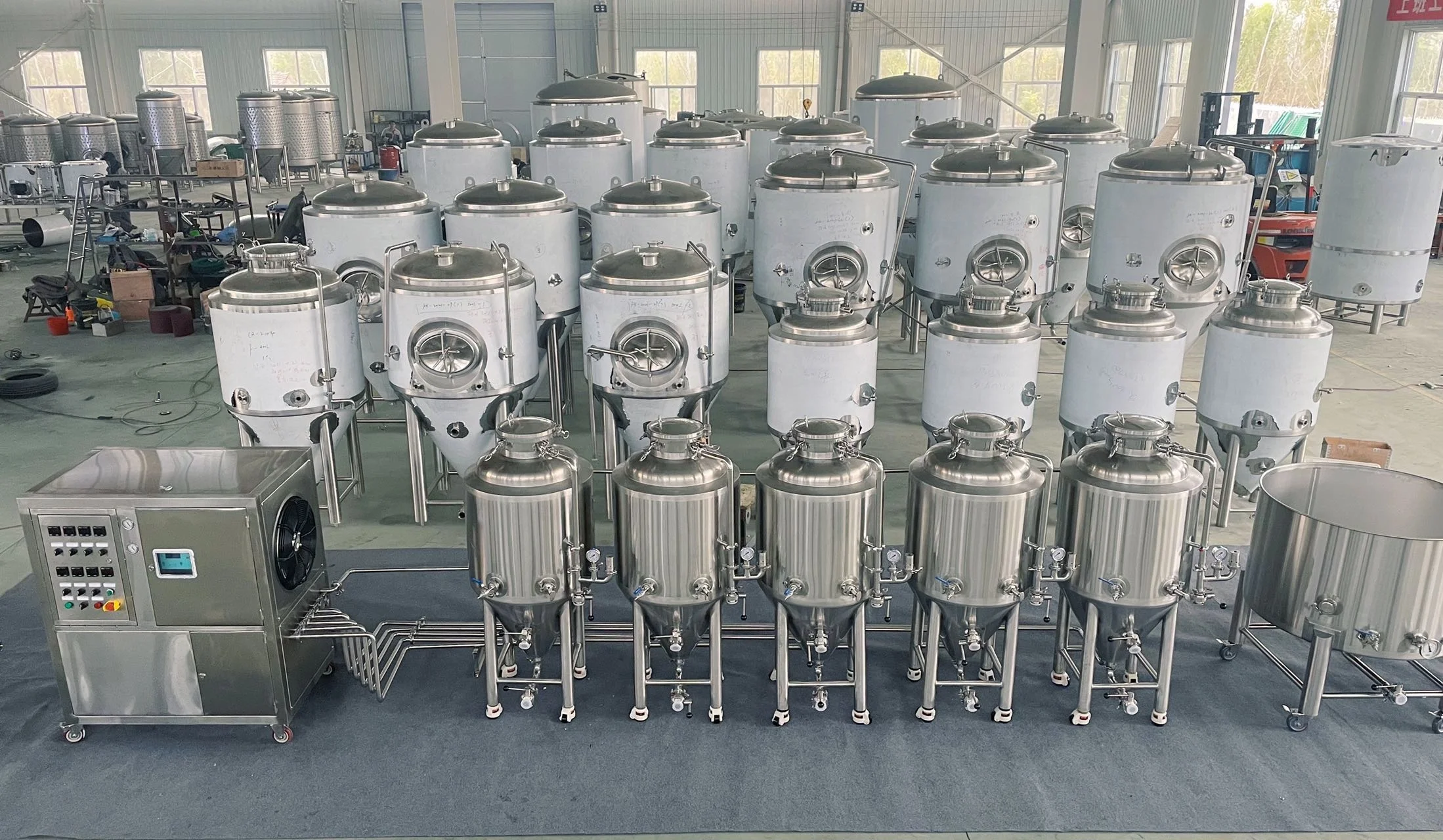

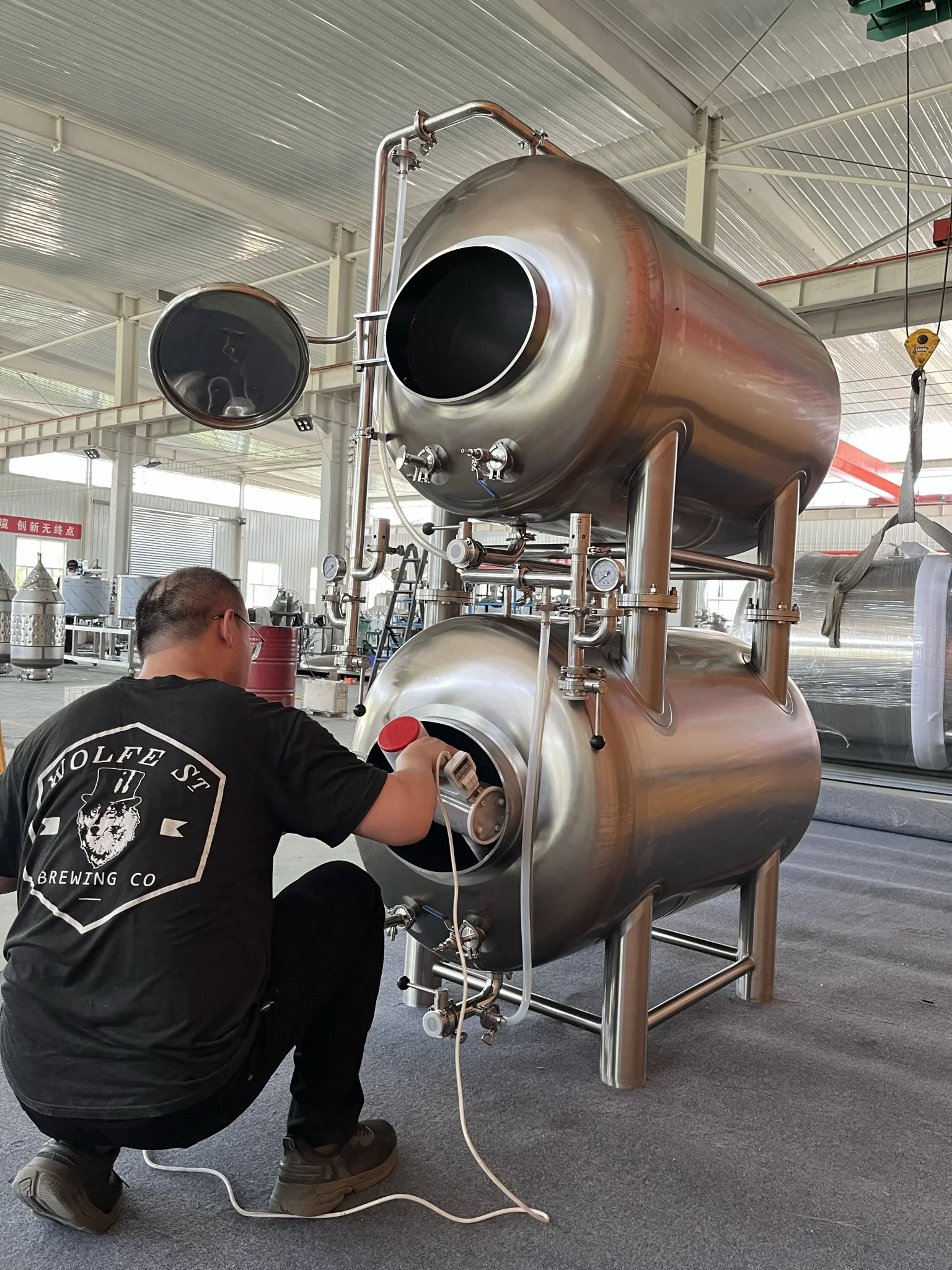

PRODUCTION DETAILS

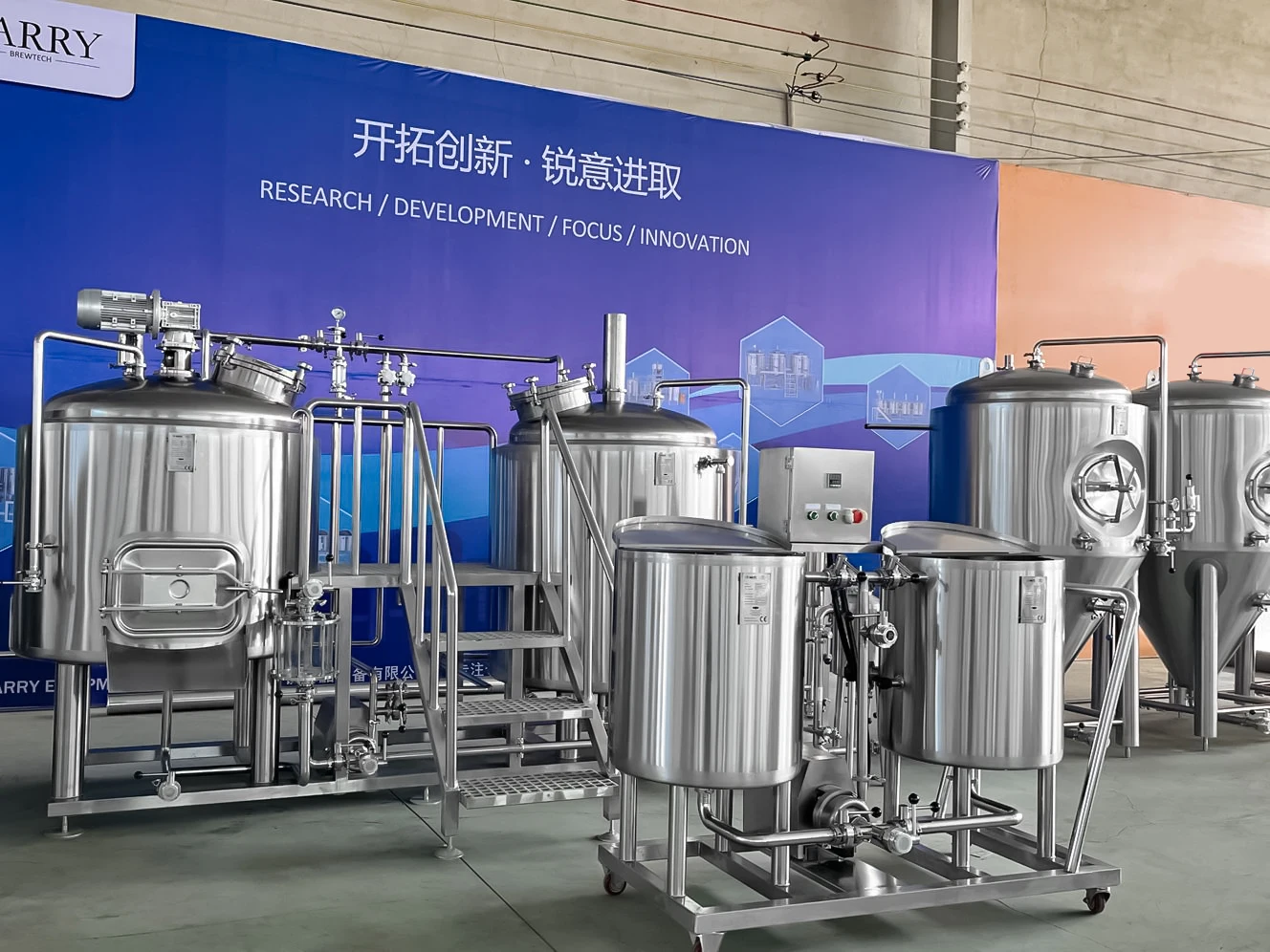

WE ALSO MANUFACTURE


Brewhouse (100L ~50HL)

2-vessel:
Mash/Lauter tank+Kettle/Whirlpool tank
3-vessel:
1. Mash tank+Lauter tank+Kettel/whirlpool tank
2. Mash/Lauter tank+Kettle tank+whirlpool tank
4-vessel:
Mash tank+Lauter tank+Kettle tank+whirlpool tank

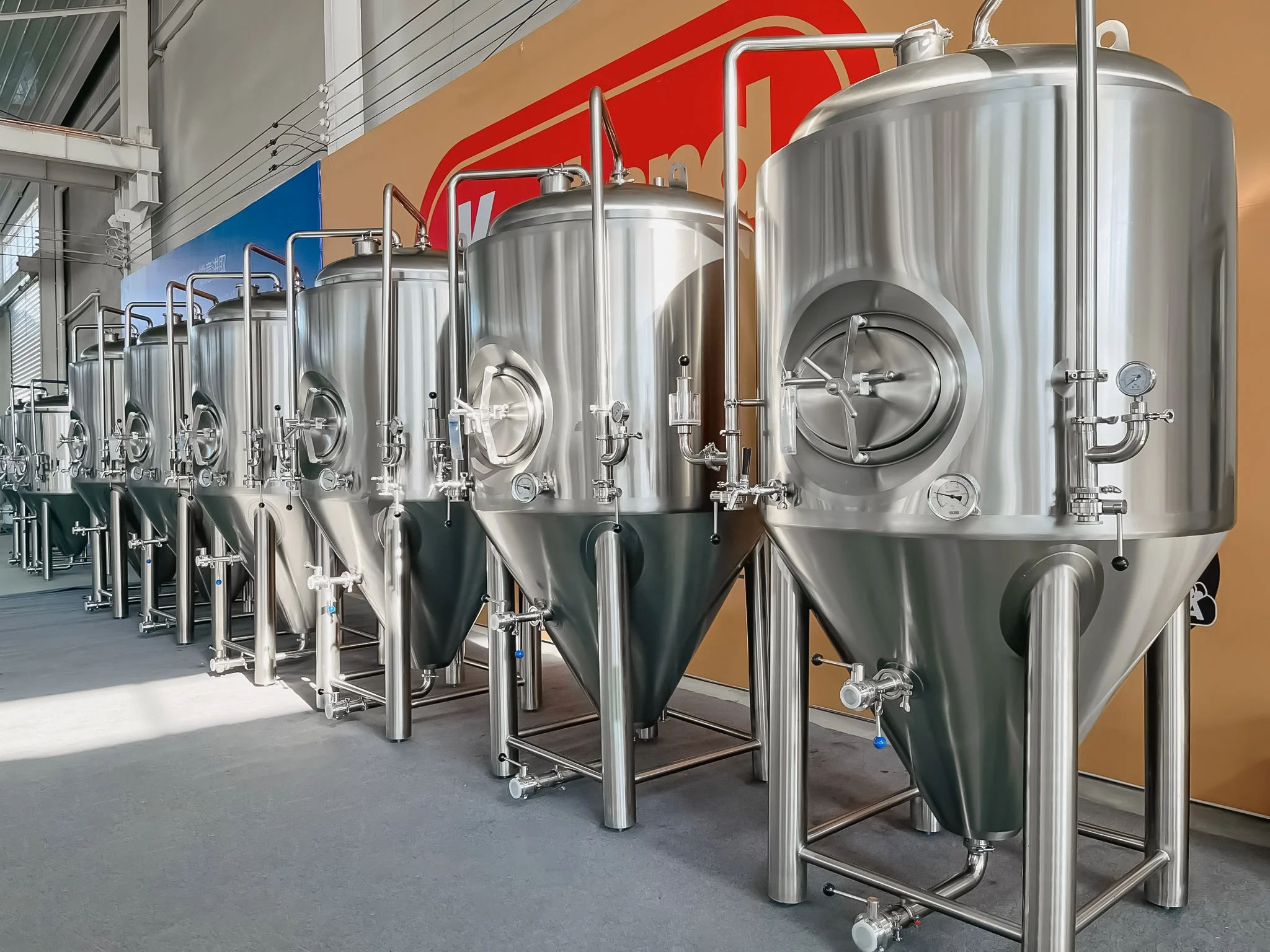

Fermentation Tank (100L ~50HL)
*360° spray ball equip with CIP arm
*Pressure Relief valve on the top
*Spunding valve & Pressure gauge on CIP arm
*Sampling Valve
*Temperature Gauge
*Standard Rotary Racking arm connect with *Beer outlet
*Bottom Drain port
*Glycol cooling jacket with Tri-clamp *inlet&outlet
*Temperature Probe & PT-100
*4 x strong duty legs with leveling pads
*Optional: Carbonation stone & fittings,etc.

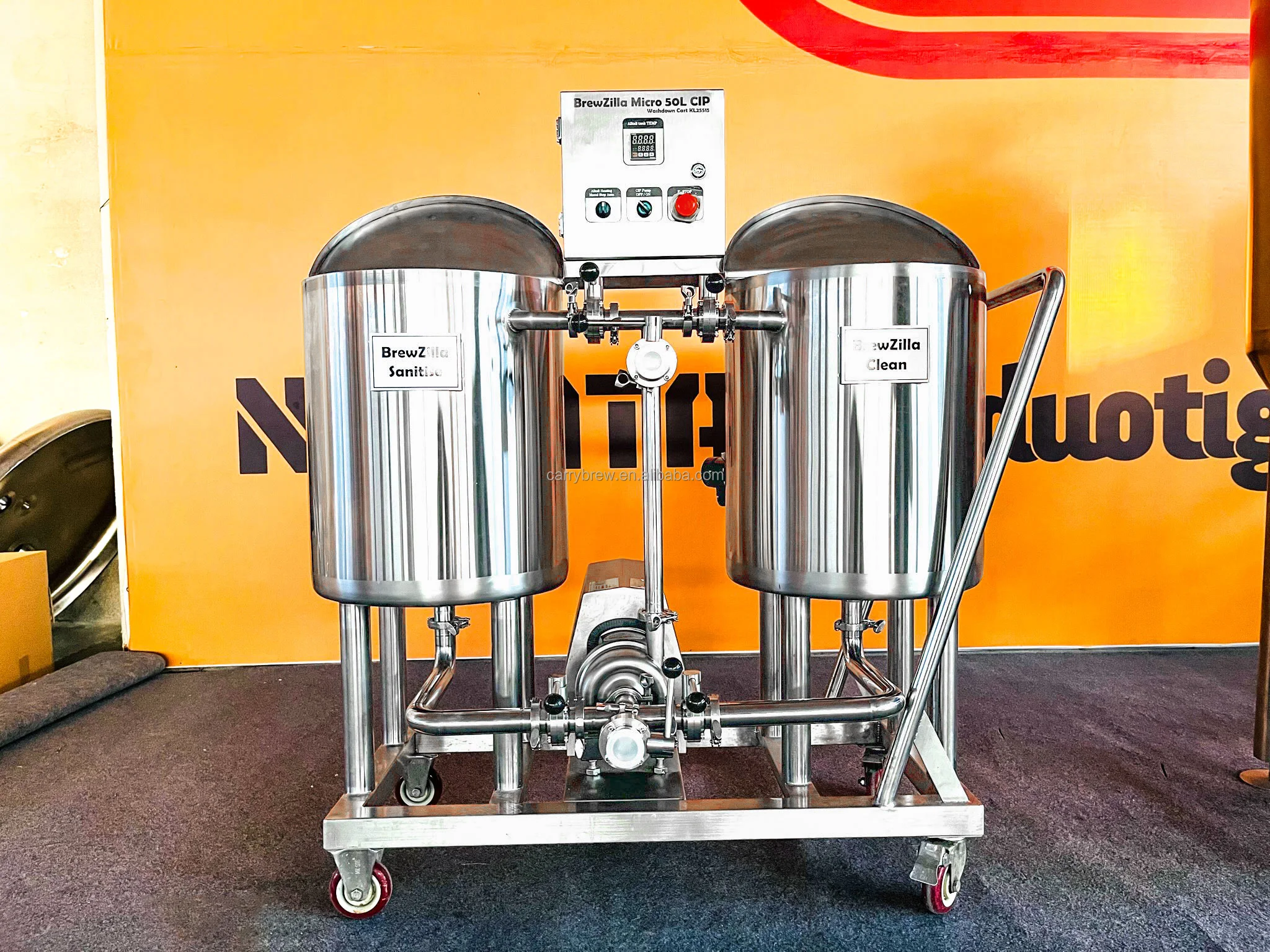

CIP Cleaning system
*Disinfection tank
*Alkali tank
*Cleaning Pump
*PID Control panel
*2*2m Wort Hose

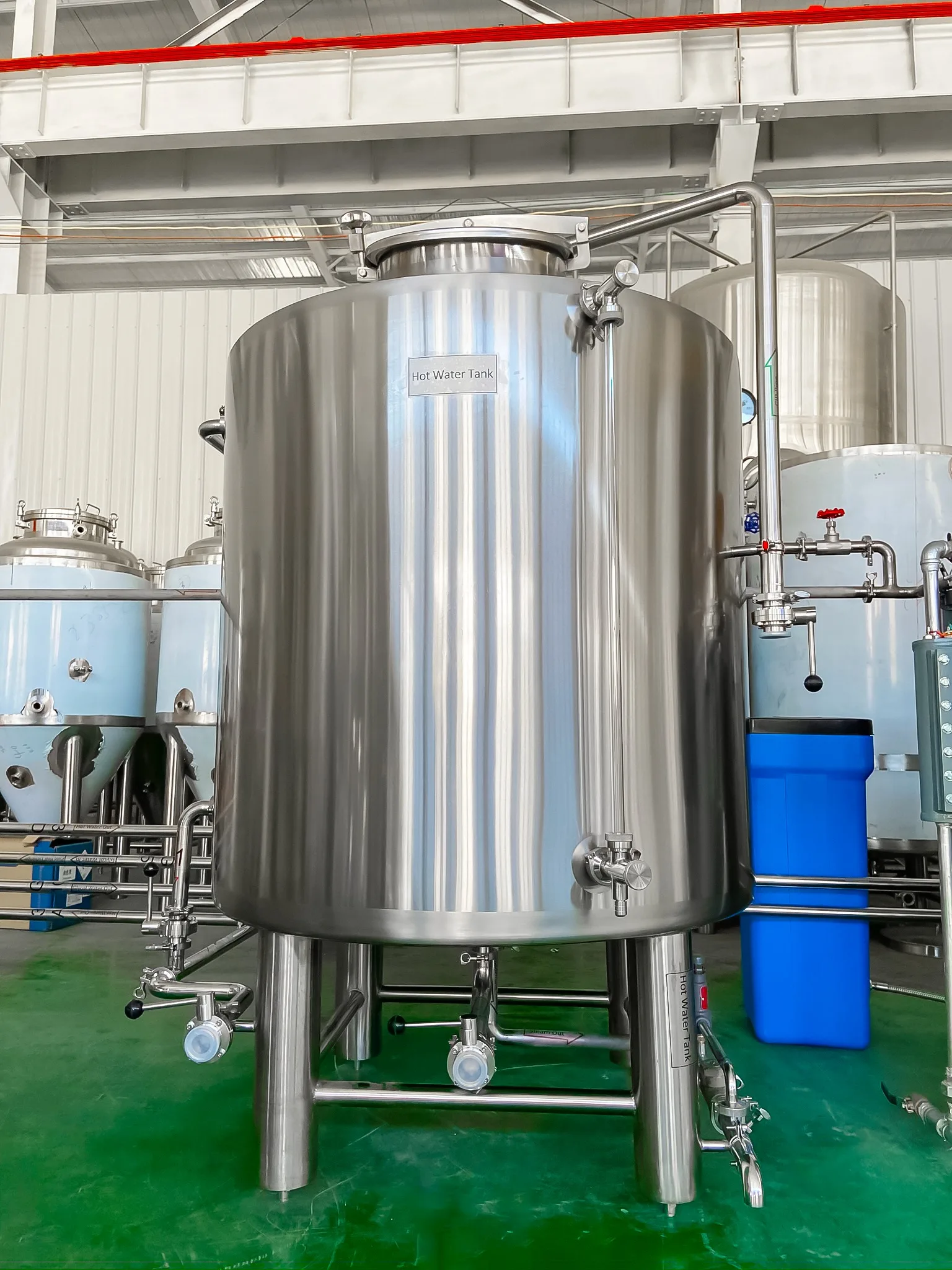

HLT / GLT
*360° spray ball equip with CIP arm
*Breather Valve on the top of tank
*Temperature probe (PT-100)
*Level tube indicator
*Bottom Drain port
*4 x strong duty legs with leveling pads
*With hot water transferring pump
*With all according piping&fittings included

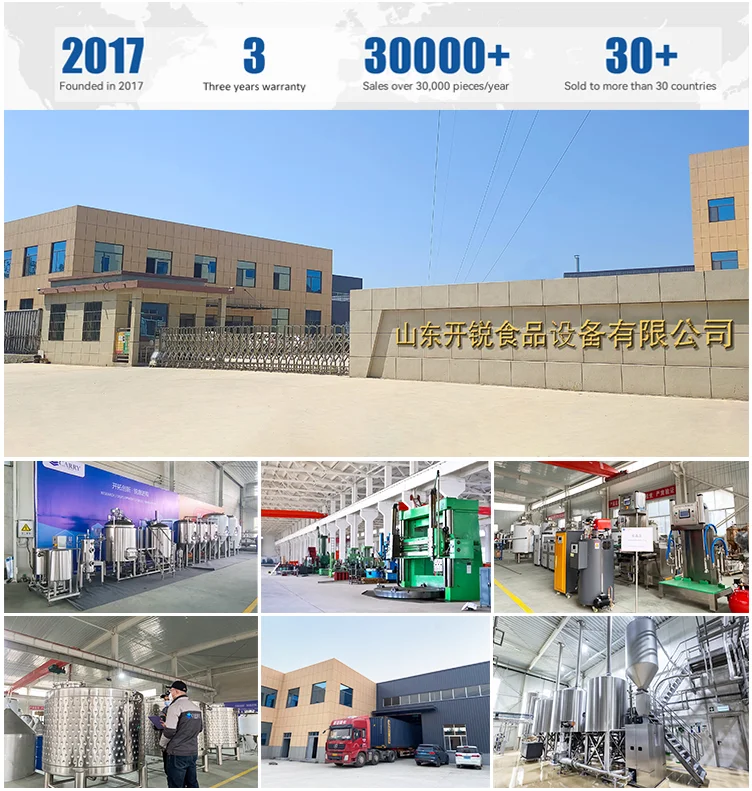

ABOUT US

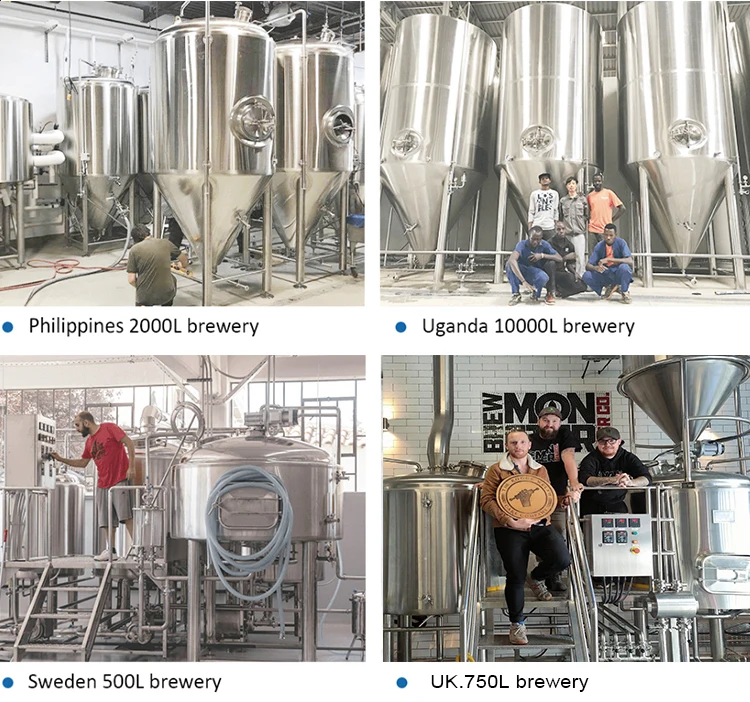

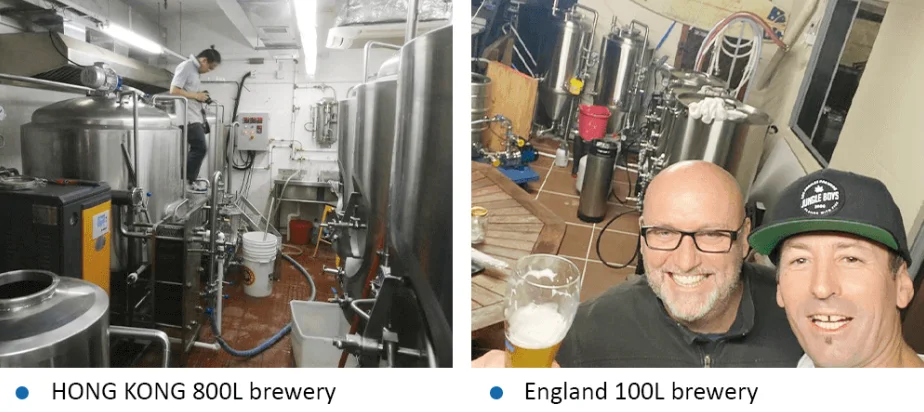

CUSTOMER FEEDBACK








CERTIFICATION






FAQ


1. who are we?
We are based in Shandong, China, start from 2021,sell to Domestic Market(25.00%),Eastern Europe(20.00%),North
America(15.00%),Oceania(10.00%),Western Europe(10.00%),Southern Europe(10.00%),South America(5.00%),Africa(5.00%). There are total
about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always
final Inspection before shipment;
3.what can you buy from us?
Beer brewing equipment,Brewery equipment,Fermentation tank,Turnkey
Brewery System Solutions,Kombucha Brewery Equipment
4. why should you buy from us not from other suppliers?
Carry Brewtech, with
more than 10 years of experience in Brewery Equipment R&D, Innovation, Production, and Servicing, we have been supplying products
to 800+ customers all over the world, industries including Beer, Kombucha, Gin, Rum, etc.


OUER SERVICE





1. Pre-sale service:

Layout: If you have conditions to send us your floor plan or sketch, or tell us the size (length, width, height) and the capacity and type of the fermentation equipment you want, we will provide you with the corresponding plan. Tailor-made for you

2. After-sales service:

The warranty period for core components is 1 year, and the tank body warranty is 3 years. Within one year, no one’s factor causes the electrical components to fail, we provide it for free or repair it for you. After the warranty, if you need to replace parts, we will wholeheartedly provide you with the most favorable price, when you encounter technical problems during use, we will wholeheartedly provide you with service
