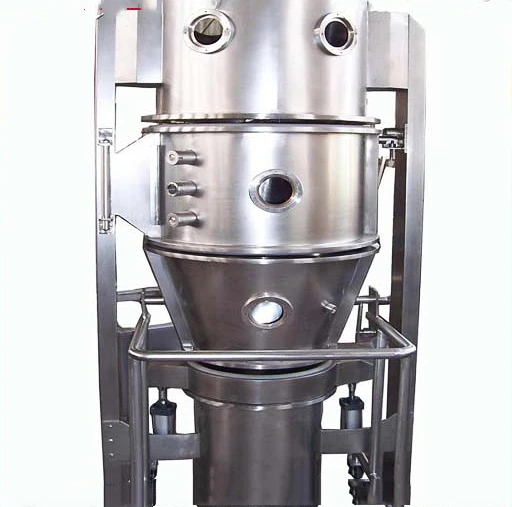

Energy saving China quality fluid bed granulator dryer FL 150

Product Overview

Description

Description:

FL Series fluid bed dryer granulator is the integrated use of spray and fluidization technology, the traditional process mix, granulation, drying has been accomplished once in the same equipment, it is also called "one step granulators."



Work Principle:

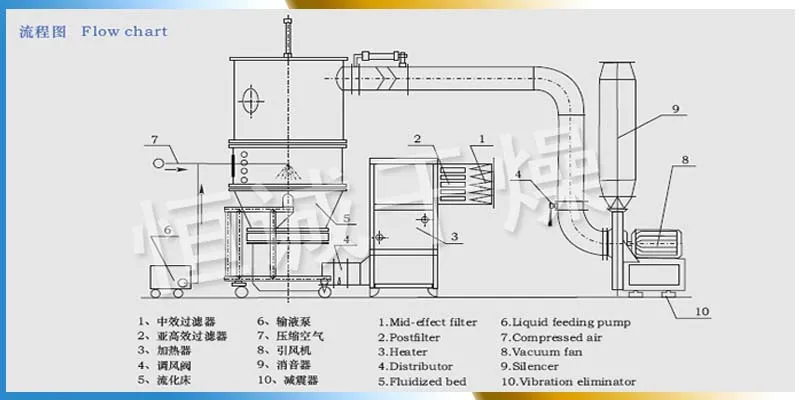

After purifying and heating the air in drafted by draft fan to the lower part of the drier then through the air distribution plate, making the materials powder fluidized in circular flow; Adhesive solution atomized by nozzles, the small droplet from the nozzle gathers a number of particles together as cumularspharolith. As the drying of the material, the cumularspharolith water evaporation and adhesive solution solidified. This process repeats, creating the ideal, even and porous spherical particles.





Product Characteristics:

1. Through the powder granulation improves liquidity and reduces dust emissions.

2. Through the powder granulation improves their dissolving performance.

3. Mixing, granulation, drying processes accomplished once in the same equipment and improving the thermal efficiency.

4. Frequency Control device is used, Hopper used inflatable seal, sealed and reliable.

5. Excellent speed controlling performance, set up pressure relief hole, safety of using.

6. No dead angle, material loading and unloading fast, easy cleaning, meeting GMP standards



Material to be dried:

1.Medicine: Radix isatidis, Andrographolide, Allicin, Protease, Angelica, Compound Paracetamol and Amantadine Hydrochloride Capsules, Radix Astragali, Xantinol Nicotinate, Bezoar Tablet, Chlorphenamine Maleate Tablets, Qingxue-Bawei Capsule, Gentamicin, Cactus Wei Kang Capsules. 2.food and feed additives: glucosamine hydrochloride, Effect of Apramycin, TP, spectinomycin, aspartame, guitar adriamycin, Colistin of sulfuric acid, cellulose, xylanase, Metalor Streptozotocin, Thailand Miao streptozotocin, streptomycin, phytase.



Technical Parameter:





Specification	FL-5	FL-15	FL-30	FL-45	FL-60	FL-90	FL-120	FL-150	FL-200	FL-300	FL-500
Volume(L)	22	45	100	155	220	300	420	530	660	1000	1500
Capacity(kg/per   time)	4/6	10/20	15/45	25/65	40/80	60/120	80/160	90/200	100/300	150/450	300/300
Power   of fan(kw)	3	4	5.5	7.5	11	15	18.5	18.5	22	30	37
Consume   steam 0.4MPa(kg/h)	23	42	70	99	141	169	211	251	282	366	451
Consume   compressed air   m3/min	1.3	0.3	0.4	0.4	0.6	0.6	0.9	0.9	0.9	1.3	1.5
Noise,db(A)	(fan is   installed separately)≤75
Overall   dimension(m)	1.2x   0.6x2.1	1.25x   0.9x2.1	1.6x   0.9x2.3	1.65x   1.1x2.4	1.85x   1.25x3	1.85x   1.25x3	2.2x   1.65x3.1	2.27x   1.72x3.1	2.34x   1.9x3.5	2.8x   1.9x3.8	3x   2.55x4.2



1.Factory Tour:

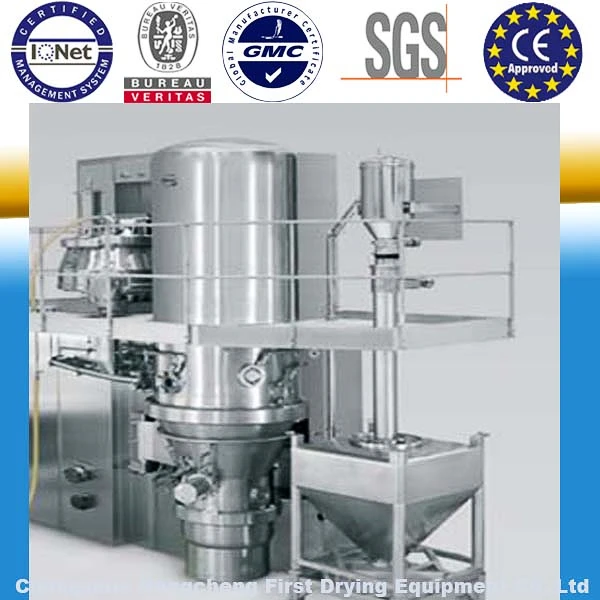

2.Factory Certificate:





3.Our Customers:







1.Customer plant installation:
