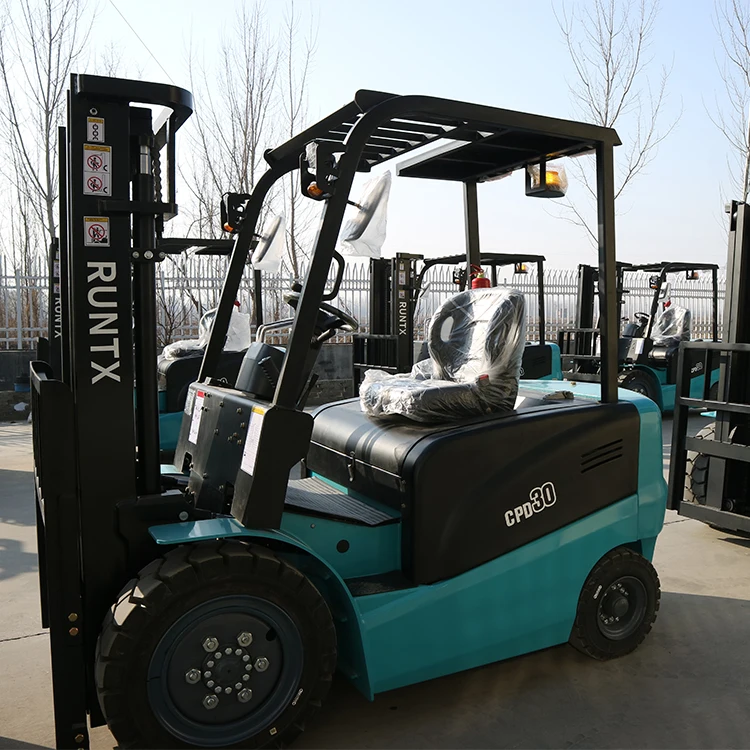

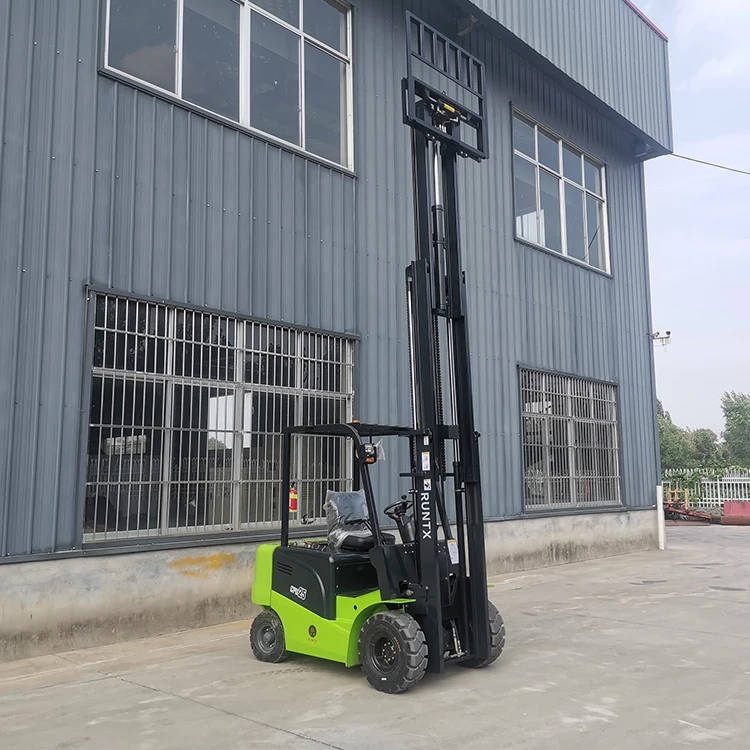

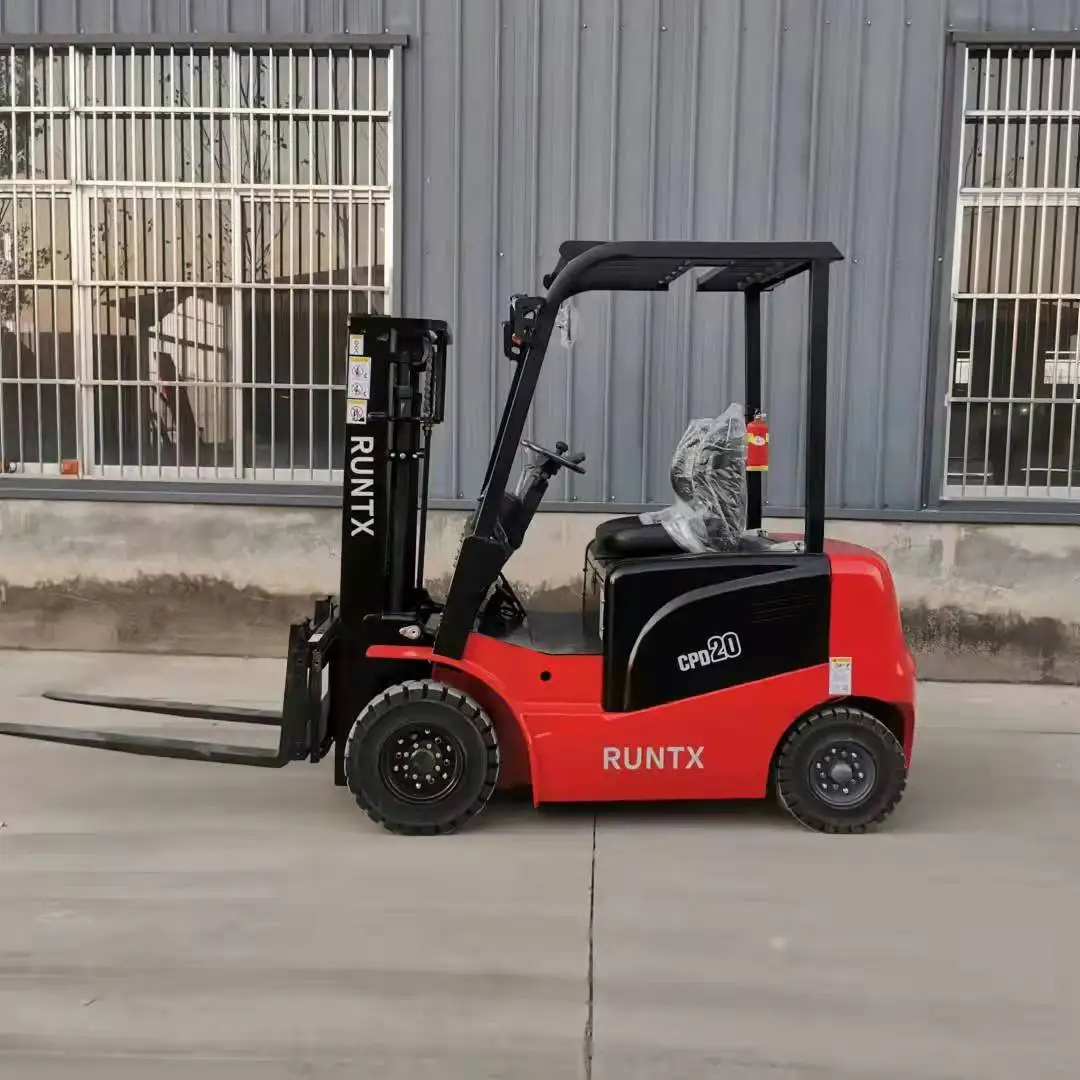

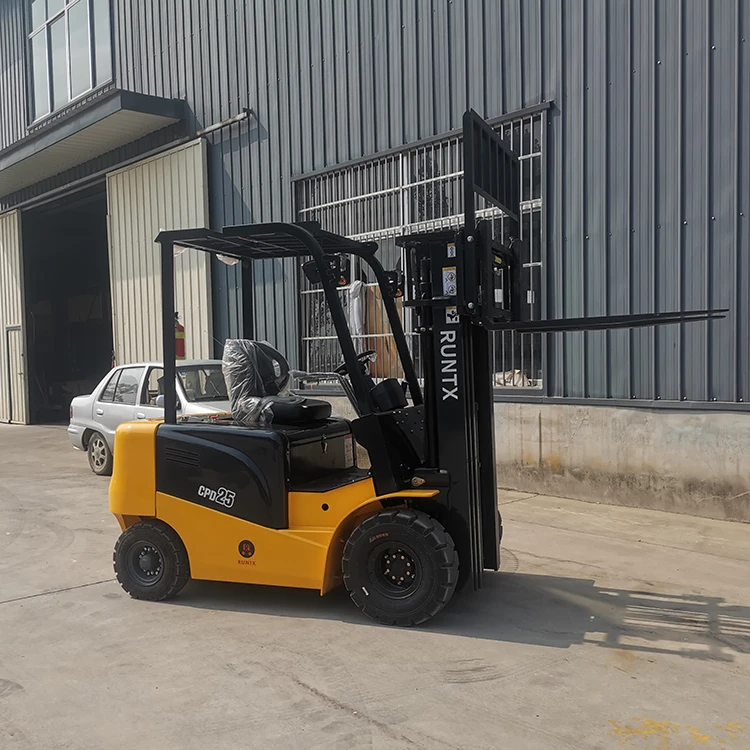

1500 Kg electric forklift electric 1.5 ton mini forklift folk lift monta cargas
- Category: Transporting >>>
- Supplier: Xiamen Runtx Machinery Co. Ltd.
Share on (1600567780559):
Product Overview
Description
Products Description
Manufacturer | RUNTX | RUNTX | RUNTX | RUNTX | RUNTX | ||||||
Model | CPD30 | CPD35 | CPD40 | CPD45 | CPD50 | ||||||
Rated capacity | 3000 | 3500 | 4000 | 4500 | 5000 | ||||||
Load center | 500 | 500 | 500 | 500 | 500 | ||||||
Tire type | Pneumatic/Solid | Pneumatic/Solid | |||||||||
Quantity of wheels | 2 X /2 | 2 X /2 | |||||||||
Tires Size | 28X9--15-12PR/18X7-8-14PR | 250-15 23×10-12 | 250-15 23×10-12 | 250-15 23×10-12 | |||||||
Tilting Angles | α/β（°） | 6/12 | 6/12 | 6/10 | 6/10 | 6/10 | |||||
Height of mast | mm | 2120 | 2150 | 2185 | 2185 | 2185 | |||||
Max.lift height of mast | mm | 4160 | 4190 | 4170 | 4170 | 4170 | |||||
Free lift height | mm | 150 | 150 | 150 | 150 | 150 | |||||
Max.lift height of fork | mm | 3000-6000 | 3000-6000 | ||||||||
Front-wheel Overhead | mm | 2092 | 2100 | 2100 | 2100 | 2100 | |||||
Length(without fork) | mm | 2507 | 2550 | 2985 | 2985 | 3045 | |||||
Front overhang | mm | 475 | 475 | 565 | 565 | 565 | |||||
Rear overhang | mm | 432 | 475 | 420 | 420 | 480 | |||||
Wheelbase | mm | 1600 | 1600 | 2000 | 2000 | 2000 | |||||
Min.ground clearance | mm | 110 | 110 | 110 | 110 | 110 | |||||
Tread(front/rear) | mm | 1000/970 | 1000/970 | 1150/1175 | 1150/1175 | 1150/1175 | |||||
Overall width | mm | 1250 | 1250 | 1480 | 1480 | 1480 | |||||
Fork size | mm | 1070x125x45 | 1070x125x50 | 1070x150x50 | 1070x150x50 | 1070x150x50 | |||||
Minimum right Angle stacking channel width | mm | 4105 | 4200 | 4630 | 4630 | 4630 | |||||
Min mum urn radius | mm | 2360 | 2420 | 2676 | 2676 | 2676 | |||||
Max driving speed | km/h | 12~13 | 12~13 | 13/12.5 | 13/12.5 | 13/12.5 | |||||
Max Lifting speed | mm/s | 300-400 | 300-400 | 260/420 | 260/420 | 250/420 | |||||
Max lowering speed | mm/s | 260-390 | 260-390 | 480/430 | 480/430 | 480/430 | |||||
Maxmum tractive force | N | 15600 | 15600 | 16800 | 16800 | 16800 | |||||
Max.grade ability | % | 14-15 | 15 | 13/14 | 13/14 | 13/14 | |||||
Drive motor power | kw | 13 | 16.6 | 18 | 18 | 18 | |||||
Hoisting motor power | kw | 13.5 | 13.5 | 25.4 | 25.4 | 25.4 | |||||
voltage/Capacitance | V/Ah | 80/450 | 80/500 | 80/700 | 80/700 | 80/700 | |||||
Drive System | AC | ||||||||||
electric control system | Curtis/ZAPI | ||||||||||
Total weight | KG | 4950 | 5200 | 6750 | 6790 | 7150 | |||||
Details
1. High-quality manganese steel, strong toughness and high safety factor
2. Electrophoresis-automotive grade painting process
3. Integral forming overhead guard, strong and durable, large arched structure, high pressure resistance, strong safety
4. Integrated injection molding instrument panel, humanized design, with USB charging port
5. With LED headlights, beautiful and practical, energy-saving more than 80%
6. High-frequency MOSFET integrated controller ensures smooth and precise walking and lifting control,excellent speed regulation
performance, good matching performance of motor electronic control, regenerative braking,reverse braking, slope anti-slide and
other functions, safe and reliable.
2. Electrophoresis-automotive grade painting process
3. Integral forming overhead guard, strong and durable, large arched structure, high pressure resistance, strong safety
4. Integrated injection molding instrument panel, humanized design, with USB charging port
5. With LED headlights, beautiful and practical, energy-saving more than 80%
6. High-frequency MOSFET integrated controller ensures smooth and precise walking and lifting control,excellent speed regulation
performance, good matching performance of motor electronic control, regenerative braking,reverse braking, slope anti-slide and
other functions, safe and reliable.

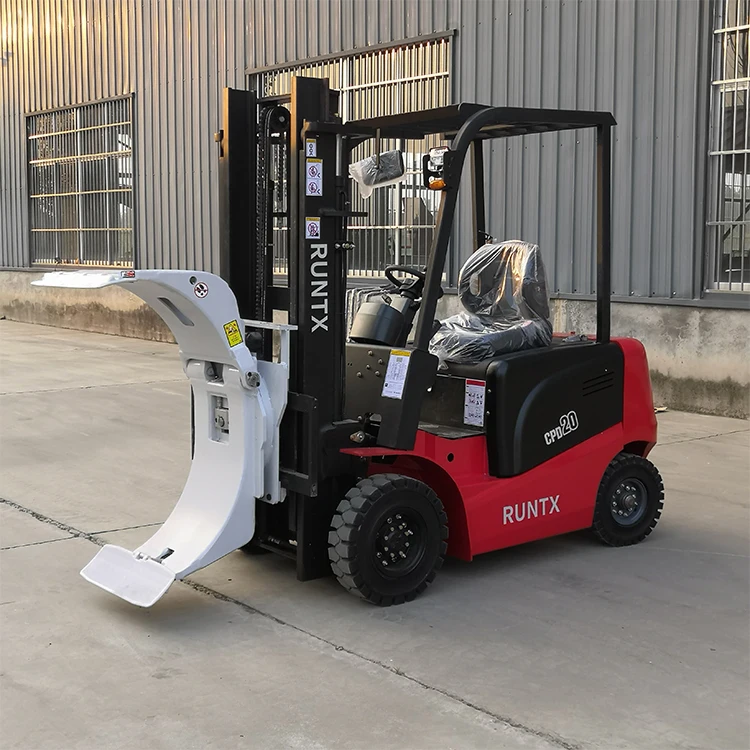

Attachmen
Packaging and Shipping
Production Workshop
Company Profile
Xiamen RUNTX Machinery Co., Ltd. was established in early 2006. It is a professional manufacturer focusing on providing customers with reliable and efficient material handling equipment and solutions, integrating R&D, manufacturing, sales and service.Developing so far, our company covers an area of more than 37,000 square meters, with an annual sales quantities more than 4,000 forklifts of various types, and has strong production and R&D capabilities.
Since establishment, RUNTX company has always been committed to producing the most cost-effective high-quality forklift in China, and has constant research and innovate. Our company has large-scale CNC cutting machines, vertical machining centers, horizontal gantry milling machines, welding robots and other equipment, which has realized all the self-made key components and provided a strong guarantee for the quality of the products. The company's main products include a full range of internal combustion counterbalanced forklifts, electric counterbalanced forklifts, electric warehouse equipment, and port equipment to meet the different needs of customers.
RUNTX has always been adhering to the concept of providing customers with the best products and services, insisting on the principle of customer first, and Implement this purpose that the sale of goods is not the end, but the beginning of the service, and has won high praise from customers at domestic and abroad. In the future, we will continue to break through ourselves and strive to become one of the best forklift manufacturer in China.
Since establishment, RUNTX company has always been committed to producing the most cost-effective high-quality forklift in China, and has constant research and innovate. Our company has large-scale CNC cutting machines, vertical machining centers, horizontal gantry milling machines, welding robots and other equipment, which has realized all the self-made key components and provided a strong guarantee for the quality of the products. The company's main products include a full range of internal combustion counterbalanced forklifts, electric counterbalanced forklifts, electric warehouse equipment, and port equipment to meet the different needs of customers.
RUNTX has always been adhering to the concept of providing customers with the best products and services, insisting on the principle of customer first, and Implement this purpose that the sale of goods is not the end, but the beginning of the service, and has won high praise from customers at domestic and abroad. In the future, we will continue to break through ourselves and strive to become one of the best forklift manufacturer in China.
