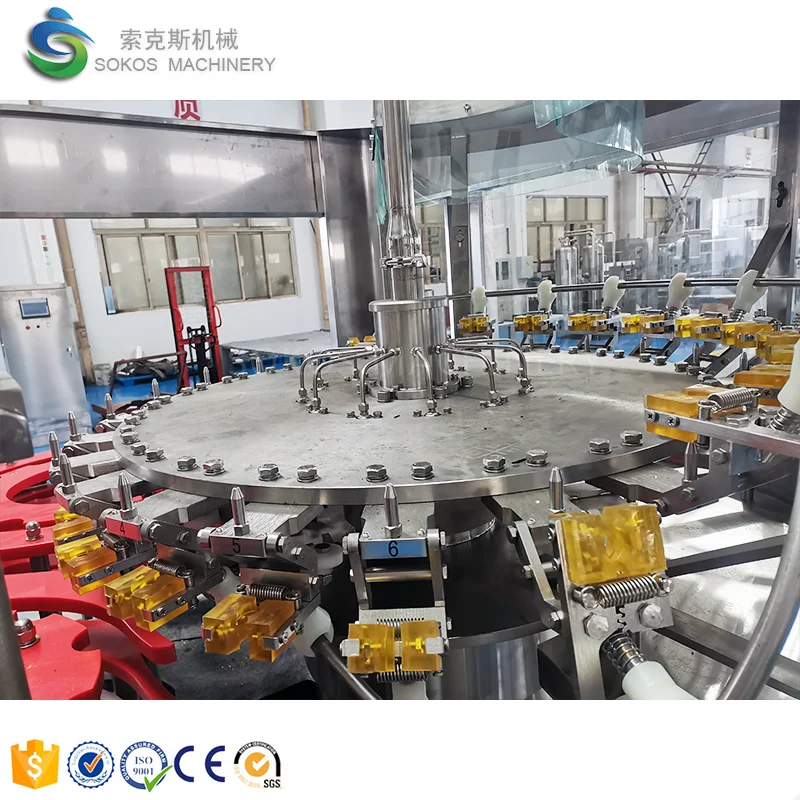

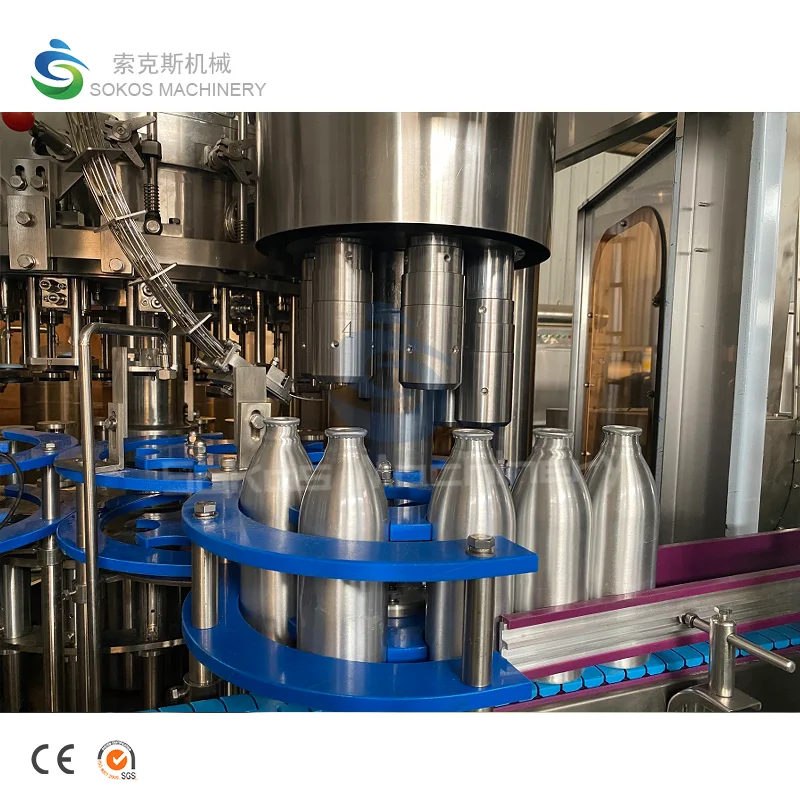

Compact Sparkling Soda Drink Water Filling Production Line For Bottle Packing
- Category: >>>
- Supplier: Zhangjiagang Sokos Machinery Co. Ltd.
Share on (1600567787757):
Product Overview
Description
Attention
1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
Products Description

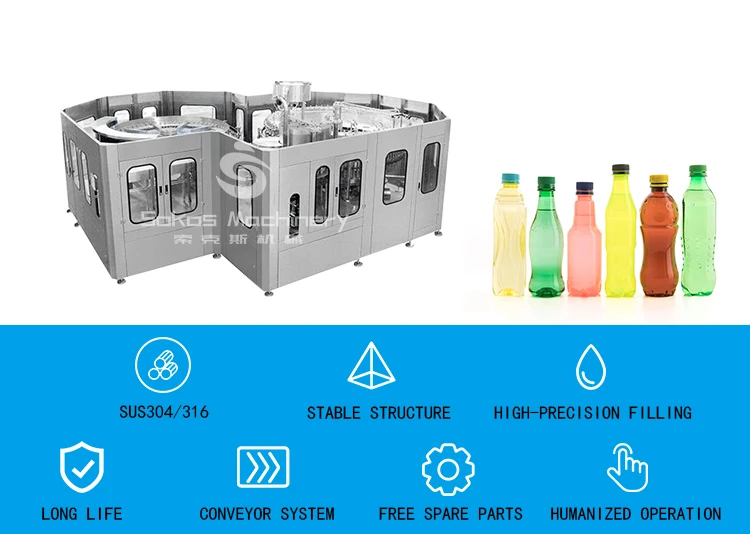

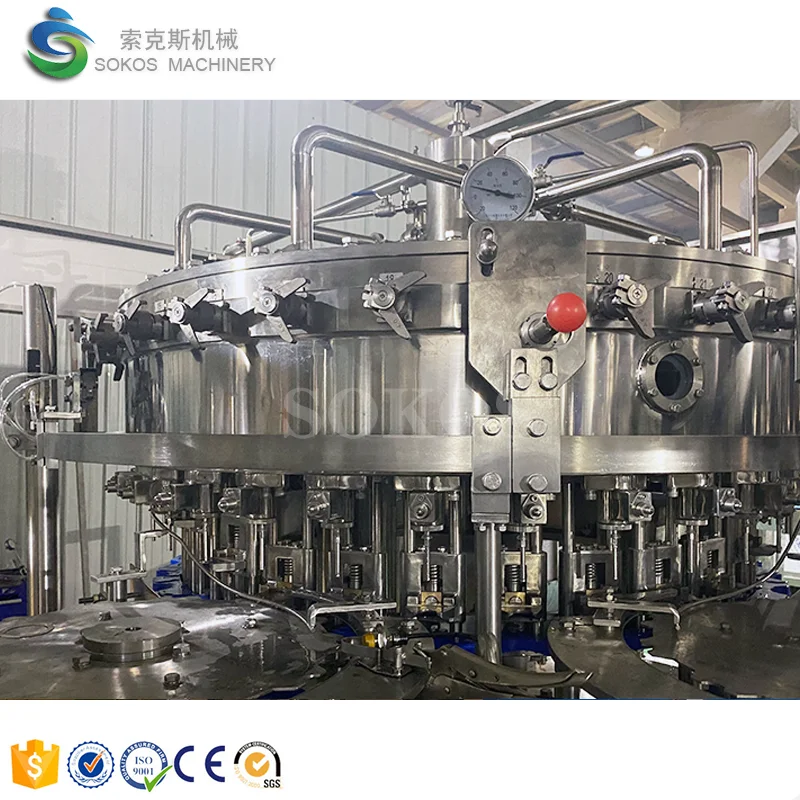

Automatic Bottled Carbonated Drinks，Soda Water Filling Machine
1. Model DCGF24-24-8
2.Capacity : 8000BPH (500ml)
3. Suitable : Plastic bottle 200ml-2000ml
4.Machine electric brand : SIEMENS ,MITSUBISHI, Schneider
5.Machine power : 3Kw
6. Machine weight : 4500kg
7. Machine include function : Bottled Carbonated Drinks Filling
8.Application: Beverage Filling Line.Soda water filling line
Model | DCGF8-8-4 | DCGF14-12-5 | DCGF18-18-6 | DCGF24-24-8 | |||
Capacity(500ml) | 1000~1500bph | 2000~3000bph | 4000~5000bph | 7000~8000bph | |||
Bottle height | 150~340mm | 150~340mm | 150~340mm | 150~340mm | |||
Bottle diameter | Φ50-Φ110MM | Φ50-Φ110MM | Φ50-Φ110MM | Φ50-Φ110MM | |||
Bottle volume | 200ml-1500ml | 200ml-1500ml | 200ml-1500ml | 200ml-1500ml | |||
Rinsing pressure | 0.2～0.3Mpa | 0.2～0.3Mpa | 0.2~0.3Mpa | 0.2~0.3Mpa | |||
Rinsing water consumption | 0.5T/H | 0.5T/H | 0.5T/H | 0.5T/H | |||
Filling way | low temperature isobaric filling | ||||||
Filling pressure | ≤0.15Mpa | ||||||
Filling precision | ±2～3％ | ±2～3％ | ±2～3％ | ±2～3％ | |||
Power | 3ph,380V/50Hz,1.5Kw | 3ph,380V/50Hz,1.5Kw | 3ph,380V/50Hz,2.2Kw | 3ph,380V/50Hz,3Kw | |||
Overall size | 2100mm*1558mm*2100mm | 2400mm*1600mm*2400mm | 2400mm*1850mm*2400mm | 3100mm*220mm*2400mm | |||
Weight | 2000Kg | 3000Kg | 3500Kg | 4500Kg | |||
Video of test machine for Automatic Carbonated Drinks Filling Machine.
This video will show you how the Carbonated Drinks Filling machine works.

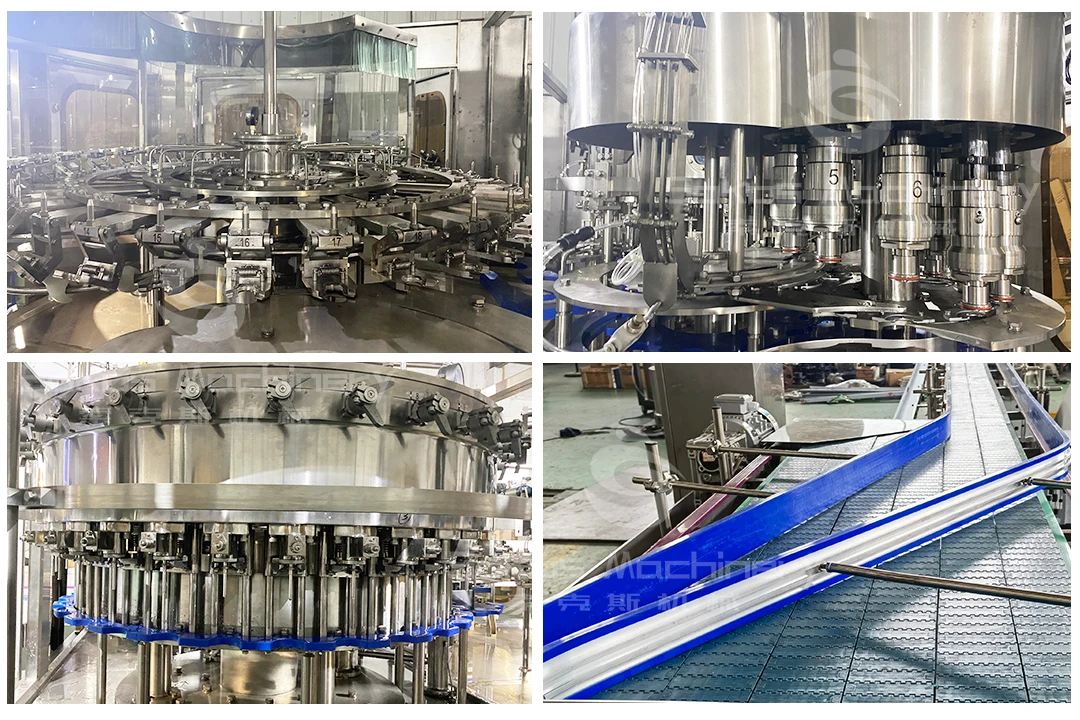

Washing Part:
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.

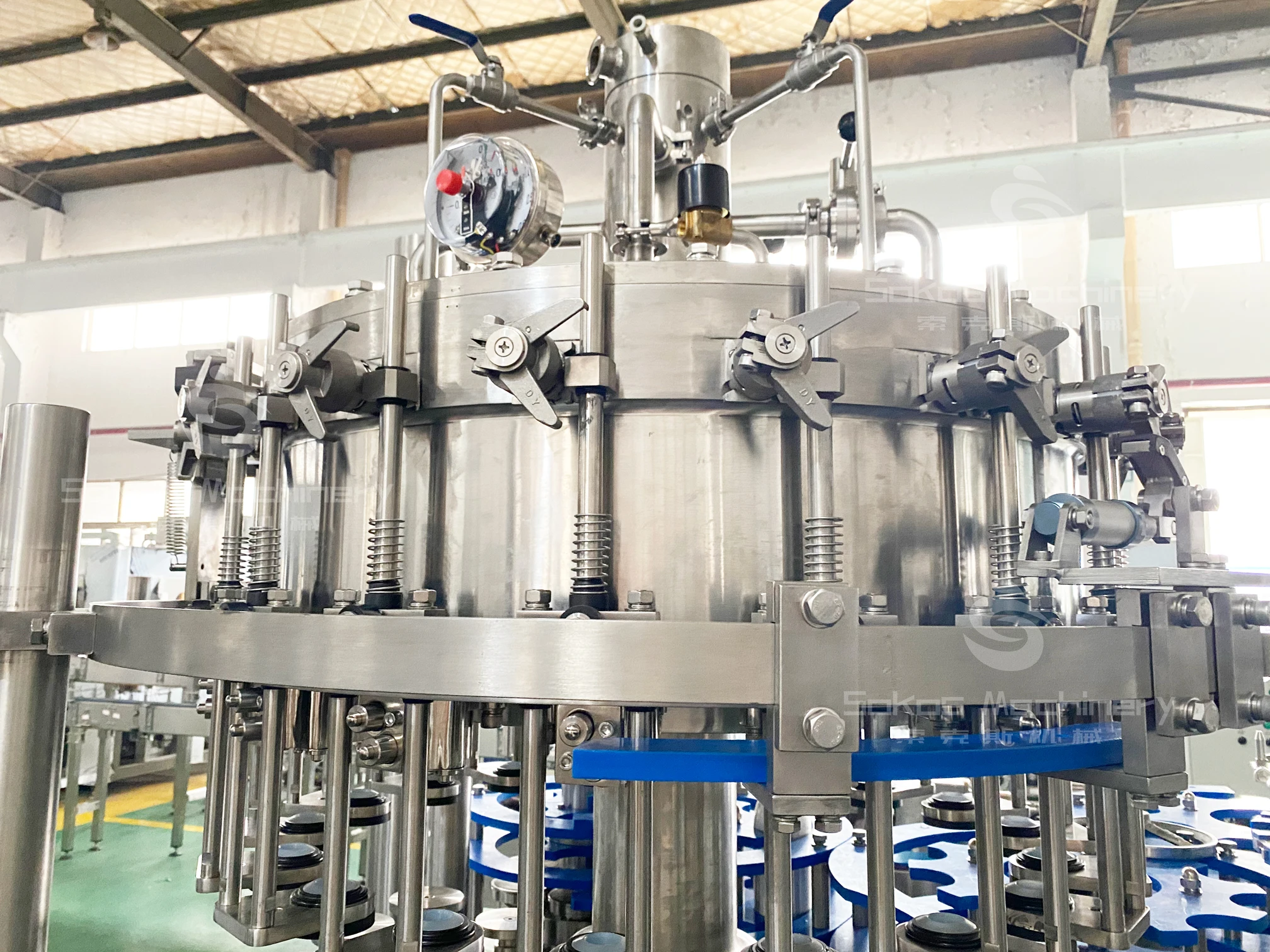

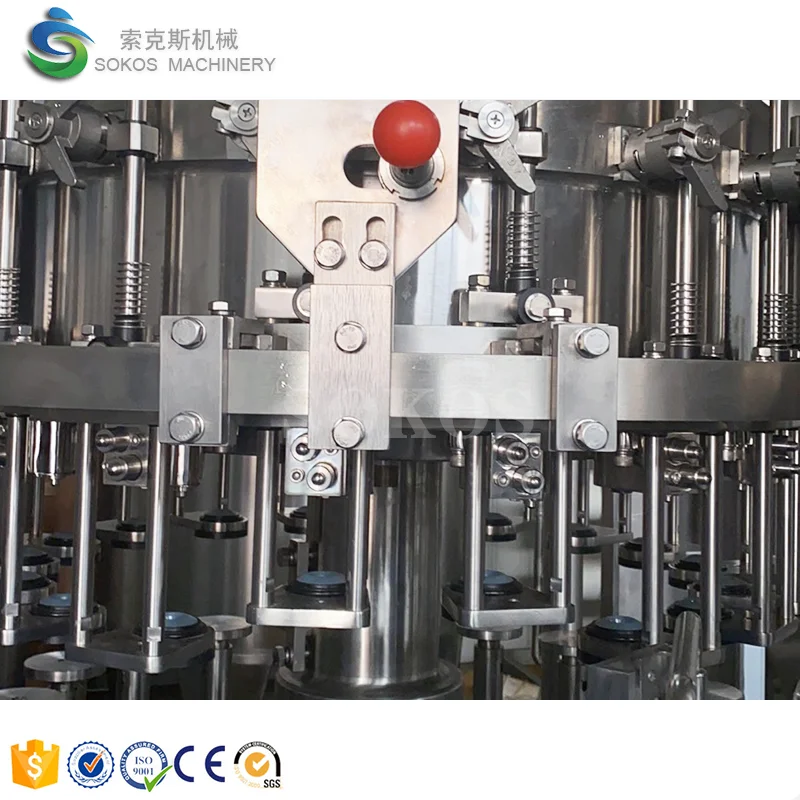

Filling Part:
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
Capping Part:
-All 304/316 stainless steel construction
- No bottle no capping
- Capping effect is stable and reliable, Defective rate ≤0.15%
- No bottle no capping
- Capping effect is stable and reliable, Defective rate ≤0.15%
