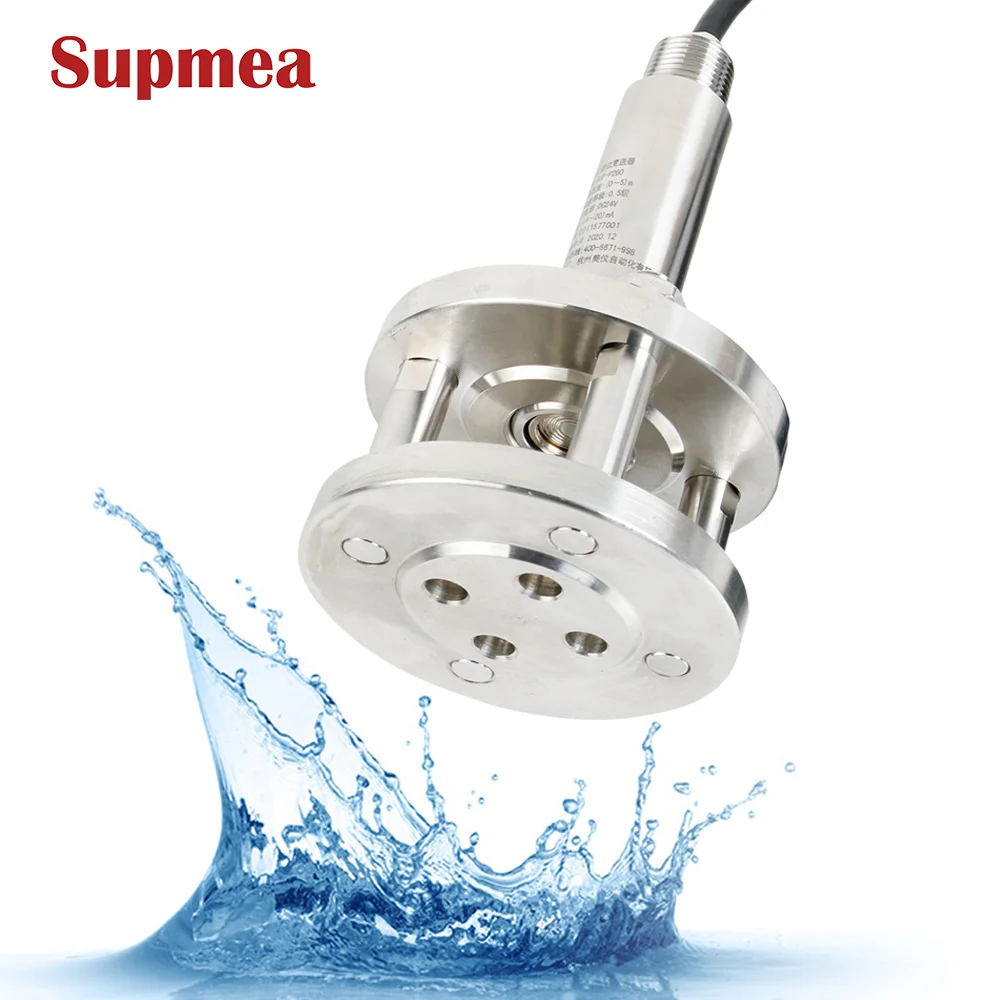

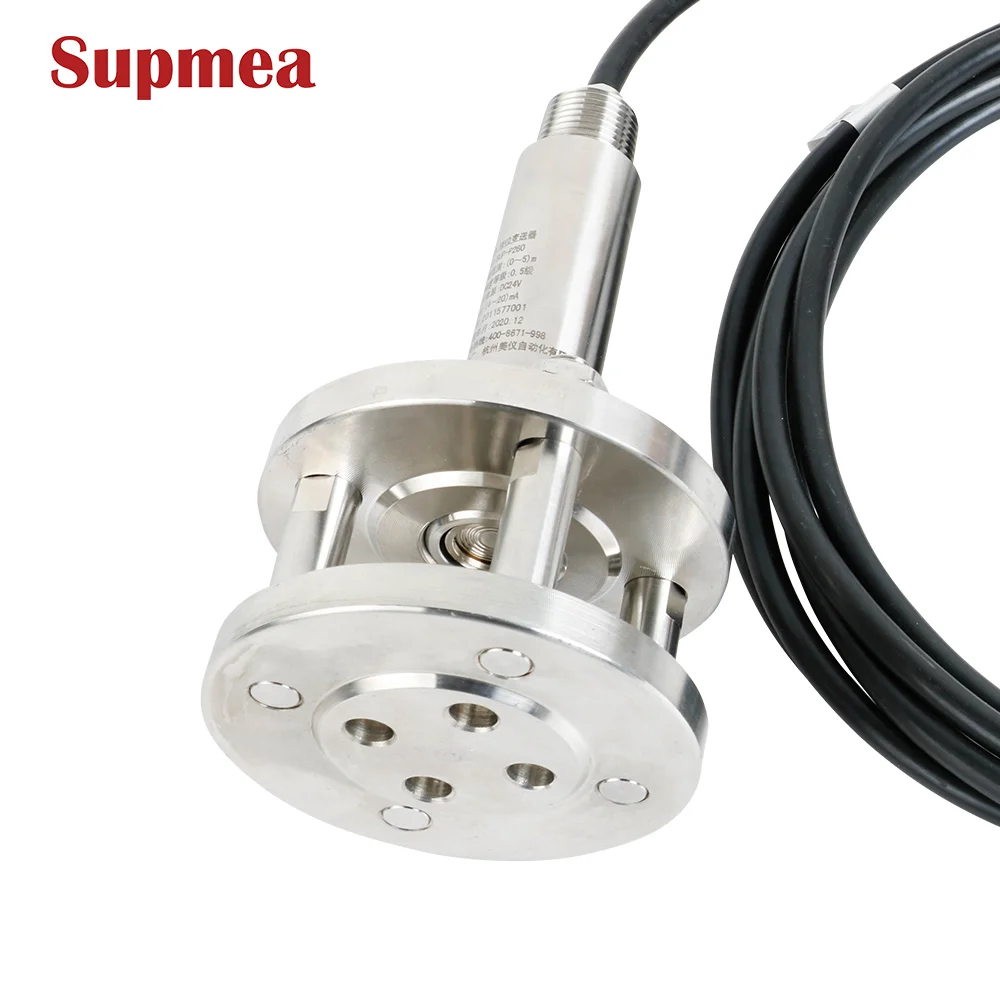

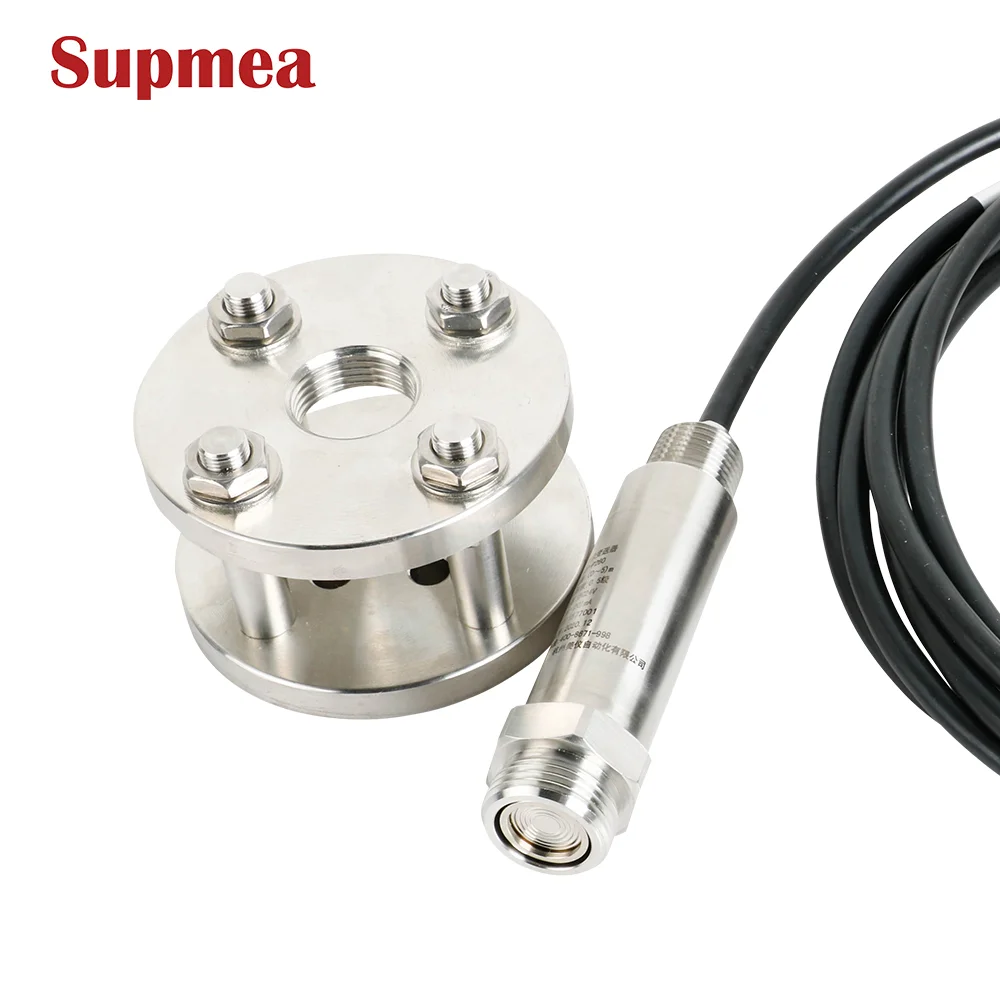

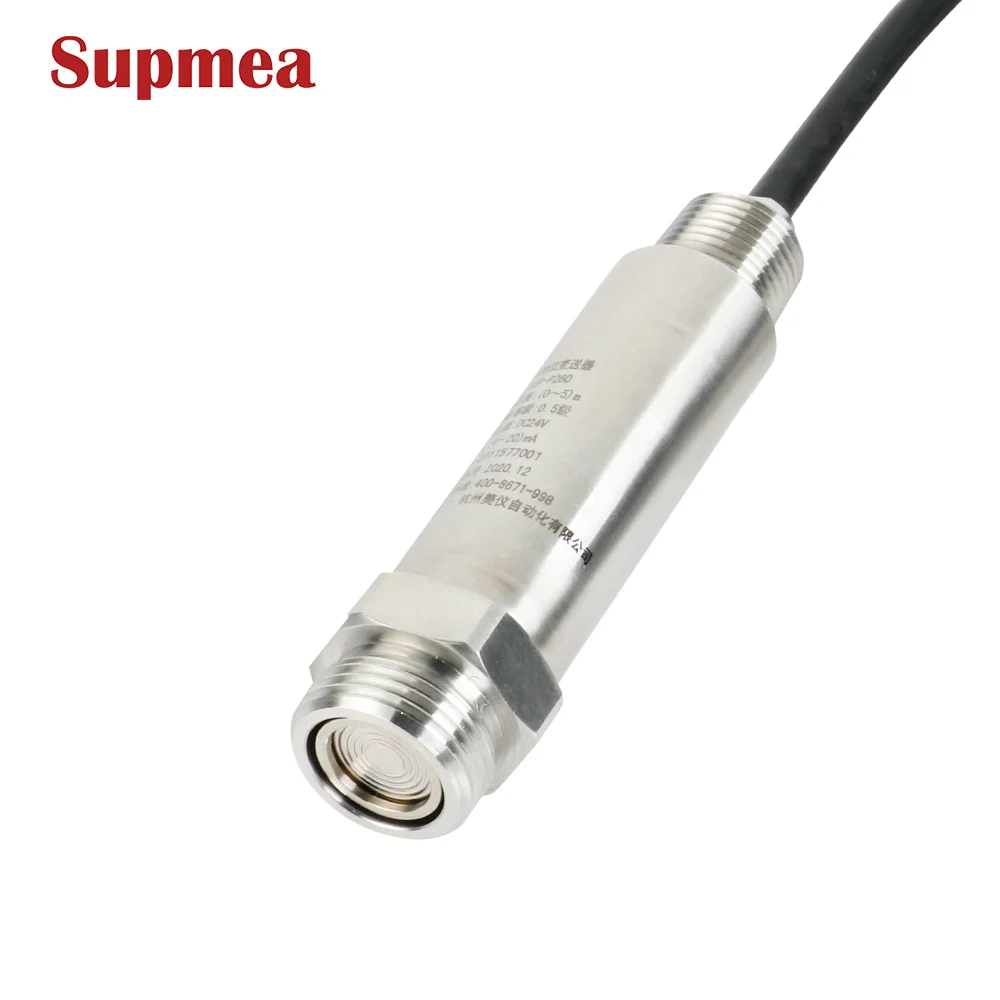

water level pressure transducer nivel tipo transmitter 4 20ma water level sensor for deep wells
- Category: >>>
- Supplier: Hangzhou Supmea International Trading Co. Ltd.
Share on (1600567812503):
Product Overview
Description
Products Description
Features
●Non-clogging and damage resistant to floating solids
●Durable 316 SS construction for reliable, long life in harsh environments
●1/2 inch NPT threaded connection, allows the unit to be installed in a pipe/conduit

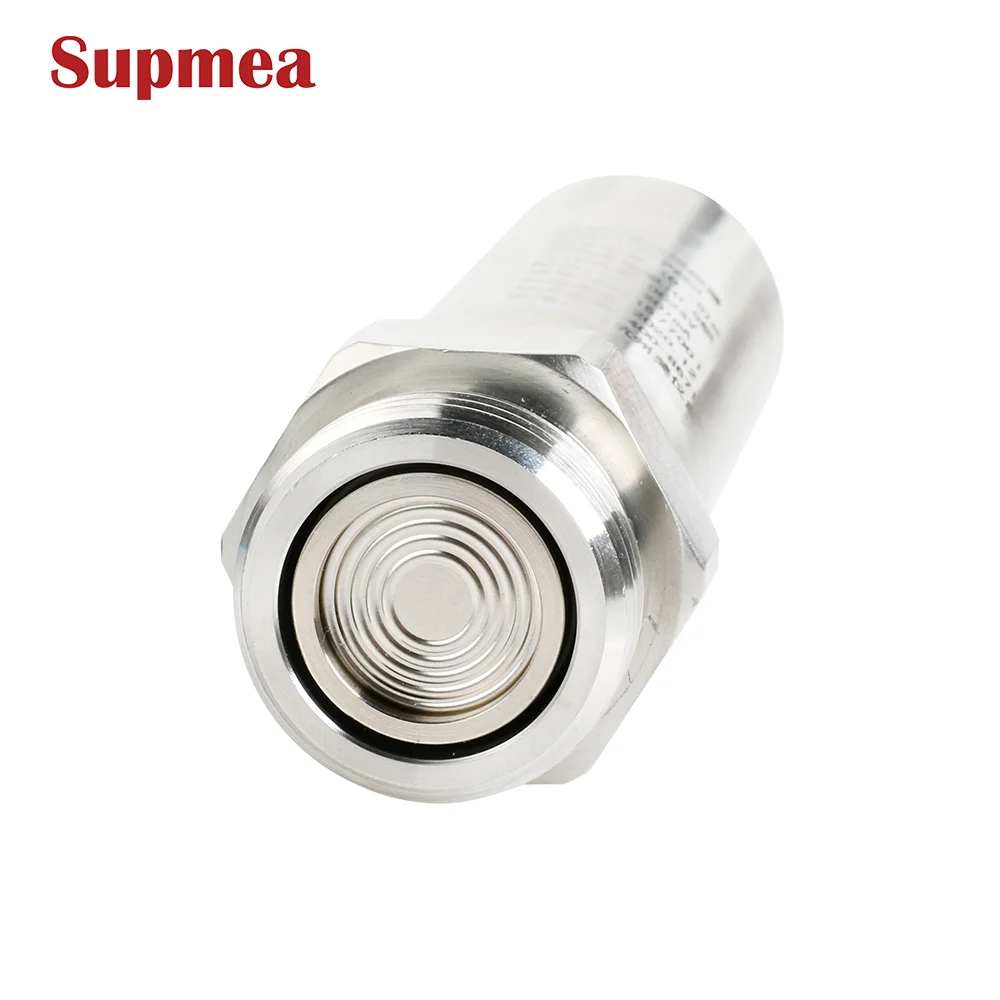

●Diaphragm is protected from physical damage and turbulence
●Added weight helps hold transmitter in place
●Excellent chemical compatibility for wide application use
Medium | Compatible liquids |
Measure range | 0m-0.5m-100m |
Overload pressure | ≤200%FS |
Pressure type | G（Gauge pressure），A（Absolute pressure） |
Accuracy | 0.2%，0.25%。0.5% |
Stability | ±0.1%FS/Year，±0.2%FS/Year |
Zero temperature drift | ±0.02%FS/℃，±0.03%FS/℃ |
Sensitivity drift | ±0.02%FS/℃，±0.03%FS/℃ |
Temp compensation | 0℃-50℃，-10℃-65℃ |
Medium temperature | -30℃-65℃ |
Power supply | 12VDC-30VDC |
Signal output | 4mA-20mA,0V-5V(Customized) |
Load Resistance | Current type：≤（U-12）/0.02(Ω) |
Ingress protection | IP68 |
Wetted Materials | Body: 304 SS, 316L SS; Cable: PE, PU, PTFE |
